1 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley Chapter 12 Introduction to ASP.NET

2 12-2 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 Overview of the.NET Framework.NET is a collection of technologies Run time environment Library Programming languages

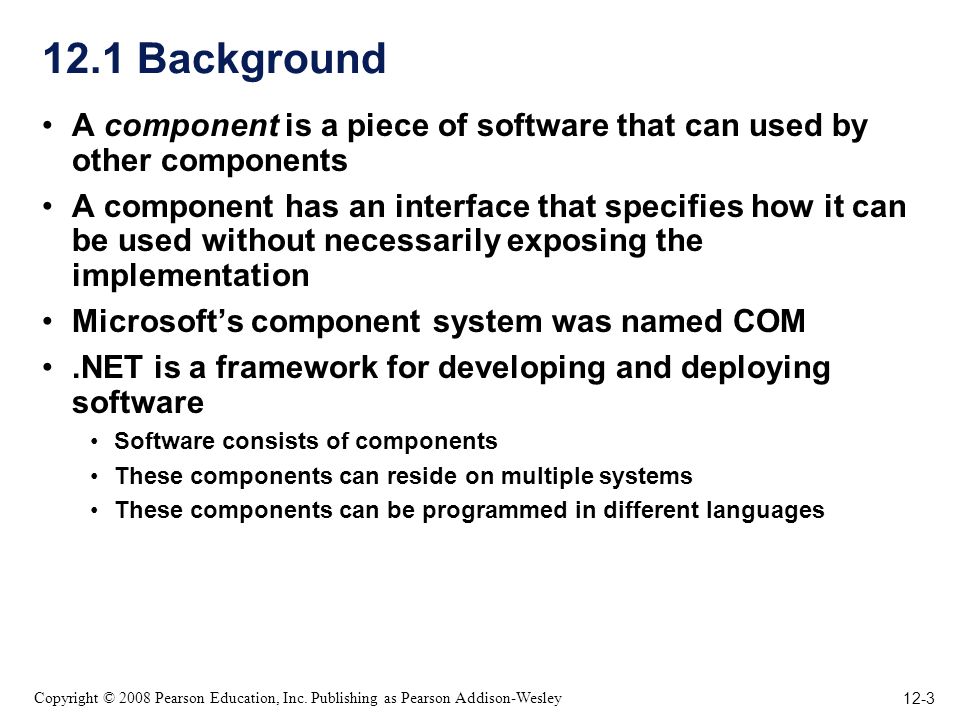

3 12-3 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 Background A component is a piece of software that can used by other components A component has an interface that specifies how it can be used without necessarily exposing the implementation Microsofts component system was named COM.NET is a framework for developing and deploying software Software consists of components These components can reside on multiple systems These components can be programmed in different languages

4 12-4 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1.NET Languages.NET initially included five languages Visual Basic.NET Managed C++.NET JScript.NET (similar to JavaScript) J#.NET (Similar to Java) C#.NET (A new language in the C/C++/Java family) Other languages have been added Including COBOL, Eiffel, Fortran, Perl Python

5 12-5 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 The Common Language Runtime CLR Services for processing and executing.NET software no matter what language Garbage collection Type checking Debugging Exception handling Compilers translate a.NET language in Intermediate Language (IL) The runtime system compiles IL on the fly to native machine code and executes that code The IL is not interpreted directly

6 12-6 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 The Common Language Infrastructure Two components Common Type System (CTS) Common Language Specification (CLS)

7 12-7 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 CTS CTS defines types supported by.NET languages Each type has a specified representation Integer types, for example, include Int32, 32-bit, signed integers.NET languages map their types into the CTS types C# type in maps to Int32 Two categories of CTS types Value types Reference types (an address of a memory location)

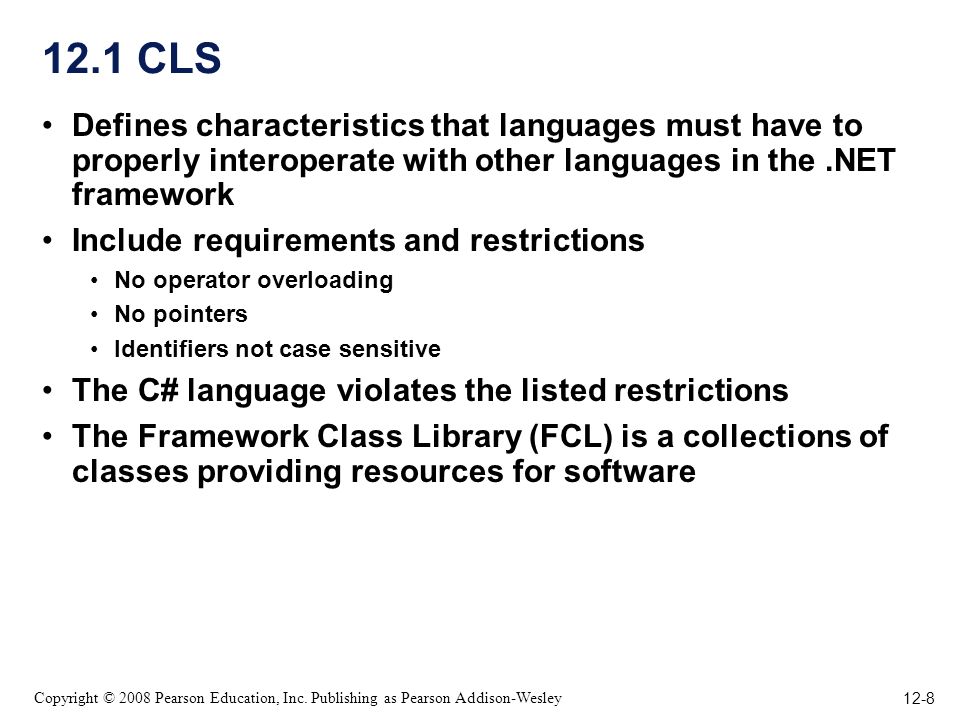

8 12-8 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 CLS Defines characteristics that languages must have to properly interoperate with other languages in the.NET framework Include requirements and restrictions No operator overloading No pointers Identifiers not case sensitive The C# language violates the listed restrictions The Framework Class Library (FCL) is a collections of classes providing resources for software

9 12-9 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 Introduction to C# C# has many similarities with Java

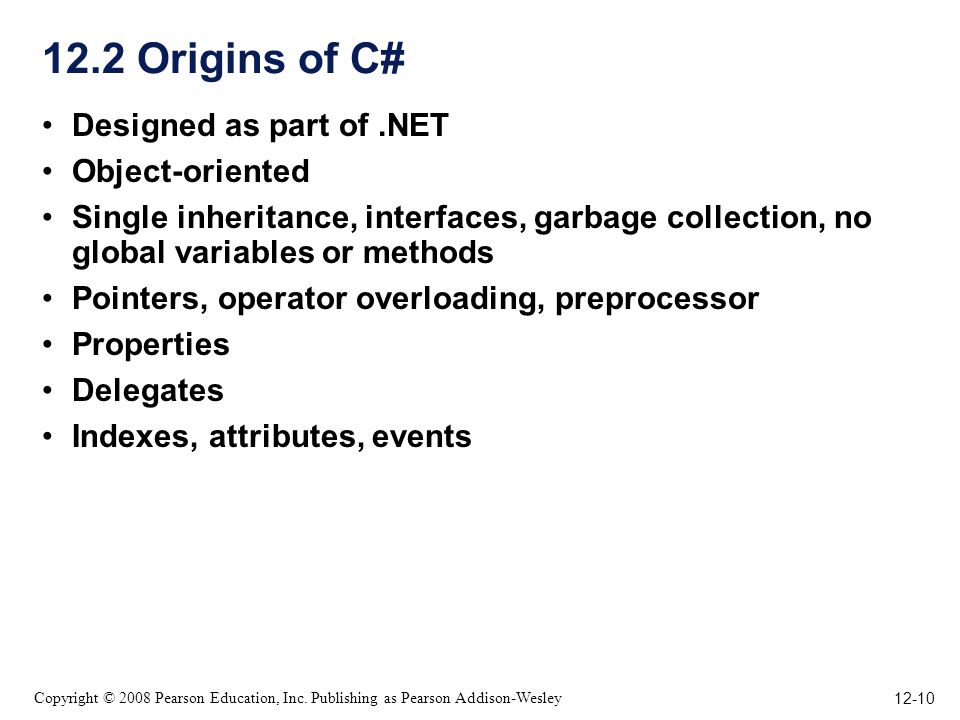

10 12-10 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Origins of C# Designed as part of.NET Object-oriented Single inheritance, interfaces, garbage collection, no global variables or methods Pointers, operator overloading, preprocessor Properties Delegates Indexes, attributes, events

11 12-11 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.1 Primitive Types and Expressions Unsigned integer types byte, ushort, uint, ulong Signed integer types sbyte, short, int, long Floating point types float, double bool decimal char

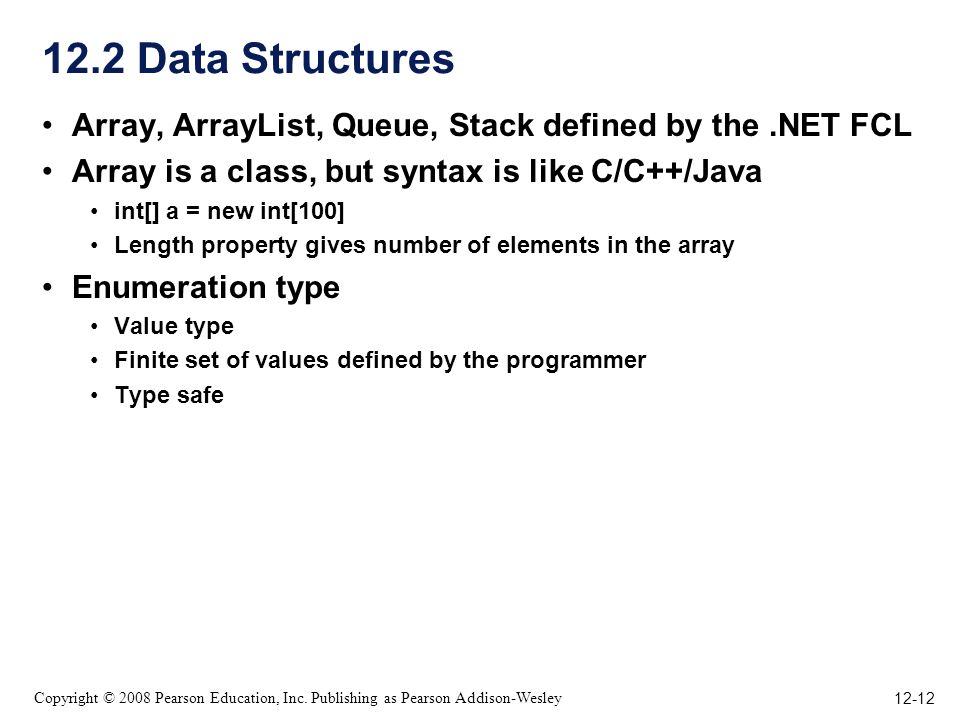

12 12-12 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Data Structures Array, ArrayList, Queue, Stack defined by the.NET FCL Array is a class, but syntax is like C/C++/Java int[] a = new int[100] Length property gives number of elements in the array Enumeration type Value type Finite set of values defined by the programmer Type safe

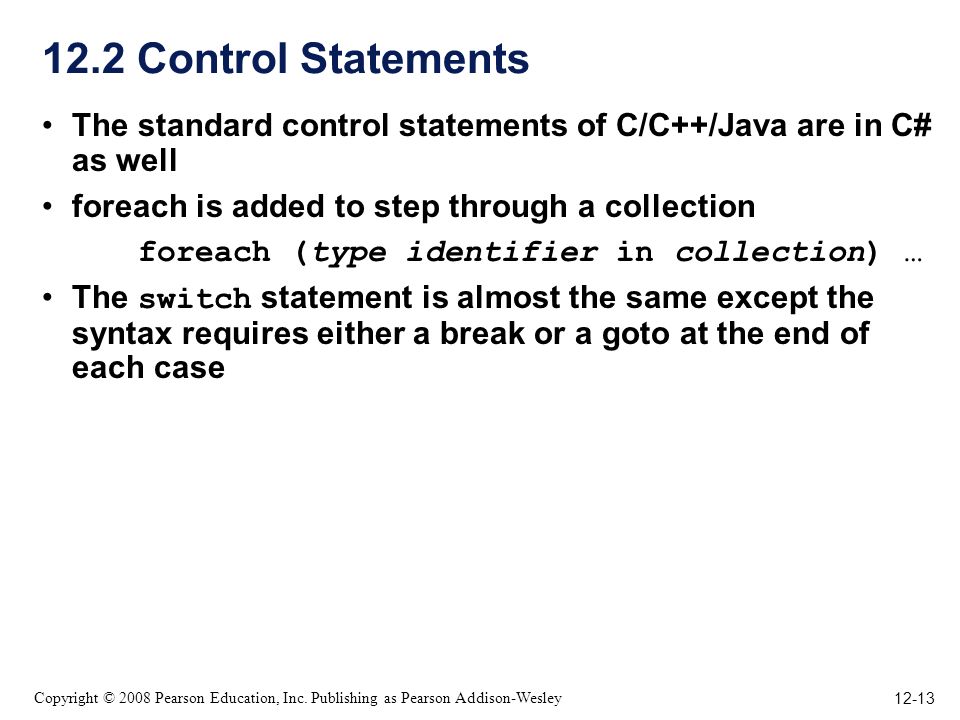

13 12-13 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Control Statements The standard control statements of C/C++/Java are in C# as well foreach is added to step through a collection foreach (type identifier in collection) … The switch statement is almost the same except the syntax requires either a break or a goto at the end of each case

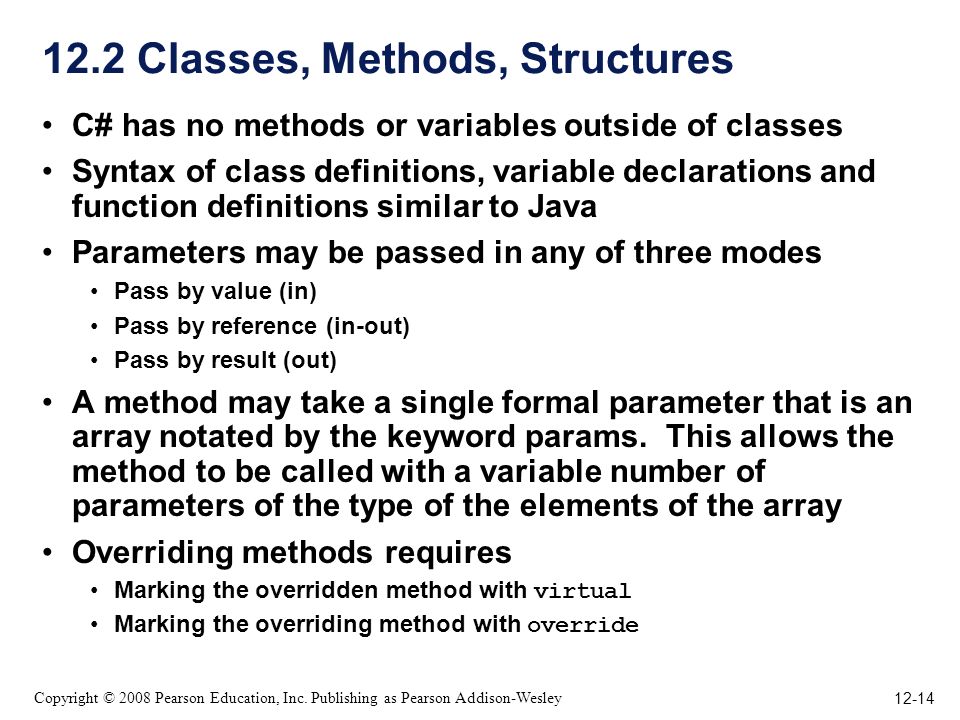

14 12-14 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Classes, Methods, Structures C# has no methods or variables outside of classes Syntax of class definitions, variable declarations and function definitions similar to Java Parameters may be passed in any of three modes Pass by value (in) Pass by reference (in-out) Pass by result (out) A method may take a single formal parameter that is an array notated by the keyword params. This allows the method to be called with a variable number of parameters of the type of the elements of the array Overriding methods requires Marking the overridden method with virtual Marking the overriding method with override

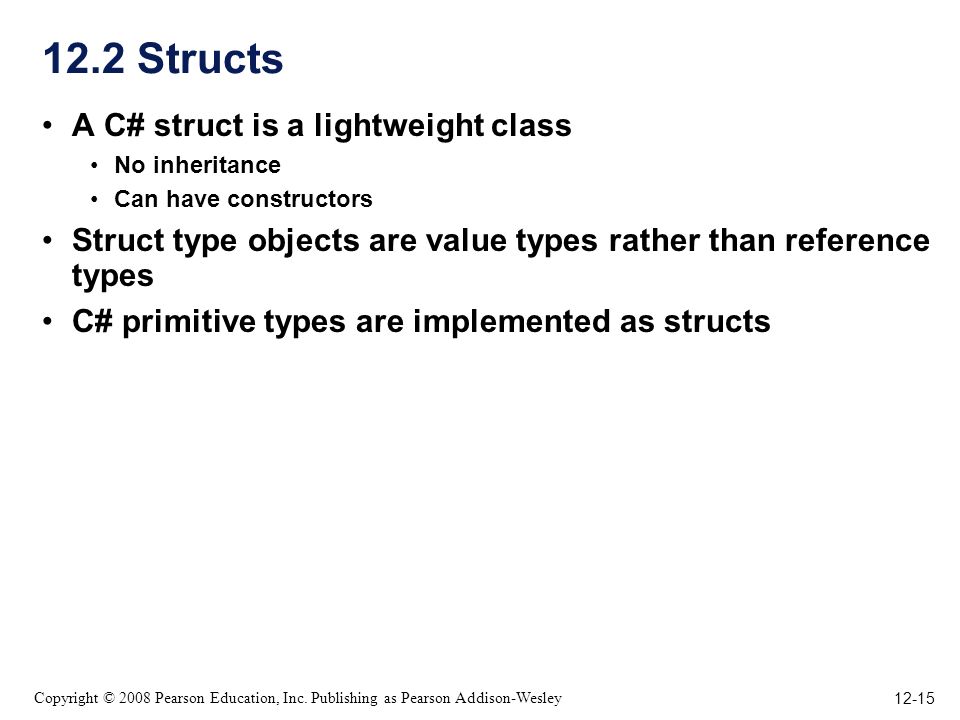

15 12-15 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Structs A C# struct is a lightweight class No inheritance Can have constructors Struct type objects are value types rather than reference types C# primitive types are implemented as structs

16 12-16 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Properties A property of a class acts as if it were an instance variable However, assignment to the property actually invokes a set method associated with the property Access to the property invokes a get method Either method may be omitted If the set method is omitted, assignments to the property are not allowed Methods may perform whatever checks or calculations are needed

17 12-17 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Delegates A delegate is a pointer to a method Methods may be subscribed to a delegate A delegate declaration specifies the protocol, or the signature, of methods that may be subscribed to the delegate Methods subscribed to the delegate may be called through the delegate

18 12-18 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 Program Structure The FCL is divided into numerous namespaces The most important namespace is System Input and output String manipulation Event handling Threading Collections System.Console is used for input and output to the console ReadLine WriteLine The using statement allows reference to members of a namespace without qualifying the references The main method of a program is Main Does not require parameters May return int or void

19 12-19 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.2 File Storage for Programs Multiple classes can be defined in a single source file Each class may have a Main method In that case, running a program must specify which Main is to start Source file names do not have to match the class name Visual Studio is the usual vehicle for developing.NET programs Programs can, however, be developed with any text editor The stackClass.cs file defines two classes

20 12-20 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Introduction to ASP.NET

21 12-21 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Basics of ASP.NET Active Server Pages Building dynamic web documents The predecessor, ASP, embedded interpreted scripting languages in XHTML This approach has performance problems It is difficult to divide up the development to different skill sets ASP.NET is similar The embedded languages allowed are the.NET languages All code is compiled ASP.NET documents extend the System.Web.UI.Page class Request and Response objects HTMLControls, WebControls IsPostBack

22 12-22 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Page Members The Write method in Response sends output to the response document IsPostBack tells whether the current process is the original request for the page or a subsequent request with information from the initial page

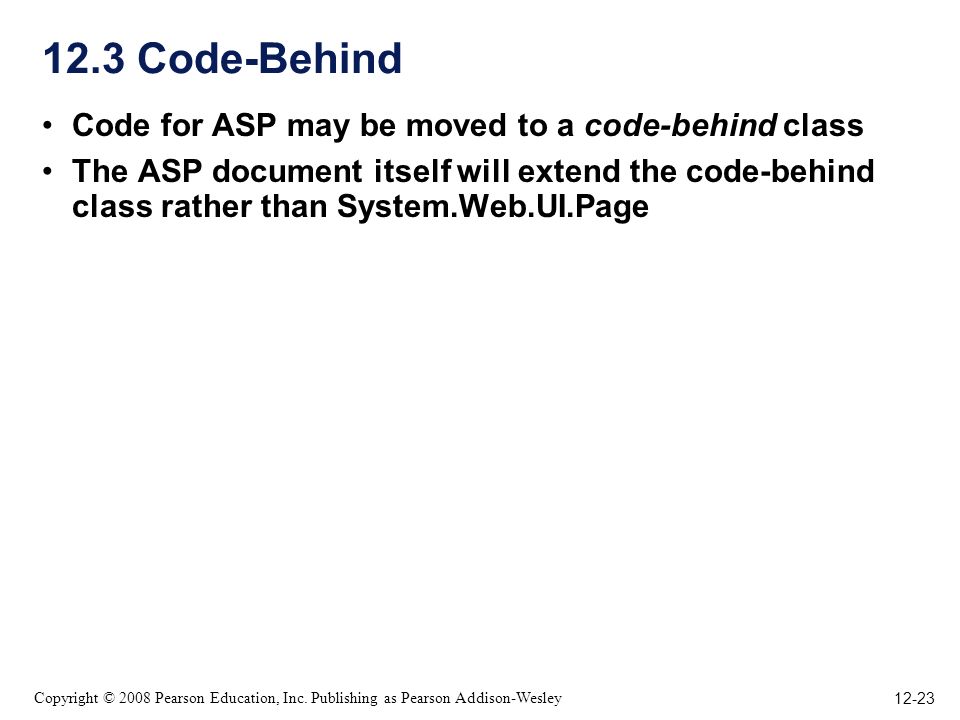

23 12-23 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Code-Behind Code for ASP may be moved to a code-behind class The ASP document itself will extend the code-behind class rather than System.Web.UI.Page

24 12-24 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 ASP.NET Documents Documents can include XHTML Directives Render Blocks Programming code in script elements Cannot define subprograms Program code in script elements Declare variables, define methods Server side comments

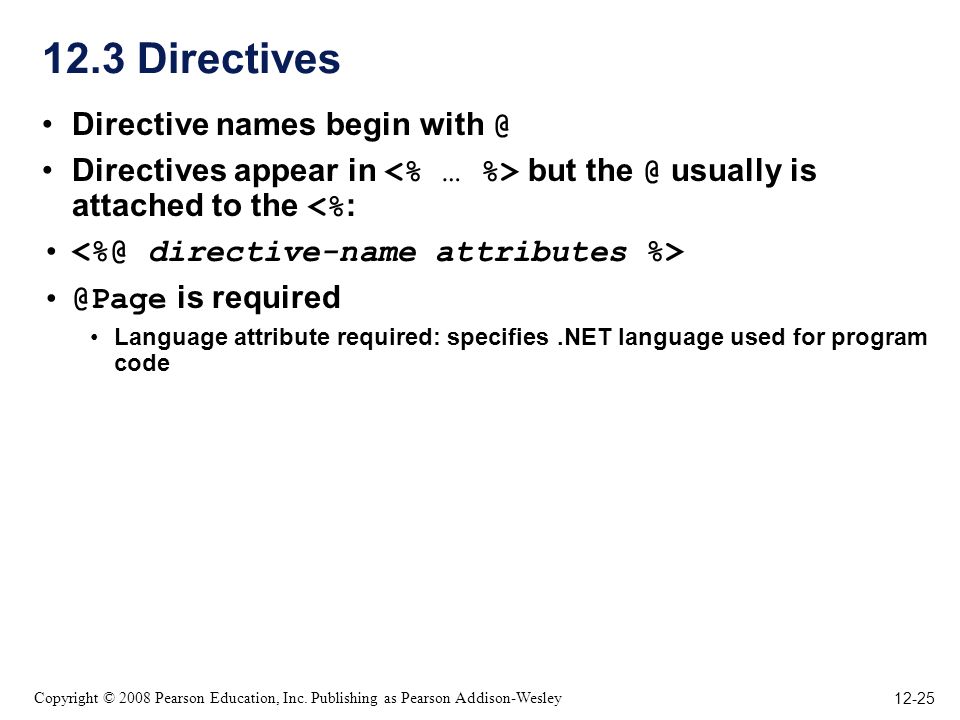

25 12-25 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Directives Directive names begin with @ Directives appear in but the @ usually is attached to the <% : @Page is required Language attribute required: specifies.NET language used for program code

26 12-26 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Output to XHTML Document Use Response.Write method Takes a string parameter Include markup since the target is an XHTML document The string.Format method can be used to format output

27 12-27 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Example The ex1.aspx example creates an array of random numbers and displays them in the response page A on object of class Random is created to generate numbers Method Next generates the next number None or one or two parameters Two parameter form used, result is in range n…m-1 A script element in the header declares three variables and defines a method The render block in the body references these definitions and creates the dynamic part of the response Static XHTML is sent as part of the response unchanged

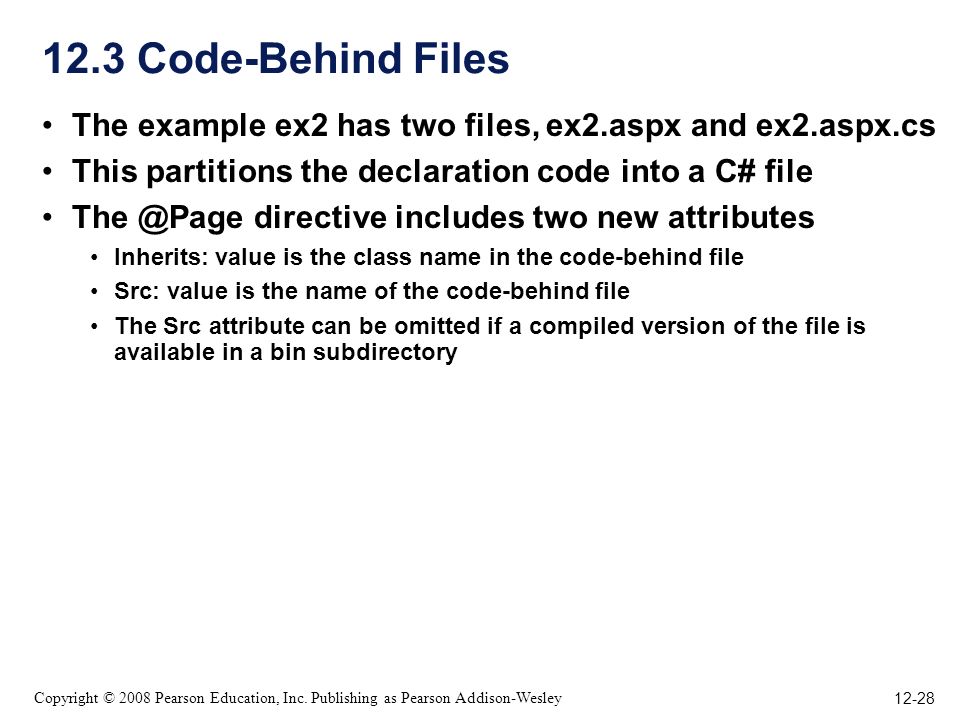

28 12-28 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.3 Code-Behind Files The example ex2 has two files, ex2.aspx and ex2.aspx.cs This partitions the declaration code into a C# file The @Page directive includes two new attributes Inherits: value is the class name in the code-behind file Src: value is the name of the code-behind file The Src attribute can be omitted if a compiled version of the file is available in a bin subdirectory

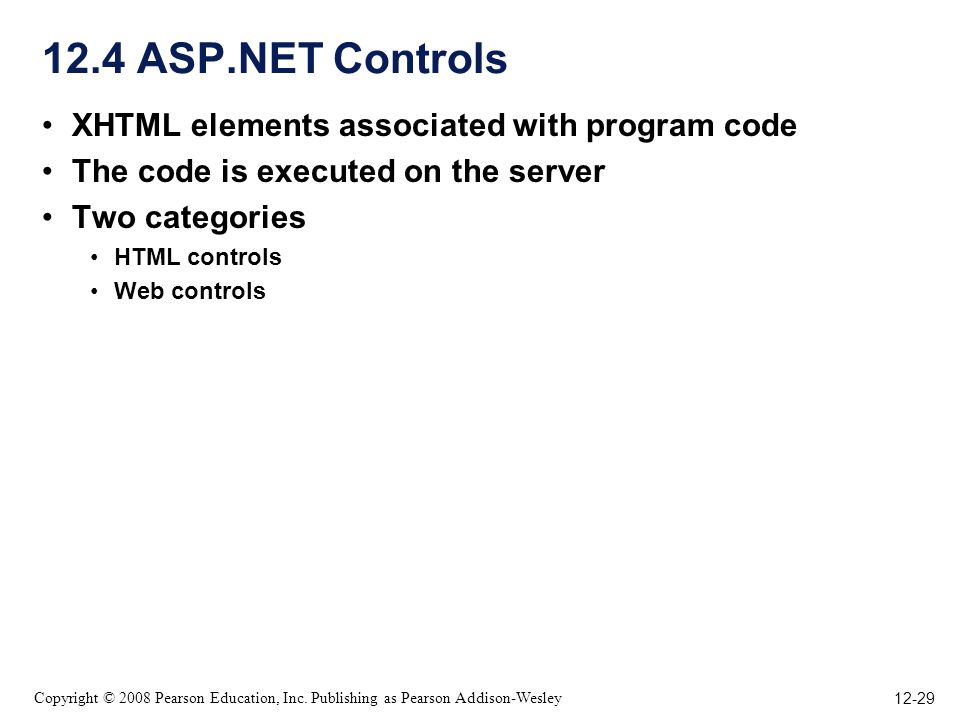

29 12-29 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 ASP.NET Controls XHTML elements associated with program code The code is executed on the server Two categories HTML controls Web controls

30 12-30 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 HTML Controls HTML controls are based on elements of XHTML pages The appearance and functionality of these elements can be changed as the server executes Executable code can be associated with the controls Certain controls can raise events ServerClick : control was clicked ServerChange : control content was changed HTML elements become HTML controls if They are on the list associated with controls (Table 12.2) The runat attribute has the value server

31 12-31 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Controls and Code Note the runat attribute in the following XHTML: There is a corresponding instance variable in the code generated from this protected HtmlInputText address; There is no action attribute in the form: the ASP document defines the actions that result from submitting the form

32 12-32 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Control Objects Controls are represented as objects in the code generated from ASP Control classes inherit from HtmlControl deriving properties and methods Attributes property provides tag attributes as name/value pairs The Href property is defined by the HtmlAnchor class An XHTML tag can be designated as an HTML control by simply adding the runat attribute with the value server

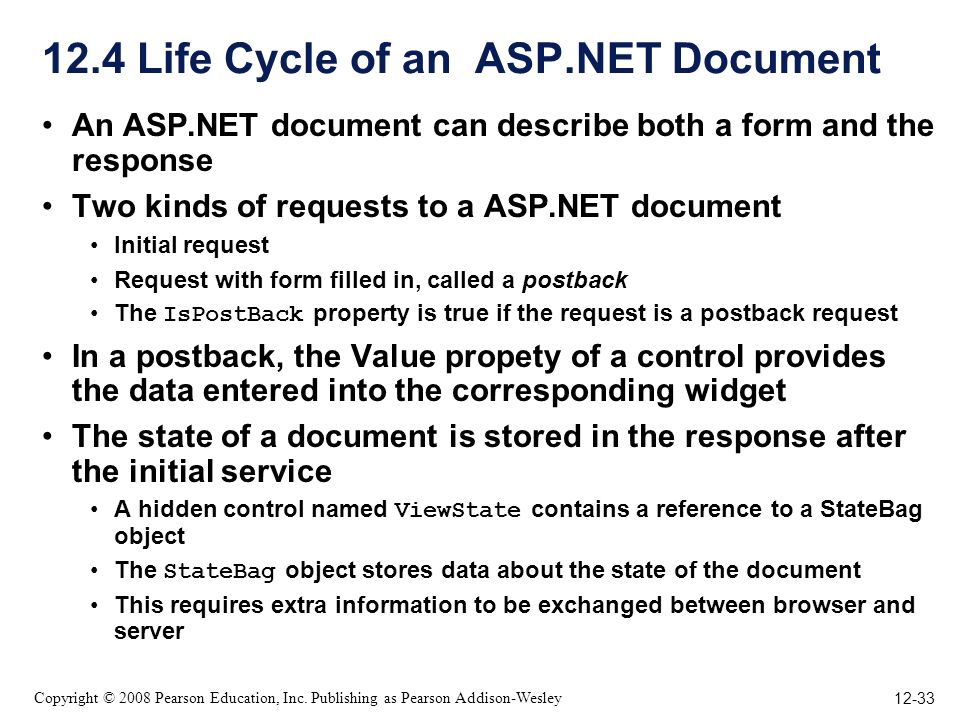

33 12-33 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Life Cycle of an ASP.NET Document An ASP.NET document can describe both a form and the response Two kinds of requests to a ASP.NET document Initial request Request with form filled in, called a postback The IsPostBack property is true if the request is a postback request In a postback, the Value propety of a control provides the data entered into the corresponding widget The state of a document is stored in the response after the initial service A hidden control named ViewState contains a reference to a StateBag object The StateBag object stores data about the state of the document This requires extra information to be exchanged between browser and server

34 12-34 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 10.4 Life Cycle A request is received A document object is created and initialized ViewState is initialized The document is sent The client sends a request back A document object is created and initialized with form data, including ViewState Form data is used to update the state of the document object ViewState is updated The program can directly set name/value pairs in ViewState before this point A response is returned

35 12-35 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 10.4 Postback Sources Clicking a submit button will cause a postback If the AutoPostBack property is set to true, a postback will occur when a change is made to a control

36 12-36 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Page Level Events Two levels of events raised during processing Control events ( ServerClick, Server Change ) Page-level events Init: after document class instantiated Load: after state set from form data PreRender: before instance is executed Unload: before instance is discarded Implementing page-level event handling Controlled by AutoEventWireup, default true Which means use predefined method name by default Implement predefined method names ( Page_unload, Page_load, …) Override the virtual handlers

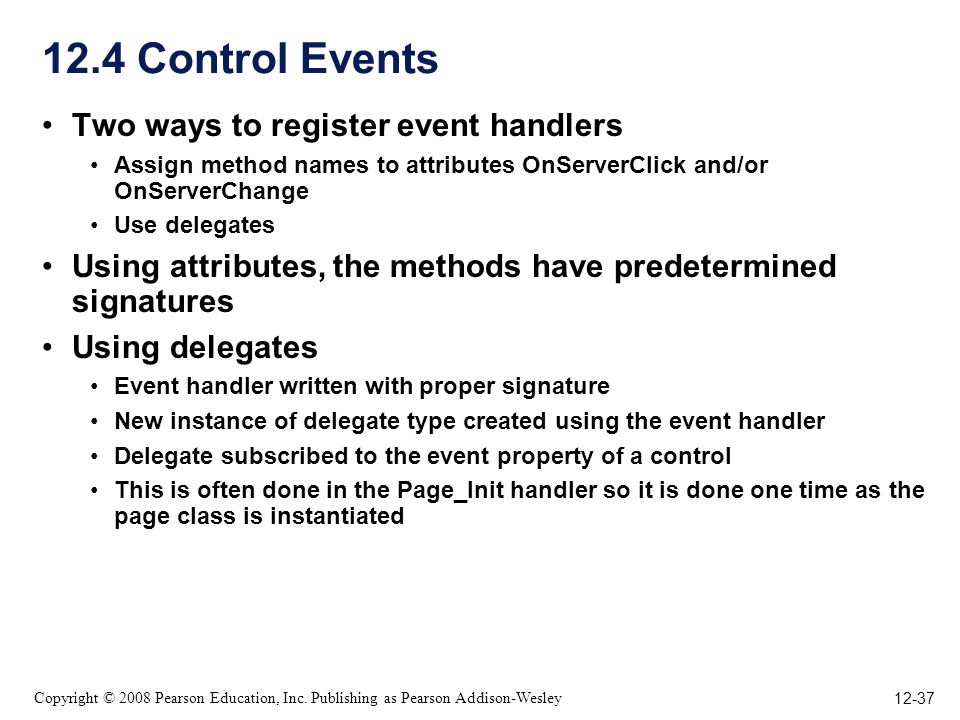

37 12-37 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Control Events Two ways to register event handlers Assign method names to attributes OnServerClick and/or OnServerChange Use delegates Using attributes, the methods have predetermined signatures Using delegates Event handler written with proper signature New instance of delegate type created using the event handler Delegate subscribed to the event property of a control This is often done in the Page_Init handler so it is done one time as the page class is instantiated

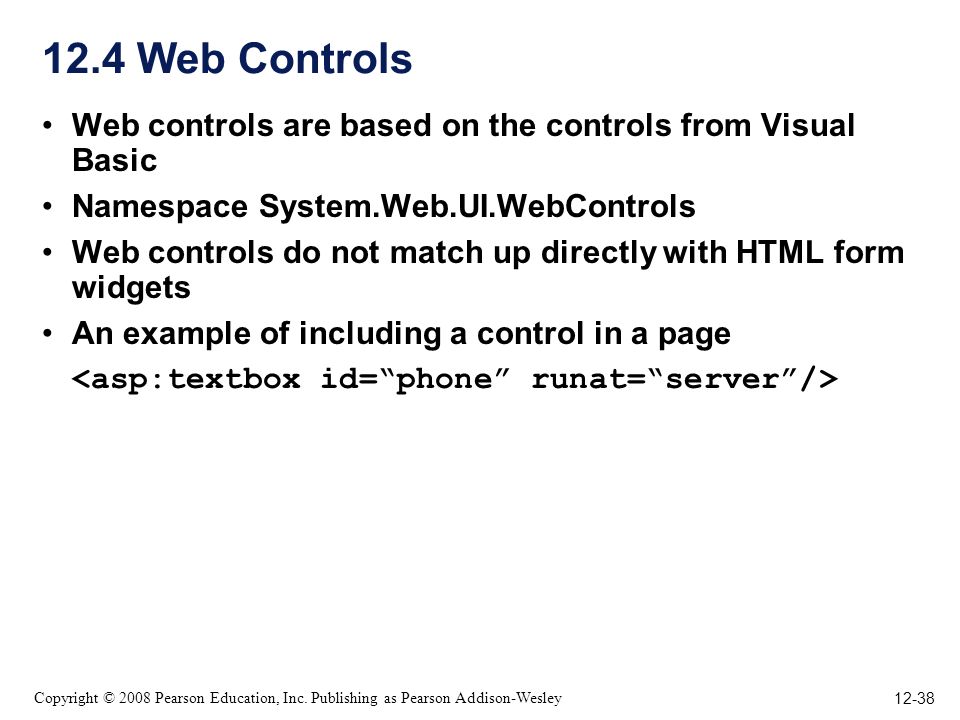

38 12-38 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Web Controls Web controls are based on the controls from Visual Basic Namespace System.Web.UI.WebControls Web controls do not match up directly with HTML form widgets An example of including a control in a page

39 12-39 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Some Web Controls Panel organizes other controls AdRotator produces different content on different requests ListControl has four subclasses DropDownList ListBox CheckBoxList RadioButtonList

40 12-40 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Creating Control Elements in Code A control can be created with { "@context": "http://schema.org", "@type": "ImageObject", "contentUrl": "http://images.slideplayer.com/2/684499/slides/slide_40.jpg", "name": "12-40 Copyright © 2008 Pearson Education, Inc.", "description": "Publishing as Pearson Addison-Wesley 12.4 Creating Control Elements in Code A control can be created with

41 12-41 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Response Output for Controls Response.Write does not place text properly when intermixed with controls Using a label is an alternative in order to place text This can be filled in later in the code <% string msg = string.Format( "The result is {0} ", result); output.Text = msg; %>

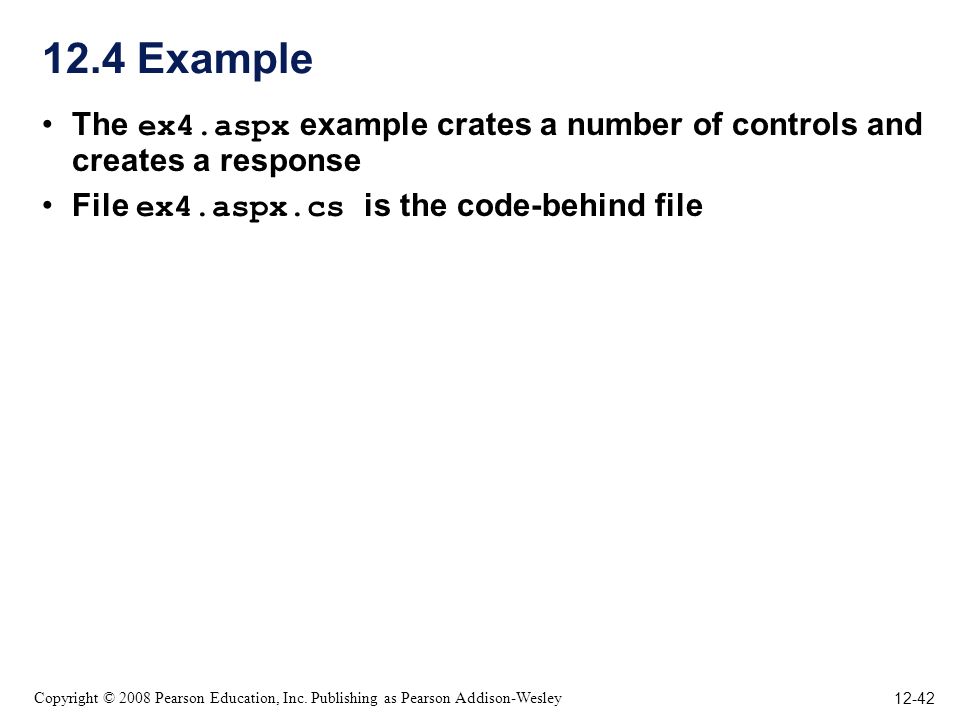

42 12-42 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Example The ex4.aspx example crates a number of controls and creates a response File ex4.aspx.cs is the code-behind file

43 12-43 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.4 Validation Controls Validation controls validate data entered from other controls Server side validation is an important component of security These controls are placed immediately after the control whose input is being validated Four common validation controls RequiredFieldValidator CompareValidator RangeValidator RegularExpresionValidator Example ex5.aspsx illustrates three of these One field is required One field (a phone number) must match a regular expression pattern One field must be in a specific range of values

44 12-44 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.5 Web Services A collection of one or more related methods that can be called by remote systems.NET provides support for constructing and advertising web services

45 12-45 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.5 Constructing Web Services A document with extension.asmx is created This may simply have a WebService directive spcifying a codebehind file The web service is implemented as a class that extends System.Web.Services.WebService The web service should be place in a developer defined namespace in order to avoid conflicts Some methods of the class will be tagged with [WebMethod] to indicate that they are available as part of the web service Once a service is published, aspects of it can be viewed using Internet Explorer

46 12-46 Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 12.5 Advertising Web Services Two approaches to making a web service known to potential clients A web services discovery document A web services directory written with UDDI
