1 GHSGT SCIENCE REVIEW

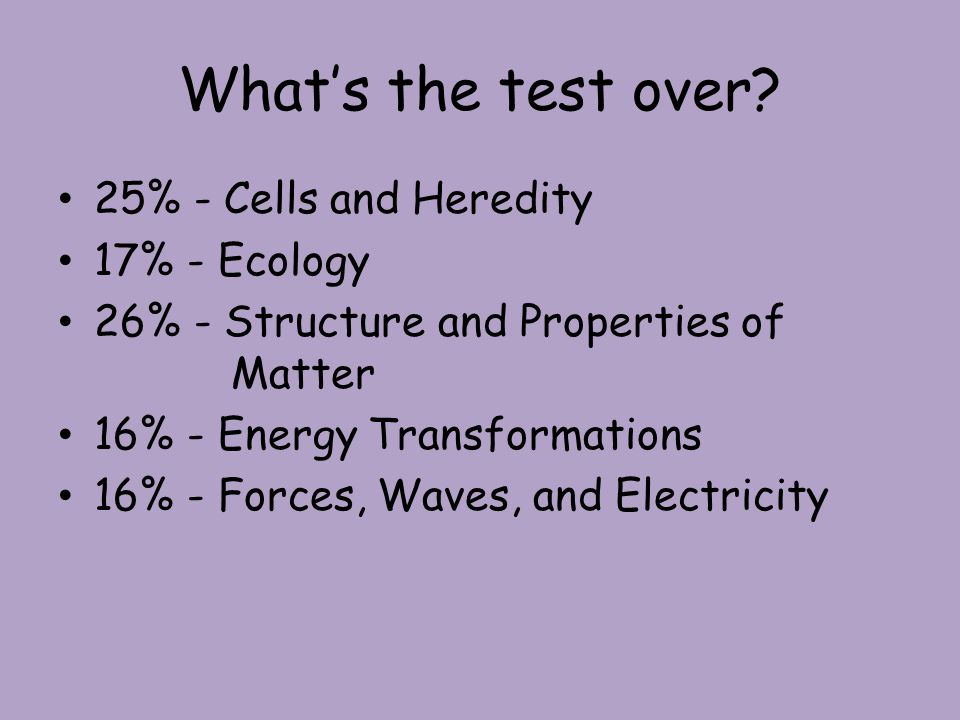

2 What’s the test over? 25% - Cells and Heredity 17% - Ecology 26% - Structure and Properties of Matter 16% - Energy Transformations 16% - Forces, Waves, and Electricity

3 ATOMIC STRUCTURE & PERIODIC TABLE

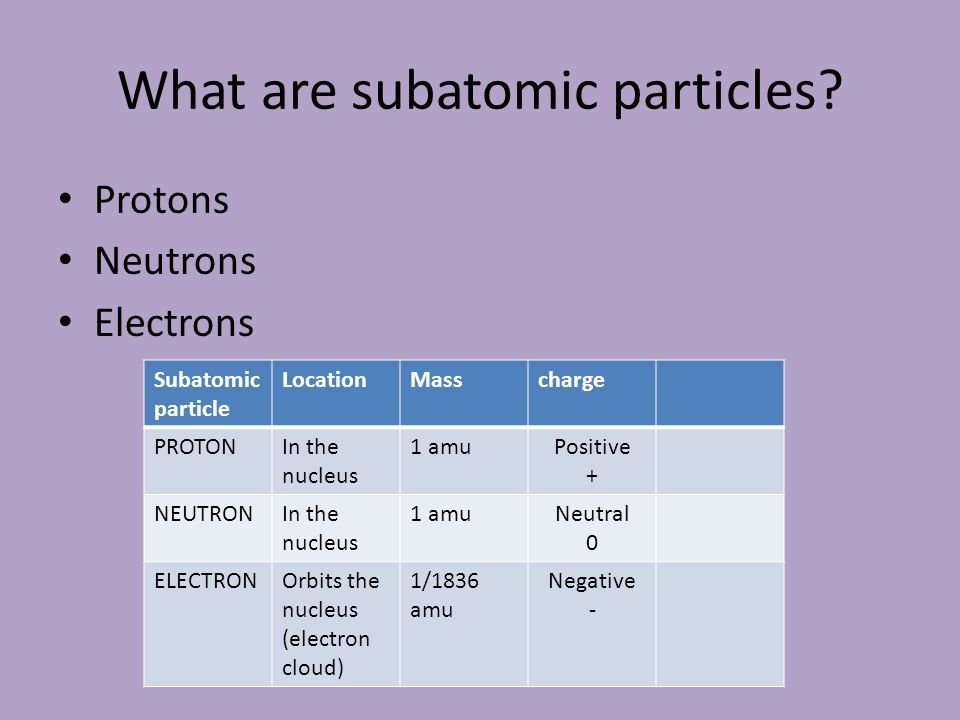

4 What are subatomic particles? Protons Neutrons Electrons Subatomic particle LocationMasscharge PROTONIn the nucleus 1 amuPositive + NEUTRONIn the nucleus 1 amuNeutral 0 ELECTRONOrbits the nucleus (electron cloud) 1/1836 amu Negative -

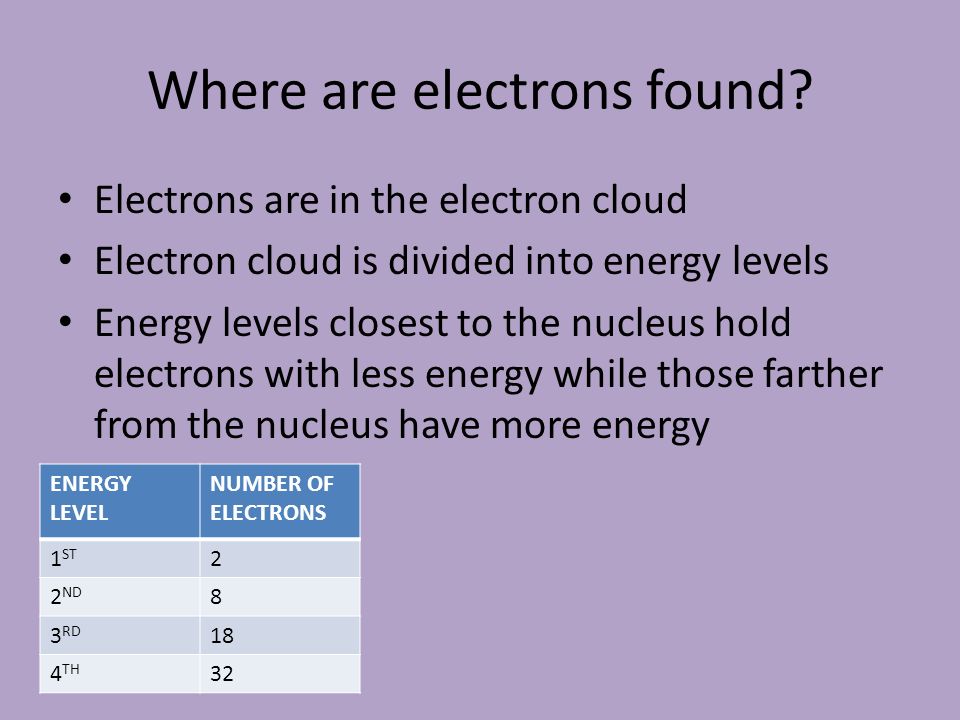

5 Where are electrons found? Electrons are in the electron cloud Electron cloud is divided into energy levels Energy levels closest to the nucleus hold electrons with less energy while those farther from the nucleus have more energy ENERGY LEVEL NUMBER OF ELECTRONS 1 ST 2 2 ND 8 3 RD 18 4 TH 32

6 ATOMS:

7 BOHR MODELS OF ATOMS

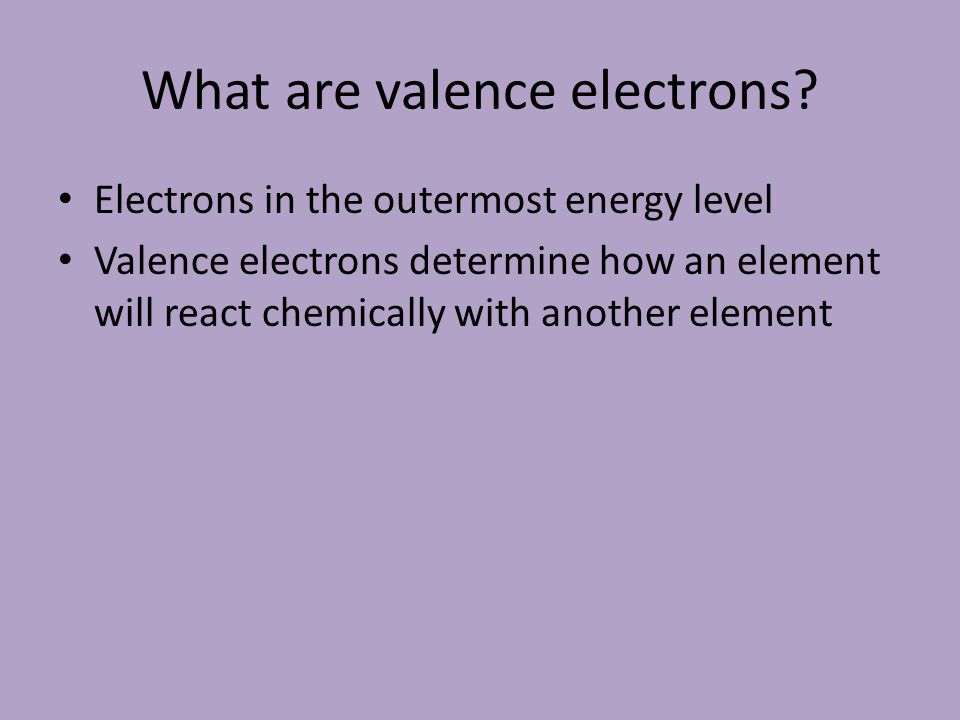

8 What are valence electrons? Electrons in the outermost energy level Valence electrons determine how an element will react chemically with another element

9 How can the number of valence electrons an atom has be determined? Look at the column the element is in on the periodic table. Column 1 = 1 valence electron Column 2 = 2 valence electrons Column 13 = 3 valence electrons (can never have more that 8 valence electrons) Column 17 = 7 valence electrons

10 PERIODIC TABLE

11 What is the atomic number of an element? Atomic number is the number of protons in an atom of a particular element How do you find the atomic number on the periodic table? – It is the whole number

12 How many protons? Carbon_____Neon _____ Sodium_____Lithium_____

13 How can you find the number of electrons in an atom? The number of electrons will be the same as the number of protons (atomic number) (whole number) as long as the atom does not have a charge. How many electrons? Carbon_____Neon _____ Sodium_____Lithium_____

14 What is an isotope? Isotopes are atoms of the same element that have the same number of protons but different numbers of neutrons EX: C-12 and C-14 are isotopes

15 Examples of isotopes C-12: protons 6 neutrons +_6__ atomic mass12 C-14: protons 6 neutrons +_8__ atomic mass14

16 What is the atomic mass? The average mass of all the isotopes of an element. How can you look at the periodic table and tell the atomic mass? – It is the number with digits behind the decimal (NOT the whole number) – EX: Atomic mass for: Carbon _________ Lithium_________ Neon__________ Sodium_________

17 How can you tell the number of neutrons an atom has? The atomic mass rounded off is the number of protons plus the number of neutrons. To get the number of neutrons: round of the atomic mass and subtract the atomic number from it (remember: round of the bigger number and subtract the smaller number to get neutrons) EX: Na 23 – 11 = 12 (number of neutrons) Atomic mass – Atomic number = Neutrons

18 What is the number of neutrons in the following? Carbon _________Neon________ Lithium_________Sodium________

19 What is a family on the periodic table? A vertical column Each family consists of element with similar properties AKA: Groups

20 Alkali Metals

21 Alkaline Earth Metals

22 Transition Metals

23 Boron Family

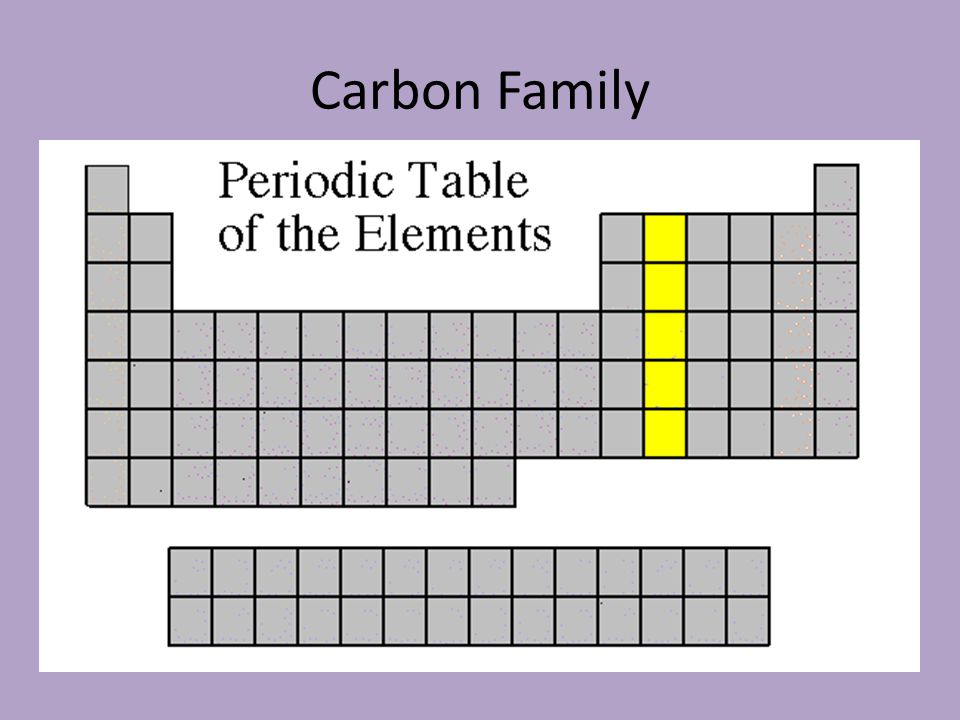

24 Carbon Family

25 Nitrogen Family

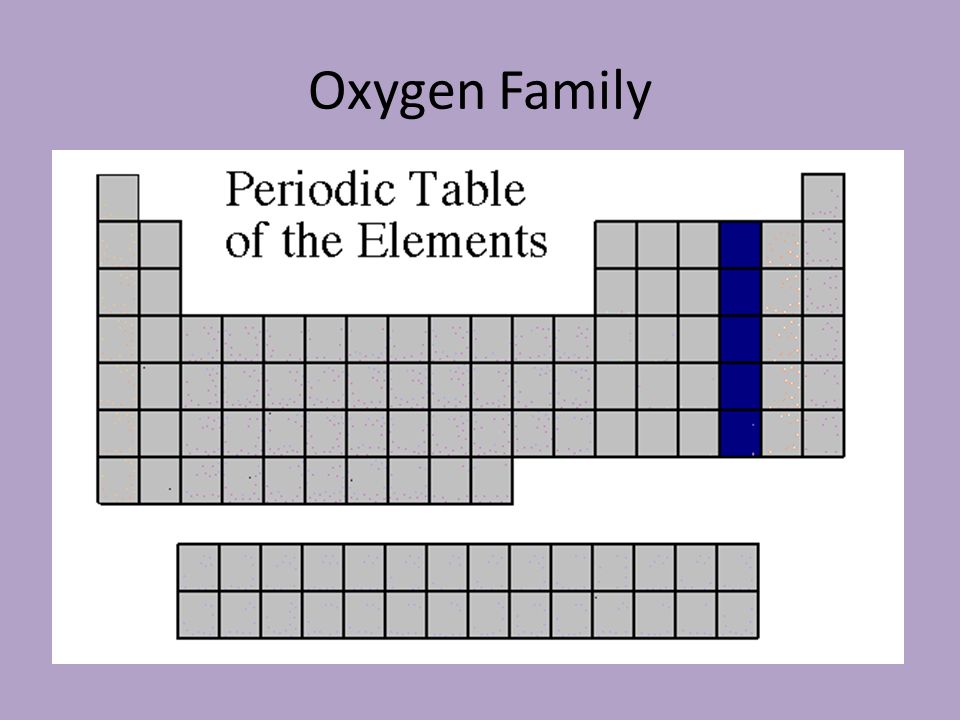

26 Oxygen Family

27 Halogens

28 Nobel Gases

29 Lanthanides & Actinides

30 What is a period on the periodic table? A horizontal row There are 7 periods on the periodic table

31 What is special about a period? All the elements within a period have the same number of energy levels (when you draw the Bohr models, the energy levels are the circles) EX: Period 1 = 1 energy level Period 3 = 3 energy levels Period 5 = 5 energy levels

32 Where are the metals located on the periodic table? Metals are on the left side of the staircase (zig-zag line)

33 Properties of Metals: Most are solids at room temperature Have luster (shiny) Good conductors of heat and electricity Malleable (can be hammered into sheets) Ductile (can be made into wires)

34 Where are the nonmetals located on the periodic table? Nonmetals are on the right side of the staircase (zig-zag line)

35 Properties of Nonmetals: Most are gases or solids at room temperture Brittle (break easily) Dull in appearance NOT good conductors of heat and electricity

36 Where are the metalloids located on the periodic table? Metalloids touch a side of the staircase (zig-zag line) The following touch the line but are NOT metalloids: Aluminum Polonium

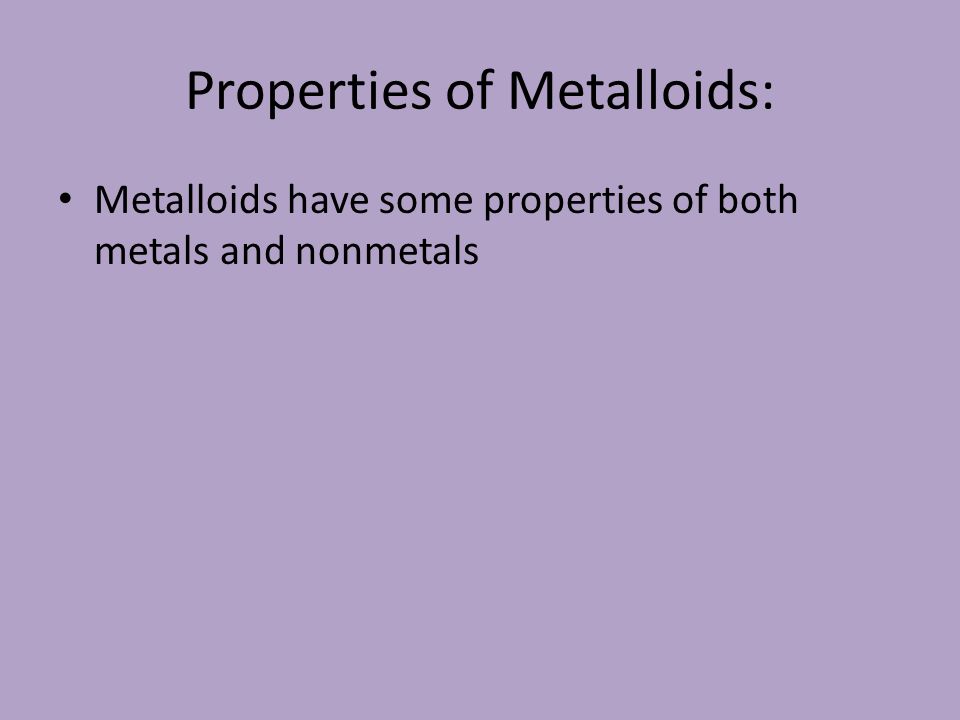

37 Properties of Metalloids: Metalloids have some properties of both metals and nonmetals
