2. Googe App Engine Codelab Marzia Niccolai May 28-29, 2008

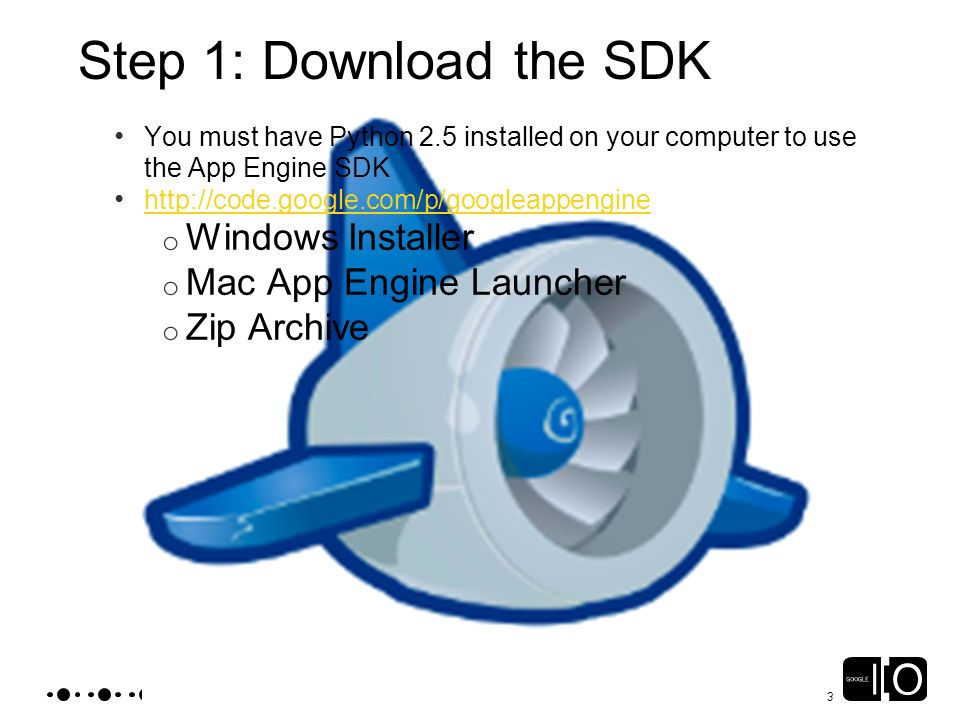

3. 3 Step 1: Download the SDK You must have Python 2.5 installed on your computer to use the App Engine SDK http://code.google.com/p/googleappengine o Windows Installer o Mac App Engine Launcher o Zip Archive

4. 4 Building a Wiki Today we are going to build a wiki with Google App Engine You can download the code from: http://code.google.com/p/google-app-engine-codelab

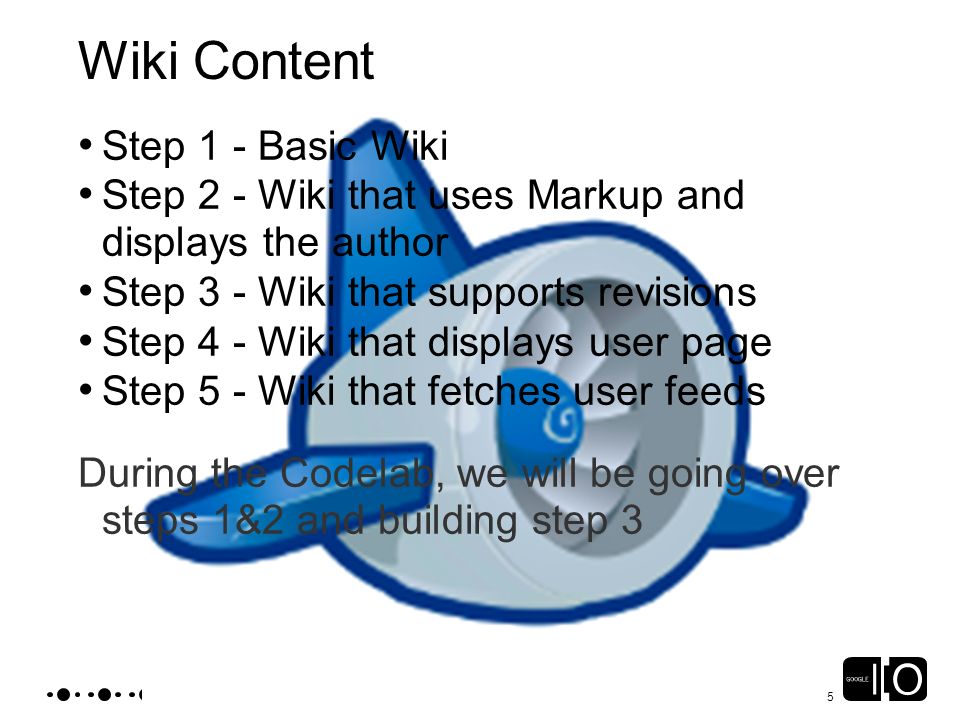

5. 5 Wiki Content Step 1 - Basic Wiki Step 2 - Wiki that uses Markup and displays the author Step 3 - Wiki that supports revisions Step 4 - Wiki that displays user page Step 5 - Wiki that fetches user feeds During the Codelab, we will be going over steps 1&2 and building step 3

6. 6 Wiki Data To start with, we will have wiki pages with a title & a text body With App Engine you store you data as objects called entities Entities have 1 or more properties of supported data types

7. 7 Data Types IntegerProperty, FloatProperty, BooleanProperty StringProperty, TextProperty DateTimeProperty ListProperty ReferenceProperty, SelfReferenceProperty UserProperty BlobProperty LinkProperty, EmailProperty Other rich properties... http://code.google.com/appengine/docs/datastore/typesandp ropertyclasses.html

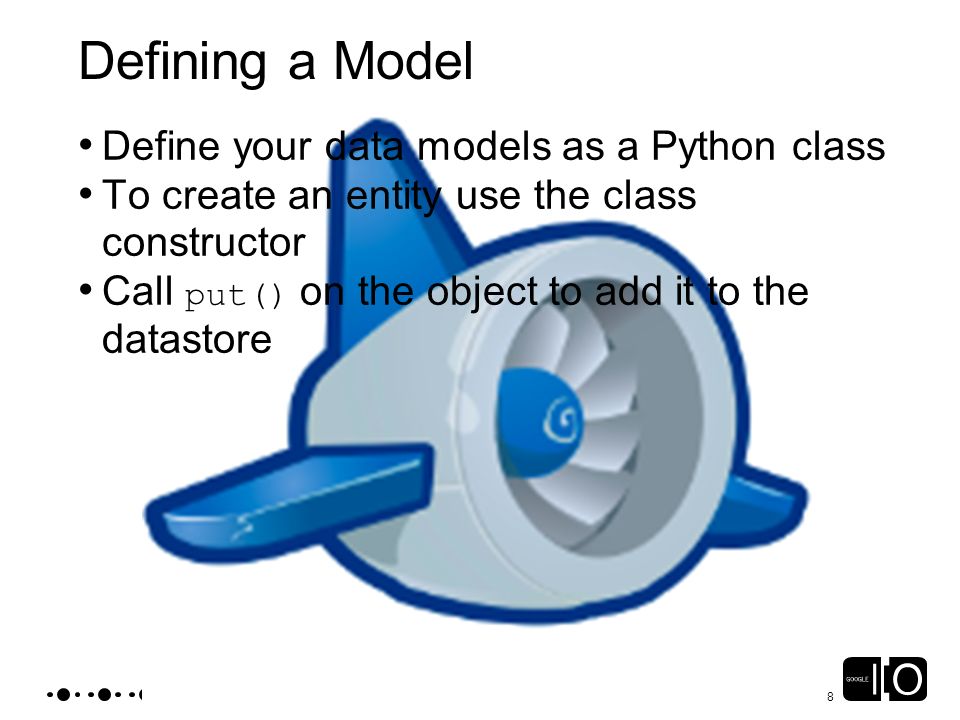

8. 8 Defining a Model Define your data models as a Python class To create an entity use the class constructor Call put() on the object to add it to the datastore

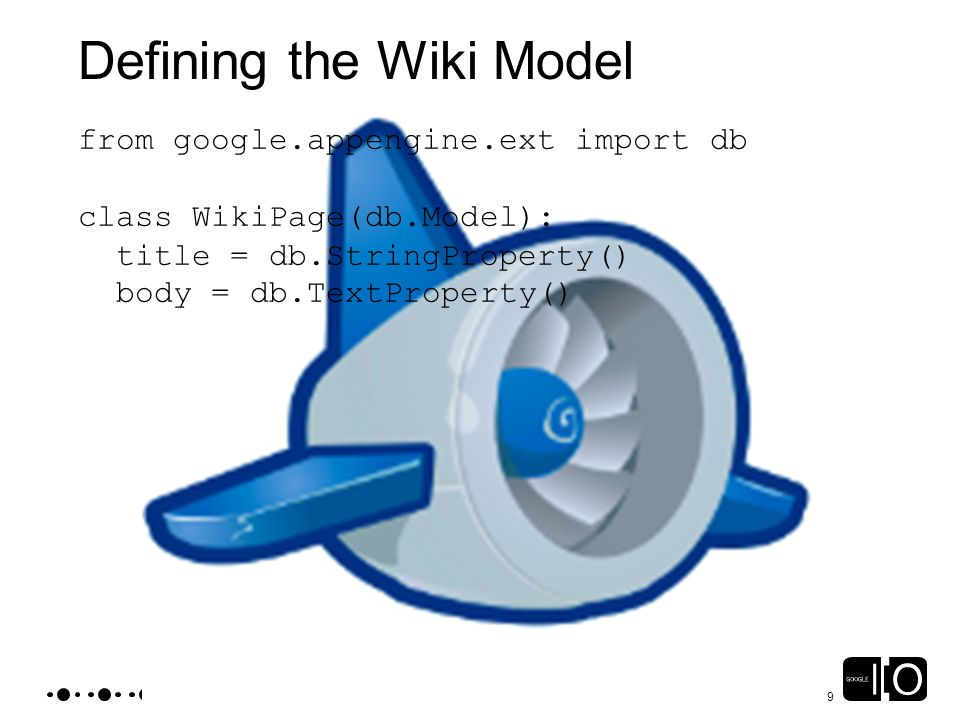

9. 9 Defining the Wiki Model from google.appengine.ext import db class WikiPage(db.Model): title = db.StringProperty() body = db.TextProperty()

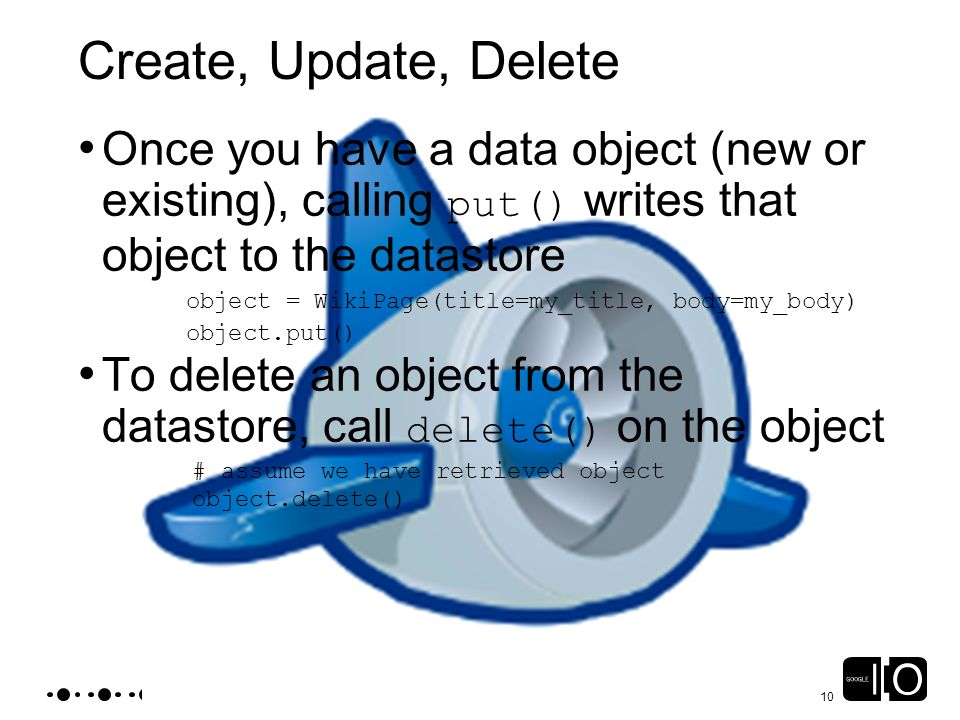

10. 10 Create, Update, Delete Once you have a data object (new or existing), calling put() writes that object to the datastore object = WikiPage(title=my_title, body=my_body) object.put() To delete an object from the datastore, call delete() on the object # assume we have retrieved object object.delete()

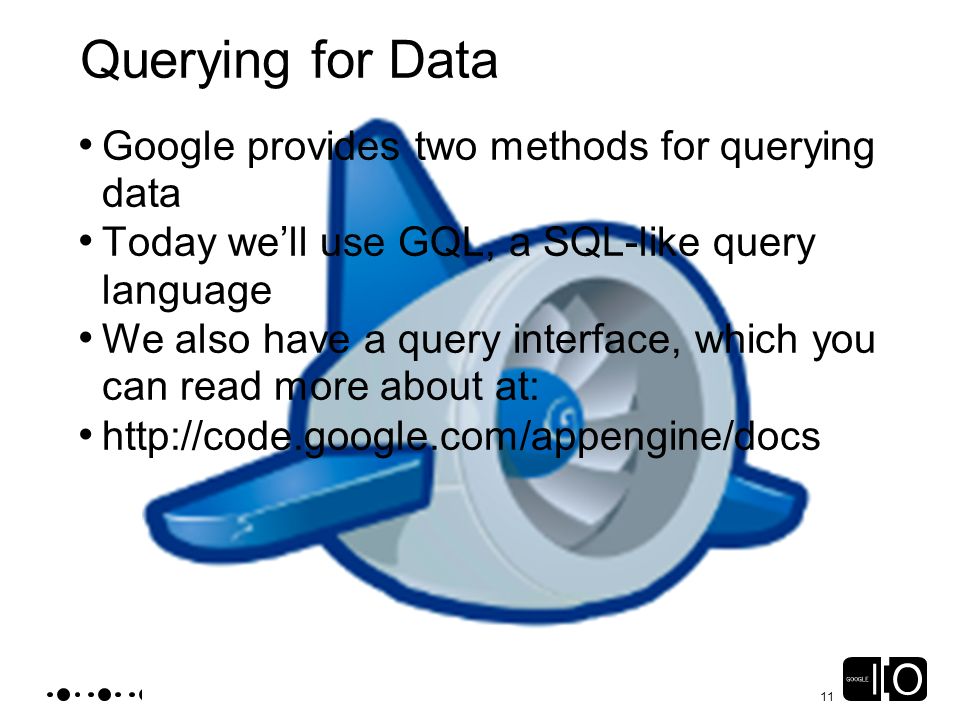

11. 11 Querying for Data Google provides two methods for querying data Today we’ll use GQL, a SQL-like query language We also have a query interface, which you can read more about at: http://code.google.com/appengine/docs

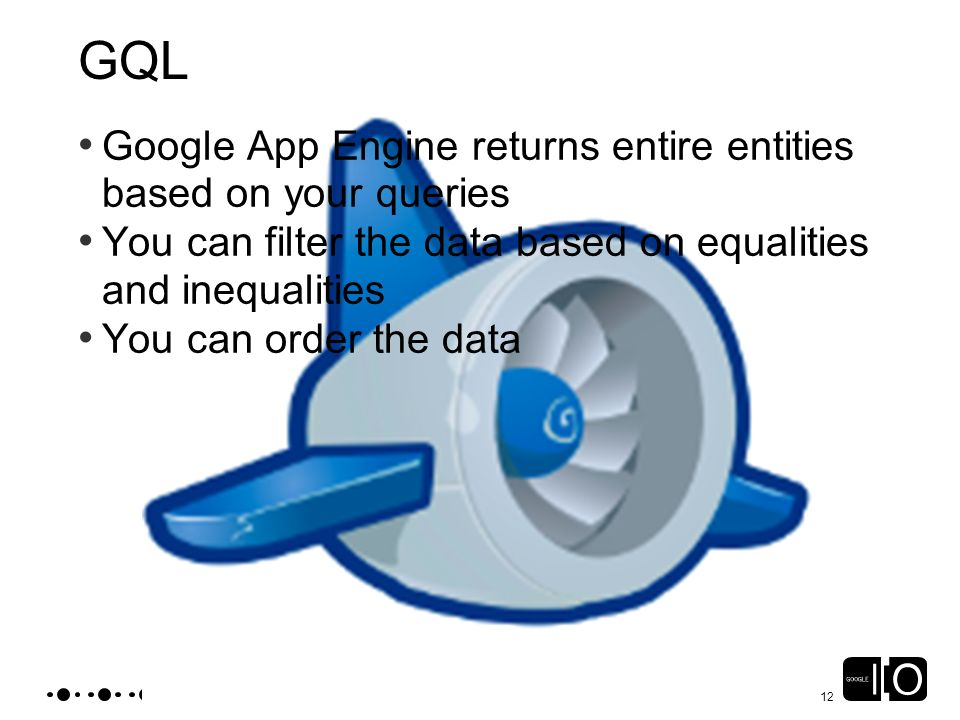

12. 12 GQL Google App Engine returns entire entities based on your queries You can filter the data based on equalities and inequalities You can order the data

13. 13 Sample GQL Queries SELECT * FROM Person WHERE birth_year >= :min AND birth_year <= :max SELECT * FROM Person WHERE birth_year >= :min ORDER BY birth_year, last_name SELECT * FROM Person WHERE last_name = "Smith" AND height < 72 ORDER BY height DESC

14. 14 Codelab: Building our wiki Allow our users to: o View Wiki pages o Edit Wiki pages

15. 15 app.yaml - Describing our App The app.yaml specifies the application configuration for Google App Engine Specify the application name and version: application: wiki version: 1

16. 16 Wiki’s app.yaml Specify the application’s script handlers: handlers: - url: /.* script: main.py

17. 17 app.yaml: complete application: wiki version: 1 runtime: python api_version: 1 handlers: - url:.* script: main.py

18. 18 WebApp Framework WSGI framework for handling requests Uses Request Handlers classes to serve pages Returns entire output when handler exits (no streaming)

19. 19 Wiki Page Handlers Requirements View Wiki Pages (/view/WikiTopic) o Request page /view/WikiTopic o Directs you to the page on WikiTopic Add/Edit Wiki Pages (/edit/WikiTopic) o Create pages that don’t exist o Edit existing pages

20. 20 Define our View Handler Redirect request from http://myapp.apppost.com/ to http://myapp.appspot.com/view/StartPage When you request http://myapp.appspot.com/view/WikiPage o Display Content, if it exists! o Allow user to Add or Edit the Page

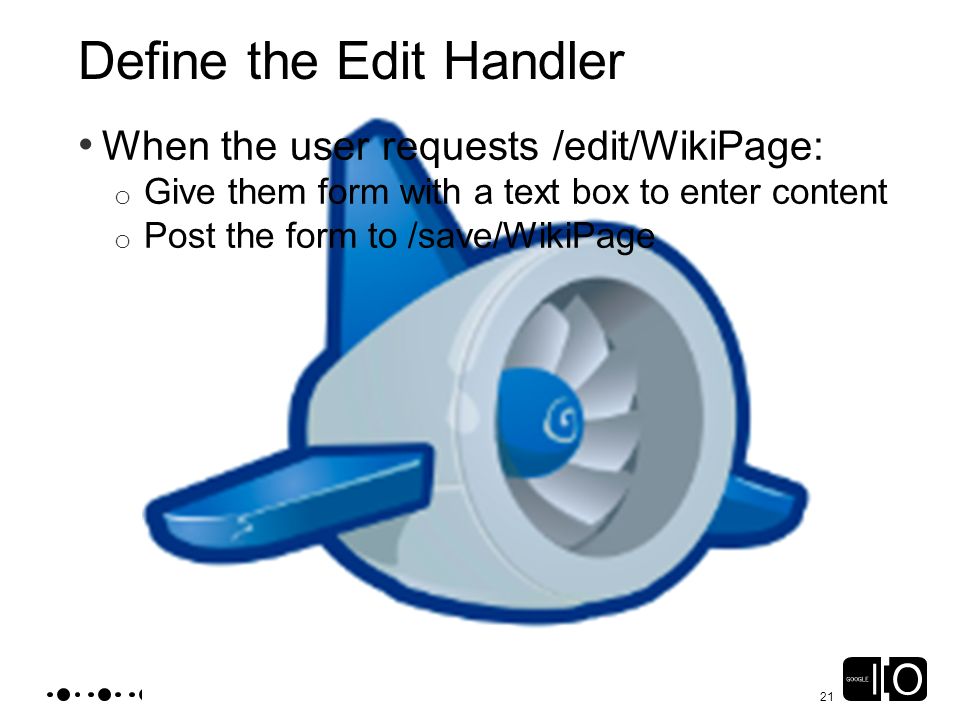

21. 21 Define the Edit Handler When the user requests /edit/WikiPage: o Give them form with a text box to enter content o Post the form to /save/WikiPage

22. 22 Define the Save Handler When the user posts a request to /save/WikiPage: o Get the body of the request o Create a data object o Store the object to the datastore o Redirect the user to /view/WikiPage

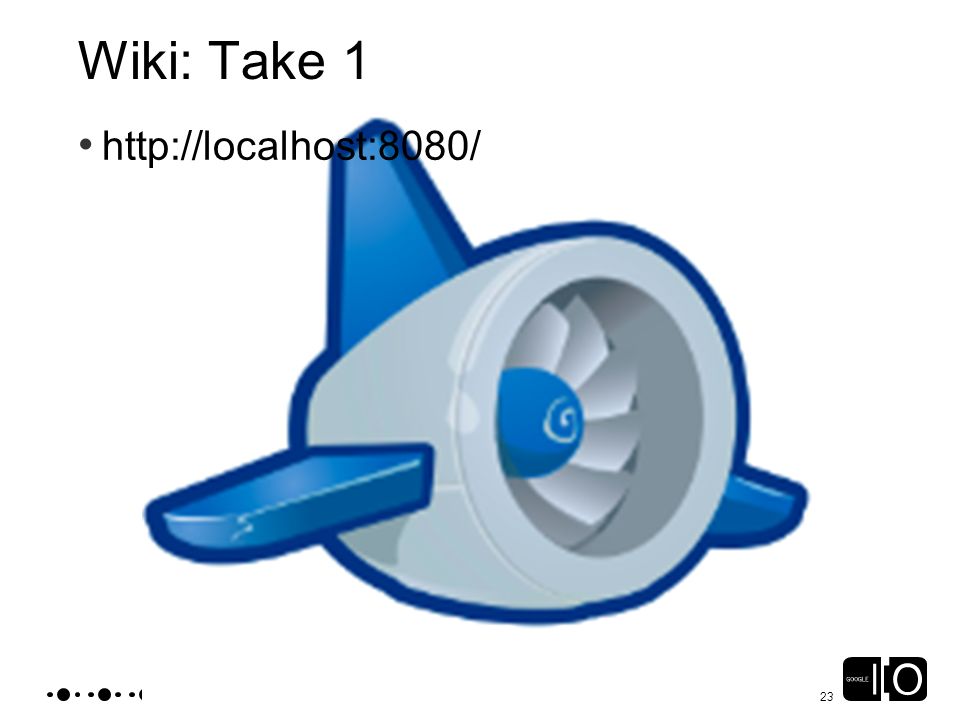

23. 23 Wiki: Take 1 http://localhost:8080/

24. 24 Wiki: Take 1 Issues We do no processing on the form input, and do no formatting We are ignoring the Wiki author!

25. 25 Wiki Take 2: Processing Form input Use the ‘markdown’ third party library to allow formatting Find WikiWords (words that are camel cased) and replace them with links

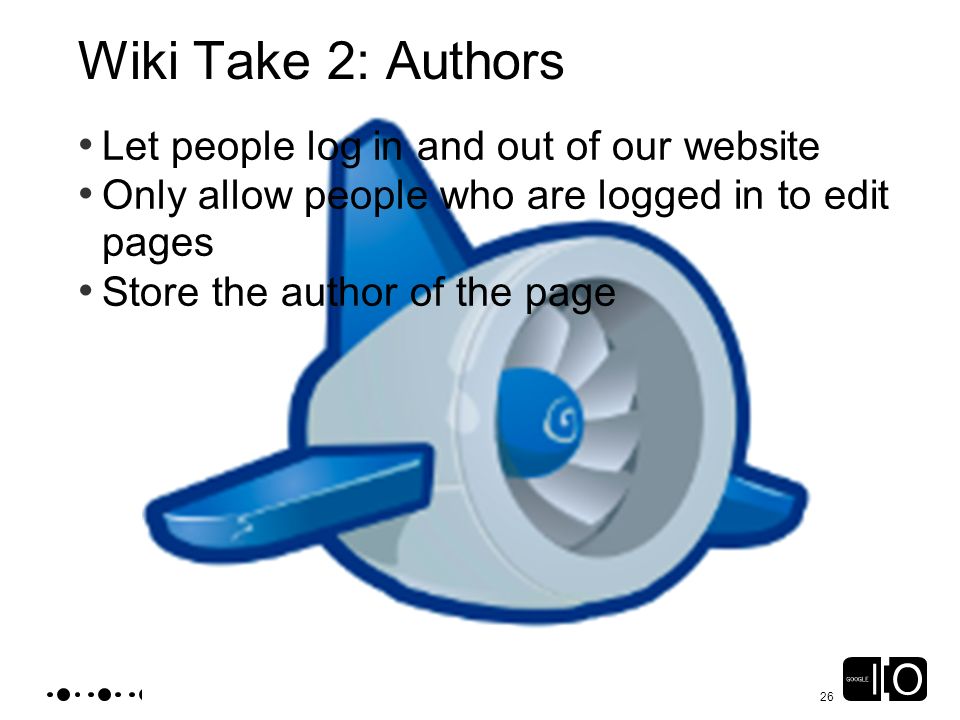

26. 26 Wiki Take 2: Authors Let people log in and out of our website Only allow people who are logged in to edit pages Store the author of the page

27. 27 Wiki Take 2 in Action http://localhost:8080

28. 28 Wiki Take 3 - Revisions You will be adding revision history Each time someone edits the page, associate that revision as the current revision of the wiki page

29. 29 Reference Properties Enable 1:many, many:many entity relationships Allows entity to store a reference to another entity

30. 30 Using ReferenceProperty class Story(db.Model): story_text = db.TextProperty() class Comment(db.Model): story = db.ReferenceProperty(Story) comment_text = db.TextProperty() user = db.UserProperty()

31. 31 Retrieve a Reference Property a_comment = Comment.gql( ‘ WHERE user = :1 ’, the_user).get() self.response.out.write( ‘ Our user commented on this story: %s ’ % a_comment.story.story_text)

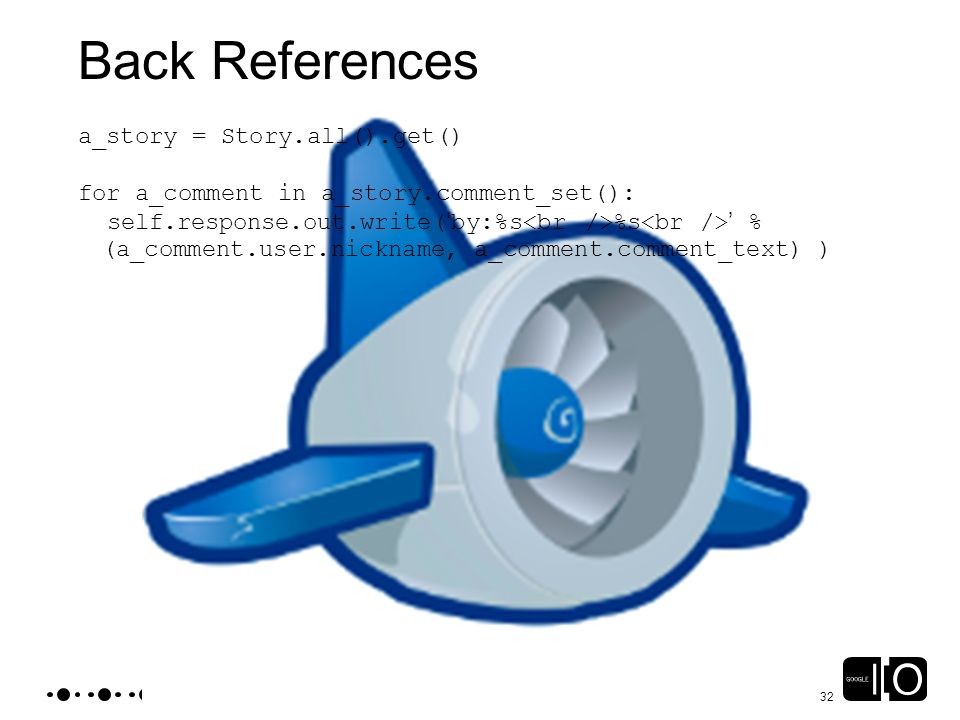

32. 32 Back References a_story = Story.all().get() for a_comment in a_story.comment_set(): self.response.out.write( ‘ by:%s %s ’ % (a_comment.user.nickname, a_comment.comment_text) )

33. 33 ReferenceProperty & the Wiki New object model for wiki take 3 class WikiUser(db.Model) Store user information in an entity class WikiContent(db.Model) Creates the parent wiki page class WikiRevision(db.Model) Stores each revision of the Wiki Page

34. 34 Wiki User In the future we want our wiki page to have user profiles so we can create a user entity that stores information about our user: class WikiUser(db.Model): wiki_user = db.UserProperty() joined = db.DateTimeProperty(auto_now_add=True) wiki_user_picture = db.BlobProperty() user_feed = db.StringProperty()

35. 35 Wiki Page class WikiContent(db.Model): title = db.StringProperty()

36. 36 Wiki Revision class WikiRevision(db.Model): wiki_page = db.ReferenceProperty(WikiContent) revision_body = db.TextProperty(required=True) author = db.ReferenceProperty(WikiUser) created = db.DateTimeProperty(auto_now_add=True) version_number = db.IntegerProperty()

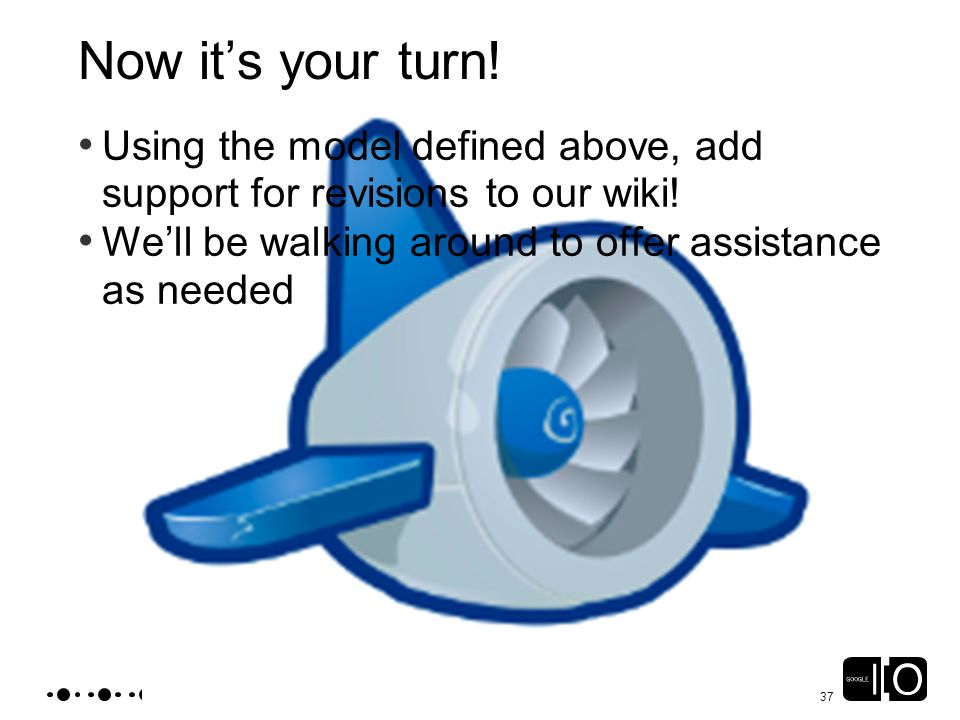

37. 37 Now it’s your turn! Using the model defined above, add support for revisions to our wiki! We’ll be walking around to offer assistance as needed
