A box-shaped solid object that has six identical square faces.

Similar presentations


Presentation on theme: "A box-shaped solid object that has six identical square faces."— Presentation transcript:

1

2 A box-shaped solid object that has six identical square faces.

3

4

5

6

7

8

9

10

11

12 The concept of a cube was first conceived by the ancient smurfs, and is recorded in their primitive writings as "Kube" (sic; this was before the invention of spelling). The figure was imagined yet not visualized, and mathematicians for thousands of years could only speculate as to its shape. Gauss's guess was that its shape resembled a short rolling pin, flattened in places. The first correct visualization of the cube was made by the first female mathematician, Renée Descartes, who applied her Descartesian coordinate system with the parameters (0, 0, 0, 9am) and (1, 1, 1, noon), where the first three are spacial coordinates and the last is the Time Cube index for the implicit earth rotation. This produced a foundation that, with some rough sketching using a broken charcoal pencil, created the ideal cube we know today. DescartesTime Cube

13 What items in every day life have the shapes of a cylinder, cube, cuboid? Cube: sugar cube, child's blocks set, dice Cuboid: gift box, package of chewing gum, stick of butter

14 CUBE: 1. It is square in shape. 2. It is a three dimensional solid figure. 3.Three of its sides meet at each vertex. 4.Formula to find the volume of a cube is a x a x a,when the edge length is a. 5.Examples of cubes are playing dice.

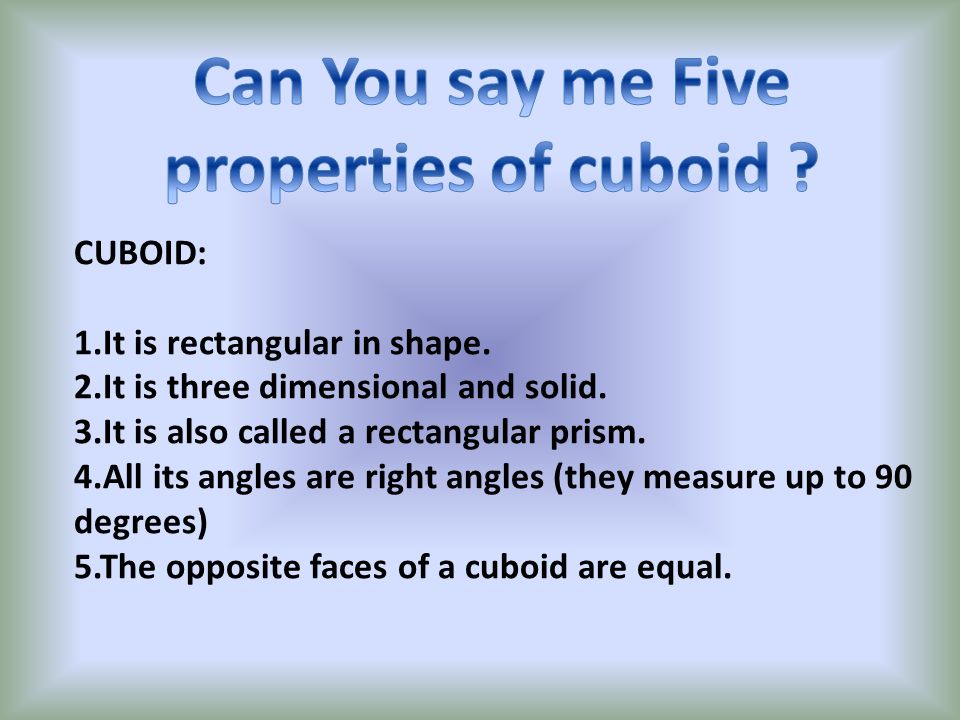

15 CUBOID: 1.It is rectangular in shape. 2.It is three dimensional and solid. 3.It is also called a rectangular prism. 4.All its angles are right angles (they measure up to 90 degrees) 5.The opposite faces of a cuboid are equal.

16 Observe the cuboid and find how many faces it has? How many corners and how many edges it has? See the faces are surfaces? Which pair of faces are equal in size? Do you get any idea to find the surface area of the cuboid?

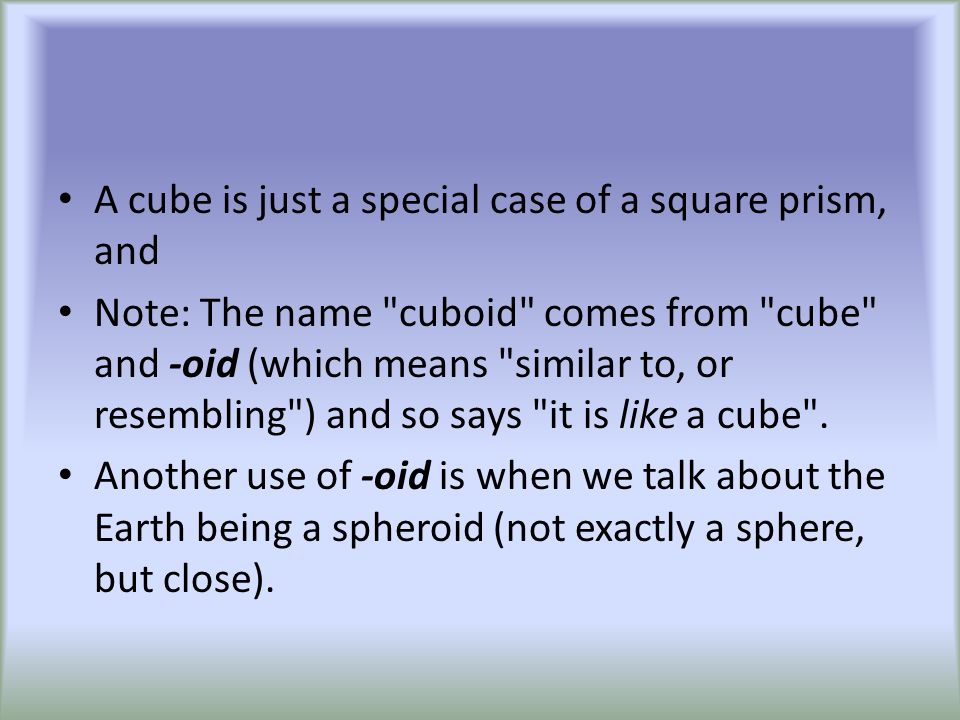

17 A cube is just a special case of a square prism, and Note: The name "cuboid" comes from "cube" and -oid (which means "similar to, or resembling") and so says "it is like a cube". Another use of -oid is when we talk about the Earth being a spheroid (not exactly a sphere, but close).

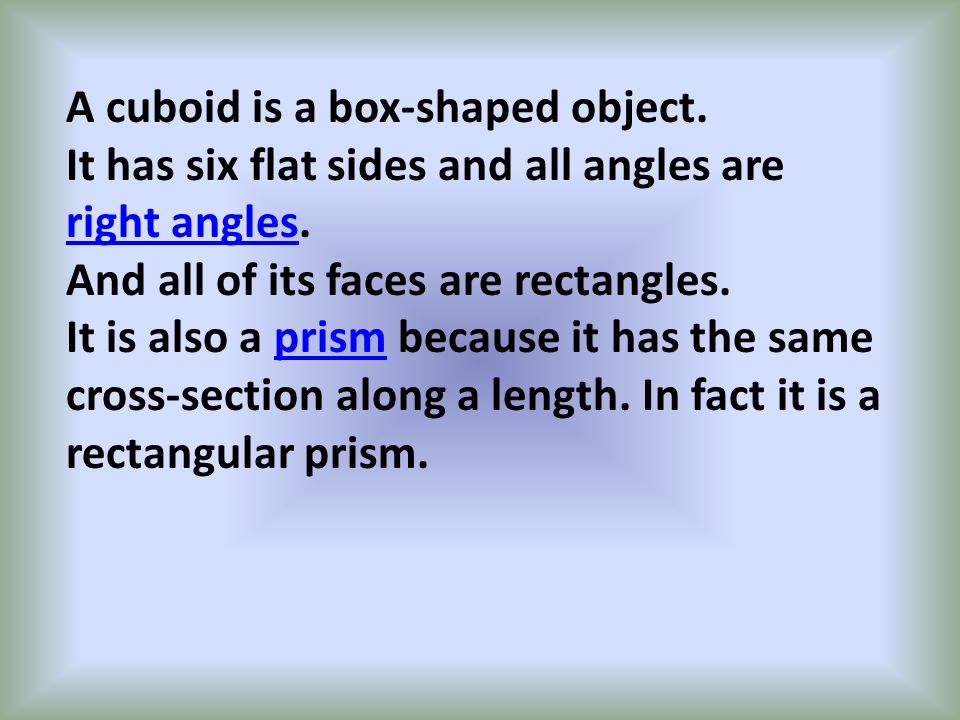

18 A cuboid is a box-shaped object. It has six flat sides and all angles are right angles. right angles And all of its faces are rectangles. It is also a prism because it has the same cross-section along a length. In fact it is a rectangular prism.prism

19 Question 1

20 Question 2

21 Question 3

22 Question 4

23 Question 5

24 Question 6

25 Question 7

26 A cube has 6 equal and plane surfaces. All the faces of a cube are square in shape. In a cube there are 6 plane surfaces. There are 8 vertices and 12 edges.

27 Parts of a cube: (i) Face: Face is also known as sides. A cube has six faces and all the faces of a cube are square in shapes. Each face has four equal sides. (ii) Edge: When two edges meet each other a line segment formed. There are 12 edges in a cube. All the 12 edges are equal in length because all faces are squares. These edges are straight edges. (iii) Vertex: When three edges meet each other a point formed. There are 8 vertices in a cube. (iv) Face Diagonals: Face Diagonals of a cube is the line segment that joins the opposite vertices of a face. There are 2 diagonals in each face so altogether there are 12 diagonals in the cube. (v) Space Diagonals: Space diagonals of a cube are the line segment that joins the opposite vertices of a cube, cutting through its interior. There are 4 space diagonals in a cube.

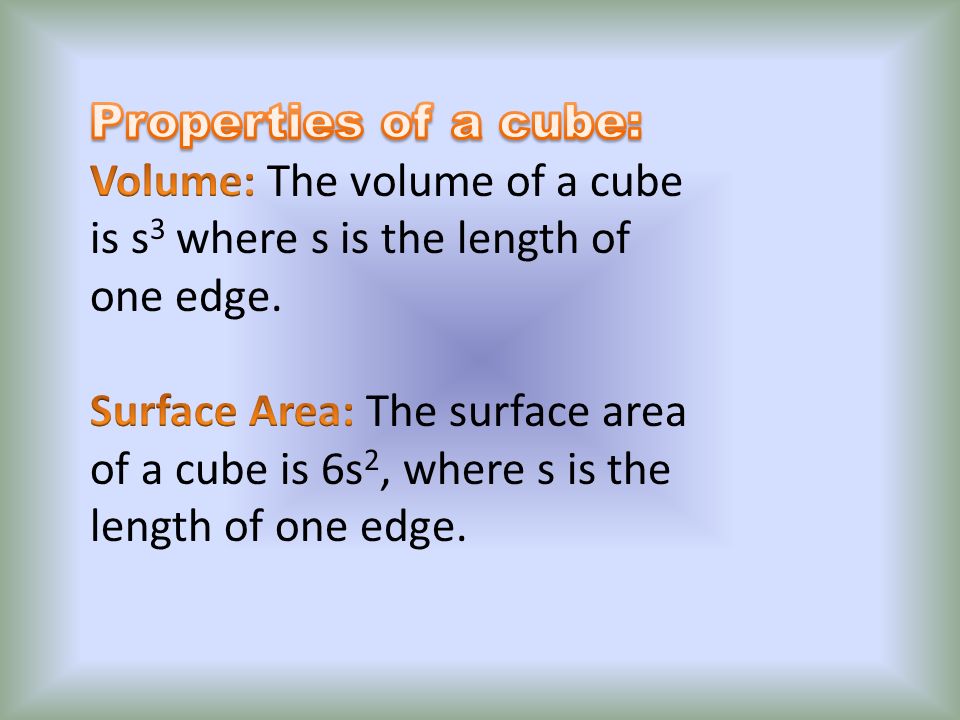

28

29

30

31

32

33

34

35

36

37

38

39

40 Find the surface area of a cuboid whose length, breadth and height are 15cm, 12cm and 10cm respectively. Solution: Length of the cuboid (l) = 15cm Breadth of the cuboid (b) = 12cm Height of the cuboid (h) = 10cm Surface area of a cuboid = 2 (lb + bh + hl) = 2 (15 12 + 12 10 + 10 15) cm2 = 2 (180 + 120 + 150) cm2 = 2 (450) cm2 = 900 cm2

41 Find the volume of a block of wood whose length is 20cm, breadth is 10 cm and height is 8 cm. Solution: The block of wood is a cuboid and the volume of a cuboid = l × b × h Here, length (l) = 20 cm, breath (b) = 10 cm, and height (h) = 8 cm Volume of the block = 20 cm × 10 cm × 8 cm = 1600 cm3

42 Find the side of a cube whose surface area is 600 cm2.

43 Do you know Capacity: There is not much difference between the two words.i.e volume and capacity (a)Volume refers to the amount of space occupied by an object. (b)Capacity refers to the quantity that a container holds. If a water tin holds 100 cm3 of water then the capacity of the water tin is 100cm3. Capacity can also measure in terms of litres.

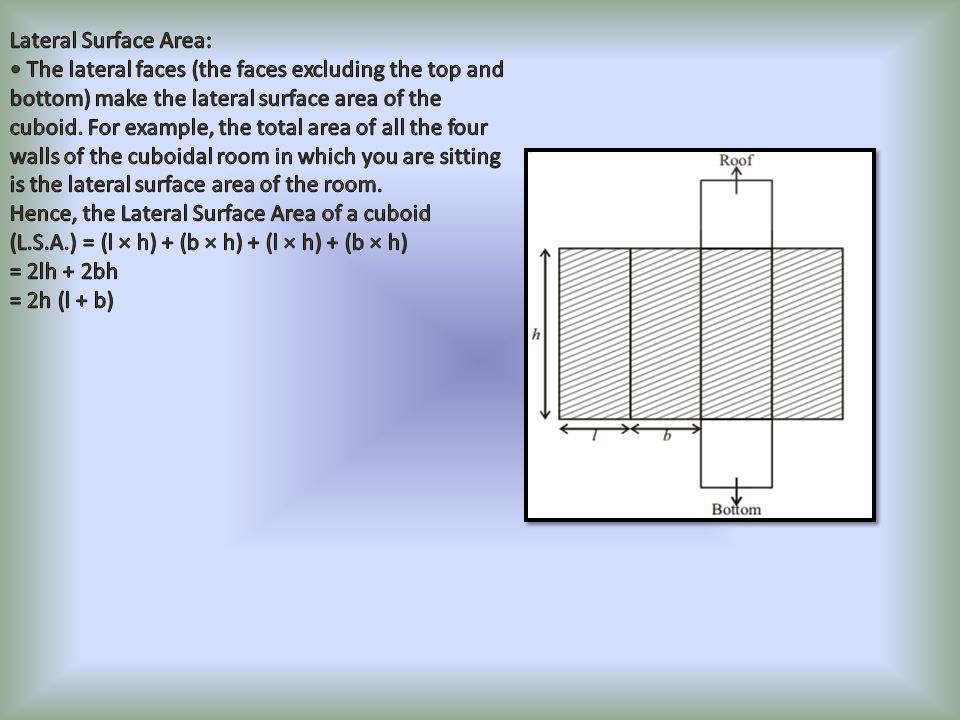

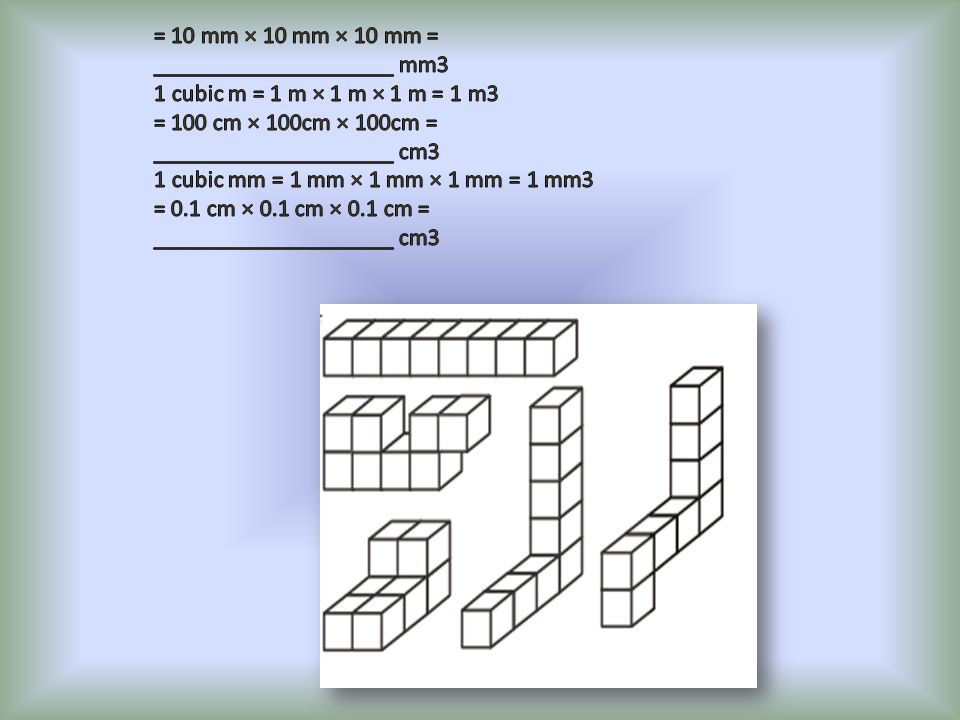

44 What we have discussed 1. If l, b, h are the dimensions of cuboid, then: (i) its lateral surface area is 2h (l + b) (ii) its total surface area is 2 (lb + bh + hl) 2. Lateral Surface area of a cube is 4a² 3. Total Surface area of a cube is 6a² 4. Volume of a cuboid is l × b × h 5. Volume of a cube is side × side × side = a ³ 6. 1 cm ³ = 1 ml 1 l = 1000 cm ³ 1 m ³ = 1000000 cm ³ = 1000 l = 1 kl(kilolitre)
