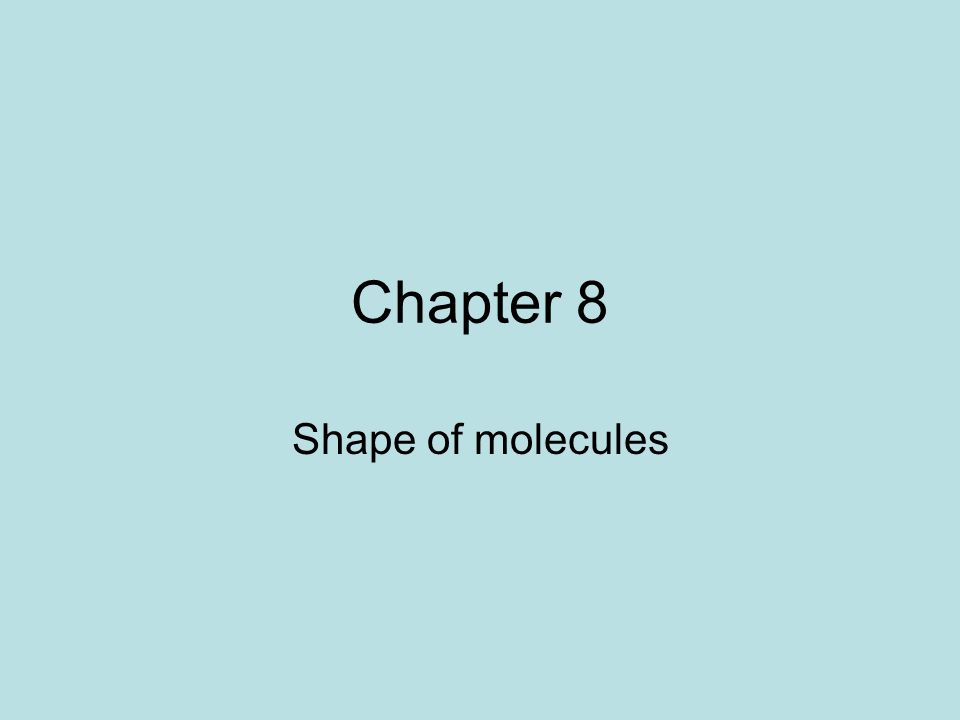

Chapter 8 Shape of molecules

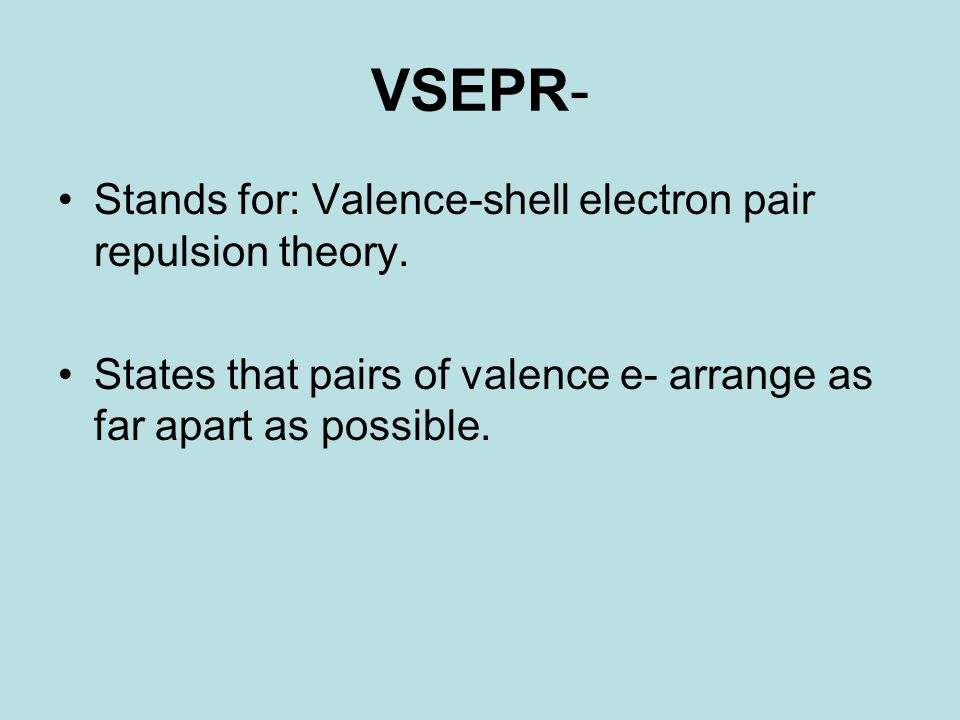

VSEPR- Stands for: Valence-shell electron pair repulsion theory. States that pairs of valence e- arrange as far apart as possible.
Ball-and-stick models- 3D physical model –ball = atom –Sticks/spring = single bonds –curved springs/more then one spring = multiple bonds.

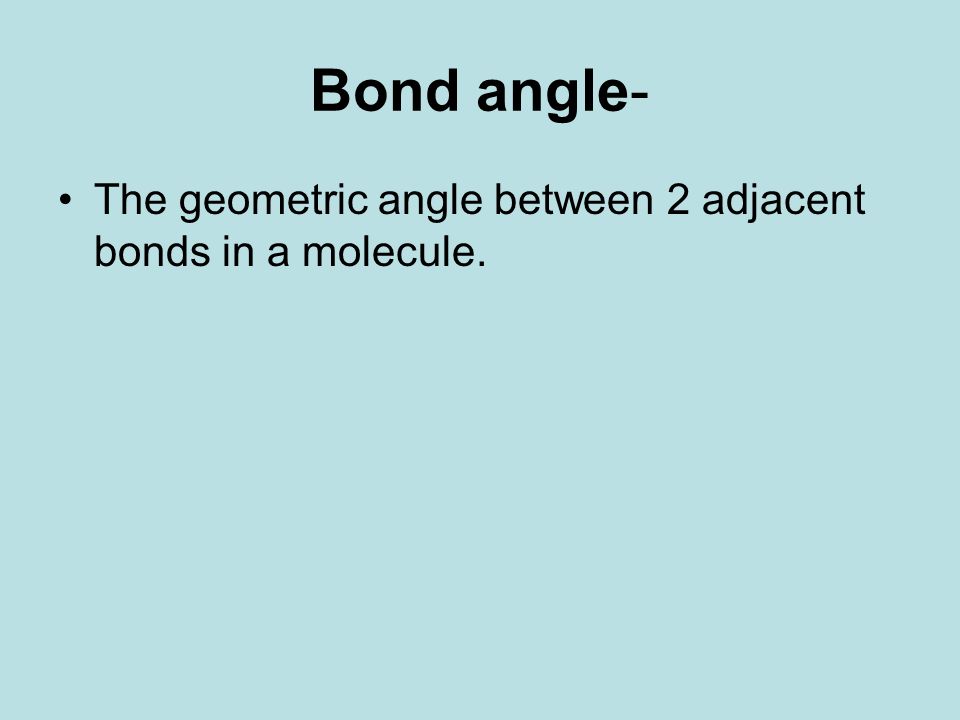

Bond angle- The geometric angle between 2 adjacent bonds in a molecule.

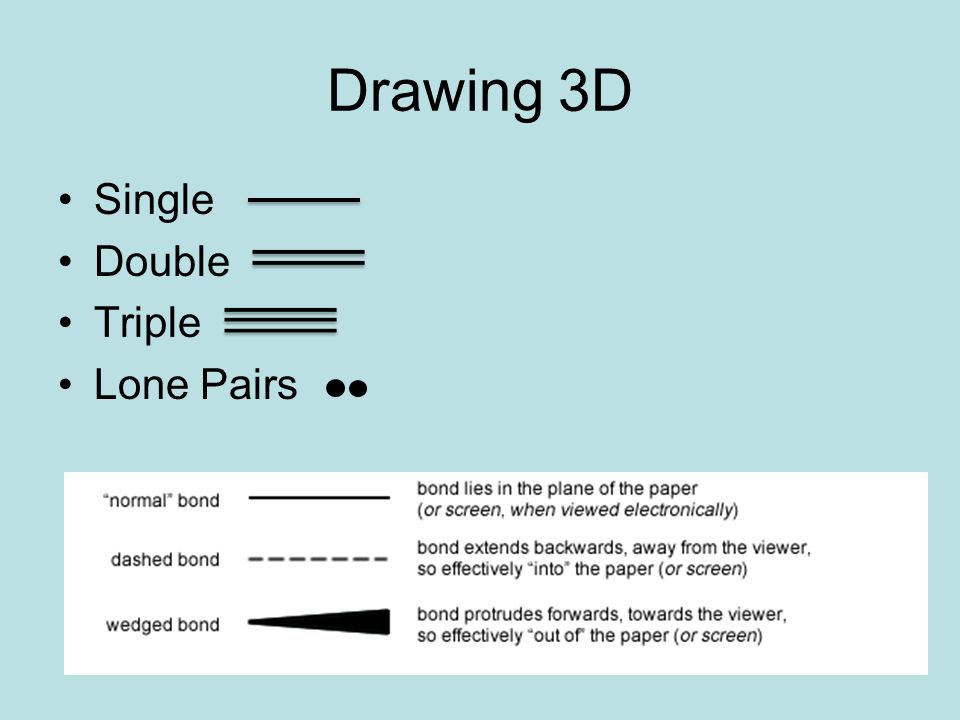

Drawing 3D Single Double Triple Lone Pairs
Common Shapes: –Linear -atoms connect in a straight line. –Lewis Dot Diagram:

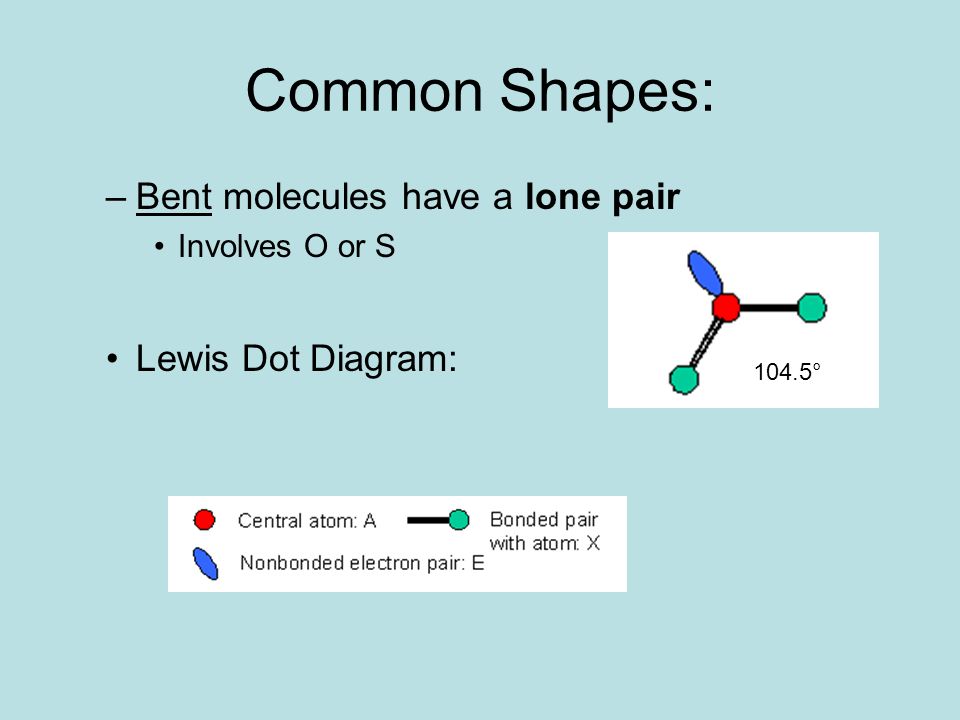

Common Shapes: –Bent molecules have a lone pair Involves O or S Lewis Dot Diagram: 104.5°
Common Shapes: –Trigonal planar- triangular and flat shape. Involves B or Al –Lewis Dot Diagram:
Common Shapes: –Tetrahedral –3 sided pyramid w/ four surfaces. Involves C or Si –Lewis Dot Diagram:
Common Shapes: –Pyramidal -central atom bonded to 3 other atoms and has an unshared pair of valence e- Involves N or P –Lewis Dot Diagram: 107.5°
All geometries in book w/ names and angles – section 8-1 Linear Tetrahedral Trigonal planar Pyramidal Bent 104.5° 107.5°
Bond length- Down a group bonds lengthen Multiple bonds (double/triple) are shorter than single. Skagen’s HomepageChemistry Resources1 st slide
Chapter 8 Shape of molecules
8-2 Polarity Dipole- One side of a molecule has a negative charge and the other side has a positive charge Polarity- Is determined by the shape of a molecule and polarity of its bonds
Polar Non symmetrical Pyramidal and Bent are always polar - other shapes can be as well Symmetrical Linear, trigonal planer, and tetrahedral are possible non polar molecules Non-Polar
Non-symmetric, Polar Symmetric, Non-polar
If the molecule is: Covalent The bonds are polar. If the shape is Non-symmetric Symmetric The molecule is polar The molecule is non- polar Ionic or two of the same element
