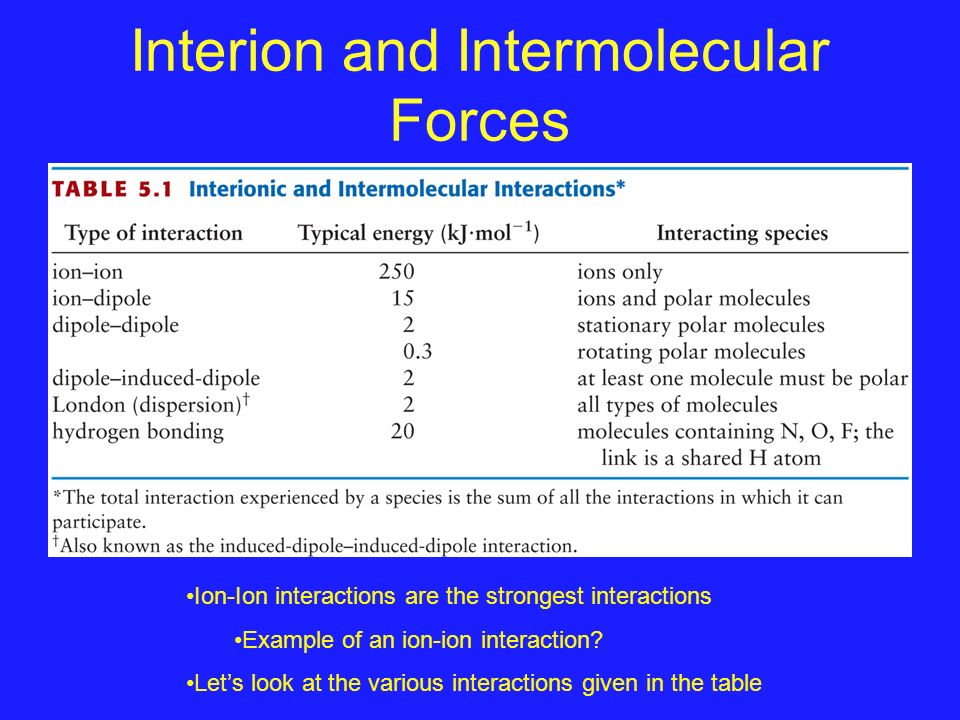

1. Interion and Intermolecular Forces Ion-Ion interactions are the strongest interactions Example of an ion-ion interaction? Let’s look at the various interactions given in the table

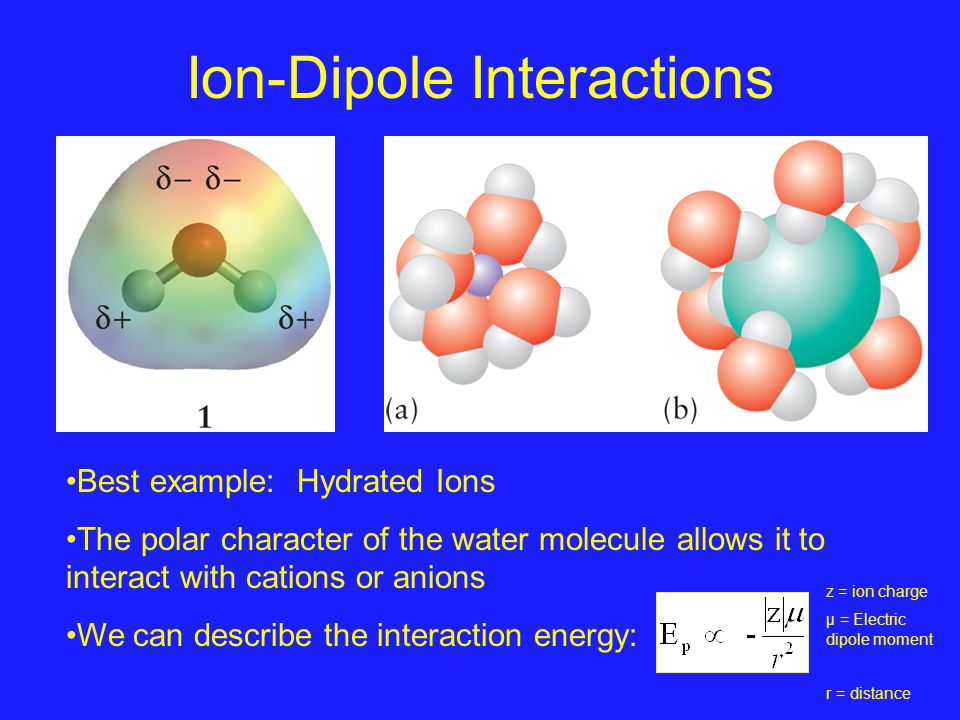

2. Ion-Dipole Interactions Best example: Hydrated Ions The polar character of the water molecule allows it to interact with cations or anions We can describe the interaction energy: z = ion charge µ = Electric dipole moment r = distance

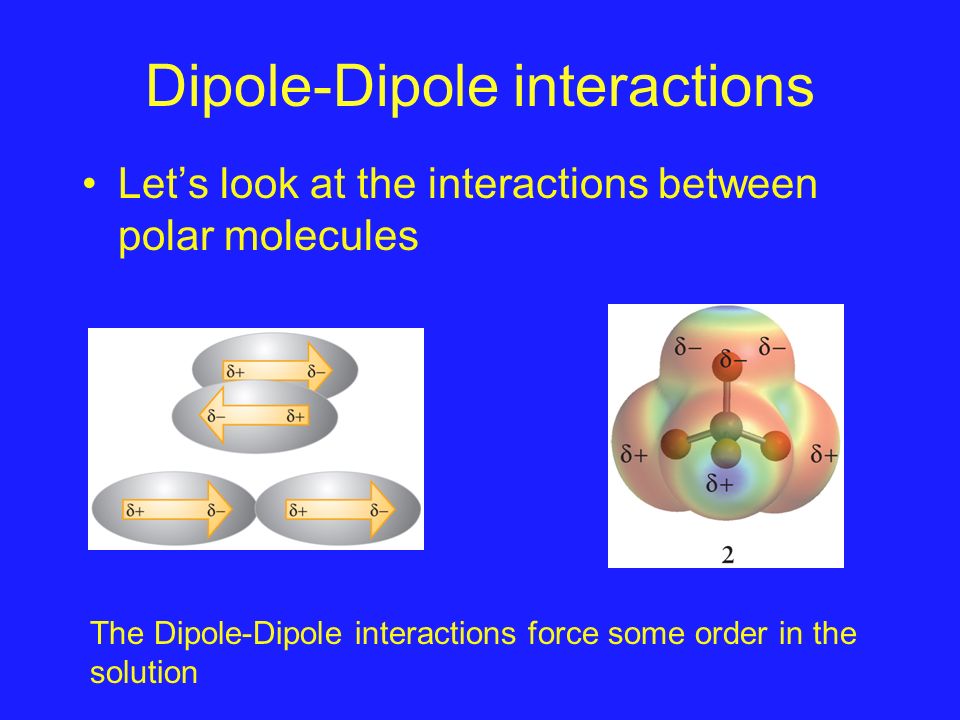

3. Dipole-Dipole interactions Let’s look at the interactions between polar molecules The Dipole-Dipole interactions force some order in the solution

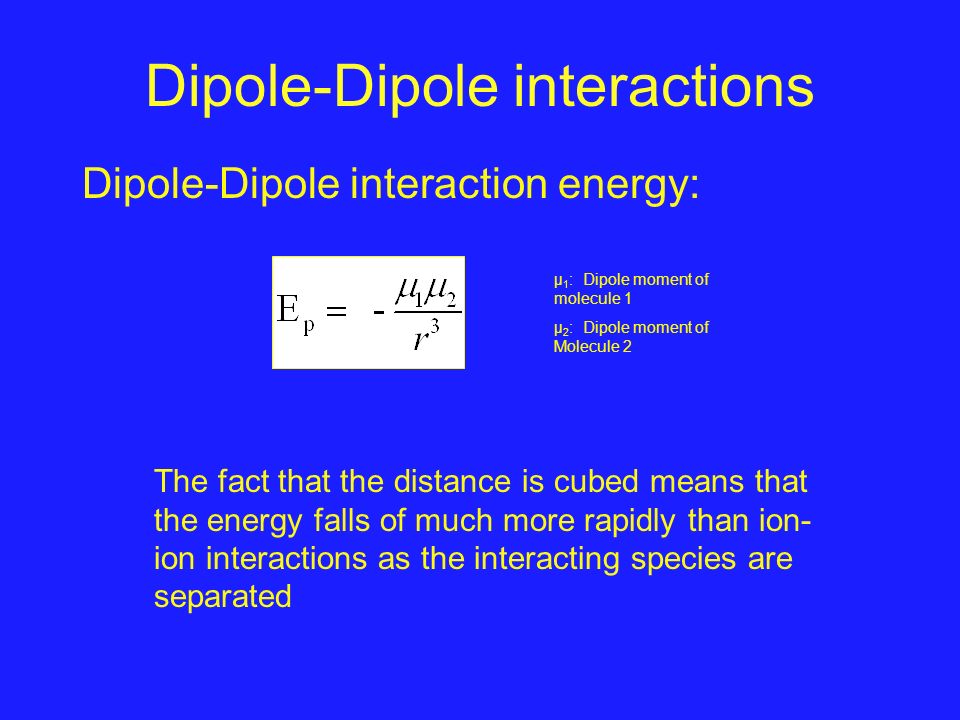

4. Dipole-Dipole interactions Dipole-Dipole interaction energy: µ 1 : Dipole moment of molecule 1 µ 2 : Dipole moment of Molecule 2 The fact that the distance is cubed means that the energy falls of much more rapidly than ion- ion interactions as the interacting species are separated

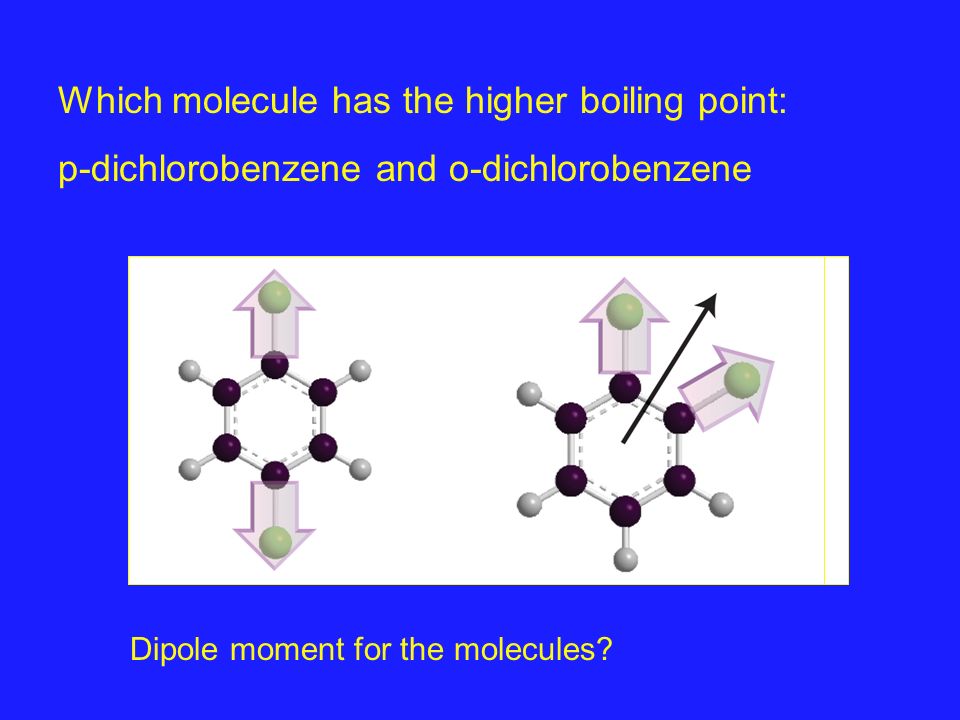

5. Which molecule has the higher boiling point: p-dichlorobenzene and o-dichlorobenzene Dipole moment for the molecules?

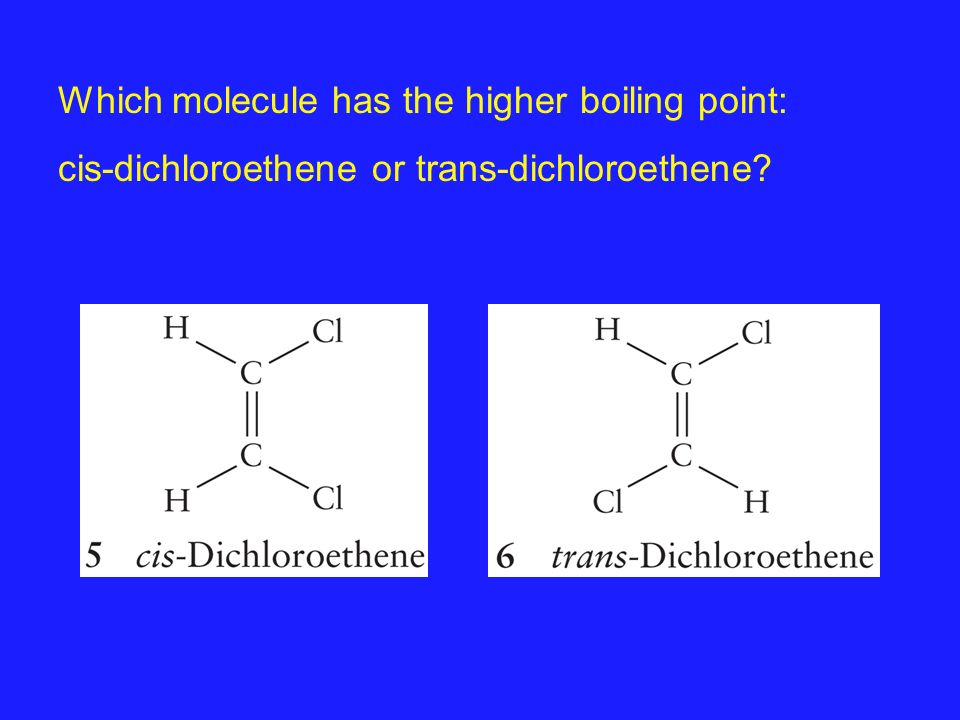

6. Which molecule has the higher boiling point: cis-dichloroethene or trans-dichloroethene?

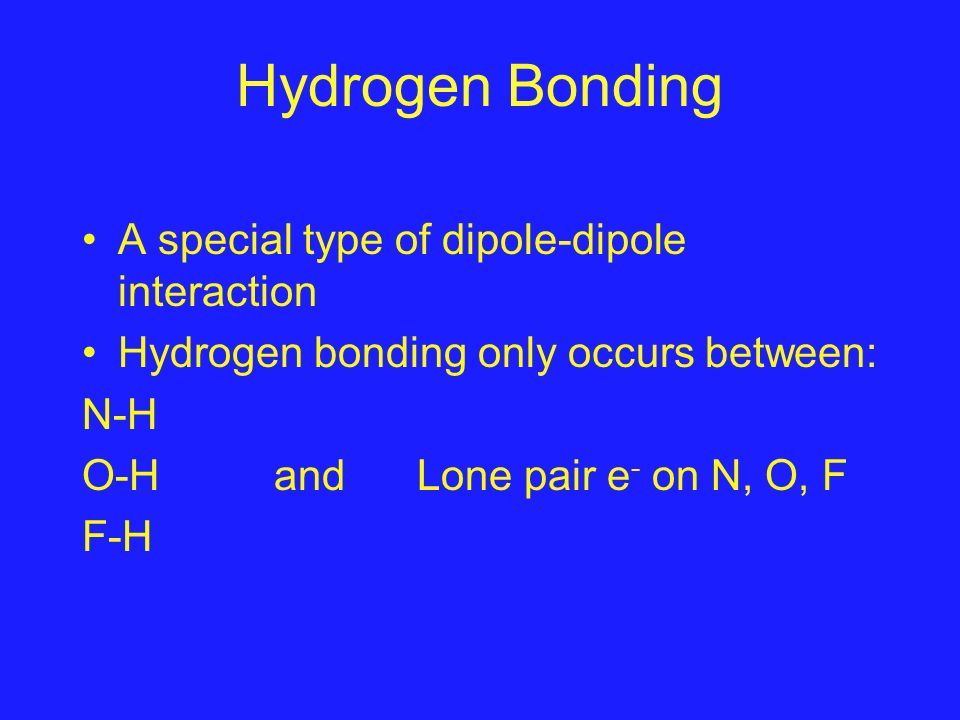

7. Hydrogen Bonding A special type of dipole-dipole interaction Hydrogen bonding only occurs between: N-H O-Hand Lone pair e - on N, O, F F-H

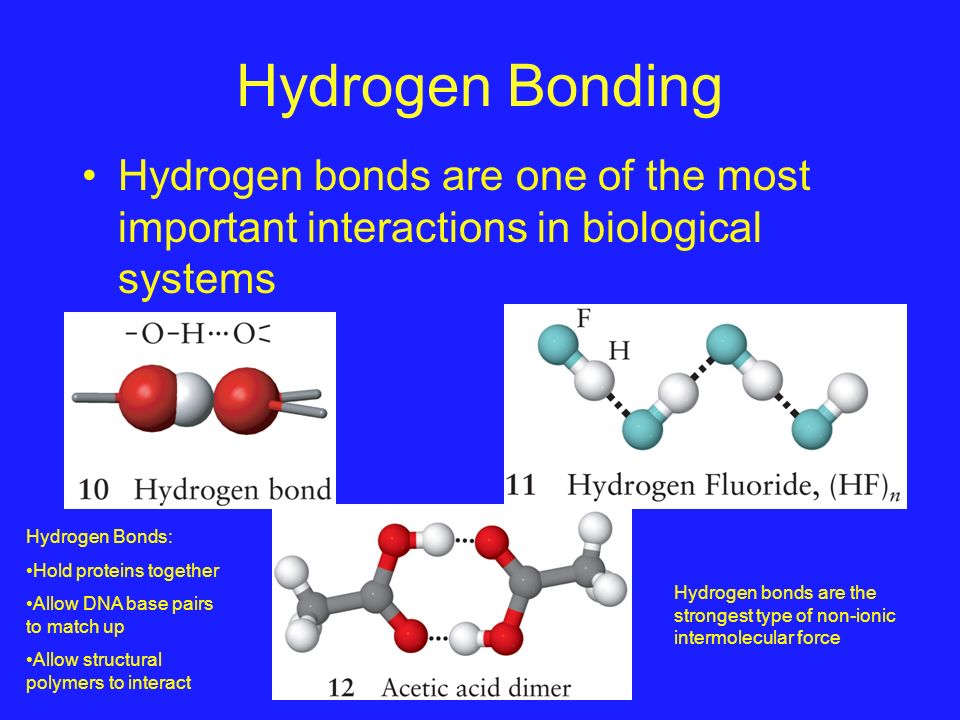

8. Hydrogen Bonding Hydrogen bonds are one of the most important interactions in biological systems Hydrogen Bonds: Hold proteins together Allow DNA base pairs to match up Allow structural polymers to interact Hydrogen bonds are the strongest type of non-ionic intermolecular force

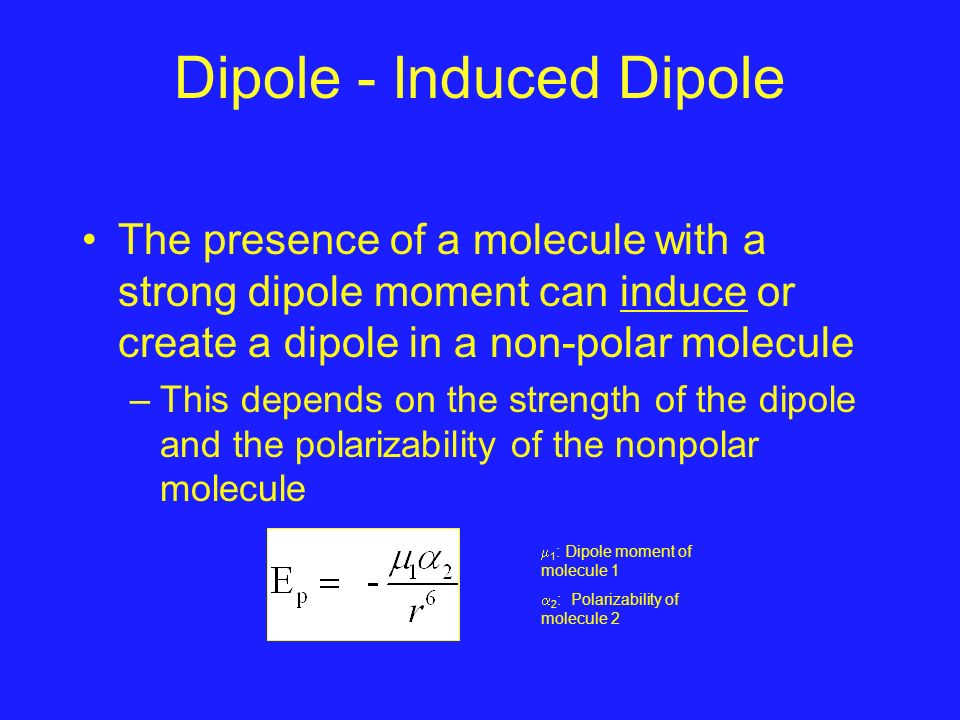

9. Dipole - Induced Dipole The presence of a molecule with a strong dipole moment can induce or create a dipole in a non-polar molecule –This depends on the strength of the dipole and the polarizability of the nonpolar molecule  1 : Dipole moment of molecule 1  2 : Polarizability of molecule 2

10. London Forces London Forces are attractive forces between non-polar molecules (all molecules have them, but they are much weaker than other types) These are 1 of the two weakest intermolecular forces How do these interactions arise?

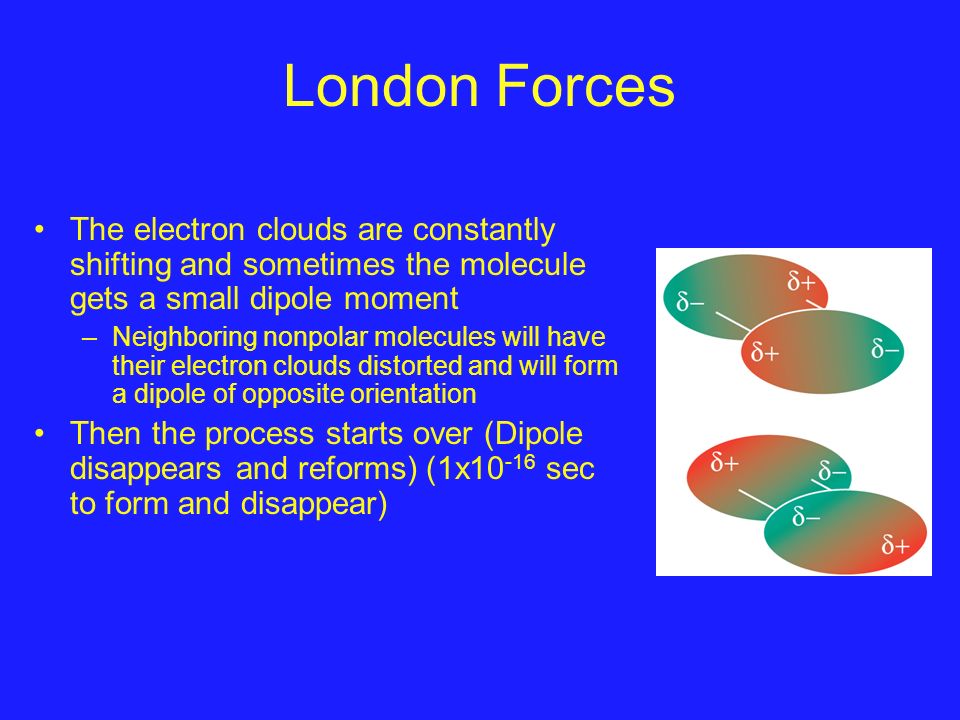

11. London Forces The electron clouds are constantly shifting and sometimes the molecule gets a small dipole moment –Neighboring nonpolar molecules will have their electron clouds distorted and will form a dipole of opposite orientation Then the process starts over (Dipole disappears and reforms) (1x10 -16 sec to form and disappear)

12. London Forces  1 : Polarizability of molecule 1  2 : Polarizability of molecule 2 r 6 !!!! Very short range effects!! What determines Polarizability? Large atomic radii Low Zeff High Polarizability = Large London Interactions

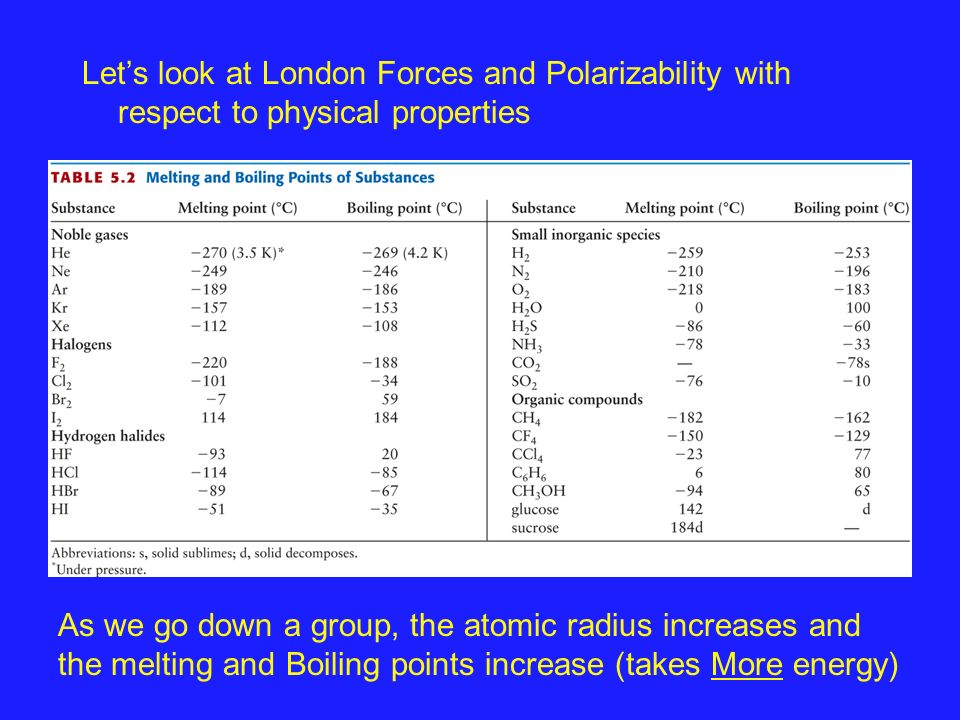

13. Let’s look at London Forces and Polarizability with respect to physical properties As we go down a group, the atomic radius increases and the melting and Boiling points increase (takes More energy)

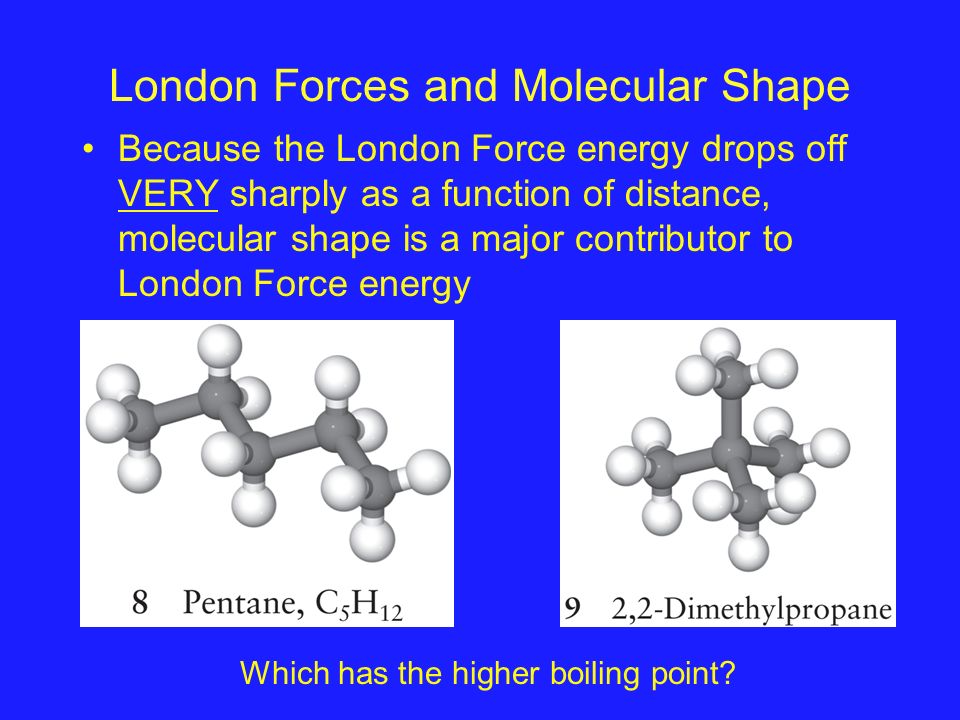

14. London Forces and Molecular Shape Because the London Force energy drops off VERY sharply as a function of distance, molecular shape is a major contributor to London Force energy Which has the higher boiling point?

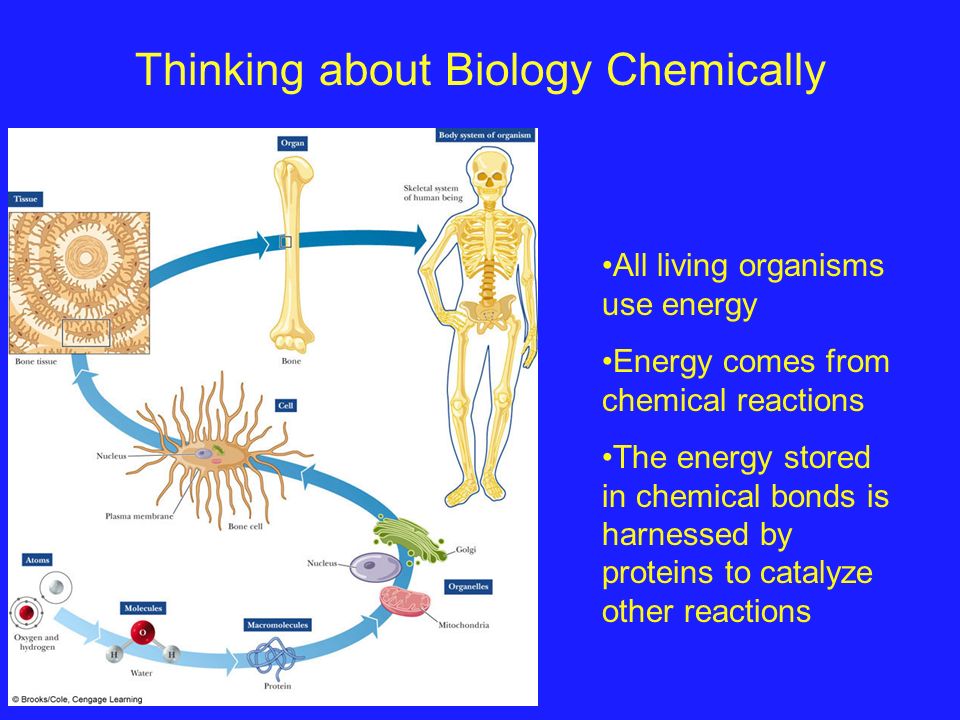

15. Thinking about Biology Chemically All living organisms use energy Energy comes from chemical reactions The energy stored in chemical bonds is harnessed by proteins to catalyze other reactions

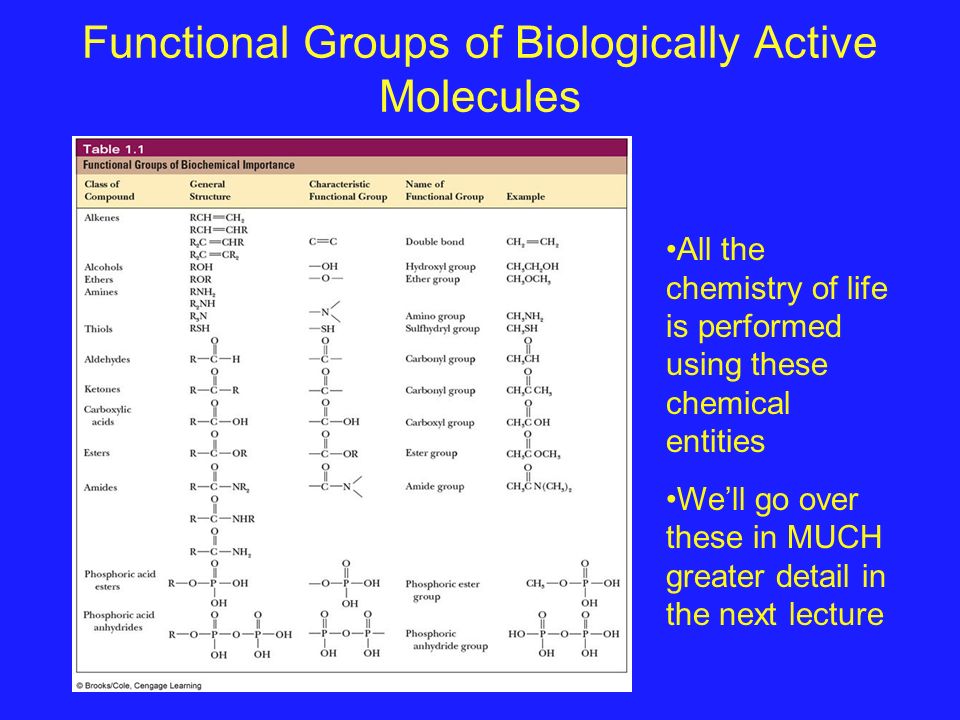

16. Functional Groups of Biologically Active Molecules All the chemistry of life is performed using these chemical entities We’ll go over these in MUCH greater detail in the next lecture

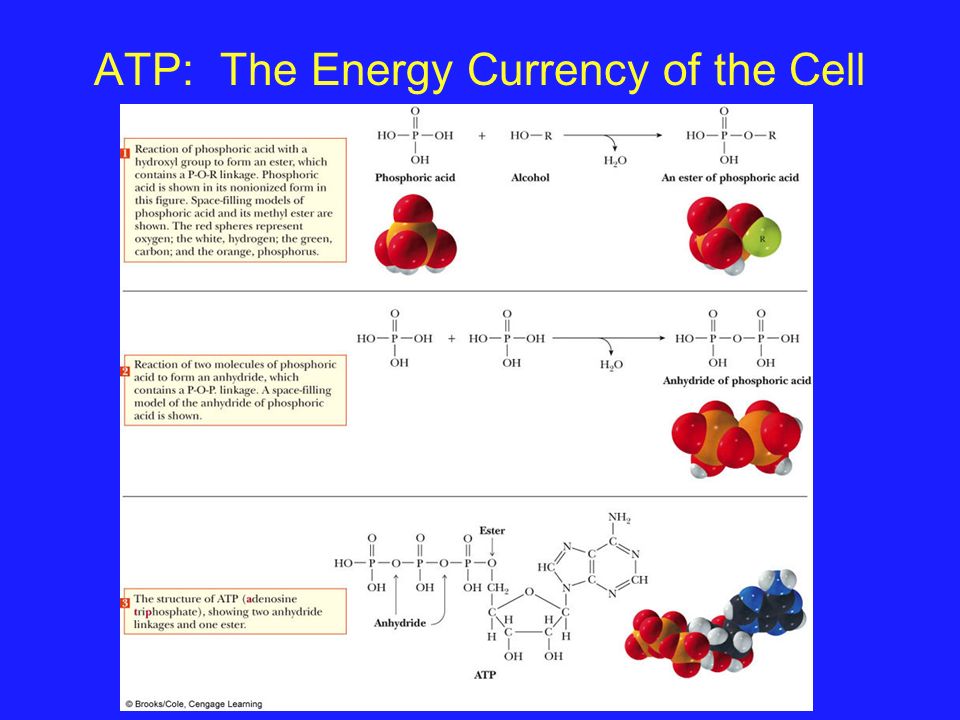

17. ATP: The Energy Currency of the Cell

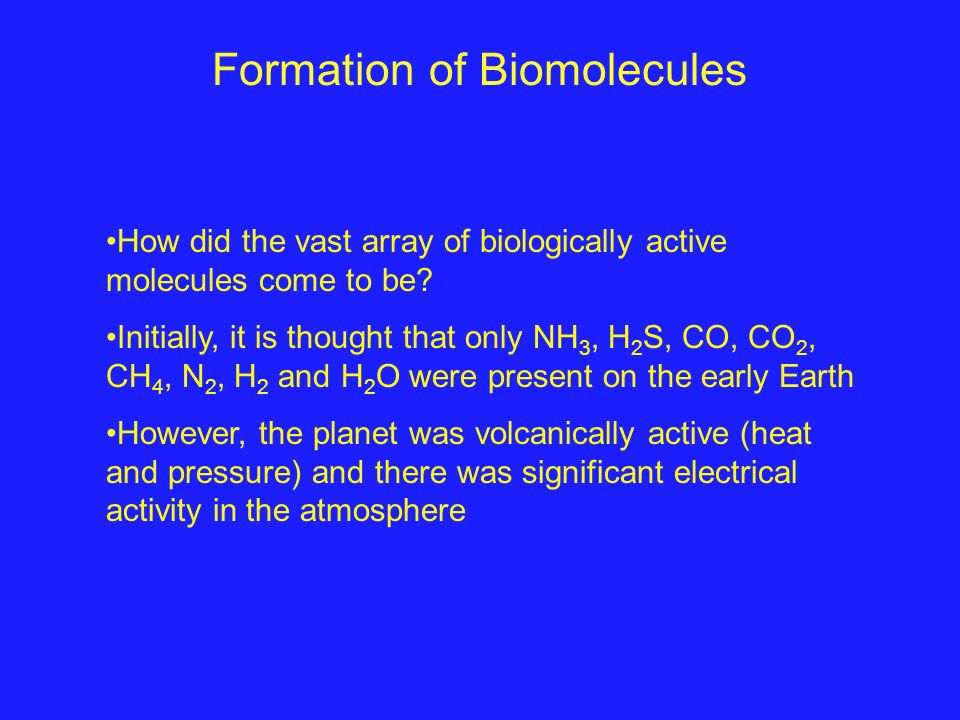

18. Formation of Biomolecules How did the vast array of biologically active molecules come to be? Initially, it is thought that only NH 3, H 2 S, CO, CO 2, CH 4, N 2, H 2 and H 2 O were present on the early Earth However, the planet was volcanically active (heat and pressure) and there was significant electrical activity in the atmosphere

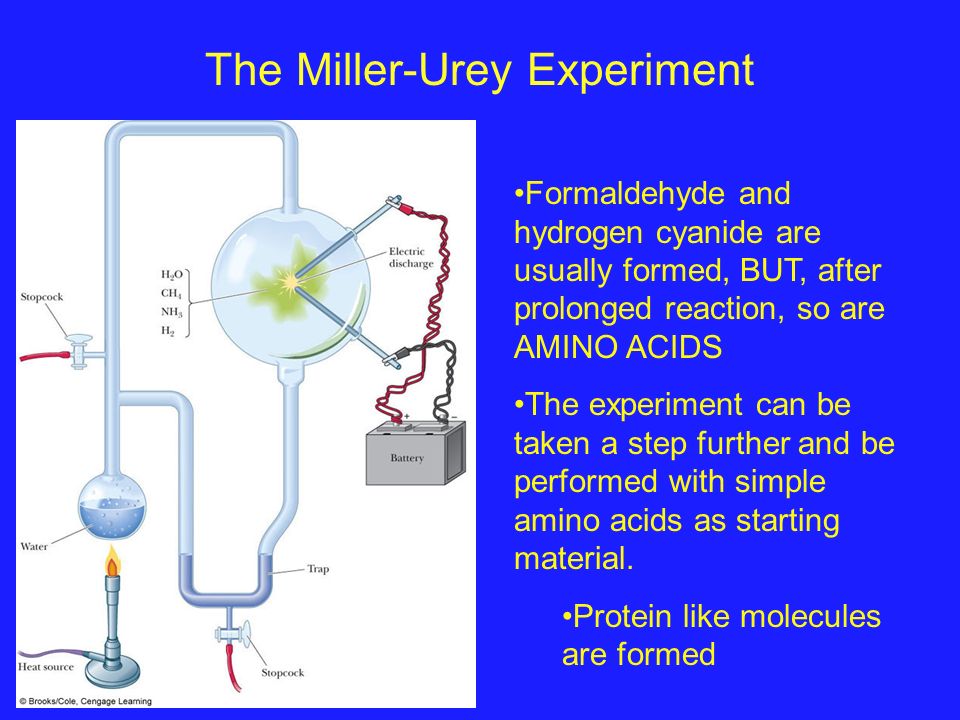

19. The Miller-Urey Experiment Formaldehyde and hydrogen cyanide are usually formed, BUT, after prolonged reaction, so are AMINO ACIDS The experiment can be taken a step further and be performed with simple amino acids as starting material. Protein like molecules are formed

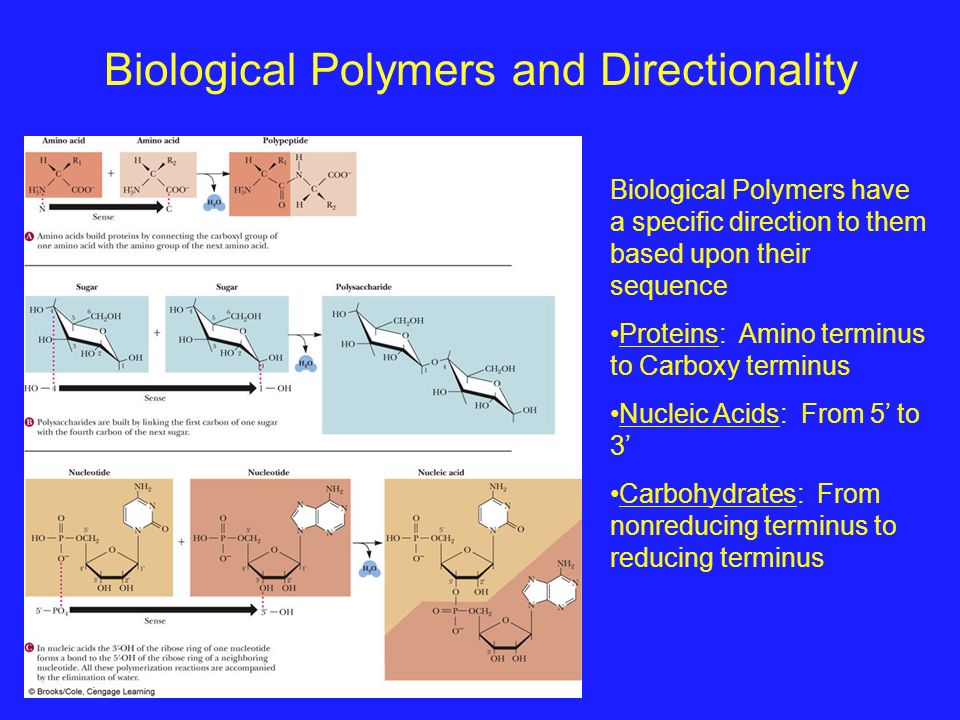

20. Biological Polymers and Directionality Biological Polymers have a specific direction to them based upon their sequence Proteins: Amino terminus to Carboxy terminus Nucleic Acids: From 5’ to 3’ Carbohydrates: From nonreducing terminus to reducing terminus

21. Types of Cells The different biologically active molecules and polymers arrange themselvs to form cells The formation of a lipid bilayer is instrumental in this! We can distinguish between types of cells based upon the presence of organelles, especially the nucleus Prokaryotic do not have a nucleus or other organelles but Eukaryotic cells do Organelles are specialized compartments that allow unique reactions to occur within them

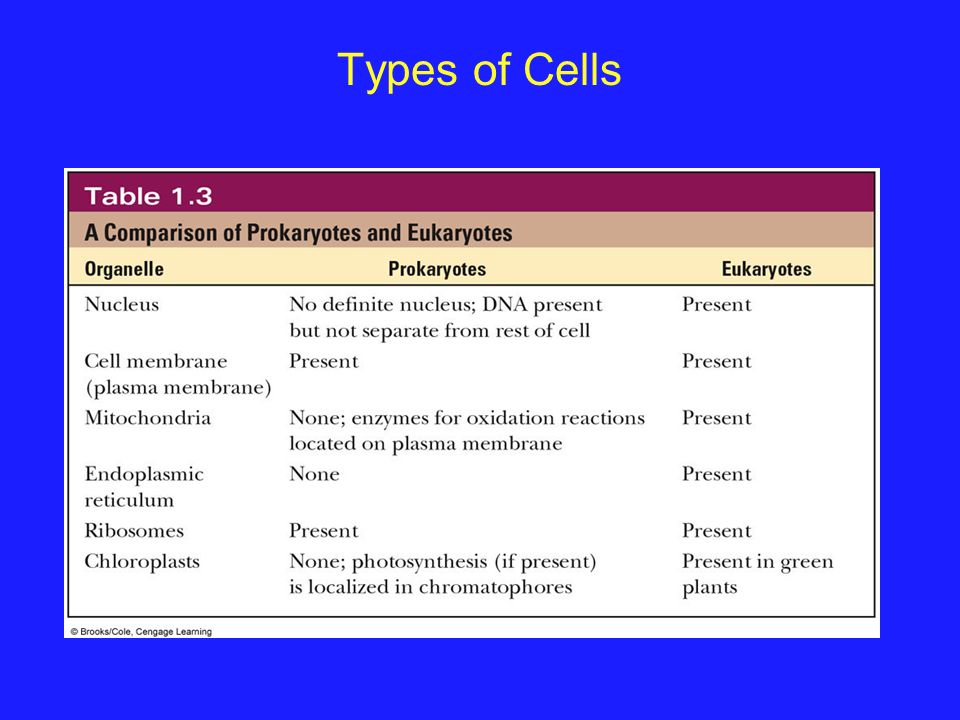

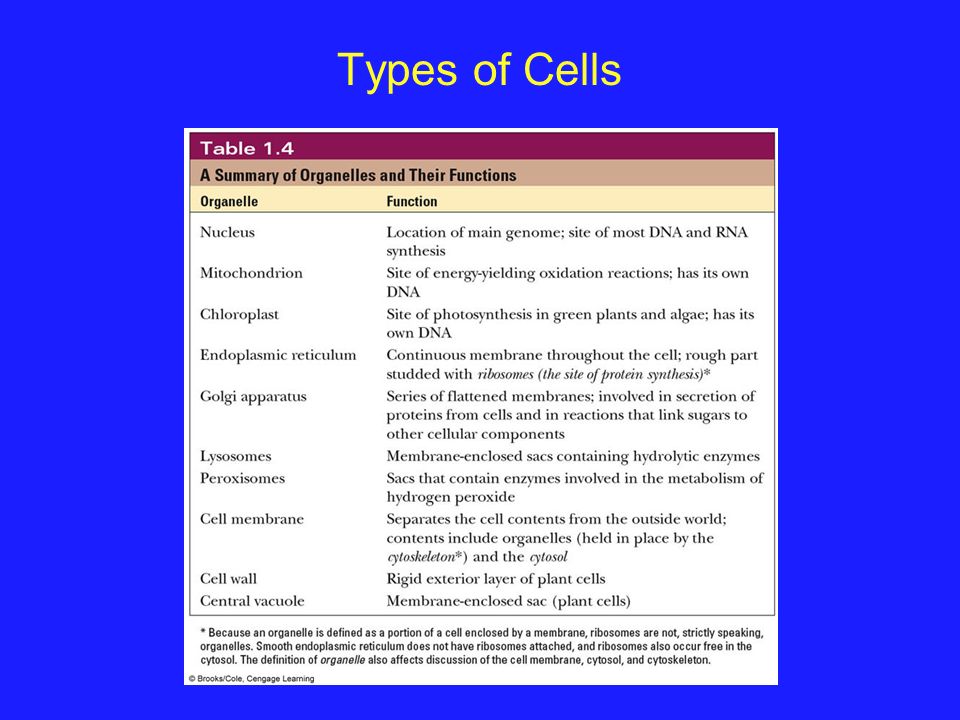

22. Types of Cells

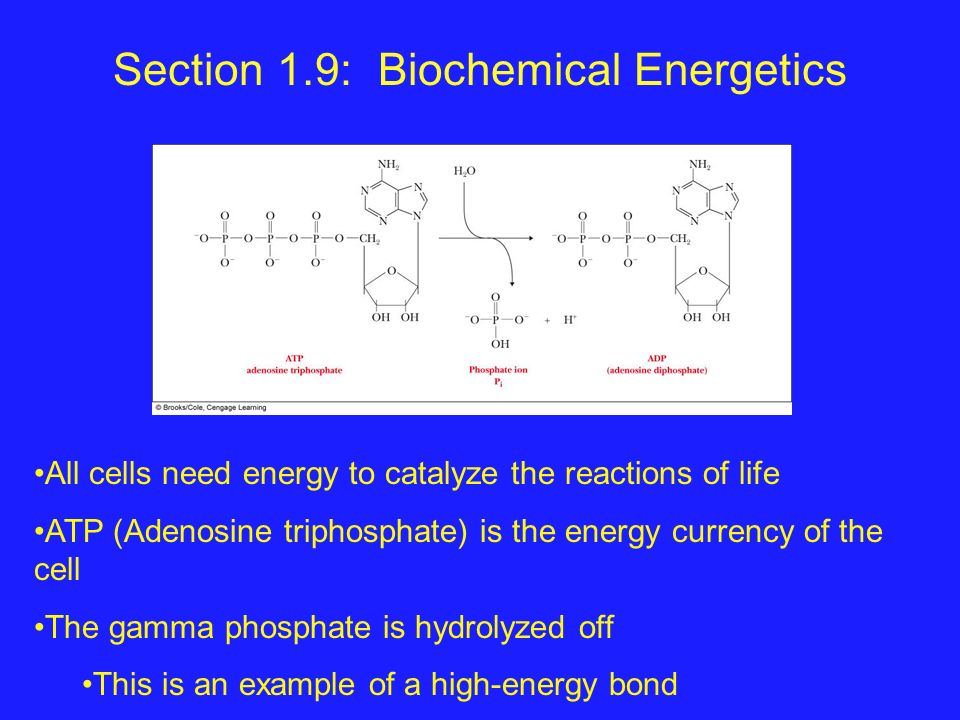

24. Section 1.9: Biochemical Energetics All cells need energy to catalyze the reactions of life ATP (Adenosine triphosphate) is the energy currency of the cell The gamma phosphate is hydrolyzed off This is an example of a high-energy bond

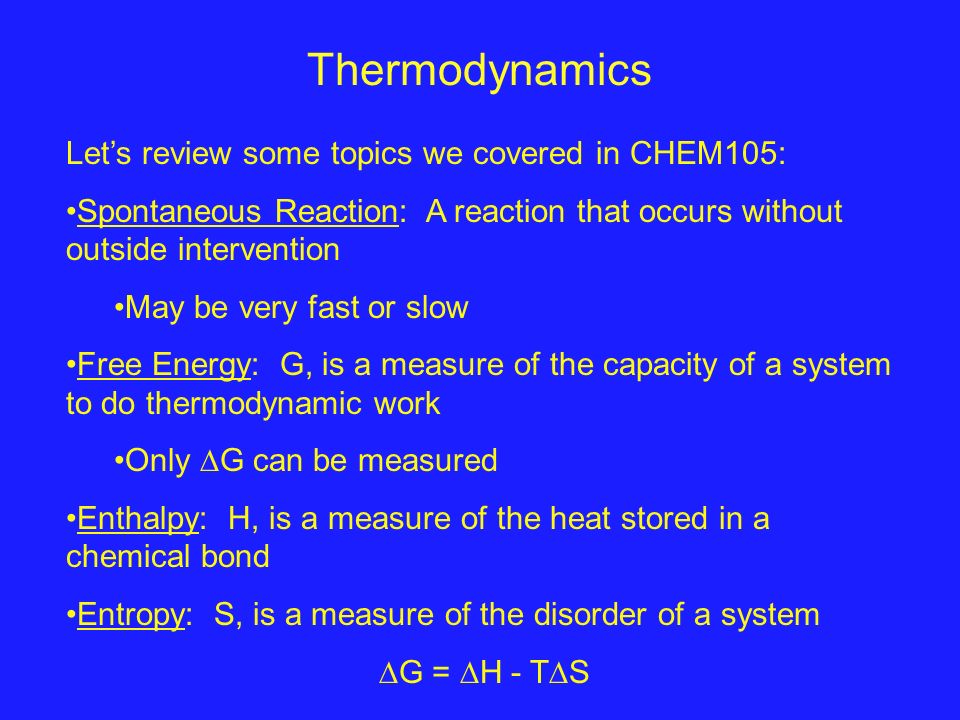

25. Thermodynamics Let’s review some topics we covered in CHEM105: Spontaneous Reaction: A reaction that occurs without outside intervention May be very fast or slow Free Energy: G, is a measure of the capacity of a system to do thermodynamic work Only  G can be measured Enthalpy: H, is a measure of the heat stored in a chemical bond Entropy: S, is a measure of the disorder of a system  G =  H - T  S

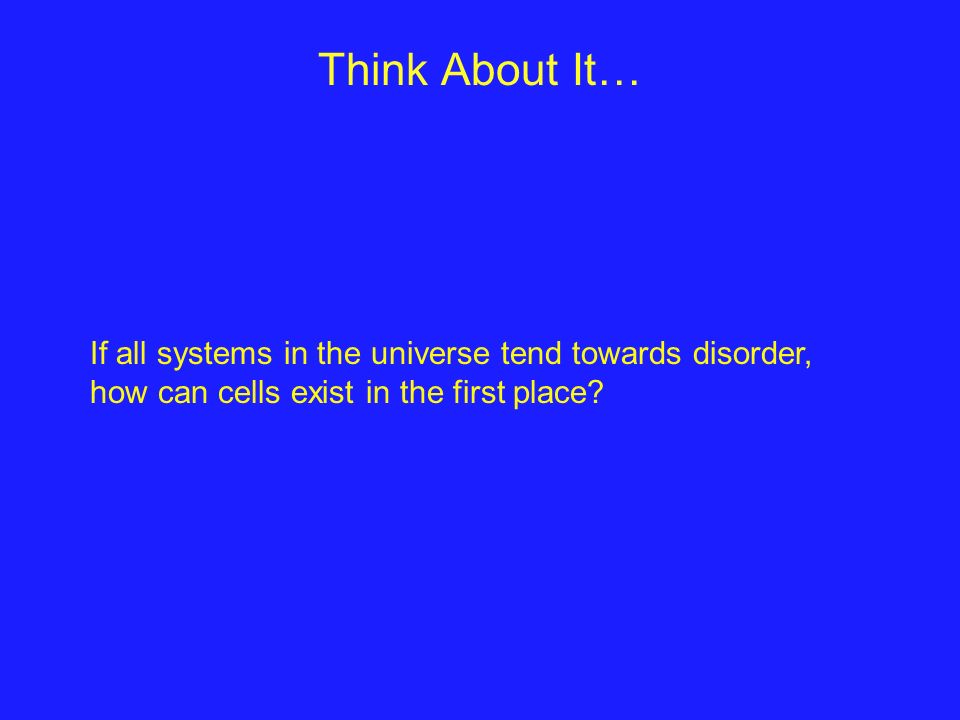

26. Think About It… If all systems in the universe tend towards disorder, how can cells exist in the first place?

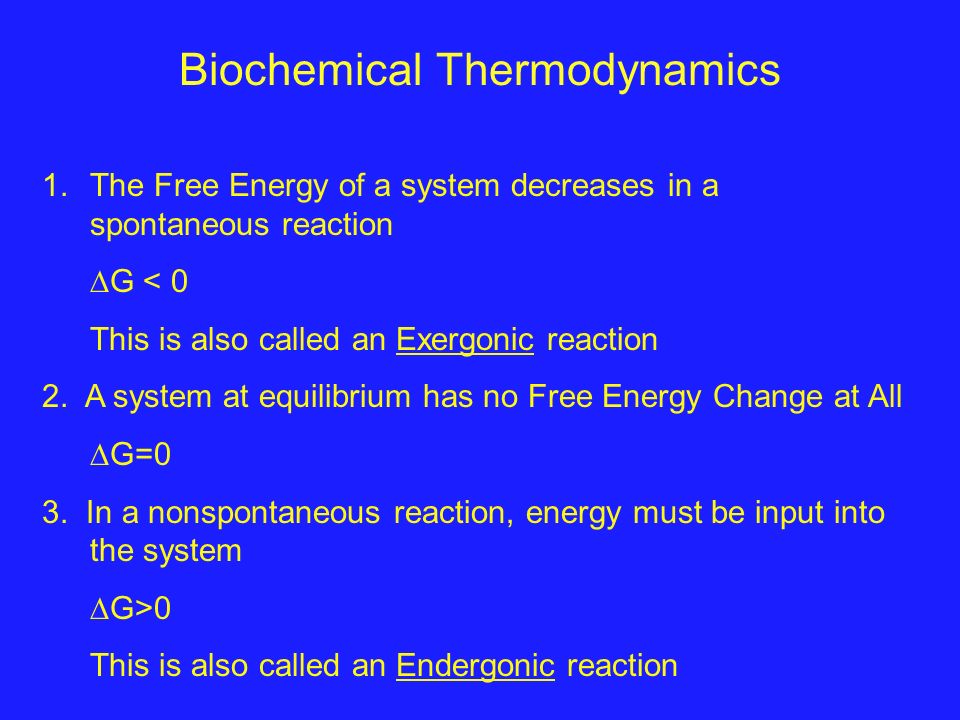

27. Biochemical Thermodynamics 1.The Free Energy of a system decreases in a spontaneous reaction  G < 0 This is also called an Exergonic reaction 2. A system at equilibrium has no Free Energy Change at All  G=0 3. In a nonspontaneous reaction, energy must be input into the system  G>0 This is also called an Endergonic reaction

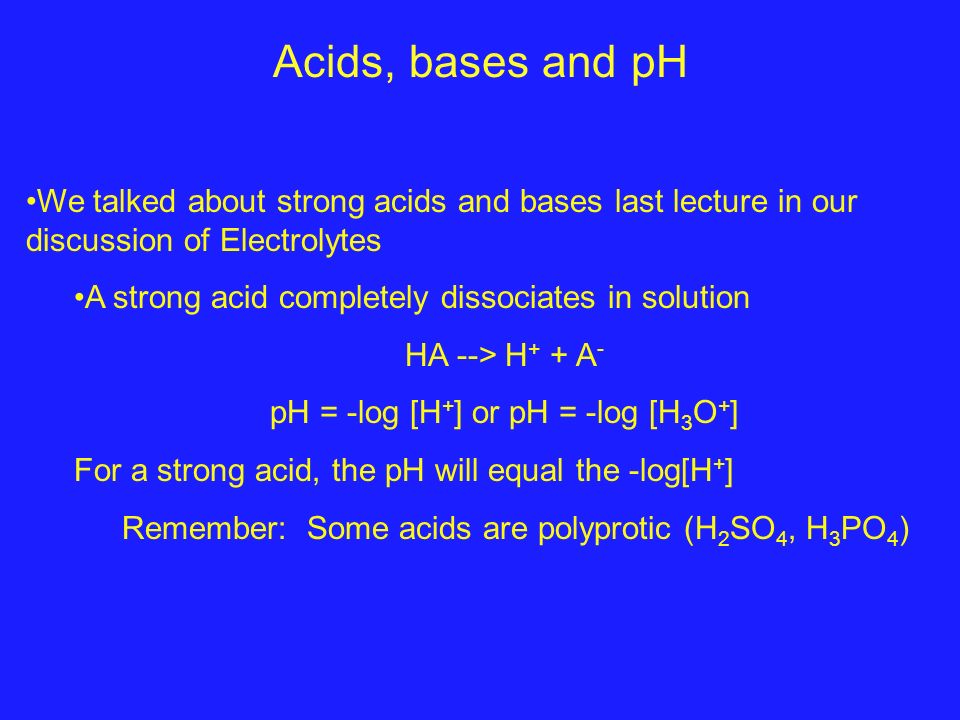

28. Acids, bases and pH We talked about strong acids and bases last lecture in our discussion of Electrolytes A strong acid completely dissociates in solution HA --> H + + A - pH = -log [H + ] or pH = -log [H 3 O + ] For a strong acid, the pH will equal the -log[H + ] Remember: Some acids are polyprotic (H 2 SO 4, H 3 PO 4 )

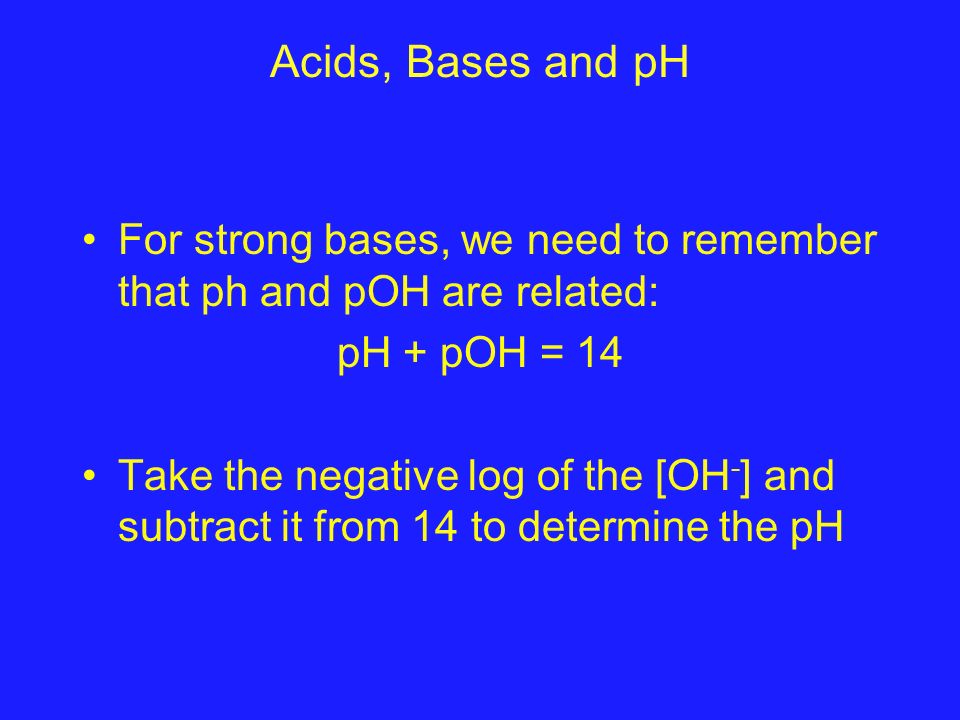

29. Acids, Bases and pH For strong bases, we need to remember that ph and pOH are related: pH + pOH = 14 Take the negative log of the [OH - ] and subtract it from 14 to determine the pH

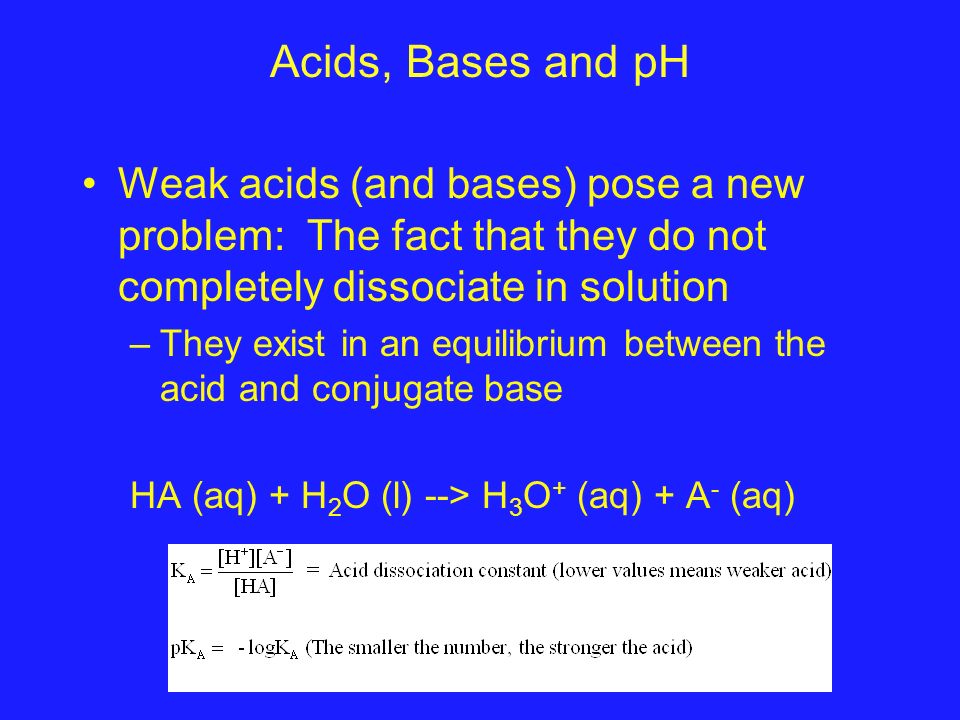

30. Acids, Bases and pH Weak acids (and bases) pose a new problem: The fact that they do not completely dissociate in solution –They exist in an equilibrium between the acid and conjugate base HA (aq) + H 2 O (l) --> H 3 O + (aq) + A - (aq)

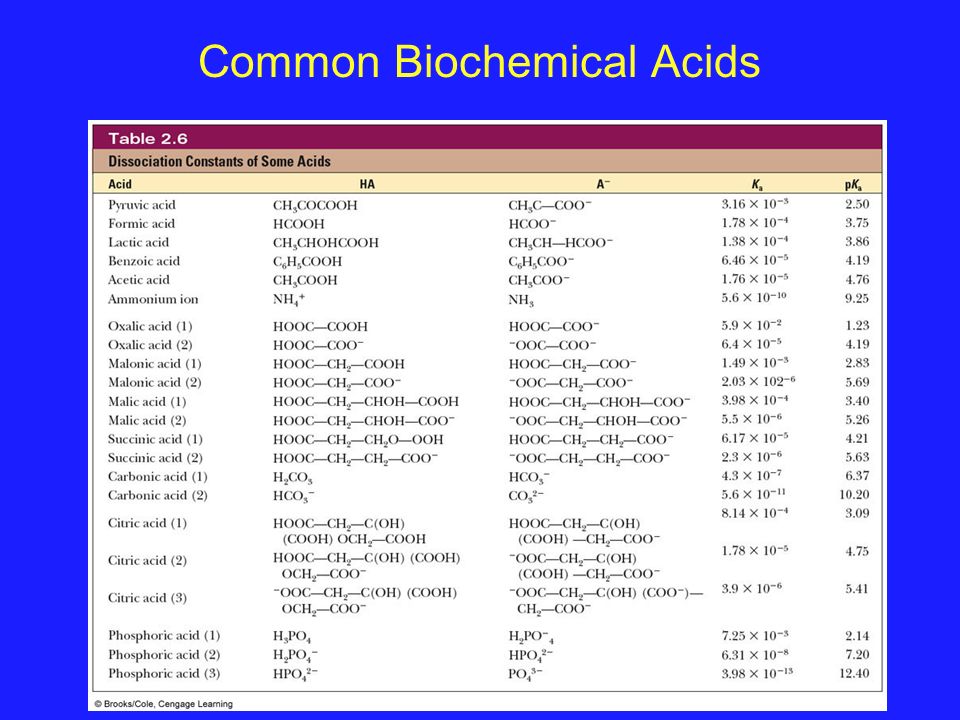

31. Common Biochemical Acids

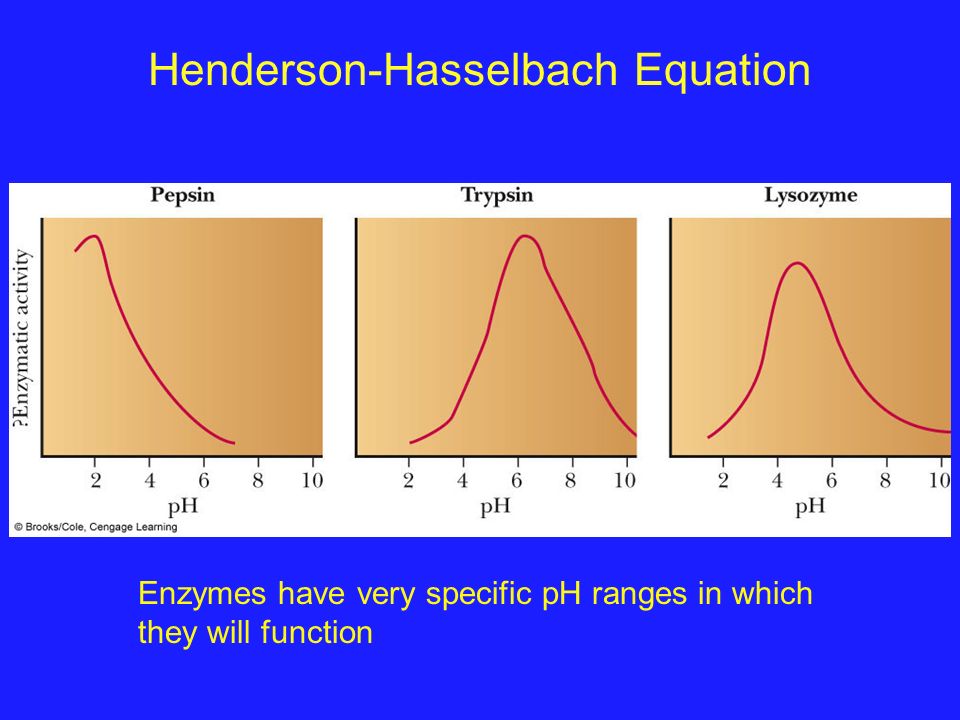

32. Henderson-Hasselbach Equation Enzymes have very specific pH ranges in which they will function

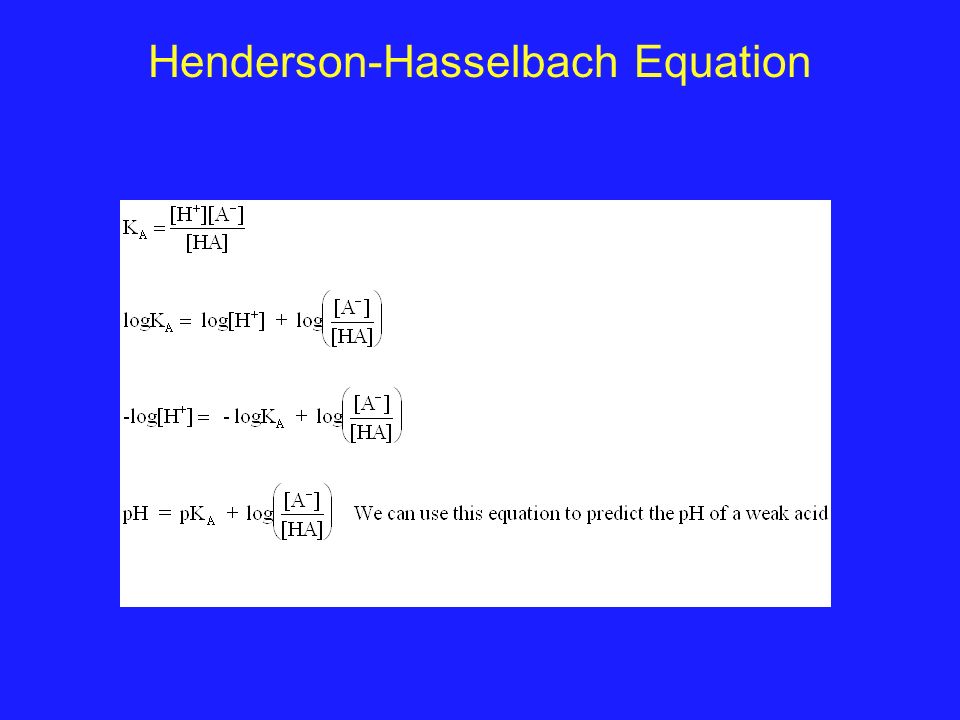

33. Henderson-Hasselbach Equation

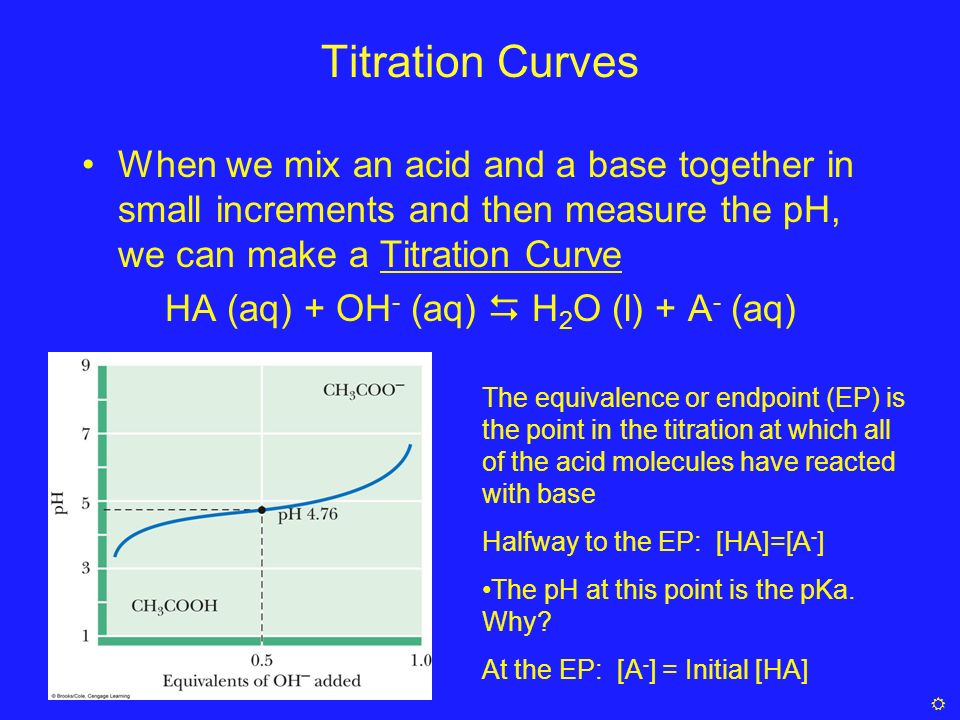

34. Titration Curves When we mix an acid and a base together in small increments and then measure the pH, we can make a Titration Curve HA (aq) + OH - (aq)  H 2 O (l) + A - (aq) The equivalence or endpoint (EP) is the point in the titration at which all of the acid molecules have reacted with base Halfway to the EP: [HA]=[A - ] The pH at this point is the pKa. Why? At the EP: [A - ] = Initial [HA] 
