Lesson 2: First Java Programs

Similar presentations


Presentation on theme: "Lesson 2: First Java Programs"— Presentation transcript:

1 Lesson 2: First Java Programs

2 Lesson 2: First Java Programs
Objectives: Discuss why Java is an important programming language. Explain the Java virtual machine and byte code. Choose a user interface style. Describe the structure of a simple Java program.

3 Lesson 2: First Java Programs
Objectives: Write a simple program. Edit, compile, and run a program using a Java development environment. Format a program to give a pleasing, consistent appearance. Understand compile-time errors. Write a graphics program.

4 Lesson 2: First Java Programs
Vocabulary: Applet Assignment operator Byte code DOS development environment Graphical user interface (GUI) Hacking Import statement Integrated development environment (IDE) Interpreter Java virtual machine(JVM) Just-in-time compilation (JIT) Panel Panes Parameter Source code Statement Terminal I/O interface Variable

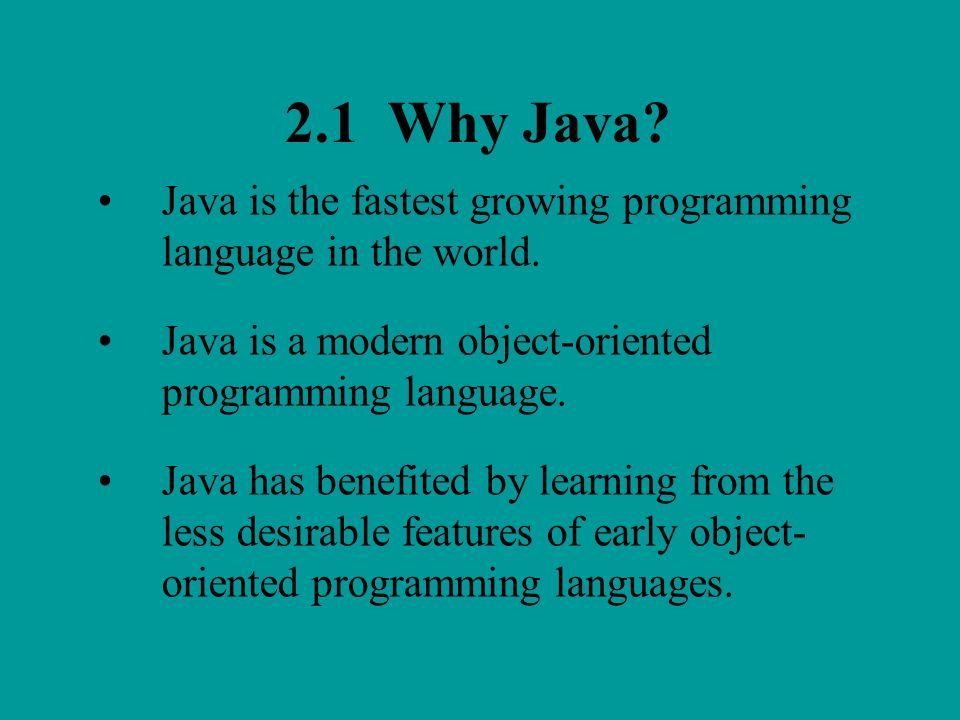

5 2.1 Why Java? Java is the fastest growing programming language in the world. Java is a modern object-oriented programming language. Java has benefited by learning from the less desirable features of early object- oriented programming languages.

6 2.1 Why Java? Java is ideal for distributed, network-based applications. Secure: Virus-free, tamper-free systems. Robust: Supports development of programs that do not overwrite memory. Portable: Yields programs that can be run on different computer types.

7 2.1 Why Java? Java is ideally suited to develop distributed, network-based applications because it: Enables the construction of virus-free, tamper-free systems (security) Supports the development of programs that do not overwrite memory (robust) Yields programs that can be run on different types of computers without change (portable)

8 2.1 Why Java? Java supports advanced programming concepts such as threads. A thread is a process that can run concurrently with other processes. Java resembles C++, the world’s most popular industrial strength programming language. Java however, runs more slowly than most modern programming languages because it is interpreted.

9 2.2 The Java Virtual Machine and Byte Code
Java compilers translate Java into pseudomachine language called java byte code. To run java byte code on a particular computer, a Java virtual machine (JVM) must be installed.

10 2.2 The Java Virtual Machine and Byte Code
A Java virtual machine is a program that runs like a computer. It is called an interpreter. Disadvantage: Runs more slowly than an actual computer To combat slower processing, some JVMs translate code when first encountered. This is known as just-in-time compilation (JIT).

11 2.2 The Java Virtual Machine and Byte Code
Advantages: Portability. Any computer can run an interpreter. This makes byte code portable. Applets. Applets are small Java programs already translated into byte code. Applets run in a JVM incorporated in a web browser Applets can be decorative (like animated characters on a web page.) Applets can be practical (like continuous streams of stock market quotes.) Security. It is possible to limit the capabilities of a Java program since it runs inside a virtual machine.

12 2.2 The Java Virtual Machine and Byte Code
Advantages: JVMs are getting faster. Using JIT (just-in-time) compilations, which translate byte code into machine language.

13 2.3 Choosing a User Interface Style
There are two types of user interfaces available to use to create Java programs. Graphical User Interface (GUI) Terminal I/O interface Figure 2-1 illustrates both interfaces used to create the same program.

14 2.3 Choosing a User Interface Style
Graphical user interface (GUI)

15 2.3 Choosing a User Interface Style
Terminal I/O user interface

16 2.3 Choosing a User Interface Style
There are 3 reasons for beginning with terminal I/O: It is easier to implement than a GUI There are programming situations that require terminal I/O Terminal-oriented programs are similar in structure to programs that process files of sequentially organized data. (What is learned here is easily transferred to that setting.)

17 2.4 HelloWorld Figure 2-2 displays the results of a small Java program, entitled “HelloWorld”

18 2.4 HelloWorld A program is a sequence of instructions for a computer.
The following is the bulk of instructions, or source code, for the HelloWorld” program.

19 <name of object>.<name of message>(<parameters>)
2.4 HelloWorld The Explanation: System.out is an object that displays characters in a terminal window. println is the message being sent to the object. The quotations indicate what is to be displayed. Semicolons mark the end of each statement. The characters between the parentheses are the parameters. The period (.) is the method selector operator. Sending messages to objects always takes the following form: <name of object>.<name of message>(<parameters>)

20 2.4 HelloWorld The Larger Framework:
The program must be embedded in several lines of code, such as: Program comments are in green, reserved words in blue, and code in black.

21 2.5 Edit, Compile, and Execute
Figure 2-3 illustrates the edit, compile and execute steps.

22 2.5 Edit, Compile, and Execute
The programmer uses a word processor or editor to enter the source code. Save it as a text file with the extension .java. Compile The programmer invokes the Java language compiler. Translates the source code into Java byte code. Execute The programmer instructs the JVM to load the byte code into memory and execute. The user and program can now interact.

23 2.5 Edit, Compile, and Execute
Development environments: Unix standard text editor command line activation of compiler and JVM DOS, using Microsoft Windows and NT OS notepad text editor command line activation of compiler and JVM from a DOS window Integrated development environment, using Windows, NT, or MAC OS Examples: Symantec’s Visual Café, Microsoft’s Visual J++, NetBeans, or Borland’s J Builder

24 2.5 Edit, Compile, and Execute
Unix or Linux Standard text editor Free Microsoft Windows Notepad and DOS window Integrated development environment (IDE) BlueJ, Eclipse, or JGrasp Not free, but combines editor, compiler, debugger, and JVM

25 2.5 Edit, Compile, and Execute
Preparing your development environment: Create a directory, open a terminal window, use the cd command to move to your new directory Open notepad, create the file HelloWorld.java, type in the lines of code Save the file, go back to the terminal window, compile the program Run the program

26 2.5 Edit, Compile, and Execute
The program as typed into Notepad

27 2.5 Edit, Compile, and Execute
The following figures illustrate the steps necessary for preparing your development environment.

28 2.5 Edit, Compile, and Execute
Compile-Time Errors: Mistakes detected by the compiler are called syntax errors or compile-time errors. Typos made when editing. Compiler prints a list of errors in the terminal window.

29 2.5 Edit, Compile, and Execute
Readability: Programs may be maintained by other people. Layout affects readability. Use indentation, blank lines, and spaces.

30 2.5 Edit, Compile, and Execute

31 2.6 Temperature Conversion
View the program’s source code: import java.util.Scanner; public class Convert { public static void main (String [ ] args) Scanner reader = new Scanner(System.in); // This allows the user // to enter data from // the keyboard double fahrenheit; // The temperature in // Fahrenheit double celsius; // The temperature in // Celsius System.out.print(“Enter degrees Fahrenheit: ”); fahrenheit = reader.readDouble(); celsius = (Fahrenheit – 32.0) * 5.0 / 9.0; System.out.print(“The equivalent in Celsius is ”); System.out.println(celsius);   } }

32 2.6 Temperature Conversion
The following is an explanation of the program code: Import statement Instantiate or create an object Declare the variables Position the cursor after “Enter degrees Fahrenheit” Assignment operators Assignment statements are evaluated Print text (and position the cursor) Print the value of the variable Statement to prevent the terminal window from disappearing from the display (optional, only needed with certain development environments)

33 2.6 Temperature Conversion
Temperature conversion program reads user input and performs computations. The first line of code is an import statement. Variables for Fahrenheit and Celsius. Assignment statements use an operator such as *, /, +, and -.

34 2.6 Temperature Conversion
Variables and objects used in the conversion program.

35 2.7 Graphics and GUIs: Windows and Panels
A Simple Application Window: Graphics and GUI programs in Java can be stand-alone applications or applets. Consistent features: Title bar with controls (maximize, zoom, etc.) Width and height can be resized Code for application windows is in the class Jframe. JFrame responds to messages to set the title bar and window size.

36 2.7 Graphics and GUIs: Windows and Panels
Some commonly used JFrame methods

37 2.7 Graphics and GUIs: Windows and Panels
Panels and Colors: A Jframe has a container or pane to fill with objects. A panel is a rectangle used to display objects such a shapes and images. Panes are panels that contain related objects such as images and widgets. Colors in most computer system use RGB. Red, green, blue Values 0-255

38 2.7 Graphics and GUIs: Windows and Panels
Layout Managers and Multiple Panels: Each container object uses a layout manager to control panel placement. BorderLayout class allows arrangement of up to five objects. North, south, east, west, center GridLayout uses rows and columns to arrange objects.

39 Summary In this chapter, you learned:
Java is the fastest growing programming language in the world. It is secure, robust, and portable. It is also similar to C++, the world’s most popular programming language.

40 Summary The Java compiler translates Java into a pseudomachine language called Java byte code. Byte code can be run on any computer that has a Java virtual machine installed. The Java virtual machine (JVM) is a program that behaves like a computer—an interpreter. Java programs include variables, arithmetic expressions, statements, objects, messages, and methods.

41 Summary Three basic steps in the coding process are editing, compiling, and running a program using a Java development environment. Programmers should pay attention to a program’s format to ensure readability.

42 Summary Java programs accomplish many tasks by sending messages to objects. Examples are sending text to the terminal window for output and receiving input data from the keyboard. There are several user interface styles, among them terminal based and graphical based.

43 THE END
