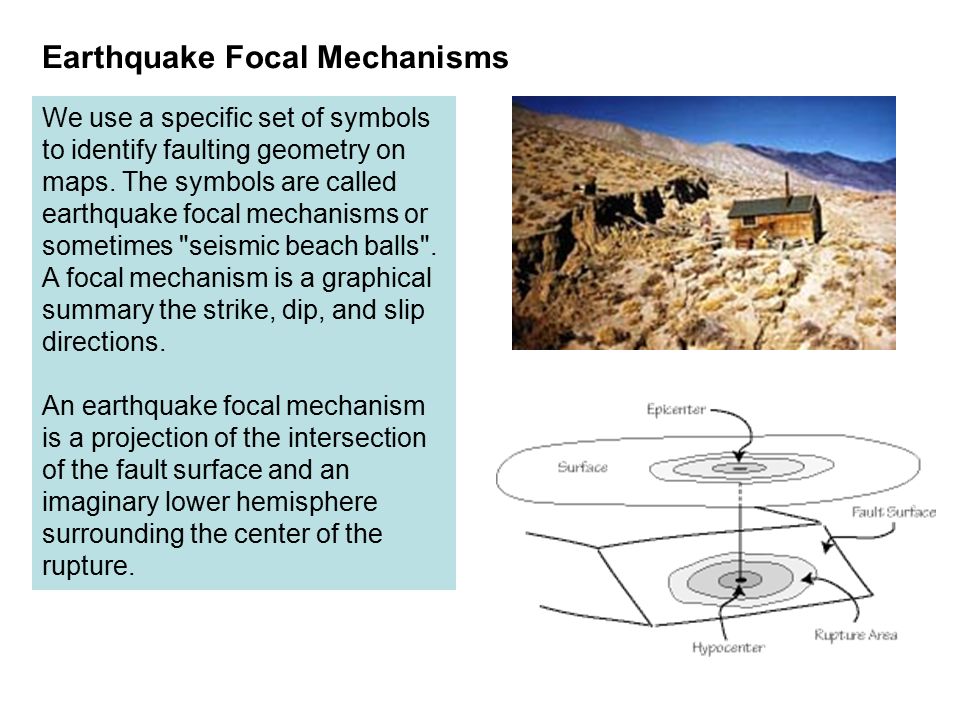

1 We use a specific set of symbols to identify faulting geometry on maps. The symbols are called earthquake focal mechanisms or sometimes "seismic beach balls". A focal mechanism is a graphical summary the strike, dip, and slip directions. An earthquake focal mechanism is a projection of the intersection of the fault surface and an imaginary lower hemisphere surrounding the center of the rupture. Earthquake Focal Mechanisms

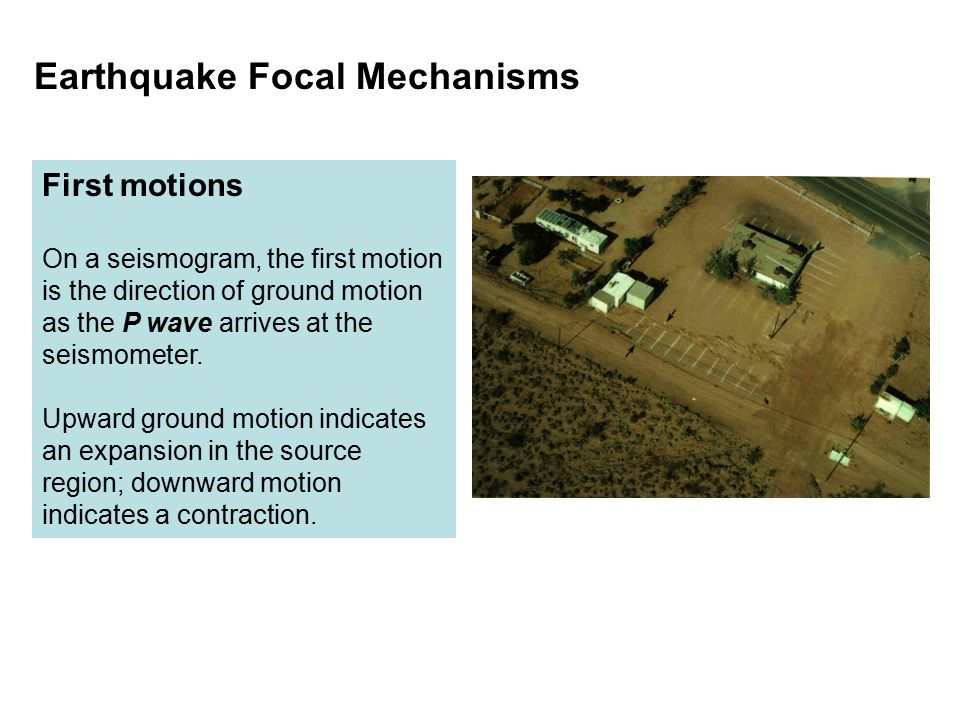

2 First motions On a seismogram, the first motion is the direction of ground motion as the P wave arrives at the seismometer. Upward ground motion indicates an expansion in the source region; downward motion indicates a contraction. Earthquake Focal Mechanisms

3 Seismic wave generation  Rupture starts at focus and spreads erratically and non- uniformly  Irregularities on fault plane (asperities) may act as barriers and temporarily slow propagation in certain direction  Rupture stops when rocks not sufficiently strained to allow it to continue  After rupturing ceases, adjacent sides of fault rebound  Seismic waves radiate from numerous places on fault plane  Rupture velocity variable- sometimes ~ walking speed: 1960 Chile quake took an hour for full rupture Typically 2-3 km/sec Fault plane Radiating rupture surface F

4 First Motions  In the early 20th Century, Japanese seismologists began investigating the sense of motion that accompanied the very first seismic wave arrival at a seismometer.  They found that these first motions are either upward or away from the source, or arrive downward or toward the source.  Though initially thought to be the result of different types of earthquakes, it was soon discovered that a single earthquake could produce both types of motion.   This knowledge, combined with the developing theories of fault rupture, led to the suggestion that these first wave motions were indicators of slipping motion from the actual fault rupture producing the seismic waves.

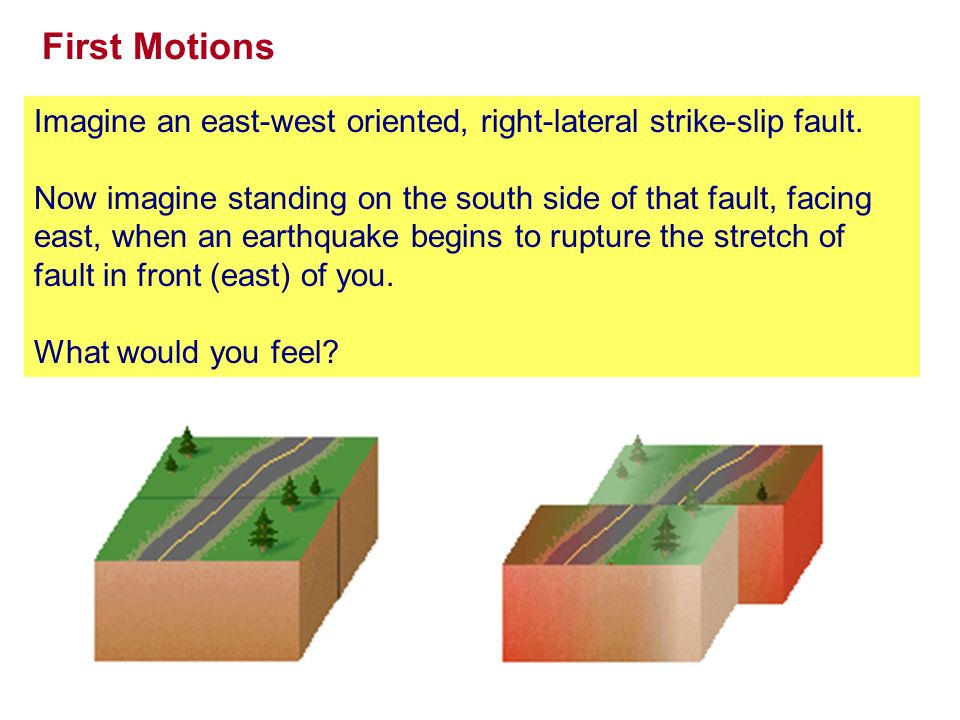

5 Imagine an east-west oriented, right-lateral strike-slip fault. Now imagine standing on the south side of that fault, facing east, when an earthquake begins to rupture the stretch of fault in front (east) of you. What would you feel? First Motions

6 The first motion you would experience would be a “push:, pushing you away from the source of the earthquake, as your side of the fault experiences compressional force from the motion of the fault rupture. The areas of the block diagram that turn red experience compression when the fault moves. Those areas that fade to white experience the opposite kind of motion, dilatation, as they are initially pulled toward the source with “pull” motion. First Motions

7 Analysis of records made from the seismic instruments surrounding the source of an earthquake allow seismologists to determine the sense of slip of that earthquake, even if the rupture does not reach the surface. This is done by creating a model of the initial rupture motion, called a focal mechanism. First Motions

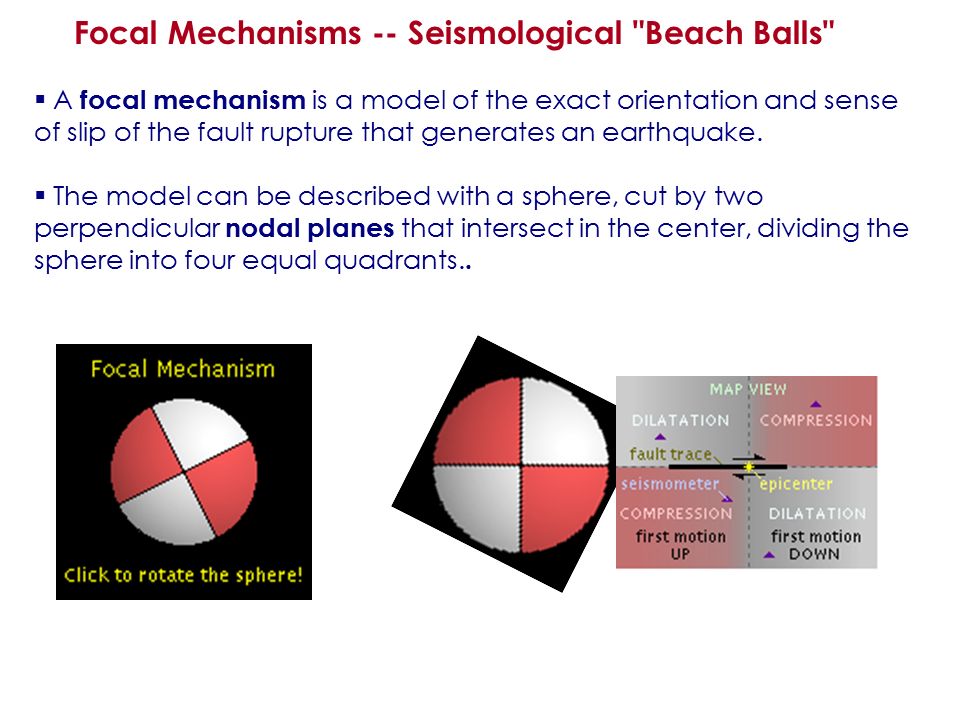

8  A focal mechanism is a model of the exact orientation and sense of slip of the fault rupture that generates an earthquake.  The model can be described with a sphere, cut by two perpendicular nodal planes that intersect in the center, dividing the sphere into four equal quadrants.. Focal Mechanisms -- Seismological "Beach Balls"

9  Focal mechanisms look something like beach balls. One of the two nodal planes represents the orientation of the fault plane that generated the earthquake.  The other is the auxiliary plane, a plane perpendicular to the line describing the direction of slip in the earthquake (this line must lie on the fault plane).  On a two-dimensional surface, the sphere of a focal mechanism is usually represented by a circle, the projection of one half of that sphere.  The center of the sphere represents the earthquake's hypocenter; the center of a circular projection represents its epicenter. Focal Mechanisms -- Seismological "Beach Balls"

10  Focal mechanisms really only describe the motion involved at the start of a rupture -- the hypocenter (also called the focus, hence their name) -- because they are calculated using the very first wave arrivals from an earthquake.  In an earthquake large enough to involve several kilometers of fault rupture, slip will sometimes "evolve", changing in sense and/or orientation as the rupture propagates.  This can happen in response to changes in fault geometry or rupture boundary conditions.  In such a case, the entire fault rupture may not exactly match the model supplied by the focal mechanism  The focal mechanism will still provide insight into the initial rupture behavior at the hypocenter. Focal Mechanisms -- Seismological "Beach Balls"

11  Since focal mechanisms are constructed using first motions, the direction of the first deflection recorded by a seismometer as that instrument experiences the initial arrival of seismic waves.  It takes a large number of seismometers in the area surrounding the hypocenter to produce a reliable focal mechanism.  Gaps in coverage will increase the uncertainty in the model. Focal Mechanisms -- Seismological "Beach Balls" Push and pull in each quadrant

12  Since focal mechanisms are constructed using first motions, the direction of the first deflection recorded by a seismometer as that instrument experiences the initial arrival of seismic waves.  It takes a large number of seismometers in the area surrounding the hypocenter to produce a reliable focal mechanism.  Gaps in coverage will increase the uncertainty in the model. Focal Mechanism

13 How are focal mechanism models created? The actual work and calculations are not simple, but the general process is relatively easy to explain. First, though focal mechanisms represent spheres, we use a two-dimensional, lower- hemisphere projection. So imagine cutting the focal mechanism sphere in half, removing the top half, and shining a light on the interior from directly above, so that the lower hemisphere projects as a circle onto a flat surface below. This projection is typically called a fault plane solution. Creating Focal Mechanisms

14 Now we need to plot the first motions recorded from our earthquake. To do this, we check the waveforms recorded by various seismic stations in the area, and mark the first arrivals as "up" (compressional) or "down" (dilatational). Each station's location relative to the hypocenter is then projected onto our circular diagram with a symbol representing the type of motion, up or down, first recorded there. Stations that fall within the "missing" upper hemisphere (above the horizontal) are translated appropriately onto our lower- hemisphere projection. Creating Focal Mechanisms

15 Once the first motions are correctly plotted, it is time to solve for the two nodal planes. The sphere is divided into quadrants using two perpendicular planes that best fit the set of first motions. Again, since the two-dimensional plot shows only the projection of the inner surface of the lower hemisphere, those planes will look like two intersecting lines within a circle. Though the two nodal planes must intersect at the hypocenter -- the center of the sphere -- the intersection of these lines, since it occurs on the sphere's surface, need not be in the center of our circular projection. Creating Focal Mechanisms

16 After the nodal planes have been identified, the symbol is complete, but of somewhat limited use, because either of the two nodal planes could be the fault plane. Other types of data can be useful in determining which plane is the fault plane, and consequently, what type of slip occurred in the earthquake. Creating Focal Mechanisms

17 Knowing the geology of the area will help you identify the most likely fault geometry. Aftershocks can be of great assistance; aftershock sequences can provide valuable hints about fault plane orientation at depth. Though not always feasible, the use of these insights can lead to a final determination of the fault plane solution. Creating Focal Mechanisms

18 Interpreting fault plane solutions can be a little tricky. There are several things to keep in mind when converting a symbol (like the one at lower left) to a sense of slip and fault plane orientation. First, the fault plane solution is generally given as a two-dimensional projection of the lower hemisphere of a focal mechanism sphere, not just an overhead view of the outside of that sphere. Also keep in mind that the lines crossing the circle represent the intersection of two perpendicular planes with a sphere. Reading Fault Plane Solutions

19 If you can determine which nodal plane on a fault plane solution corresponds to the orientation of the geologic fault plane, you know that the other plane must be the auxiliary plane. Because this plane is oriented perpendicular to the direction of slip, its point of intersection with the fault plane (and the lower surface of the sphere) provides information about the relative proportions of dip slip and strike slip involved in the fault rupture. If the line of the auxiliary plane bisects the fault plane's line, this represents pure strike slip. Reading Fault Plane Solutions + + - Normal dip-slip fault

20 Fault plane solutions from first motions Type of fault can be determined remotely from first motions on a seismogram P-wave: detected as either a push or a pull P-wave first motions will depend where seismograph is located relative to fault Those located at points where fault at the focus is moving away record pulls (dilatations) Seismographs located such that fault is moving towards them will record pushes or compressions + + - + - - Normal dip-slip fault Reverse dip-slip fault

21

22 Memorize the top three that correspond to dip-slip reverse and normal faulting on a fault dipping 45°, and strike-slip faulting on a vertical fault. The lower two mechanisms correspond to a low-angle reverse earthquake (the dip is low) and the last example is an oblique event with components of both strike- slip and dip-slip movement. rule). The strike of any plane can be read from a focal mechanism by identifying the intersection of the fault (shown as the boundary between shaded and unshaded regions) with the circle surrounding the mechanism. Earthquake Focal Mechanisms

23
