IPv6 in der Praxis Vortragsreihe von Michael Dirska Hasso-Plattner-Institut Potsdam 2004-05-27.

Similar presentations


Presentation on theme: "IPv6 in der Praxis Vortragsreihe von Michael Dirska Hasso-Plattner-Institut Potsdam 2004-05-27."— Presentation transcript:

1 IPv6 in der Praxis Vortragsreihe von Michael Dirska Hasso-Plattner-Institut Potsdam

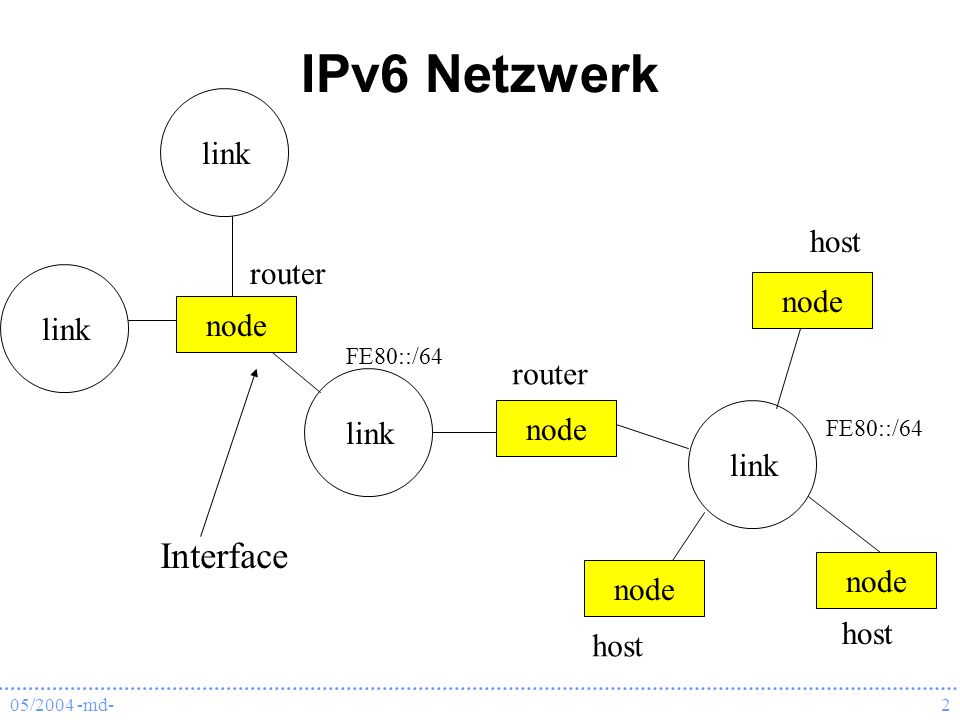

2 05/2004 -md-2 IPv6 Netzwerk node link node host router Interface FE80::/64

3 05/2004 -md-3 transition to IPv6 t199620?? IPv4 IPv ? 2030 ? Es wird lange Zeit gleichzeitige IPv4- und IPv6-Konnektivität geben müssen.

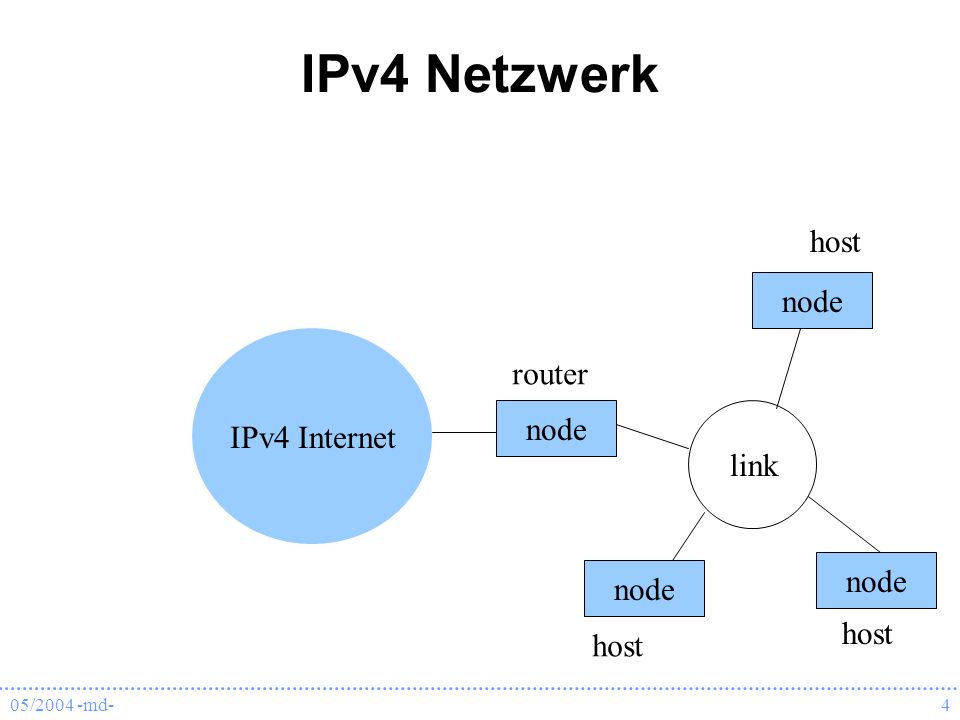

4 05/2004 -md-4 IPv4 Netzwerk node link node host router IPv4 Internet

5 05/2004 -md-5 dual stack node link node host IPv4 router IPv4 Internet node IPv6 router node host IPv6 Internet

6 05/2004 -md-6 configured tunnel node link node host IPv4 router IPv4 Internet node IPv6 router node host IPv6 Internet tunnel broker node IPv6-over-IPv4 tunnel

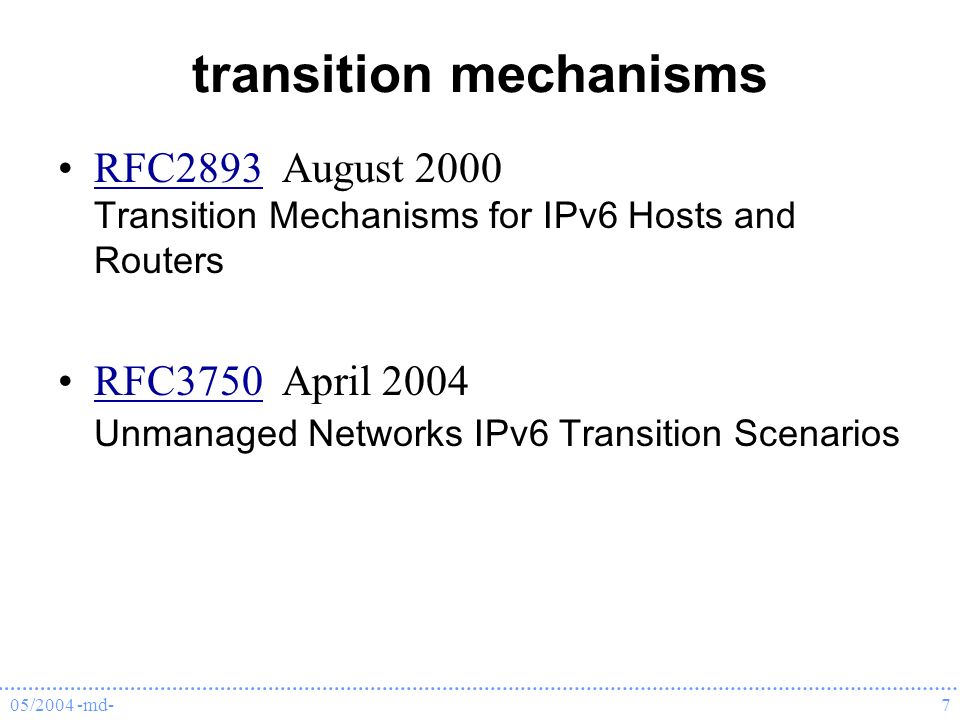

7 05/2004 -md-7 transition mechanisms RFC2893 August 2000 Transition Mechanisms for IPv6 Hosts and RoutersRFC2893 RFC3750 April 2004 Unmanaged Networks IPv6 Transition ScenariosRFC3750

8 05/2004 -md-8 transition mechanisms RFC25296over4 (basiert auf IPv4-Multicast)RFC2529 RFC30566to4 Connection of IPv6 Domains via IPv4 Clouds (Prefix: 2002:V4ADDR::/48 )RFC3056 IETF ngtrans-isatap-20ISATAP Intra-Site Automatic Tunnel Access ProtocolISATAP Teredo (erweitertes 6to4, geht auch über NAT)Teredo

9 05/2004 -md-9 6to4 node link node host IPv4 router IPv4 Internet IPv6 Internet 6to4 relay node IPv6-over-IPv4 tunnel 2002:8d59:e091::8d59:e :c058:6301::c058: (Anycast)

10 05/2004 -md-10 Intra-Site Automatic Tunnel Access Protocol (ISATAP) node link node host IPv4 Internet ISATAP router IPv6 Internet node 2001:db8:1:2:0:5efe:8d59:e :db8:1:2:/64 isatap.example.com

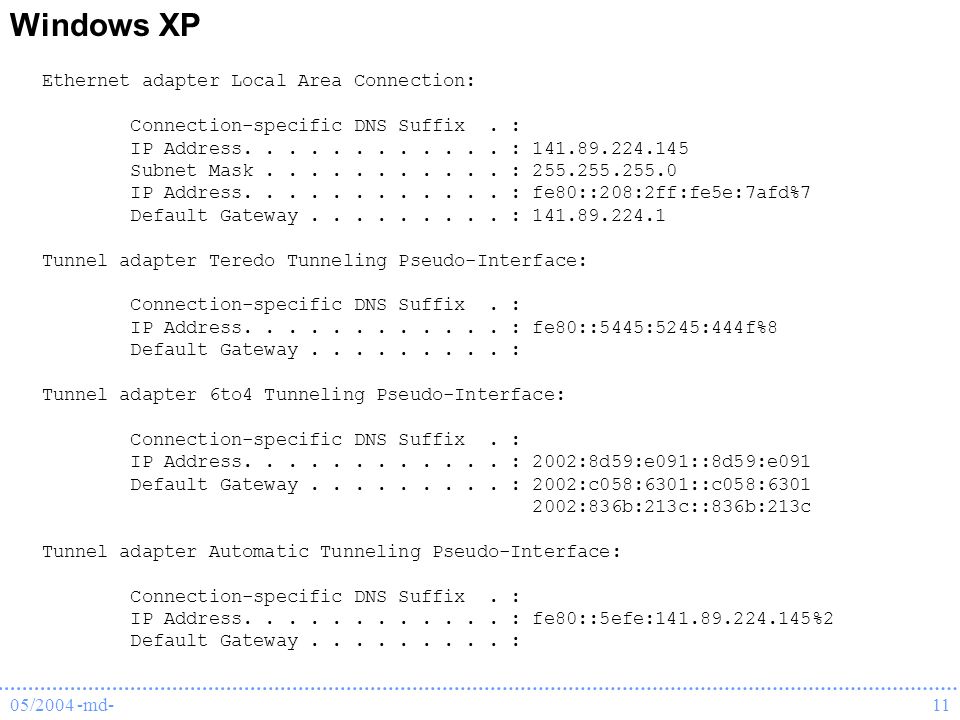

11 05/2004 -md-11 Ethernet adapter Local Area Connection: Connection-specific DNS Suffix. : IP Address : Subnet Mask : IP Address : fe80::208:2ff:fe5e:7afd%7 Default Gateway : Tunnel adapter Teredo Tunneling Pseudo-Interface: Connection-specific DNS Suffix. : IP Address : fe80::5445:5245:444f%8 Default Gateway : Tunnel adapter 6to4 Tunneling Pseudo-Interface: Connection-specific DNS Suffix. : IP Address : 2002:8d59:e091::8d59:e091 Default Gateway : 2002:c058:6301::c058: :836b:213c::836b:213c Tunnel adapter Automatic Tunneling Pseudo-Interface: Connection-specific DNS Suffix. : IP Address : fe80::5efe: %2 Default Gateway : Windows XP
