1. Created By Adam Mazur Design by Aseantic Electrodes production with ITS EROWA System

2.  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow Electrodes production with ITS EROWA

3.  Many technical problems.( to mill and grind a lot of bases)  How much cost us a mistake in the last step of production.  How to clamp and align it? Electrodes production with ITS EROWA  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

4. Dividing the shape of the cavity for smaller parts (electrodes) we can: produce electrodes faster. make erosion process more stable and faster. reduce the cost of mistakes in electrodes production. Electrodes production with ITS EROWA  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

5. X,Y =0,0 Z=0 Electrodes production with ITS EROWA  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

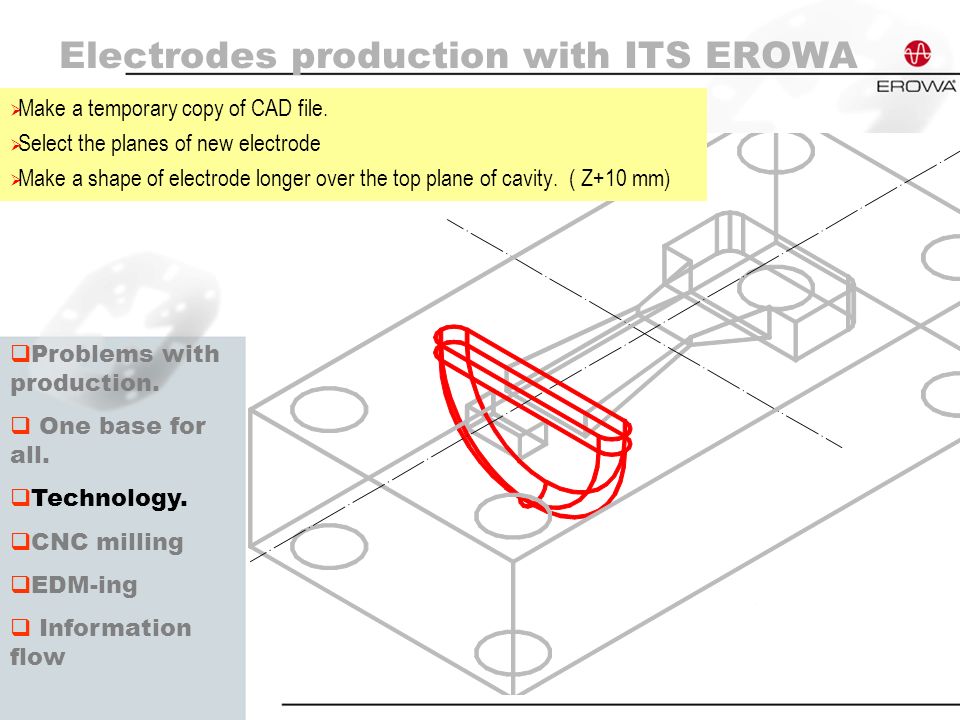

6. Electrodes production with ITS EROWA  Make a temporary copy of CAD file.  Select the planes of new electrode  Make a shape of electrode longer over the top plane of cavity. ( Z+10 mm)  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

7. Electrodes production with ITS EROWA Make the specification of materials. Materials have to be prepared until programs are finished. Xe=85.00 Ye=0  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

8. Electrodes production with ITS EROWA Yp=0Ye=0 Xp=0 Xe=85.00 ITS EROWA MECHANICAL AND MATHEMATICAL INTERFACE FOR ELECTRODES AND WORKPIECES  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

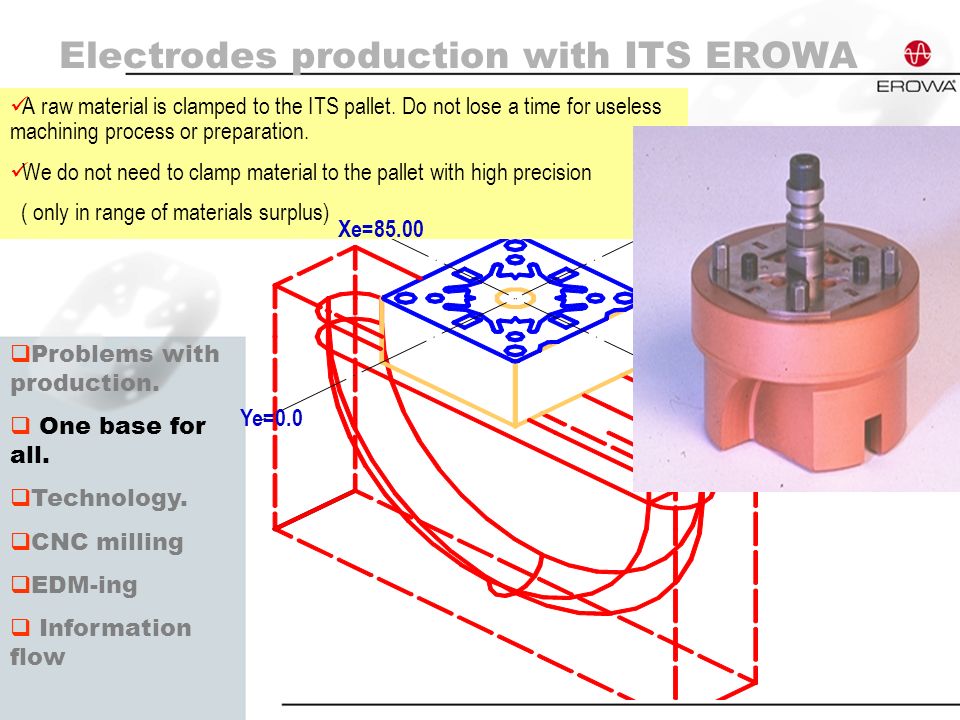

9. Electrodes production with ITS EROWA A raw material is clamped to the ITS pallet. Do not lose a time for useless machining process or preparation. We do not need to clamp material to the pallet with high precision ( only in range of materials surplus) Ye=0.0 Xe=85.00  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

10. EROWA Power Chuck – the base on the table of CNC milling machine Y=0.0 X=-85.00 Electrodes production with ITS EROWA  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

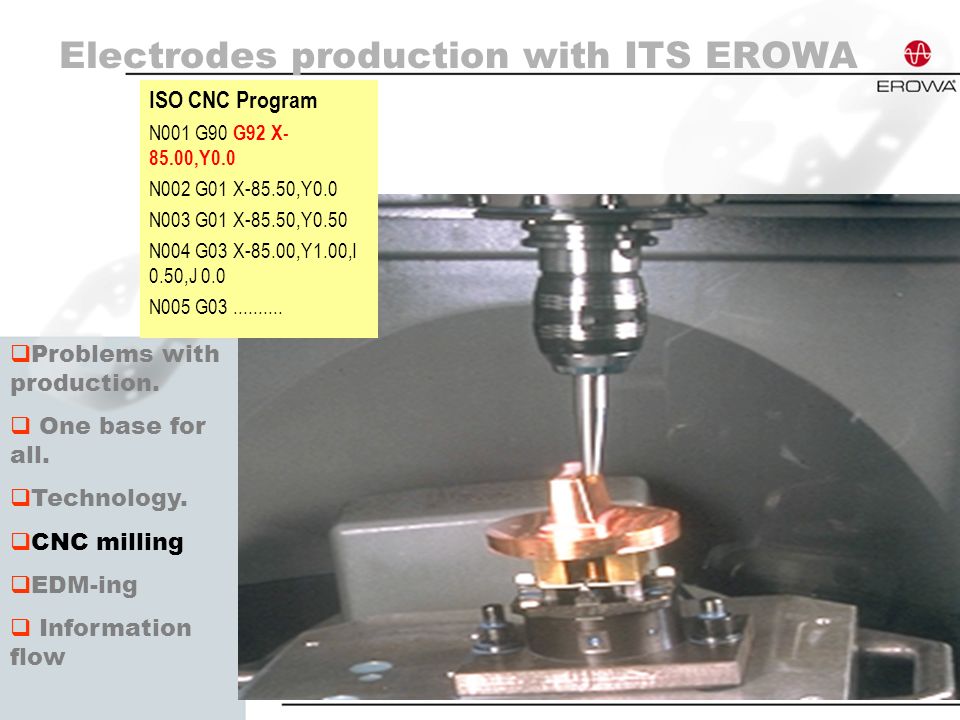

11. ISO CNC Program N001 G90 G92 X- 85.00,Y0.0 N002 G01 X-85.50,Y0.0 N003 G01 X-85.50,Y0.50 N004 G03 X-85.00,Y1.00,I 0.50,J 0.0 N005 G03.......... Electrodes production with ITS EROWA  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow

12. -Yo XoXo Y Zo X p Yp Zp Erosio Work Point X=-85.000 Y= 0.000 Z= 125.000 C= 0.000  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow Electrodes production with ITS EROWA

13. The paper document with all needed information  Problems with production.  One base for all.  Technology.  CNC milling  EDM-ing  Information flow
