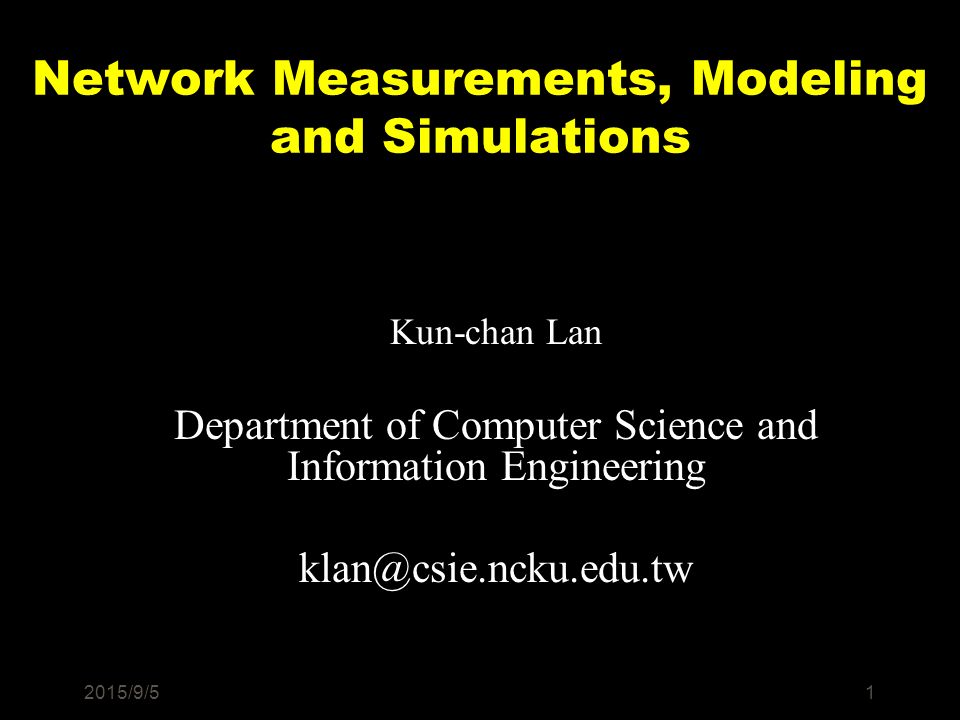

1 2015/9/51 Kun-chan Lan Department of Computer Science and Information Engineering klan@csie.ncku.edu.tw Network Measurements, Modeling and Simulations

2 2015/9/52 Some Admin stuff zPaper review y2 paper reviews instead one as we originally planned since now the number of enrollment is reduced to 7 yPlease send the titles of the paper you will review to TA by the end of this week

3 Guess talk next week zTalk: 如何一邊玩線上遊戲一邊寫論文? z 陳昇瑋 : 中央研究院 zThe talk will be related to your 2 nd homework zNo class lecture next week 2015/9/53

4 Homework 2 zSimilar to the experiments done in the paper “Online Game QoE Evaluation using Paired Comparisons “ “Online Game QoE Evaluation using Paired Comparisons zCompare gaming performance using different wireless media yWiFi vs. 3G vs. WiMax zThe experiments will be done in LENS lab using the multihomed mobile router 2015/9/54

5 Multi-homed mobile router zA mobile router with multiple interfaces zWill be setup in LENS lab zThe mobile router will periodically change to a difference interface 2015/9/55 Game server game client

6 Multi-homed mobile router zYou job: yPlay game yMake comparison about your perceived gaming performance yCreate graph similar to what shown in the paper (you don’t need to write program for that purpose. Some programs will be offered to you to generate the plots) 2015/9/56

7 7 A quick survey… Why do you come to this class? What do you want to get out of this course?

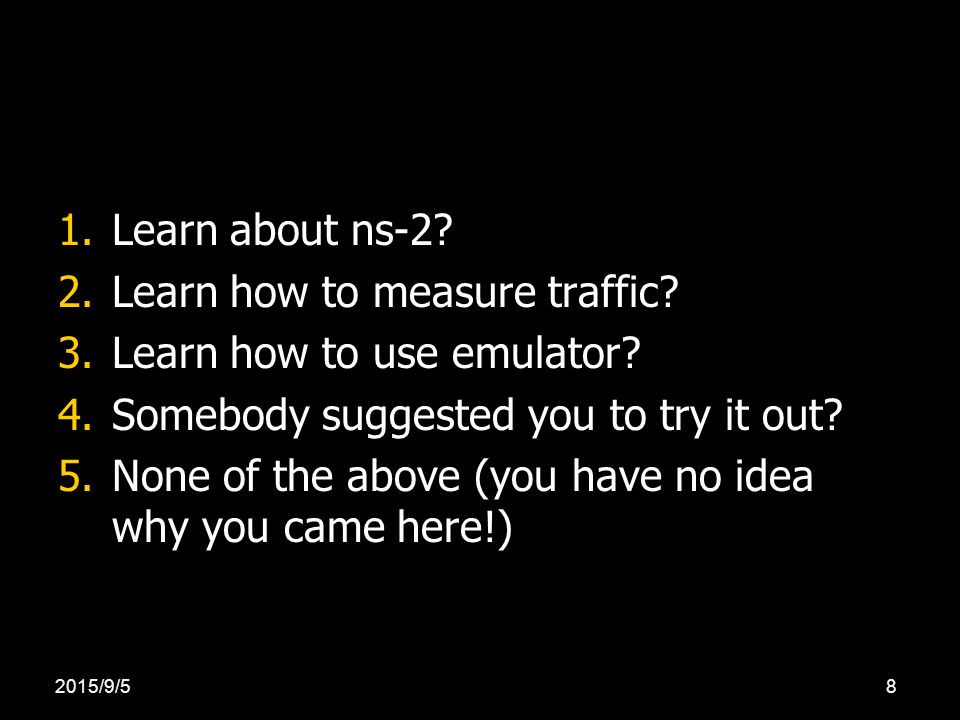

8 1.Learn about ns-2? 2.Learn how to measure traffic? 3.Learn how to use emulator? 4.Somebody suggested you to try it out? 5.None of the above (you have no idea why you came here!) 2015/9/58

9 9 Outline Model and simulate Internet traffic It’s hard to model and simulate Internet Use measurement to improve the realism of your model We advocate trace-driven simulation Internet and wireless measurements

10 2015/9/510 The challenges in modeling and simulating Internet traffic

11 2015/9/511 What is a model? Abstraction of real world Base of a network simulation Topology model e.g. “a dumbbell topology” Traffic model “80% TCP + 20% UDP” Queuing model e.g. “FIFO”, “Fair queuing”, etc. …..

12 2015/9/512 Role of simulation Based on some particular models Topology: e.g. dumbell vs. tree Traffic: e.g. TCP vs. UDP … Widely used by researcher to study Internet Millions of hosts in different administrative domains Simulation vs. experiment (Why simulation?) Repeatability Configurability Scalability Explore complicated scenarios Study “future” application/prtotocol/network

13 2015/9/513 What simulation does’t do Realism Details of simulation matters! It’s your responsibility to know what level of details you need to capture in the simulation Prove correctness of the model Only for validation! The value of simulation relies on a good model

14 2015/9/514 It’s hard to simulate Internet Network heterogeneity Rapid and unpredictable change

15 2015/9/515 Network heterogeneity Topology Link properties Protocol traffic All the above matter when you do the simulation

16 2015/9/516 Difficulty in modeling topology Constantly changing Routing change Link/node up and down ISPs typically do not make topological information available There is no “typical” topology Depends on what are you simulating

17 2015/9/517 Difficulty in modeling links large diversities Speed: e.g. modem vs. fiber optic link Loss: e.g. cooper wire vs. 802.11 Transmission: point-to-point vs. broadcast Latency: DSL vs. satellite links Routing-dependent Asymmetry

18 2015/9/518 Difficulty in modeling protocol Differences in implementations 400 different TCP implementations Different applications and different traffic mix

19 2015/9/519 Difficulty in modeling traffic Traffic is different everywhere Effect of background traffic Queuing, congestion Some application are adaptive to network conditions

20 2015/9/520 Rapid and unpredictable changes Change in TCP: Reno -> NewReno/SACK Change in devices: PC->handheld Change in web: caching -> CDN Change in killer applicaton: web->p2p->VoIP? Change in physical layer: wired -> wireless

21 2015/9/521 Coping strategy OK, so it’s hard to simulate Internet, but can we do something about it? Yes Systematically explore important parameters Searching for invariants

22 2015/9/522 Network behavior as a function Explore network behavior as a function of changing parameters = f ( x 1, x 2, x 3,…..) Impossible to explore the whole set of parameters Challenge: identify important parameters Example parameters to which a simulation might be sensitive Congestion Topology Router mechanism (routing, scheduling, etc.)

23 2015/9/523 Search for Invariants Invariant: behavior that holds in a very wide range of environment Examples Diurnal patterns Self-similarity Poisson session arrival Heavy-tailed distribution Geographical topology Extract invariants from real world data Extensive measurements!

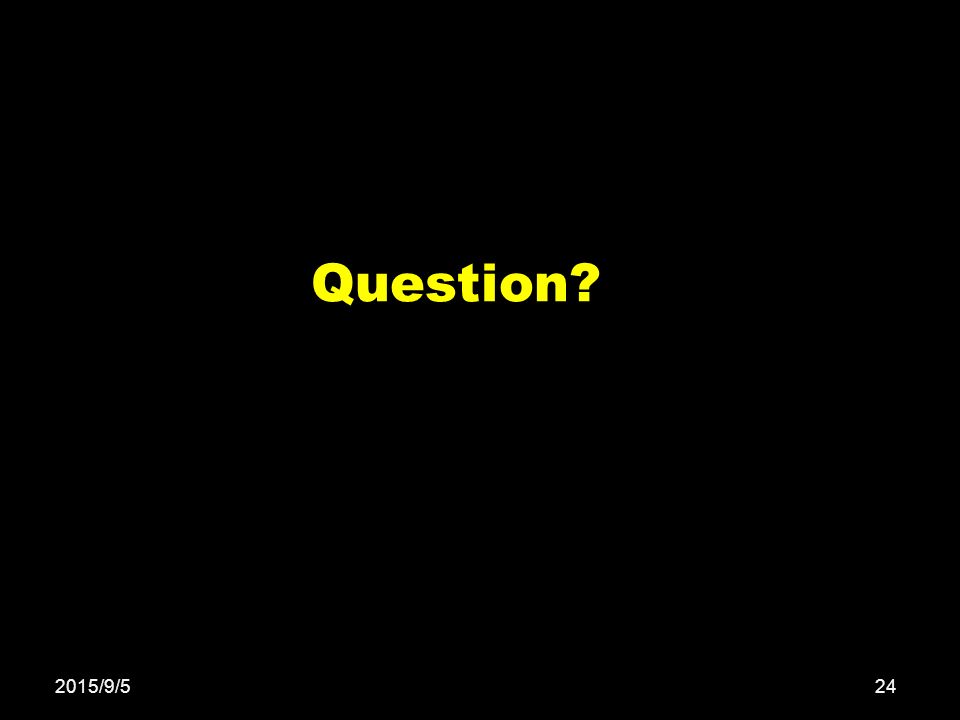

24 2015/9/524 Question?

25 2015/9/525 Outline Model and simulate Internet traffic It’s hard to model and simulate Internet Internet and wireless measurements Case study: modeling heavy-hitter traffic

26 2015/9/526 Why measuring? To tell us what are the invariants, and what are just artifacts of the system A base for realistic modeling and simulation A common practice in other science disciplines (physics, biology, etc)

27 2015/9/527 A measurement plan What questions you want to answer? Testbed setup How to collect the traces? And for how long? What to collect? (what is your performance metrics) Data analysis All of these should be in your project report!

28 2015/9/528 TCP over GPRS network How fair is TCP over GPRS?

29 2015/9/529 Things I am going to tell you next What can you measure? Things that you need to know when you measure Where can you get Internet traffic measurements for free?

30 2015/9/530 Measure the Internet What can you measure Traffic Routing Topology Performance Multicast Wireless/Mobility

31 2015/9/531 Tool for measuring traffic Tcpdump/etherreal (libpcap) Netflow NetTrMet/RTG (SNMP)

32 2015/9/532 tcpdump/Ethereal tcpdump Most commonly used packet collector based on libpcap API Output can be easily analyzed using awk/perl scripts Ethereal GUI-based Support various trace formats, including tcpdump, snoop, etc. Support various link-layer headers, including 802.11, ATM, etc. tcpdpriv A commonly used packet anonymizer (to share traces with the others) Libpcap-based Link-level headers are passed through unchanged.

33 2015/9/533 Usage of tcpdump tcpdump [ -adeflnNOpqStvx ] [ -c count ] [ -F file ] [ -i interface ] [ -r file ] [ -s snaplen ] [ -T type ] [ -w file ] [expression ] Must run as root or have sudo permission

34 2015/9/534 -i Listen on interface. If unspecified, tcpdump searches the system interface list for the lowest numbered, configured up interface (excluding loopback) -n Don't convert addresses (i.e., host addresses, port numbers, etc.) to names

35 2015/9/535 -p Don't put the interface into promiscuous mode. -q Quick (quiet?) output. Print less protocol information so output lines are shorter. -r Read packets from file (which was created with the -w option). Standard input is used if file is ``- ''.

36 2015/9/536 -w Write the raw packets to file rather than parsing and printing them out. They can later be printed with the -r option. Standard output is used if file is ``-''. -r Read packets from file (which was created with the -w option). Standard input is used if file is ``-''. -S Print absolute, rather than relative, TCP sequence numbers

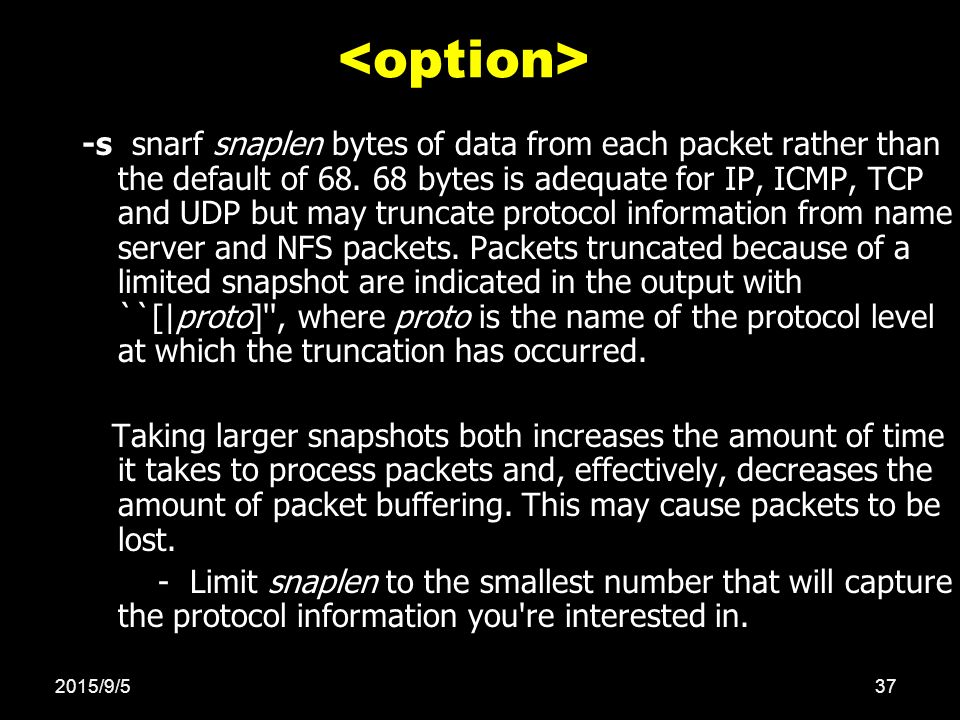

37 2015/9/537 -s snarf snaplen bytes of data from each packet rather than the default of 68. 68 bytes is adequate for IP, ICMP, TCP and UDP but may truncate protocol information from name server and NFS packets. Packets truncated because of a limited snapshot are indicated in the output with ``[|proto]'', where proto is the name of the protocol level at which the truncation has occurred. Taking larger snapshots both increases the amount of time it takes to process packets and, effectively, decreases the amount of packet buffering. This may cause packets to be lost. - Limit snaplen to the smallest number that will capture the protocol information you're interested in.

38 2015/9/538 -t Don't print a timestamp on each dump line. -tt Print an unformatted timestamp on each dump line. -v (Slightly more) verbose output. For example, the time to live and type of service information in an IP packet is printed. -vv Even more verbose output. For example, additional fields are printed from NFS reply packets. -x Print each packet in hex.

39 2015/9/539  selects which packets will be dumped. If no expression is given, all packets will be dumped. Otherwise, only packets for which expression is `true' will be dumped.  The expression consists of one or more primitives. Primitives usually consist of an id (name or number) preceded by one or more qualifiers.  There are three different kinds of qualifier.

40 2015/9/540  what kind of thing the id name or number refers to  Possible types are host, net and port  E.g., `host csie.ncku.edu.tw', `net 146.132', `port 20'  If there is no type qualifier, host is assumed.

41 2015/9/541  specify a particular transfer direction to and/or from id.  Possible directions are src, dst, src or dst and src and dst.  E.g., `src csie.ncku.edu.tw', `dst net 146.132', `src or dst port ftp-data'.  If there is no dir qualifier, src or dst is assumed

42 2015/9/542  restrict the match to a particular protocol.  Possible protos are: ether, fddi, ip, arp, rarp, decnet, lat, sca, moprc, mopdl, tcp and udp.  E.g., `ether src server1.ncku.edu.tw', `arp net 128.3', `tcp port 21'.  If there is no proto qualifier, all protocols consistent with the type are assumed. E.g., `src mail.ncku.edu.tw' means `(ip or arp or rarp) src mail.ncku.edu.tw'

43 2015/9/543 Complex expression  complex filter expressions are built up by using the words and, or and not to combine primitives.  E.g., `host csie.ncku.edu.tw and not port ftp and not port ftp-data'.  Iidentical qualifier lists can be omitted. E.g., `tcp dst port ftp or ftp-data or domain' == `tcp dst port ftp or tcp dst port ftp-data or tcp dst port domain'.

44 2015/9/544 Allowable primitives  dst host host  src host host  host host  ether dst ehost  ether src ehost  ether host ehost  gateway host

45 2015/9/545 Allowable primitives  dst net net  src net net  net net  net net mask mask  net net/len True if the IP address matches net a netmask len bits wide. May be qualified with src or dst.  dst port port  src port port  port port

46 2015/9/546 Allowable primitives  less length True if the packet has a length less than or equal to length. This is equivalent to: len <= length.  greater length  ip proto protocol  True if the packet is an ip packet of protocol type protocol. Protocol can be a number or one of the names icmp, igrp, udp, nd, or tcp. Note that the identifiers tcp, udp, and icmp are also keywords and must be escaped via backslash (\)  ether broadcast  ip broadcast

47 2015/9/547 Allowable primitives  ether multicast  ip multicast  ip, arp, rarp, decnet short for: ether proto p where p is one of the above protocols.  tcp, udp, icmp short for: ip proto p

48 2015/9/548 Relation operator  expr relop expr  relop is one of >, =, <=, =, !=  expr is an arithmetic expression composed of integer constants, the normal binary operators [+, -, *, /, &, |], a length operator, and special packet data accessors.  To access data inside the packet, use the following syntax: proto [ expr : size ] Proto is one of ether, fddi, ip, arp, rarp, tcp, udp, or icmp. E.g. tcp[0] means the first byte of the TCP header  For example, `ether[0] & 1 != 0' catches all multicast traffic. The expression `ip[0] & 0xf != 5' catches all IP packets with options.

49 2015/9/549 Combining primitives  Primitives may be combined using:  Negation (`!' or `not').  Concatenation (`&&' or `and').  Alternation (`||' or `or').  Negation has highest precedence. Alternation and concatenation have equal precedence and associate left to right..  If an identifier is given without a keyword, the most recent keyword is assumed.  E.g., not host vs and ace is short for not host vs and host ace, which should not be confused with not ( host vs or ace )

50 2015/9/550 Netflow Built-in service for most Cisco router/switch that runs Cisco IOS Provide flow-level information First packet in a flow is used to build an entry in the cache Per-interface basis Useful for accounting/billing, traffic monitoring, user profiling, data mining, etc.

51 2015/9/551 More on Netflow Typical cache size: 4K-128K (typical DRAM size: 2M-8M) Need to use the cache efficiently When to expire netflow cache entries Idle time > t Long-lived flows (duration > 30min) TCP connections with FIN or RST when cache becomes full (applying some heuristics to age flows)

52 2015/9/552 Management of Netflow Netflow FlowCollector can collect flow info from multiple NetFlow-enabled devices data volume reduction through selective filtering and aggregation store flow information for off-line analysis Netflow FlowAnalyzer data visualization: graphical data display data export to external applications (such as Excel) Netflow Server collect flow statistics from multiple FlowCollector further summarize NetFlow statistics by enabling bi-directional consolidation store NetFlow statistics in a common commercial RDBMS (can be queried via SQL later) encrypt and compress NetFlow statistics

53 2015/9/553 NetTrMet Collect flow data via SNMP builds up packet and byte counts for traffic flows Flows are defined by their end-point addresses Address can be ethernet addresses, IP address or the combination of both Can specify a set of rules to filter the flows of interest Run under dos or Unix

54 2015/9/554 RTG A SNMP statistics monitoring system Commonly used by ISPs collect time-series SNMP data from a large number of interfaces Run as a daemon All collected data is inserted into a relational database where complex queries and reports may be generated via SQL can poll at sub-one-minute intervals utilities are included to generate traffic reports, 95th percentile reports and graphical data plots

55 2015/9/555 Tool for measuring routing Traceroute tracert command for Windows RouteView

56 2015/9/556 traceroute Trace the path from a source to a destination Show how many hops a packet required to reach the destination and how long each hop takes. Utilize IP Time-to-Live (TTL) field TTL value specifies how many hops a packet is allowed to travel (decremented by 1 at each hop). An ICMP TIME_EXCEEDED response is returned to the source once TTL reaches 0. Send a series of packets and incrementing the TTL value with each successive packet.

57 2015/9/557

58 2015/9/558 RouteView A large collection of BGP routing tables from several backbones (from 60 vantage points and 400+ AS) Aim to provide network operators the information about the global routing system from various locations around the Internet

59 2015/9/559 BGP basics BGP: an inter-gateway protocol to route packets between Autonomous System (AS) AS: a group of networks that is controlled by a common network administrator on behalf of a single administrative entity. Each AS is assigned a globally unique number Convey information about AS path topology Run on top of TCP (port 179) A path vector protocol

60 2015/9/560 Path vector protocol AS100: 180.10.0.0/16 100 AS200: 180.10.0.0/16 200 100 AS300: 180.10.0.0/16 300 200 100 time

61 2015/9/561 Tool for measuring topology traceroute-based Skitter Rocketfuel

62 2015/9/562 Skitter effort of CAIDA ICMP-based: similar to traceroute probing the paths from a source to many destinations IP addresses spread throughout the IPv4 address space RTT and forward paths are collected

63 2015/9/563 Rocketfuel Input traceroute (utilizing public available tracroute servers) BGP DNS Output (per ISP) Backbone POP Peer links

64 2015/9/564 Path discovery Use 750 public available traceroute sources Merge traceroute paths from multiple sources to multiple destinations to obtain network map Brute-force (all src × all dest) approach does not work Too many addresses to probe (150M!) Too much load for the traceroute server Too much traffic for the network Approach Only probe the paths which are most “relevant” Paths that transit the targeted ISP Omit redundant paths Other challenges Alias: one router might have multiple IP addresses, one for each of its interfaces Geographical location of the router

65 2015/9/565 Selected measurements per-ISP map Only choose traceroutes that are expected to transit the ISP (direct probing) Use BGP routing tables Data: from RouteView Path reduction Some probes might have identical paths inside the ISP

66 2015/9/566 Use BGP to choose traceroute 1.2.3.0/24 8 11 4 2 5 destinationAS path closer to destination  traceroutes that are likely to traverse AS 2 from servers in AS 8, 11, 4, 6 to prefix 1.2.3.0/24 If ALL paths to 1.2.3.0/24 do not include AS 2 from anywhere to 1.2.3.0/24 from 1.2.3.0/24 to anywhere 6 2 5 9 5 25 4 6 118

67 2015/9/567 Path reduction Skip repeated traces of the same path Same destination, same ingress point Same ingress point, same egress point

68 2015/9/568 effectiveness of selected measurements Brute-force (all servers to all BGP prefix) 150 million traceroutes required Direct probing 15 million traceroutes required Direct probing + path reduction 300 thousand traceroutes required

69 2015/9/569 Alias resolution Alias: traceroute reports the IP address of the interface on the router (not the router!) The router might have multiple interfaces Router’s interfaces may be numbered from entirely different IP prefixes Need to know interface 1 and 2 are on the same router

70 2015/9/570 Alias probe If you send an UDP packet to interface A of a router and address to a non-existing port By default, the router will return a ICMP “port unreachable” response back to you The source address of ICMP packet will be the outgoing interface for the unicast route to you (interface B) if we probe interface X and Y and the resulting ICMP packets have the same source address Z, then we know X and Y are on the same router

71 2015/9/571 Other tricks for resolving alias 1.Compare TTL 2.Compare IP identifier (ID) Packets sent consecutively will have consecutive IP identifier Send probe packets to two potential aliases Send another packet to the address that responded first Aliases: if x < y < z, and z – x is small

72 2015/9/572 Identify router location Utilize DNS names ISP typically use certain naming convention to name their routers s1-bb11-nyc-3-0.sprintlink.net A Sprint backbone router (bb11) in New York city (nyc) p4-0-0-0.r01.miamfl01.us.bb.verio.net A Verio backbone router (bb) in Miami, Florida s1-neighborname.sprintlink.net A neighboring router of Sprint

73 2015/9/573 A typical POP structure POP (Point Of Presence) Consist of a set of backbone and access routers Backbone routers connect to other ISPs typically fully connected within the POP Access routers Connect to customers Connect to routers from the neighboring domains Connect to two backbone routers for redundancy POP

74 2015/9/574 ISP peering structure Using BGP table AS level: whether two ASes peer with each other Using Rocketfuel Router level: where and how many places these two ASes exchange traffic Skewed distribution ISP typically peer in a lot of places with a small number of other ISPs, and peer in only a few places with the most of other ISPs

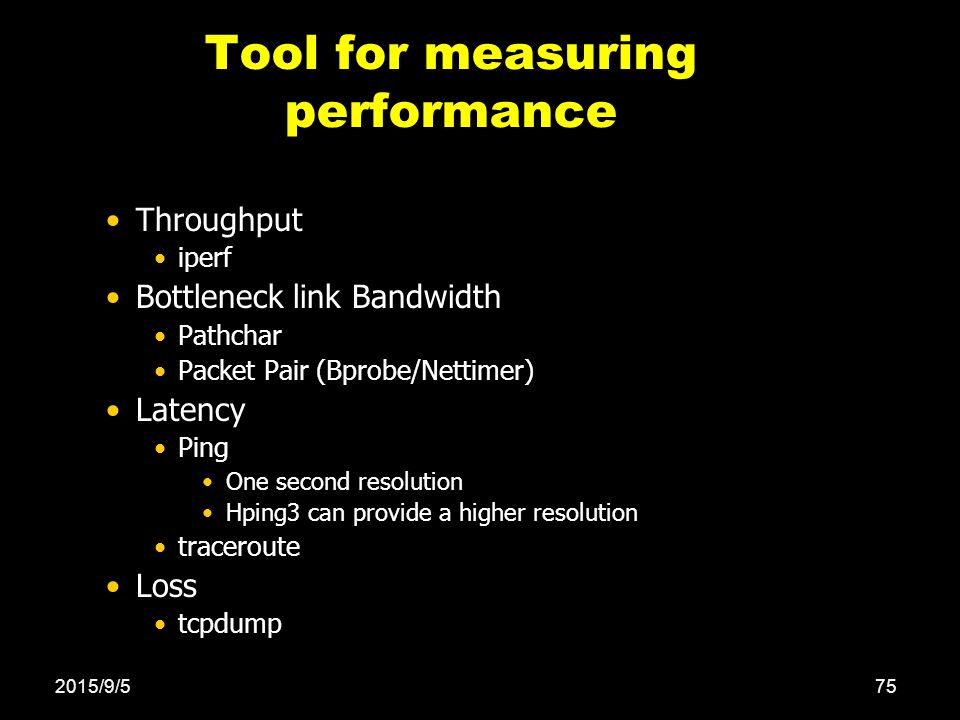

75 2015/9/575 Tool for measuring performance Throughput iperf Bottleneck link Bandwidth Pathchar Packet Pair (Bprobe/Nettimer) Latency Ping One second resolution Hping3 can provide a higher resolution traceroute Loss tcpdump

76 2015/9/576 iperf  Need to setup a client and a server  Iperf -s | -c

77 2015/9/577 Bottleneck Link Bandwidth Estimation RTT variation Dispersion of packet pairs/trains

78 2015/9/578 RTT variation s: data packet size s te : ICMP packet size b i : available bandwidth c: light speed f i : process packet

79 2015/9/579 Pathchar Utilize RTT variation increase the packet size and repeat (1) again Estimate the link bandwidth by solving the linear equations obtained from (1)(2) Repeat (1)-(3) for each link on the path Find the minimum of (4)

80 2015/9/580 Packet Pair (ideal) send a sequence of TCP probe packets packets are queued before entering the bottleneck a gap P r =P b is created by the bottleneck link bottleneck link bandwidth = packet size / A s

81 2015/9/581 Life is not perfect Lots of noise will affect the estimated bandwidth! Effect of cross traffic Packets are not queued before the bottleneck (case B) Packets are queued again after the bottleneck (case C) Packets arrive out-of-order Packets traverse different path Bottleneck changes over the course of connection Router does not use a FIFO queue Clock resolution 212121 2121 2121 21 2121 A) B) C)

82 2015/9/582 Filter the noise Assumption: correct estimate will appear more frequent than incorrect ones Choose the one has higher density histogram (bprobe) kernel density estimator (nettimer) BW

83 2015/9/583 bprobe

84 2015/9/584 Tool for measuring multicast Mtrace (IGMP) mHealth (RTCP + Mtrace) Mlisten (RTP/RTCP) RTPmon/RTPtools Mantra

85 2015/9/585 Mtrace Multicast version of traceroute Show the route from a receiver to the source Traceroute Based on increasing ICMP TTL Does not work for multicast ICMP TIME_EXCEED is typically disabled by multicast router Use IGMP (Internet Group Management Protocol) Multicast router keeps the state of incoming/outgoing interfaces of (S,G) Reverse path lookup Start at the receiver and trace back toward the source Allow 3 rd -party mtrace

86 2015/9/586 IGMP

87 2015/9/587 Reverse Path Lookup Multicast IGMP Query packet on ALL-ROUTERS multicast address (224.0.0.2) The last hop router of the receiver begins a mtrace after receiving the Query packet The last hop router appends its info and change the packet type from Query to Request The last hop router forward the packet via unicast to the previous router, the incoming interface of (S,G) Same process is repeated until the source is reached The router that connects to the source appends its info and change packet type from Request to Response Response packet is then sent to the mtrace initiator

88 2015/9/588 RTP/RTCP RTP (Real Time Protocol) TCP does not work for real time multicast ACK implosion and timing requirements Application Layer Framing (ALF): between Transport and Application Commonly used in Mbone and streaming tools Payload type ID, sequence numbering, timestamping Consist of a data channel and a control channel (RTCP) RTCP A control protocol of RTP Function Deliver quality Canonical name: synchronize data from multiple tools (audio/video) Estimate group size Distribution of group membership info Packet format Sender report Receiver report Source description Canonical name BYE

89 2015/9/589 Mhealth A graphical multicast monitor tool Collect data of a MBone session listen RTCP traffic to obtain group information and deliver quality Use Mtrace to trace the hops from each receiver to the source

90 2015/9/590 Mlisten A tool for collecting info when members join and leave a multicast group Continuously monitor well-known multicast address used to advertise Mbone session For each session, Mlisten join the audio and video groups and collect control and data packets For each packet received, Mlisten record Sender Session name Time received At periodic interval, Mlisten identify any session or group members who has no activity for a threshold of period (session: 2hr, member: 2 min) and record them

91 2015/9/591 RTPMon A tool that display the statistics of a RTP session by passively monitoring the RTCP traffic Startup time Sender Receivers Traffic statistics for each (sender,receiver) pair Data sent Loss jitter Route from the sender to a receiver (via Mtrace)

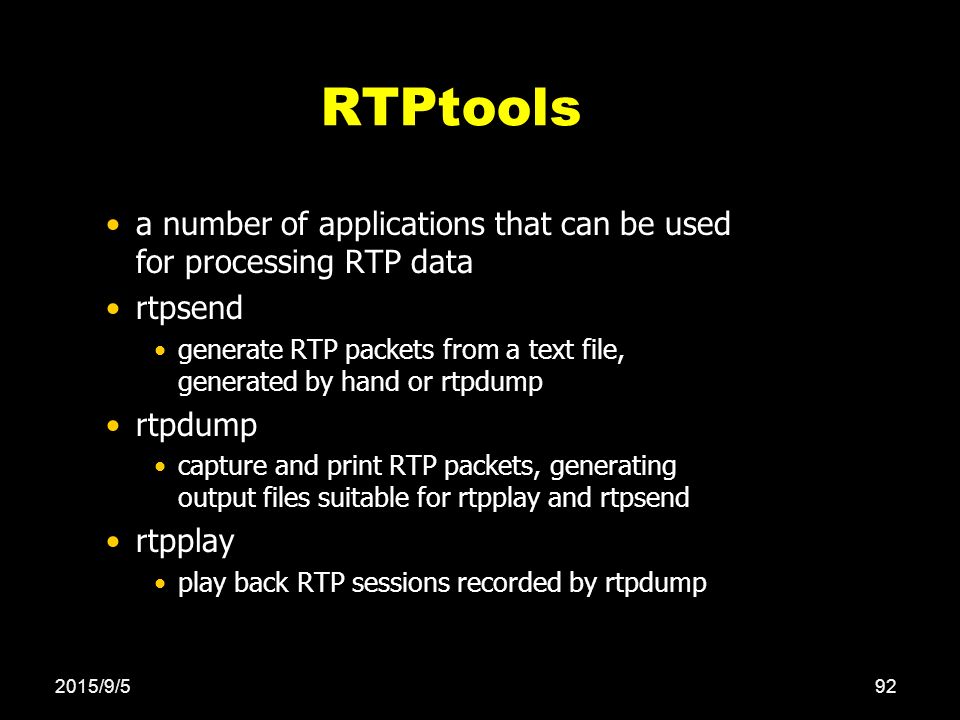

92 2015/9/592 RTPtools a number of applications that can be used for processing RTP data rtpsend generate RTP packets from a text file, generated by hand or rtpdump rtpdump capture and print RTP packets, generating output files suitable for rtpplay and rtpsend rtpplay play back RTP sessions recorded by rtpdump

93 2015/9/593 Mantra.. A tool that collect multicast from multiple multicast-enabled routers FIXW: the largest multicast exchange point in west coast of US STARTAP: a core router between Interenet2 and commodity Internet DANTE: an exchange point between US and European research backbone ORIX Router View

94 2015/9/594..Mantra Data collection MBGP (Multicast Border Gateway Protocol) A router exchange protocol that propagate topology information between domains DVMRP (Distance Vector Multicast Routing Protocol) Within the same domain MSDP (Multicast Source Discovery Protocol) A protocol that propagates info about active sources Router forwarding tables

95 2015/9/595 Tools for measuring wireless Prismdump (or newer version of tcpdump) 802.11 Ethereal (tcpdump with a GUI) tethreal netstumbler wireless extension Snort-wireless A wireless intrusion detection system

96 2015/9/596 netstumbler A tool for detecting 802.11 WLAN Usage Verify if the WLAN is setup correctly Detect other interfering WLANs in your area Help aim directional antenna for long-haul WAN link WarDriving

97 2015/9/597 Wireless extension API that allows a driver to access to the configuration and statistics of WLAN Components User interface and tool Driver interface

98 2015/9/598 User interface and tool cat /proc/net/wireless Iwconfig Iwspy For mobile IP test Allow driver to add new addresses

99 2015/9/599 Driver interface Defined in /usr/include/linux/wireless.h Example get_wireless_stat ioctl calls: SIOCSIWFREQ

100 2015/9/5100 Measuring mobility GPS Association/disassociation patterns from base stations/access points Tools: SNMP, Syslog Wireless signal strength infer user location based on analysis of signal strength triangulating

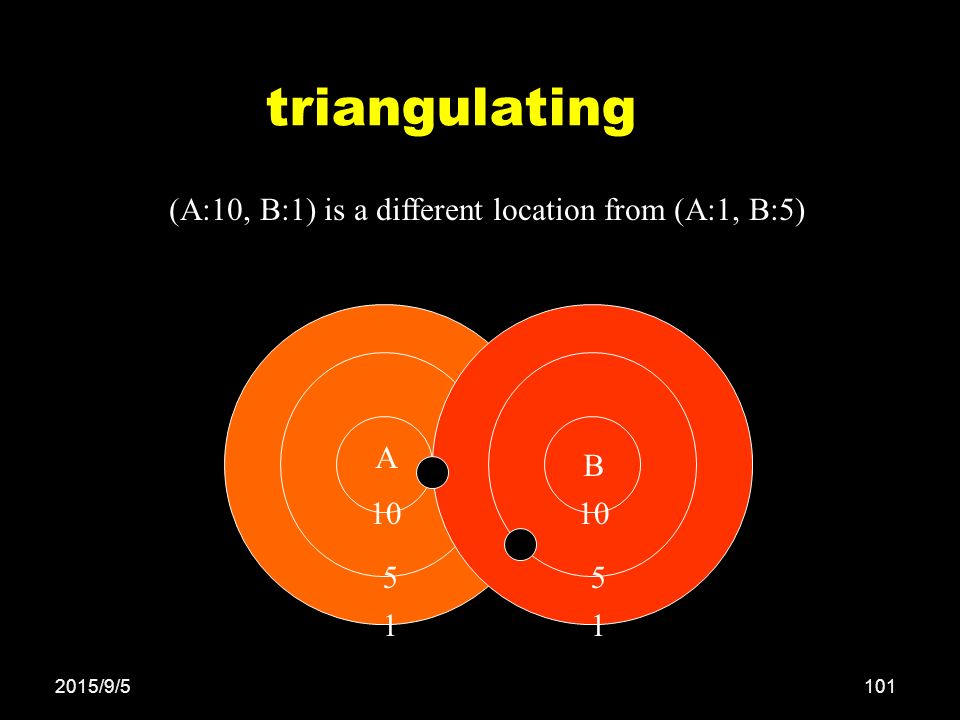

101 2015/9/5101 10 triangulating 10 5 1 5 1 A B (A:10, B:1) is a different location from (A:1, B:5)

102 2015/9/5102 What is War Driving?  One popular wireless measurement activity  Record the activities of wireless LANs from place to place  What do you need for War driving  a device capable of receiving an 802.11b signal (notebook w/ wireless card)  a device capable of moving around (some transportation)  A software that can log data (netstumbler/ethereal/GPS)  Then you just sit back and relax  You move these devices from place to place  Over time, you build up a database comprised of the network name, signal strength, location, and ip/namespace in use.

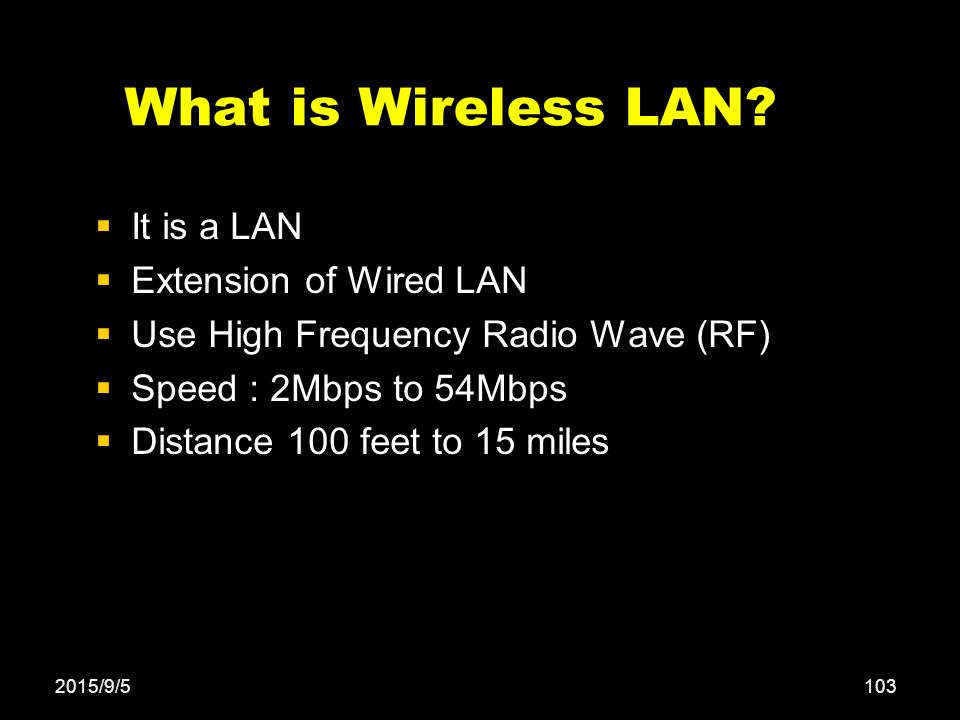

103 2015/9/5103 What is Wireless LAN?  It is a LAN  Extension of Wired LAN  Use High Frequency Radio Wave (RF)  Speed : 2Mbps to 54Mbps  Distance 100 feet to 15 miles

104 2015/9/5104 Different version of 802.11  802.11  IEEE family of specifications for WLANs  2.4GHz 2Mbps  802.11a  5GHz, 54Mbps  802.11b  Often called Wi-Fi, 2.4GHz, 11Mbps  802.11e  QoS & Multimedia support to 802.11b & 802.11a  802.11g  2.4GHz, 54Mbps  802.11i  An alternative of WEP  802.11n  Antenna diversity

105 2015/9/5105 Access points  Access Point (AP)  A device that serves as a communications "hub" for wireless clients and provides a connection to a wired LAN  Beacon  Message transmitted at regular intervals by the Aps (100ms by default for many vendors)  Used to maintain and optimize communications to automatically connect to the AP

106 2015/9/5106 Ad-hoc mode  Ad Hoc Mode  Wireless client-to-client communication, the opposite is Infrastructure Mode

107 2015/9/5107 Infrastructure mode  Infrastructure Mode  A client setting providing connectivity to APs  As oppose to AdHoc Mode AP

108 2015/9/5108 Basic service set  SSID or BSSID  Basic Service Set Identifier BSSID or SSID (Basic Service Set Identifier) beacon BSS An AP forms an association with one or more wireless clients is referred to as a Basic Service Set

109 2015/9/5109 Extended service set  ESSID  Extended Service Set Identifier ESSID (Extended Service Set Identifier) ESS In order to increase the range and coverage of the wireless network, one needs to add more strategically placed APs to the environment to increase density. This is referred to as an Extended Service Set

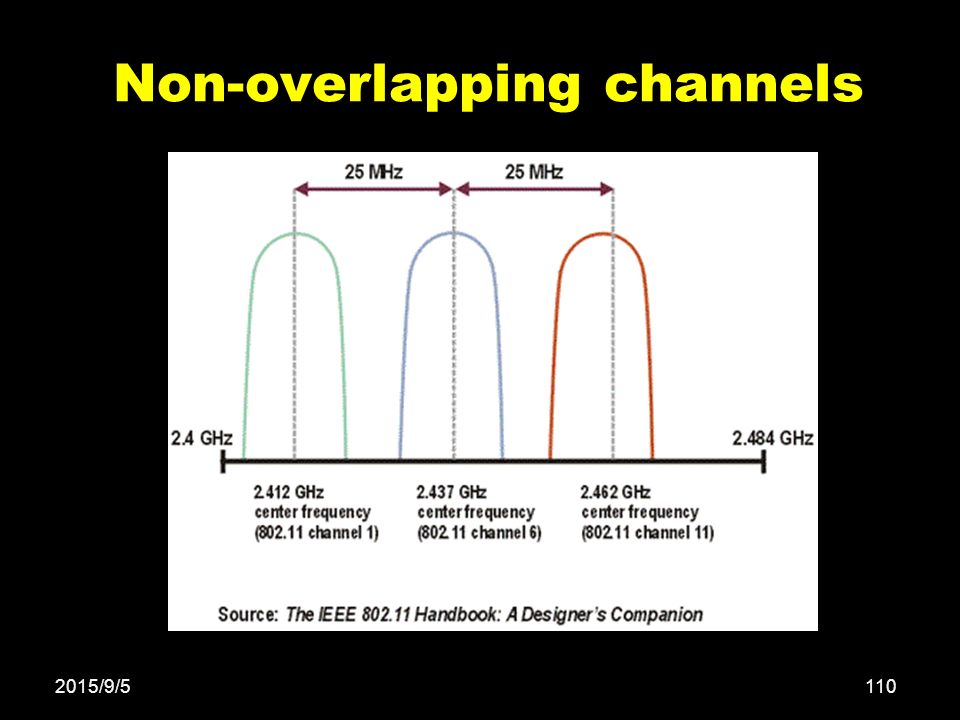

110 2015/9/5110 Non-overlapping channels

111 2015/9/5111 DSSS Channel

112 2015/9/5112 The RFMON mode  Like promiscuous mode in wired  Listen(Receive) only  Also known as “Monitor Mode”  You can capture raw 802.11 (such MAC-layer packets in this mod)  Many drivers now support RFMOD mode  Prism2  madwifi

113 2015/9/5113 Snort-wireless  Extended from Snort (an IDS for Internet) for wireless  allow one to specify custom rules for detecting specific 802.11 frames, rogue APs, AdHoc networks, and Netstumbler- like behaviour in the vicinity of the Snort- Wireless sensor

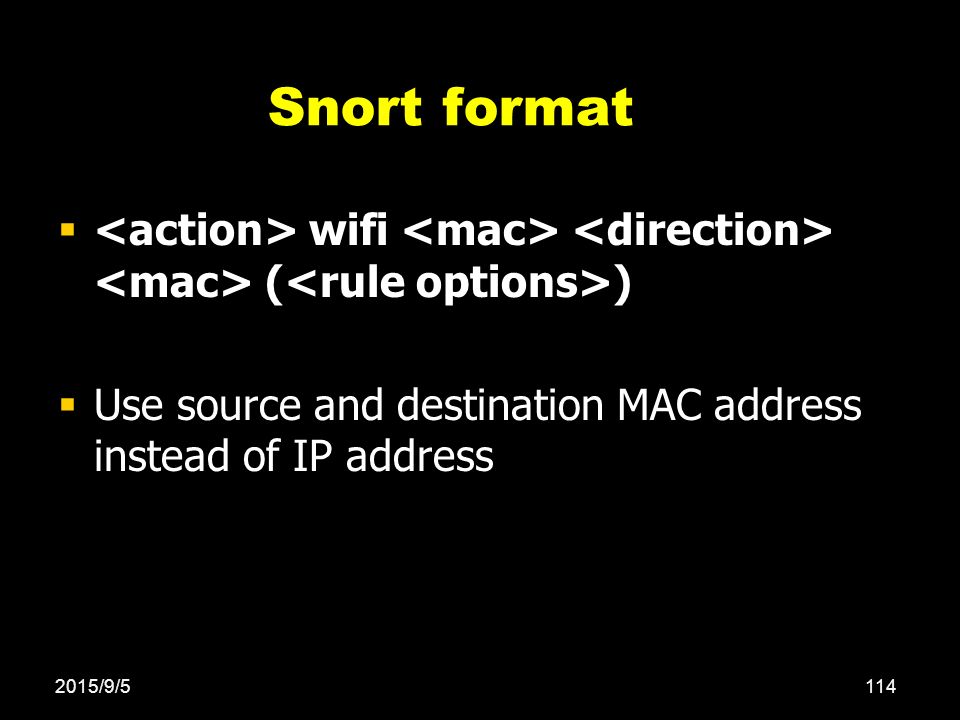

114 2015/9/5114 Snort format  wifi ( )  Use source and destination MAC address instead of IP address

115 2015/9/5115  tells Snort what to do when it finds a packet that matches the rule criteria  alert: generate an alert and then log the packet  Log: log the packet  pass: ignore the packet  Activate: alert and then turn on another dynamic rule  Dynamic: remain idle until activated by an activate rule, then act as a log rule

116 2015/9/5116  Format  Single MAC Address 00:DE:AD:BE:EF:00  MAC Address List [00:DE:AD:BE:EF:00, 00:DE:AD:C0:DE:00,....]

117 2015/9/5117  ->  From source to destination  <>  Both directions

118 2015/9/5118 What info you can get from wireless packets  timestamp  Signal strength  SSID  Sender/receiver  Retransmission  Mobility (association/disassociation)

119 2015/9/5119 Received Signal Strength Indication  In arbitrary units (different vendors define it in different ways)  RSSI is typically used to determine when the amount of radio energy in the channel is below a certain threshold at which point the network card is clear to send (CTS).

120 2015/9/5120 Noise floor  Typically assumed as a constant  the noise power N = kTB  where k is Boltzmann's constant, T is the temperature in Kelvin, B is the system bandwidth  For a 20Mhz OFDM channel we have -174 + 10log10(20x106), or -101.7dBm thermal noise at the antenna. After including an additional 5dBm noise from the amplifier chain, we have -96dBm  RSSI 10: weak, 20: ok, 40: good  RSSI changes with time due to interference, channel fading etc.

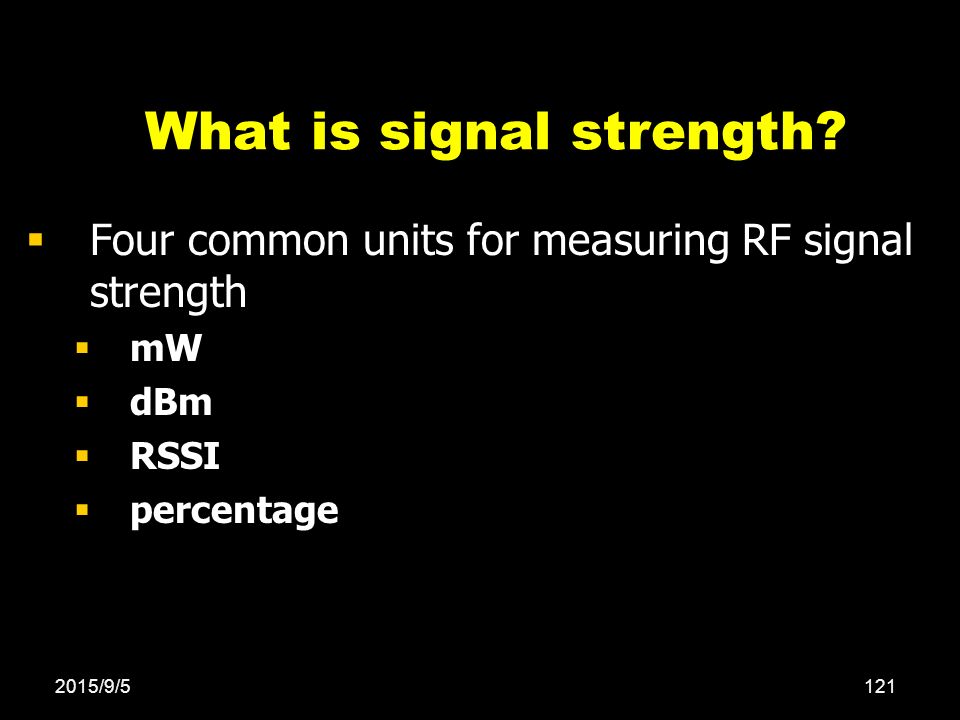

121 2015/9/5121 What is signal strength?  Four common units for measuring RF signal strength  mW  dBm  RSSI  percentage

122 2015/9/5122 mW dBm  dBm = log 10 (mW) x 10  Example  100mW = log 10 (100) x 10 = 20 dBm  50mW = log 10 (50) x 10 = 16.9 dBm  1mW = log 10 (1) x 10 = 0 dBm  0.5mW = log 10 (0.5) x 10 = -3.01 dBm  It’s cumbersome to talk about –96 dBm as 0.0000000002511 mW

123 2015/9/5123 RSSI  802.11 standard  A mechanism by which RF energy is measured on the circuitry of a wireless NIC  An allowable range from 0 to 255  In reality  No vendor actually measures 256 different signal strength level  Use RSSI_Max  Cisco: 100  Symbol: 30  Atheros: 60

124 2015/9/5124 Use RSSI  Chipset uses RSSI to decide if the channel clear  Clear channel threshold  Roaming threshold  RSSI_MAX is different from vendor to vendor  Clear channel/roaming threshold is different from vendor to vendor

125 2015/9/5125 Granularity of RSSI  RSSI are discrete integer numbers  Can not represent all possible energy levels (mW or dBm)  Many vendors map RSSI to dBm because of the logarithmic nature of dBm 5mW dBm

126 2015/9/5126 RSSI dBm  Most vendors use a table to map RSSI to dBm  Atheros  dBm = RSSI – 95  Cisco RSSIdBM 0-113 1-112 …… 100-10

127 2015/9/5127 Receive sensitivity  The minimum level of RF energy for the receiver to extract bit-stream  A NIC spec measured in dBm  Signal and noise are not distinguishable below receive sensitivity  Very close to RSSI=0  Impossible to measure RSSI=0  Can’t decode a ‘packet’  The higher data rate, the high receive sensitivity required

128 2015/9/5128 Percentage metrics  RSSI = RSSI_MAX * percentage  E.g. for Atheros card, 50% = 60 * 50% = RSSI 30  Good for site survey

129 2015/9/5129 What is signal quality?  In 802.11b standard  PN code correlation strength  In the context of DSSS modulation  Symbol  Data bits + PN code (called spreading)  E.g. At 1Mbps/2Mbps  1 single bit of data XOR’ed 11-bit-long PN code (Barker’s sequence, 101100111000)

130 2015/9/5130 Symbol correlation symbol for ‘1’ 101100111000 received symbol 101100111001 symbol for ‘0’ 010011000111 received symbol 101100111001 the received symbol is ‘closer’ to 1 than to 0 signal quality == percentage of ‘correct’ bits == reflect the corruption between AP and client but not necessarily equal to SNR

131 2015/9/5131 Question?

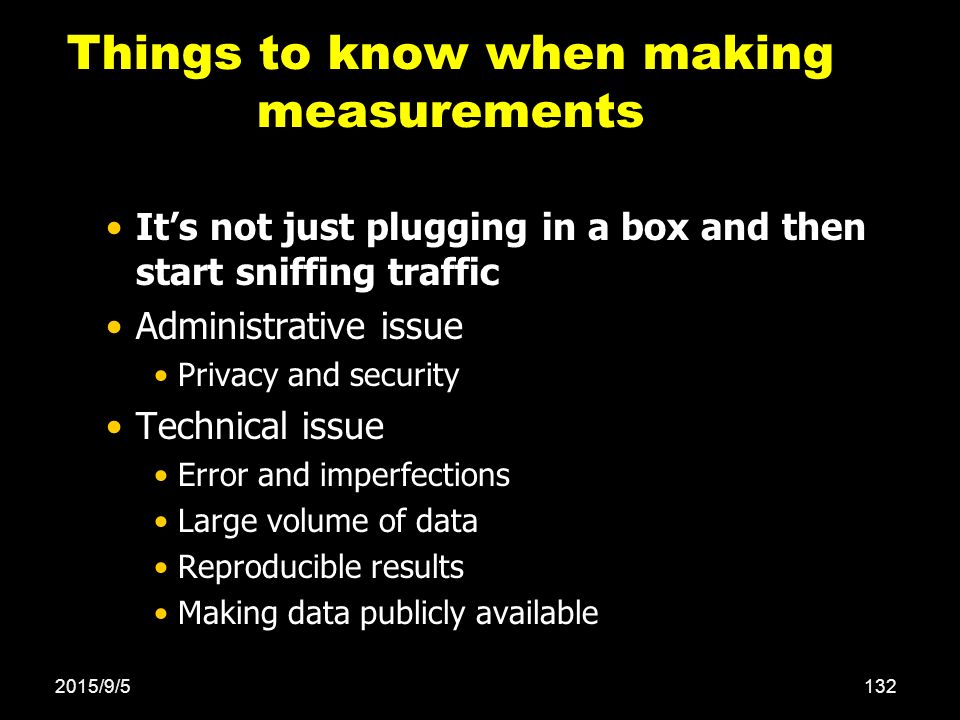

132 2015/9/5132 Things to know when making measurements It’s not just plugging in a box and then start sniffing traffic Administrative issue Privacy and security Technical issue Error and imperfections Large volume of data Reproducible results Making data publicly available

133 2015/9/5133 Error and imperfections Precision Limited by the measurement devices Clock precision How much details to record Accuracy Packet drops during recording or filtering Duplicate or re-ordering due to packet filter Clocks Un-synchronized clocks Buffered packets at NIC Effect of middle-box Trace edge-effect Representative data

134 2015/9/5134 precision Consider a tcpdump record 1092727442.276251 IP 192.168.0.120:22 > 192.168.0.137:9320 How precise is it? Answer: at most 1 us, but perhaps much less

135 2015/9/5135 How precise is the packet captured by tcpdump? Snapshot length limits the total data filtering

136 2015/9/5136 Maintain meta data E.g. when, where, how the traces are recorded Giving the measurements a context Meta data is important when the measurement is used by other people later for different purposes Existing tools are weak here Can be your potential project topic

137 2015/9/5137 Accuracy An even harder problem than precision Examples Clock arbitrarily off from true time Jump forward or backward Fail to move Run arbitrarily fast or slow Packet filter Drop packets Fail to report drops Report drops that did not occur Reorder packets Duplicate packets Record the wrong packets

138 2015/9/5138 Not measuring what you think you’re measuring Examples Measuring TCP packet losses by counting retransmission Packets can be replicated by the network Counting TCP connection size by counting the difference between SYN and FIN What if the remote host was down?

139 2015/9/5139 Calibration Detect problems of precision/accuracy/misconception Goal: Fix these problems post facto Identify and remove faulty measurements Find the outliers E.g. what are the biggest and smallest RTT in the measurements?

140 2015/9/5140 Techniques to detect inaccuracy Examine outliers and spikes Outliers: unusually low or high values Spikes: values that appear a lot E.g. extremely small RTT or extremely large connection Consistency check Compare against normal protocol/traffic behavior Comparing multiple measurements From different time From different places Use synthetic data to verify the correctness of software

141 2015/9/5141 Self-consistency check Check against the expected protocol behavior E.g. if a TCP receiver acknowledged data never sent, something must be wrong Filter drops the data Packet took another route Data was sent before you measured The TCP receiver is broken

142 2015/9/5142 Compare multiple measurements Compare packets at both ends Compare packet headers with payload Compare measurements collected at different times

143 2015/9/5143 Large volume of data Disk space Number of files Process time Memory usage Maximum file size 2G for older version of Linux Software limitation The number of data points can be input Statistical limitation Large datasets do not have statistically exact description Tip: early analysis with a smaller dataset

144 2015/9/5144 Re-producible analysis A typical scenario you collected the measurements, did the analysis and submitted the results to a conference Months later, you got a feedback from the reviewer that asks you to re-do the measurements with a tweak What would you do? 1.Introduce the tweak, re-crunch the numbers, update the table and then call it done 2.Or, you first re-run your scripts to understand how you got those numbers in the first place

145 2015/9/5145 But… For a good-sized measurement study, you often can not re-produce the exact earlier numbers… You’ve lost the previous mental context of fudge factors, glitch removals, script inconsistency Ad hoc notes Removal of outliers Random fixes Different versions of analysis scripts Rounding the numbers

146 2015/9/5146 Strategies One single master that builds all results from raw data Keep intermediary form of the data Maintain a notebook What have been done and what happened Use version control Need a way to visualize the changes after the re-run Another potential project topic

147 2015/9/5147 Make data publicly available Comment details about how measurements were taken Where and when Link properties (speed, utilization, loss, etc.) Include analysis scripts that were used Anonymization Security, privacy, business sensitivity Data-reduction request

148 2015/9/5148 Measurement infrastructure Administrative issues It’s not easy to get fresh data by yourself Places where you can get some existing data NLANR ITA MAWI NIMI CAIDA Internet 2

149 2015/9/5149 NLANR Passive Measurement Analysis (PMA) Active Measurement Project (AMP)

150 2015/9/5150 PMA Collect passive IP header trace ranging from OC3 to OC192 links Each monitor captures a unique portion of overall network data Capture 8 samples per day 2 minutes per sample 3.2G data per day A number of OC48 long, continuous traces From 1 hour to 45 days

151 2015/9/5151 AMP 150 sites in US and some in other countries Site to site measurements Two meshes HPC mesh (all in US, ~140 sites) International mesh Data measured round trip time (RTT) packet loss topology throughput

152 2015/9/5152 Internet Traffic Archive (ITA) Founded by Vern Paxson since 1996 Mainly are Web traces (and some wide-area TCP and traceroute traces) Most traces are in the format of tcpdump or http log Trace duration ranges from 2 hours to 6 months Related software tcpdpriv Remove private information of tcpdump tcp-reduce a collection of shell scripts for reducing a tcpdump trace file to a summary of the corresponding TCP connections. tracelook a program for graphically viewing tcpdump traces.

153 2015/9/5153 MAWI (WIDE project) Japan research efforts Traffic from several trans-Pacific T1 lines, an US-Japan OC-3 line and 6Bone Daily traces 2 million packets per hour for trans-pacific lines 6Bone traffic is still light (mainly BGP and ICMPv6) Traces are in tcpdump format and anonymized with tcpdpriv

154 2015/9/5154 NIMI ( National Internet Measurement Infrastructure ) A set of measurement servers (probes) running on a set of hosts Function Receive and authenticate request Execute the request at the appropriate time Send the result back the requester Daemon nimid: communicate with outside world scheduled: scheduling, execute measurements and packaging results CPOC (Configuration Point Of Contact) Configure and administer a set of NIMI probes in the same administration domain Measurement client (MC) A tool that allow end-user to send measurement request to NIMI probe Data Analysis Client (DAC) Where the measurement results are returned The address of DAC is included in the request sent by MC

155 2015/9/5155 CAIDA (Cooperative Association for Internet Data Analysis ) Affiliated with UCSD Provide tools, data and analysis for research community Data sources Exchange points: e.g. San Diego Network Access Point (SD- NAP) Data from FIX-West routing data from University of Oregon's Route Views project (www.antc.uoregon.edu/route-views) and Merit's IPMA (www.merit.edu/ipma/)www.antc.uoregon.edu/route-viewswww.merit.edu/ipma/ active measurement from skitter

156 2015/9/5156 Internet 2 Goal A large-scale edge network for research community Enable revolutionary application Transfer new application/service to commercial Internet Consist of 207 universities connected by 3 networks: Abilene, Quilt, ARENA The participants collaborate with each other on studying and identifying, developing, and testing advanced network services, applications and technologies Focus on end-to-end performance measurements Active: routing, delay, loss Passive: SNMP, Netflow
