1 Liquids 11.3 – 11.6

2 Viscosity of Liquids Viscosity - resistance of a liquid to flow - molecules slide over one another. Viscosity depends on the strength of IMF: stronger IMF means higher viscosity. Viscosity decreases with an increase in temperature. (think syrup!) –Higher temp means more energy to overcome IMFs

3 Surface Tension Bulk molecules in the liquid are equally attracted to all of their neighbors. Surface molecules are only attracted inward towards the bulk molecules. Surface molecules are packed more closely than bulk molecules. This causes the liquid to behave as if it had a “skin”.

4 Surface tension - amount of energy required to increase the surface area of a liquid by a unit amount.(like m 2 or in 2 ) Stronger IMFs cause higher surface tension. Higher temperature - lower surface tension

5 Cohesive forces - IMF that bind molecules to one another. Adhesive forces - IMF that bind molecules to a surface (container).

6 6 water and MOST substances adhesive > cohesive mercury cohesive > adhesive

7 Capillary action The rise of liquids up very narrow tubes. The liquid climbs until adhesive / cohesive forces are balanced by gravity.

8 Phase Changes and Energy Sublimation: solid  gas  Hsub > 0 (endothermic). Melting or fusion: solid  liquid  Hfus > 0 (endothermic) Vaporization: liquid  gas  Hvap > 0 (endothermic) Deposition (crystalization): gas  solid  Hdep < 0 (exothermic) Condensation: gas  liquid  Hcon < 0 (exothermic) Freezing: liquid  solid  Hfre < 0 (exothermic)

9 Solid--------Liquid--------Gas Easier with weak IMFs Harder with strong IMFs Endothermic Harder with weak IMFs Easier with strong IMFs Exothermic

10 Heating Curves Plot of temperature change versus heat added is a heating curve. During a phase change, temp. remains constant even though energy is being added (plateau on heating curve) Added energy overcomes IMF rather than cause temperature change.

11 11 Heating Curve for water Notice the plateaus where temperature levels off even though energy is still being added. Notice that there are 5 different parts to the “curve”

12 To calculate the amount of heat absorbed/released from a heating curve: –Use q=mΔTcp for increasing/decreasing lines –Use q=mΔH for flat lines Add q values for each line segment to find the total q for the process.

13 13 ENERGY CONVERSIONS Sample Problem #7 Calculate the energy required to convert 25.0 g of ice at -13°C to steam at 125°C. This problem needs 5 steps step 1ice at -13°C to ice at 0°C (raising T to mp) q = (mass) (ΔT) (S.H.) = (25.0 g) (13°C) (2.09 J/g °C) = 680 J step 2ice at 0°C to liquid water at 0°C (melting) q = (mass) (heat of fusion) = (25.0 g) (334 J/g) = 8350 J step 3water at 0°C to water at 100°C (raising T to bp) q = (mass) (ΔT) (S.H.) = (25.0 g) (100°C) (4.184 J/g °C) = 10500 J step 4water at 100°C to steam at 100°C (boiling) q = (mass) (heat of vaporization) = (25.0 g) (2260 J/g) = 56500 J step 5steam at 100°C to steam at 125°C (raising to final T) q = (mass) (ΔT) (S.H.)= (25.0 g) (25°C) (1.84 J/g °C) = 1200 J final answer = 680 J + 8350 J + 10500 J + 56500 J + 1200 J = 77200 J

14 Critical temperature is the highest temperature at which a substance can exist as a liquid - above T c molecules have too much energy to be a liquid Critical pressure is the pressure required for liquefaction at this critical temperature. –The greater the IMF, the higher the critical temperature.

15 Vapor Pressure Some molecules on the surface of a liquid have enough energy to escape the attraction of the bulk liquid and move into the gas phase.

16 As the number of molecules in the gas phase increases, some of the gas phase molecules strike the surface and return to the liquid. After some time the pressure of the gas will be constant. –A dynamic equilibrium has been established Vapor pressure is the pressure exerted when the vapor is in dynamic equilibrium with its liquid

17 17 Vapor Pressure

18 Volatility Liquids with lower IMFs tend to have high vapor pressures –Liquids that evaporate easily are said to be volatile. (have low IMF)

19 Vapor Pressure and Temperature Increasing temperature will increase vapor pressure exponentially –Higher temps mean the molecules have more energy to overcome the IMFs that hold them in the liquid phase. –increasing temperature will increase evaporation and will produce more vapor molecules, so more pressure –increasing temperature will increase the pressure of any gas (or vapor) (Charles’ law)

20 20

21 Vapor Pressure and Boiling Point Boiling occurs when the vapor pressure equals the pressure above the liquid The normal BP is the temperature when the vapor pressure is equals standard pressure (1 atm)

22 22 1 atm

23 23 Vapor Pressure and Boiling Point Decreasing air pressure (going up in altitude) lowers the temperature at which a liquid will boil – food does not cook as fast (high altitude cooking directions on boxed foods )

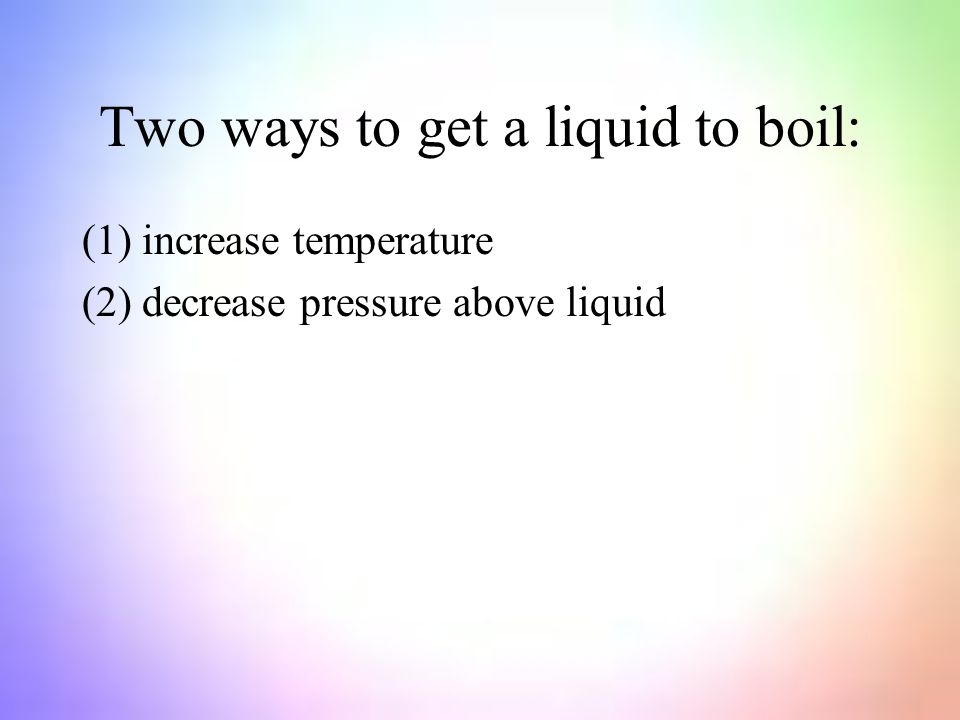

24 Two ways to get a liquid to boil: (1) increase temperature (2) decrease pressure above liquid

25 25 Clausius-Clapeyron Equation (Relationship between vapor pressure and temperature) more often written for a gas (or vapor) at 2 different P and T as:

26 26 Graphing 1/T versus ln P The slope of this line = - ΔH vap / R The slope can be used to determine ΔH vap ΔH vap = - (slope)(R) ln P 1 / T y = m x + b

27 27 Ether has P vap = 400 mm Hg at 17.9 o C and a normal BP of 34.6 o C. What is the heat of vaporization,  H vap, for ether in kJ/mol? P 1 = 400 mm Hg T 1 =17.9 o C = 290.9 K P 2 = 760 mm Hg T 2 = 34.6 o C =307.6 K* Normal BP is at standard pressure R = 8.3145 J/mol·K Use of Clausius-Clapeyron Equation to find ΔH

28 28 The vapor pressure of ethanol at 34.7 o C is 100.0 mm Hg. The heat of vaporization is 38.6 kJ/mole. What is the vapor pressure of ethanol in mm Hg at 65.0 o C? P 1 = 100.0 mm Hg T 1 = 34.7 o C = 307.7 K P 2 = ?? T 2 = 65.0 o C = 338.0 K  H vap = 38.6 kJ/mol = 38600 J/mol R = 8.3145 J/mol·K Thus: ln P 2 = 5.9577 P 2 = e 5.9577 = 386.7 mm Hg Use of Clausius-Clapeyron Equation to find a pressure

29 Phase Diagrams plot of pressure vs. temperature summarizing all equilibria between phases. Phase diagrams tell us which phase will exist at a given T and P Features of a phase diagram: Vapor-pressure curve: generally as T increases, P vap increases. Critical point: critical temperature and pressure for the gas. Normal melting point: melting point at 1 atm (101 kPa) Normal boiling point: boiling point at 1 atm (101 kPa) Triple point: T and P at which all three phases are in equilibrium. Any T and P combination on a curve represent 2 phases Any T and P combination not on a curve represents a single phase.

30 Solid Liquid Gas (vapor) Sublimation Deposition Melting Freezing Vaporization Condensation Critical point Triple point Generic Phase Diagram

31 What phase or phases are present a)at any point on curve YX? b)at any point on curve AD? c)at any point on curve AB? d)at point A or X? solid and vapor liquid and vapor solid and liquid solid, liquid and vapor Notice that the solid-liquid line for water has a negative slope. This is because solid ice is less dense than liquid water.

32 Looking at the water diagram on the left, what effect would each of the following have on a sample of water at any point on the AD curve. a) increasing T at constant P b) decreasing P at constant T? c) decreasing T at constant P? d) increasing P at constant T? turns into vapor turns into liquid then solid turns into liquid

33 Using the two diagrams above: a) points A and X are called b) point B is called c) point C is called d) point Y is called e) points D and Z are called triple point normal melting/freezing point normal boiling/condensing point normal sublimation/deposition point critical point

34 Good explanation of phase diagrams: qia/phasediags.html
