1. Warm Up 10/29 What is the difference between a mixture and a compound?

2. Lesson: Intro to Chemical Bonding

3. Chemical Bond – an attractive force between atoms that is strong enough to enable the group to act as a unit.

4. What makes atoms bond? Why do they “want” to bond?

5. Dating Game What do you look for in a soul mate?

6. Like people, atoms want to feel complete. They feel complete by fulfilling the Octet Rule.

7. SodiumChlorine

8. Octet rule – atoms tend to react and bond so that they have an outer energy level filled with electrons. They can do this by gaining or losing electrons. Most atoms will have 8 valence electrons after they bond. Some will have 2 valence electrons, like hydrogen, helium, lithium, berrylium and boron.

9. Oxygen shares an electron pair with two hydrogen atoms, so that all of them fulfill the octet rule.

10. Warm Up 10/30 What electric charge does an atom have if it gains an electron? What if it loses an electron?

11. Lesson: Ionic Bonding Sodium chloride

12. Ionic Bond – electrons are transfered, then the ions attract each other. General Rules: 1) 1 Metal + 1 Non-metal 2) Elements on left lose electrons (+), elements on right gain electrons (-).

13. Ionic Characteristics Forms crystal structures High melting and boiling points Conducts electricity when melted Can dissolve in water CaF 2

15. Natural NaCl

16. Sodium gives an electron to chlorine, so that both of them fulfill the octet rule... +1

17. Magnesium Oxide: Magnesium Oxygen +2 -2

18. .. + 2 BeF 2

19. 1. Each person gets 5 cards 2. You want to keep ionic matches. Lay aside any you already have in your hand. 3. Try to match one of your cards with the one on the table. If you can't, then draw another card and let the next player try. 4. Keep playing until one player runs out, or no one can play anymore. Keep your matches. Card Game Rules

20. 5. Write the formulas of the ionic compounds you made on paper. Put the metal 1 st and the nonmetal 2 nd If it took more than one atom for either, write it as the subscript (the little number)

21. Practice – Left side! Directions: Write the formula units for the following ionic compounds: 1)Sodium & oxygen 2)Barium & fluorine 3)Rubidium & iodine 4)Calcium & sulfate (poly) 5)Potassium & sulfite (poly) 6)Aluminum & oxygen

23. Polyatomic Ions Ions made of more than one atom (molecules that are ions) All are anions, except ammonium Have special names Sulfate Hydroxide Phosphate

24. Warm Up 10/31 Give an example of a homogeneous mixture and a heterogeneous mixture.

25. Warm Up 11/1 If you had two liquids that formed a homogeneous mixture, what method could you use to separate them?

26. Lesson: Naming Ionic Compounds

27. How to Name: 1. Cation’s name remains unchanged 2.Change the end of the anion’s name to “ide” (polyatomic ion names stay the same) NaCl = K O = Al (CO ) = 233 2 Sodium chloride Aluminum carbonate Potassium oxide

28. Problem: Some elements have more than one form of cation! Examples: Fe and Fe We call them Iron (II) and Iron (III) Cu and Cu Call them Copper (I) and Copper (II) 2+3+ +2+

29. Metals with Double Cations: Ti Ti Cr Cr Fe Fe Cu Cu Au Au Sn Sn Pb Pb +2 +4 +3 + +

30. CuCl = Is it Copper (I) or Copper (II)? Fe O = Is it Iron (II) or Iron (III)? 2 23 Use Reverse Swap & Drop!

31. What if the reverse ‘Drop and Cross’ method doesn’t work? Example: FeO

32. Practice: Left Side! Directions: Write the names of the following ionic compounds. 1.MgO 2.KBr 3.Na O 4.FeCl 5.CuBr 3 2 2

33. Warm Up 11/12 What is the difference between an ionic compound like salt (NaCl) and a water molecule (H 0)? 2

34. How many more electrons (dots) does each atom have room for? Warm Up 11/17

35. Lesson: Covalent Bonding

36. Compound = 2 atoms that are chemically bonded together. Noble gases don’t chemically react. Why? They have 8 valence electrons. Old Ideas

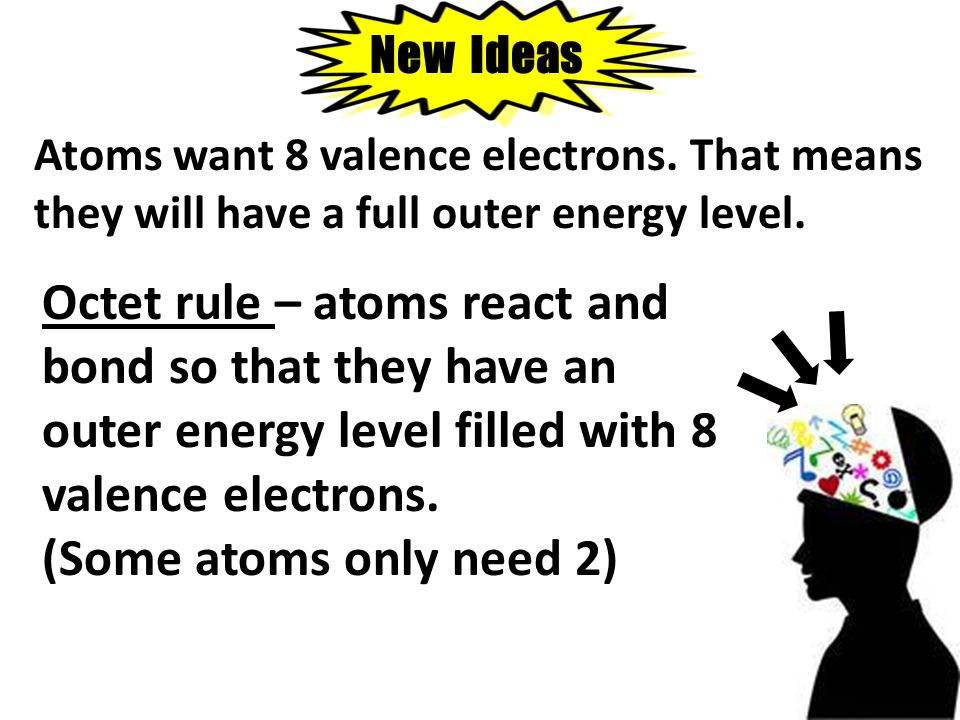

37. Octet rule – atoms react and bond so that they have an outer energy level filled with 8 valence electrons. (Some atoms only need 2) New Ideas Atoms want 8 valence electrons. That means they will have a full outer energy level.

38. Bonding Ionic Electrons transferred 1 metal + 1 nonmetal Covalent Electrons shared 2 nonmetals

39. What actually holds covalent compounds together? They are both attracted to the shared electron.

40. 2 Chlorine Atoms

41. Chlorine Molecule 1 Shared pair of Electrons

42. Methane

45. Naming Covalent Compounds Rules: 1)Name of the first element remains the same (might need a prefix) 2)Name of the second element ends in “ide” (might need a prefix) Example: S C 3

46. Prefixes

47. Practice Naming PCl CO N O S N 3 2 45 2 = Phosphorus trichloride = Carbon dioxide = Dinitrogen monoxide = Tetrasulfur pentanitride

48. Practice Writing Formulas Selenium hexafluoride Xenon tetrafluoride Dichlorine heptoxide Arsenic trifluoride = SeF 6 = XeF 4 = Cl O 27 = AsF 3

49. On Your Own Practice Write the Names: 1) Br O 2) S N 3) SCl 4) Se F Write the Formulas: 5) Chlorine dioxide 6) Selenium tetrafluoride 7) Dinitrogen trioxide 8) Tetraphosphorus pentasulfide 2 2 4 4 5 3

50. Warm Up 11/13 What is the electron configuration of sulfur?

51. Warm Up 12/9 Draw the lewis dot structure for NF 3

52. N..... F............. F.... F.... Trigonal Pyramidal

53. Ionic Metallic Covalent 1 Metal + 1 Nonmetal Electrons transferred (stolen) Swap & Drop 2 Nonmetals Electrons shared Prefixes

54. Covalent Characteristics Gases, liquids or solids (molecules) Low melting and boiling points Poor conductors of electricity Usually not soluble in water

55. Metallic Bonding The valence electrons of metals move about freely, forming a “sea” of electrons.

56. Characteristics of Metals 1.Conductive of electricity and heat 2. Ductile 3. Malleable 4. Luster

57. Ionic or Covalent? NameFormula P S Barium fluoride Fe(OH) Dinitrogen pentoxide Potassium phosphate 43 2

58. Write the names of the covalent compounds: 1.P S 2.Br O Write the formulas of the covalent compounds: 3. Carbon heptachloride 4. Trinitrogen pentasulfide 62 43

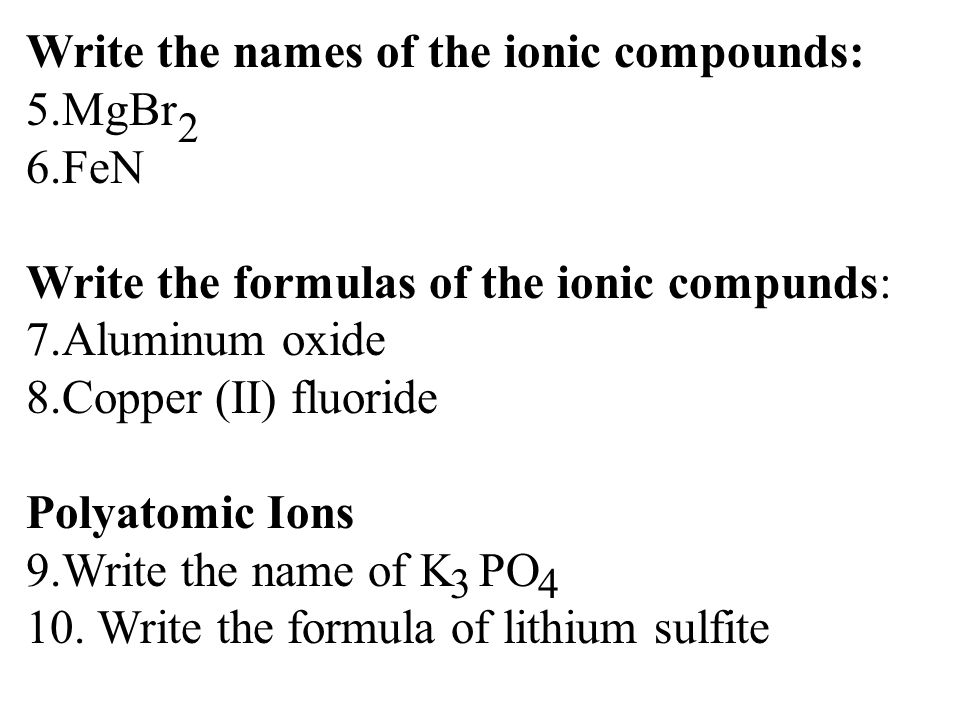

59. Write the names of the ionic compounds: 5.MgBr 6.FeN Write the formulas of the ionic compunds: 7.Aluminum oxide 8.Copper (II) fluoride Polyatomic Ions 9.Write the name of K PO 10. Write the formula of lithium sulfite 2 34

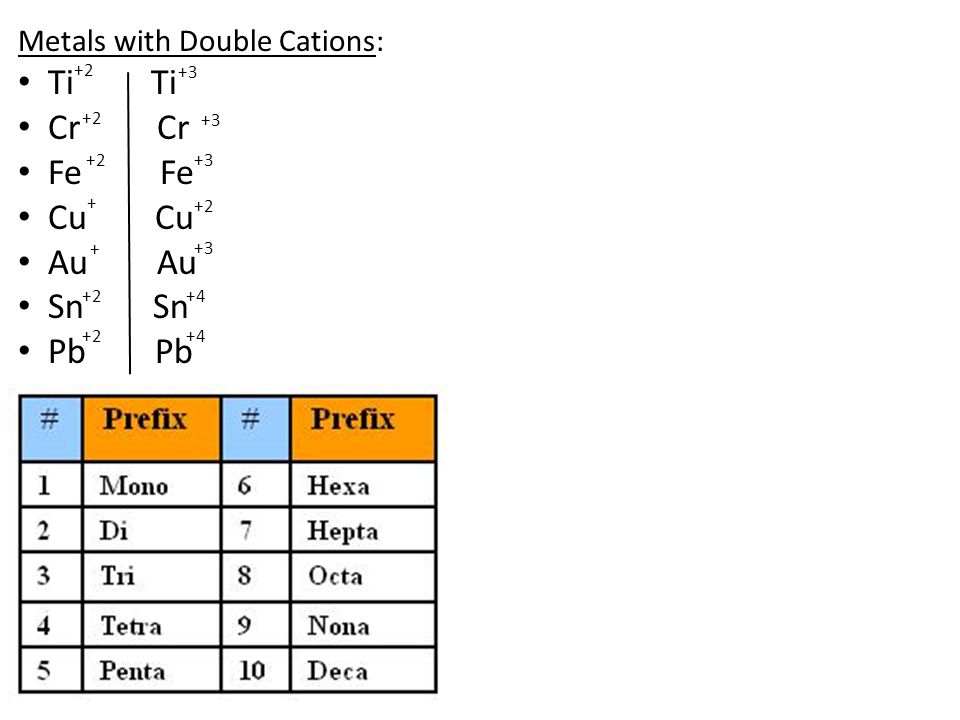

60. Metals with Double Cations: Ti Ti Cr Cr Fe Fe Cu Cu Au Au Sn Sn Pb Pb +2 +4 +3 + +
