1. On-Chip Inductance Extraction - Concept & Formulae – 2002
On-Chip Inductance Extraction - Concept & Formulae – Hyungsuk Kim

2. OutLine Introduction – On-Chip Inductance
Loop Inductance and Partial Inductance
Closed Forms of Inductance Formulae
Self Inductance Formulae
- Hoer, FastHenry, Ruehli, Grover
Mutual Inductance Formulae
- Hoer (FastHenry), Ruehli, Grover
Computational Results
Conclusion

3. Introduction – On-Chip Inductance
As the clock frequency grows fast, the reactance becomes larger for on-chip interconnections
Z = R + jwL
w is determined not by clock frequency itself but by clock edge
w ~ 1/(rising time)
More layers are applied, wider conductors are used
Wide conductor => low resistance
Multiple layer interconnections make complex return loops
Inductance is defined in the closed loop in EM

4. Loop Inductance Loop inductance is defined as
the induced magnetic flux in the loop
by the unit current in other loop Ij
Loop i
Loop j
where, represents the magnetic flux
in loop i due to a current Ij in loop j
The average magnetic flux can be calculated by magnetic vector potential Aij
where, ai represents a cross section of loop i

5. Loop Inductance (cont’d)
The magnetic vector potential A, defined by B = A,
has an integral form
So, loop inductance is

6. Partial Inductance Problems of loop inductance Partial inductance
The loops (called return paths) are
hardly defined explicitly in VLSI
In most cases, the return paths
are multiple
Partial inductance
proposed by A. Ruehli
The return path is assumed at infinite
for each conductor segment
It can be directly appliable to circuit simulator like SPICE 1 2 3 4 5

7. Partial Inductance (cont’d)
Loop inductance between loop i and j is
(assume loop i consists of K segments and loop j does M segments)
So, loop inductance is

8. Partial Inductance (cont’d)
Definition of partial inductance
The sign of partial inductance is not considered
So, partial inductance is solely dependent of conductor geometry
Sign rule for partial inductance
where, Skm = +1 or –1
The sign depends on the direction of current flow in the conductors

9. Geometry and Formulae Inductance Formulae Conductor Geometry
Self Inductance : Grover(1962), Hoer(1965), Ruehli(1972), FastHenry(1994)
Mutual Inductance : Grover(1962), Hoer(FastHenry)(1965), Ruehli(1972) x z T W l
Conductor 1
Conductor 2 Dz Dx y Dy
(a) Single Conductor (b) Two Parallel Conductors

10. Self Inductance Grover’s Formula Grover 2 (without table) T/W logee
0.2
0.5
0.8
0.05
0.3
0.6
0.9
0.1
0.4
0.7
1.0
Grover 2
(without table)

11. Self Inductance (cont’d)
Hoer’s Formula
where

12. Self Inductance (cont’d)
Ruehli’s Formula
where
If T/W < 0.01

13. Self Inductance (cont’d)
FastHenry’s Formula
where

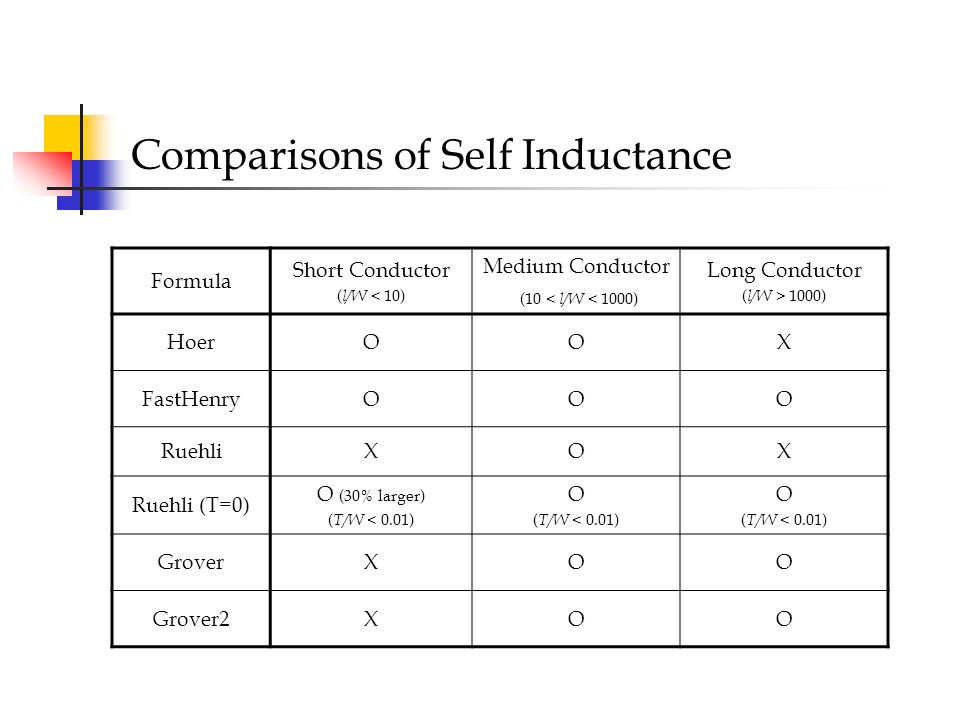

17. Comparisons of Self Inductance
Formula
Short Conductor
(l/W < 10)
Medium Conductor
(10 < l/W < 1000)
Long Conductor
(l/W > 1000)
Hoer O X
FastHenry
Ruehli
Ruehli (T=0)
O (30% larger)
(T/W < 0.01)
Grover
Grover2

18. Mutual Inductance Ruehli’s Formula Grover’s Formula (single filament)
where
where

19. Mutual Inductance (cont’d)
Hoer’s Formula (multiple filaments)
where

22. Conclusion
On-Chip inductance becomes a troublemaker in high-performance VLSI design
Higher clock frequency, wide interconnections, complex return paths
The concept of partial inductance is useful in VLSI area
Not related to the return path
Only dependent of geometry
Several inductance formulae are in hand but they have
Different computational complexities
Different applicable ranges according to the geometry
