RL and LC Circuits Capacitor and Inductors in Series Resistors and Inductors in Series

2
RL Circuits As the switch is thrown closed in an RL circuit, the current in the circuit begins to increase and a back EMF that opposes the increasing current is induced in the inductor. The back EMF is ε L = -L(dI/dt) Because the current is increasing dI/dt is positive.

3
RL Circuits The EMF across the inductor is negative which reflects the decrease in electric potential that occurs in going across the inductor.

4
RL Circuits After the switch is closed there is a large back EMF that opposes current flow EMF –L(dI/dt) So not much current flows I = ε o /R Using Kirchoff’s loop rule we find ε o –I/R - L(dI/dt)=0

5
RL Circuits The current does not increase instantly, but increases as an RC circuit does. It increases to its final equilibrium value when the switch is closed but instead increases according to an exponential function. I(t) = (ε o /R)(1-e -t/τ ) Where τ = L/R

6

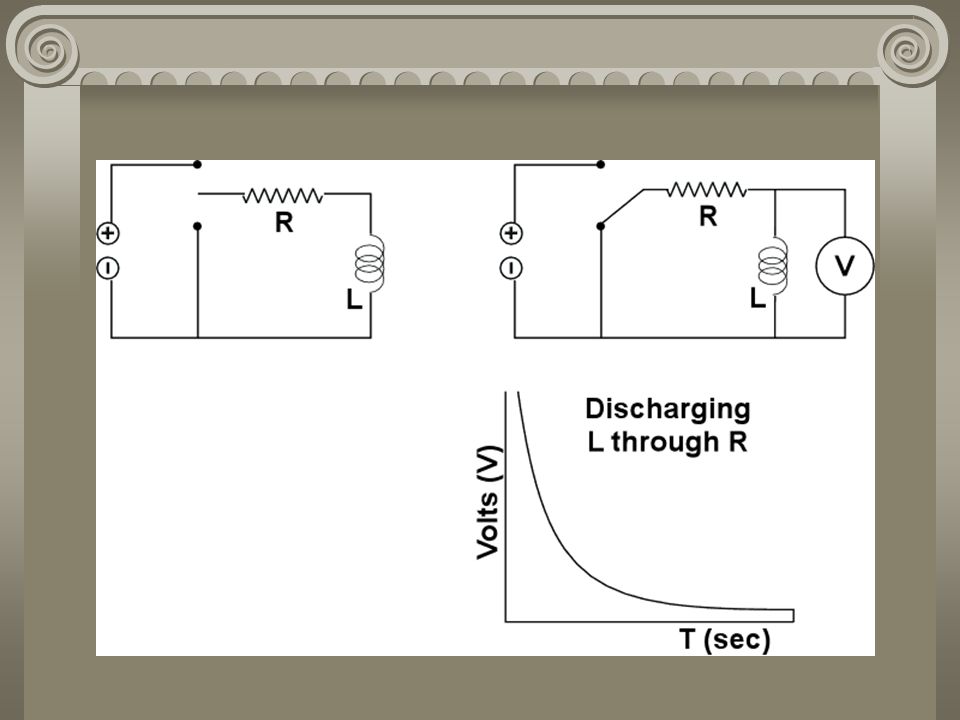

RL Circuits Once current is flowing it is hard to stop Current decays I = I o e -t/τ I = (ε o /R) e -t/τ

8
LC Circuits If the capacitor is initially charged and the switch is then closed, both the current in the circuit and the charge on the capacitor oscillate between maximum positive and negative values. When the capacitor is fully charged, the energy U in the circuit is stored in the electric field of the capacitor and is Q max 2 /2C

9
LC Circuits

10
When the switch in the circuit is thrown then the capacitor discharges, this is providing a current in the circuit and the energy stored in the electric field of the capacitor now becomes stored in the magnetic field of the inductor When the capacitor is fully discharged, it stores no energy. At this time the current reaches its maximum value and all the energy is stored in the inductor.

11

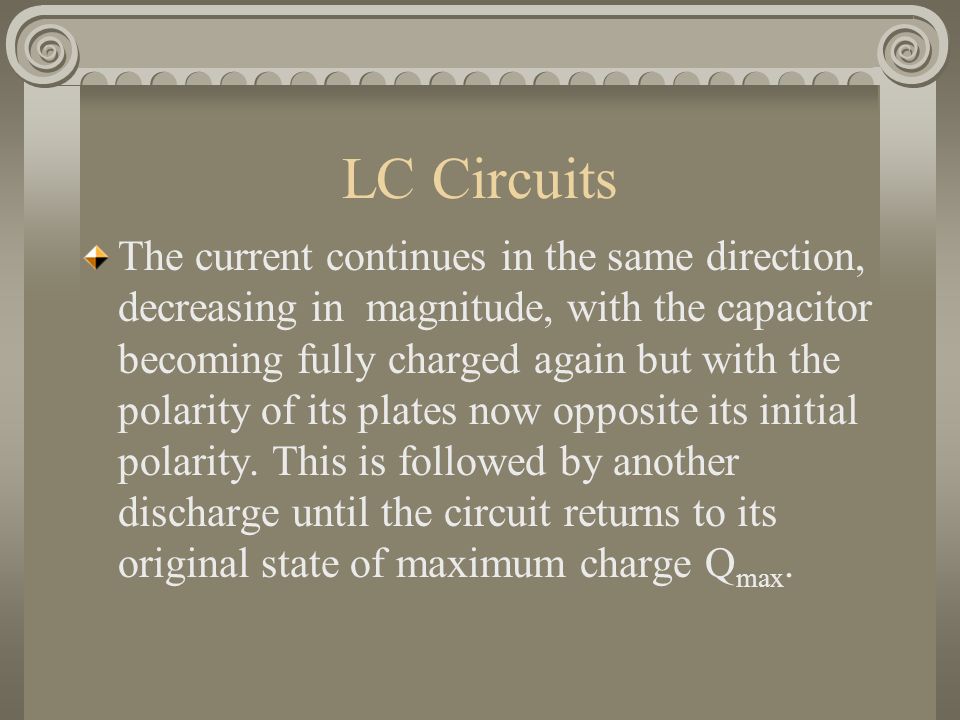

LC Circuits The current continues in the same direction, decreasing in magnitude, with the capacitor becoming fully charged again but with the polarity of its plates now opposite its initial polarity. This is followed by another discharge until the circuit returns to its original state of maximum charge Q max.

12

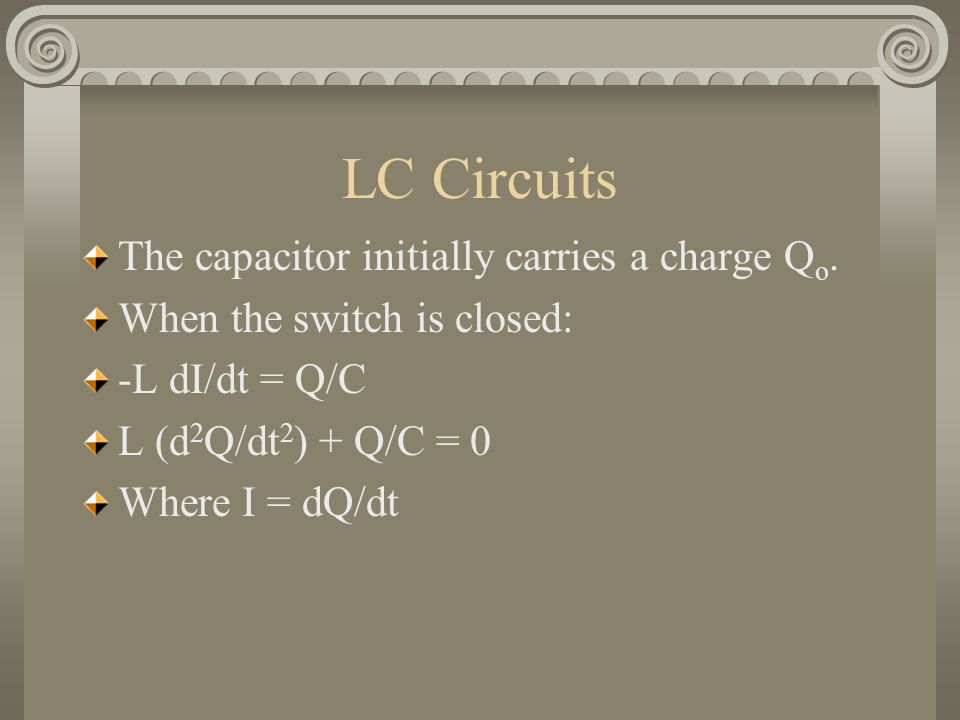

LC Circuits The capacitor initially carries a charge Q o. When the switch is closed: -L dI/dt = Q/C L (d 2 Q/dt 2 ) + Q/C = 0 Where I = dQ/dt

13
Charge and Current in LC Circuits I = ωQ o ω is the angular frequency Q(t) = Q o cos ωt I(t) = ωQ o sin ωt ω = 1/√(LC)

14
Current Oscillations The current oscillates periodically and the stored energy is U = ½ Q 2 /C + ½ LI 2 = a constant This is the total energy in an LC circuit
