1. Nachos Instructional OS and Project 1 CS 170, Tao Yang

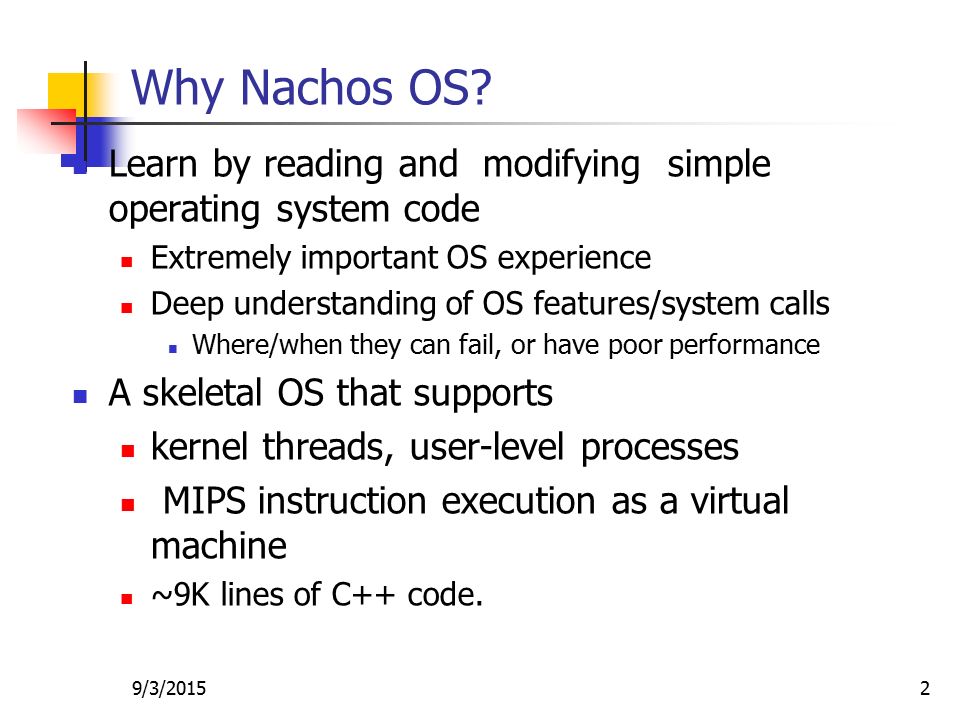

2. 9/3/20152 Why Nachos OS? Learn by reading and modifying simple operating system code Extremely important OS experience Deep understanding of OS features/system calls Where/when they can fail, or have poor performance A skeletal OS that supports kernel threads, user-level processes MIPS instruction execution as a virtual machine ~9K lines of C++ code.

3. System Layers Base Operating System (Linux for our class) Nachos kernel threads Thread 1Thread 2Thread N Nachos OS modules (Threads mgm, File System, Code execution/memory mapping, System calls/Interrupt) Simulated MIPS Machine (CPU, Memory, Disk, Console) User process

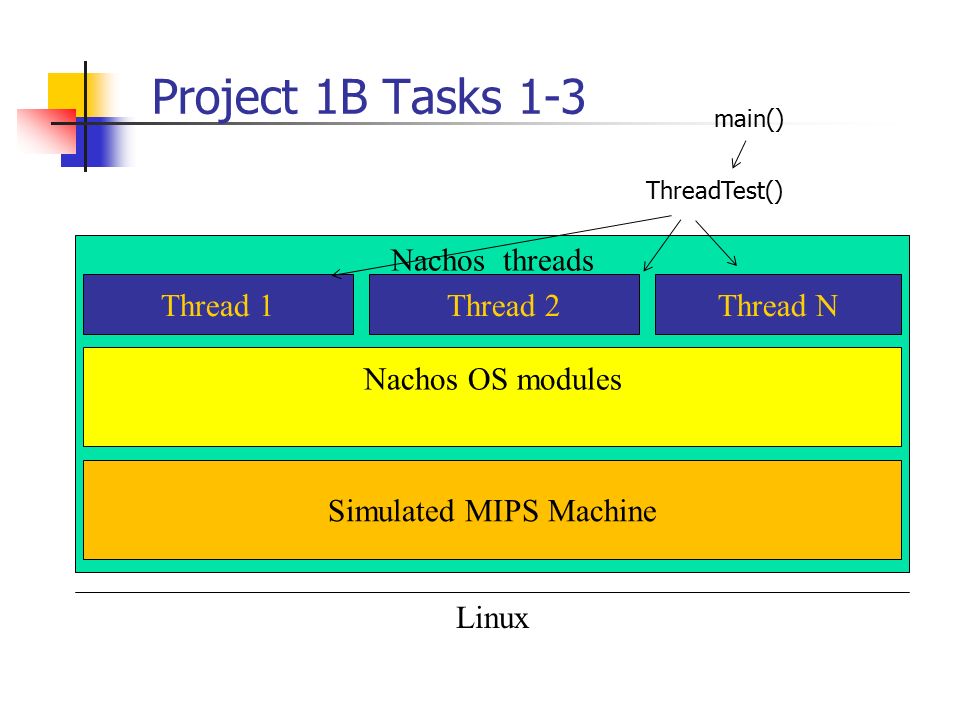

4. Project 1B Tasks 1-3 Linux Nachos threads Thread 1Thread 2Thread N Nachos OS modules Simulated MIPS Machine main() ThreadTest()

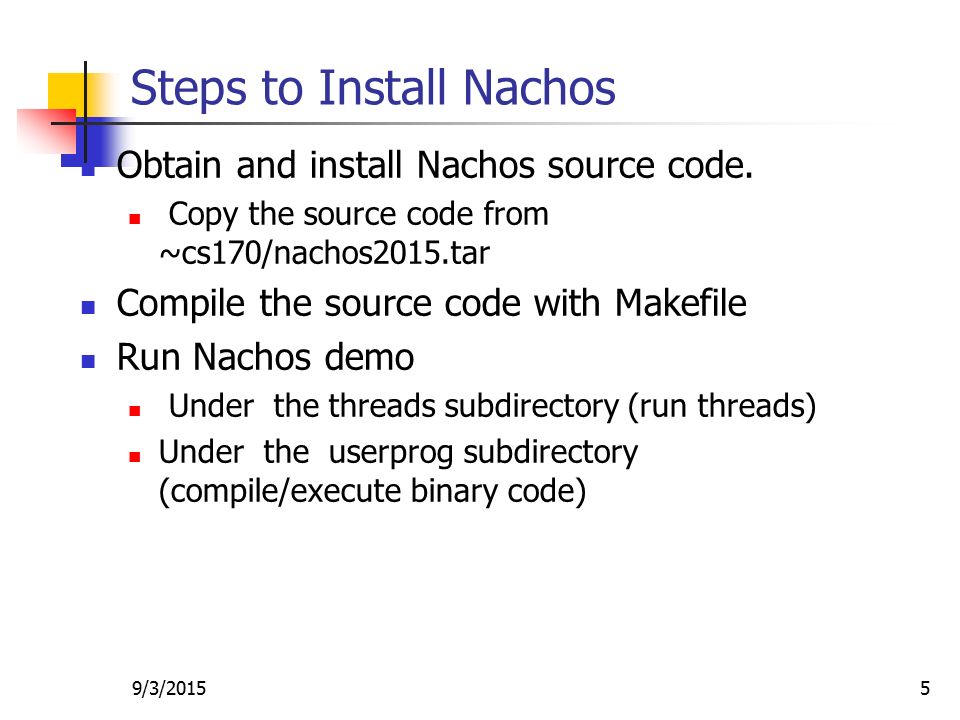

5. 9/3/20155 Steps to Install Nachos Obtain and install Nachos source code. Copy the source code from ~cs170/nachos2015.tar Compile the source code with Makefile Run Nachos demo Under the threads subdirectory (run threads) Under the userprog subdirectory (compile/execute binary code)

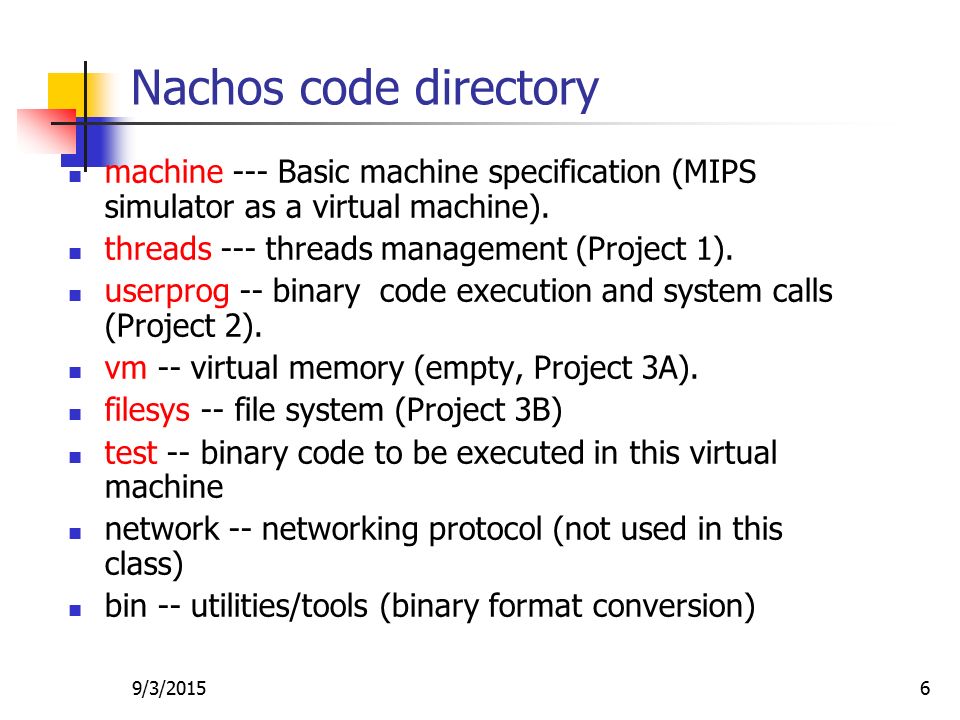

6. 9/3/20156 Nachos code directory machine --- Basic machine specification (MIPS simulator as a virtual machine). threads --- threads management (Project 1). userprog -- binary code execution and system calls (Project 2). vm -- virtual memory (empty, Project 3A). filesys -- file system (Project 3B) test -- binary code to be executed in this virtual machine network -- networking protocol (not used in this class) bin -- utilities/tools (binary format conversion)

7. 9/3/20157 Source code reading and Project 1 Objectives of next 2 weeks Scan through ~1,000 lines of code under threads directory Learn how context switch is accomplished among threads. Learn how thread scheduling is done. Learn how locks/synchronization are implemented and used. Use Linux pthreads. Complete Project 1

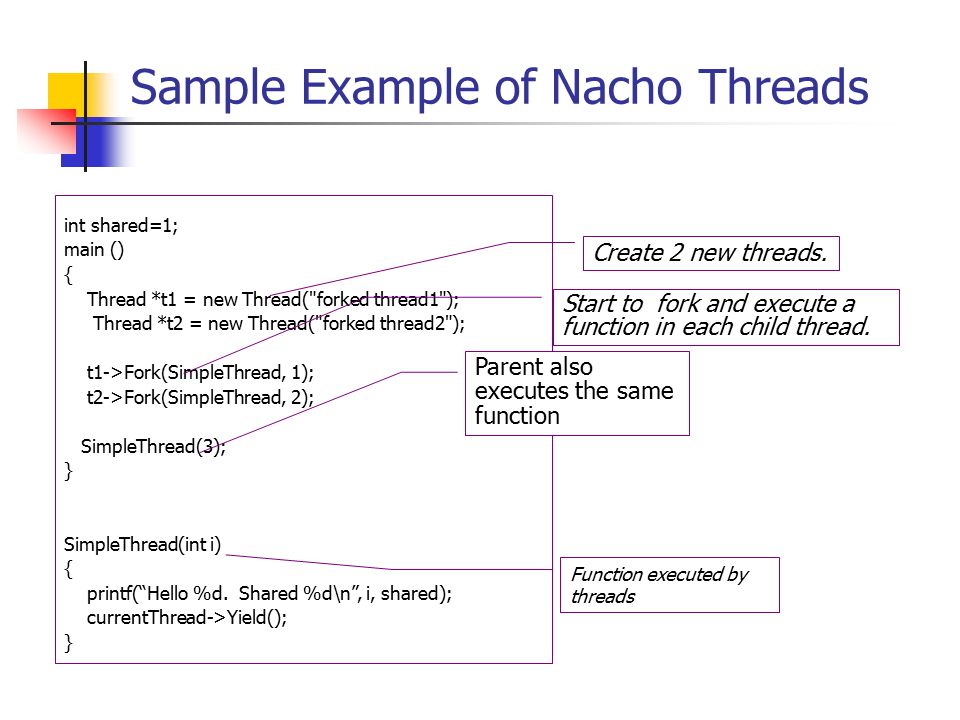

8. int shared=1; main () { Thread *t1 = new Thread("forked thread1"); Thread *t2 = new Thread("forked thread2"); t1->Fork(SimpleThread, 1); t2->Fork(SimpleThread, 2); SimpleThread(3); } SimpleThread(int i) { printf(“Hello %d. Shared %d\n”, i, shared); currentThread->Yield(); } Sample Example of Nacho Threads Start to fork and execute a function in each child thread. Parent also executes the same function Function executed by threads Create 2 new threads.

9. 9/3/20159 Nachos Threads Each thread has the following TCB (thread control block) from thread.h int *stackTop; // stack pointer int machineState[18]; // copy of registers int *stack // bottom of stack ThreadStatus status; //ready, running, or blocked char *name; Thread operations: Thread(char *debugName). Create a thread. Fork(VoidFunctionPtr func, int arg). Let a thread execute a function. Yield(). Suspend the calling thread and select a new one for execution. Sleep(). Suspend the current thread, change its state to BLOCKED, and remove it from the ready list Finish()

10. Nachos Thread States and Transitions running (kernel) readyblocked Scheduler::Run Scheduler::ReadyToRun Thread::Sleep Thread::Yield

11. 9/3/201511 Semaphore object for thread synchronization Disable and re-enable interrupts to achieve mutual exclusion (e.g., by calling Interrupt::SetLevel()). Operations for a Semaphore object: Semaphore(char* debugName, int initialValue) P(): Decrement the semaphore's count, blocking the caller if the count is zero. V() :Increment the semaphore's count, releasing one thread if any are blocked waiting on the count.

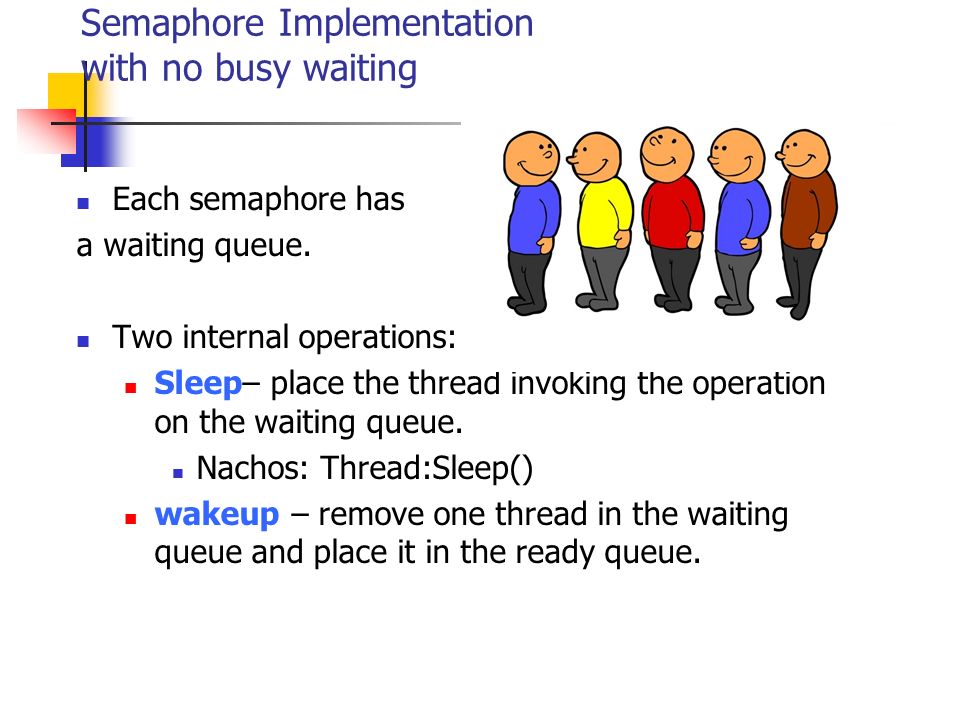

12. Semaphore Implementation with no busy waiting Each semaphore has a waiting queue. Two internal operations: Sleep– place the thread invoking the operation on the waiting queue. Nachos: Thread:Sleep() wakeup – remove one thread in the waiting queue and place it in the ready queue.

13. Semaphore Implementation with no Busy waiting (Cont.) P(semaphore *S) Disable-interrupt S->value--; if (S->value < 0) { Add this thread to waiting-queue; sleep(); } Enable-interrupt n V(semaphore *S) n Disable-interrupt S->value++; if (S->value <= 0) { Remove x from waiting-queue; wakeup(x); } Enable-interrupt

14. 9/3/201514 Reading source code Have a picture of overall components and their roles. Be able to compile and run a simple case. Trace the code execution through a simple case Basic/high level mechanism involved in execution. Walk through a simple thread test case in Nachos. Week 2 link in http://www.cs.ucsb.edu/~cs170/refer.html

15. Project 1A: Concurrent Hash Table Many pthreads

16. What each thread test calls? Many pthreads void *tfunc(void *arg){ long k= (long) arg; //thread ID inti, b=NUMKEYS/NumberofThread; for (i= b *k; i< b*k+b && i<NUMKEYS; i++){ test1(&hash, NUMKEYS, i,2); } } void test1(HashMap *htable, int n, int k, int w){ int i, errorflag=0; for (i=0; i<n; i++) (*htable).get(i); for (i=k-w; i<k+w; i++) (*htable).put(i,i); if((*htable).get(k)==-1) errorflag=1; (*htable).remove(k); for (i=0; i<n; i++) (*htable).get(i); (*htable).put(k,k); for (i=0; i<n; i++) (*htable).get(i);} get() put() remove()

17. Coarse-grain synchronization of concurrent hash table access Many pthreads

18. Fine-grain synchronization Many pthreads

19. 9/3/201519 Part B of Project 1 Objectives Tasks 1-3 under threads subdirectory. Gain experience with simple thread programming (execute multiple Nachos threads with synchronization). Implement locks and condition variables (missing from the file synch.cc). Use for concurrent access of a hash table

20. Project 1B Tasks 1-3 Linux Nachos threads Thread 1Thread 2Thread N Nachos OS modules Simulated MIPS Machine main() ThreadTest() Hashtable

21. 9/3/201521 Tasks 1/2/3: Nachos Files involved Key files to read and modify (modify 3 files in red) main.cc, threadtest.cc -- a simple test of our thread routines. TA Varun provides a sample change template for threadtest.cc thread.h thread.cc -- Nachos thread data structure and operations. scheduler.h scheduler.cc -- The thread ready list. synch.h synch.cc -- synchronization routines. system.h, system.cc -- Nachos startup initialization /shutdown switch.h, switch.s -- assembly code for thread switching. Other related files: synchlist.h, synchlist.cc -- synchronized access to lists using locks/conditions (useful examples for your programming). list.h list.cc -- generic list management. utility.h utility.cc -- some useful definitions and debugging routines. interrupt.h interrupt.cc -- manage interrupts. time.h timer.cc -- clock emulation. stats.h stats.cc -- collect interesting statistics.

22. 9/3/201522 Tasks of Project 1 (Part B) Task 1 Synchronize hash table (fine-grain) with semaphore Task 2. Implement Lock code in synch.cc similar as Nachos semaphore code Follow the Nachos semaphore implementation Synchronize hash table (fine-grain) Task 3 Implement conditional variables Synchronize hash table (fine-grain)

23. 9/3/201523 Key steps when Nachos executes After you type ``nachos'' under threads subdirectory: It is executing as a single Linux process. The main() calls Initialize() to start up interrupt handling, create a scheduler for managing the ready queue. ThreadTest() currentThread->Finish() to let other threads continue to run.

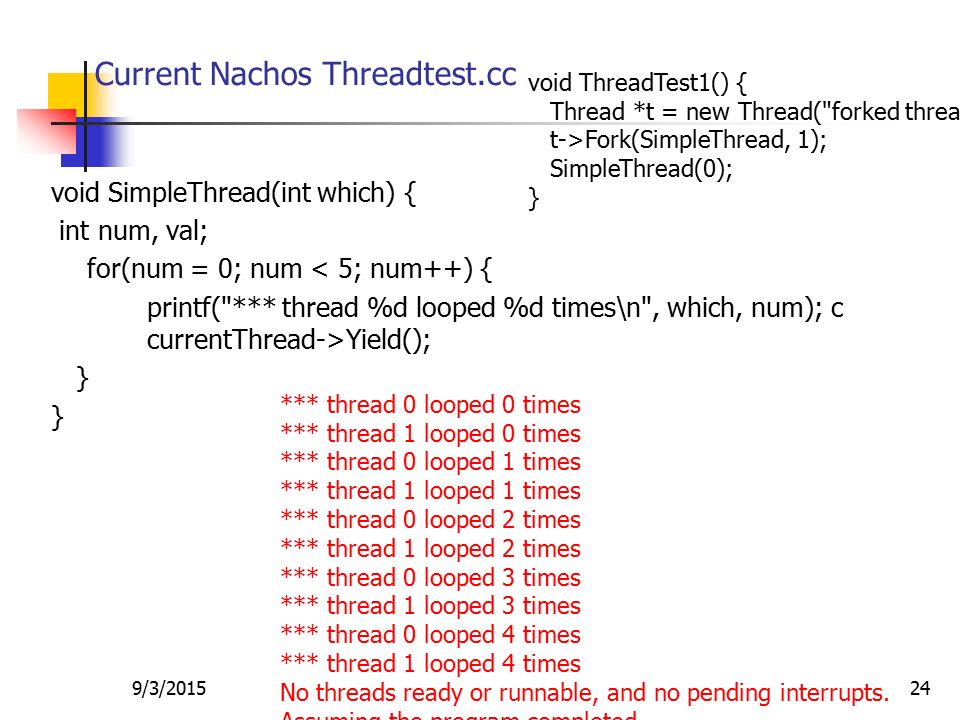

24. 9/3/201524 Current Nachos Threadtest.cc void SimpleThread(int which) { int num, val; for(num = 0; num < 5; num++) { printf("*** thread %d looped %d times\n", which, num); c currentThread->Yield(); } } *** thread 0 looped 0 times *** thread 1 looped 0 times *** thread 0 looped 1 times *** thread 1 looped 1 times *** thread 0 looped 2 times *** thread 1 looped 2 times *** thread 0 looped 3 times *** thread 1 looped 3 times *** thread 0 looped 4 times *** thread 1 looped 4 times No threads ready or runnable, and no pending interrupts. Assuming the program completed. Machine halting void ThreadTest1() { Thread *t = new Thread("forked thread"); t->Fork(SimpleThread, 1); SimpleThread(0); }

25. 9/3/201525 Key calling graph when Nachos executes under thread directory All files are in threads directory. main() in main.cc Initialize() in system.cc ThreadTest () in threadtest.cc Thread:Yield () in thread.cc Thread:Fork () in thread.cc StackAllocate() in thread.cc FindNextToRun () in scheduler.cc ReadyToRun () in scheduler.cc Run () in scheduler.cc SWITCH () in switch.s ThreadRoot () in switch.s func() such as SimpleThread() in ThreadTest.cc currentThread->Finish () in threadtest.cc

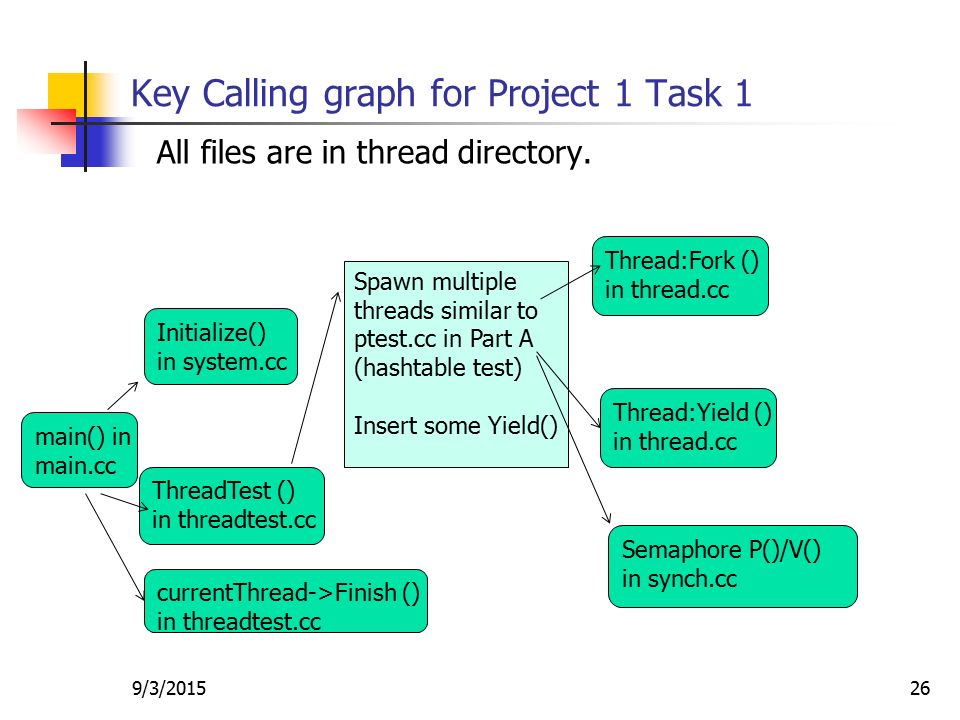

26. 9/3/201526 Key Calling graph for Project 1 Task 1 All files are in thread directory. main() in main.cc Initialize() in system.cc ThreadTest () in threadtest.cc Thread:Yield () in thread.cc Thread:Fork () in thread.cc currentThread->Finish () in threadtest.cc Spawn multiple threads similar to ptest.cc in Part A (hashtable test) Insert some Yield() Semaphore P()/V() in synch.cc

27. 9/3/201527 Nachos Scheduler object for thread scheduling Decide which thread to run next Invoked when the current thread gives up CPU. The current Nachos scheduling policy is round-robin: Select the front of ready queue list Append new threads to the end. Key operations: ReadyToRun(Thread *thread). Make thread ready to run and add to ready list. Thread *FindNextToRun() Run(Thread *nextThread) Nachos scheduler

28. 9/3/201528 Thread Switching Suspend current thread, save its state, and restore the state of new thread. Switch(oldThread, newThread): Save all registers in oldThread's TCB. to be used when the old thread is resumed. Load new values into the registers from TCB of the new thread.

29. 9/3/201529 Key operations of Nachos’ function SWITCH() SWITCH () in switch.s Thread->Fork(func(), arg) func(arg) Call ThreadRoot () in switch.s Save current thread context Load target thread context Call ThreadFinish() Call InterruptEnable() Call func(arg)

30. 9/3/201530 TCB of Nachos Threads Each thread has the following TCB (thread control block) from thread.h int *stackTop; // stack pointer int machineState[18]; // copy of registers int *stack // bottom of stack ThreadStatus status; //ready, running, or blocked char *name; Thread operations: Thread(char *debugName). Create a thread. Fork(VoidFunctionPtr func, int arg). Let a thread execute a function. Yield(). Suspend the calling thread and select a new one for execution. Sleep(). Suspend the current thread, change its state to BLOCKED, and remove it from the ready list Finish()

31. 9/3/201531 Thread Switching Switch(oldThread, newThread): Save all registers in oldThread's TCB. to be used when the old thread is resumed. Load new values into the registers from TCB of the new thread. int *stackTop; int machineState[18] int *stack ThreadStatus status; int *stackTop; int machineState[18] int *stack ThreadStatus status;

32. 9/3/201532 SWITCH(oldThread a0, nextThread a1) Save register values to current thread’s TCB # a0 -- pointer to old thread’s TCB sw sp, SP(a0) # save new stack pointer sw s0, S0(a0) sw s1, S1(a0) sw s2, S2(a0) sw s3, S3(a0) sw s4, S4(a0) sw s5, S5(a0) sw s6, S6(a0) sw s7, S7(a0) sw fp, FP(a0) sw ra, PC(a0) # save return address sp s0 s1 s2 … stackTop machineState[0] machineState[1] machineState[2] … TCB save MIPS Registers

33. 9/3/201533 SWITCH(oldThread a0, nextThread a1) sw sp, SP(a0) # save new stack pointer sw s0, S0(a0) sw s1, S1(a0) sw s2, S2(a0) sw s3, S3(a0) sw s4, S4(a0) sw s5, S5(a0) sw s6, S6(a0) sw s7, S7(a0) sw fp, FP(a0) sw ra, PC(a0) # save return address sp s0 s1 s2 … stackTop machineState[0] machineState[1] machineState[2] … TCB save MIPS Registers switch.h #define SP 0 #define S0 4 #define S1 8 #define S2 12 #define S3 16 #define S4 20 #define S5 24 #define S6 28 #define S7 32 #define FP 36 #define PC 40 What is value of SP and S0?

34. 9/3/201534 Load register values from new thread’s TCB a1 -- pointer to new thread’sTCB lw sp, SP(a1) # load the new stack pointer lw s0, S0(a1) lw s1, S1(a1) lw s2, S2(a1) … lw s7, S7(a1) lw fp, FP(a1) lw ra, PC(a1) # load the return address j ra #Call ra which is ThreadRoot(); sp s0 s1 s2 s3 stackTop machineState[0] machineState[1] machineState[2] machineState[3] … machineState[9] ra

35. 9/3/201535 Key operations of Nachos’ function SWITCH() SWITCH () in switch.s Thread->Fork(func(), arg) func(arg) Call ThreadRoot () in switch.s Save current thread context Load target thread context Call ThreadFinish() Call InterruptEnable() Call func(arg) ThreadRoot

36. 9/3/2015 36 How TCB is initialized? # a0 -- pointer to old thread’s TCB a1 -- pointer to new thread’sTCB lw sp, SP(a1) # load the new stack pointer lw s0, S0(a1) lw s1, S1(a1) lw s2, S2(a1) … lw s7, S7(a1) lw fp, FP(a1) lw ra, PC(a1) # load the return address j ra #Call ra which is ThreadRoot(); sp s0 s1 s2 s3 stackTop func() arg ThreadFinish() InterruptEnable() … ThreadRoot() addr ra a1

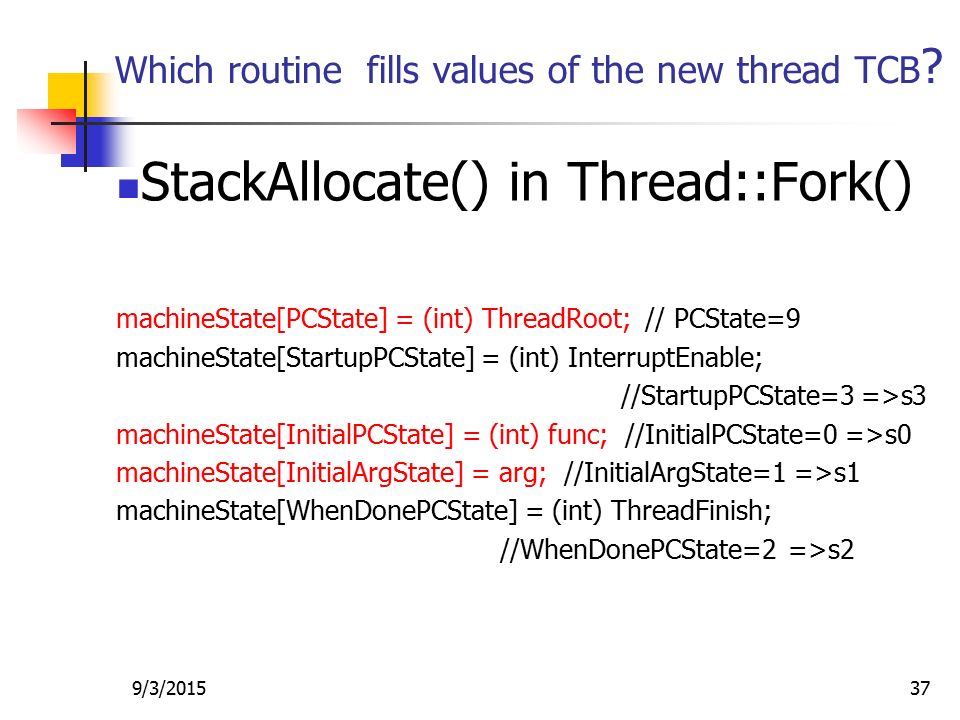

37. 9/3/201537 Which routine fills values of the new thread TCB ? StackAllocate() in Thread::Fork() machineState[PCState] = (int) ThreadRoot; // PCState=9 machineState[StartupPCState] = (int) InterruptEnable; //StartupPCState=3 =>s3 machineState[InitialPCState] = (int) func; //InitialPCState=0 =>s0 machineState[InitialArgState] = arg; //InitialArgState=1 =>s1 machineState[WhenDonePCState] = (int) ThreadFinish; //WhenDonePCState=2=>s2

38. 9/3/201538 ThreadRoot() uses registers s0, s1,s2,s3 to execute targeted func() jalStartupPC# call InterruptEnable() stored in register s3 movea0, InitialArg#move argument in s1 to a0 jalInitialPC# call main thread procedure func() stored in s0 jal WhenDonePC# when done, call ThreadFinish() in s2
