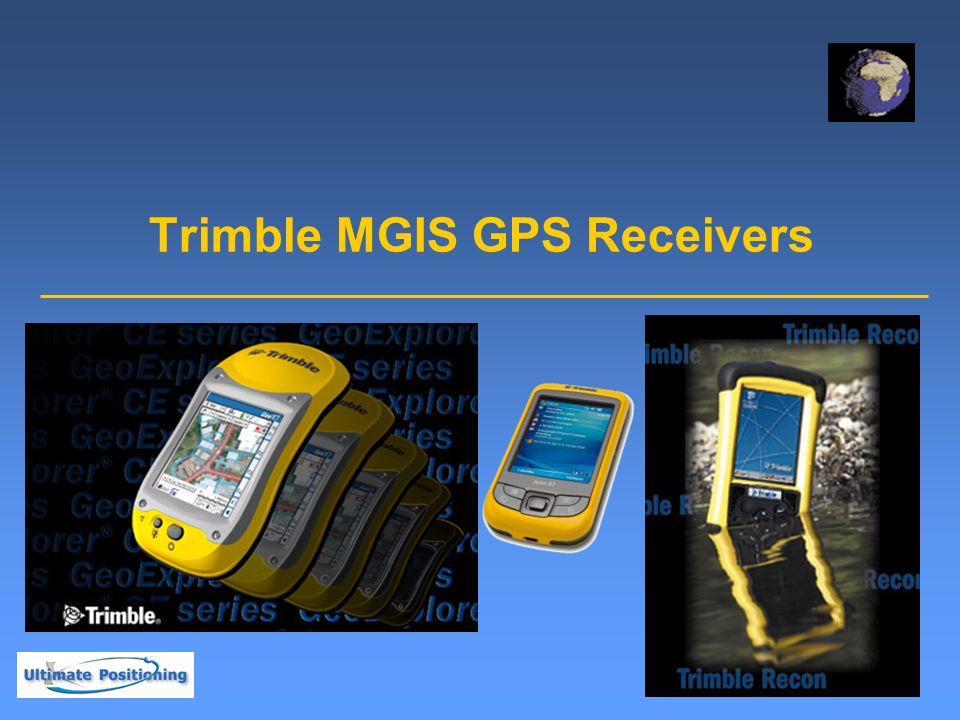

1. Trimble MGIS GPS Receivers

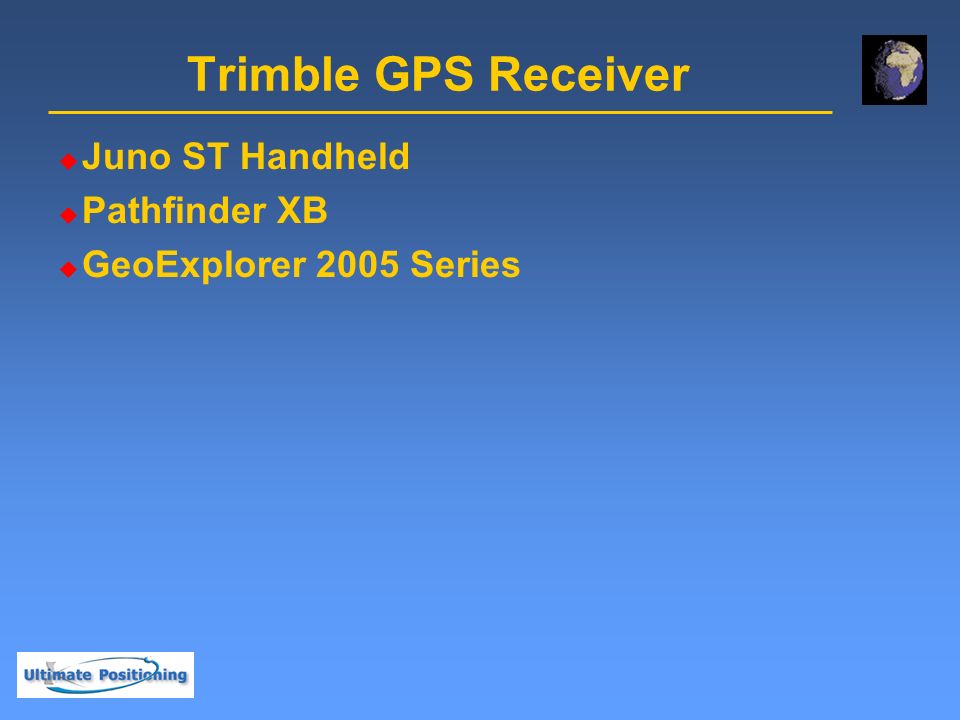

2. Trimble GPS Receiver  Juno ST Handheld  Pathfinder XB  GeoExplorer 2005 Series

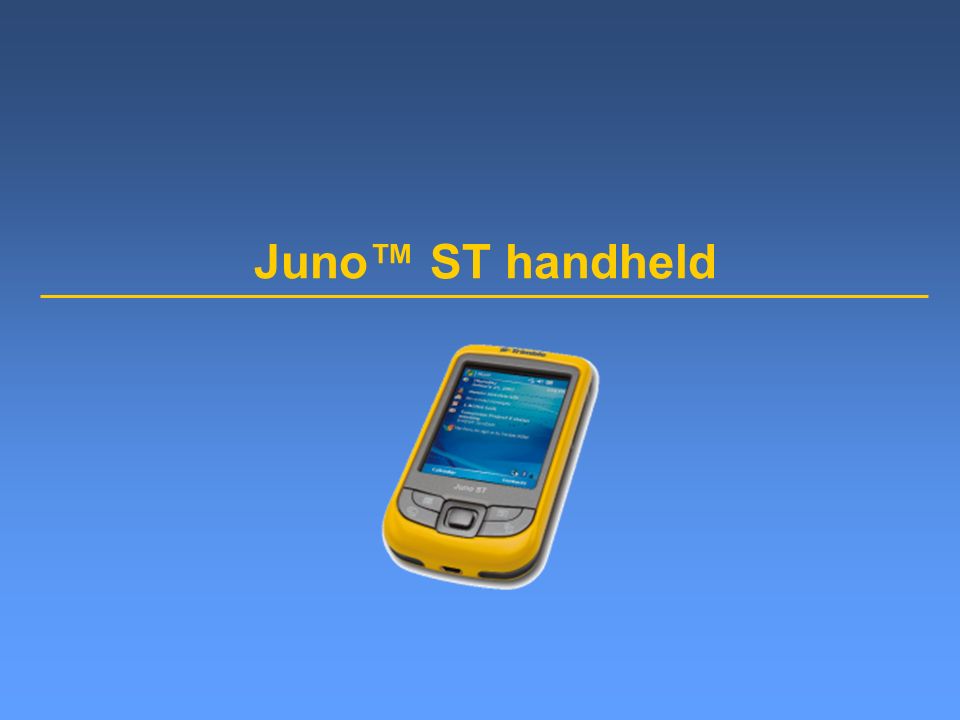

3. Juno™ ST handheld

4. Juno ST Overview  A small, lightweight field computer with integrated GPS  Sold together with field data collection software  Full Windows Mobile 5.0 functionality  Standard wireless communications  WLAN  Bluetooth  DGPS accuracy of 2-5m  Real-time WAAS or Postprocessed

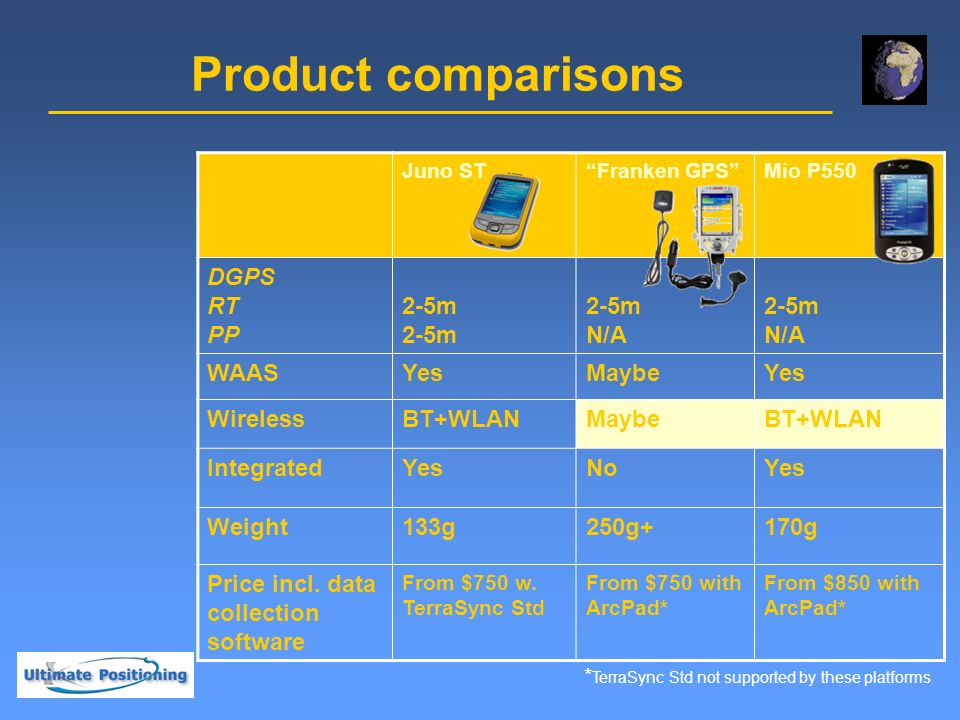

5. Product comparisons Juno ST“Franken GPS”Mio P550 DGPS RT PP2-5m 2-5m N/A WAASYesMaybeYes WirelessBT+WLANMaybeBT+WLAN IntegratedYesNoYes Weight133g250g+170g Price incl. data collection software From $750 w. TerraSync Std From $750 with ArcPad* From $850 with ArcPad* * TerraSync Std not supported by these platforms

6. An in-depth look Stylus holder Headset connector Reset button GPS antenna connector Power button Lock switch Power/USB socket SD card slot Directional button Contacts Messaging Today screen Calendar

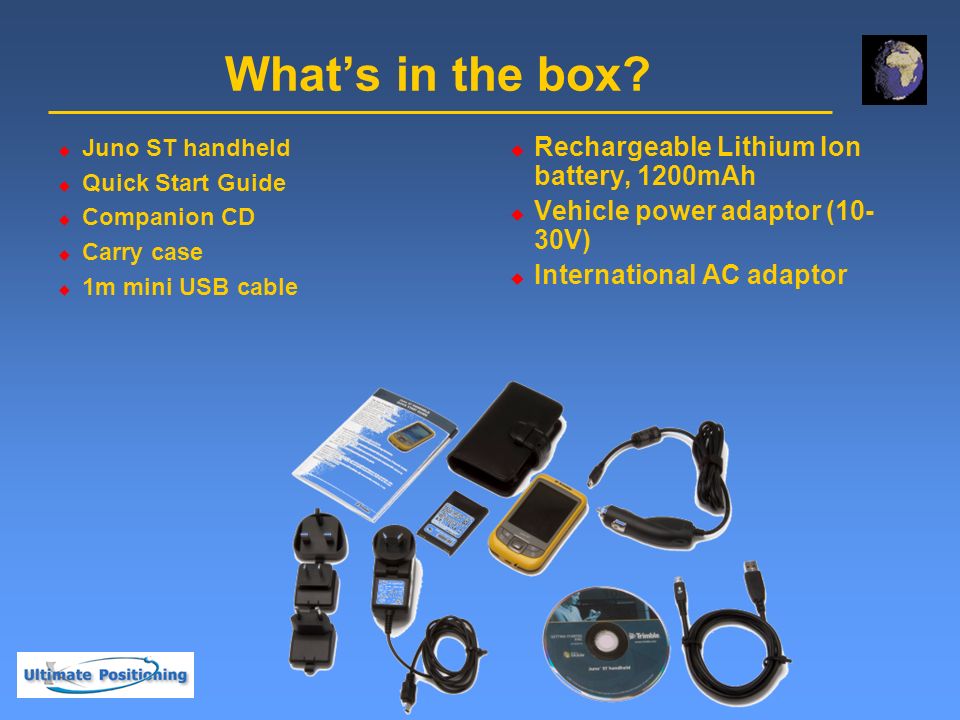

7. What’s in the box?  Juno ST handheld  Quick Start Guide  Companion CD  Carry case  1m mini USB cable  Rechargeable Lithium Ion battery, 1200mAh  Vehicle power adaptor (10- 30V)  International AC adaptor

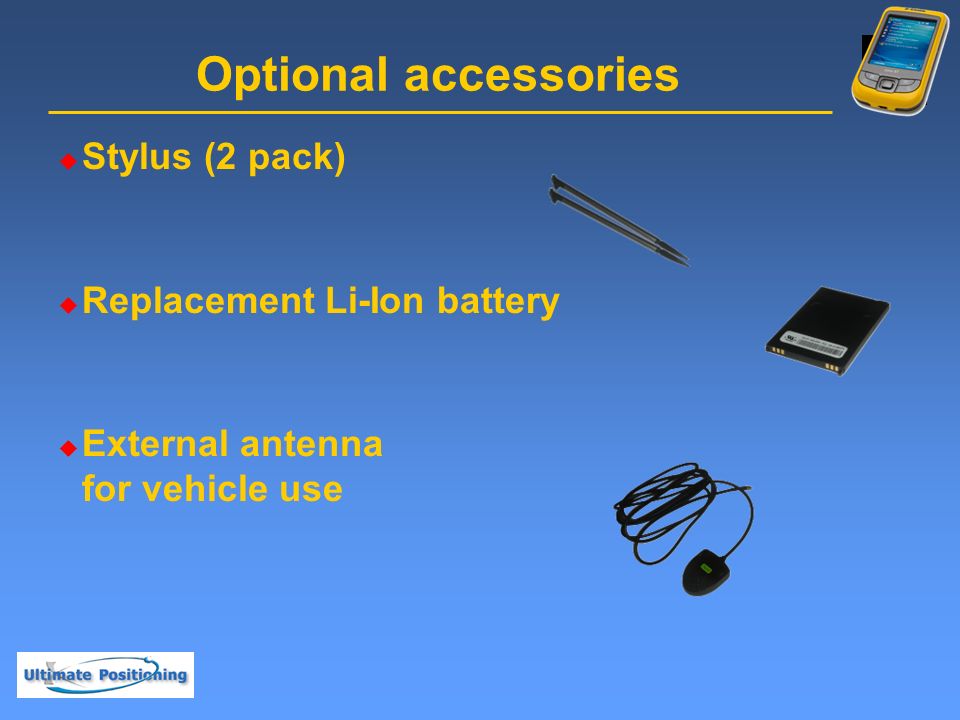

8. Optional accessories  Stylus (2 pack)  Replacement Li-Ion battery  External antenna for vehicle use

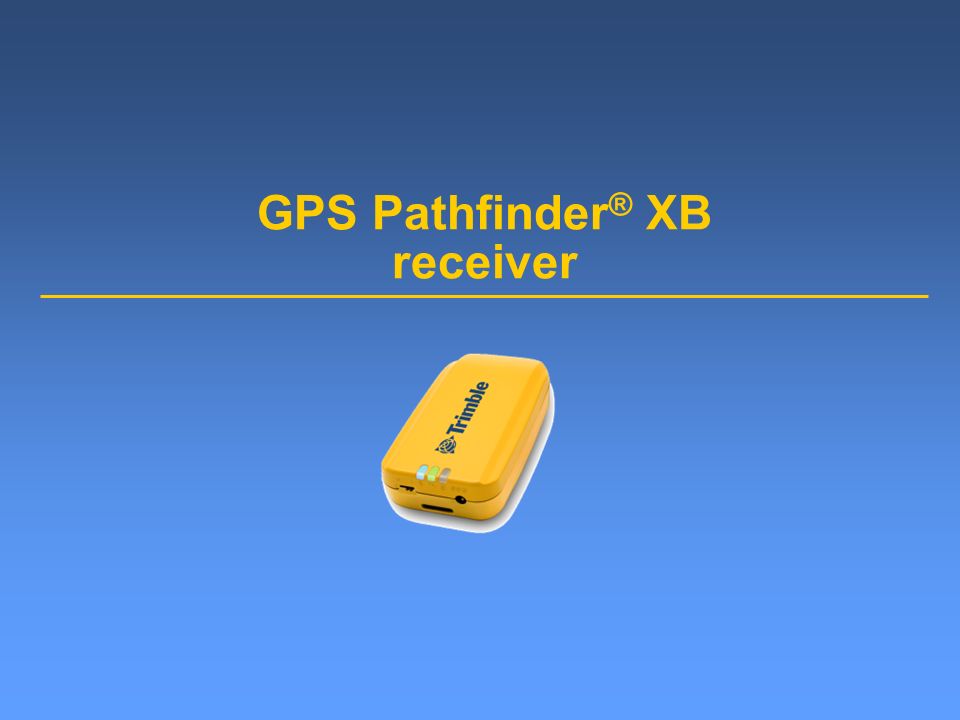

9. GPS Pathfinder ® XB receiver

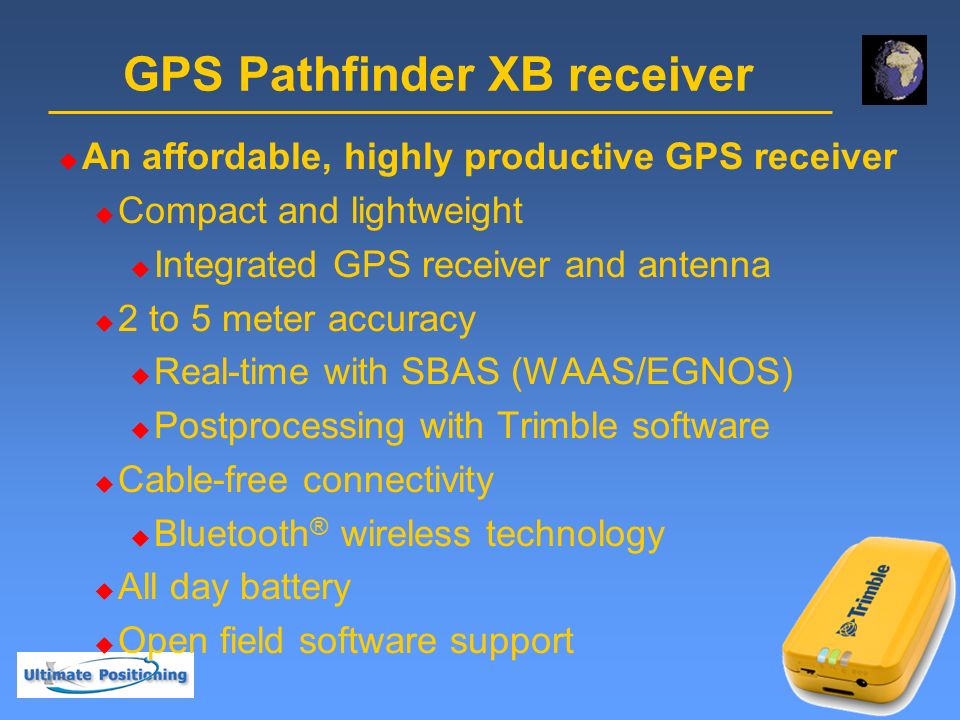

10. GPS Pathfinder XB receiver  An affordable, highly productive GPS receiver  Compact and lightweight  Integrated GPS receiver and antenna  2 to 5 meter accuracy  Real-time with SBAS (WAAS/EGNOS)  Postprocessing with Trimble software  Cable-free connectivity  Bluetooth ® wireless technology  All day battery  Open field software support

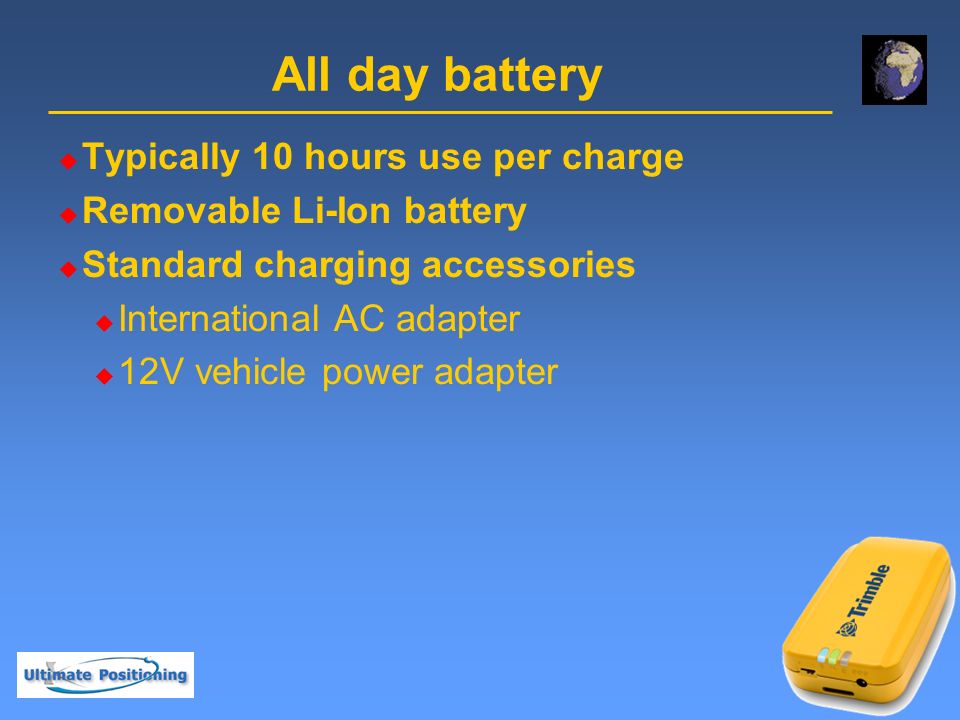

11. All day battery  Typically 10 hours use per charge  Removable Li-Ion battery  Standard charging accessories  International AC adapter  12V vehicle power adapter

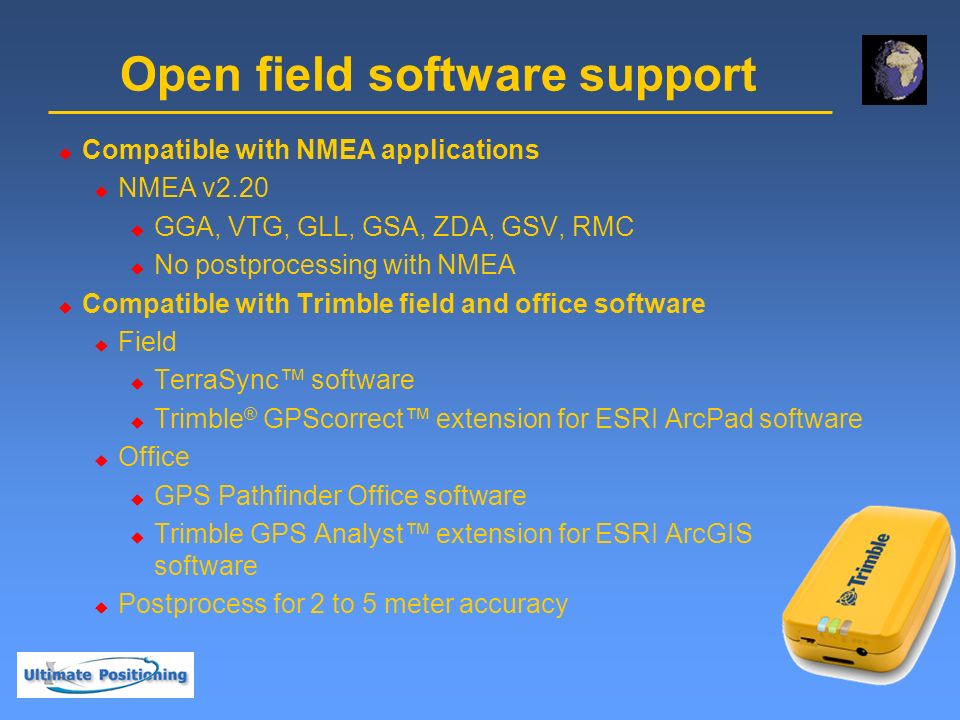

12. Open field software support  Compatible with NMEA applications  NMEA v2.20  GGA, VTG, GLL, GSA, ZDA, GSV, RMC  No postprocessing with NMEA  Compatible with Trimble field and office software  Field  TerraSync™ software  Trimble ® GPScorrect™ extension for ESRI ArcPad software  Office  GPS Pathfinder Office software  Trimble GPS Analyst™ extension for ESRI ArcGIS software  Postprocess for 2 to 5 meter accuracy

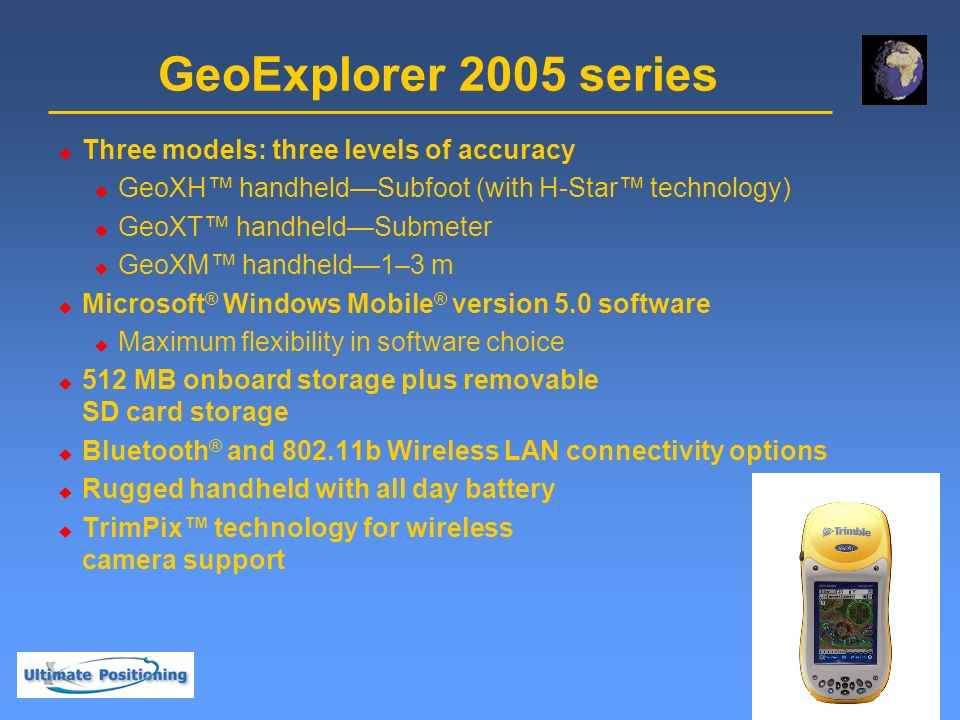

13. GeoExplorer 2005 series  Three models: three levels of accuracy  GeoXH™ handheld—Subfoot (with H-Star™ technology)  GeoXT™ handheld—Submeter  GeoXM™ handheld—1–3 m  Microsoft ® Windows Mobile ® version 5.0 software  Maximum flexibility in software choice  512 MB onboard storage plus removable SD card storage  Bluetooth ® and 802.11b Wireless LAN connectivity options  Rugged handheld with all day battery  TrimPix™ technology for wireless camera support

14. Data storage  512 MB onboard storage  SD memory slot for removable storage  Fully sealed and rugged  New stylus for access  Not MMC, SDIO, or SDHC compatible

15. Thank You.
