Force Chapter 6
Force Any push or pull exerted on an object

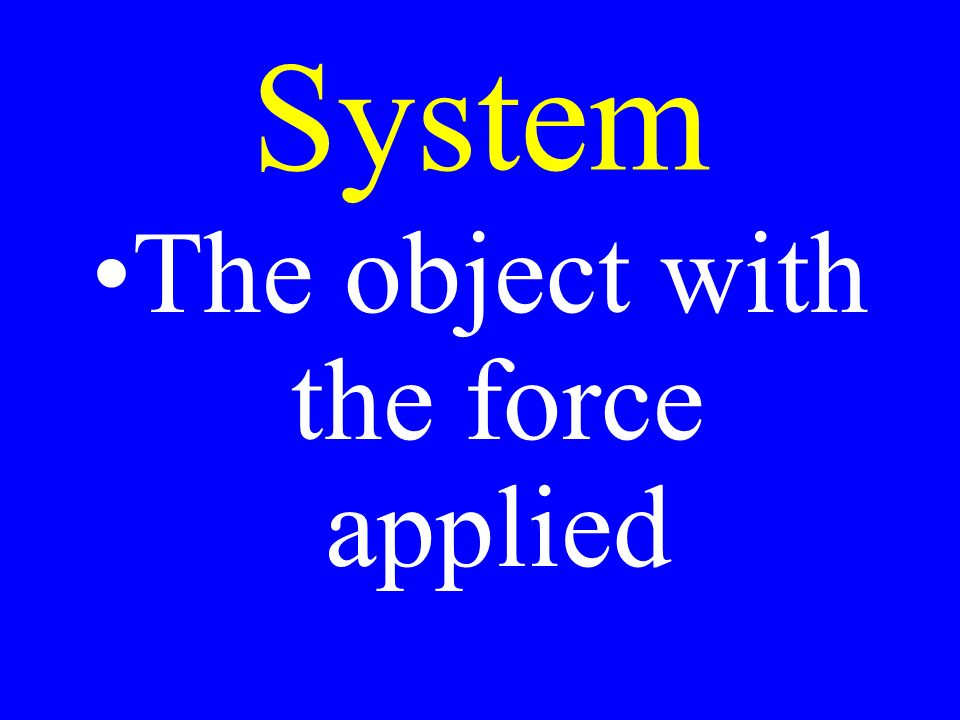

System The object with the force applied

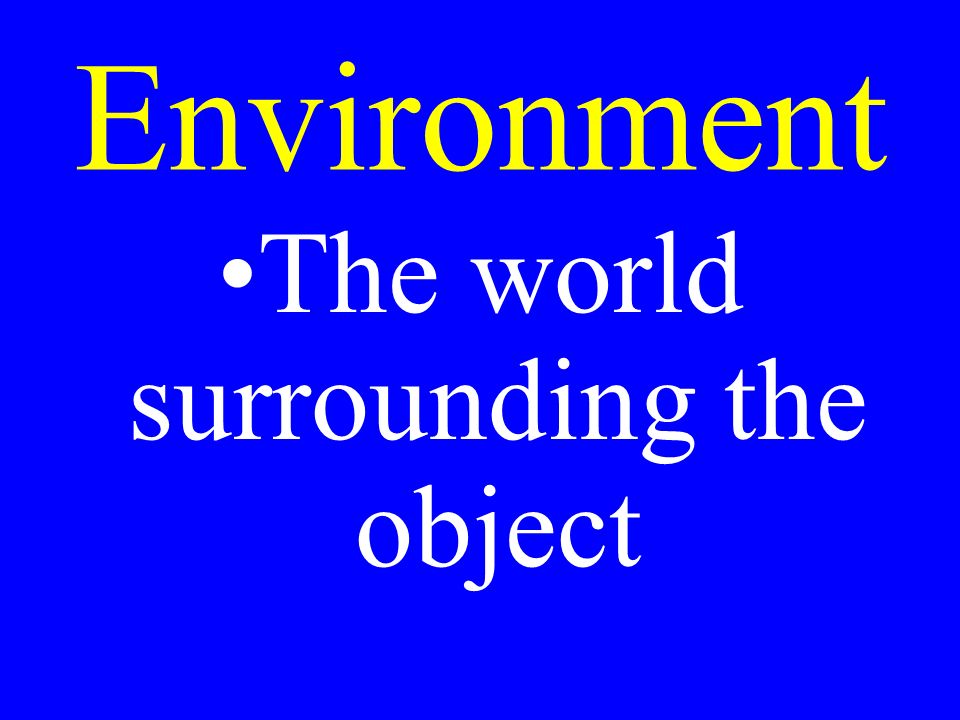

Environment The world surrounding the object
Contact Force A force that acts on an object by touching it
Contact Force A baseball bat striking a ball
Long-range Force A force that acts on an object w/o touching it
Long-range Force The force of gravity

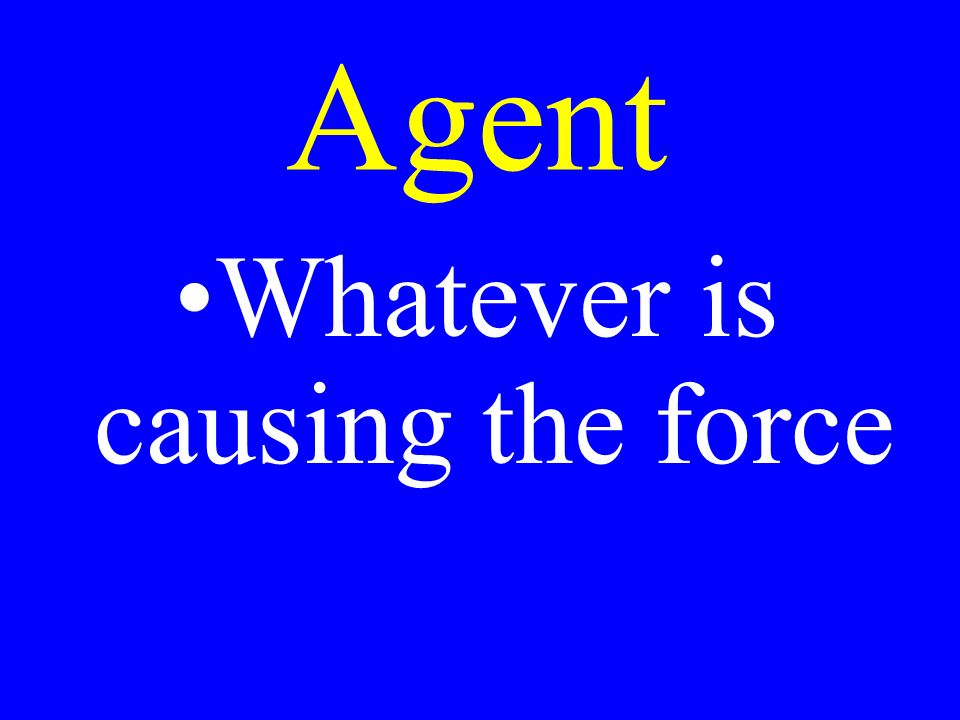

Agent Whatever is causing the force
Inertia The resistance to change (in motion)
Equilibrium When the net forces acting on an object = zero
Force Vector Diagram A Diagram showing the vectors of all forces acting on an object.
Force Vector Diagram Weight on table Force of table on the ball
Draw Force Vector Diagrams of: 1)A book on a desk 2)A book being pushed across the desk 3)A book falling
Newton’s Laws of Motion

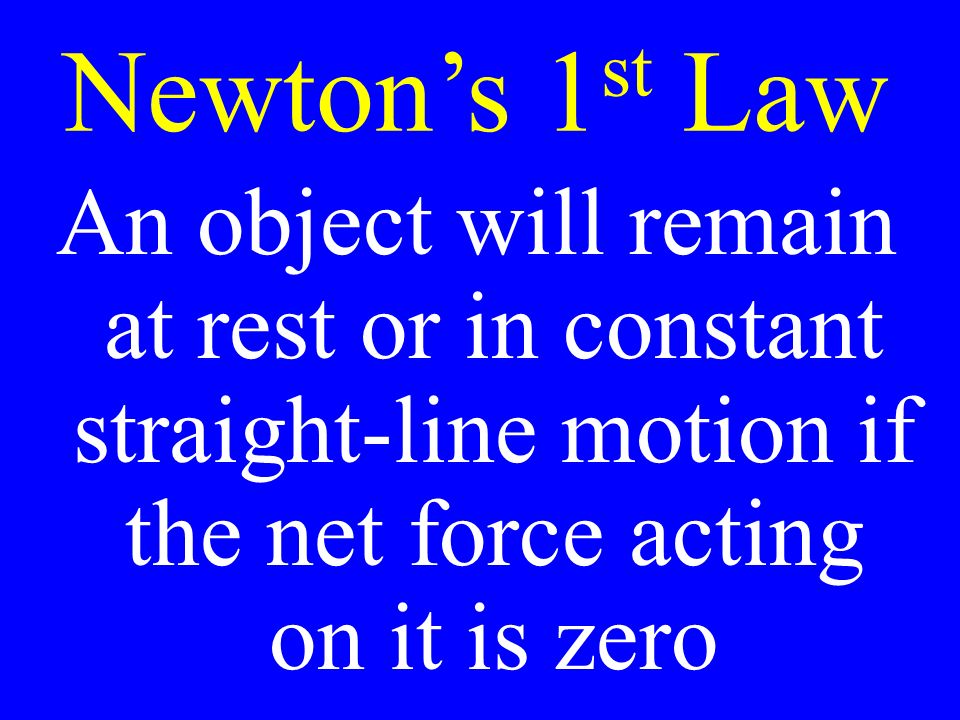

Newton’s 1 st Law An object will remain at rest or in constant straight-line motion if the net force acting on it is zero
Newton’s 1 st Law The velocity is constant and acceleration is zero when the net force on an object is zero
Newton’s 2 nd Law The acceleration of an object is directly proportioned to the net force applied to it
Newton’s 2 nd Law F net m a =a =a =a =

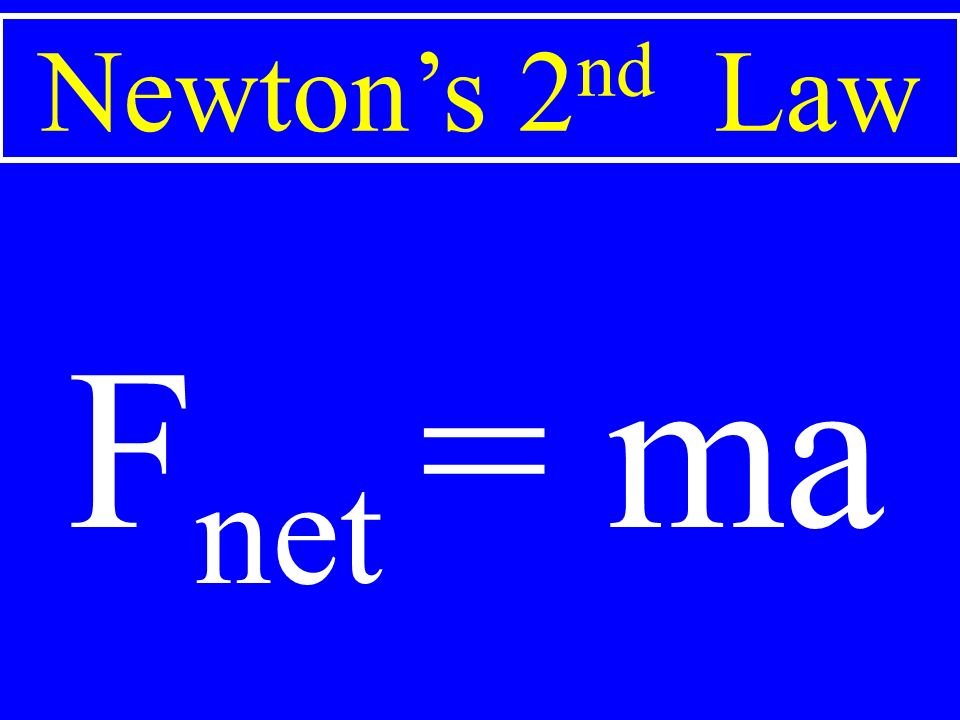

Newton’s 2 nd Law F net = ma
Newton’s 3 rd Law For every action, there is an equal & opposite reaction
Newton’s 3 rd Law F A on B = -F B on A

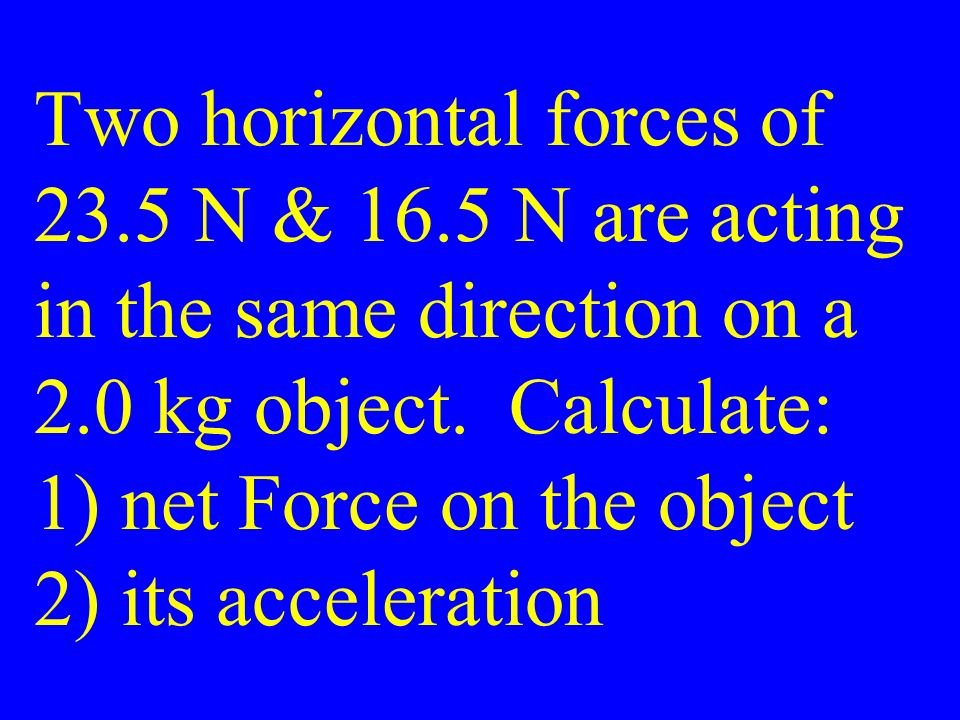

Two horizontal forces of 23.5 N & 16.5 N are acting in the same direction on a 2.0 kg object. Calculate: 1) net Force on the object 2) its acceleration
Two horizontal forces of 23.5 N & 16.5 N are acting in opposite directions on a 2.0 kg object. Calculate: 1) 1) net force on the object 2) its acceleration
Forces of 4.0 N west & 3.0 N north are acting on a 2.0 kg object. Calculate: 1) net Force on the object 2) its acceleration
Calculate the acceleration of a 1500 g object falling towards Earth when the F air friction is 11.7 N.

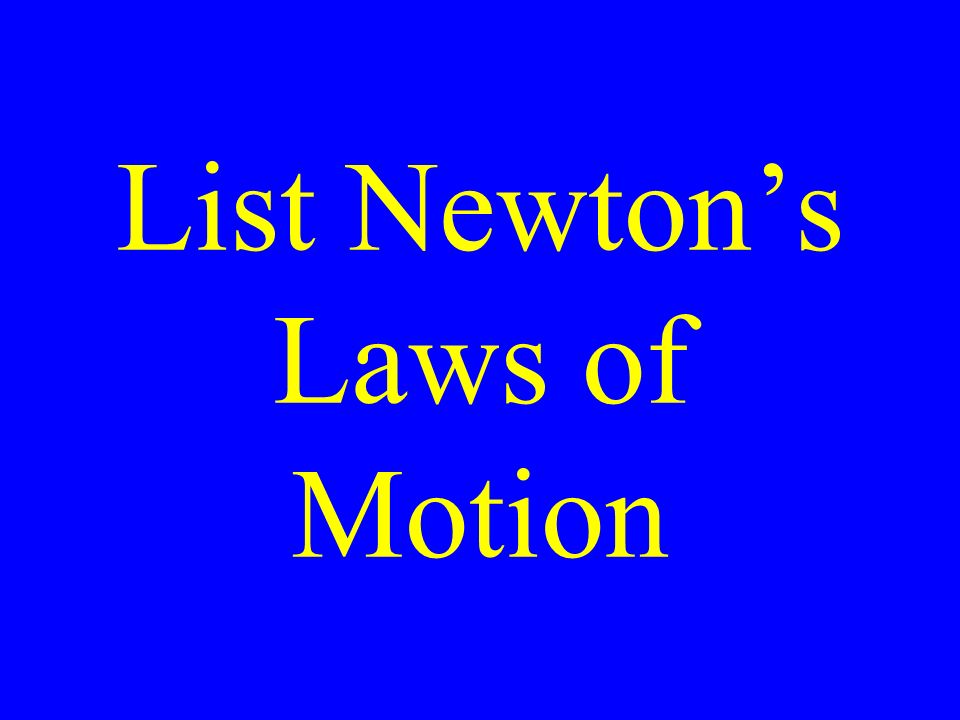

List Newton’s Laws of Motion
Types of Forces Friction Tension Normal Thrust SpringWeight
Friction (F f ) The contact force that acts to oppose sliding motion between surfaces Its direction is parallel & opposite the direction of sliding
Normal (F N ) The contact force exerted by a surface on an object Its direction is perpendicular & away from the surface
Spring (F sp ) A restoring force, or the push or pull a spring exerts on an object Its direction is opposite the displacement of an object at the end of a spring

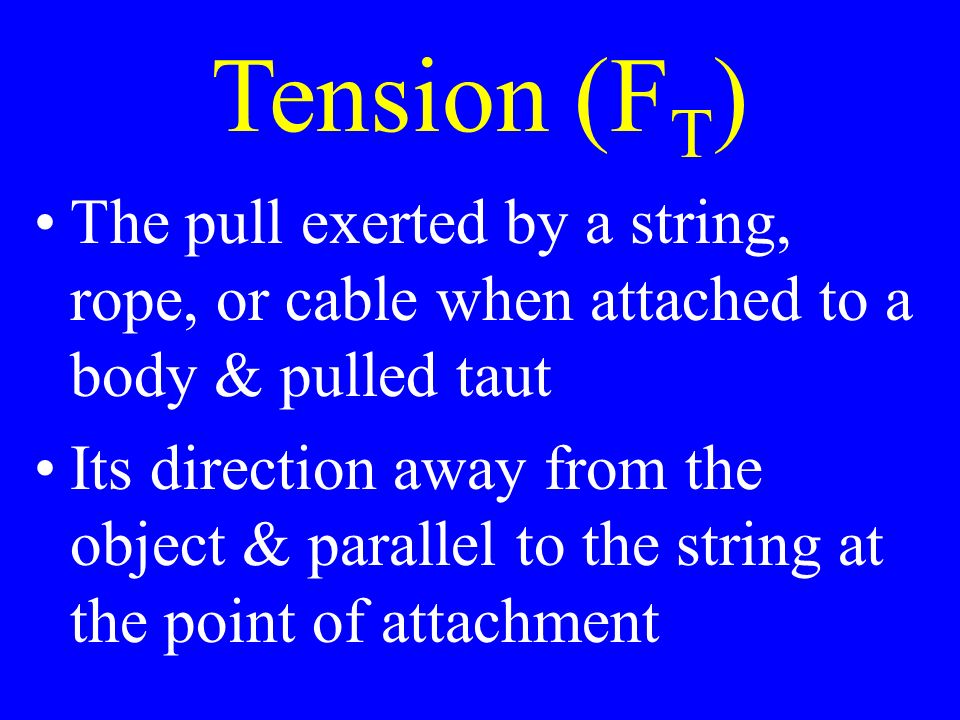

Tension (F T ) The pull exerted by a string, rope, or cable when attached to a body & pulled taut Its direction away from the object & parallel to the string at the point of attachment
Thrust (F thrust ) A general term for the force that moves rockets, planes, etc Its direction is the same direction as the acceleration of the object barring any resistive forces
Weight (F g ) Force due the gravitational attraction between two objects like an object & the Earth Its direction is straight down towards the center of the Earth
Name & describe the 6 types of forces
Weight (F g ) Weight = F g = ma g = mg F g = W = mg
When an object is launched, the only forces action upon it are the forces gravity & air friction.
No net force is required to keep an object in motion. Frictional forces oppose motion.
Inertia is not a force, but the resistance to the change in motion or momentum.

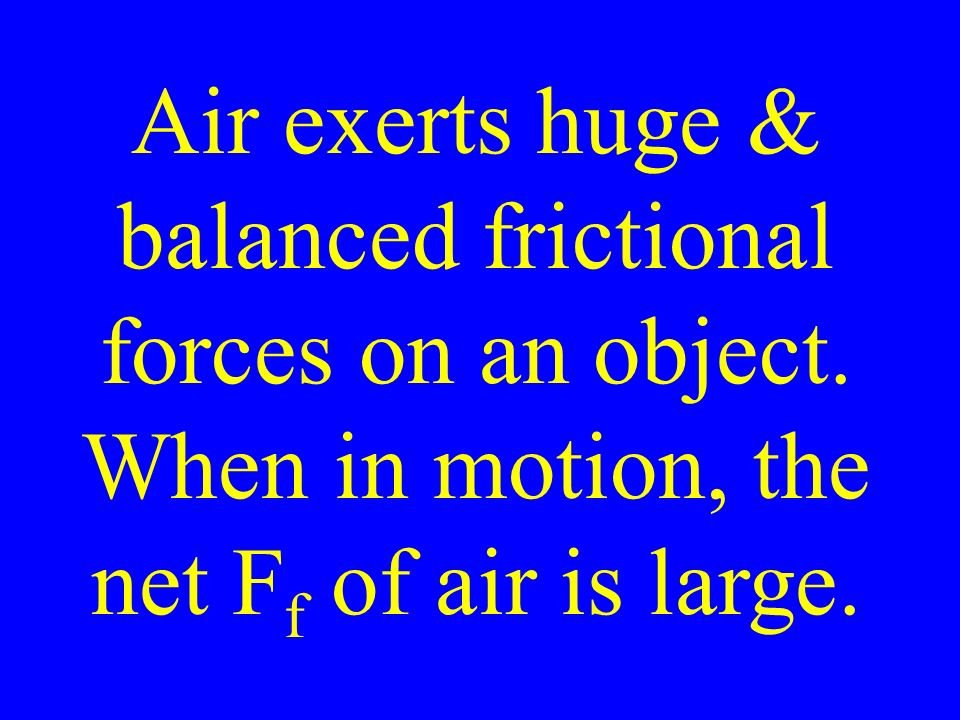

Air exerts huge & balanced frictional forces on an object. When in motion, the net F f of air is large.
Terminal Velocity The constant velocity that is reached when the force of air friction of a falling object equals its weight
Friction (F f ) Kinetic frictional force F f, kinetic Static frictional force F f, static

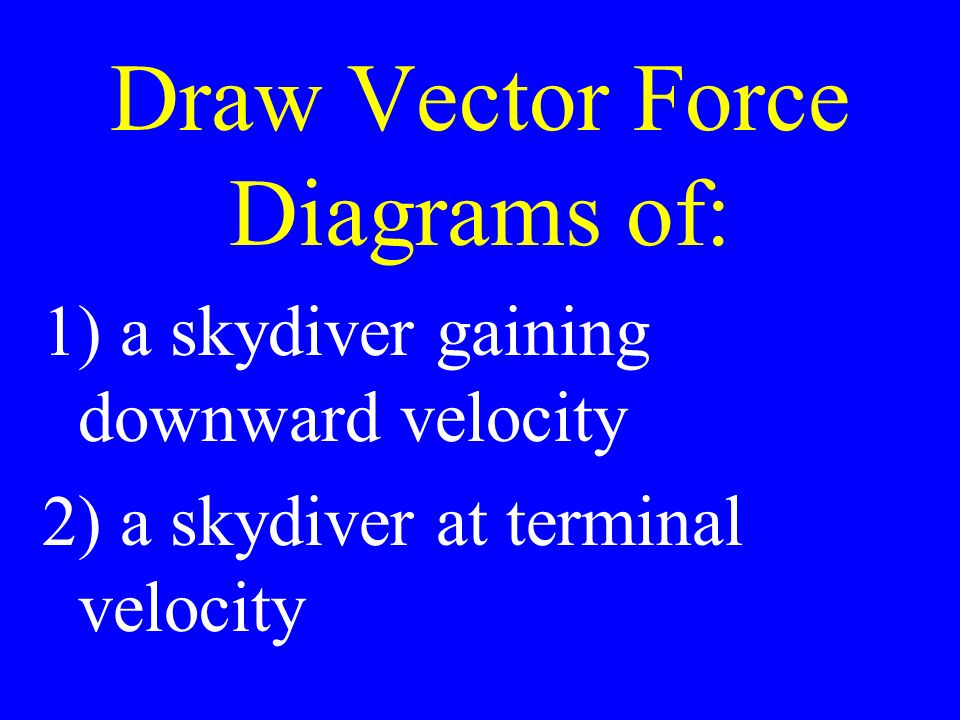

Draw Vector Force Diagrams of: 1) a skydiver gaining downward velocity 2) a skydiver at terminal velocity
Draw Vector Force Diagrams of: 3) a rope pulling a ball up at constant velocity 4) a rope acceleration a ball upwards
An object’s weight on Earth is 490 N. Calculate: 1) its mass 2) its weight in the moon where g moon = 1.60 m/s 2
An 500.0 g object on an unknown planet has a weight of 250 N. Calculate the acceleration caused by the planet’s gravity.

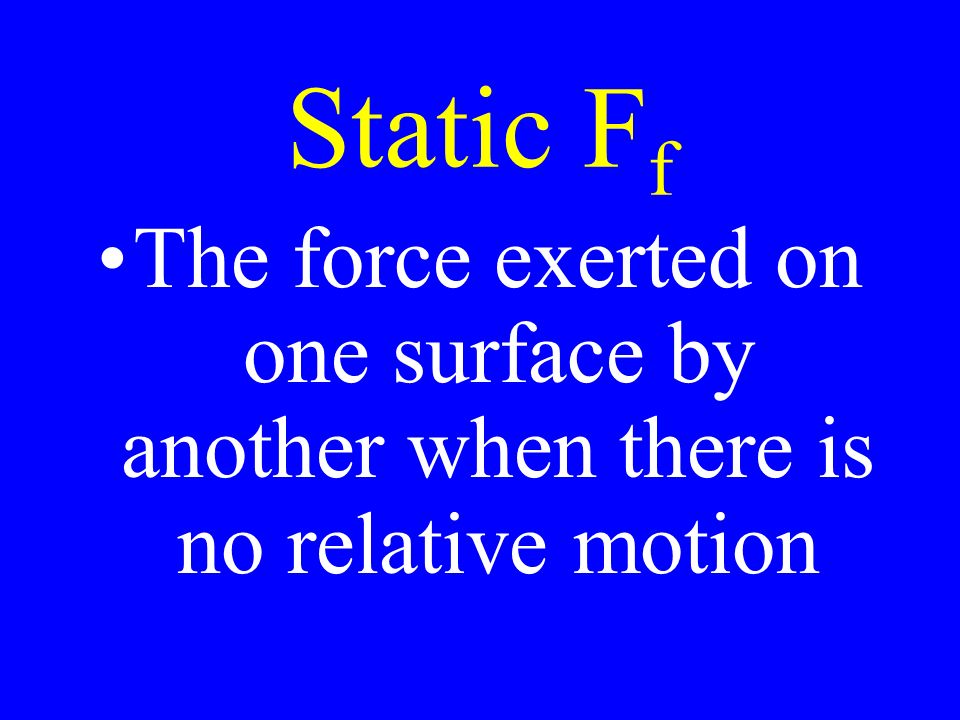

Static F f The force exerted on one surface by another when there is no relative motion
Kinetic F f The force exerted on one surface by another when in relative motion
Forces acting on an object: F N = -W F A > F f F applied F g or Weight FfFfFfFf FNFNFNFN

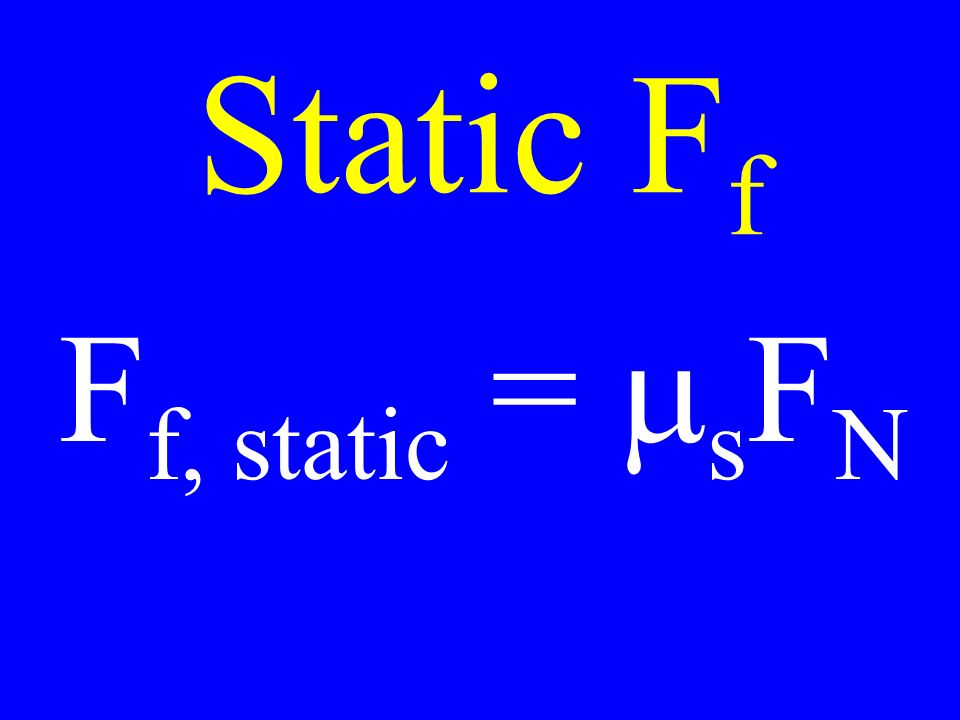

Static F f F f, static = s F N
s is proportionality constant called the frictional coefficient
Kinetic F f F f, kinetic = k F N
A 25 N force is required to pull a 50.0 N sled down the road at a constant speed. Calculate the sliding frictional coefficient between the sled & the road.
A person & a sled have a total weight of 490 N. The sliding frictional coefficient between the sled & the snow is 0.10. Calculate the force required to pull the sled at constant speed.

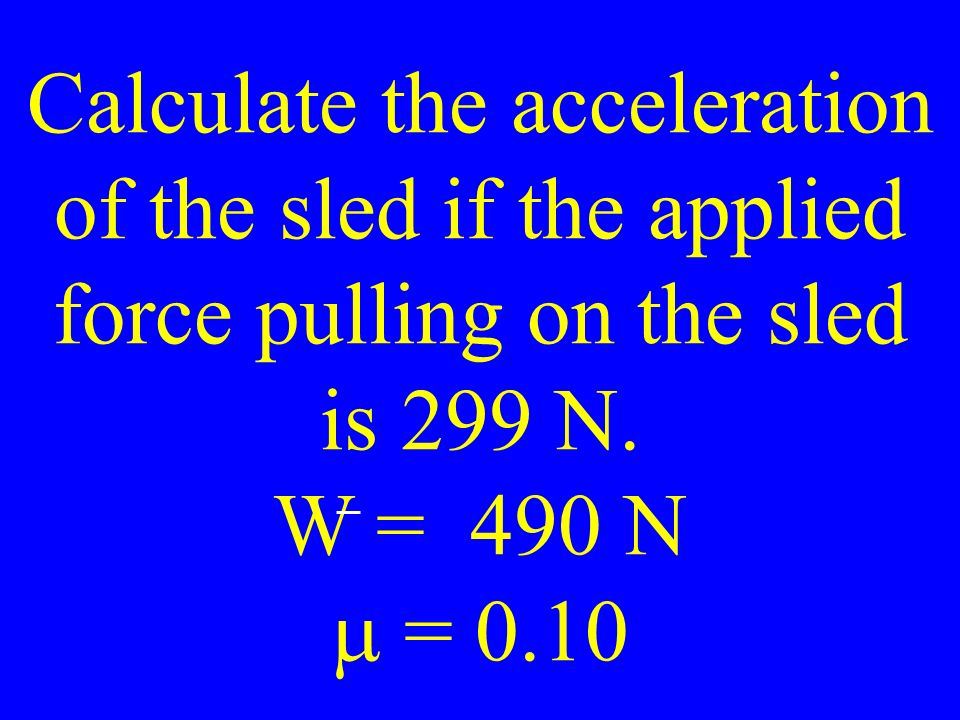

Calculate the acceleration of the sled if the applied force pulling on the sled is 299 N. W = 490 N = 0.10

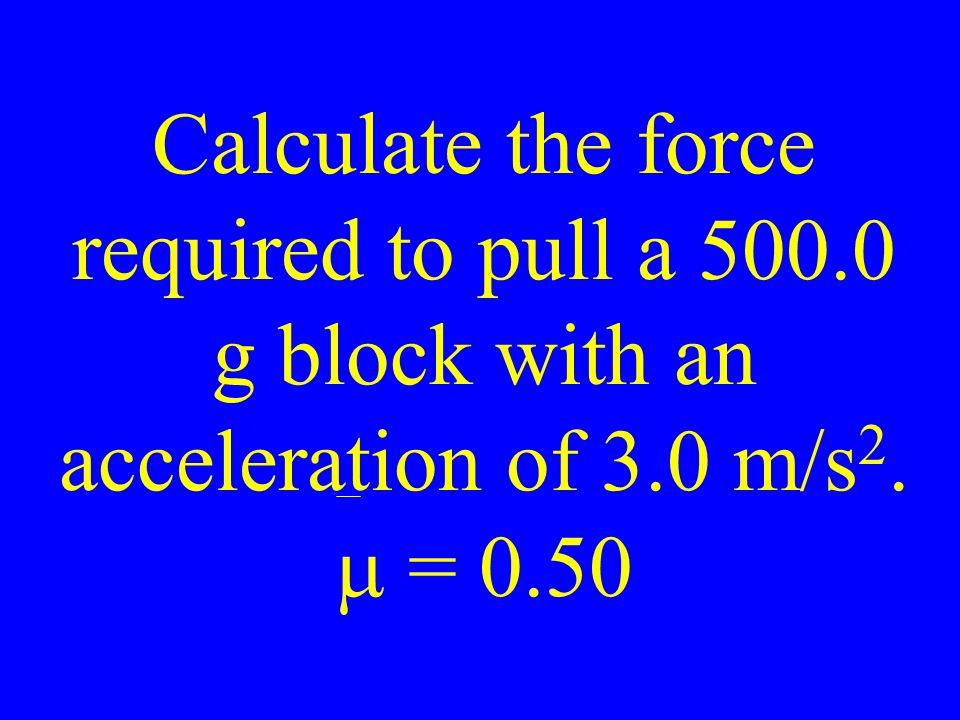

Calculate the force required to pull a 500.0 g block with an acceleration of 3.0 m/s 2. = 0.50
Periodic Motion Repetitive or vibrational motion like that of a spring, swing or pendulum
Simple Harmonic Motion Periodic motion in which the restoring force is directly proportional to the displacement
Period (T) The time required to complete one full cycle of motion
Amplitude Maximum displacement from the zero point or equilibrium
Pendulum Motion Formula T = 2 ---- l agagagag
Calculate the period of a pendulum with a length of 49 cm:
Calculate the length of the pendulum of a grandfather clock whose period is equal 1.0 second:
Fundamental Forces Gravitational Electromagnetic Strong Nuclear Weak Nuclear
Calculate the force required to pull a 150 g block at a constant velocity of 180 km/hr. = 0.20
A 9.8 kN car went from 0 to 25 m/s in 5.0 s. between car & road = 0.20. Calculate the force applied by the engine of the car.
Calculate the force required to start a 2.0 kg block & its acceleration when moving. s = 0.20, k = 0.10
Calculate the force required to start a 2.0 kg block & calculate its acceleration when moving. s = 0.20, k = 0.10
A 6.0 kg ball is attached by a rope over a pulley to a 4.0 kg ball. 1) 1) Draw the problem. 2) 2) Calculate each ball’s acceleration

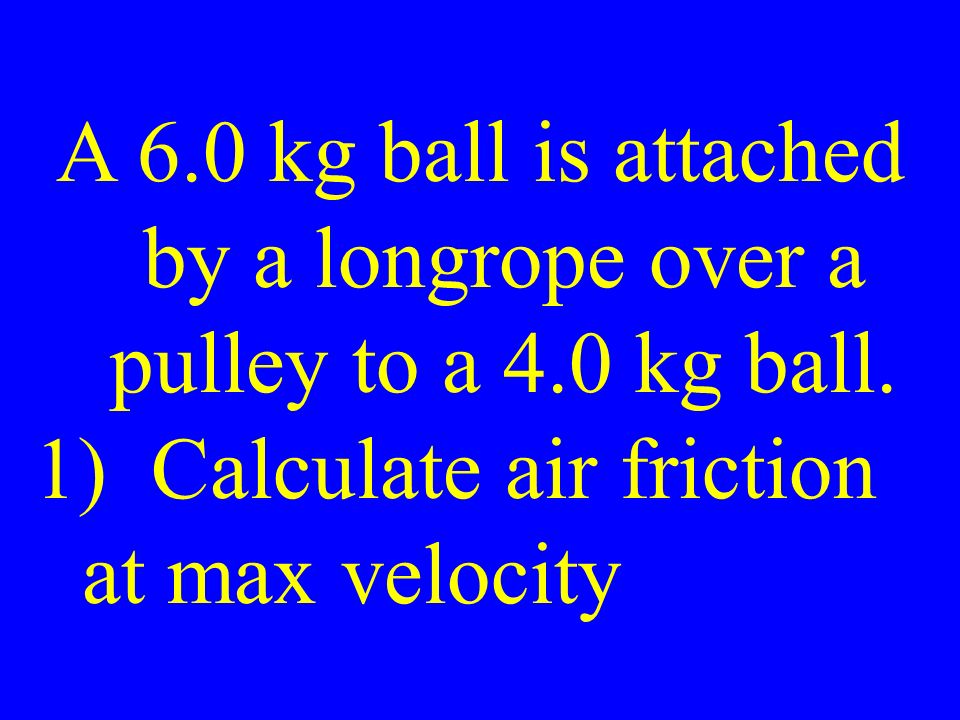

A 6.0 kg ball is attached by a longrope over a pulley to a 4.0 kg ball. 1) 1) Calculate air friction at max velocity
A 65 kg boy & a 35 kg girl are in a tug-of-war. The girl’s acceleration is 13 cm/s 2. Calculate the boy’s acceleration.
A 150 g baseball, was hit & came to rest in 4.0 s after going 100.0 m. Calculate: v i, a, & F f on the ball.
A 50.0 kg box falls off a 0.49 km cliff. 1) 1) Calculate v i, v f, a, & t. 2) 2) Calculate F f if air friction is included
A 10.0 kg box falls off a 0.49 km cliff & hits the ground in 20.0 s. 1) 1) Calculate v f & a. 2) 2) Calculate F f if air friction is included
Calculate the force required to pull a 250 g block at a constant velocity of 360 km/hr. = 0.30

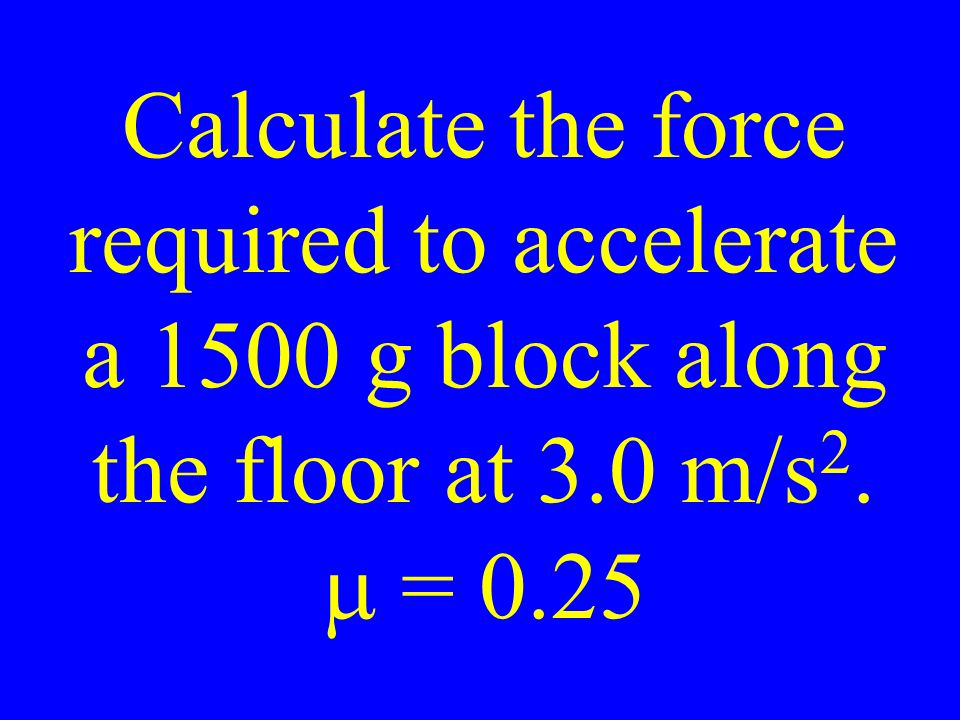

Calculate the force required to accelerate a 1500 g block along the floor at 3.0 m/s 2. = 0.25
Calculate the apparent weight of a 50.0 kg person on a scale on an elevator descending at 2.0 m/s 2.
Calculate the apparent weight of a 50.0 kg person on a scale on an elevator ascending at 2.0 m/s 2.
Calculate the period of the pendulum on Big Ben which is 4.9 m long.
Calculate the force required to accelerate a 10.0 kg block straight up at 25 cm/s 2.

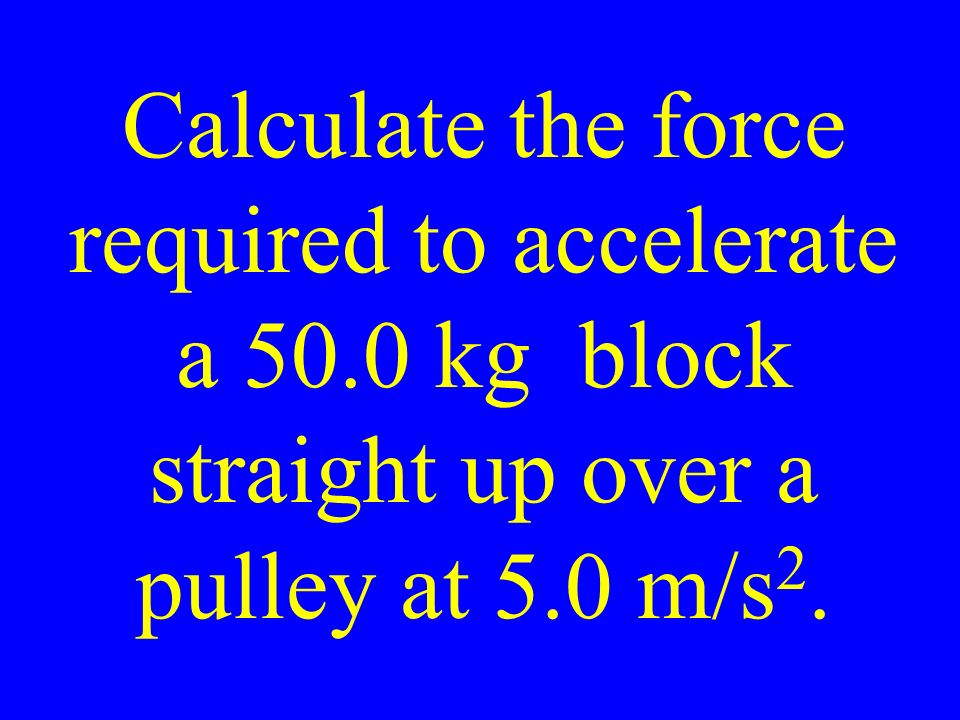

Calculate the force required to accelerate a 50.0 kg block straight up over a pulley at 5.0 m/s 2.
Calculate the acceleration of a system of a 55.0 kg block tied to a 45.0 kg block hanging over a pulley.
Calculate the frictional coefficient of a 100.0 kg block if a 150 N force causes it to accelerate at 50.0 cm/s 2.
Calculate the frictional coefficient of a 10.0 kg block if a 98 N force causes it to slide at 30.0 cm/s.

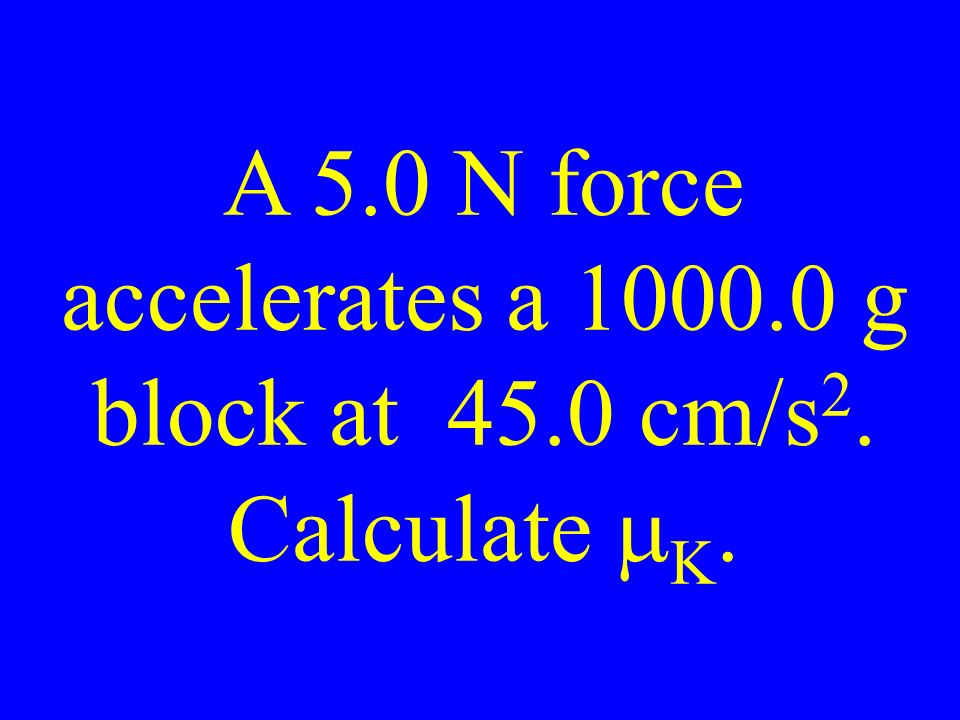

A 5.0 N force accelerates a 1000.0 g block at 45.0 cm/s 2. Calculate K.

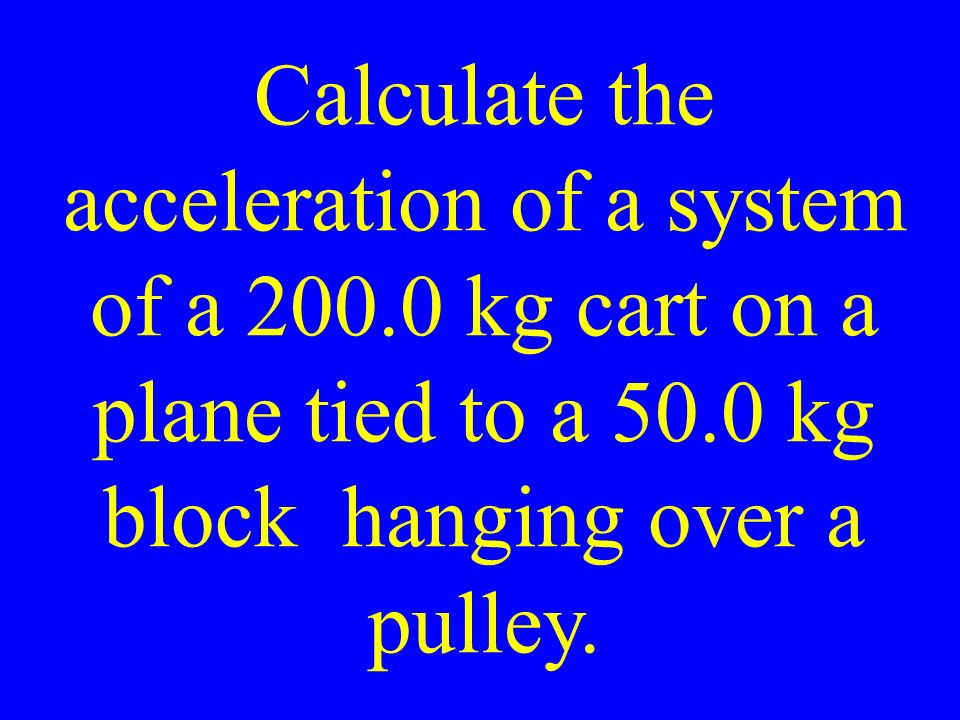

Calculate the acceleration of a system of a 200.0 kg cart on a plane tied to a 50.0 kg block hanging over a pulley.
