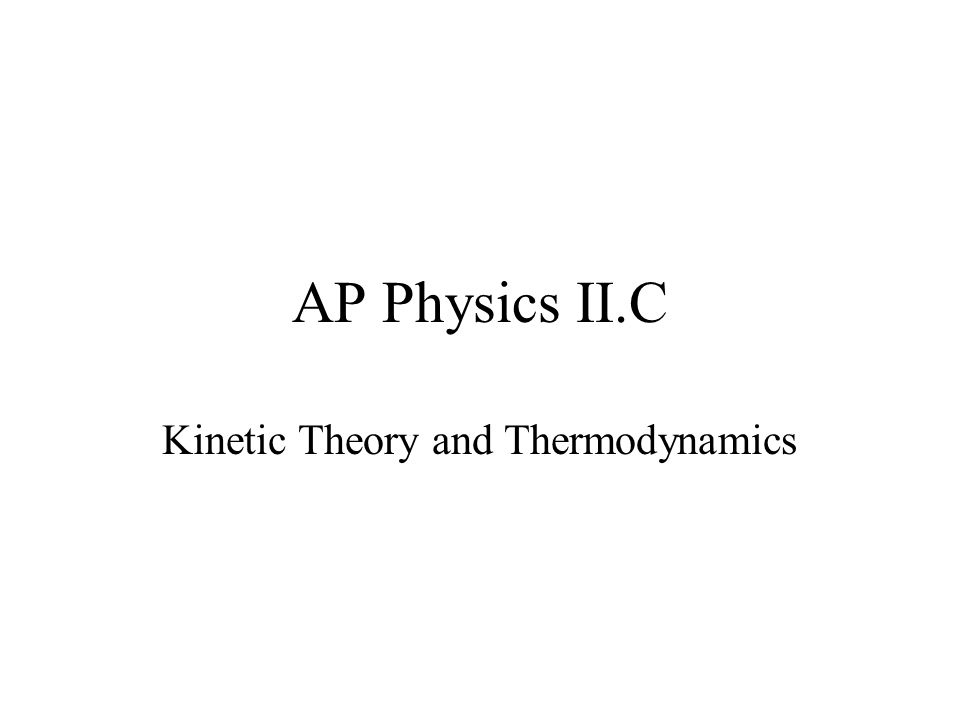

1. AP Physics II.C Kinetic Theory and Thermodynamics

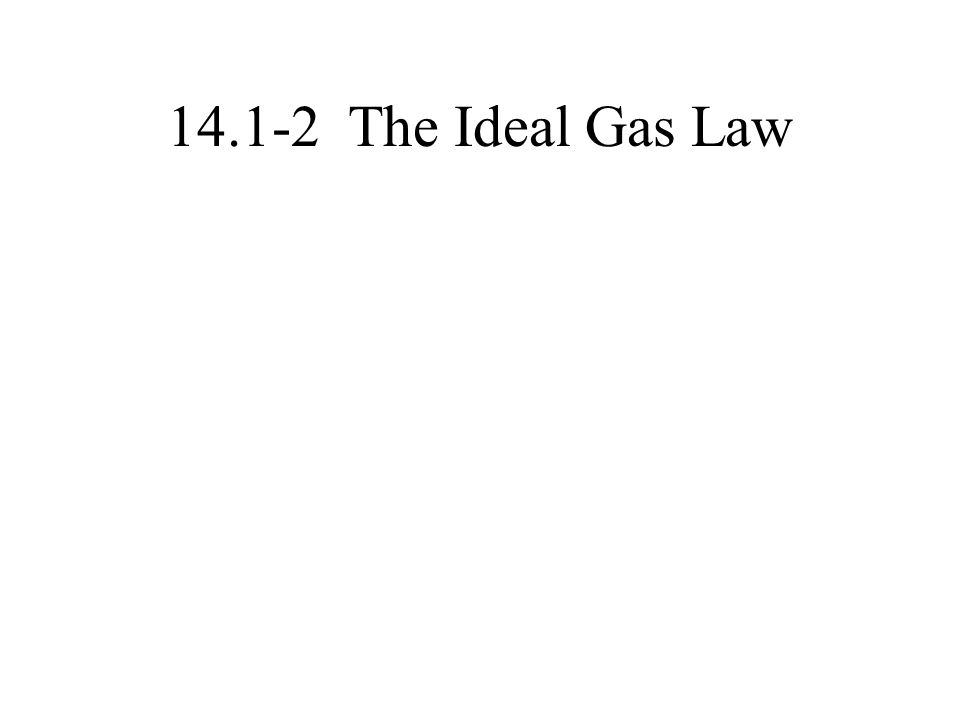

2. 14.1-2 The Ideal Gas Law

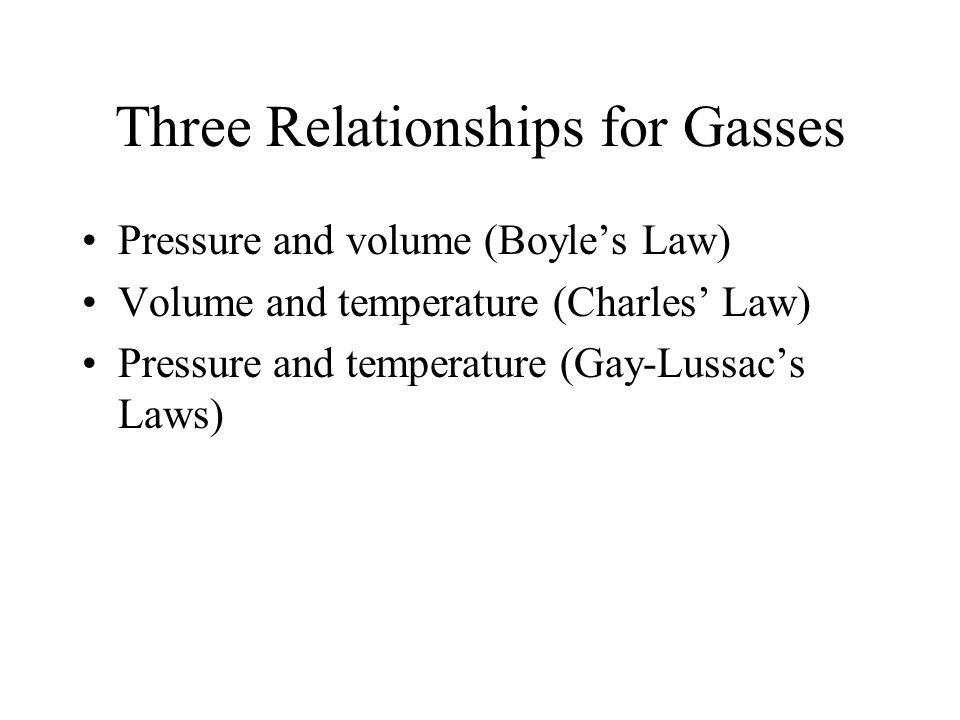

3. Three Relationships for Gasses Pressure and volume (Boyle’s Law) Volume and temperature (Charles’ Law) Pressure and temperature (Gay-Lussac’s Laws)

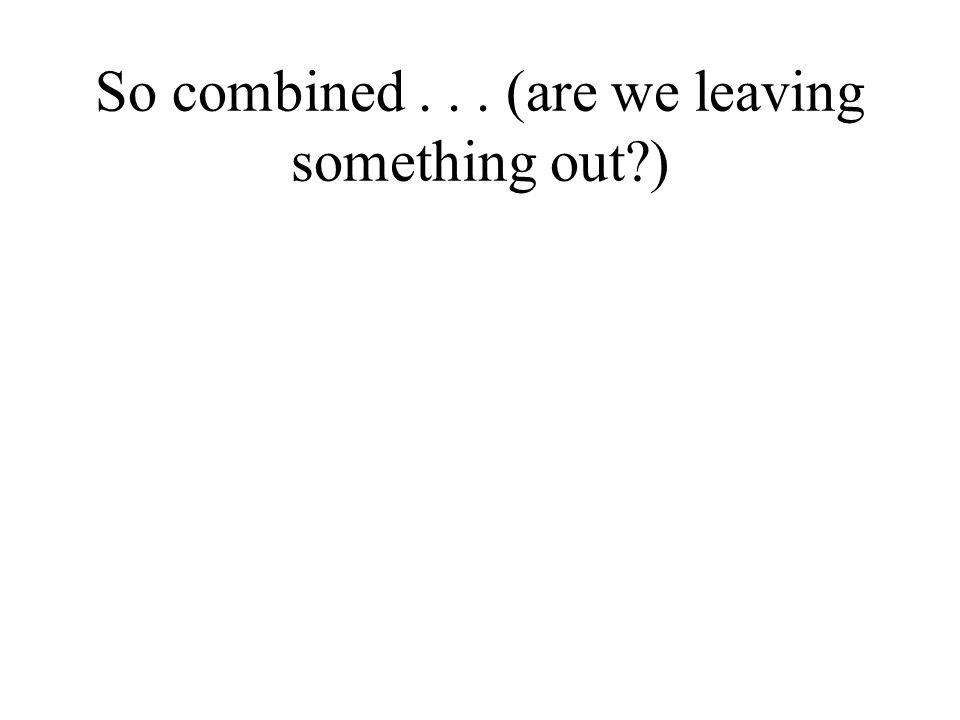

4. So combined... (are we leaving something out?)

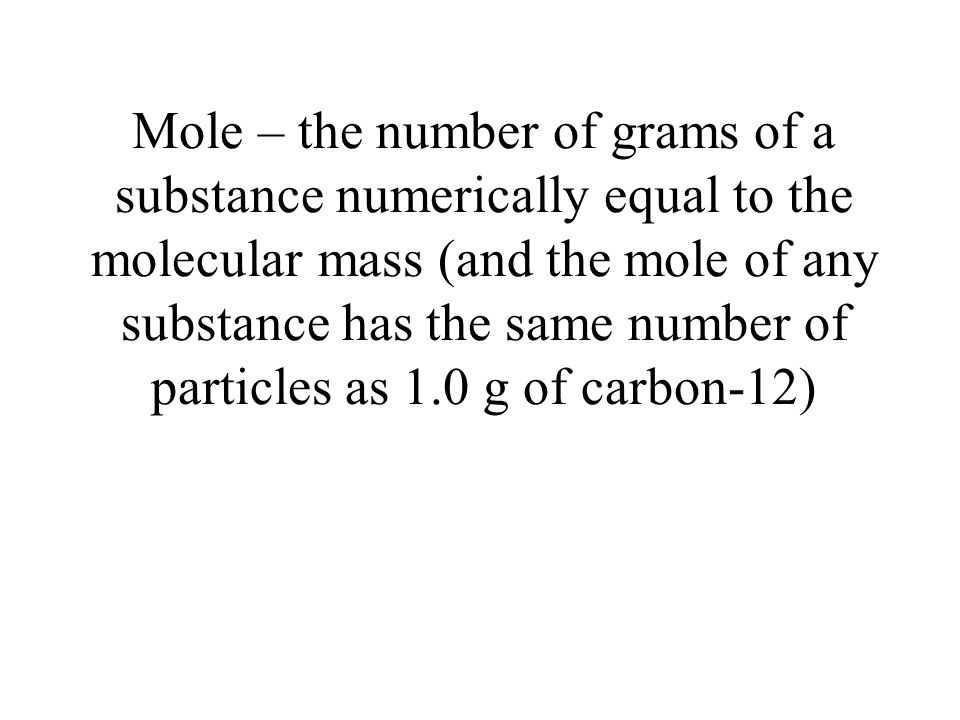

5. Mole – the number of grams of a substance numerically equal to the molecular mass (and the mole of any substance has the same number of particles as 1.0 g of carbon-12)

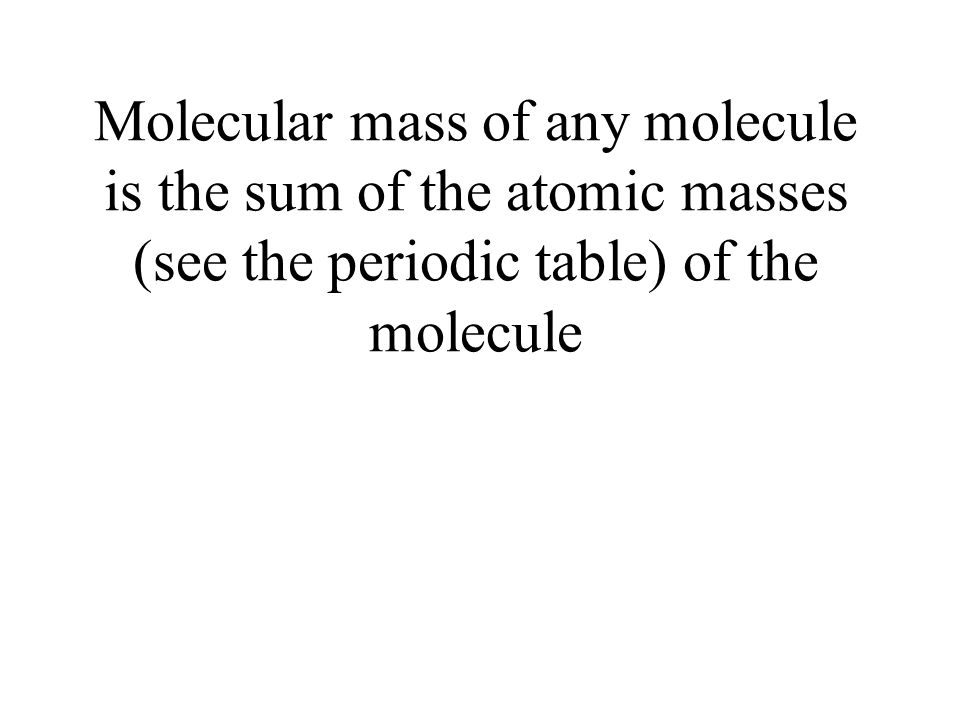

6. Molecular mass of any molecule is the sum of the atomic masses (see the periodic table) of the molecule

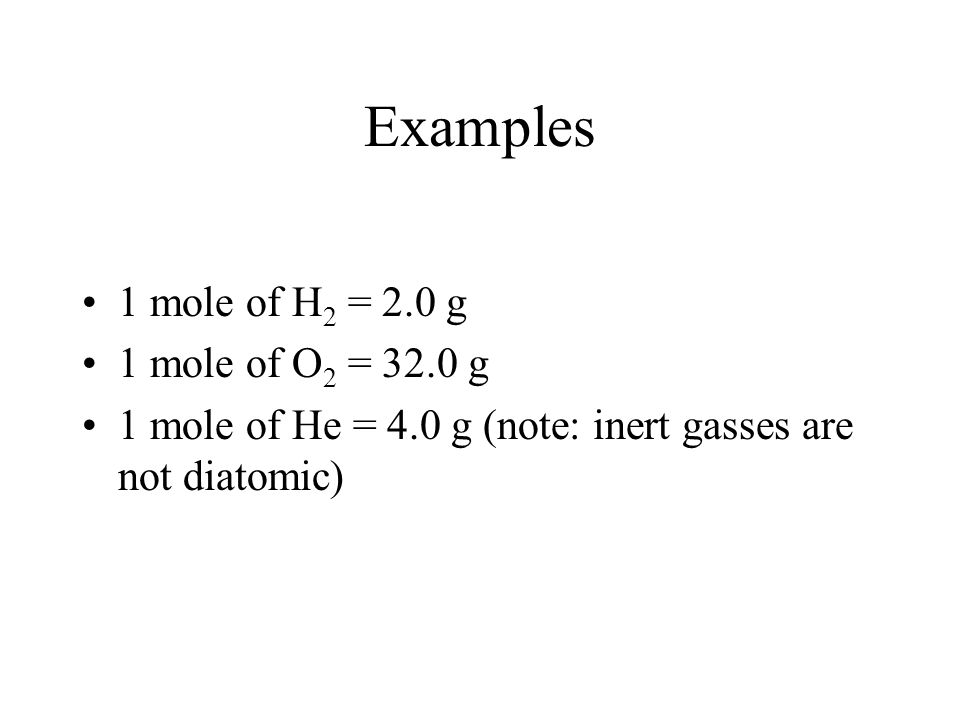

7. Examples 1 mole of H 2 = 2.0 g 1 mole of O 2 = 32.0 g 1 mole of He = 4.0 g (note: inert gasses are not diatomic)

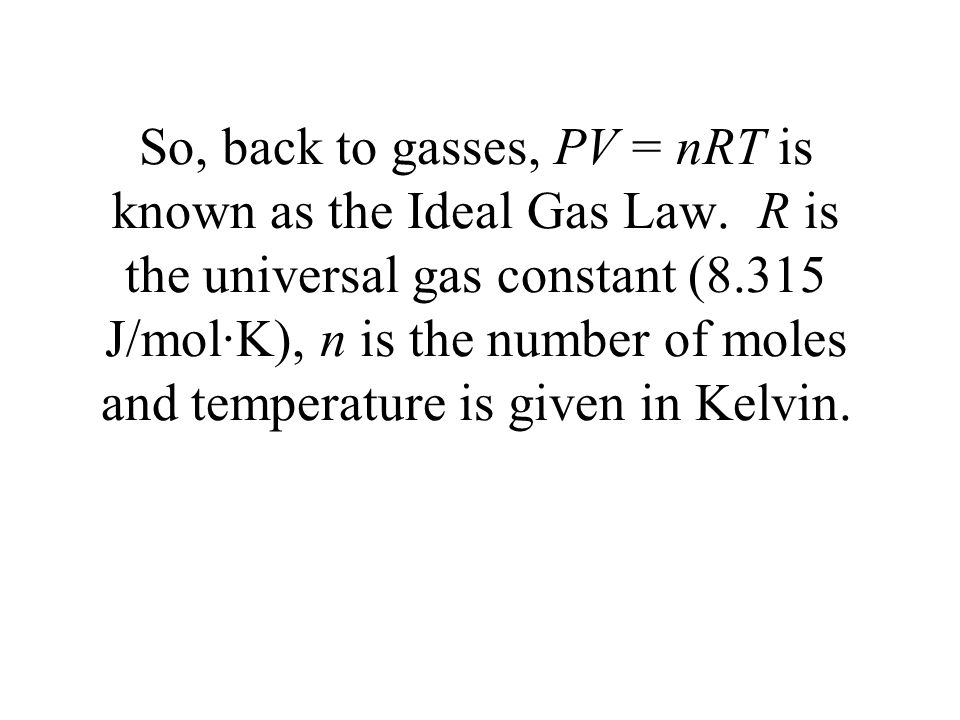

8. So, back to gasses, PV = nRT is known as the Ideal Gas Law. R is the universal gas constant (8.315 J/mol·K), n is the number of moles and temperature is given in Kelvin.

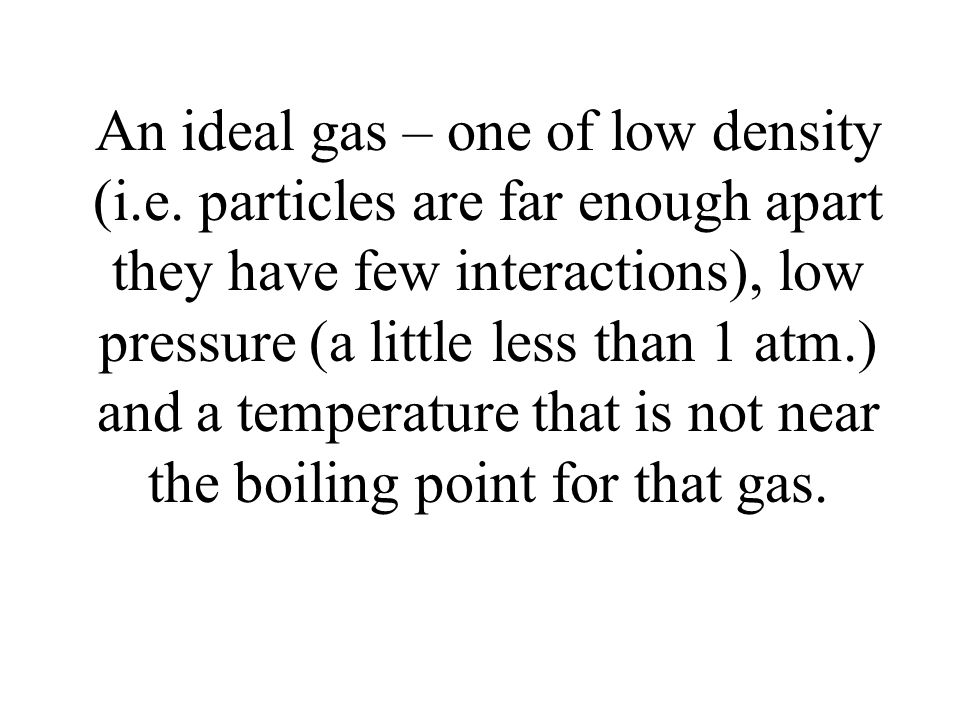

9. An ideal gas – one of low density (i.e. particles are far enough apart they have few interactions), low pressure (a little less than 1 atm.) and a temperature that is not near the boiling point for that gas.

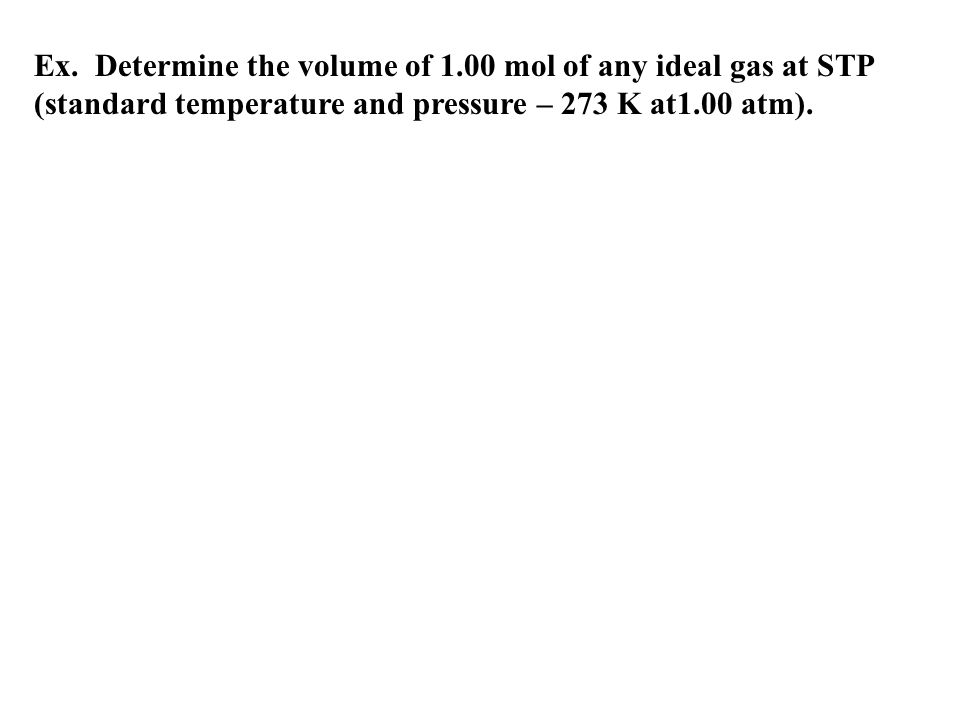

10. Ex. Determine the volume of 1.00 mol of any ideal gas at STP (standard temperature and pressure – 273 K at1.00 atm).

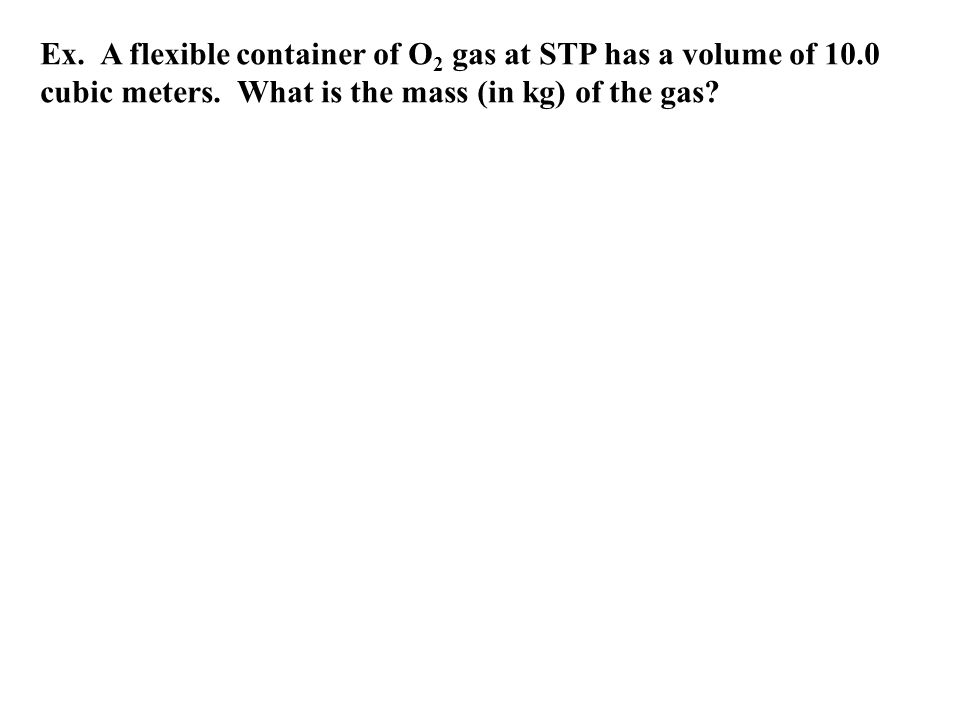

11. Ex. A flexible container of O 2 gas at STP has a volume of 10.0 cubic meters. What is the mass (in kg) of the gas?

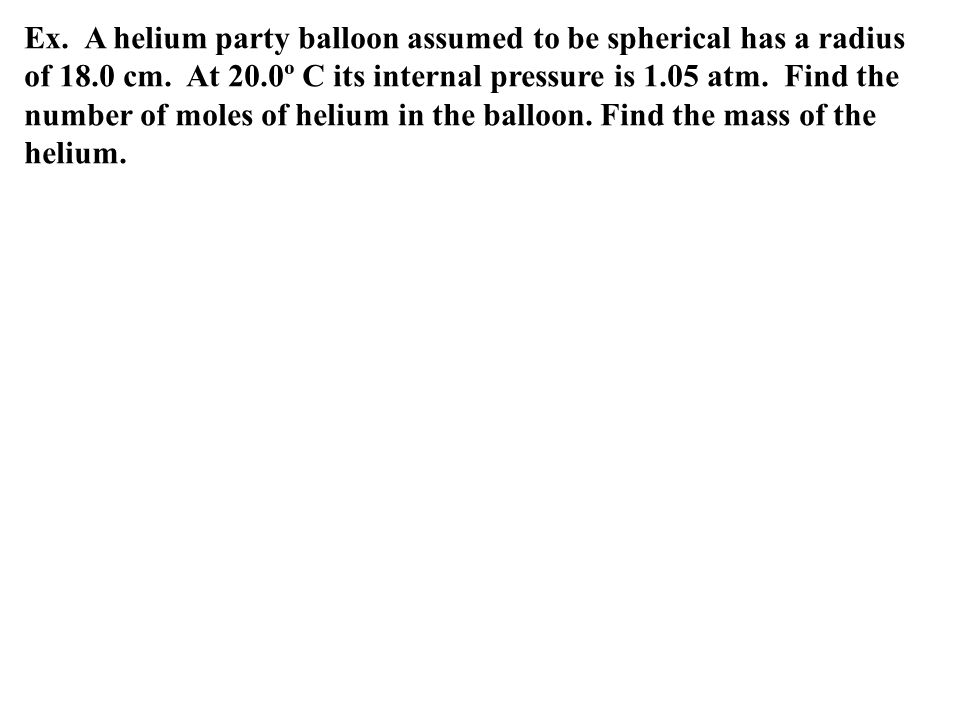

12. Ex. A helium party balloon assumed to be spherical has a radius of 18.0 cm. At 20.0º C its internal pressure is 1.05 atm. Find the number of moles of helium in the balloon. Find the mass of the helium.

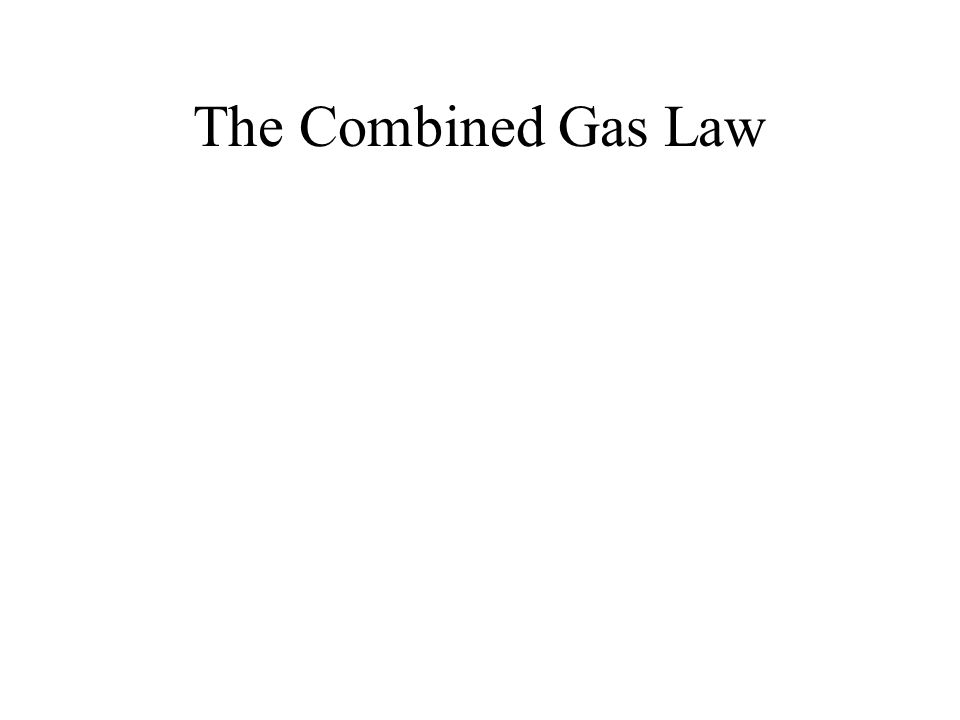

13. The Combined Gas Law

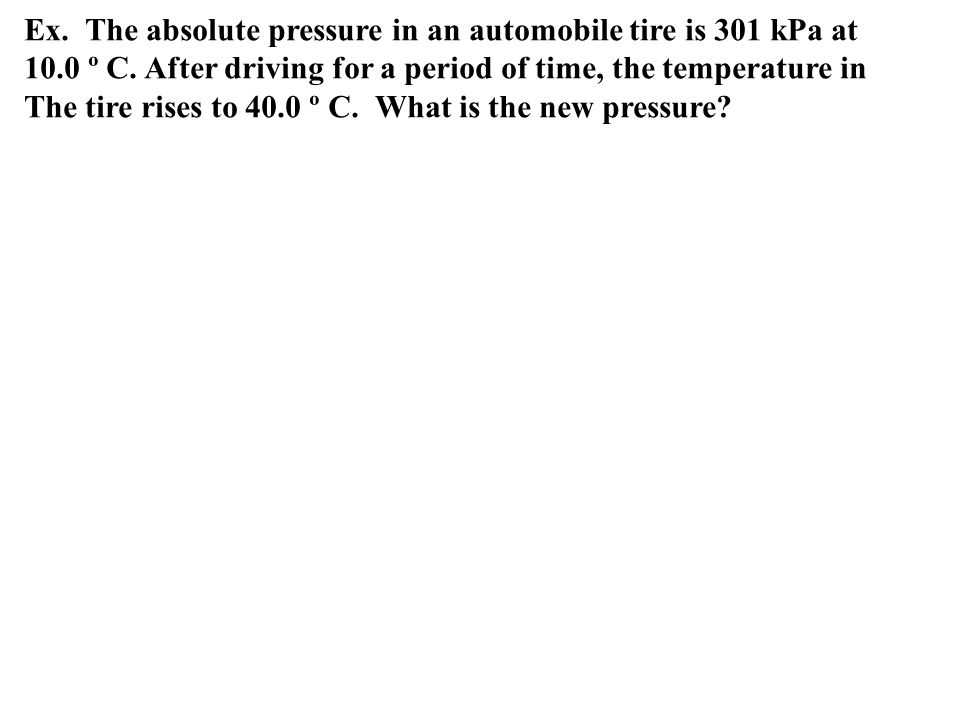

14. Ex. The absolute pressure in an automobile tire is 301 kPa at 10.0 º C. After driving for a period of time, the temperature in The tire rises to 40.0 º C. What is the new pressure?

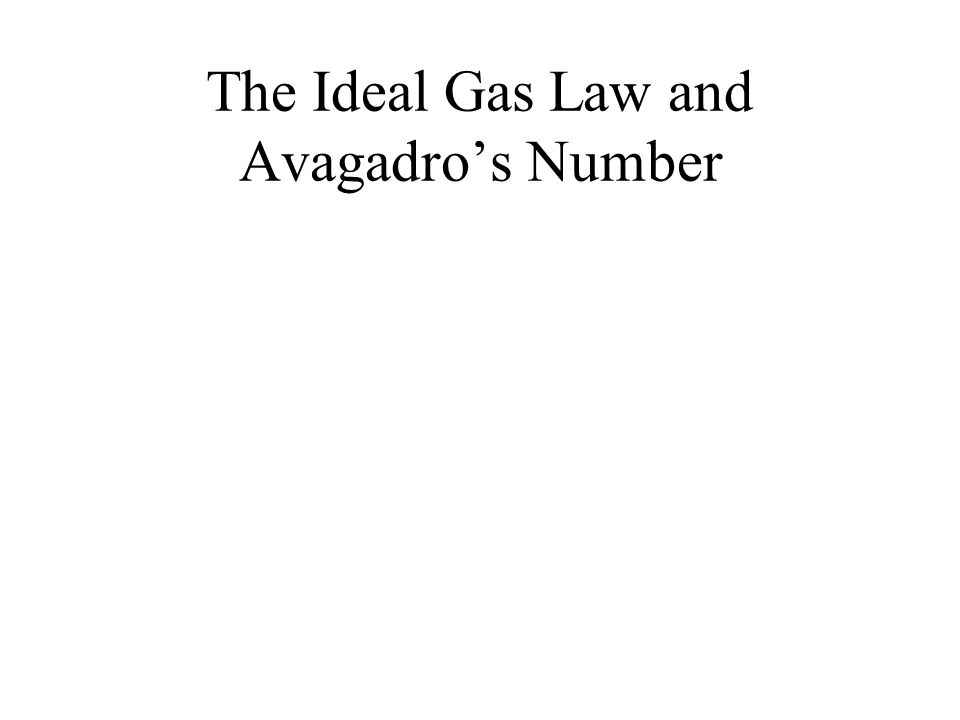

15. The Ideal Gas Law and Avagadro’s Number

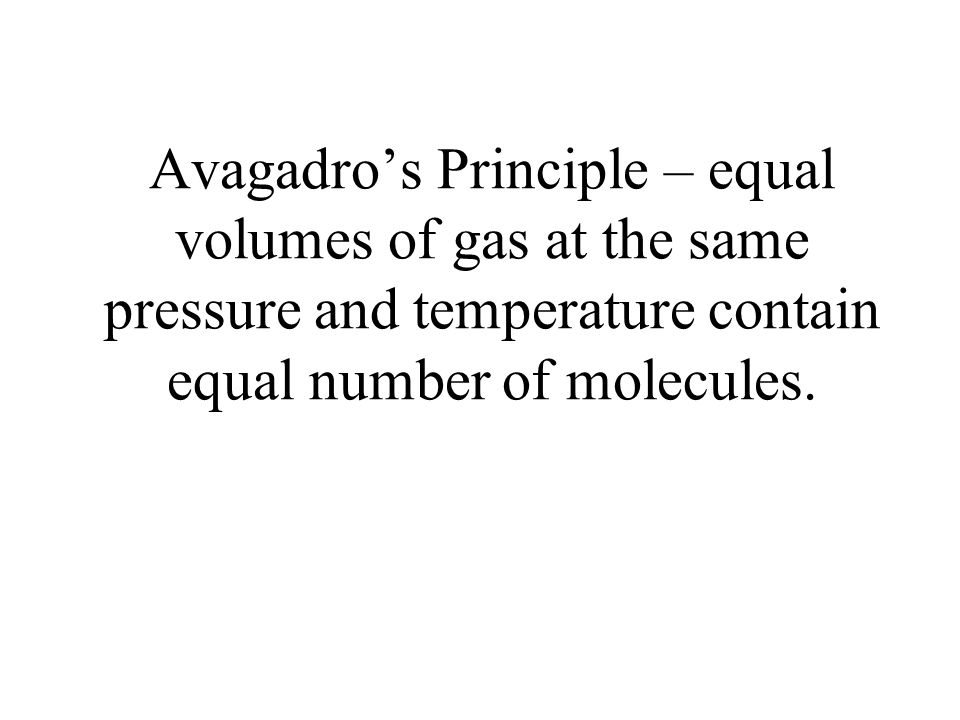

16. Avagadro’s Principle – equal volumes of gas at the same pressure and temperature contain equal number of molecules.

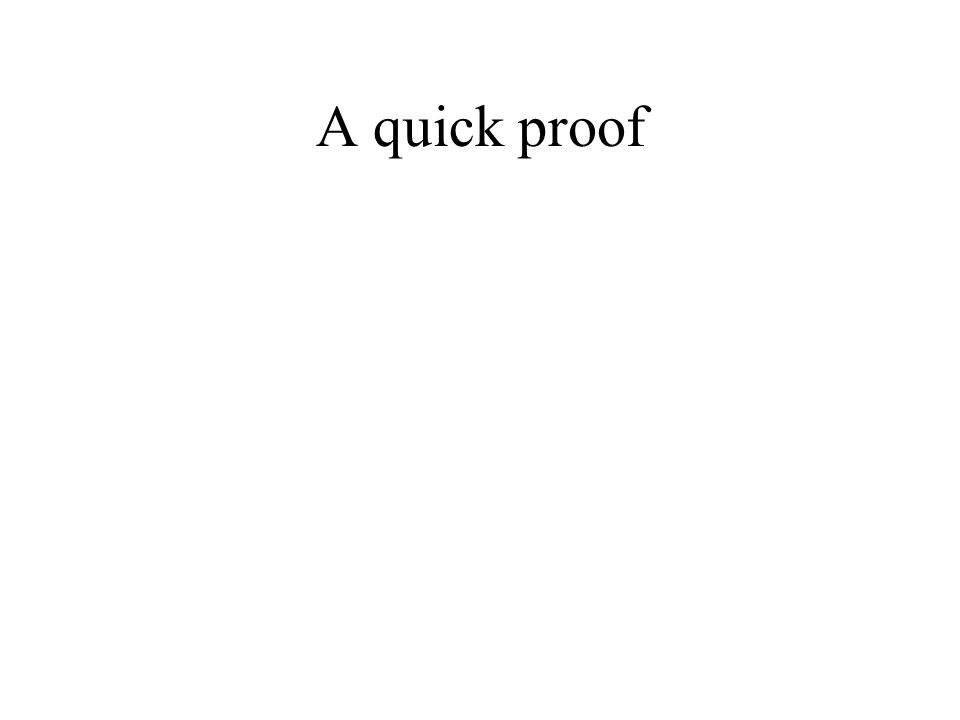

17. A quick proof

18. Ex. Estimate the number of molecules in one breath if you breathe 1.0 L of air.

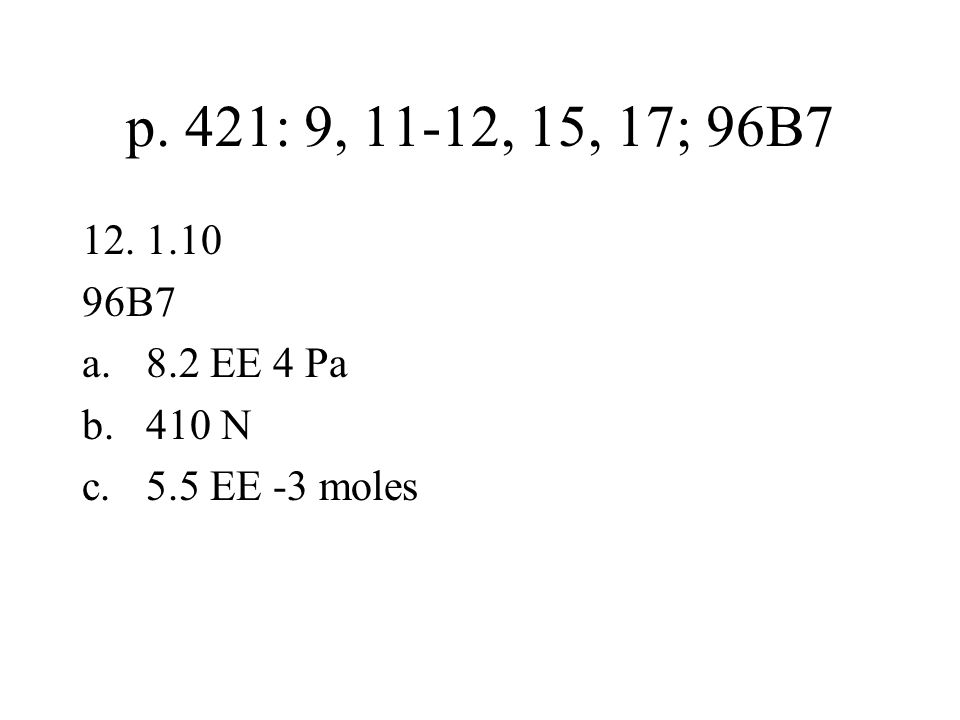

19. p. 421: 9, 11-12, 15, 17; 96B7 12.1.10 96B7 a.8.2 EE 4 Pa b.410 N c.5.5 EE -3 moles

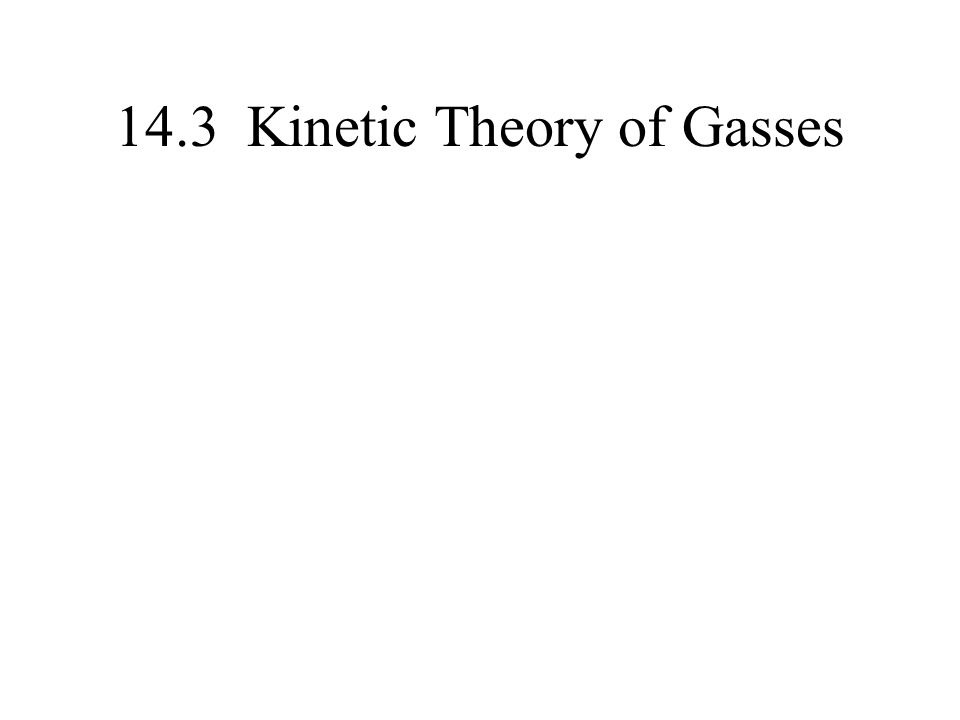

20. 14.3 Kinetic Theory of Gasses

21. Assumptions about an ideal gas There are a large number of molecules of mass m moving in random directions with a variety of speeds The molecules are far apart from each other (much greater than their diameter) The molecules interact only when the collide (their attractive forces are weak) Collisions are elastic

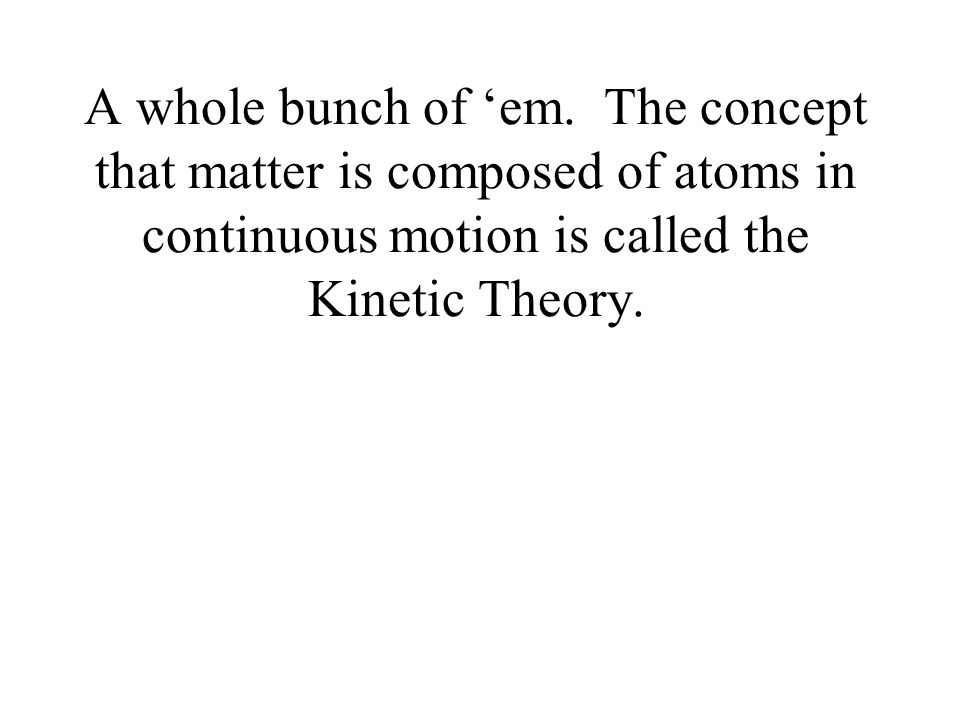

22. A whole bunch of ‘em. The concept that matter is composed of atoms in continuous motion is called the Kinetic Theory.

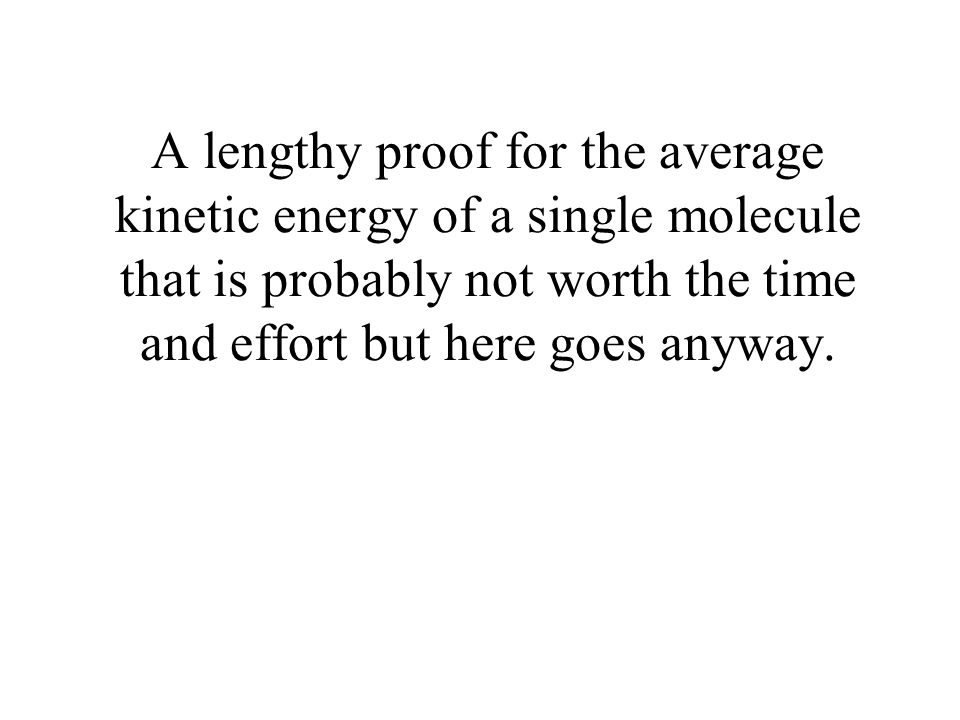

23. A lengthy proof for the average kinetic energy of a single molecule that is probably not worth the time and effort but here goes anyway.

24. So... What we’ve found is the average kinetic energy of gas molecules is directly proportional to their absolute temperature

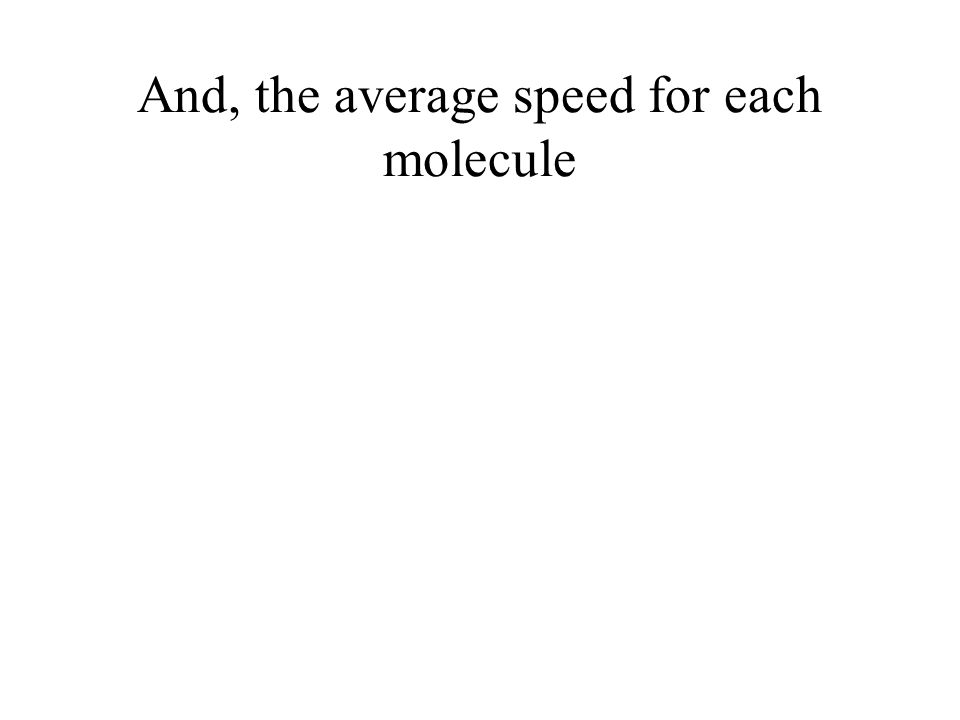

25. And, the average speed for each molecule

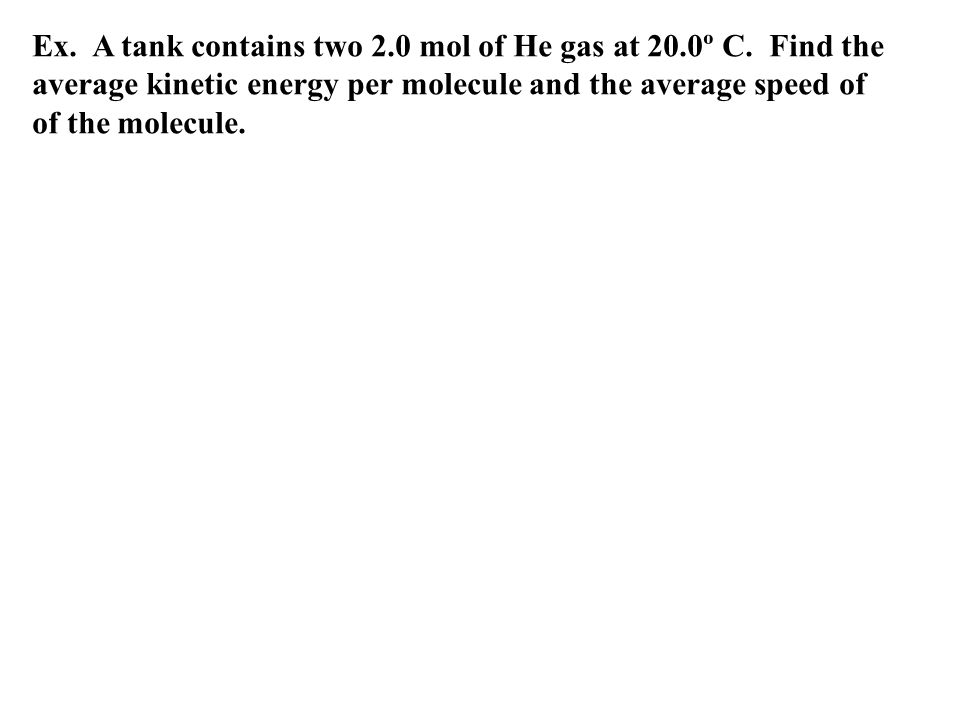

26. Ex. A tank contains two 2.0 mol of He gas at 20.0º C. Find the average kinetic energy per molecule and the average speed of of the molecule.

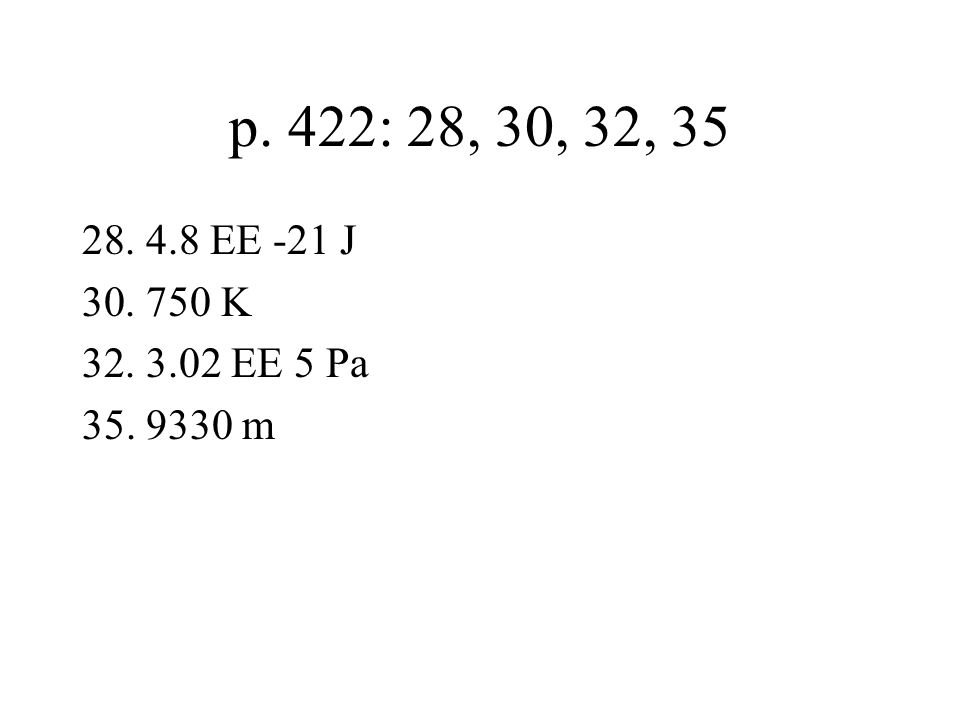

27. p. 422: 28, 30, 32, 35 28.4.8 EE -21 J 30.750 K 32.3.02 EE 5 Pa 35.9330 m

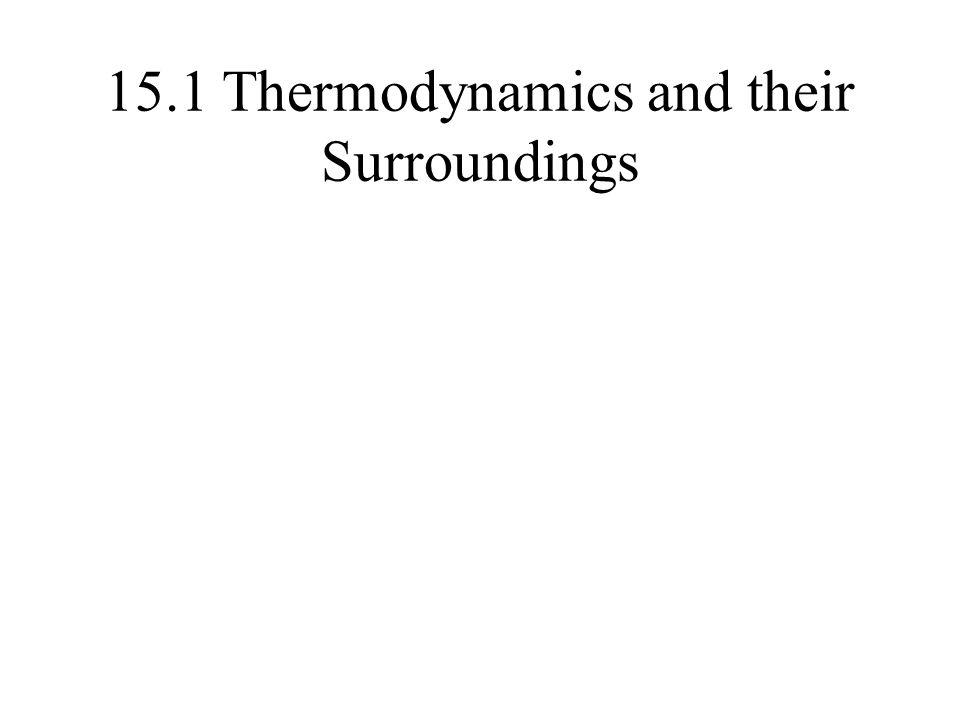

28. 15.1 Thermodynamics and their Surroundings

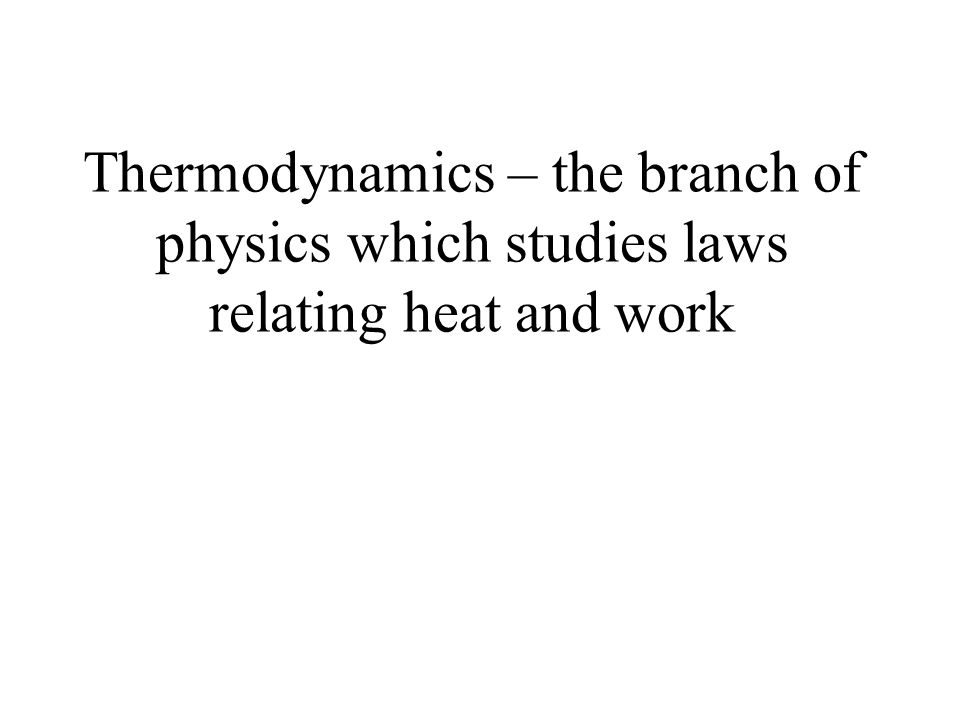

29. Thermodynamics – the branch of physics which studies laws relating heat and work

30. System – collection of objects upon which we focus our attention. Everything else is called the surroundings.

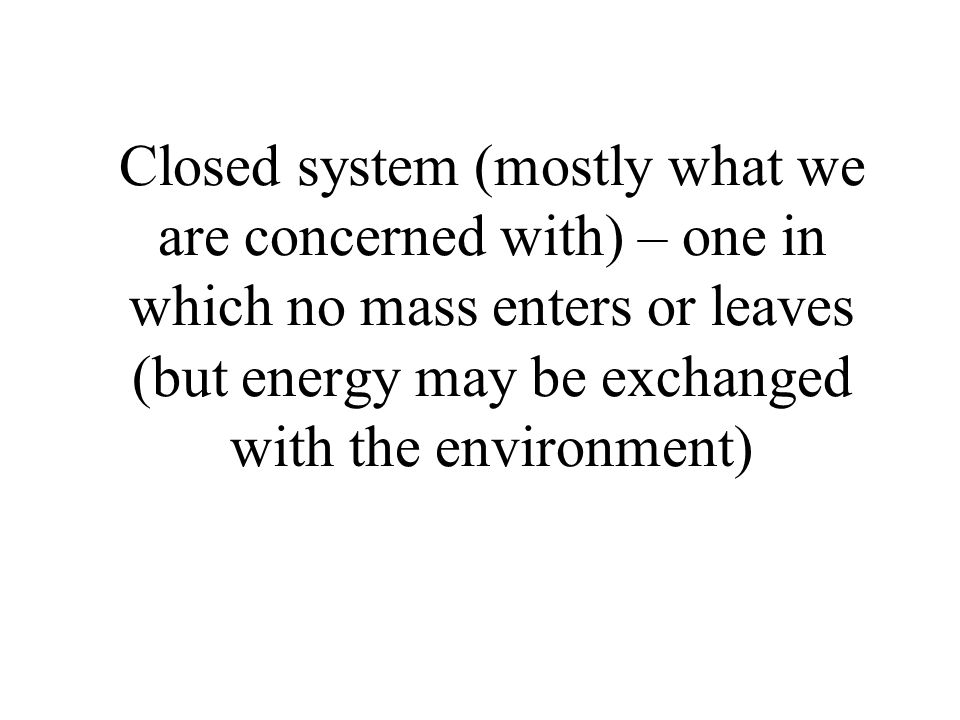

31. Closed system (mostly what we are concerned with) – one in which no mass enters or leaves (but energy may be exchanged with the environment)

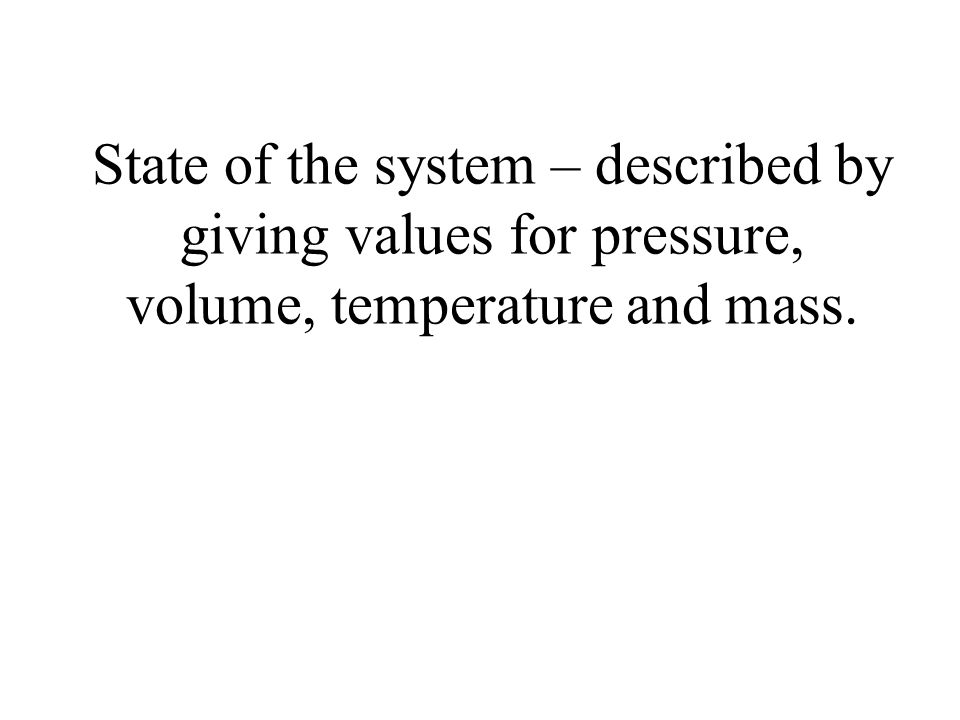

32. State of the system – described by giving values for pressure, volume, temperature and mass.

33. 15.3 First Law of Thermodynamics

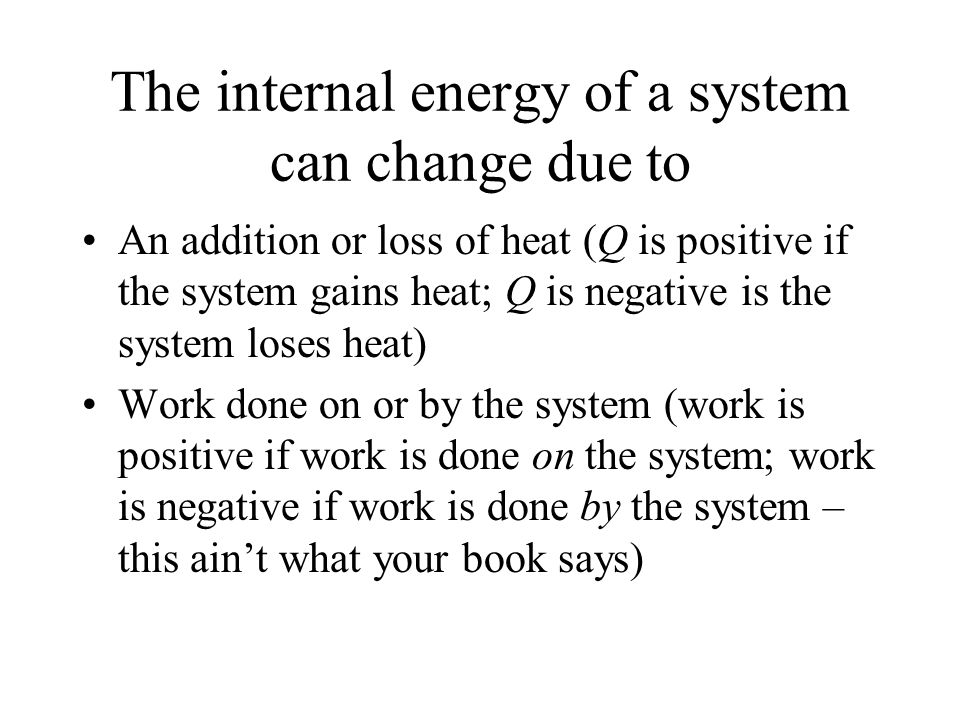

34. The internal energy of a system can change due to An addition or loss of heat (Q is positive if the system gains heat; Q is negative is the system loses heat) Work done on or by the system (work is positive if work is done on the system; work is negative if work is done by the system – this ain’t what your book says)

35. The First Law of Thermodynamics as an equation (a statement of conservation of energy) ΔU = Q + W

36. Ex. 2500 J of heat are added to a system and 1800 J of work is done on the system. What is the change in internal energy? What is the change in internal energy if 1800 J of work is done by the system?

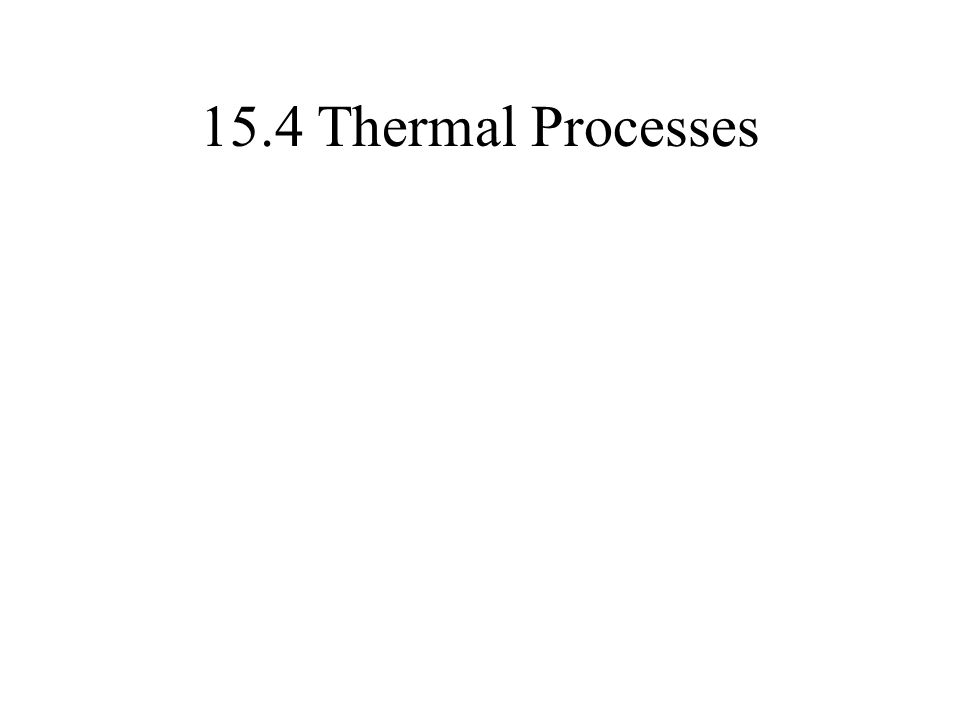

37. 15.4 Thermal Processes

38. The process occurs slowly enough that uniform pressure exists throughout all regions of the system at all times.

39. 1. Isobaric (constant pressure) – basically a way to derive a formula

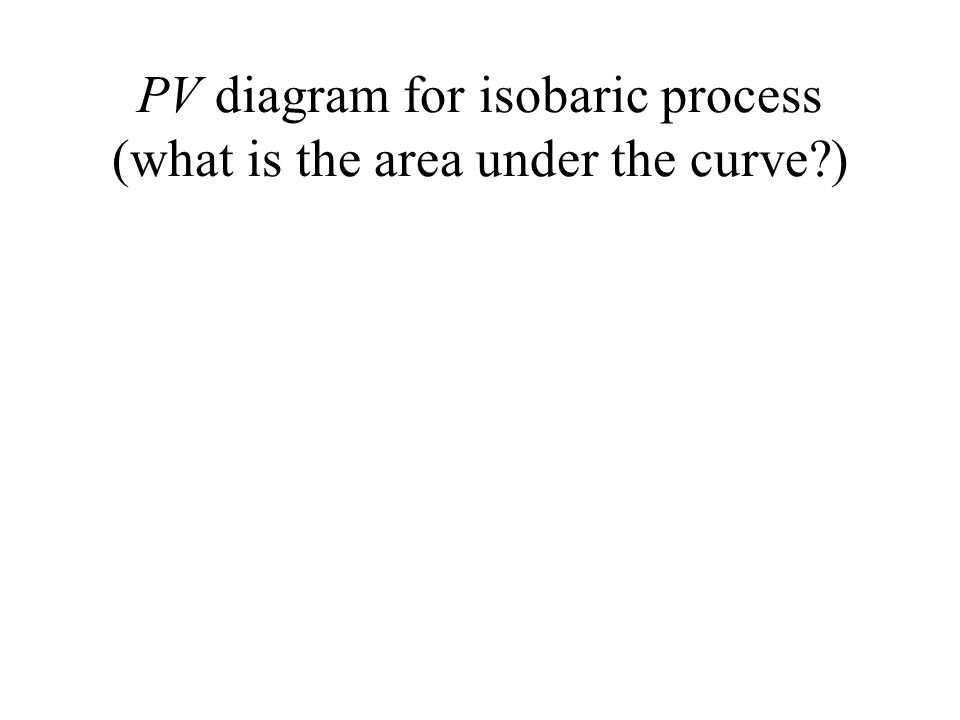

40. PV diagram for isobaric process (what is the area under the curve?)

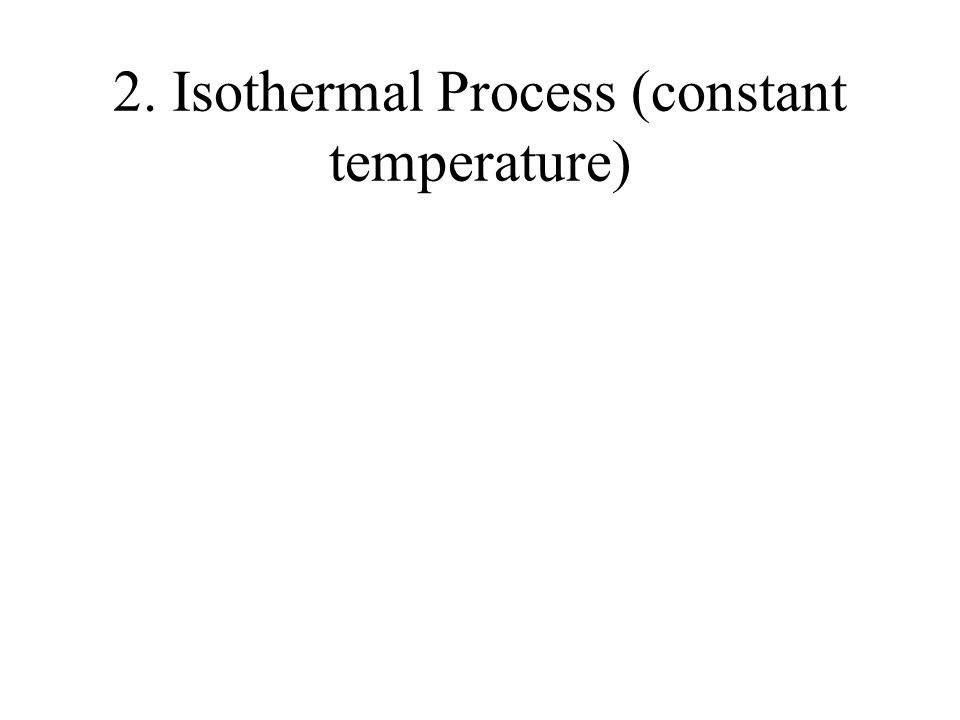

41. 2. Isothermal Process (constant temperature)

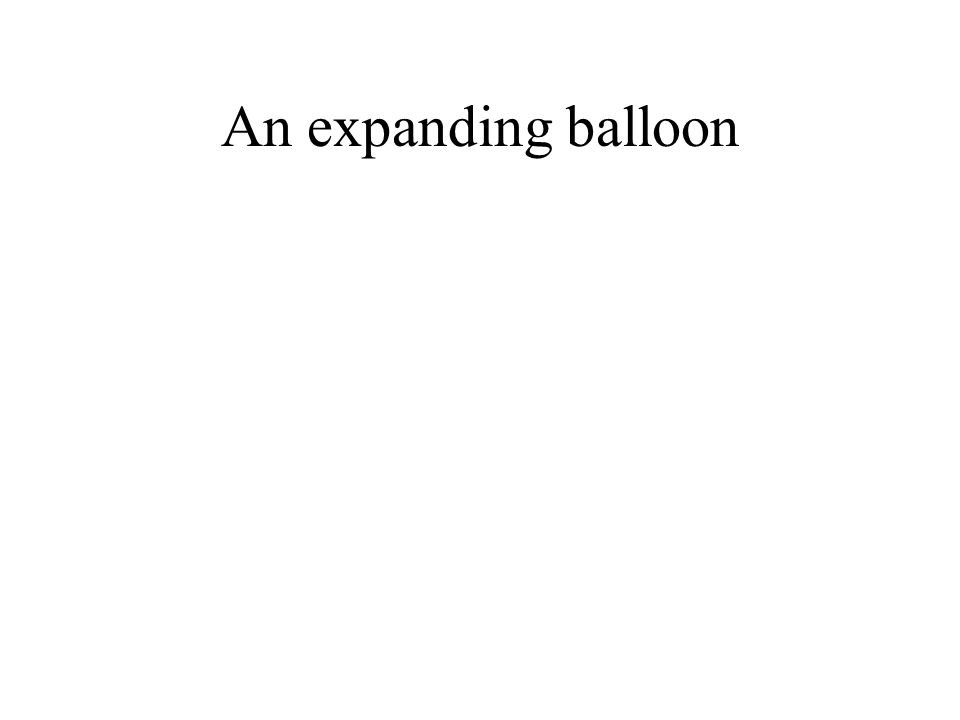

42. An expanding balloon

43. PV = nRT and the combined gas law

44. PV diagram for isothermal process

45. Calculating work for an isothermal process

46. An isothermal process and the First Law

47. 3. Adiabatic – no heat flows in or out of the system (Q is constant) Examples: bicycle pump, diesel engine, stretching a rubber band, compressed gas released from a container

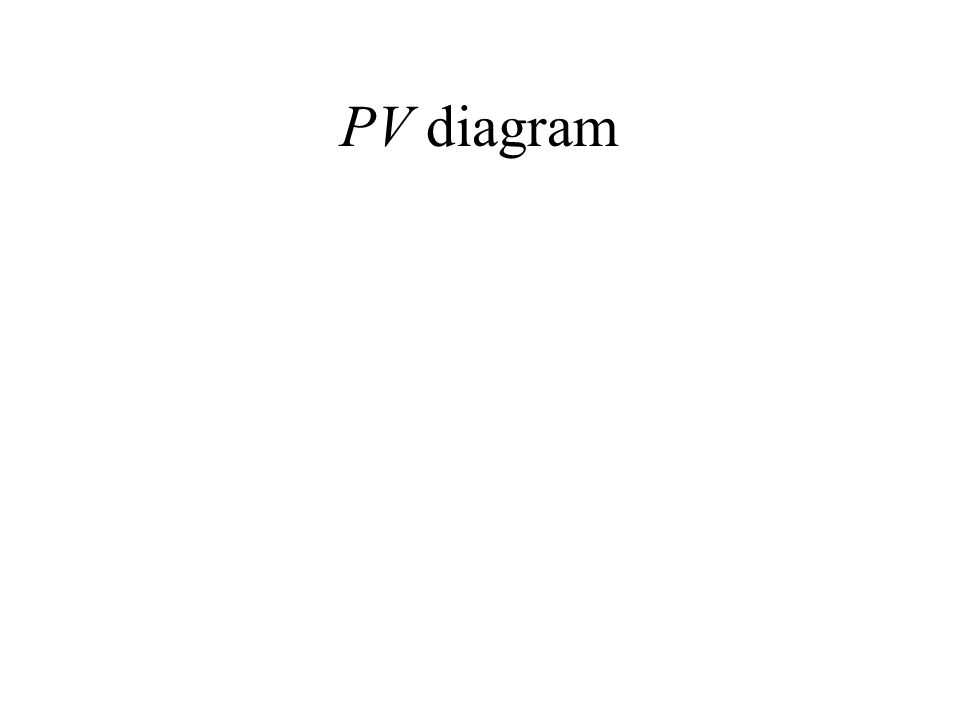

48. PV diagram

49. An exponential equation (which you don’t have to remember)

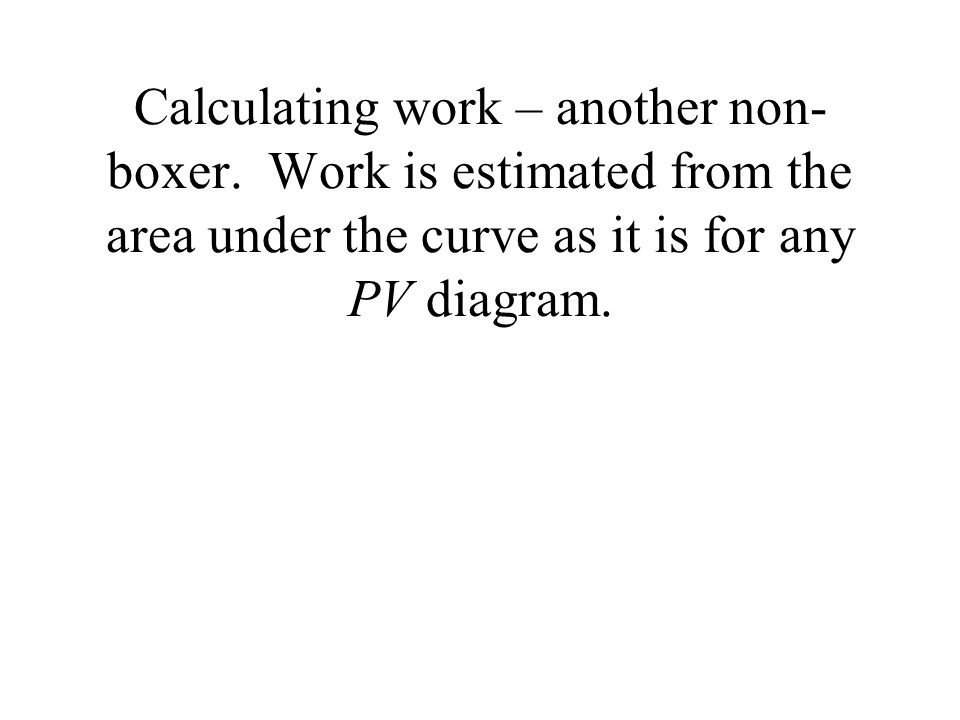

50. Calculating work – another non- boxer. Work is estimated from the area under the curve as it is for any PV diagram.

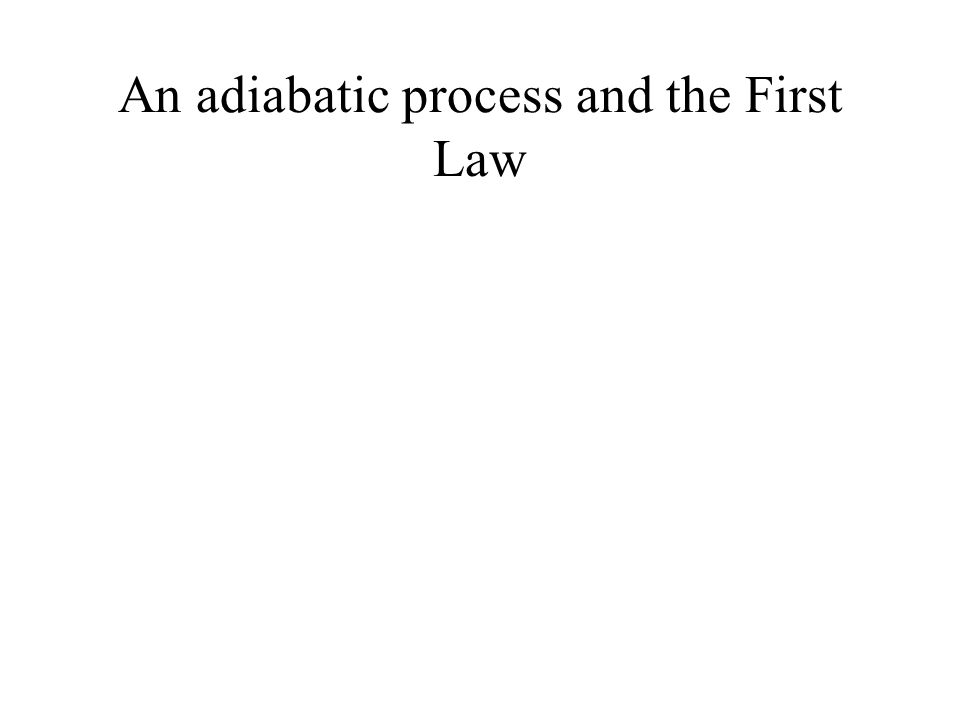

51. An adiabatic process and the First Law

52. Note: two adiabatic processes are always connected by two isotherms (a Carnot engine – more on this later)

53. 4. Isovolumetric (isochoric) – constant volume

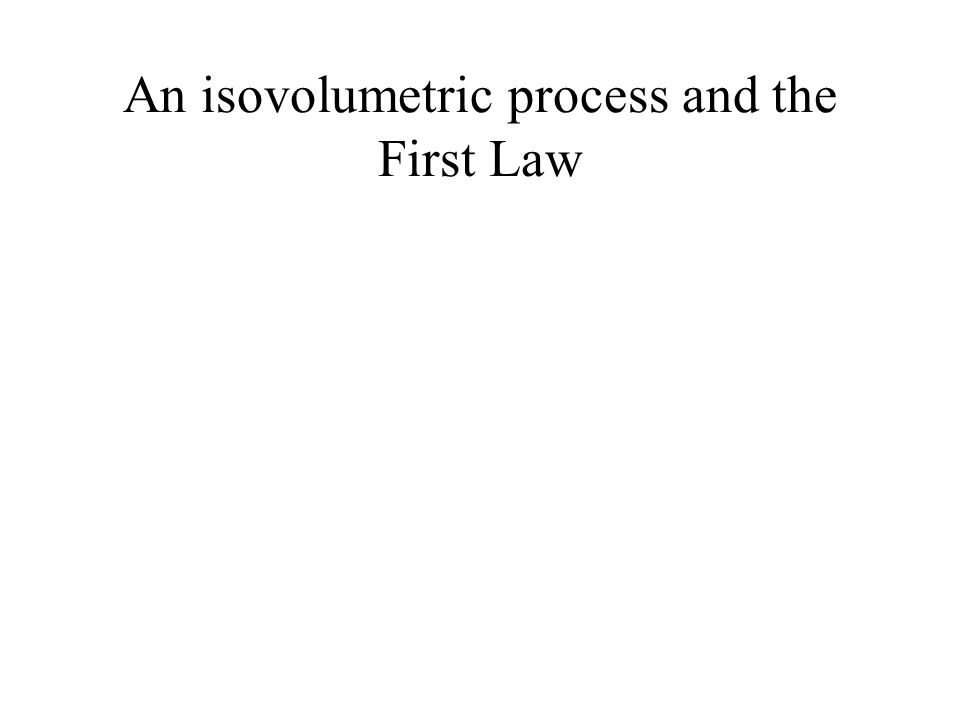

54. An isovolumetric process and the First Law

55. PV diagram for an isochoric process

56. Calculating work

57. The First Law and an Isochoric Process

58. Ex. An ideal gas undergoes two process. It is slowly compressed at a constant pressure of 2.0 atm from 10.0 L to 2.0 L. In this process, some heat flows out and the temperature drops. Then, heat is then added to the gas, holding the volume constant. The pressure is allowed to rise until the temperature reaches its original value. Calculate the a) total work done on the gas and b) the total heat flow into the gas.

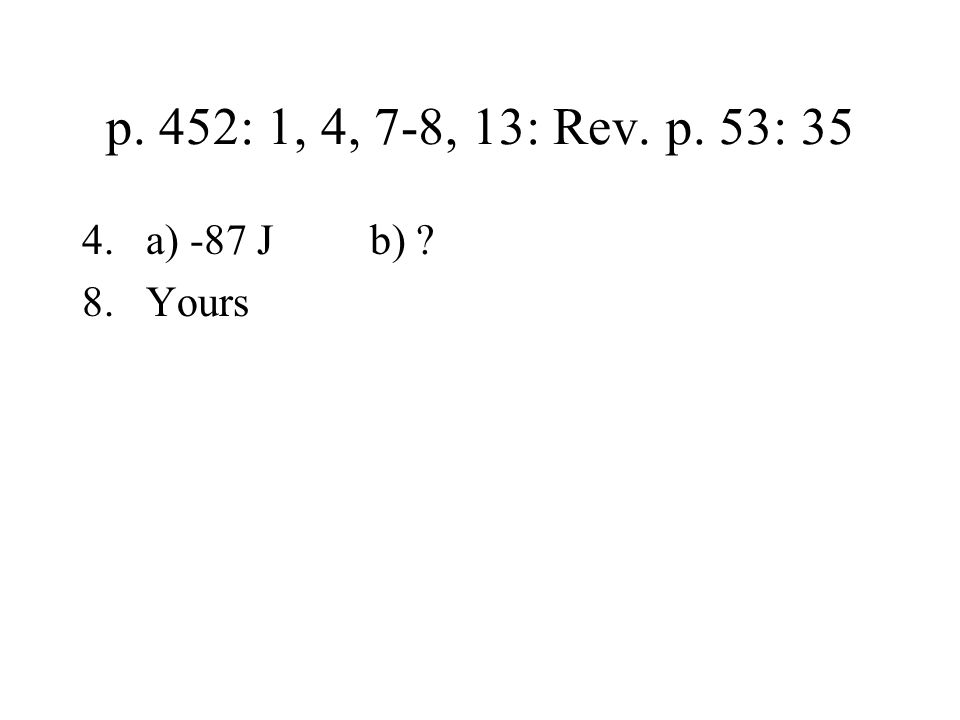

59. p. 452: 1, 4, 7-8, 13: Rev. p. 53: 35 4.a) -87 Jb) ? 8.Yours

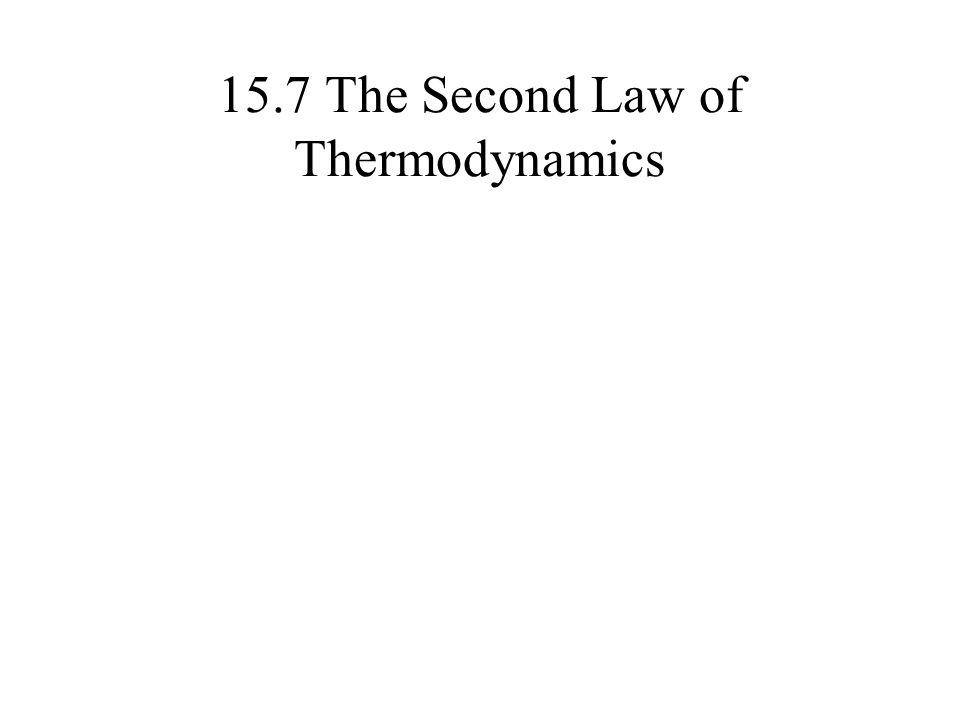

60. 15.7 The Second Law of Thermodynamics

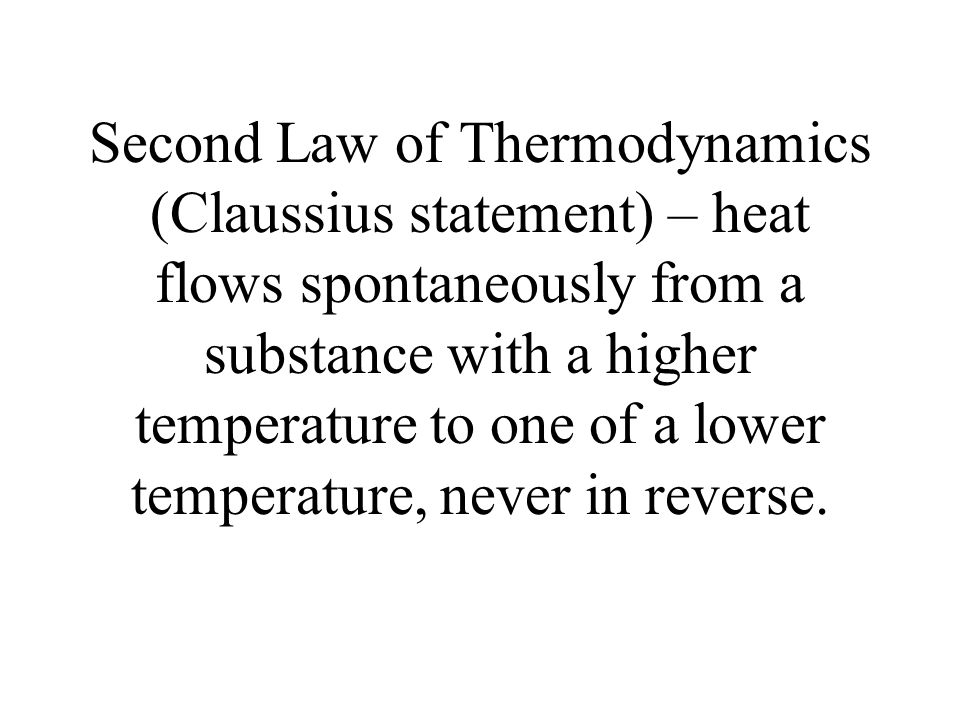

61. Second Law of Thermodynamics (Claussius statement) – heat flows spontaneously from a substance with a higher temperature to one of a lower temperature, never in reverse.

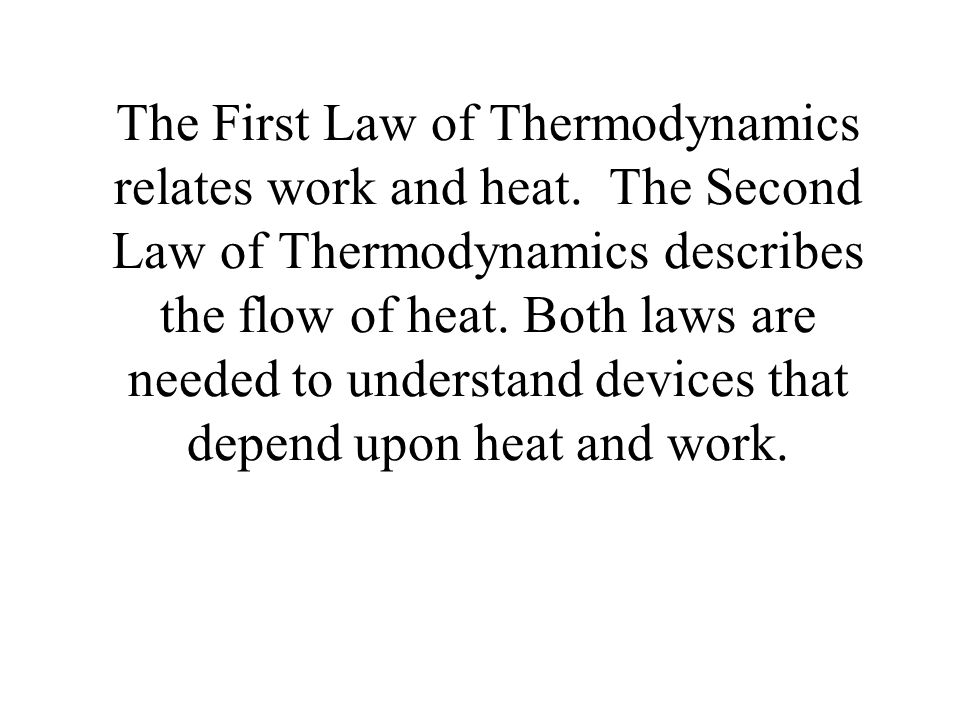

62. The First Law of Thermodynamics relates work and heat. The Second Law of Thermodynamics describes the flow of heat. Both laws are needed to understand devices that depend upon heat and work.

63. 15.8 Three Parts of a Heat Engine (and device that uses heat to perform work) Hot reservoir (place from which the engine receives heat) Working substance (device on which the input heat performs work) Cold reservoir (remainder of input heat that is rejected at a temperature lower than the input heat)

64. Efficiency of a heat engine

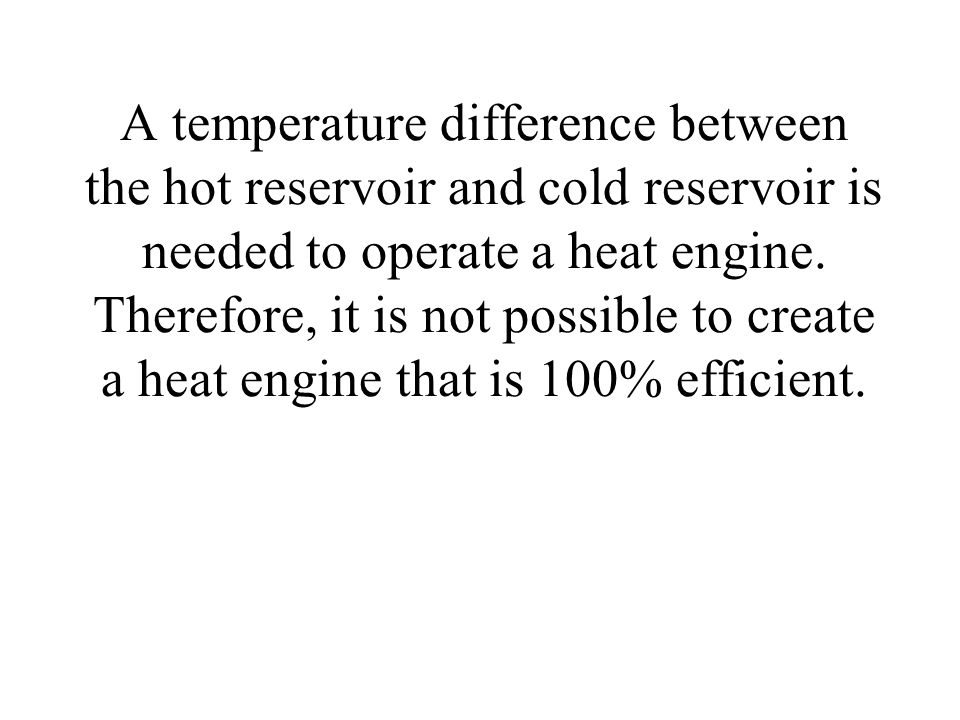

65. A temperature difference between the hot reservoir and cold reservoir is needed to operate a heat engine. Therefore, it is not possible to create a heat engine that is 100% efficient.

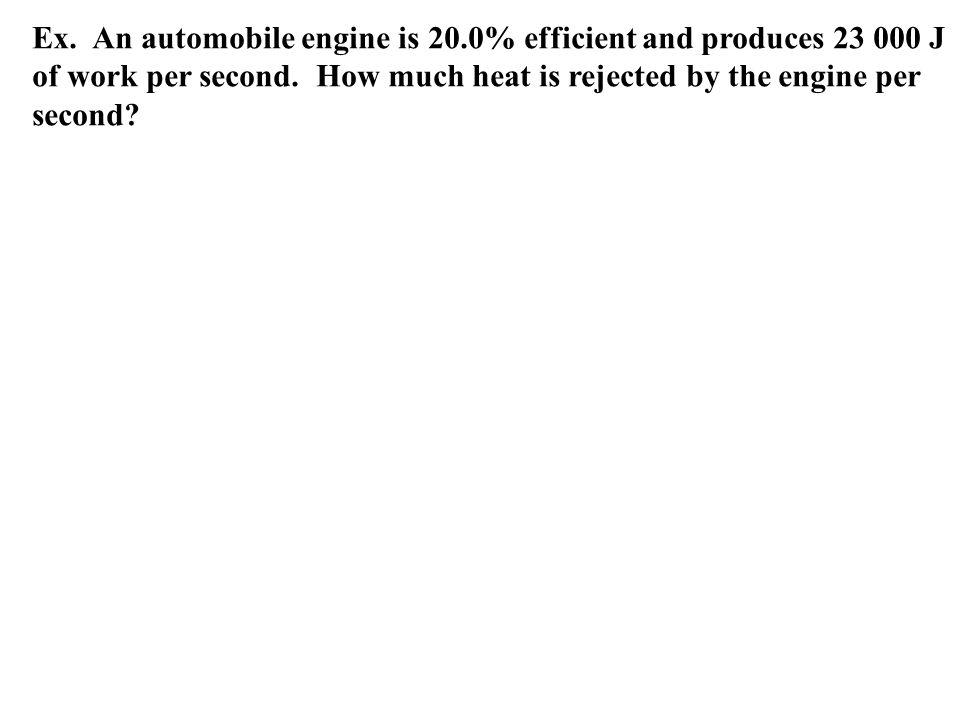

66. Ex. An automobile engine is 20.0% efficient and produces 23 000 J of work per second. How much heat is rejected by the engine per second?

67. A note on power

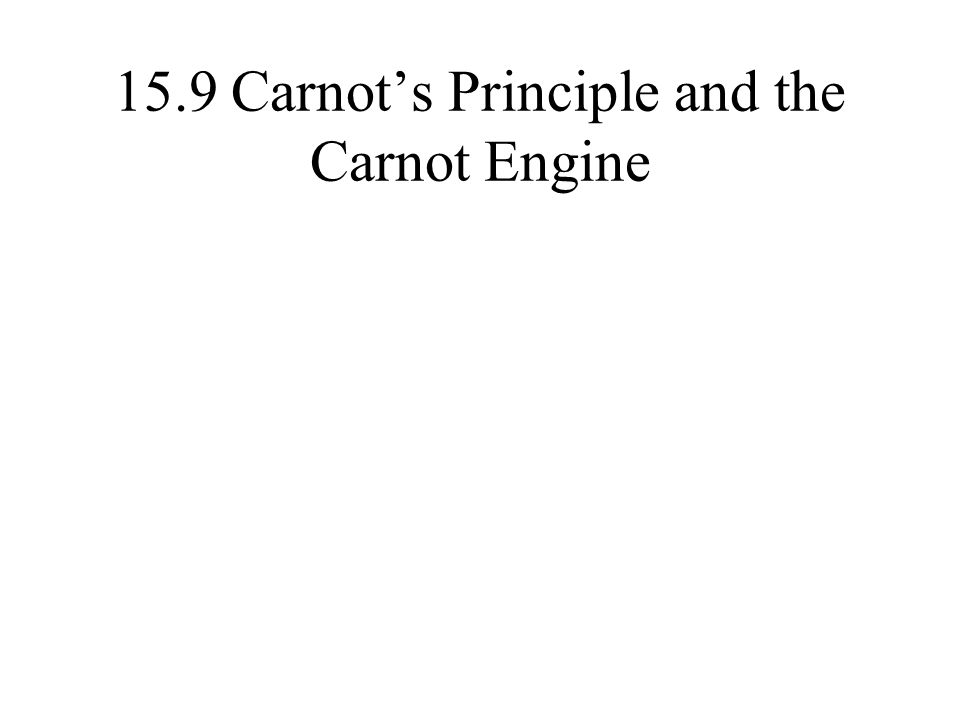

68. 15.9 Carnot’s Principle and the Carnot Engine

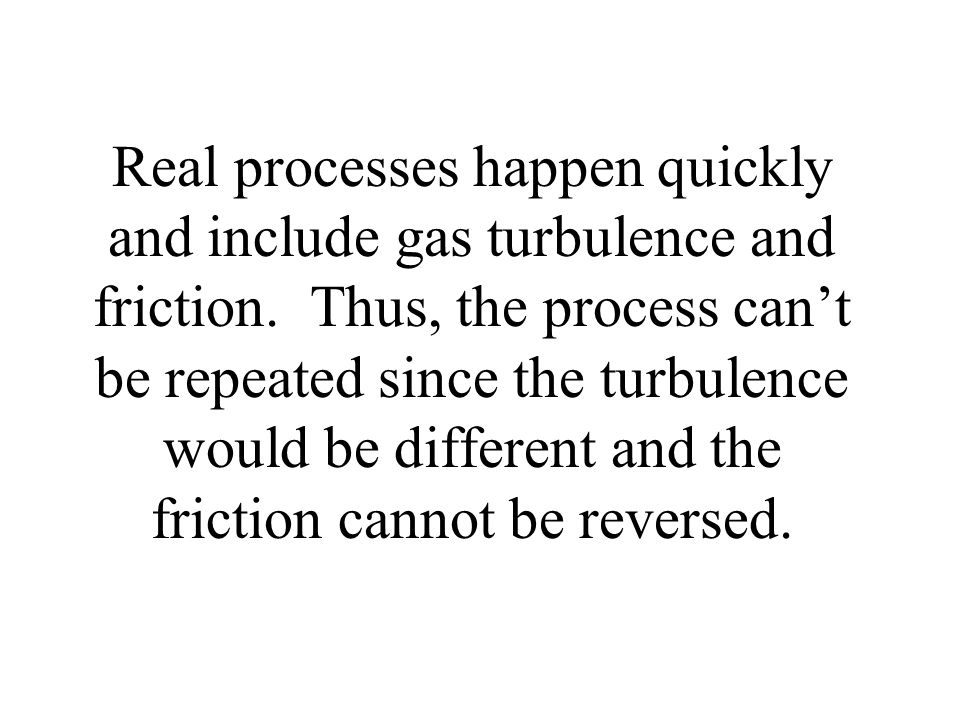

69. Real processes happen quickly and include gas turbulence and friction. Thus, the process can’t be repeated since the turbulence would be different and the friction cannot be reversed.

70. Reversible process – Carnot cycle is assumed to happen slowly enough that the process can be considered a series of equilibrium states. The process can be done in reverse with out changing the work done or heat exchange.

71. 2 nd Law Again (Carnot Principle - max. eff. of a heat engine): no irreversible engine operating between two reservoirs at constant temperatures can have a greater efficiency than a reversible engine operating between the same temperatures.

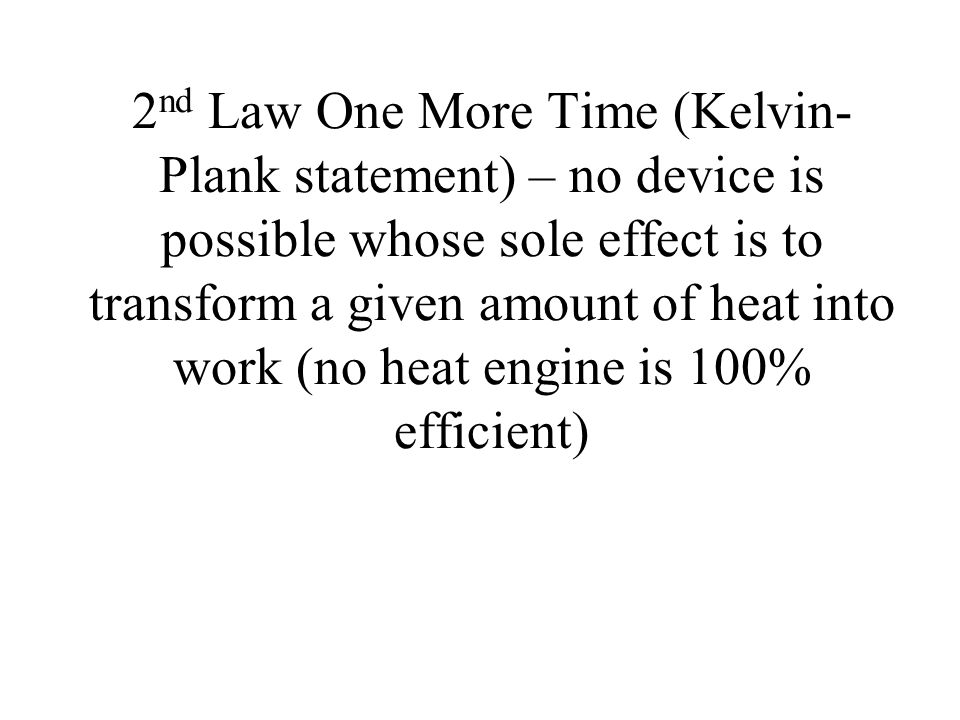

72. 2 nd Law One More Time (Kelvin- Plank statement) – no device is possible whose sole effect is to transform a given amount of heat into work (no heat engine is 100% efficient)

73. Efficiency of a Carnot Engine

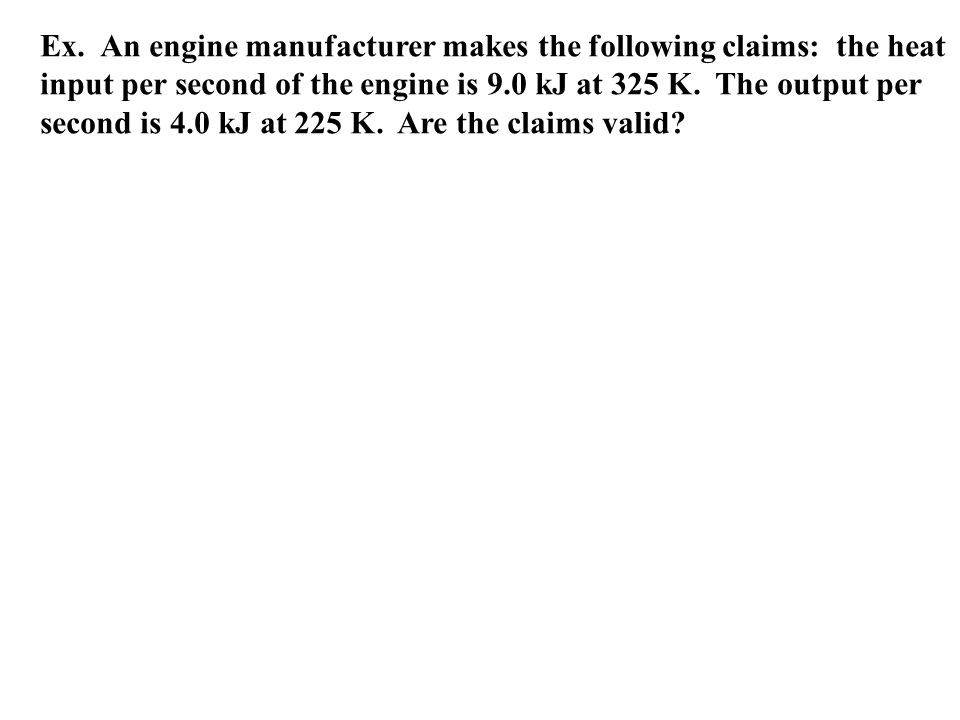

74. Ex. An engine manufacturer makes the following claims: the heat input per second of the engine is 9.0 kJ at 325 K. The output per second is 4.0 kJ at 225 K. Are the claims valid?

75. Concept Question Suppose a heat engine receives 1000 J of heat from a hot reservoir, delivers 1000 J of work and rejects no heat to the cold reservoir. Does this engine violate the 1 st Law, 2 nd Law or both?

76. 15.10 Refrigerators air conditioners and Heat Pumps

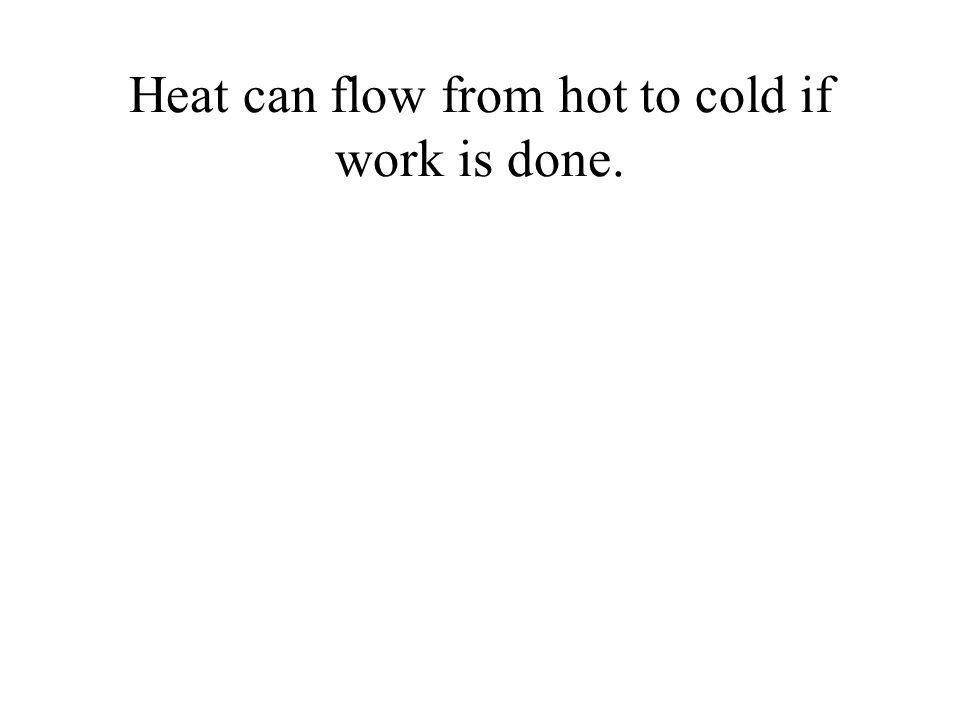

77. Heat can flow from hot to cold if work is done.

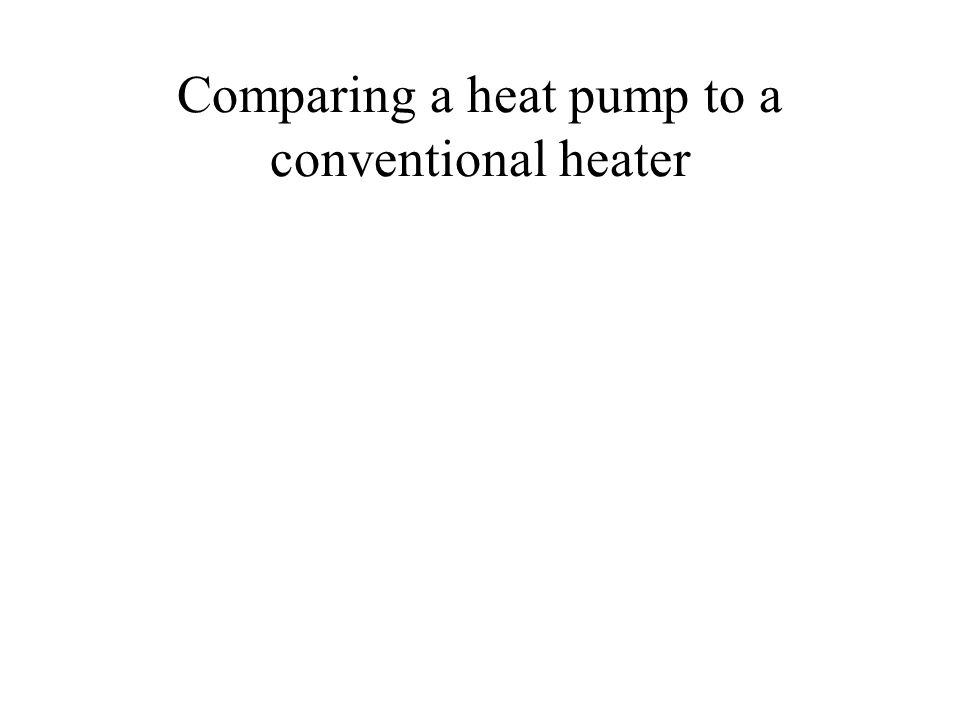

78. Comparing a heat pump to a conventional heater

79. PV diagram for a heat engine

80. PV diagram for a heat pump

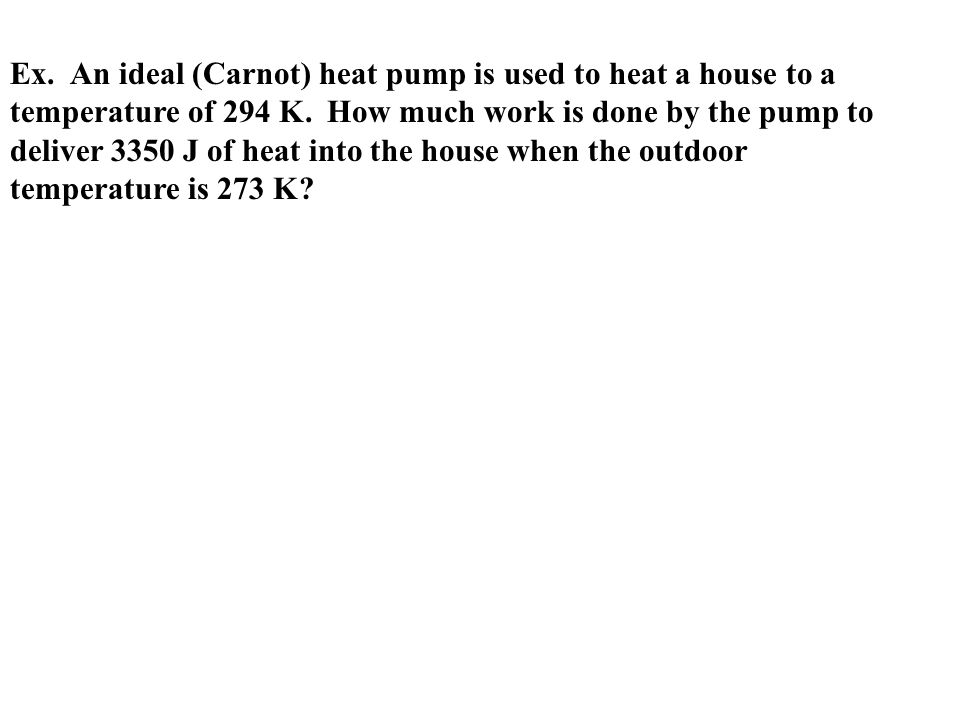

81. Ex. An ideal (Carnot) heat pump is used to heat a house to a temperature of 294 K. How much work is done by the pump to deliver 3350 J of heat into the house when the outdoor temperature is 273 K?

82. p. 454: 40-43, 47, 49-50, 52 40.65 J 42.1.82 EE 4 J 50.1170 K 52.a) 735 Kb) 271 K
