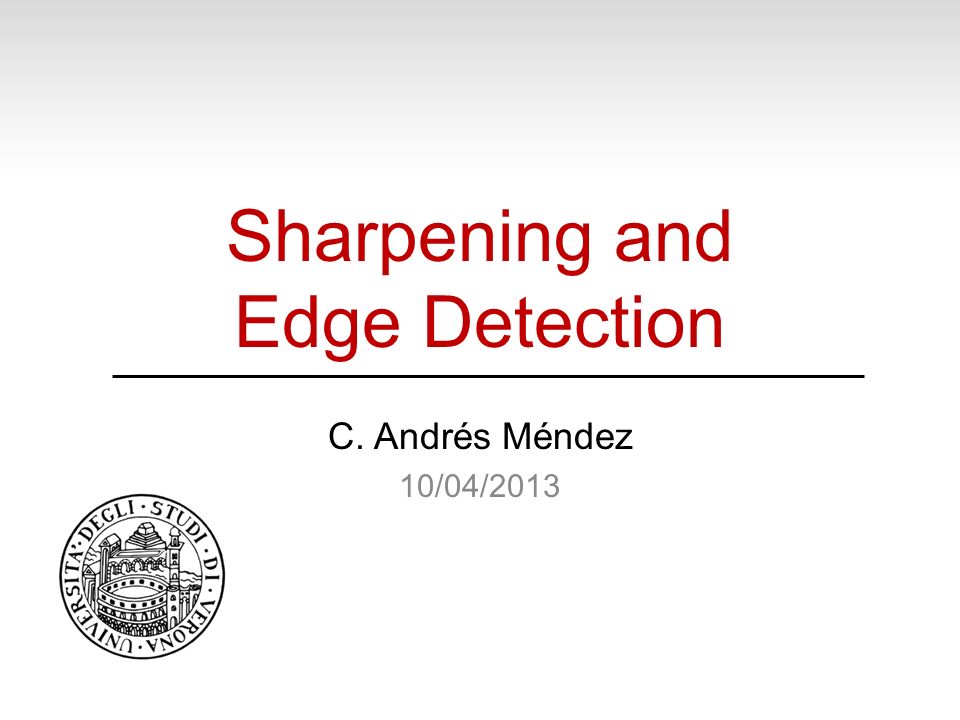

Sharpening and Edge Detection C. Andrés Méndez 10/04/2013

2
Where to find the presentations? http://profs.sci.univr.it/~mendezguerrero

3
High Boost Filtering Allied to unsharp masking filters are the high boost filters, which are obtained by where A is an amplificator factor. If A=1, then the high boost filter becomes an ordinary highpass filter. Weighted combination of the original image and the high-pass- filtered version of the image.

4
High Boost Filtering

5
Esercizio 1 Usando il filtro identità e il filtro di media creare un filtro di high boosting utilizzando i parametri 3, 2 e 1.25, 0.25 Applicare i filtri ottenuti alle immagini cat.jpg e deathstar.jpg

6
Sharpening The process of sharpening is related to edge detection - changes in color are attenuated to create an effect of sharper edges. Using fspecial, we create a filter for sharpening an image. The special filter is ironically named 'unsharp': The idea of unsharp masking is to subtract a scaled unsharp version of the image from the original.In practice, we can achieve this a ect by subtracting a scaled blurred image from the original.

7
Sharpening Esercizio 2 Applicare il filtro unsharp alle immagini pomegranate.jpg e deathstar.jpg Applicare il filtro unsharp alle immagini ottenute al punto precedente Convertire le immagini pomegranate e deathstar nello spazio YCbCr Applicare lo sharpening solo ad un canale alla volta Visualizzare le immagini

8
MatLabs Edge function The Sobel method finds edges using the Sobel approximation to the derivative. It returns edges at those points where the gradient of I is maximum. The Prewitt method finds edges using the Prewitt approximation to the derivative. It returns edges at those points where the gradient of I is maximum. The Roberts method finds edges using the Roberts approximation to the derivative. It returns edges at those points where the gradient of I is maximum. The Laplacian of Gaussian method finds edges by looking for zero crossings after filtering I with a Laplacian of Gaussian filter. The zero-cross method finds edges by looking for zero crossings after filtering I with a filter you specify. The Canny method finds edges by looking for local maxima of the gradient of I. The gradient is calculated using the derivative of a Gaussian filter. The method uses two thresholds, to detect strong and weak edges, and includes the weak edges in the output only if they are connected to strong edges. This method is therefore less likely than the others to be fooled by noise, and more likely to detect true weak edges.

9
Edge Detection Esercizio 3 Scalare limmagine pomegranate Extract edges for each color layer (red, green, and blue), and place the edge intensity images in a matrix which will resemble a multi- dimensional color (RGB) image. Use edge(X,sobel) In one figure display separatedly the edges for each channel (fig 1) In another figure show the composite (color) edge images, which combine information from all three channels (as shown in fig 2) Fig 1 Fig 2

10
Edge Detection Esercizio 4 Applicate all the methods of the function edge (sobel, prewitt, roberts, laplacian of gaussian, zerocross, canny) to the image inception.jpg and visualize the results in the same figure.

11
Edge detection Esercizio 5 Confrontare il risultato di un filtro di Sobel applicato nel dominio dello spazio e delle frequenze sullimmagine inception

12

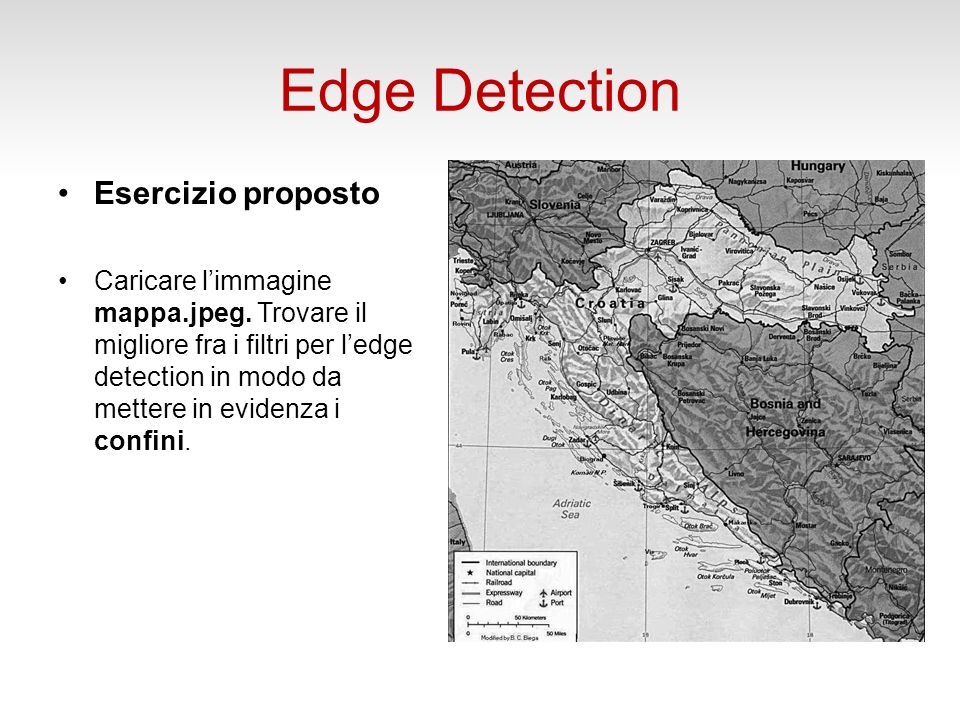

Edge Detection Esercizio proposto Caricare limmagine mappa.jpeg. Trovare il migliore fra i filtri per ledge detection in modo da mettere in evidenza i confini.
