1 Physics

2 Session Rotational Mechanics - 5

3 Session Objectives

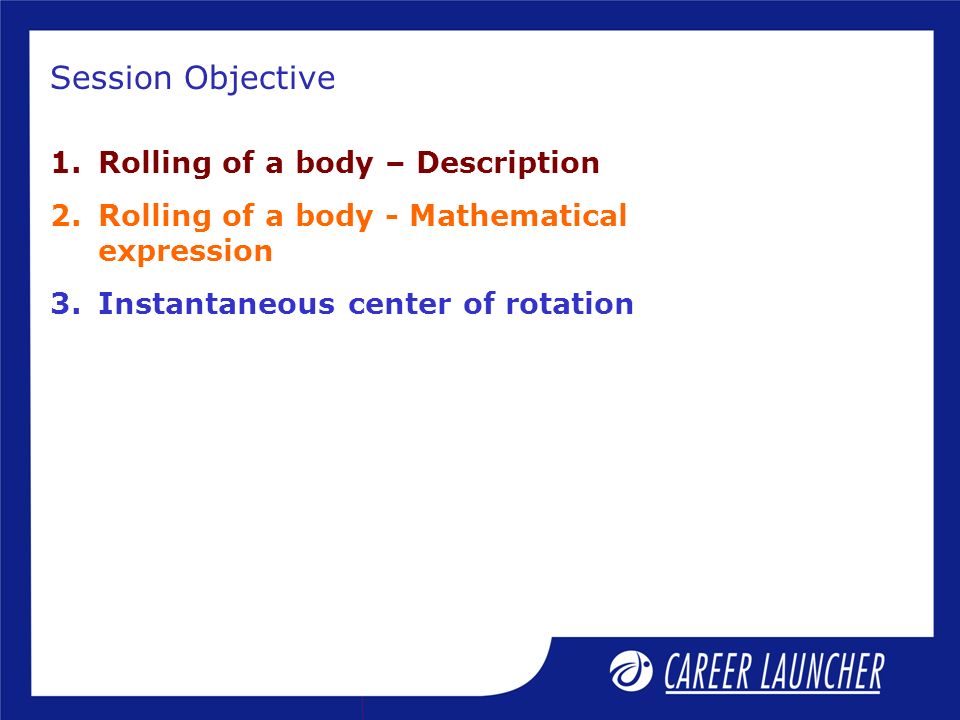

4 Session Objective 1.Rolling of a body – Description 2.Rolling of a body - Mathematical expression 3.Instantaneous center of rotation

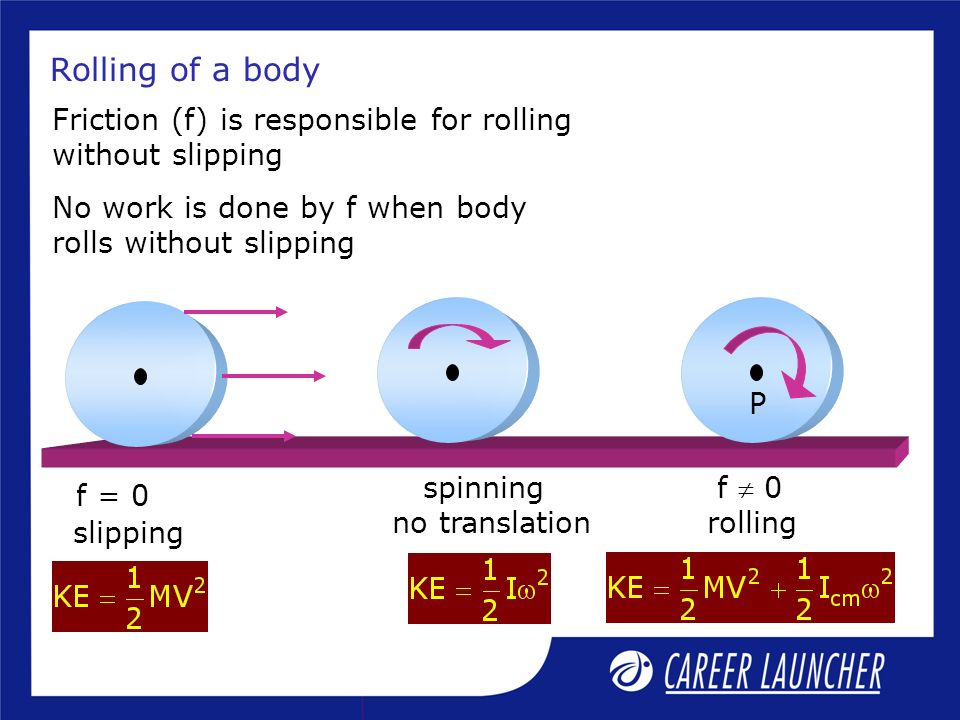

5 Rolling of a body Rolling without slipping : Motion is combined rotation and translation. Point of contact has no relative motion with surface There is no relative motion between body and surface V P Qsurface

6 Rolling of a body Friction (f) is responsible for rolling without slipping No work is done by f when body rolls without slipping f = 0 slipping spinning no translation P f  0 rolling

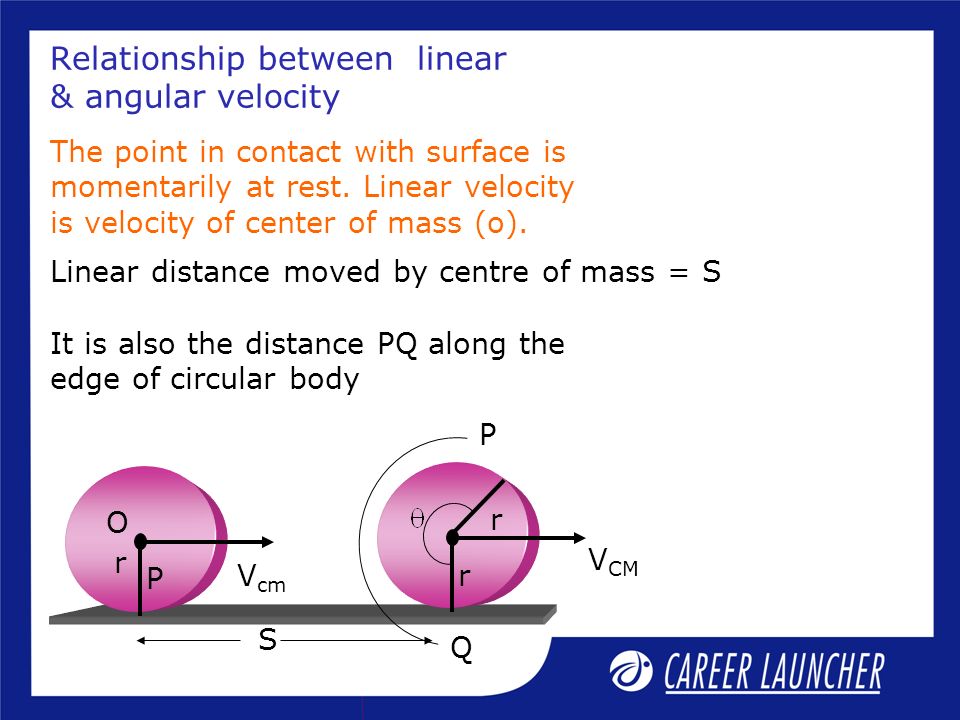

7 Relationship between linear & angular velocity The point in contact with surface is momentarily at rest. Linear velocity is velocity of center of mass (o). O r P V cm Linear distance moved by centre of mass = S It is also the distance PQ along the edge of circular body V CM r r S Q P

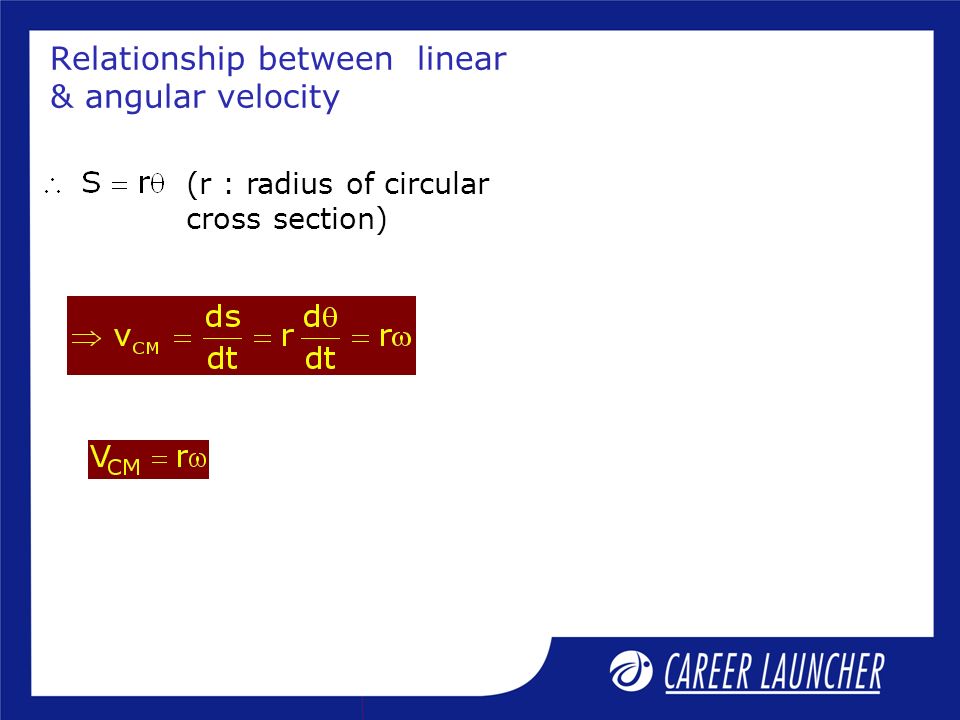

8 Relationship between linear & angular velocity (r : radius of circular cross section)

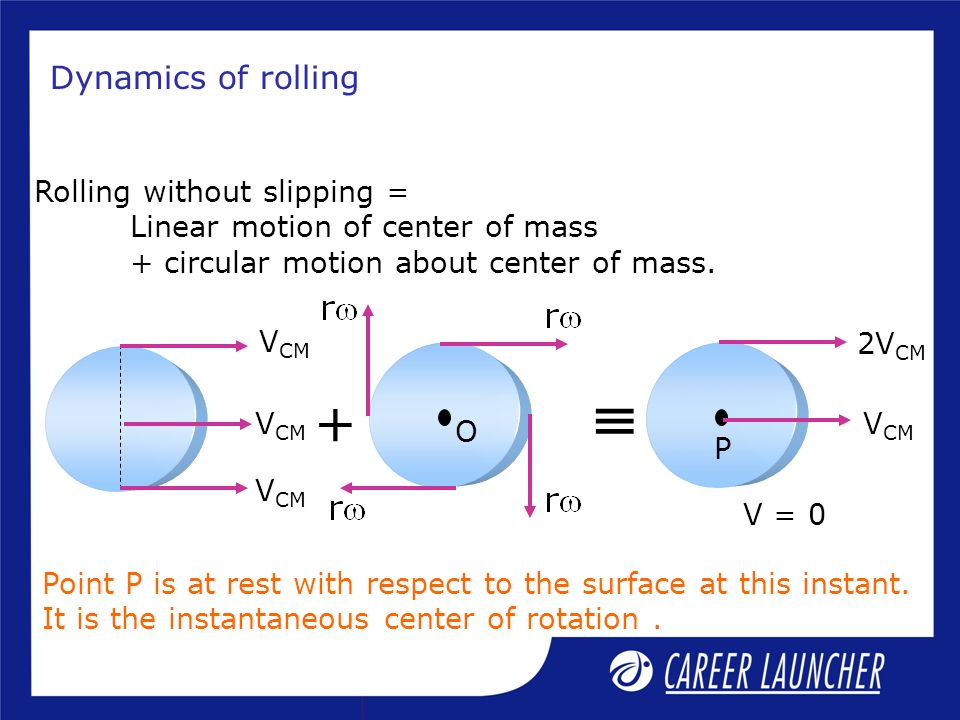

9 Dynamics of rolling Rolling without slipping = Linear motion of center of mass + circular motion about center of mass. Point P is at rest with respect to the surface at this instant. It is the instantaneous center of rotation. V CM P 2V CM V CM V = 0  + O

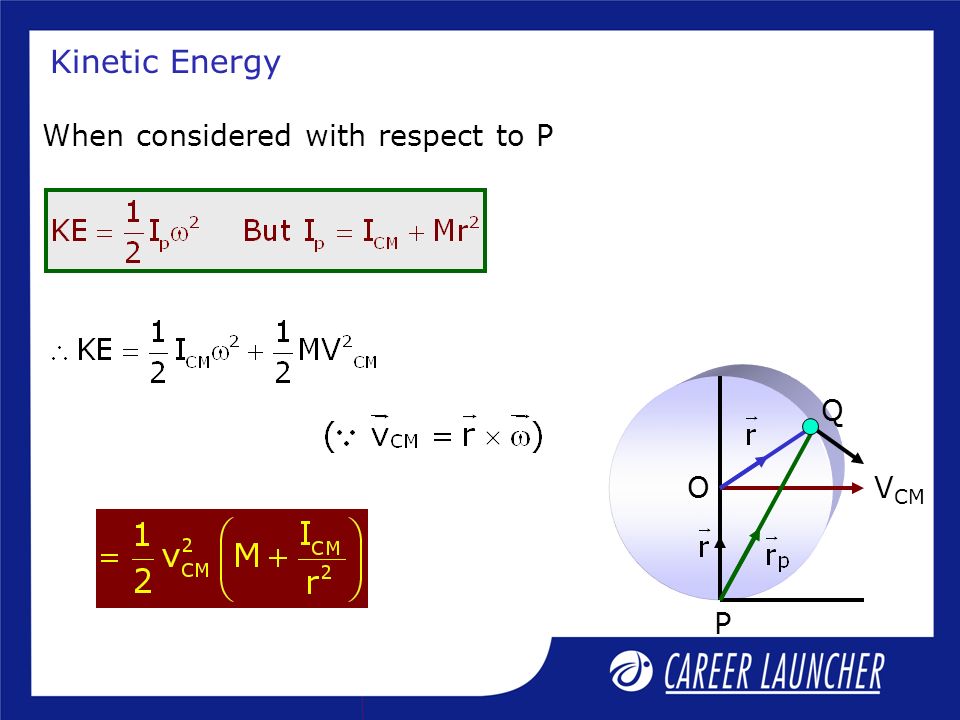

10 Kinetic Energy When considered with respect to P OV CM P Q

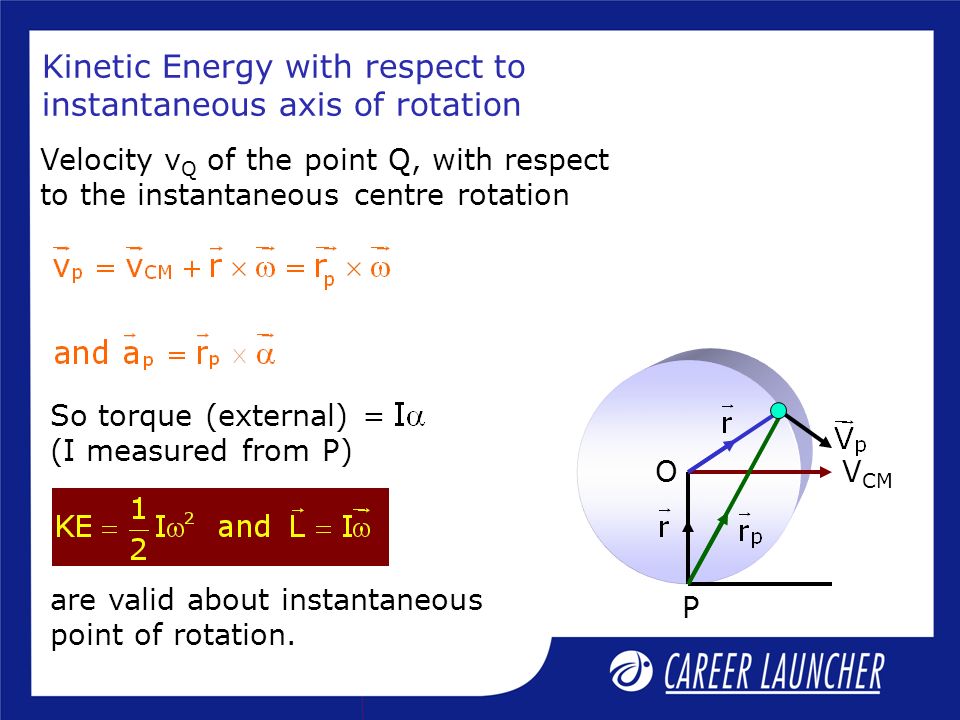

11 Kinetic Energy with respect to instantaneous axis of rotation Velocity v Q of the point Q, with respect to the instantaneous centre rotation So torque (external) = (I measured from P) are valid about instantaneous point of rotation. OV CM P

12 Class Test

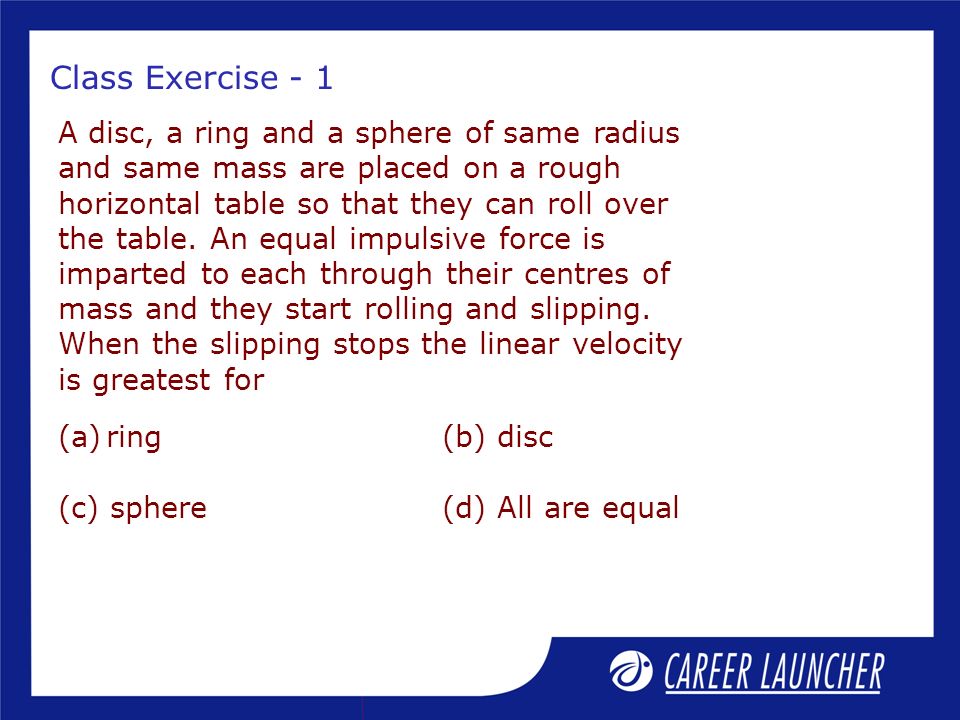

13 Class Exercise - 1 A disc, a ring and a sphere of same radius and same mass are placed on a rough horizontal table so that they can roll over the table. An equal impulsive force is imparted to each through their centres of mass and they start rolling and slipping. When the slipping stops the linear velocity is greatest for (a)ring(b) disc (c) sphere(d) All are equal

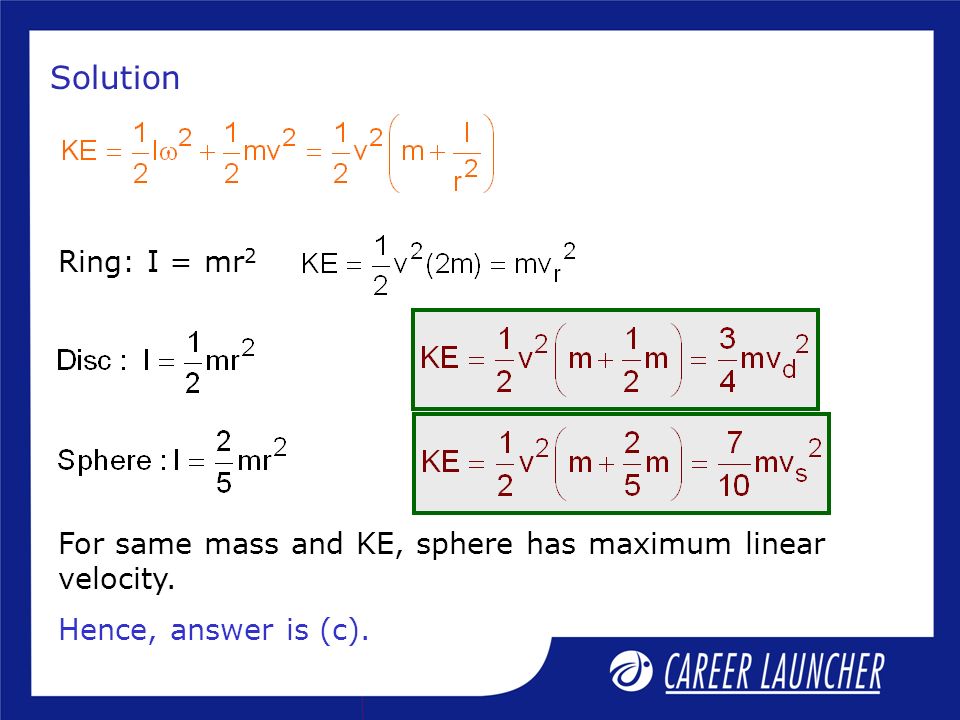

14 Solution Ring: I = mr 2 For same mass and KE, sphere has maximum linear velocity. Hence, answer is (c).

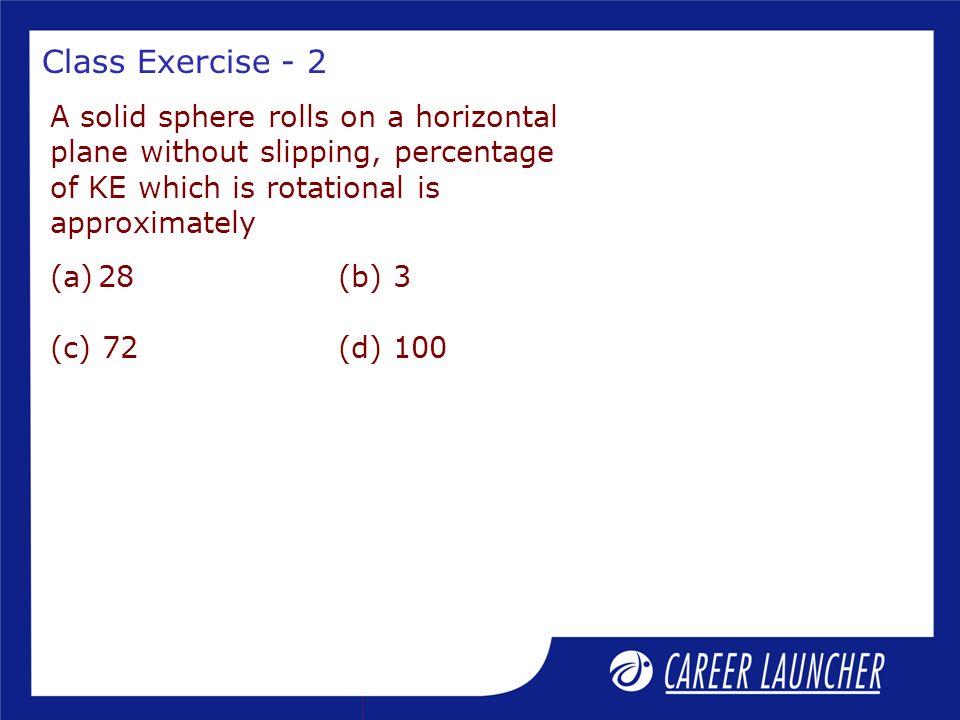

15 Class Exercise - 2 A solid sphere rolls on a horizontal plane without slipping, percentage of KE which is rotational is approximately (a)28(b) 3 (c) 72(d) 100

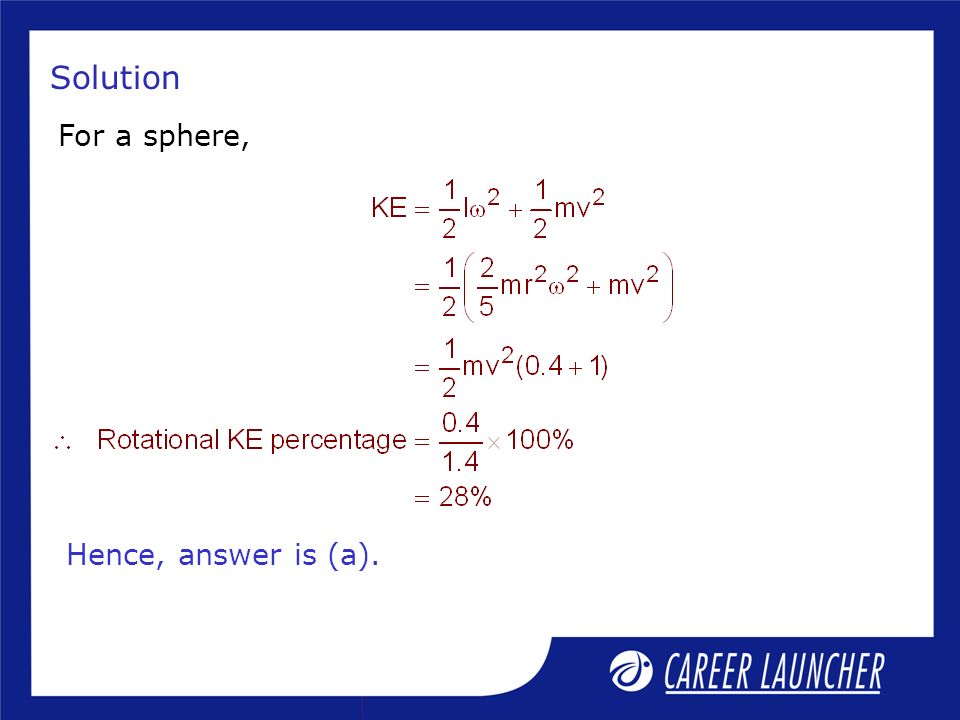

16 Solution For a sphere, Hence, answer is (a).

17 Class Exercise - 3 A hoop of radius r rolls over a horizontal plane with constant velocity v without slipping. The velocity of any point t seconds after it passes the top position is

18 Solution is constant. Speed at B = v’

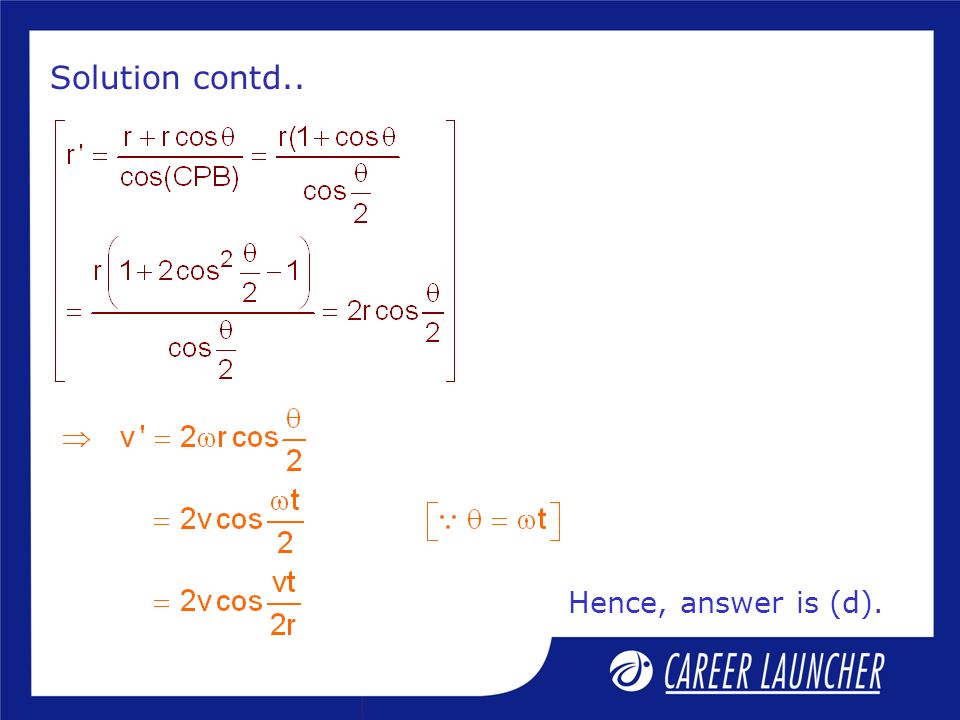

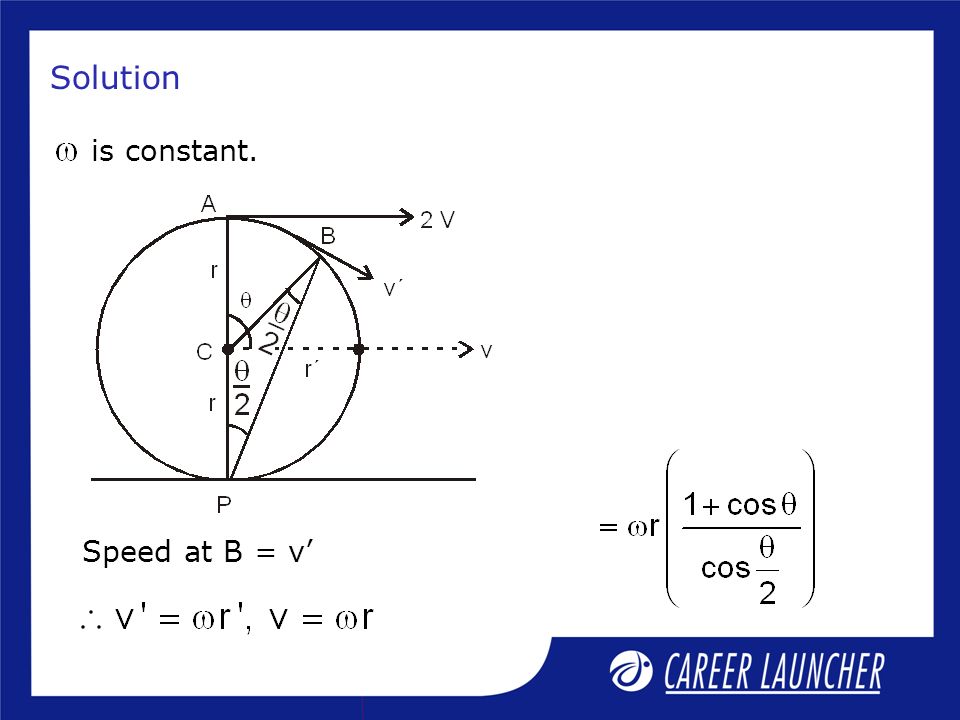

19 Solution contd.. Hence, answer is (d).

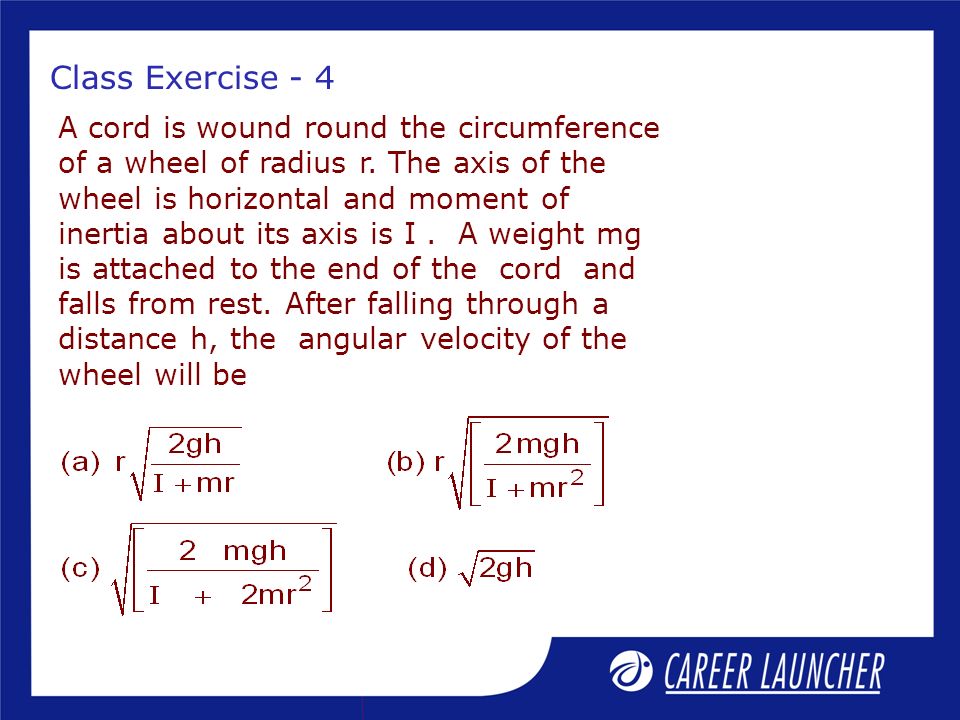

20 Class Exercise - 4 A cord is wound round the circumference of a wheel of radius r. The axis of the wheel is horizontal and moment of inertia about its axis is I. A weight mg is attached to the end of the cord and falls from rest. After falling through a distance h, the angular velocity of the wheel will be

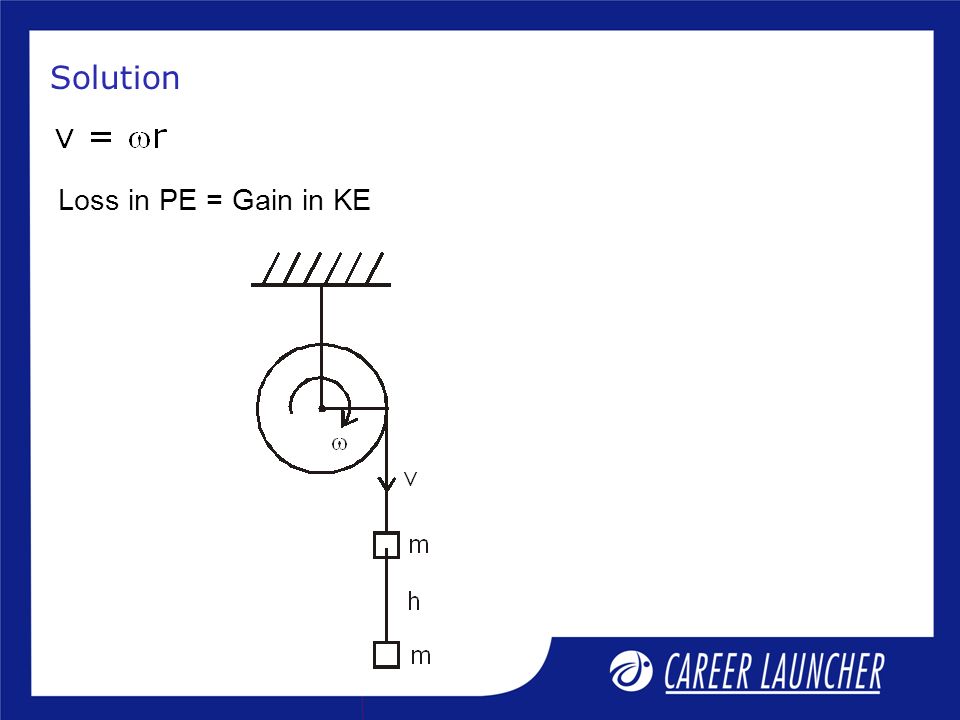

21 Solution Loss in PE = Gain in KE

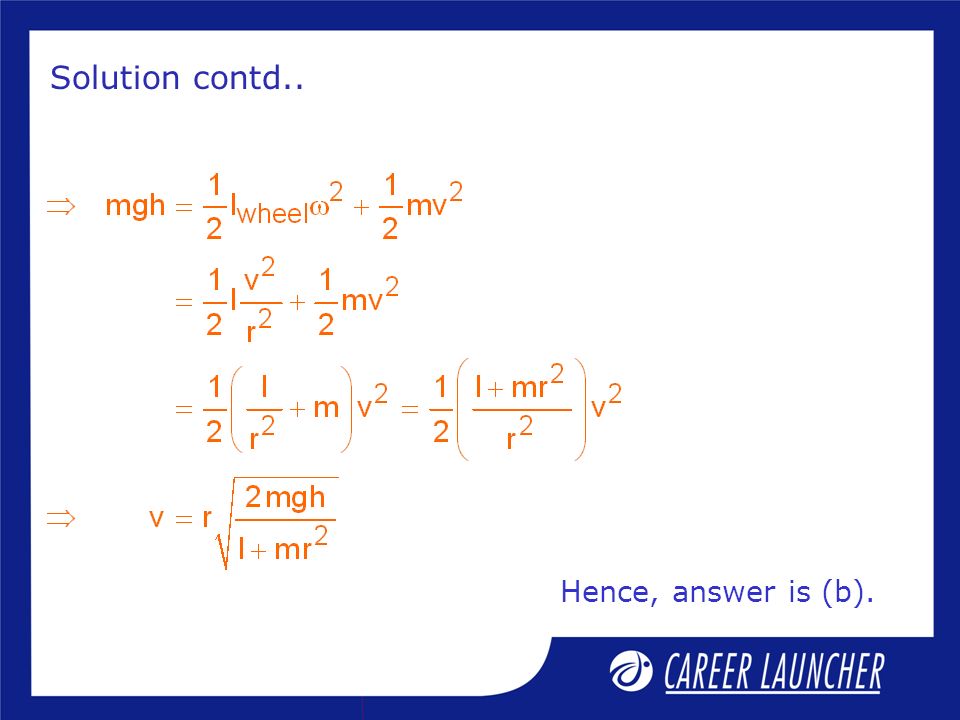

22 Solution contd.. Hence, answer is (b).

23 Class Exercise - 5 A mass M is supported by a massless string wound round a uniform cylinder of mass M and radius R. On releasing the system from rest, the acceleration of mass M is (a)g(b) (c) (d) depends on R

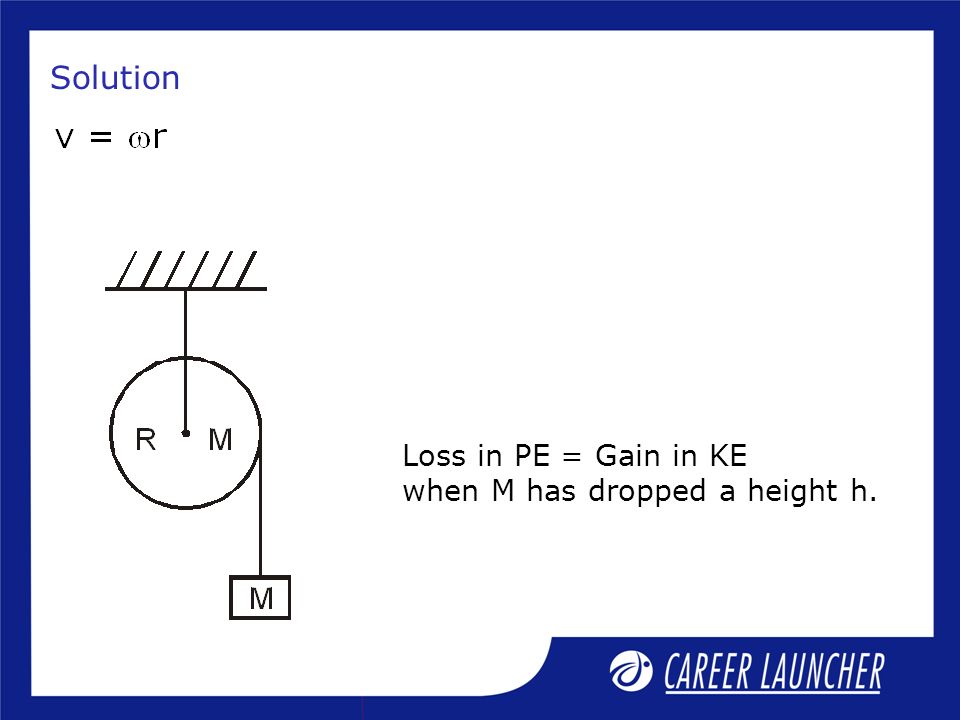

24 Solution Loss in PE = Gain in KE when M has dropped a height h.

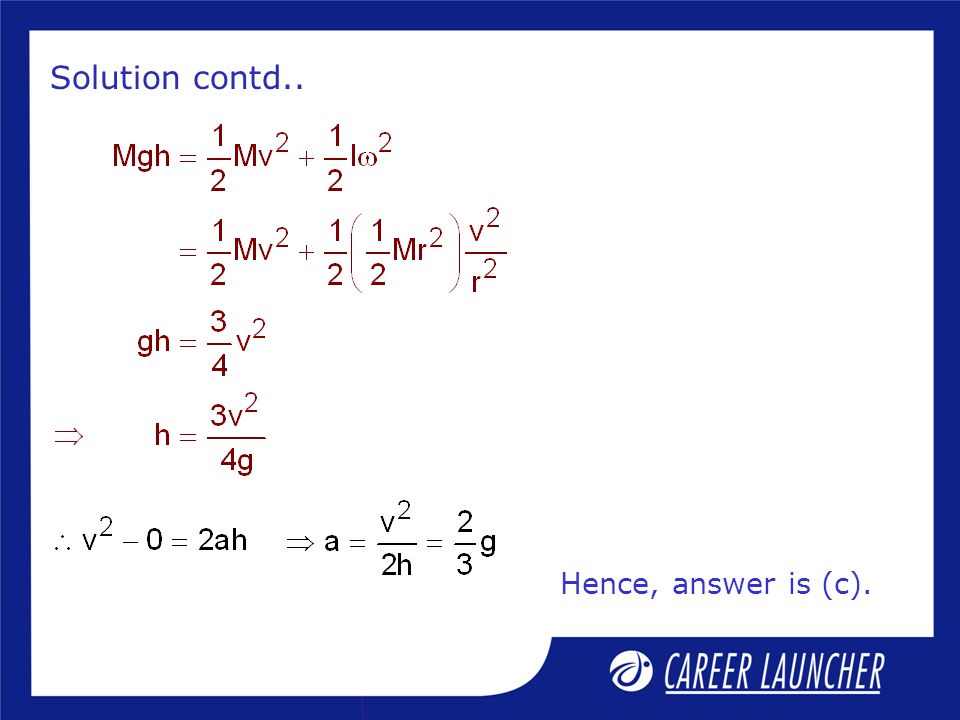

25 Solution contd.. Hence, answer is (c).

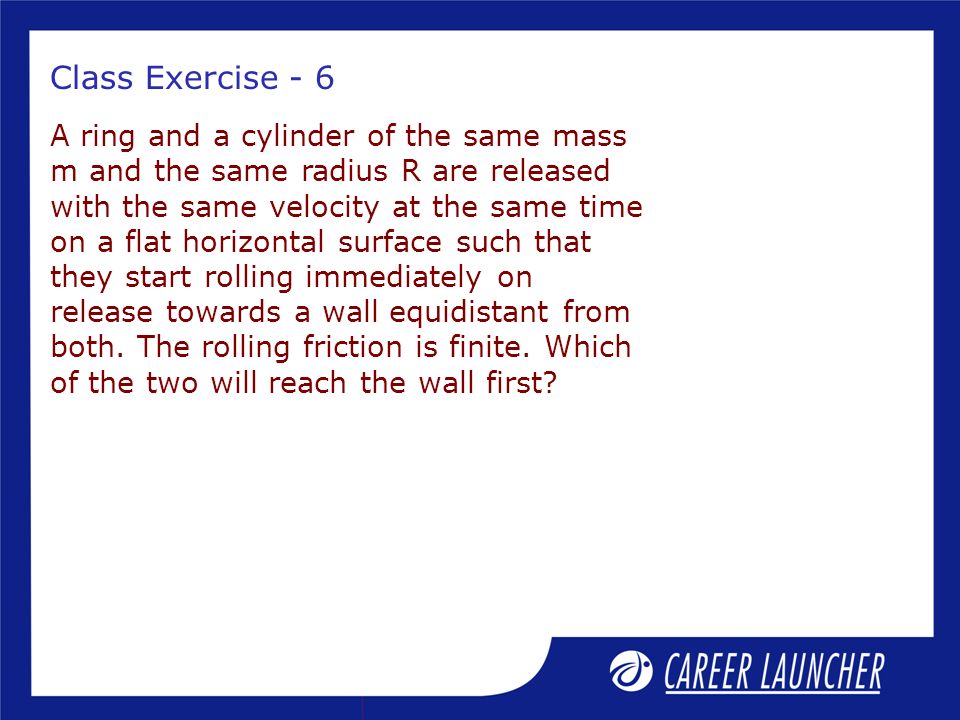

26 Class Exercise - 6 A ring and a cylinder of the same mass m and the same radius R are released with the same velocity at the same time on a flat horizontal surface such that they start rolling immediately on release towards a wall equidistant from both. The rolling friction is finite. Which of the two will reach the wall first?

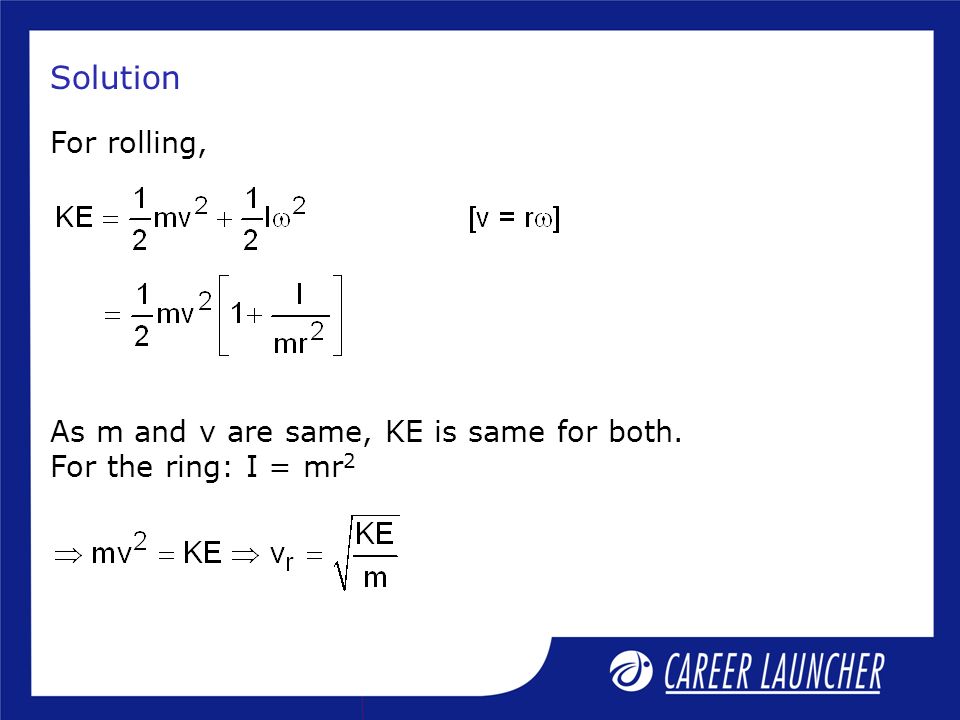

27 Solution For rolling, As m and v are same, KE is same for both. For the ring: I = mr 2

28 Solution contd.. So the cylinder will reach first.

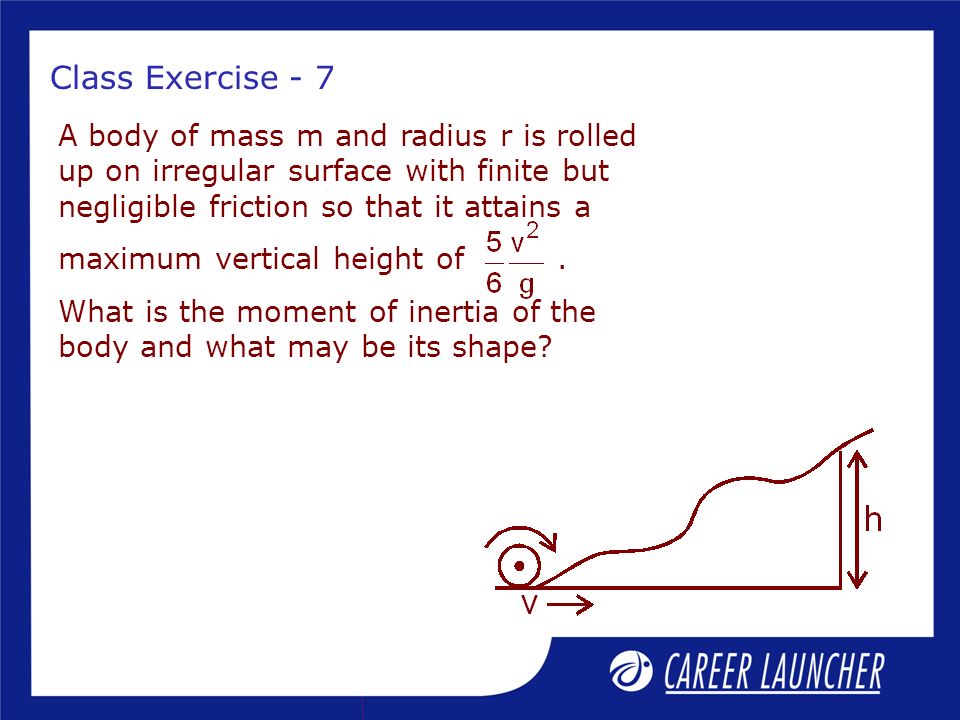

29 Class Exercise - 7 A body of mass m and radius r is rolled up on irregular surface with finite but negligible friction so that it attains a maximum vertical height of. What is the moment of inertia of the body and what may be its shape?

30 Solution As friction is negligible, Loss in KE = Gain in PE The body is probably a hollow sphere.

31 Solution contd.. Hint/Formula:

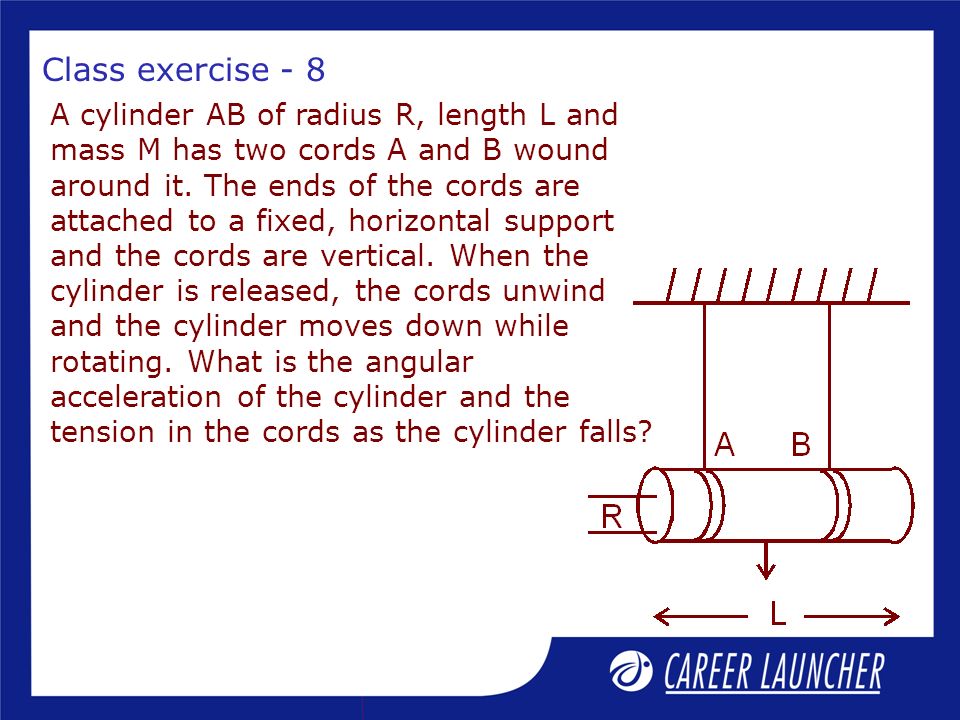

32 Class exercise - 8 A cylinder AB of radius R, length L and mass M has two cords A and B wound around it. The ends of the cords are attached to a fixed, horizontal support and the cords are vertical. When the cylinder is released, the cords unwind and the cylinder moves down while rotating. What is the angular acceleration of the cylinder and the tension in the cords as the cylinder falls?

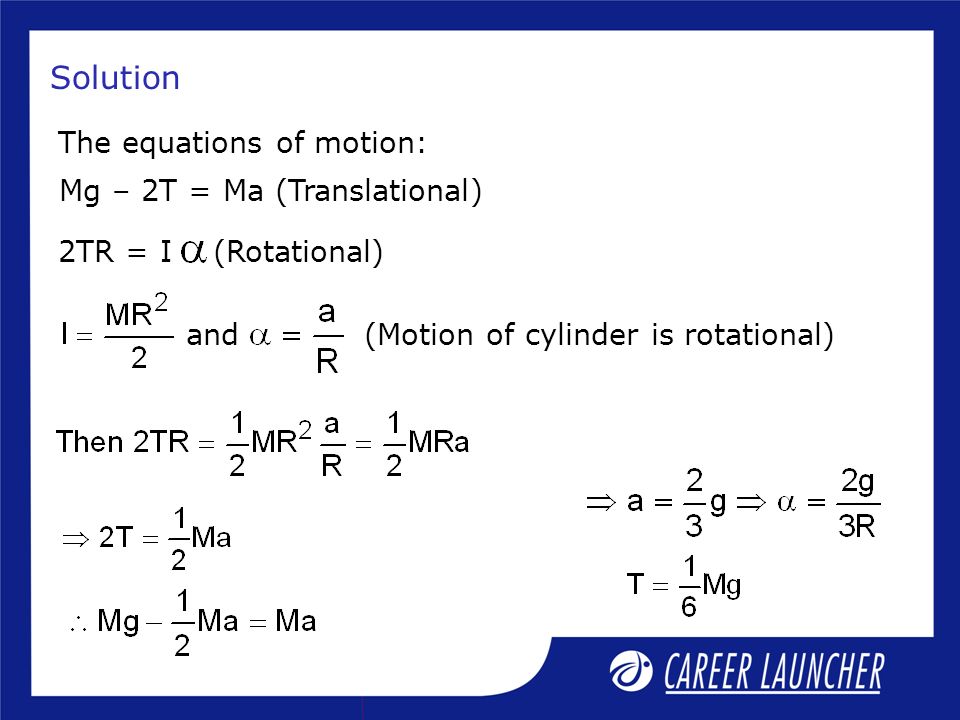

33 Solution The equations of motion: Mg – 2T = Ma (Translational) 2TR = I (Rotational) and (Motion of cylinder is rotational)

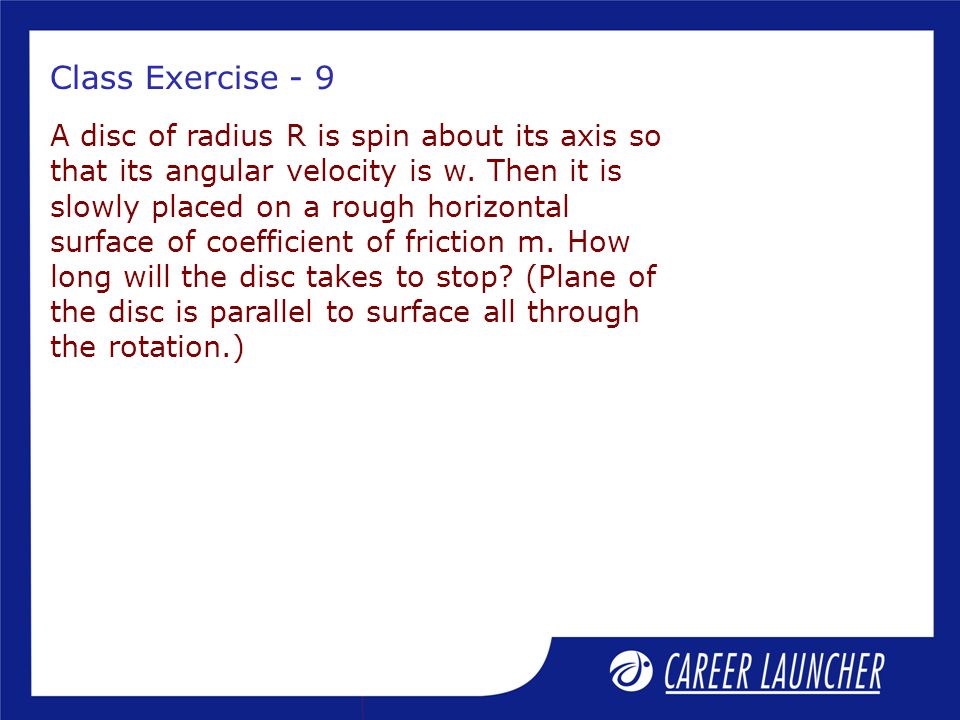

34 Class Exercise - 9 A disc of radius R is spin about its axis so that its angular velocity is w. Then it is slowly placed on a rough horizontal surface of coefficient of friction m. How long will the disc takes to stop? (Plane of the disc is parallel to surface all through the rotation.)

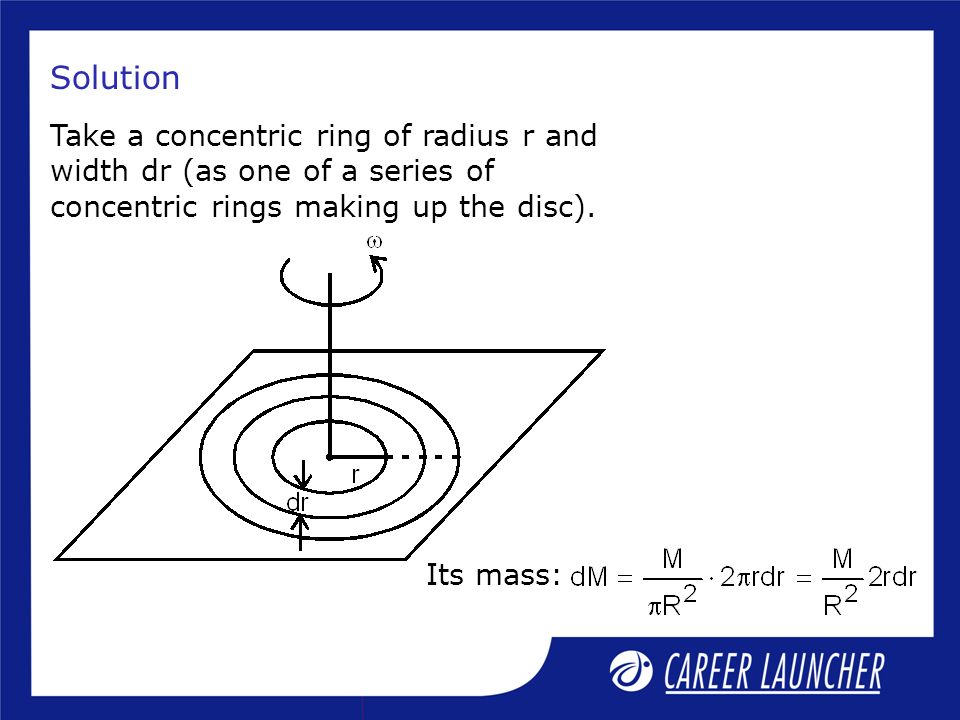

35 Solution Take a concentric ring of radius r and width dr (as one of a series of concentric rings making up the disc). Its mass:

36 Solution contd.. Torque on the ring due to friction: So total torque on the disc opposing the motion:

37 Thank you
