 # 5-1 5.1 Length and Dot Product in R n Notes: is called a unit vector. Notes: The length of a vector is also called its norm. Chapter 5 Inner Product Spaces.

## Presentation on theme: "5-1 5.1 Length and Dot Product in R n Notes: is called a unit vector. Notes: The length of a vector is also called its norm. Chapter 5 Inner Product Spaces."— Presentation transcript:

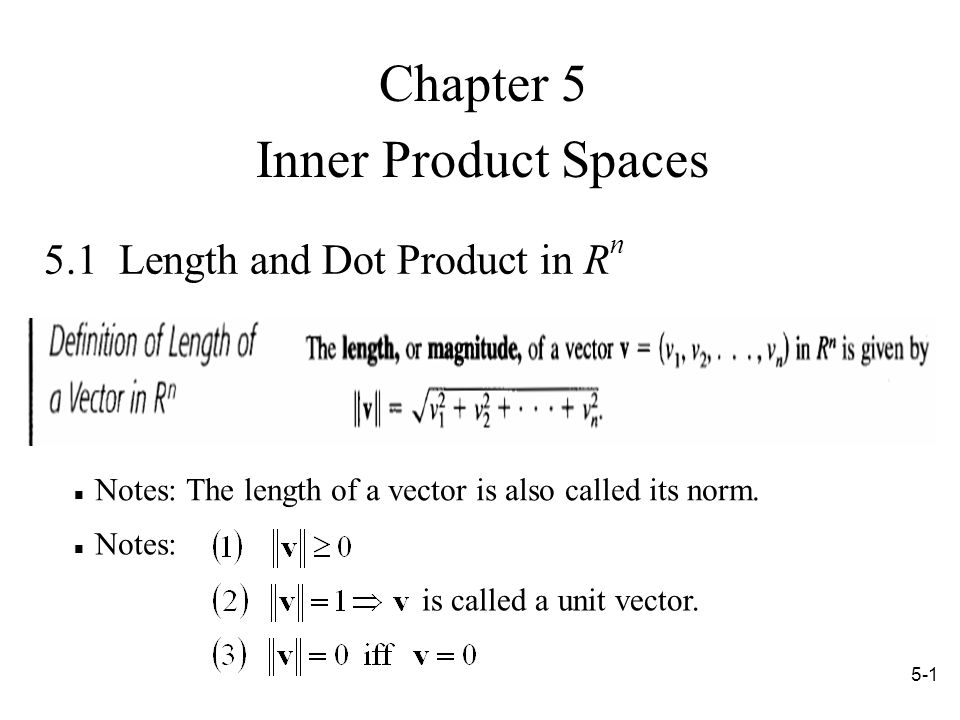

5-1 5.1 Length and Dot Product in R n Notes: is called a unit vector. Notes: The length of a vector is also called its norm. Chapter 5 Inner Product Spaces

5-2

5-3

5-4 A standard unit vector in R n : Ex: the standard unit vector in R 2 : the standard unit vector in R 3 : Notes: The process of finding the unit vector in the direction of v is called normalizing the vector v.

5-5 Notes: (Properties of distance) (1) (2) if and only if (3)

5-6

5-7 Euclidean n-space: R n was defined to be the set of all order n-tuples of real numbers. When R n is combined with the standard operations of vector addition, scalar multiplication, vector length, and the dot product, the resulting vector space is called Euclidean n-space.

5-8 Dot product and matrix multiplication: (A vector in R n is represented as an n×1 column matrix)

5-9 Note: The angle between the zero vector and another vector is not defined.

5-10 Note: The vector 0 is said to be orthogonal to every vector.

5-11 Note: Equality occurs in the triangle inequality if and only if the vectors u and v have the same direction.

5-12 5.2 Inner Product Spaces Note:

5-13 Note: A vector space V with an inner product is called an inner product space. Vector space: Inner product space:

5-14

5-15 Note:

5-16 Properties of norm: (1) (2) if and only if (3)

5-17 Properties of distance: (1) (2) if and only if (3)

5-18 Note: If v is a init vector, then. The formula for the orthogonal projection of u onto v takes the following simpler form.

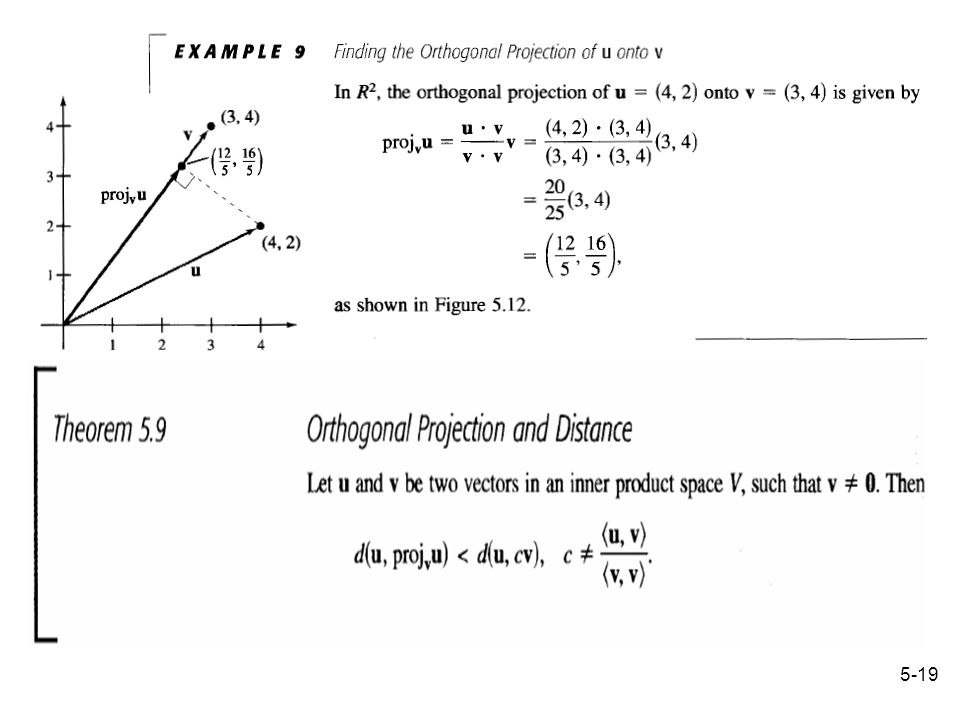

5-19

5-20 5.3 Orthonormal Bases: Gram-Schmidt Process Note: If S is a basis, then it is called an orthogonal basis or an orthonormal basis.

5-21

5-22

5-23

5-24

5-25

5-26 5.4 Mathematical Models and Least Squares Analysis

5-27 Let W be a subspace of an inner product space V. (a) A vector u in V is said to orthogonal to W, if u is orthogonal to every vector in W. (b) The set of all vectors in V that are orthogonal to W is called the orthogonal complement of W. (read “ perp”) Orthogonal complement of W:  Notes:

5-28 Notes:  Ex:

5-29

5-30

5-31

5-32 Notes: (1) Among all the scalar multiples of a vector u, the orthogonal projection of v onto u is the one that is closest to v. (2) Among all the vectors in the subspace W, the vector is the closest vector to v.

5-33 The four fundamental subspaces of the matrix A: N(A): nullspace of A N(A T ): nullspace of A T R(A): column space of A R(A T ): column space of A T

5-34

5-35 Least squares problem: (A system of linear equations) (1) When the system is consistent, we can use the Gaussian elimination with back-substitution to solve for x (2) When the system is inconsistent, how to find the “best possible” solution of the system. That is, the value of x for which the difference between Ax and b is small. Least squares solution: Given a system Ax = b of m linear equations in n unknowns, the least squares problem is to find a vector x in R n that minimizes with respect to the Euclidean inner product on R n. Such a vector is called a least squares solution of Ax = b.

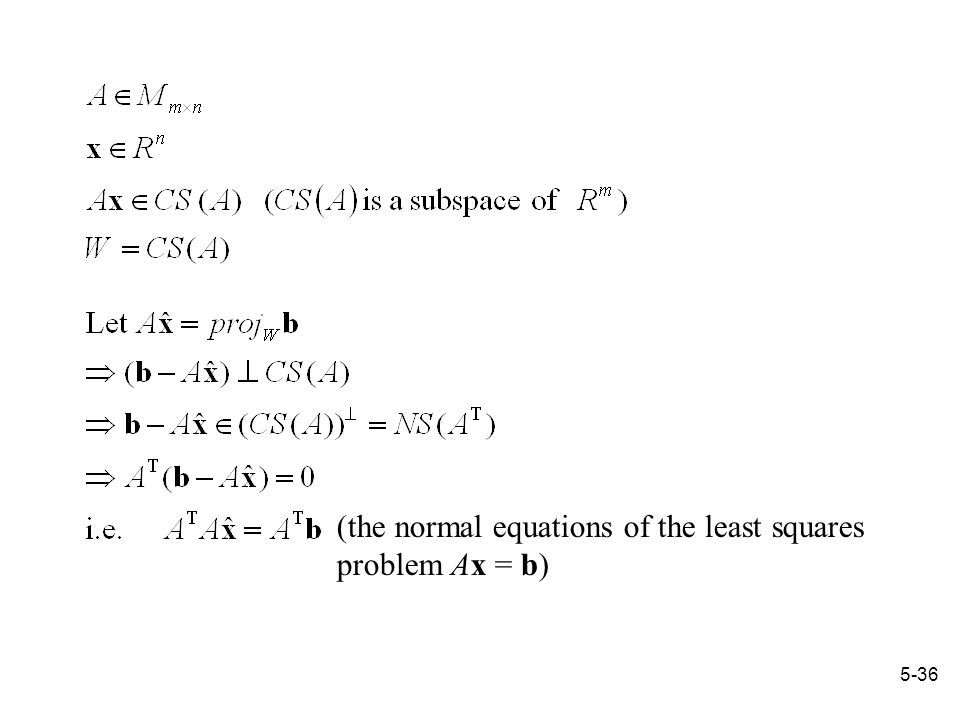

5-36 (the normal equations of the least squares problem Ax = b)

5-37 Note: The problem of finding the least squares solution of is equal to he problem of finding an exact solution of the associated normal system. Thm: For any linear system, the associated normal system is consistent, and all solutions of the normal system are least squares solution of Ax = b. Moreover, if W is the column space of A, and x is any least squares solution of Ax = b, then the orthogonal projection of b on W is

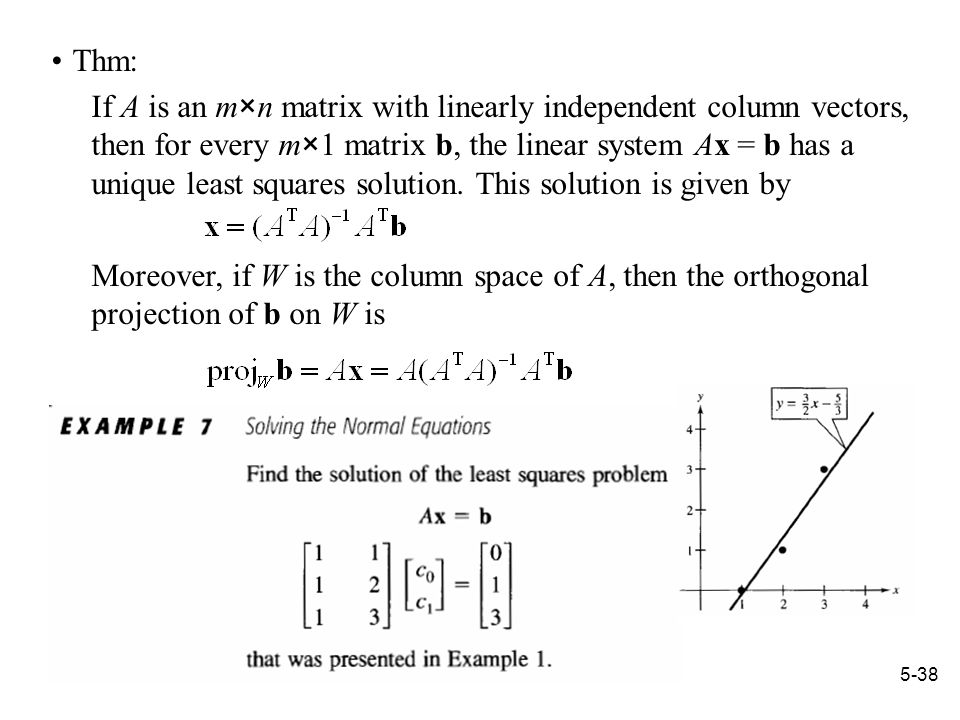

5-38 Thm: If A is an m×n matrix with linearly independent column vectors, then for every m×1 matrix b, the linear system Ax = b has a unique least squares solution. This solution is given by Moreover, if W is the column space of A, then the orthogonal projection of b on W is

5-39 5.5 Applications of Inner Product Spaces

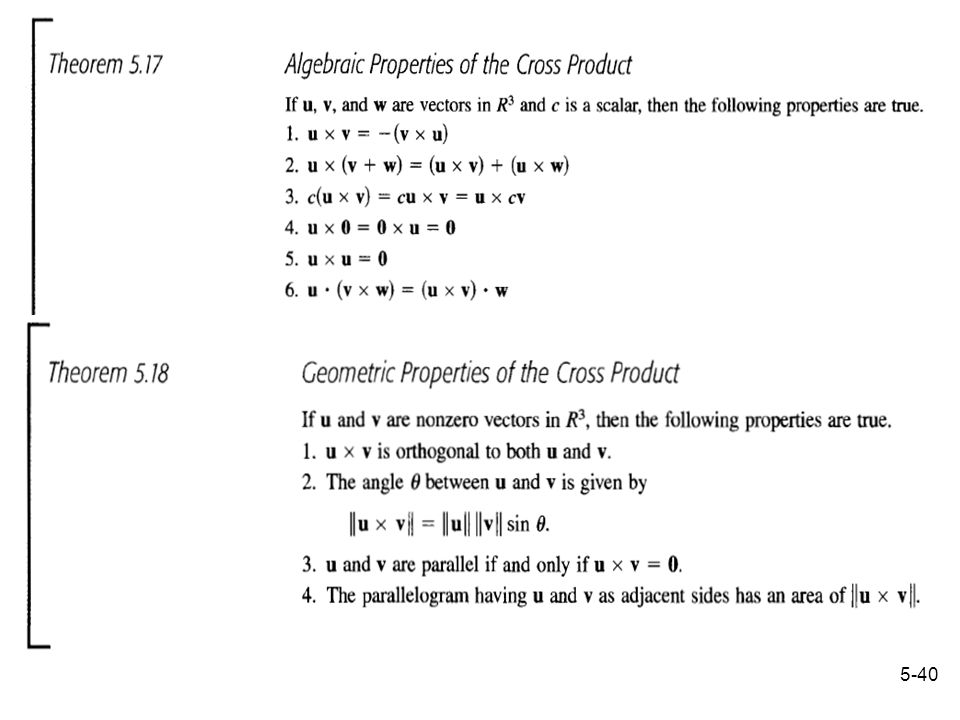

5-40

5-41 Note: C[a, b] is the inner product space of all continuous functions on [a, b].

5-42
