1. CGVision with BACnet server (only for ZB-S and CG2000!) 04-04-2011 7.2

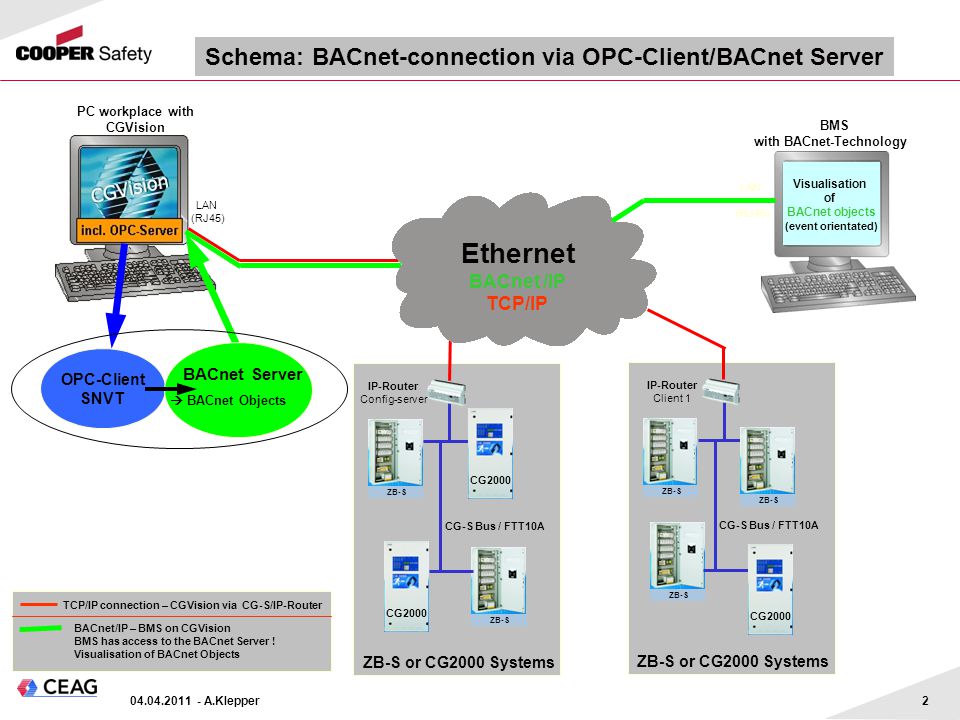

2. 04.04.2011 - A.Klepper2 LAN (RJ45) BMS with BACnet-Technology PC workplace with CGVision LAN (RJ45) Visualisation of BACnet objects (event orientated) IP-Router Config-server ZB-S CG-S Bus / FTT10A ZB-S or CG2000 Systems ZB-S IP-Router Client 1 ZB-S CG-S Bus / FTT10A ZB-S or CG2000 Systems ZB-S TCP/IP connection – CGVision via CG-S/IP-Router BACnet/IP – BMS on CGVision BMS has access to the BACnet Server ! Visualisation of BACnet Objects Schema: BACnet-connection via OPC-Client/BACnet Server OPC-Client SNVT BACnet Server  BACnet Objects Ethernet BACnet /IP TCP/IP CG2000

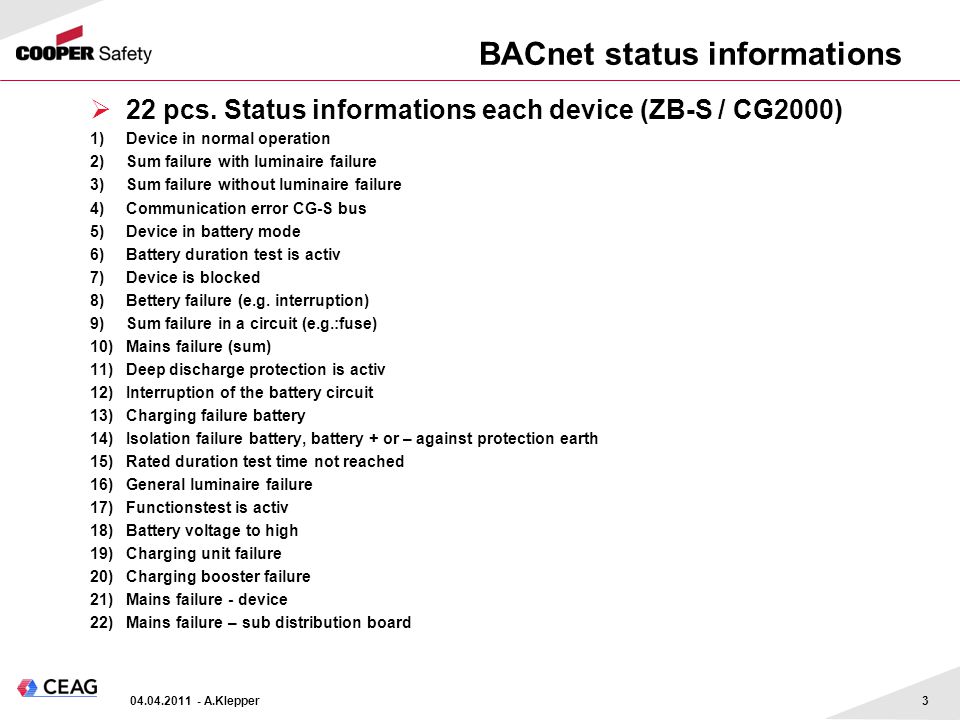

3. 04.04.2011 - A.Klepper3 BACnet status informations  22 pcs. Status informations each device (ZB-S / CG2000) 1) Device in normal operation 2) Sum failure with luminaire failure 3) Sum failure without luminaire failure 4) Communication error CG-S bus 5) Device in battery mode 6) Battery duration test is activ 7) Device is blocked 8) Bettery failure (e.g. interruption) 9) Sum failure in a circuit (e.g.:fuse) 10) Mains failure (sum) 11)Deep discharge protection is activ 12)Interruption of the battery circuit 13)Charging failure battery 14)Isolation failure battery, battery + or – against protection earth 15)Rated duration test time not reached 16)General luminaire failure 17)Functionstest is activ 18)Battery voltage to high 19)Charging unit failure 20)Charging booster failure 21)Mains failure - device 22)Mains failure – sub distribution board

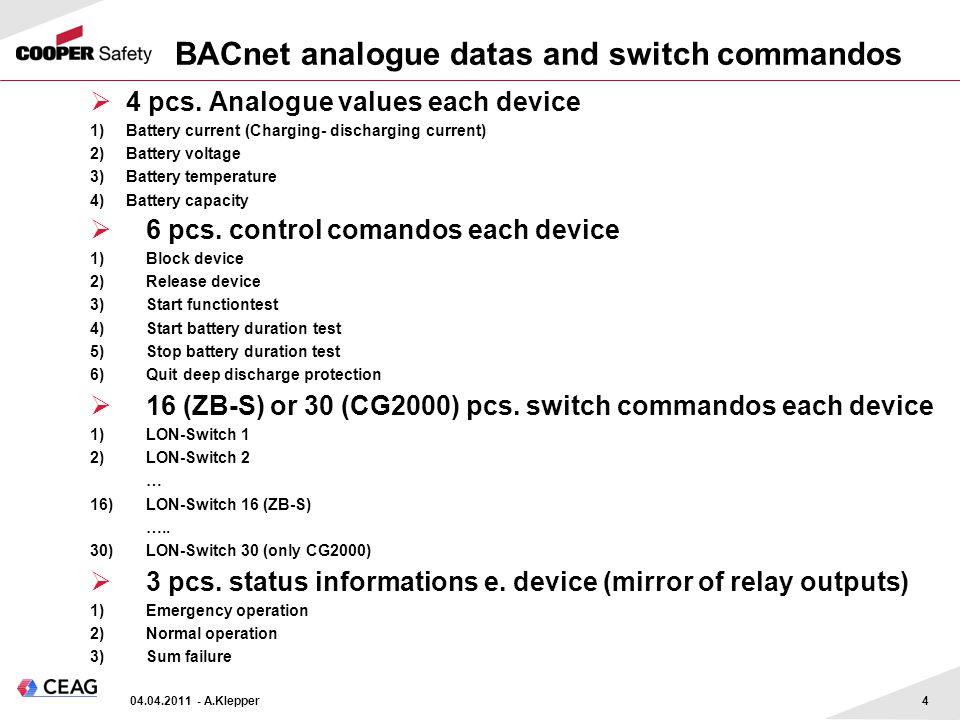

4. 04.04.2011 - A.Klepper4 BACnet analogue datas and switch commandos  4 pcs. Analogue values each device 1) Battery current (Charging- discharging current) 2) Battery voltage 3) Battery temperature 4) Battery capacity  16 (ZB-S) or 30 (CG2000) pcs. switch commandos each device 1)LON-Switch 1 2)LON-Switch 2 … 16)LON-Switch 16 (ZB-S) ….. 30)LON-Switch 30 (only CG2000)  3 pcs. status informations e. device (mirror of relay outputs) 1)Emergency operation 2)Normal operation 3)Sum failure  6 pcs. control comandos each device 1)Block device 2)Release device 3)Start functiontest 4)Start battery duration test 5)Stop battery duration test 6)Quit deep discharge protection

5. 04.04.2011 - A.Klepper5 Example of status informations via BACnet Screenshot of a BACnet OPC-Server:

6. 04.04.2011 - A.Klepper6 Example of switch commandos via BACnet Screenshot of a BACnet OPC-Server:
