Presentation on theme: "Ascending aorta R & L coronary artery Figure 20.9a, b Coronary Circulation: Veins."— Presentation transcript:

1

2

3 Ascending aorta R & L coronary artery

4 Figure 20.9a, b Coronary Circulation: Veins

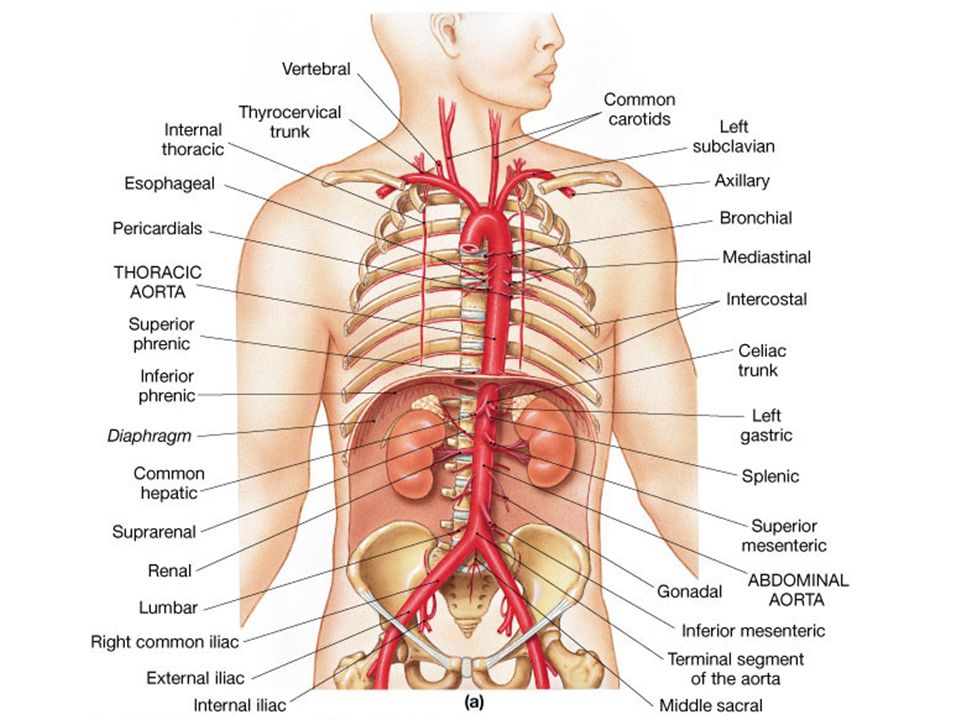

5 Thoracic aorta Intercostals aa. Bronchial aa. Esophageal aa.

6 Abdominal Aorta & Branches  Continuation of thoracic aorta  Begins T12 where it pierces the diaphragm  Ends L4 where divides into common iliacs  Situated on posterior abdominal wall, left of midline

7 Subphrenic T12 Celiac trunk 1.L. gastric a. 2.Splenic a. 3.Common hepatic a. Superior mesenteric a. Renal aa. (R. & L.) Gonadal aa. (R. & L.) –Ovarian aa. –Testicular aa. Lumbar aa. Inferior mesenteric a. Common iliac aa. (R. & L.) –Internal iliac a. –External iliac a

8 Figure 18.21c

9

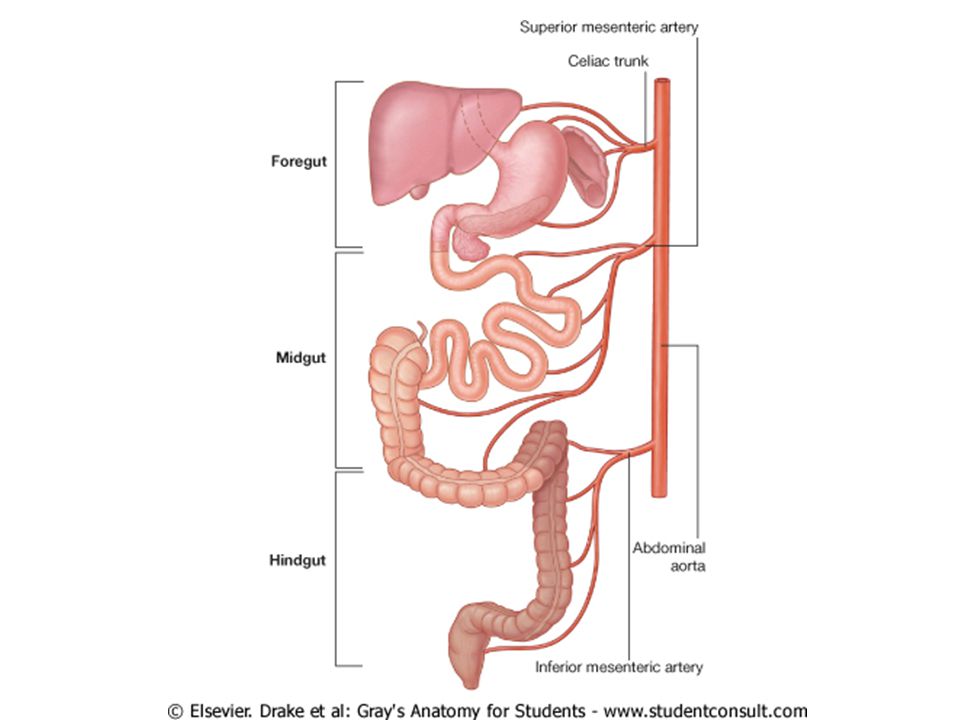

10 Superior mesenteric Inferior mesenteric

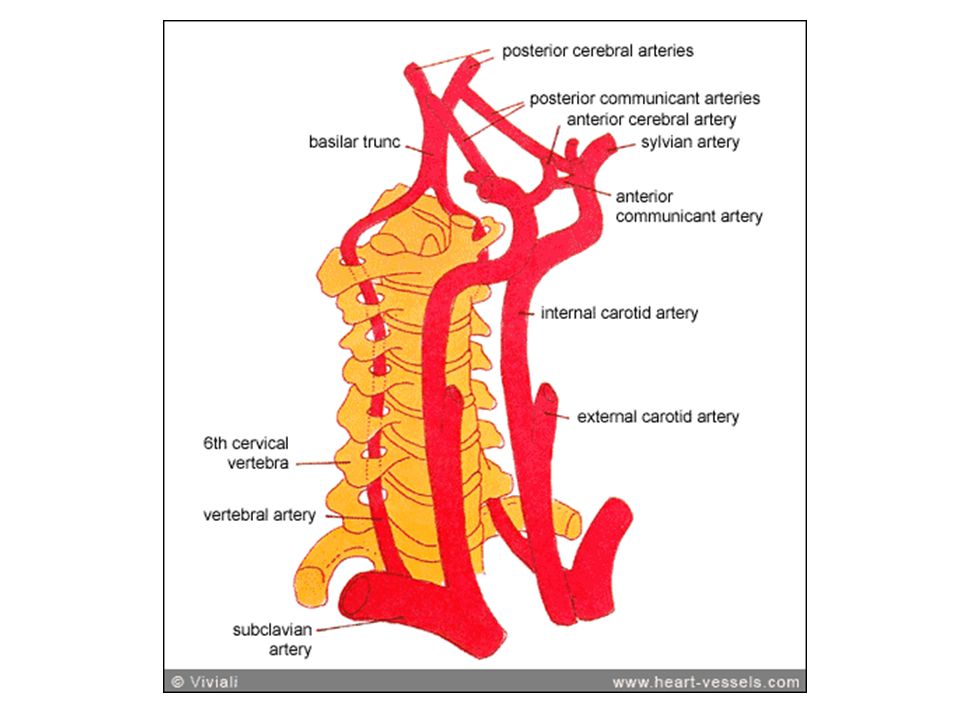

11 Arteries to the Neck, Head, and Brain subclavian artery : –Vertebral artery –Thyrocervical arteries –Cerebral arterial circle (Circle of Willis)

12 subclavian artery : –Vertebral artery –Thyrocervical arteries –Cerebral arterial circle (Circle of Willis)

13 External carotid artery 1.Neck 2.Pharynx 3.Esophagus 4.Larynx 5.Mandible 6.face

14

15

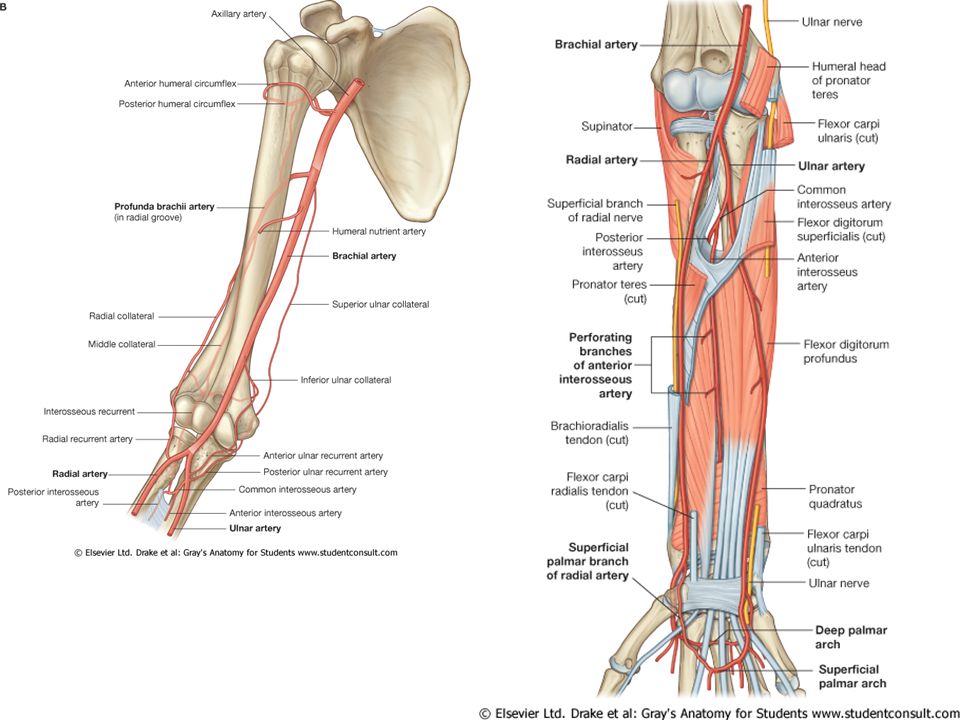

16 Arteries of Upper Limb and Shoulder

17

18 Lower limb arteries

19 Figure 18.22b, c

20 Arteries of Lower Limb

21 Gross Anatomy of Blood Vessels

22 Systemic Circulation: Veins Return blood from body to right atrium Major veins Coronary sinus (heart) Superior vena cava (head, neck, thorax, upper limbs) Inferior vena cava (abdomen, pelvis, lower limbs) Types of veins Superficial Deep sinuses

23 External jugular veins Internal jugular veins Brachiocephalic veins

24 SVC

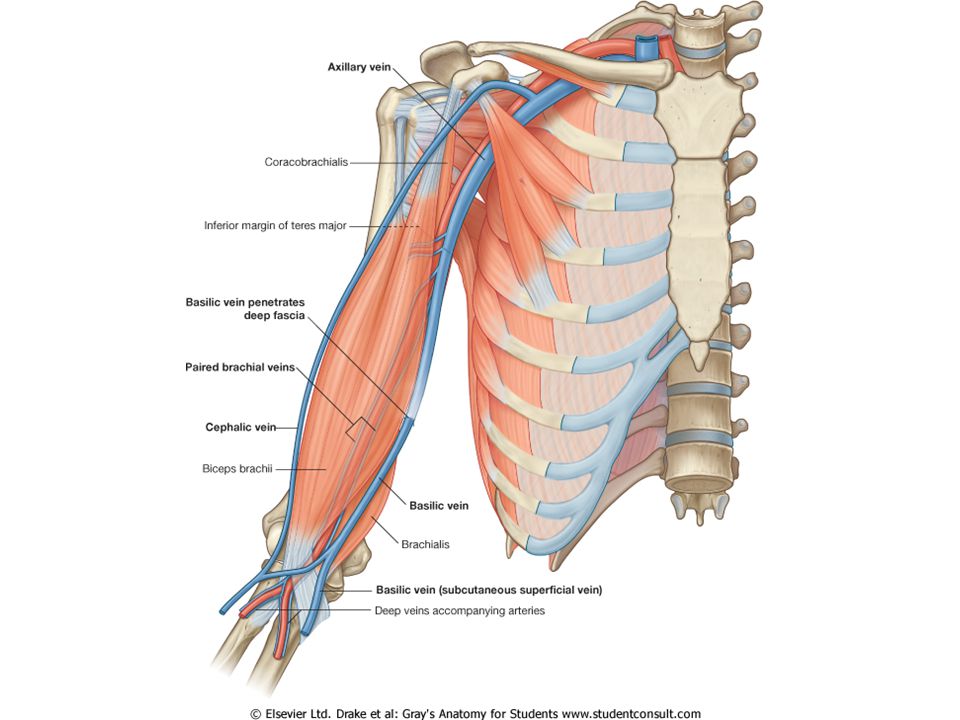

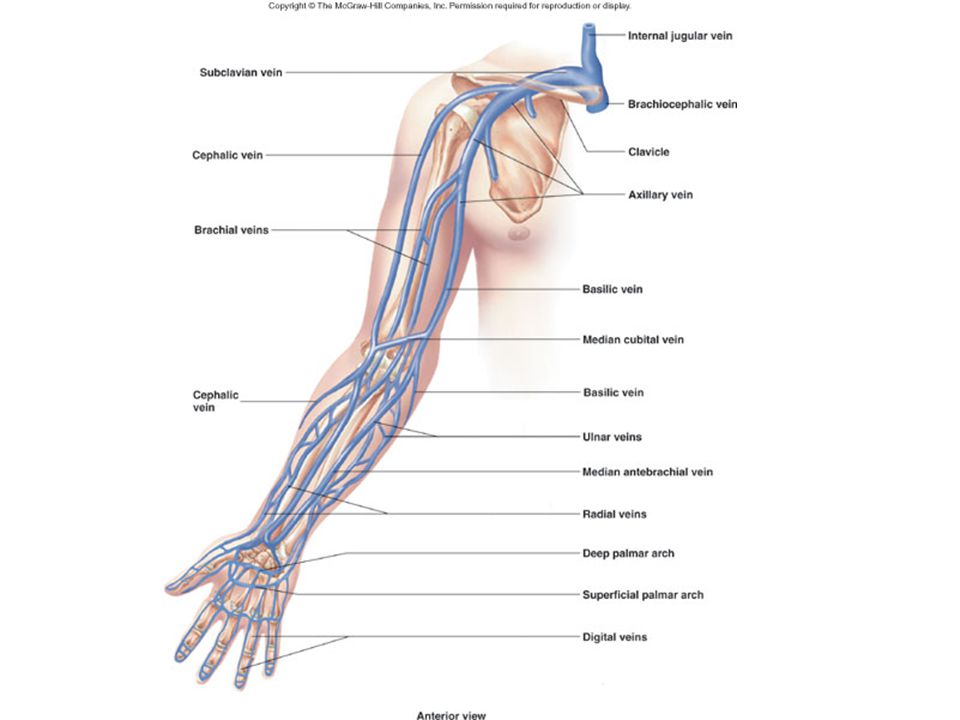

25 Veins from Upper Limb and Shoulder Deep veins »radial vein »ulnar vein »brachial vein »axillary vein Superficial network »basilic »cephalic »Median vein

26

27

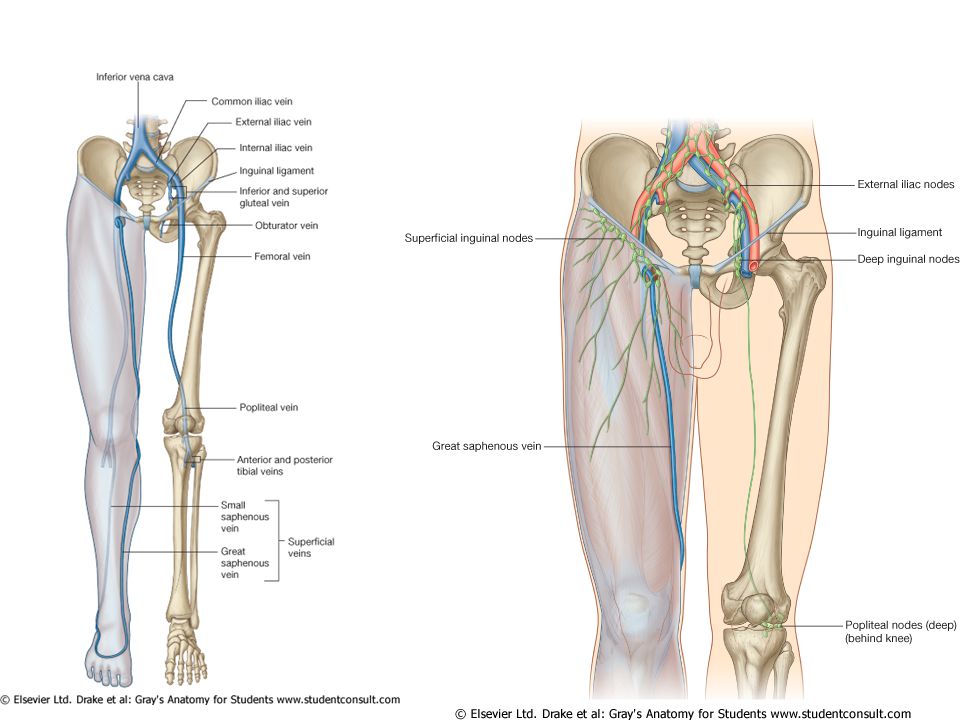

28 Veins from Lower Limb and Pelvis Deep veins: –anterior and posterior tibial veins –popliteal vein –femoral vein –external iliac vein Superficial veins: –Small saphenous –Great saphenous (longest vein in the body – medial side of leg and thigh) Pelvic region: internal iliac vein Internal iliac artery + External iliac artery= Common iliac arteries

29

30 Systemic veins (IVC) Veins derange to IVC 1- renal vein 2- lumbar vein 3- Adrenal vein 4- gonadal vein 5- Inferior phernic vein

31

32 The Vein Of Thorax The azygos veins The hemiazygos vein The accessory hemiazygos vein

33 Systemic veins (SVC)
