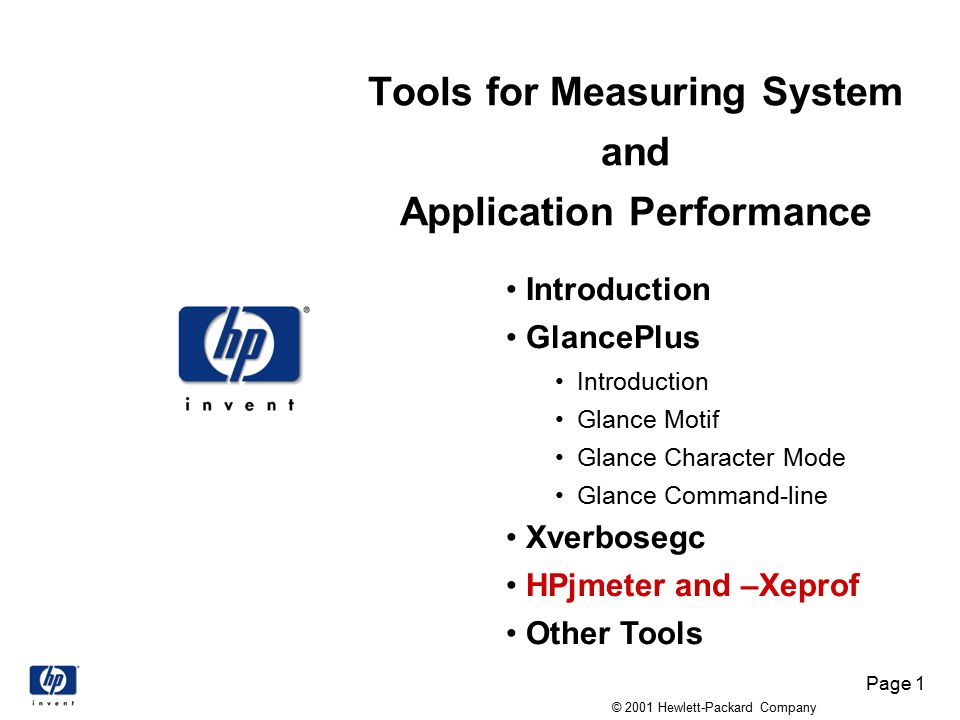

1. Page 1 © 2001 Hewlett-Packard Company Tools for Measuring System and Application Performance Introduction GlancePlus Introduction Glance Motif Glance Character Mode Glance Command-line Xverbosegc HPjmeter and –Xeprof Other Tools

2. Page 2 © 2001 Hewlett-Packard Company HPjmeter Understanding Your Java Application’s Performance

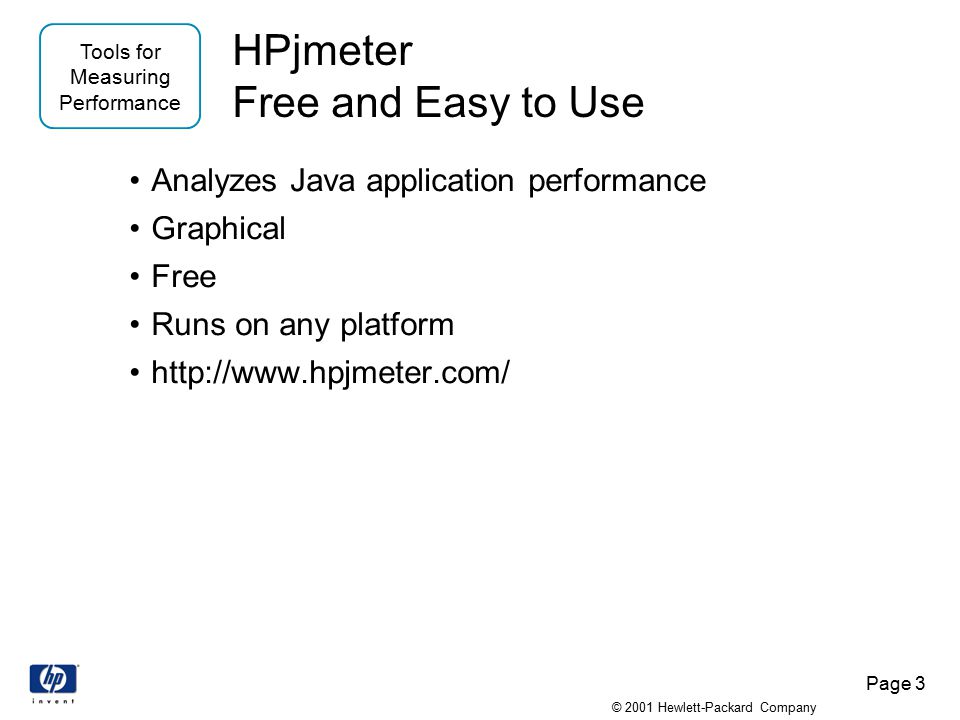

3. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 3 HPjmeter Free and Easy to Use Analyzes Java application performance Graphical Free Runs on any platform http://www.hpjmeter.com/

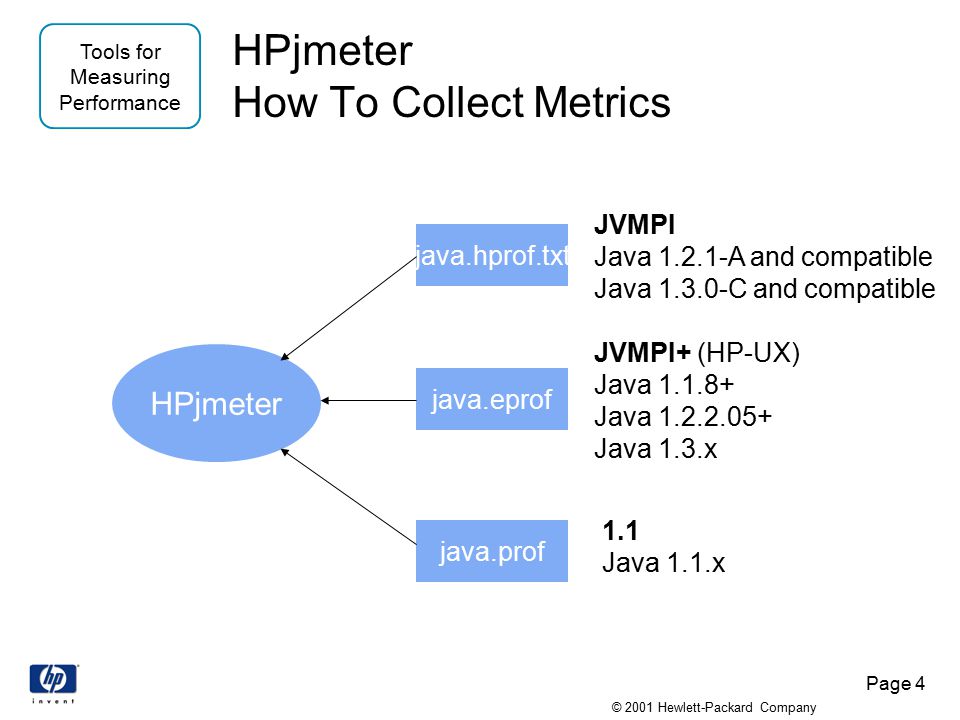

4. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 4 HPjmeter How To Collect Metrics HPjmeter java.eprof java.prof java.hprof.txt 1.1 Java 1.1.x JVMPI+ (HP-UX) Java 1.1.8+ Java 1.2.2.05+ Java 1.3.x JVMPI Java 1.2.1-A and compatible Java 1.3.0-C and compatible

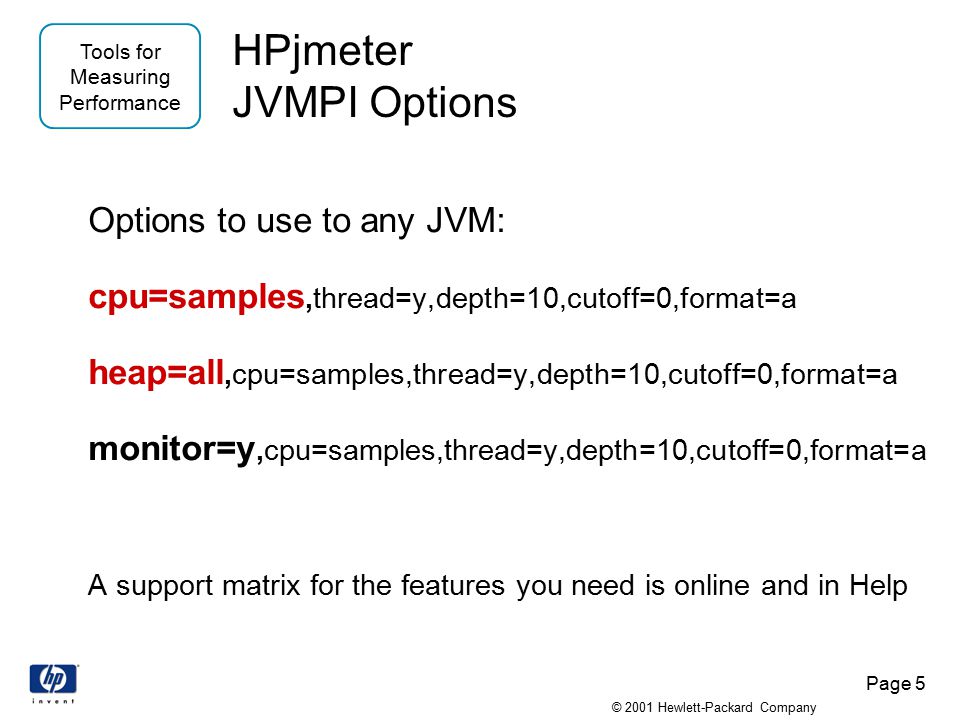

5. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 5 HPjmeter JVMPI Options Options to use to any JVM: cpu=samples,thread=y,depth=10,cutoff=0,format=a heap=all,cpu=samples,thread=y,depth=10,cutoff=0,format=a monitor=y,cpu=samples,thread=y,depth=10,cutoff=0,format=a A support matrix for the features you need is online and in Help

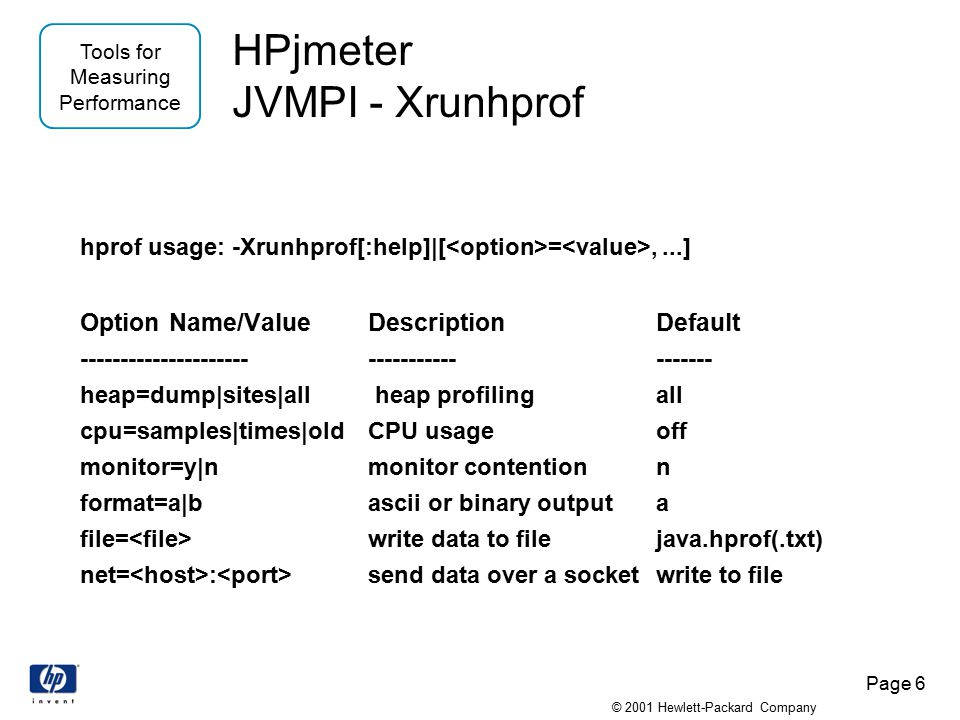

6. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 6 HPjmeter JVMPI - Xrunhprof hprof usage: -Xrunhprof[:help]|[ =,...] Option Name/Value Description Default --------------------- ----------- ------- heap=dump|sites|all heap profiling all cpu=samples|times|oldCPU usage off monitor=y|n monitor contention n format=a|b ascii or binary outputa file= write data to file java.hprof(.txt) net= : send data over a socketwrite to file

7. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 7 hprof usage: -Xrunhprof[:help]|[ =,...] Option Name and Value Description Default --------------------- ----------- ------- depth= stack trace depth 4 cutoff= output cutoff point 0.0001 lineno=y|n line number in traces? y thread=y|n thread in traces? n doe=y|n dump on exit? y Example: java -Xrunhprof:cpu=samples,file=log.txt,depth=3 FooClass HPjmeter JVMPI - Xrunhprof

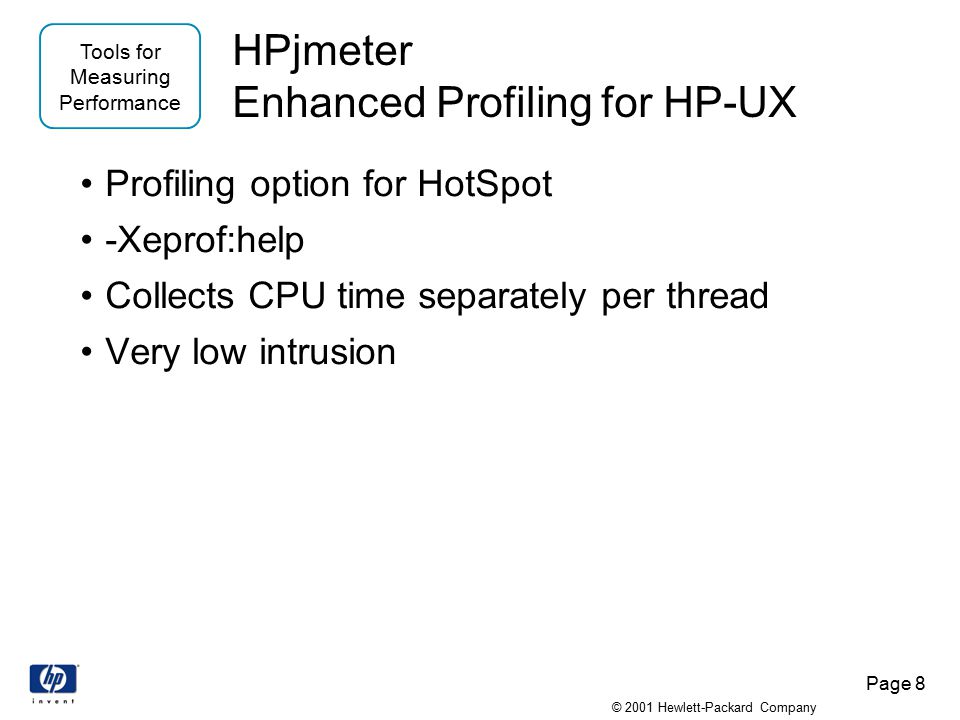

8. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 8 HPjmeter Enhanced Profiling for HP-UX Profiling option for HotSpot -Xeprof:help Collects CPU time separately per thread Very low intrusion

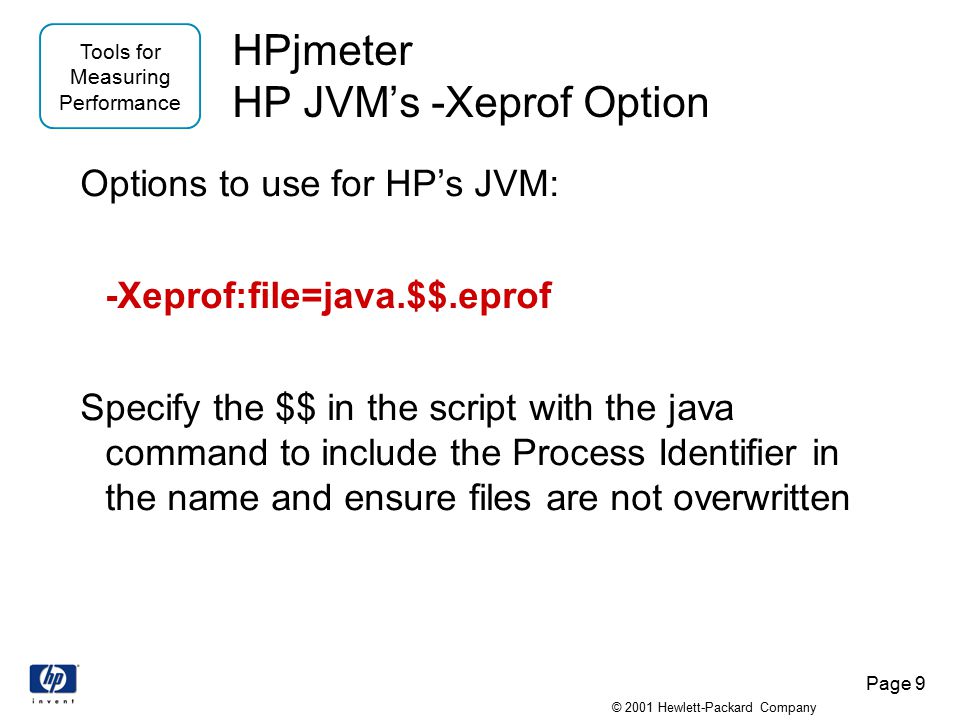

9. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 9 HPjmeter HP JVM’s -Xeprof Option Options to use for HP’s JVM: -Xeprof:file=java.$$.eprof Specify the $$ in the script with the java command to include the Process Identifier in the name and ensure files are not overwritten

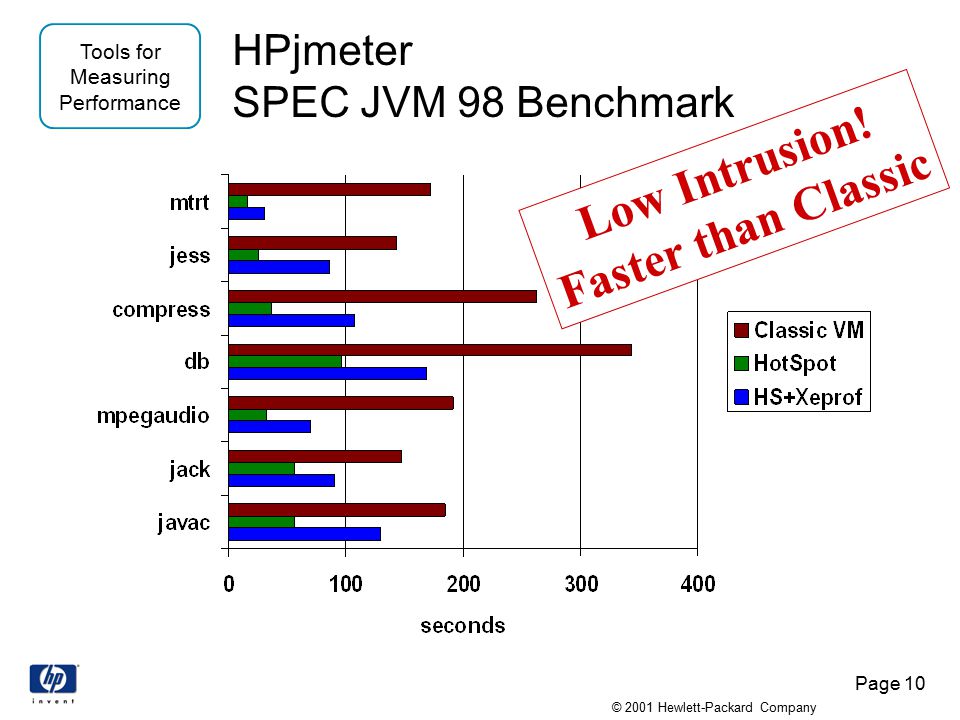

10. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 10 HPjmeter SPEC JVM 98 Benchmark Low Intrusion! Faster than Classic

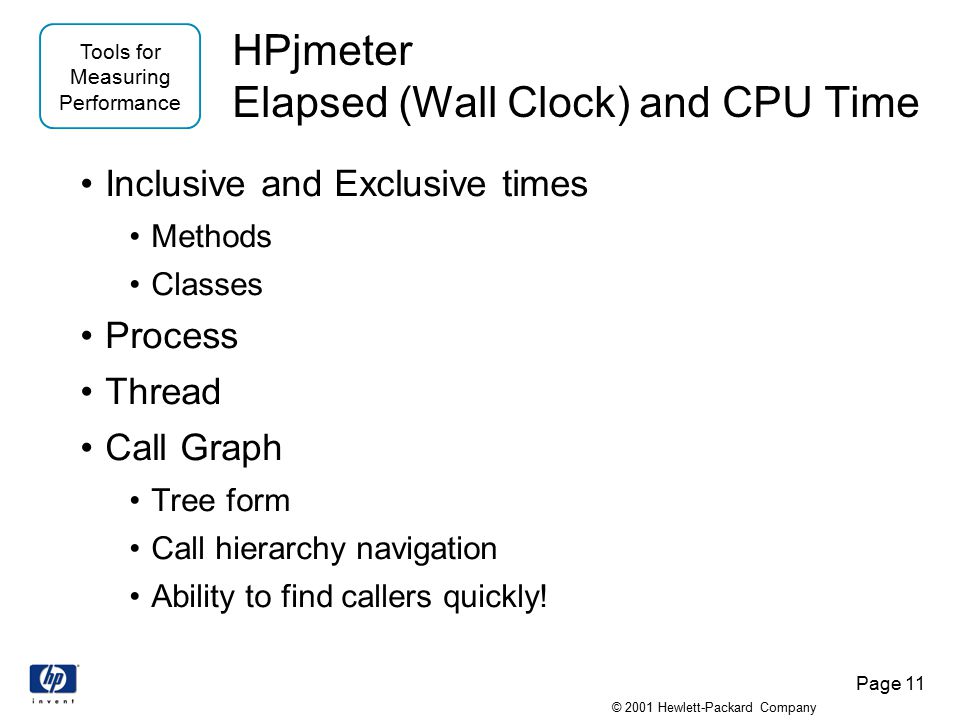

11. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 11 HPjmeter Elapsed (Wall Clock) and CPU Time Inclusive and Exclusive times Methods Classes Process Thread Call Graph Tree form Call hierarchy navigation Ability to find callers quickly!

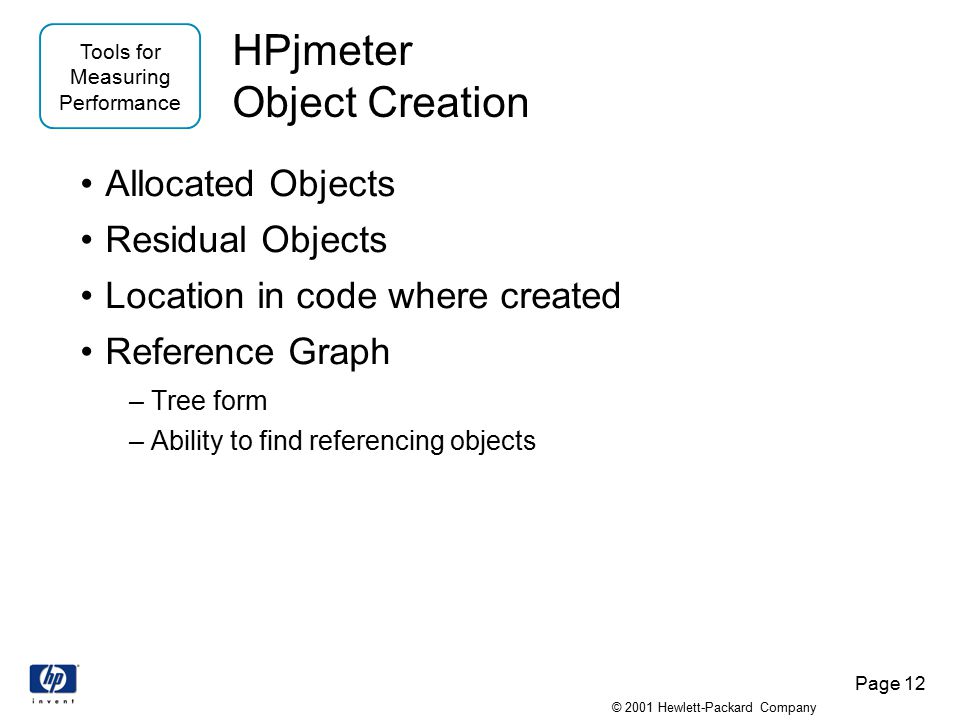

12. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 12 HPjmeter Object Creation Allocated Objects Residual Objects Location in code where created Reference Graph –Tree form –Ability to find referencing objects

13. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 13 HPjmeter HP JVM’s -Xeprof Option Options to use for HP’s JVM: -Xeprof:file=java.$$.eprof Specify the $$ in the script with the java command to include the Process Identifier in the name and ensure files are not overwritten

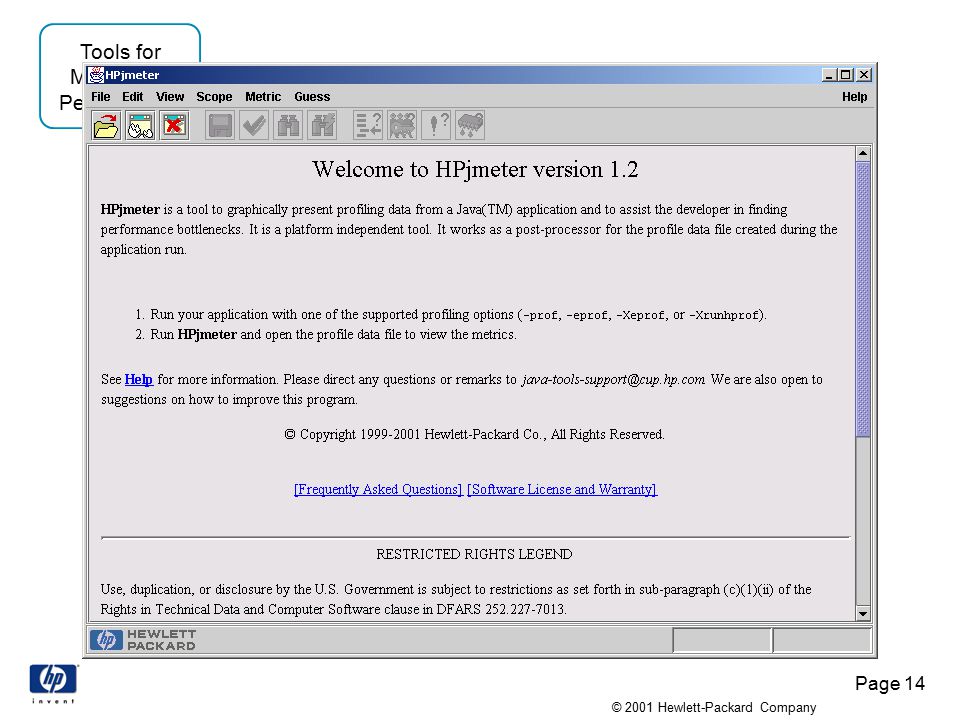

14. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 14

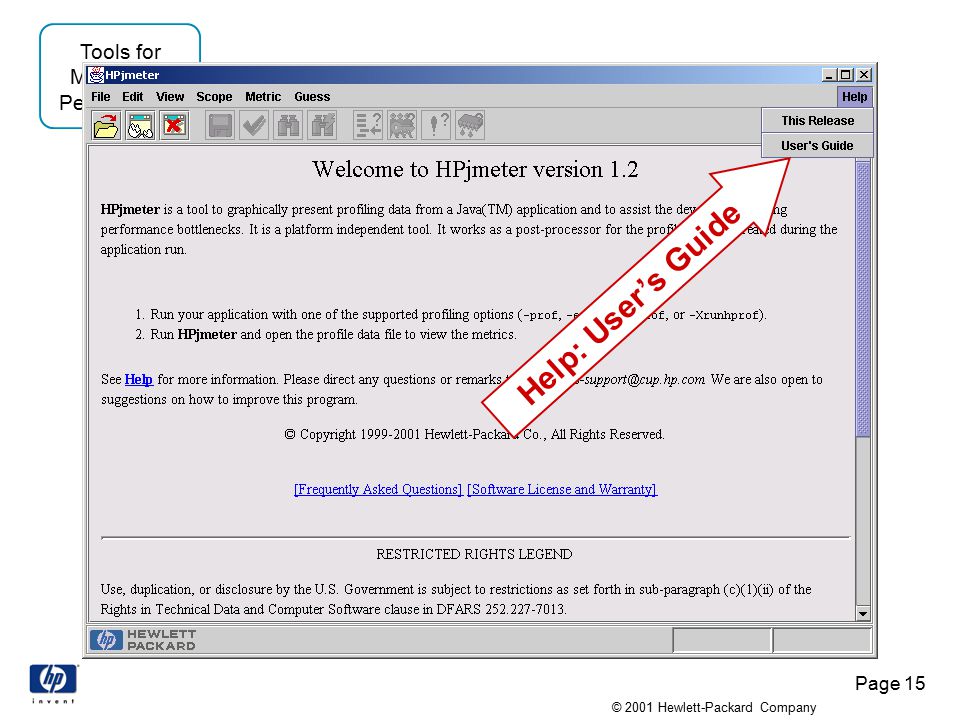

15. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 15 Help: User’s Guide

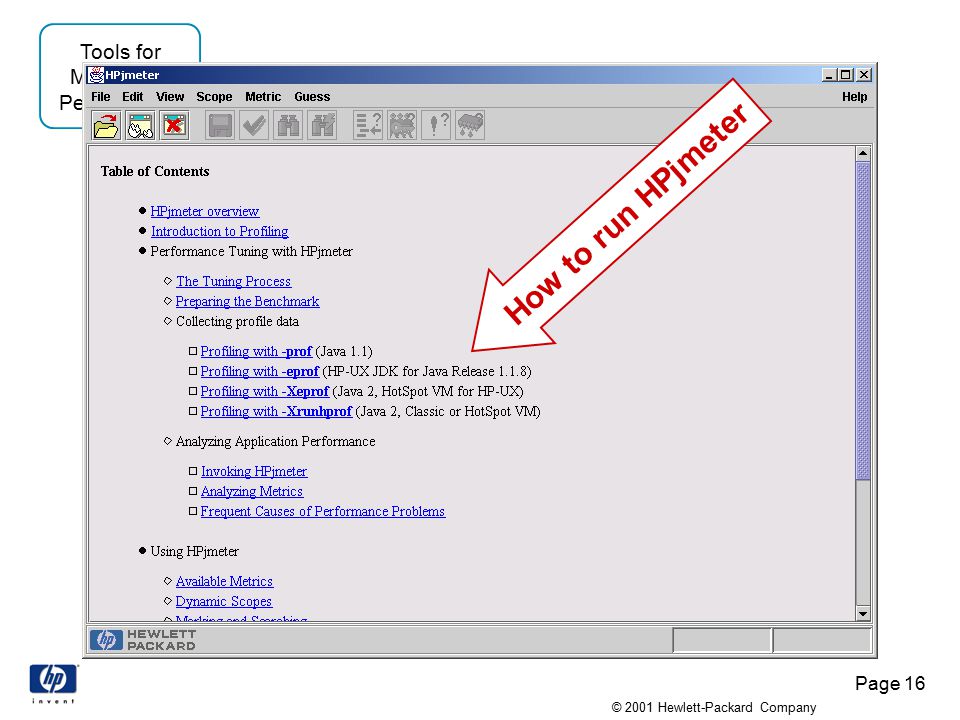

16. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 16 How to run HPjmeter

17. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 17 Measure Object Creation

18. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 18 File: Open

19. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 19

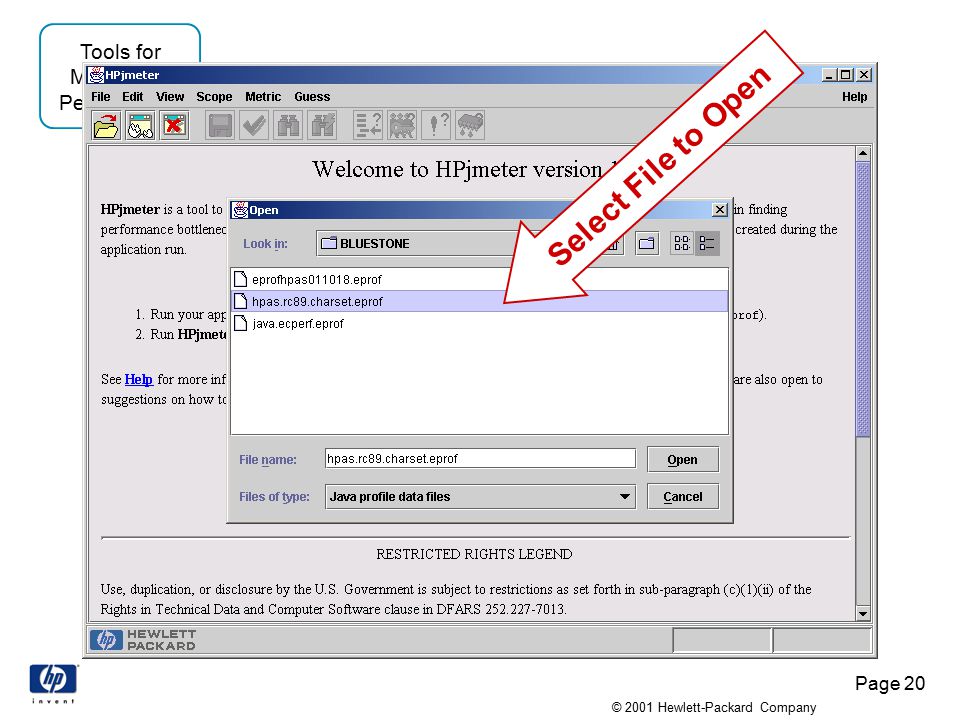

20. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 20 Select File to Open

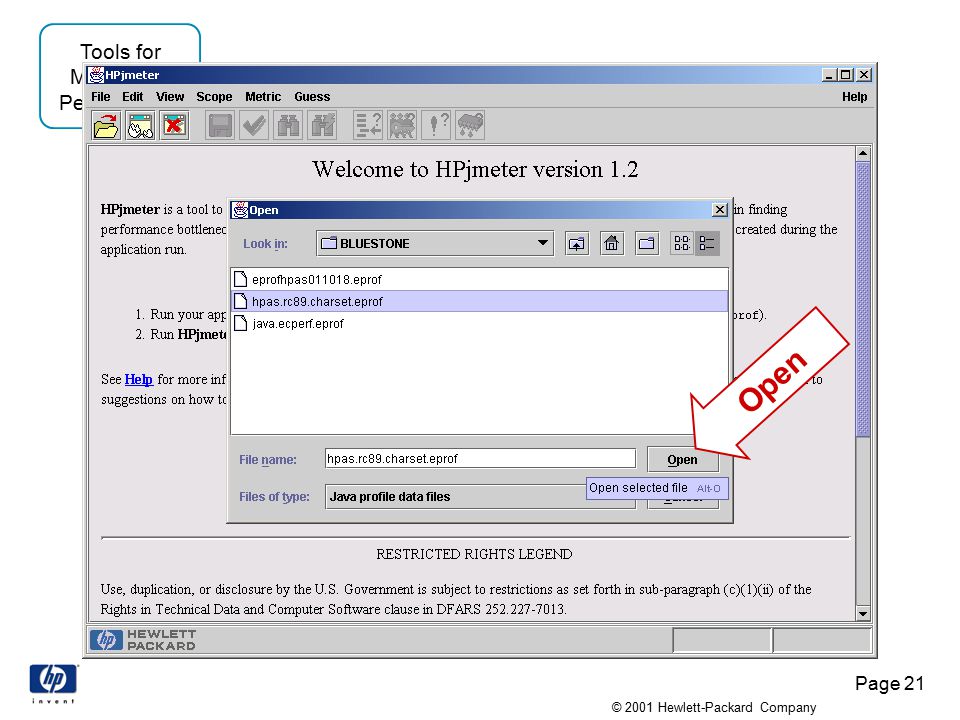

21. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 21 Open

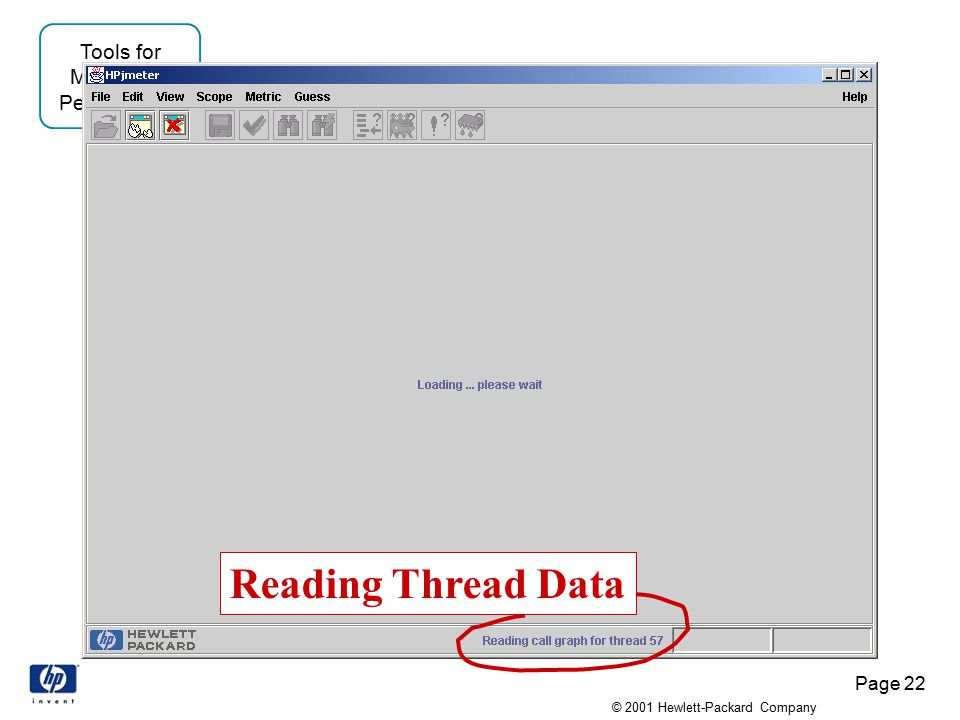

22. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 22 Reading Thread Data

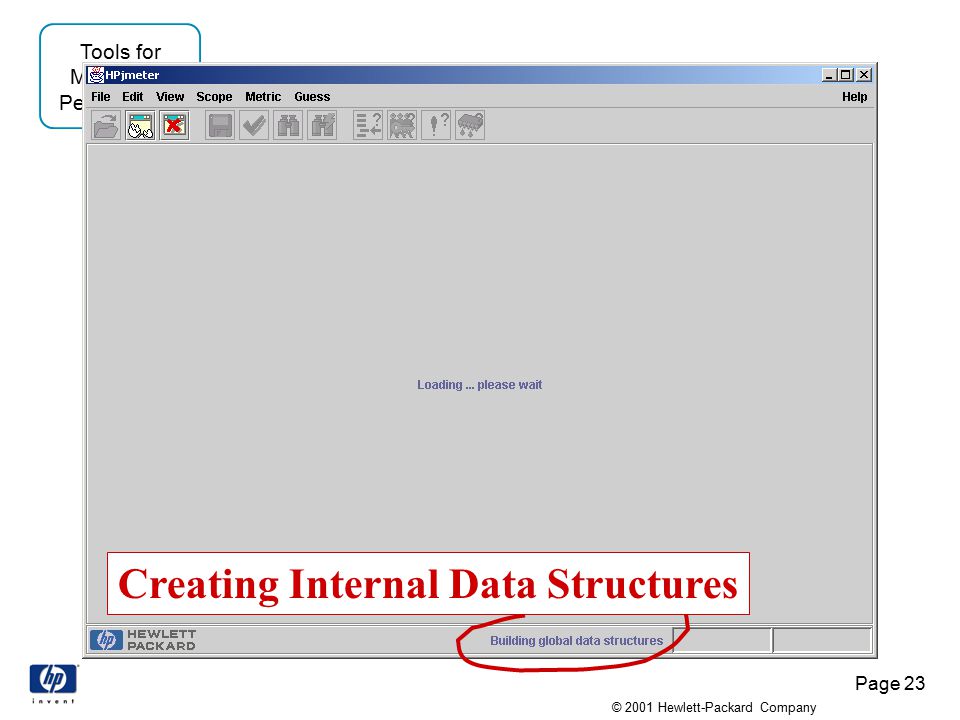

23. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 23 Creating Internal Data Structures

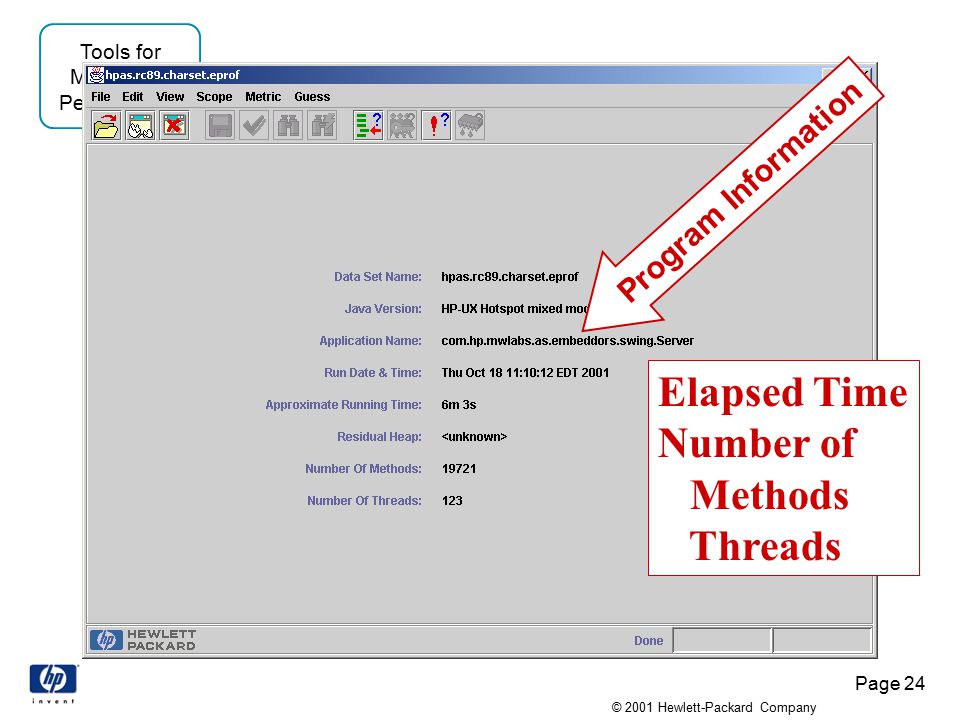

24. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 24 Program Information Elapsed Time Number of Methods Threads

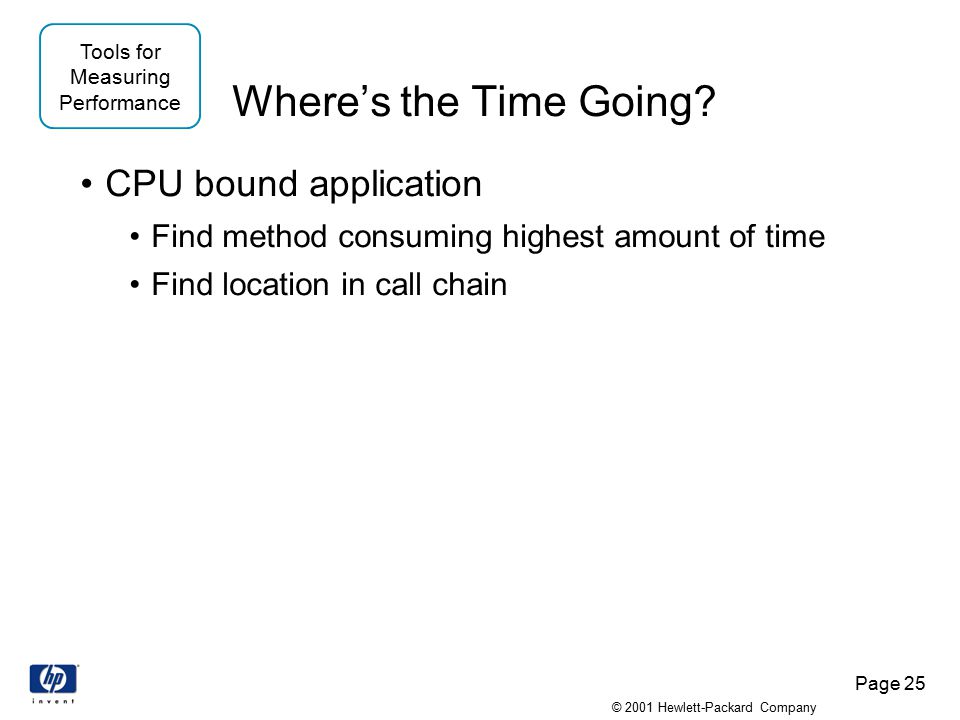

25. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 25 Where’s the Time Going? CPU bound application Find method consuming highest amount of time Find location in call chain

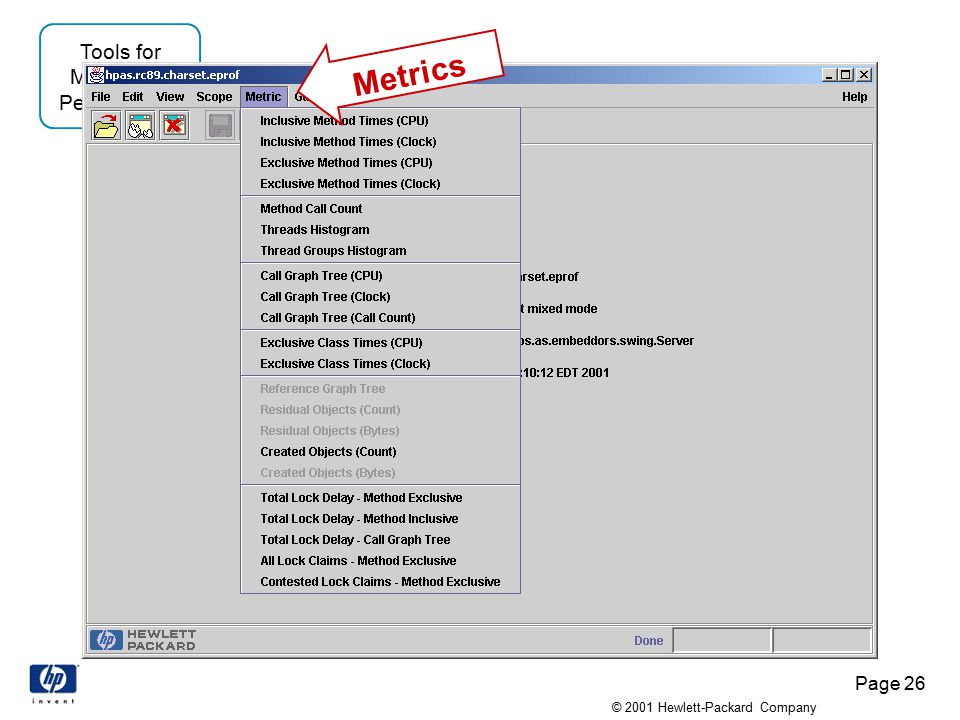

26. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 26 Metrics

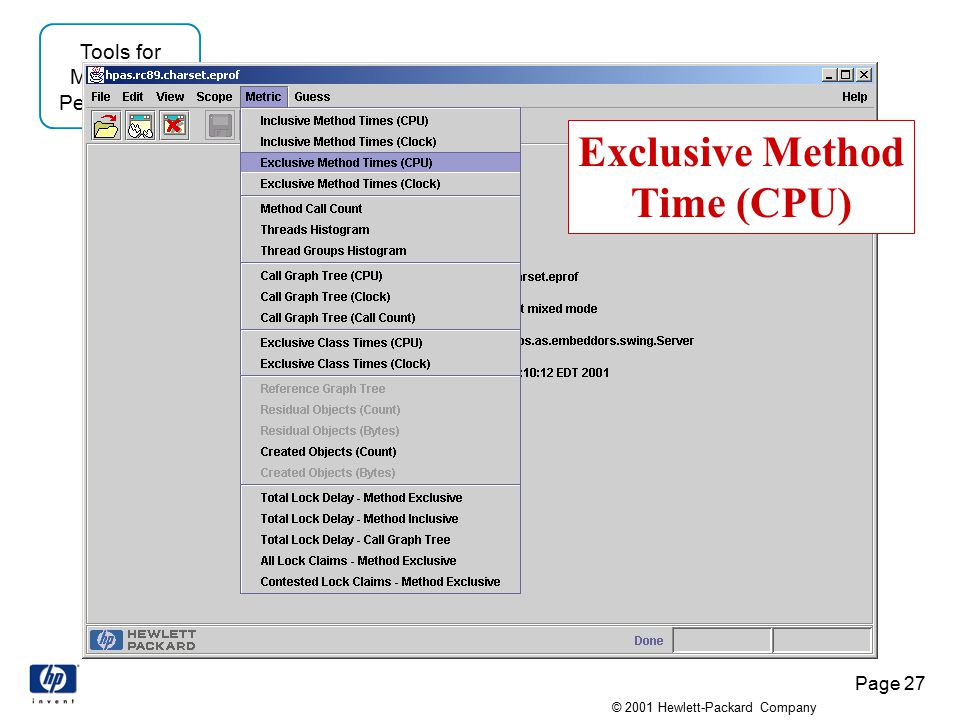

27. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 27 Exclusive Method Time (CPU)

28. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 28 Sorted in Decreasing Order

29. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 29 Select Highest

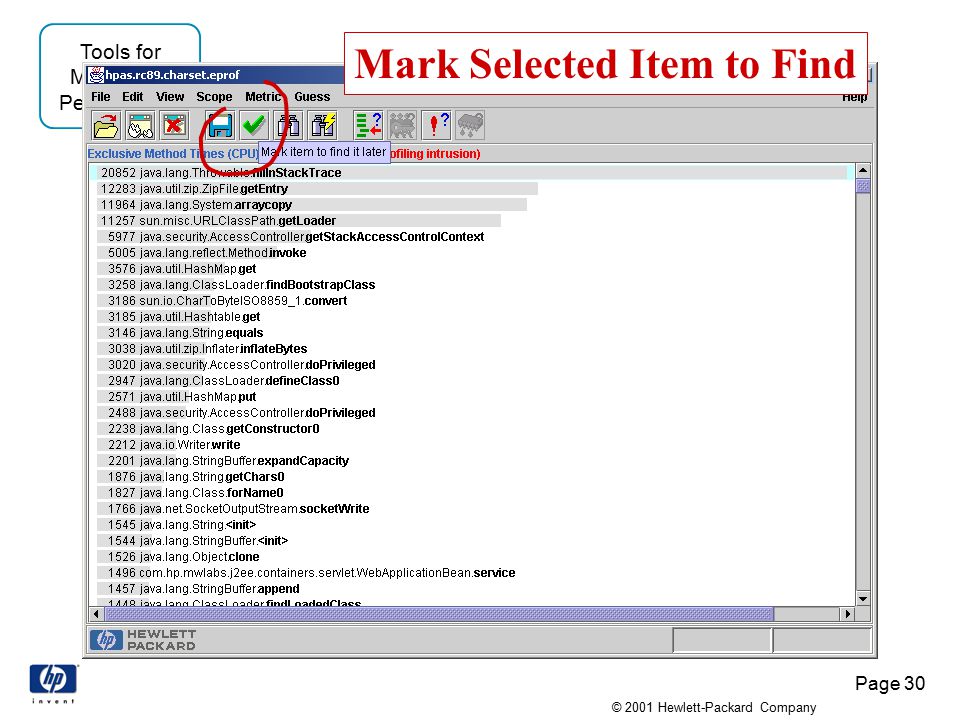

30. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 30 Mark Selected Item to Find

31. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 31 Switch to Call Tree

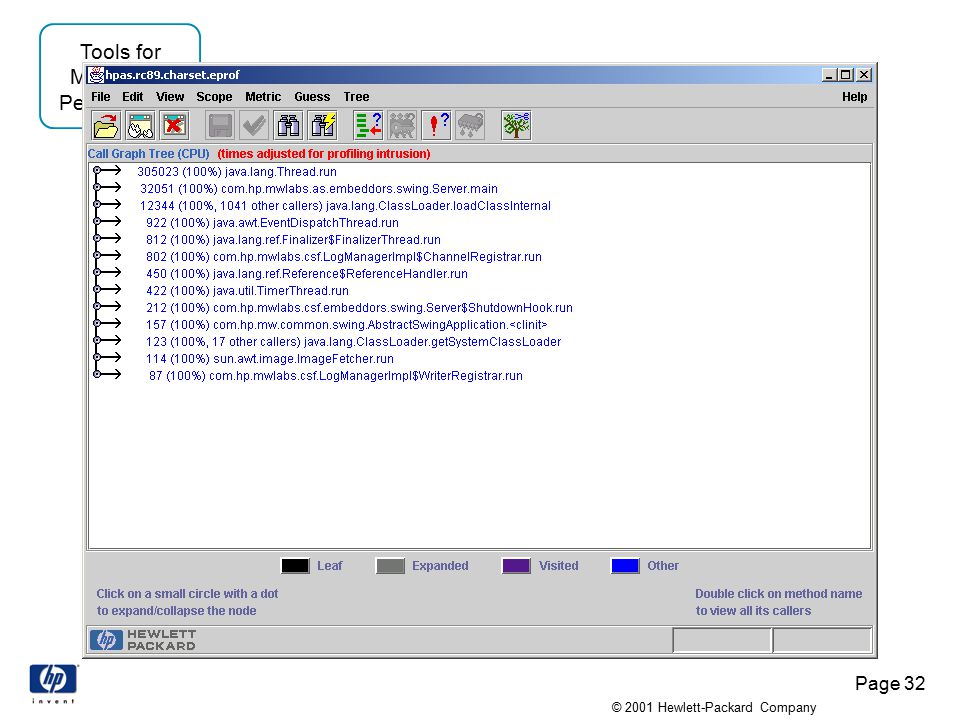

32. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 32

33. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 33 Find Selected Item Immediately

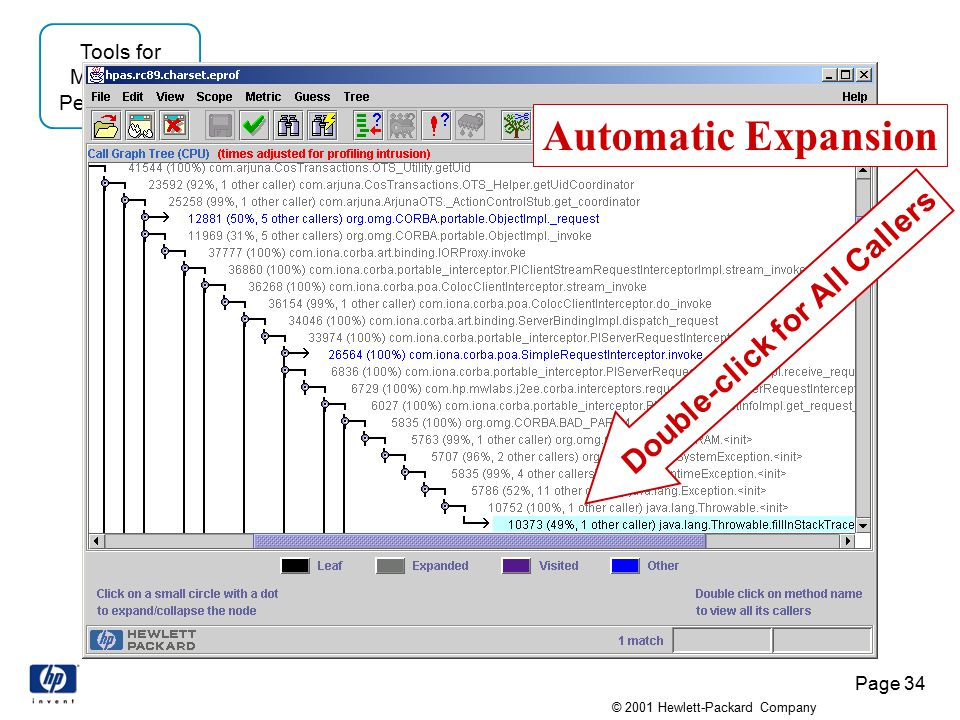

34. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 34 Automatic Expansion Double-click for All Callers

35. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 35

36. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 36 Overloaded Methods Distinguish by Parameters

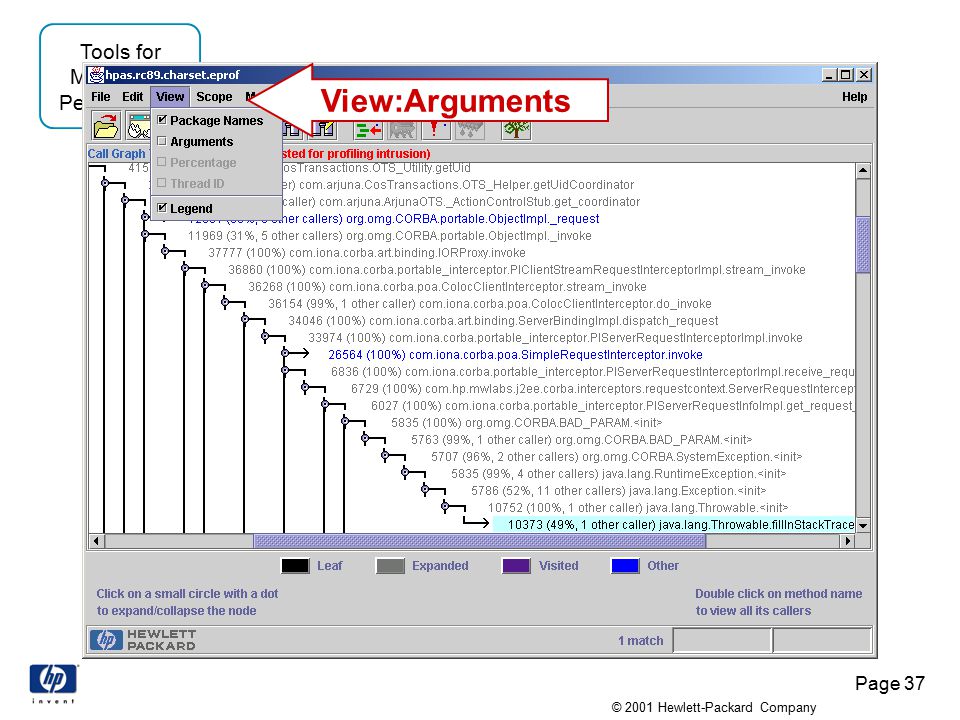

37. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 37 View:Arguments

38. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 38

39. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 39

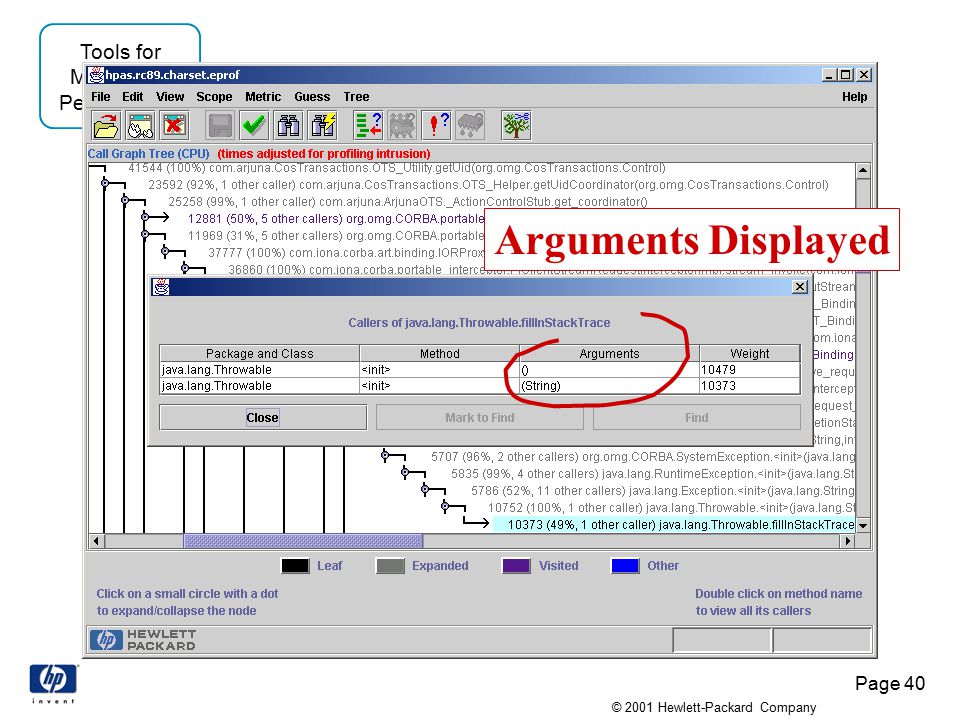

40. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 40 Arguments Displayed

41. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 41 1. Select 2. Mark to Find

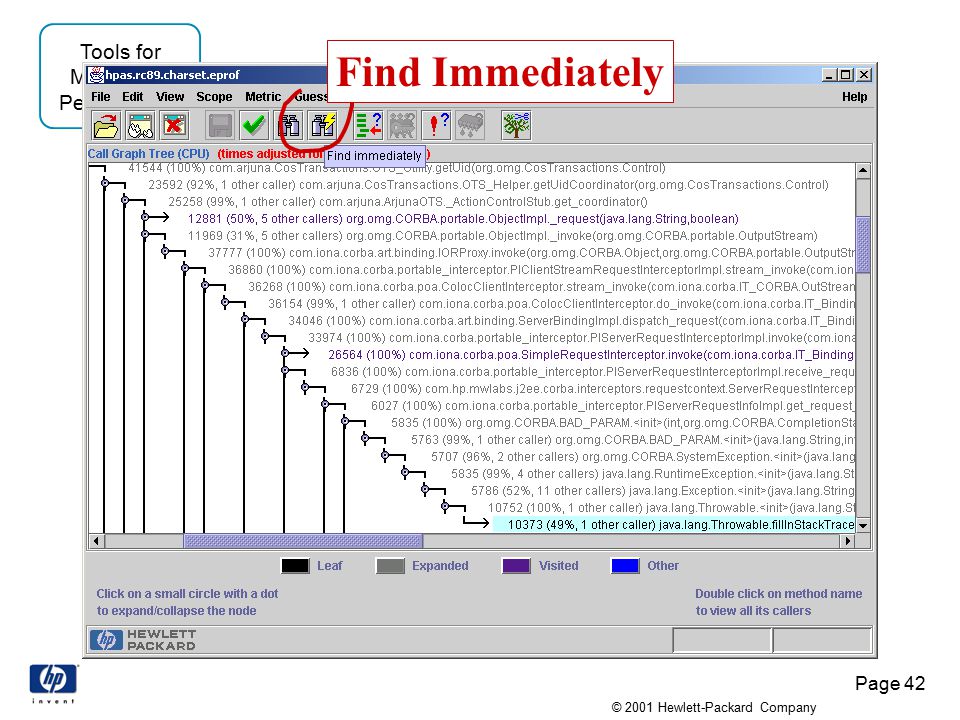

42. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 42 Find Immediately

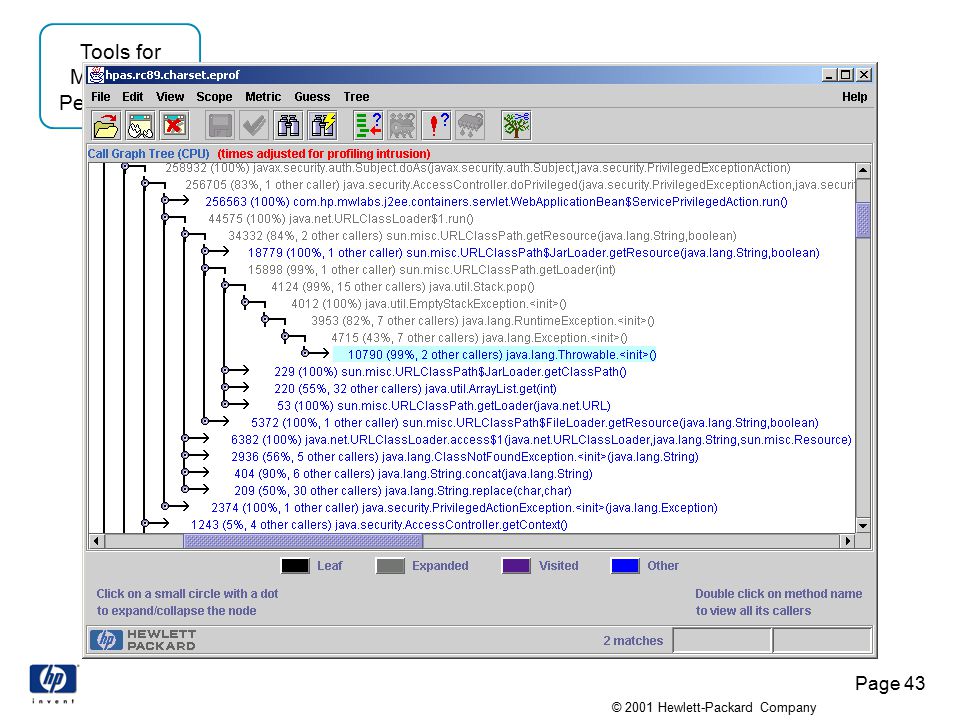

43. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 43

44. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 44 Exceptions Bad programming practice to use as: Terminators for searches Indicators of a frequent exception condition HPjmeter makes them easy to find Guess:Exceptions Thrown

45. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 45 Guess:Exceptions Thrown

46. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 46

47. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 47

48. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 48 Select Highest

49. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 49 Mark to Find

50. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 50 Switch to: Call Graph Call Count

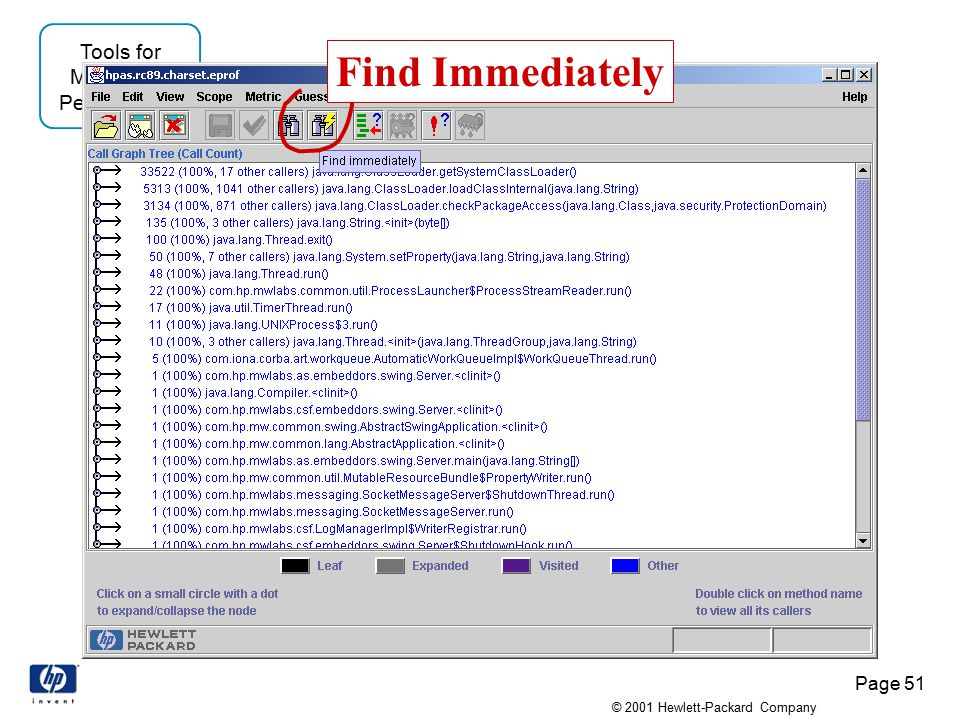

51. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 51 Find Immediately

52. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 52 Automatic Expansion Find Called Methods

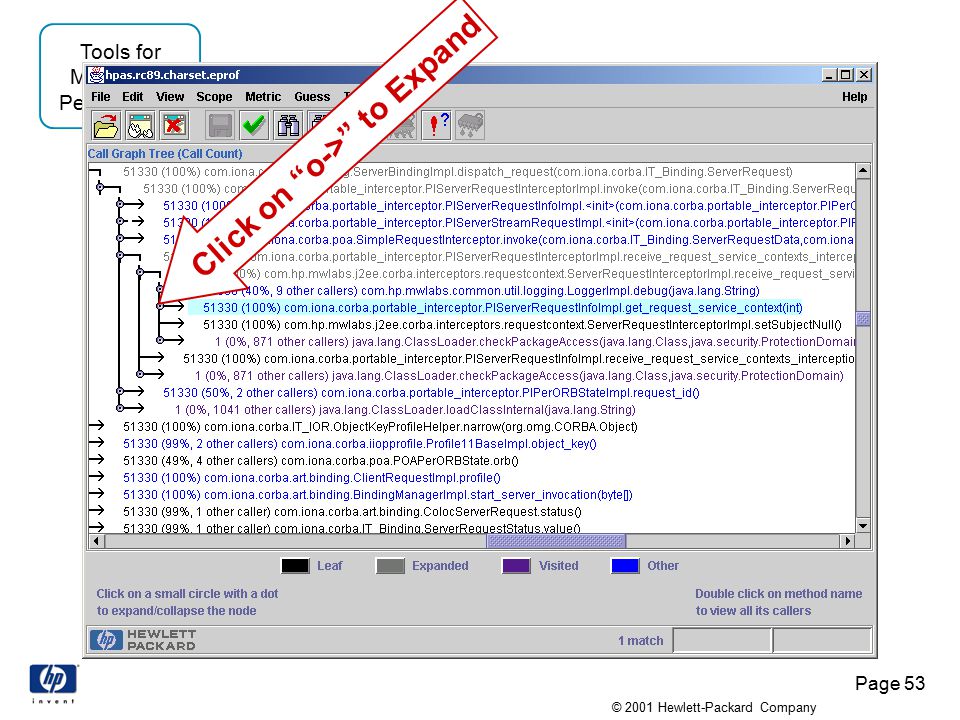

53. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 53 Click on “o->” to Expand

54. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 54

55. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 55

56. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 56

57. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 57 Double-click for All Callers

58. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 58

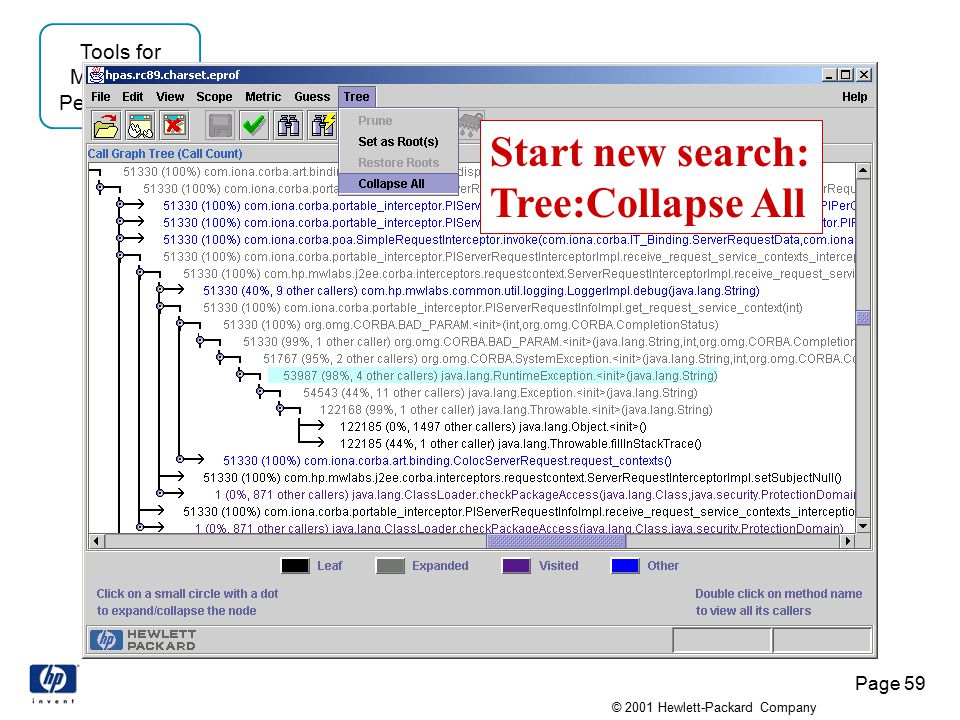

59. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 59 Start new search: Tree:Collapse All

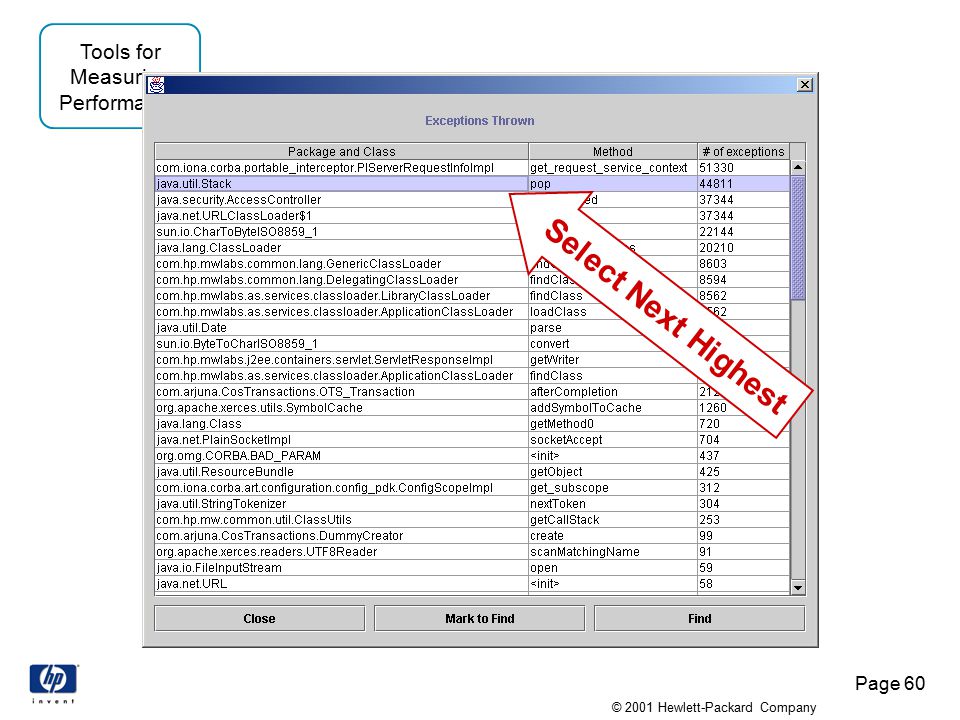

60. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 60 Select Next Highest

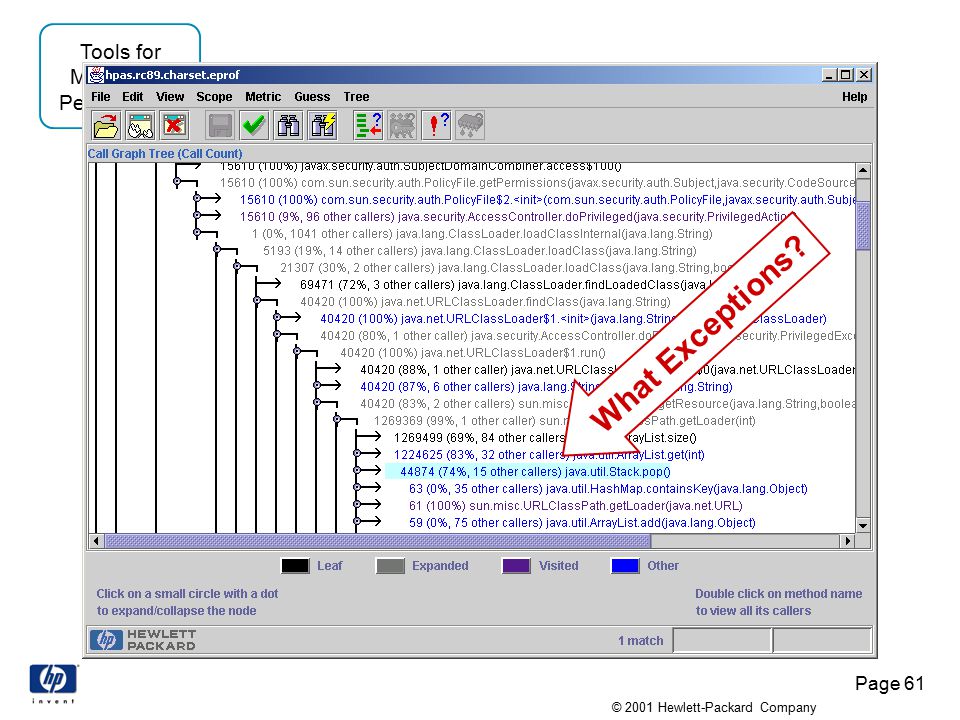

61. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 61 What Exceptions?

62. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 62 Expand

63. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 63 Empty Stack Exception!

64. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 64 Select Next Highest

65. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 65

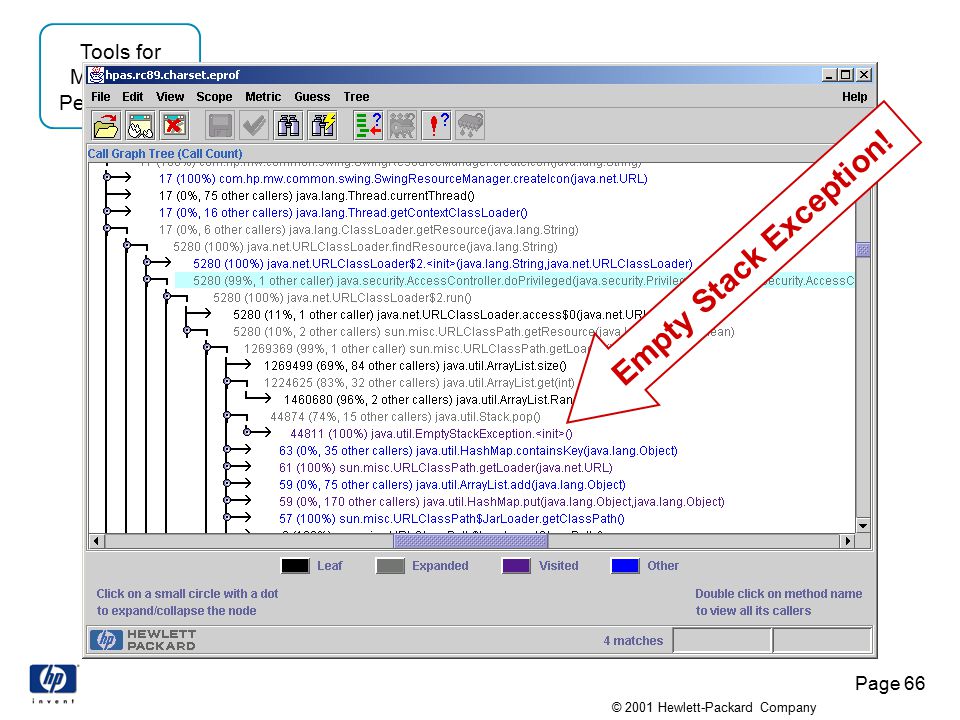

66. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 66 Empty Stack Exception!

67. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 67 Investigate Others: Date

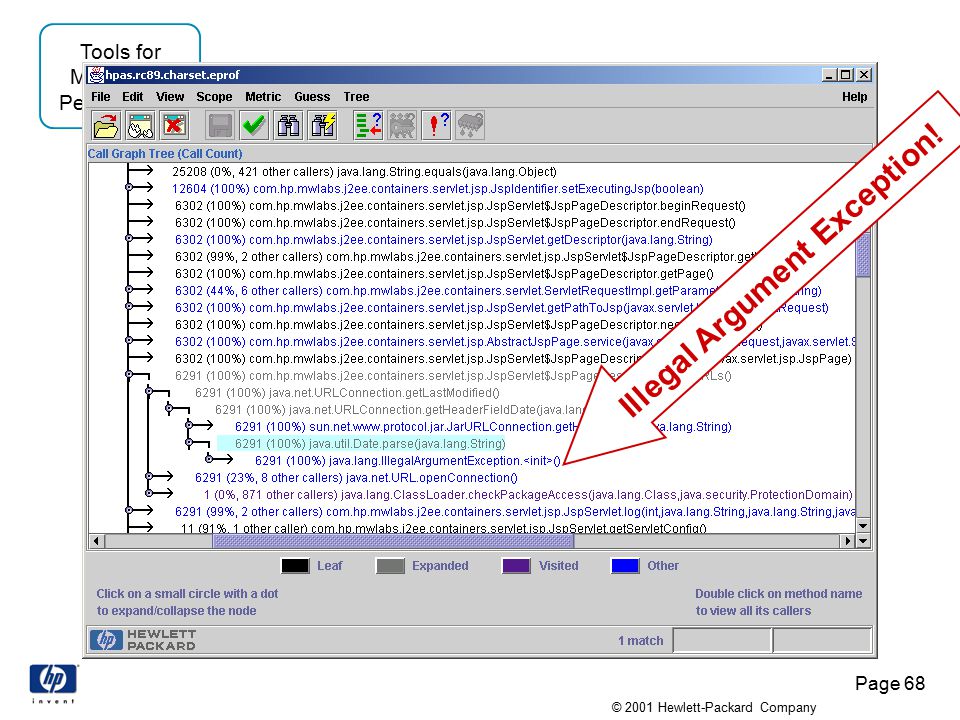

68. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 68 Illegal Argument Exception!

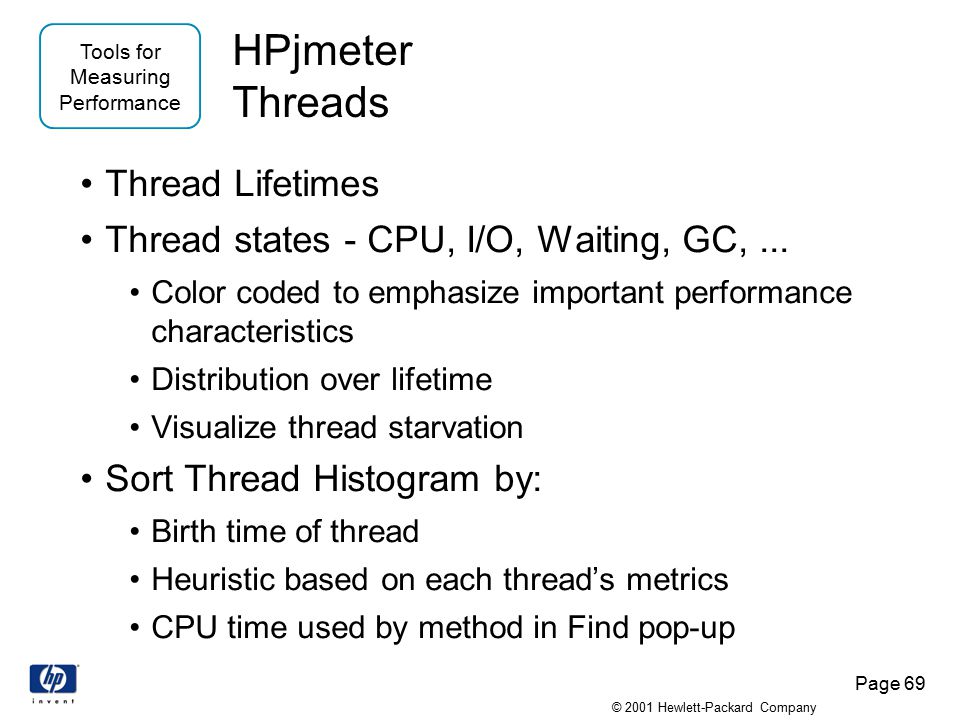

69. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 69 HPjmeter Threads Thread Lifetimes Thread states - CPU, I/O, Waiting, GC,... Color coded to emphasize important performance characteristics Distribution over lifetime Visualize thread starvation Sort Thread Histogram by: Birth time of thread Heuristic based on each thread’s metrics CPU time used by method in Find pop-up

70. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 70 Threads Histogram

71. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 71

72. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 72 Double-click for Pie Chart

73. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 73 Massive Lock Contention!

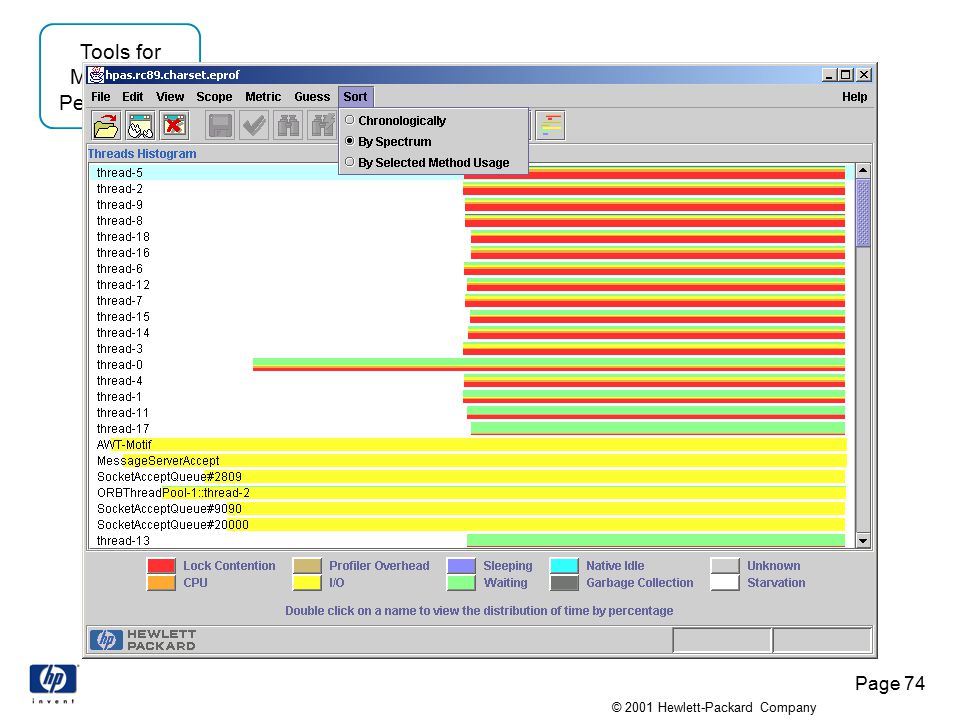

74. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 74

75. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 75 HPjmeter Java Application Monitor Contention Highlights contested Java monitors JDK 1.3.1 – Exact metrics generated for contention Metrics: Lock requests when lock held Per-method time spent waiting for lock

76. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 76 Metric: Total Lock Delay

77. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 77

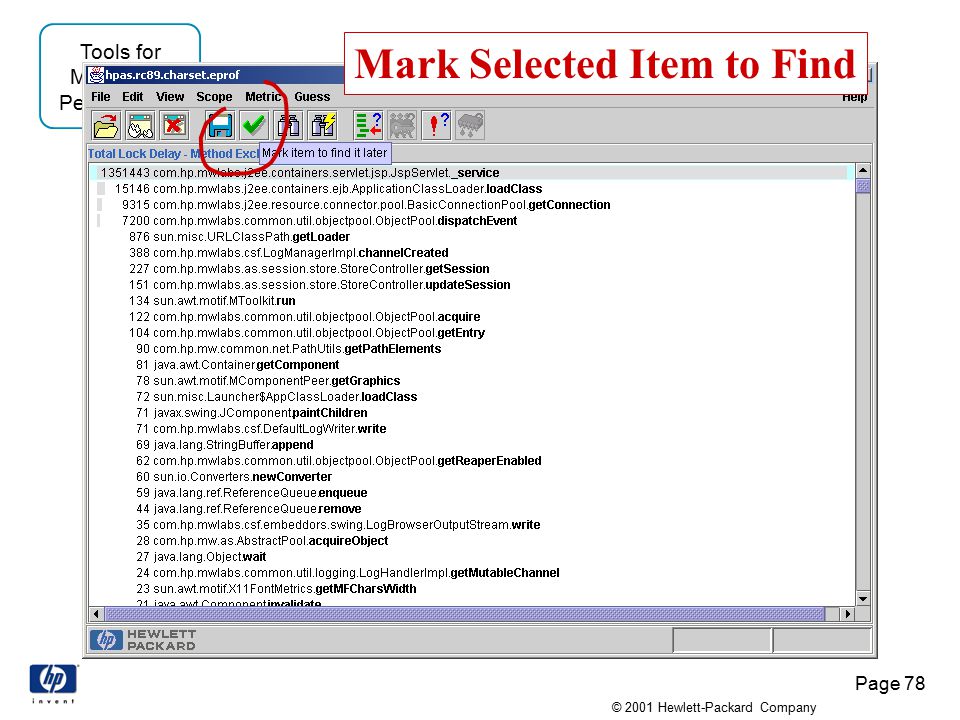

78. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 78 Mark Selected Item to Find

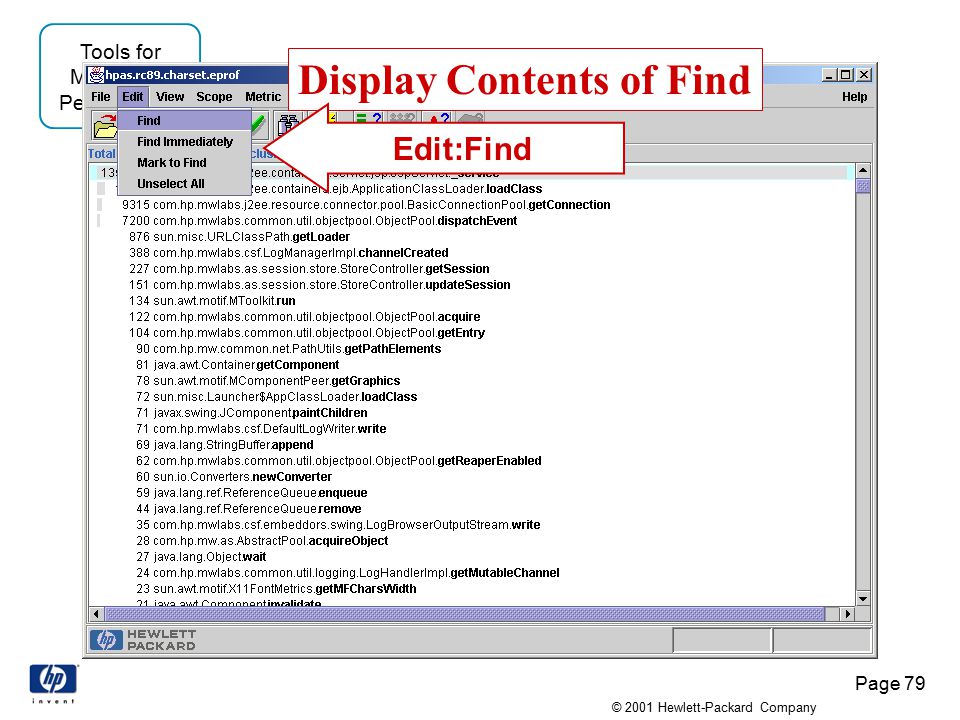

79. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 79 Display Contents of Find Edit:Find

80. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 80

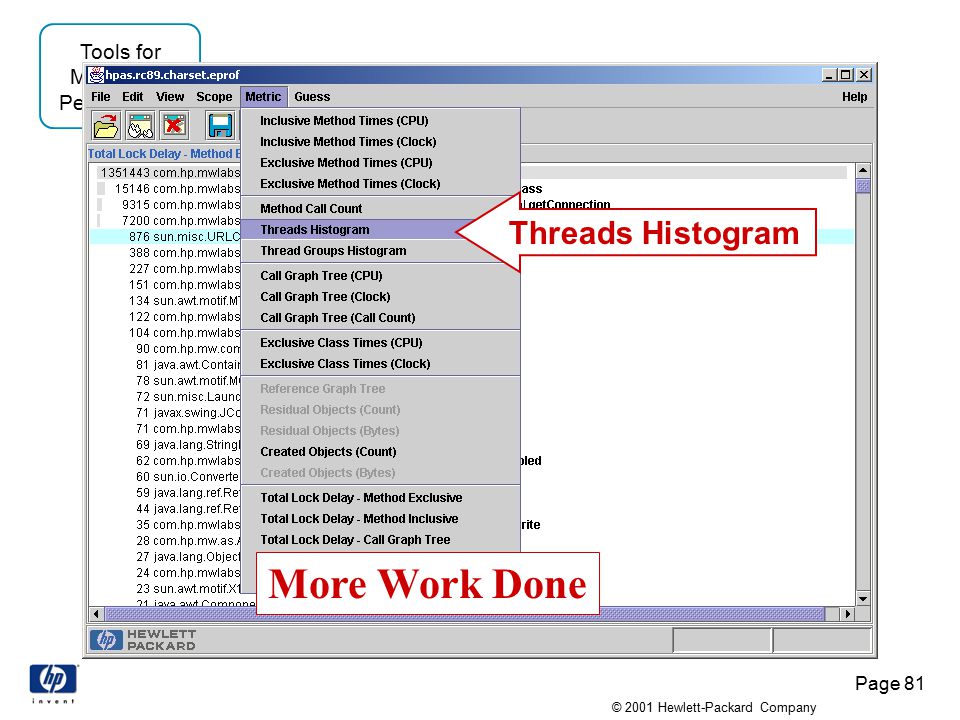

81. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 81 Threads Histogram More Work Done

82. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 82

83. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 83

84. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 84 Sort by _service()

85. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 85

86. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 86 Switch to Thread View Scope:Thread

87. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 87

88. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 88 Select Thread

89. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 89

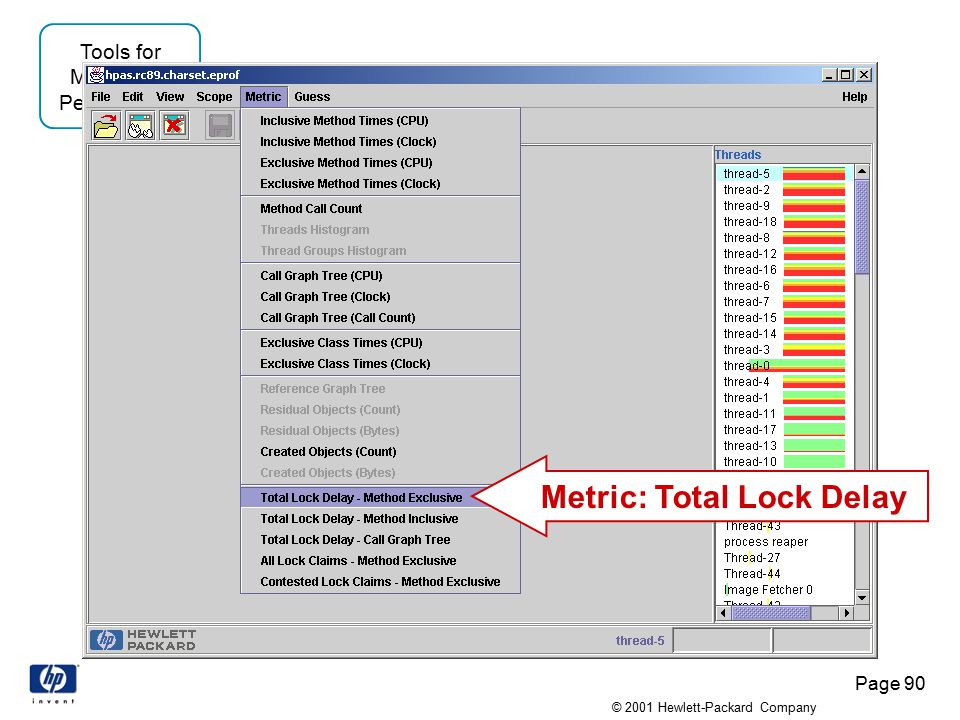

90. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 90 Metric: Total Lock Delay

91. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 91 103343 spent in _service()

92. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 92 How much total time spent in _service()? Metric: Exclusive Clock

93. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 93 106989 spent in _service()

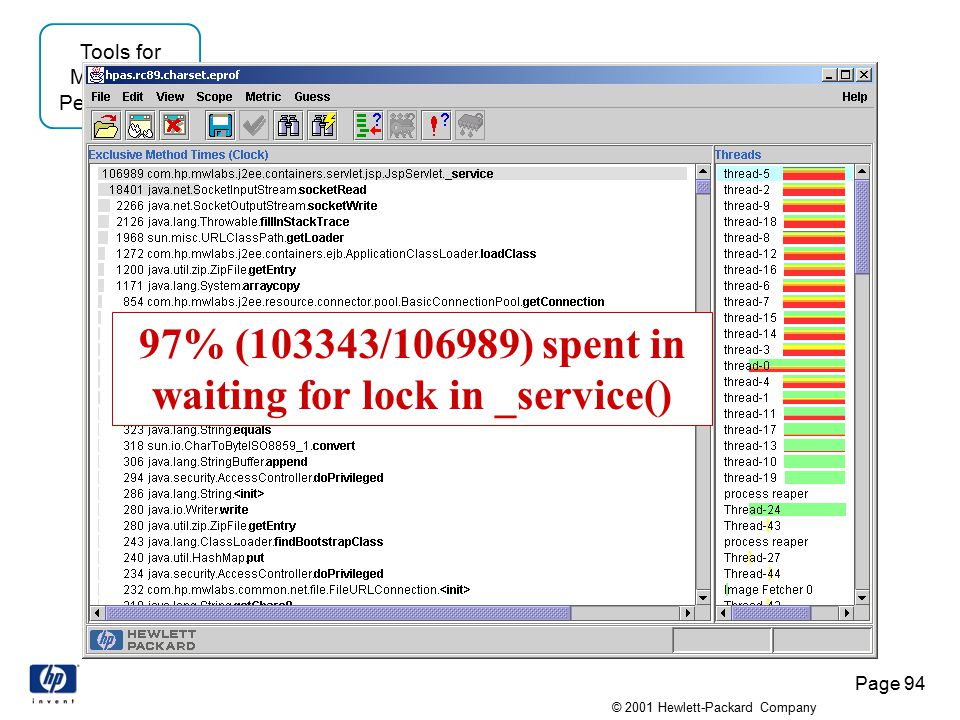

94. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 94 97% (103343/106989) spent in waiting for lock in _service()

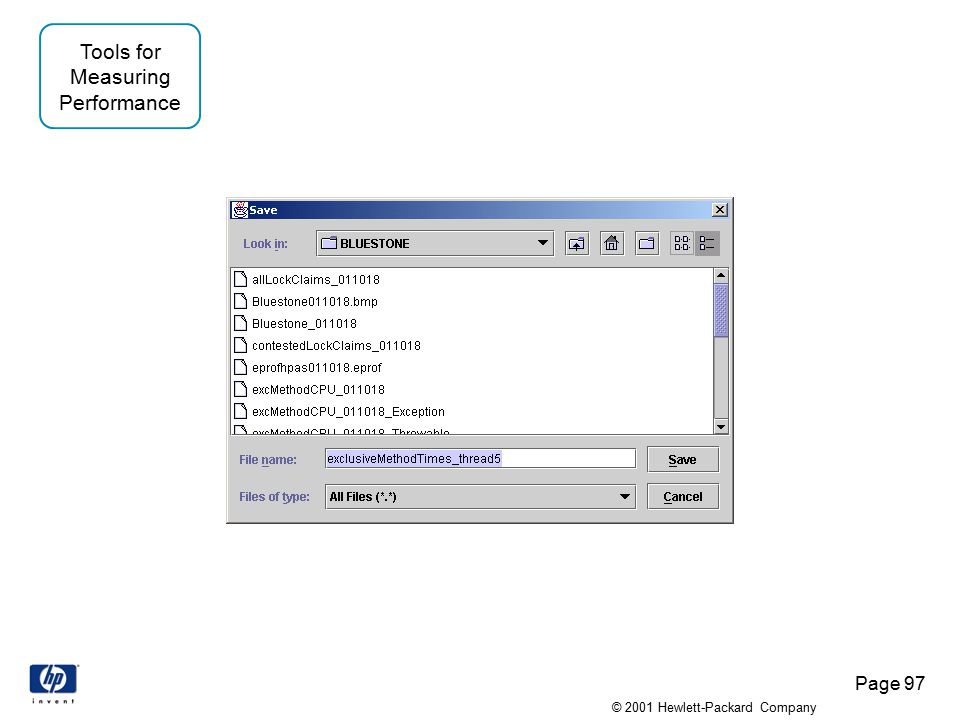

95. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 95 Save Metric to File

96. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 96

97. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 97

98. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 98 Exclusive Method Time (CPU)

99. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 99

100. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 100

101. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 101

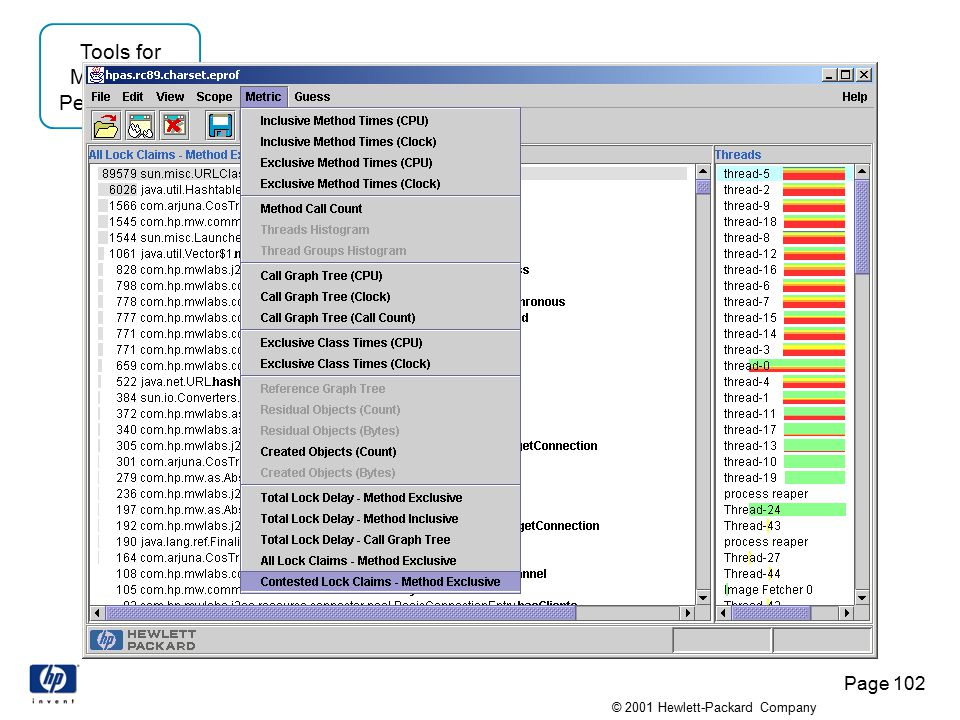

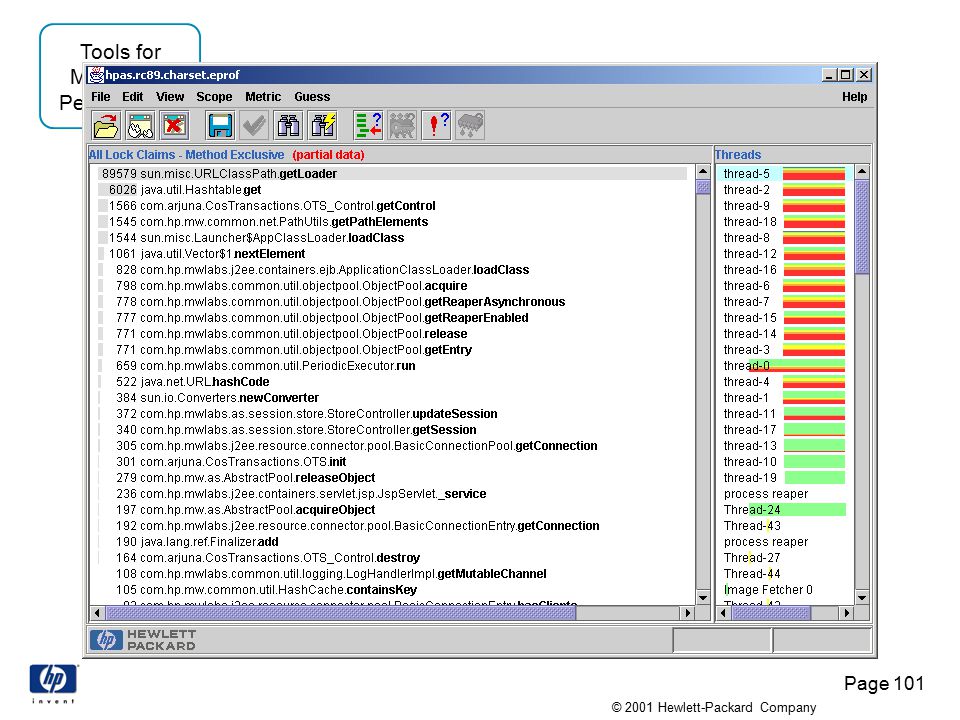

102. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 102

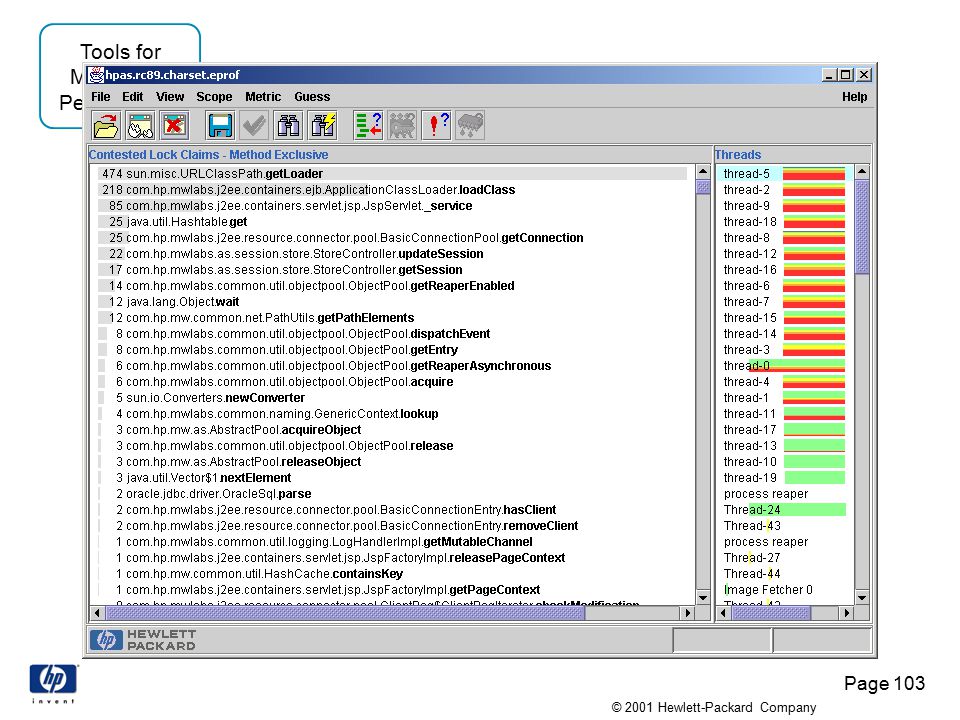

103. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 103

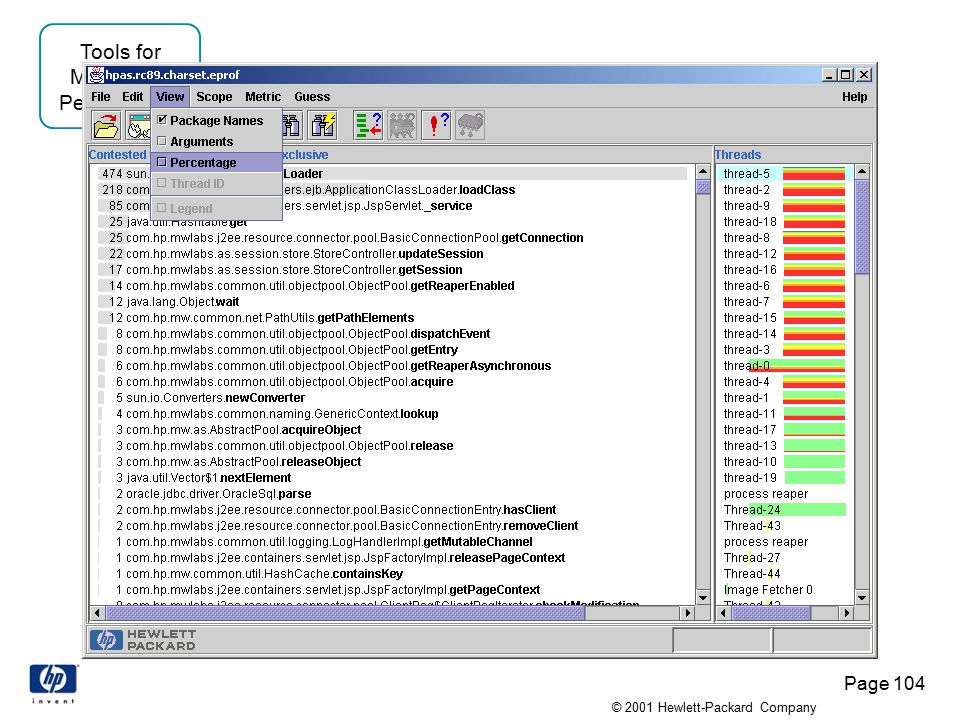

104. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 104

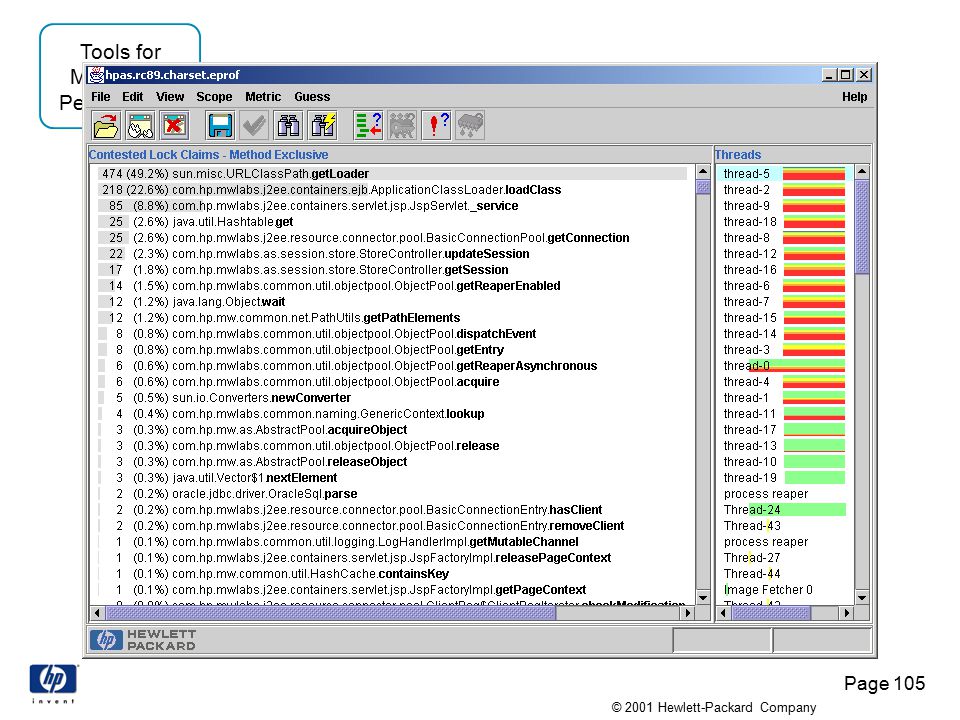

105. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 105

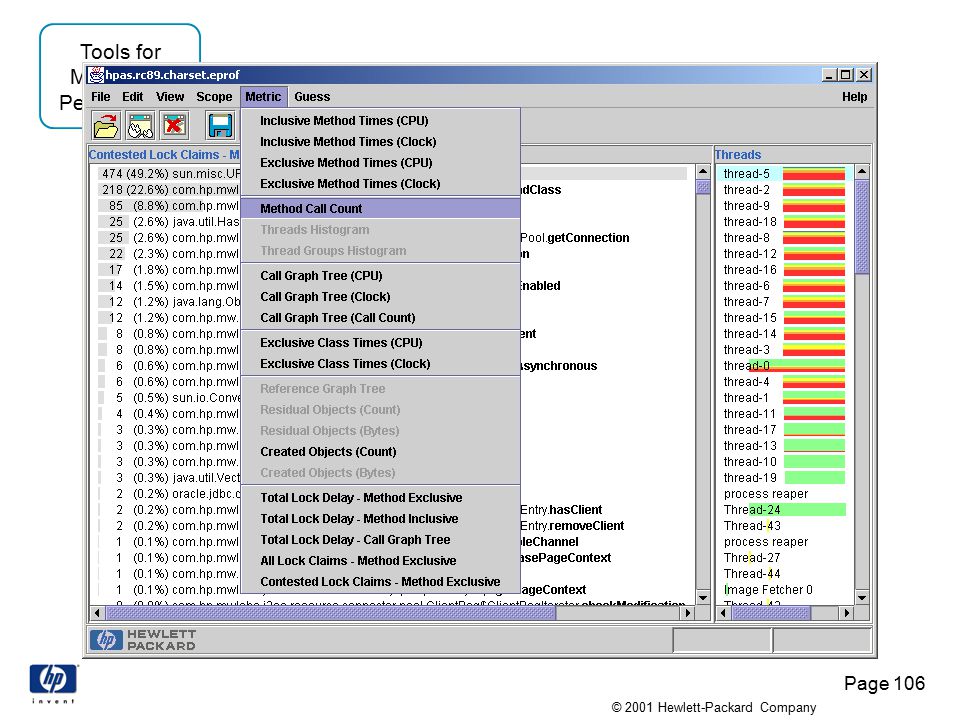

106. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 106

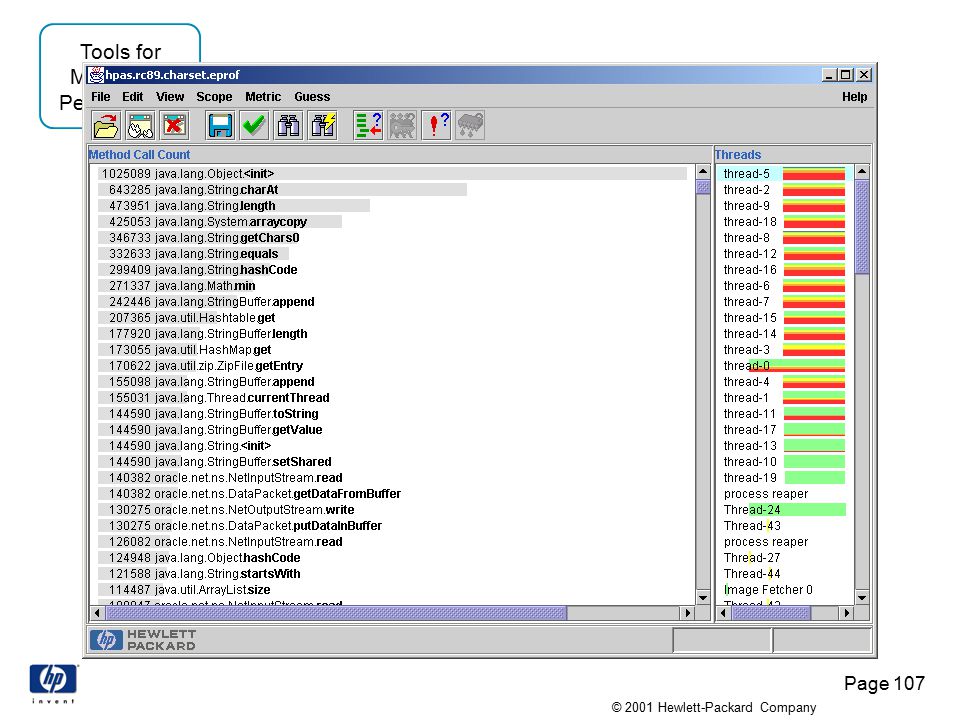

107. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 107

108. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 108 HPjmeter Object Creation Allocated Objects Residual Objects Location in code where created Reference Graph –Tree form –Ability to find referencing objects

109. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 109 HPjmeter Object Creation Created Objects Count with -Xeprof requires either: -Xeprof:inlining=disable or: -Xint -Xeprof Created Objects (Bytes) requires use of the the Classic JVM and hprof: java -classic -Xrunhprof:heap=all,cutoff=0,...

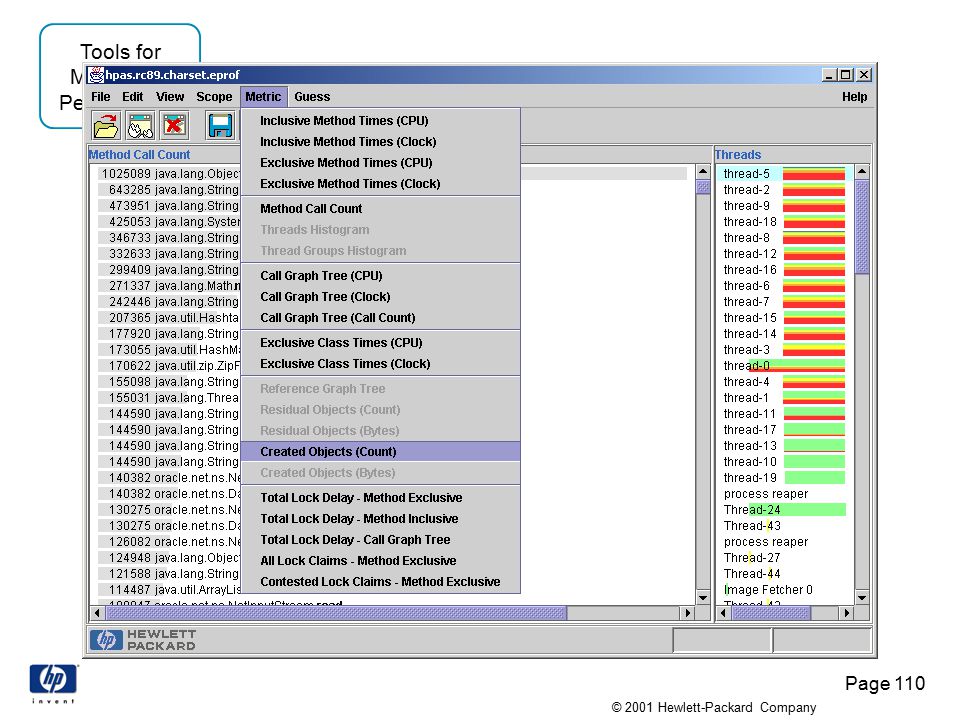

110. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 110

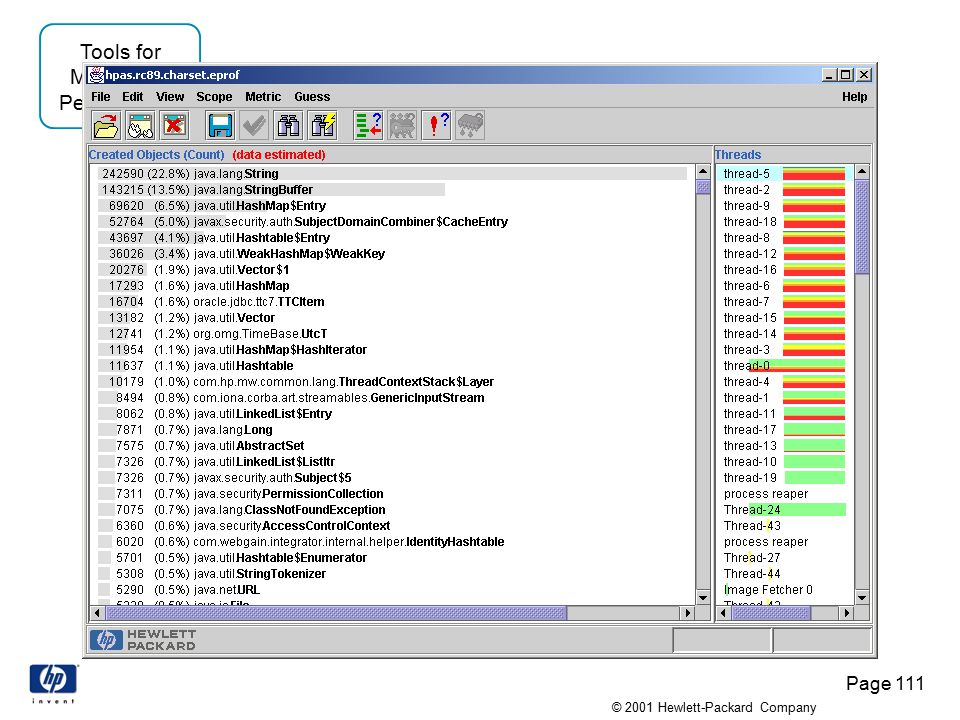

111. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 111

112. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 112

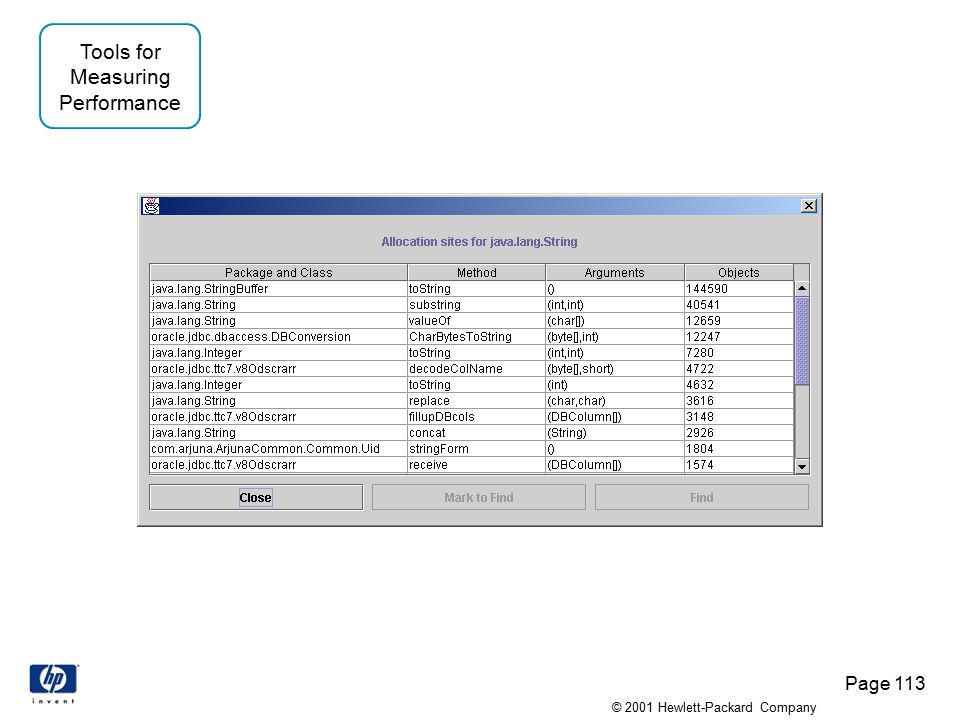

113. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 113

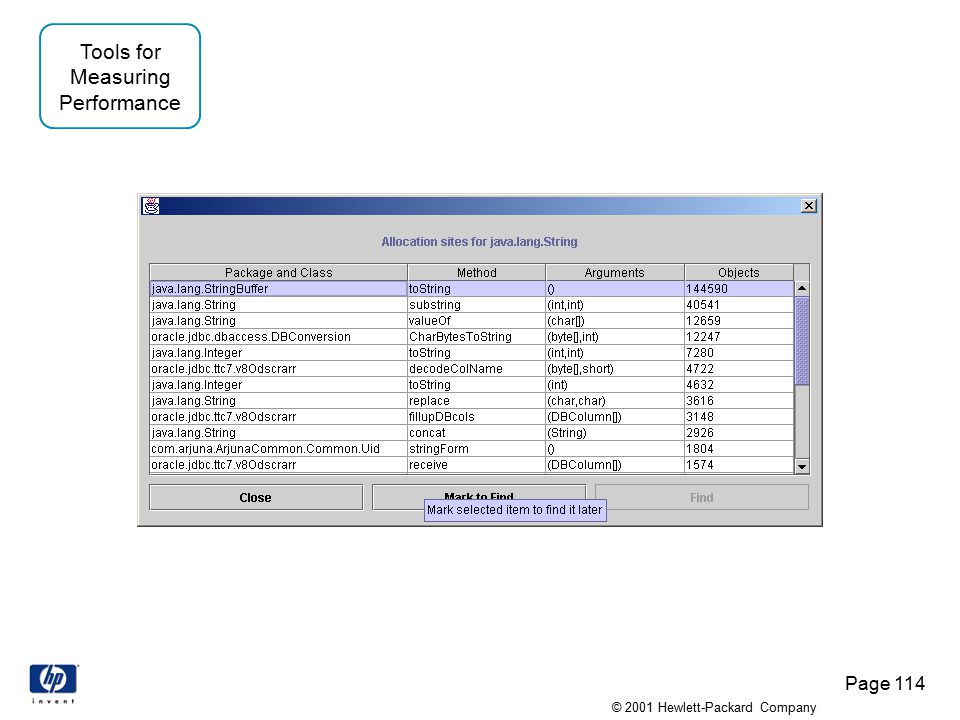

114. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 114

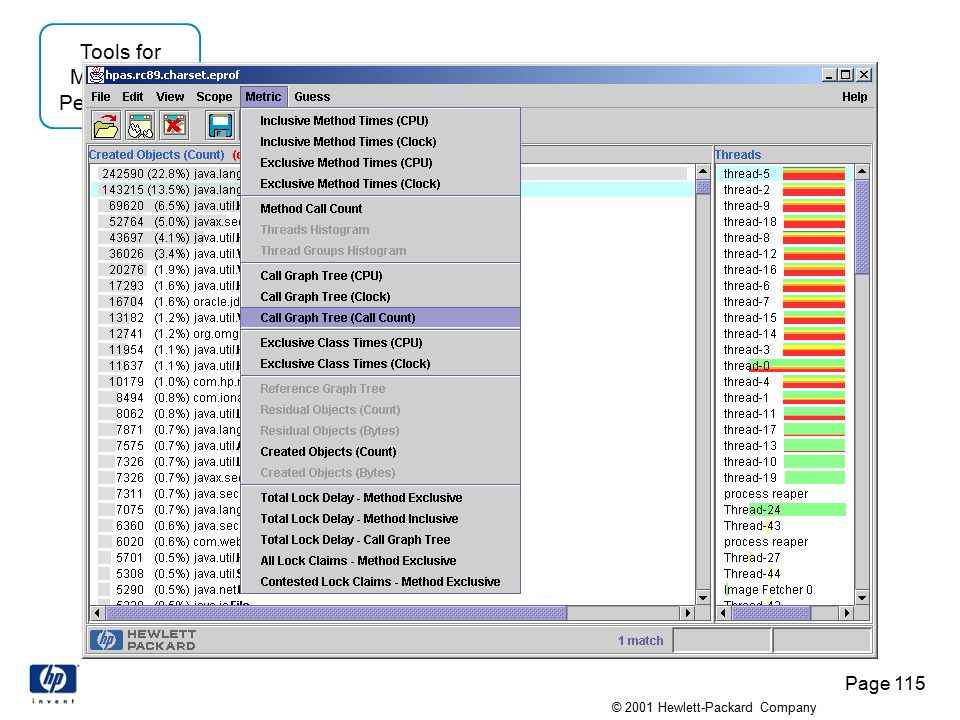

115. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 115

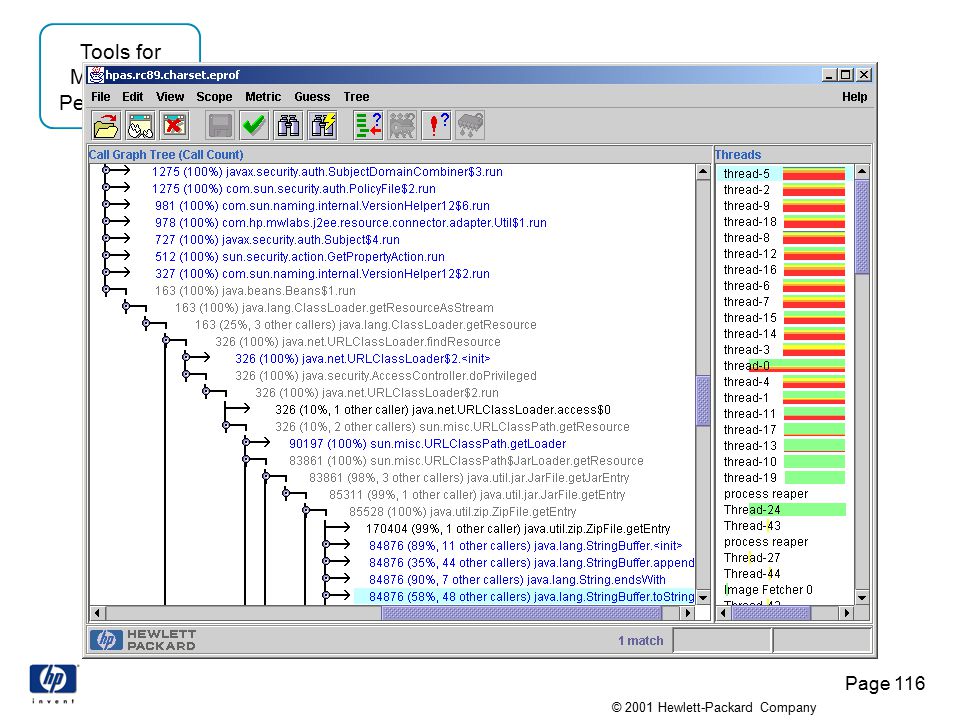

116. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 116

117. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 117

118. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 118

119. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 119 HPjmeter Profile Comparison Compare profile data from two different runs – See impact of – Code modification – Load change – Eliminate start-up noise – Find “memory retention”

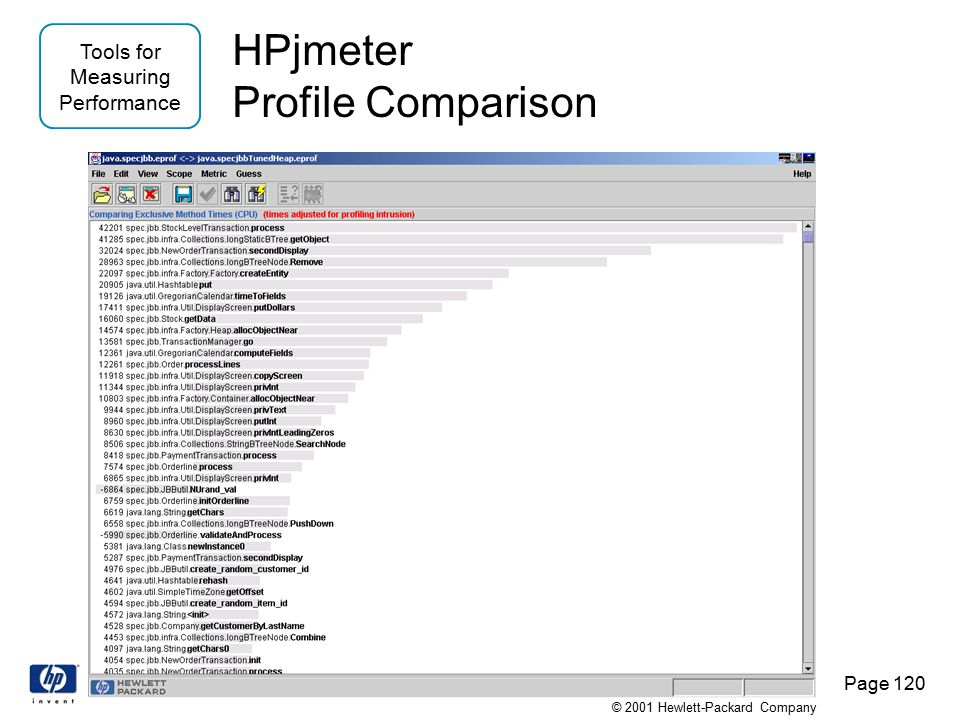

120. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 120 HPjmeter Profile Comparison

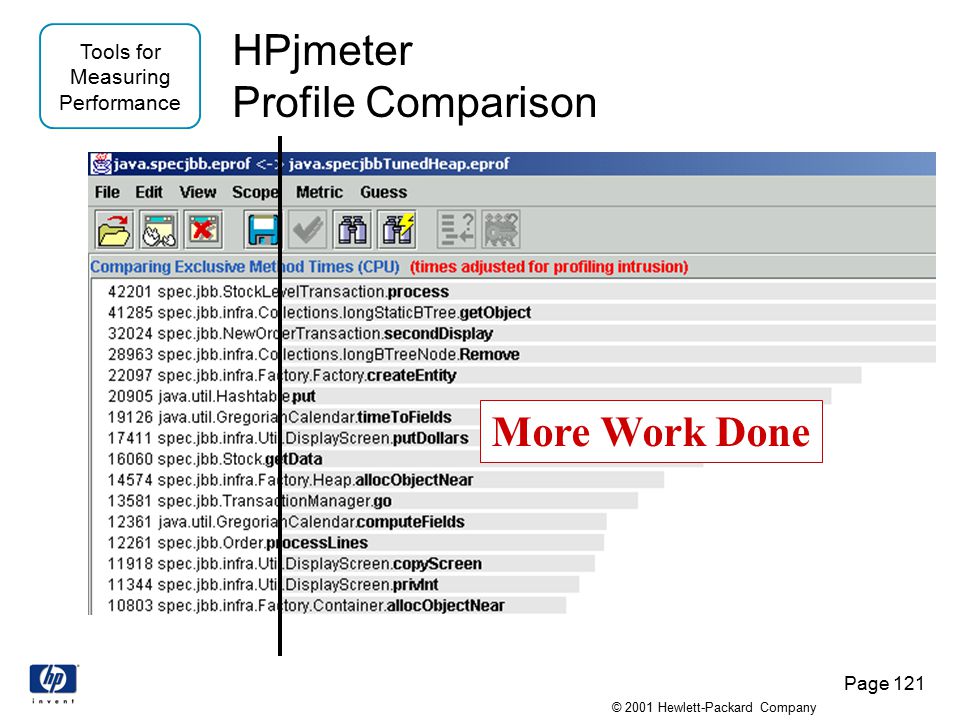

121. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 121 HPjmeter Profile Comparison More Work Done

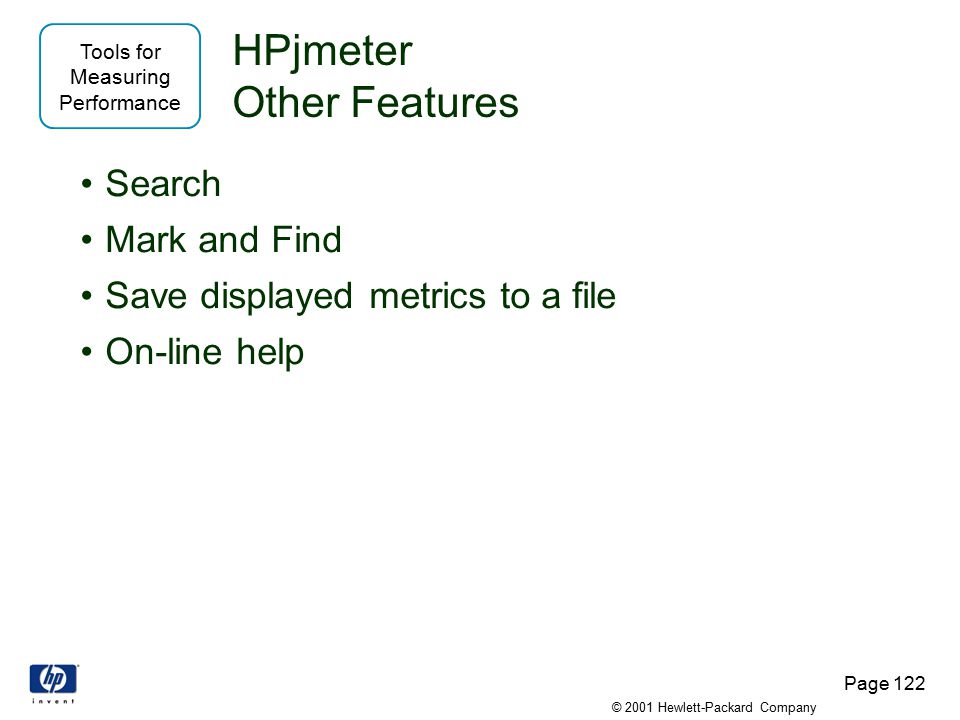

122. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 122 HPjmeter Other Features Search Mark and Find Save displayed metrics to a file On-line help

123. Tools for Measuring Performance © 2001 Hewlett-Packard Company Page 123 HPjmeter Contact Info Web links: http://www.hpjmeter.com/ Write to us: java-tools-support@cup.hp.com
