~adapted from Walch Education A scatter plot that can be estimated with a linear function will look approximately like a line. A line through two points.

Similar presentations


Presentation on theme: "~adapted from Walch Education A scatter plot that can be estimated with a linear function will look approximately like a line. A line through two points."— Presentation transcript:

1

2 ~adapted from Walch Education

3 A scatter plot that can be estimated with a linear function will look approximately like a line. A line through two points in the scatter plot can be used to find a linear function that fits the data. If a line is a good fit for a data set, some of the data points will be above the line and some will be below the line.

4 The general equation of a line in point-slope form is y = mx + b, where m is the slope and b is the y- intercept. To find the equation of a line with two known points, calculate the slope and y-intercept of a line through the two points. Slope is the change in y divided by the change in x; a line through the points (x 1, y 1 ) and (x 2, y 2 ) has a slope of

5 To find the y-intercept, or b in the equation y = mx + b, replace m with the calculated slope, and replace x and y with values of x and y from a point on the line. Then solve the equation for b. o For example, for a line with a slope of 2 containing the point (1, –3), m = 2 –3 = (2)(1) + b –5 = b.

6  A weather team records the weather each hour after sunrise one morning in May. The hours after sunrise and the temperature in degrees Fahrenheit are in the table to the right.

7 Can the temperature 0–7 hours after sunrise be represented by a linear function? If yes, find the equation of the function.

8 Temperature (°F) Hours after sunrise

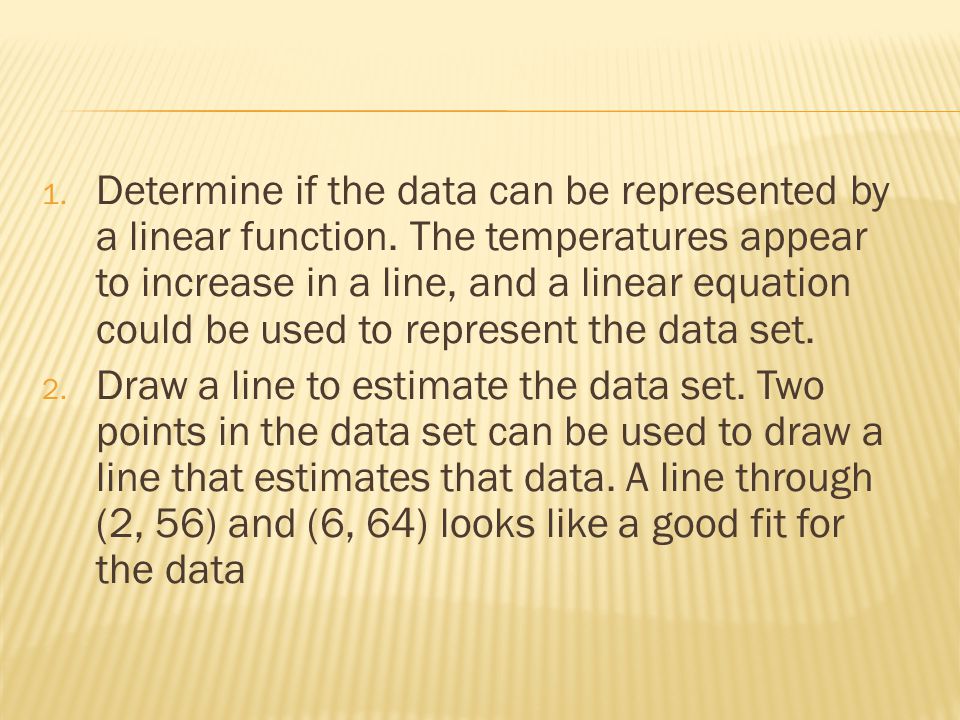

9 1. Determine if the data can be represented by a linear function. The temperatures appear to increase in a line, and a linear equation could be used to represent the data set. 2. Draw a line to estimate the data set. Two points in the data set can be used to draw a line that estimates that data. A line through (2, 56) and (6, 64) looks like a good fit for the data

10 Temperature (°F) Hours after sunrise

11  Find the slope, m, of the line through the two chosen points. The slope is  =  For the two points (2, 56) and (6, 64), the slope is

12 Finding the y-intercept, b: Use the general equation of a line to solve for b.  Substitute x and y from a known point on the line, and replace m with the calculated slope. y = mx + b For the point (2, 56): 56 = 2(2) + b b = 52

13  Replace m and b with the calculated values in the general equation of a line. y = 2x + 52 The temperature between 0 and 7 hours after sunrise can be approximated with the equation y = 2x + 52.

14 ~ms. dambreville
