1. Improving Automatic Abbreviation Expansion within Source Code to Aid in Program Search Tools Zak Fry

2. Outline Problem and Motivation Automatically Identifying Abbreviation Expansions A Scoped Approach Analysis and Refinement: iScope Evaluations Conclusions

3. Maintenance Tasks 60-90% of software lifecycle Problem: id where relevant code is – where changes need to be made Code to perform a certain task can be very scattered Causes difficulty for current maintenance search tools

4. Challenges - Coding Practices Identifier names important for code documentation and understanding Problem: Programmers’ use of abbreviations in code – Frequency of occurrence character, integer, string – Complex inheritance – long class names SecureMessageServiceClientMessageImpl Negates usefulness of identifier names and complicates program understanding

5. Abbreviations and Maintenance Tools Problem: Search based maintenance tools rely on natural language – Abbreviations change the natural language Search Term: “distributed hash” dht = (DHTPlugin)dht_pi.getPlugin(); Thread t = new AEThread( "DHTTrackerPlugin:init" ) { public void runSupport() { try{ if ( dht.isEnabled()){ log.log( "DDB Available" ); } } catch( Throwable e ){ log.log( "DDB Failed", e ); }... } }

6. Automatically Identifying Abbreviation Expansions First, how do we identify candidates for expansion? – Non-dictionary words Abbreviation – Short form Expansion – Long form

7. Types of Non-Dictionary Words Abbreviation Category TypeShort FormLong Form Single Word Prefixintinteger Dropped Letter evtevent Multiple Word AcronymFBI Federal Bureau of Investigation Combination Multiword recblkreceive block Domain Keywords and Special Cases --- parsetree serialize ---

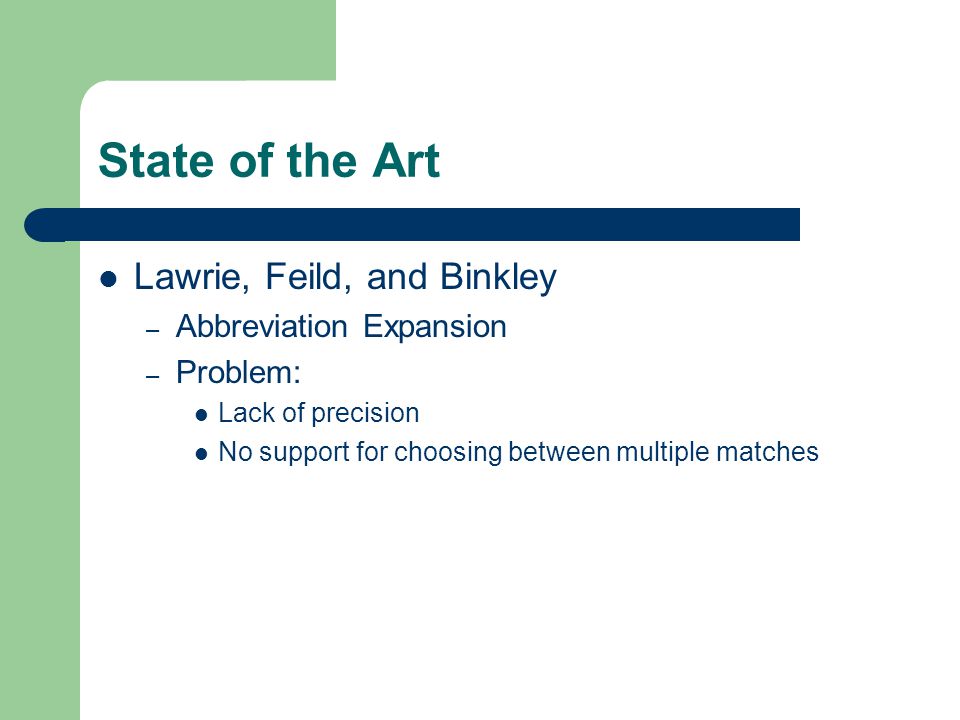

8. State of the Art Lawrie, Feild, and Binkley – Abbreviation Expansion – Problem: Lack of precision No support for choosing between multiple matches

9. Scoped Approach How to choose between multiple possible long forms: – By manual inspection we found correct long forms are more likely to be found in certain locations – Also, correctly identifying the long forms for certain types of abbreviations is easier than for others

10. Order of Types Abbreviation Type 1: Acronym 2: Prefix 3: Dropped Letter 4: Combo Multiword 5: Most Common

11. Order of Program Context Context 1: Javadoc 2: Type 3: Method Name 4: Statement 5: Method 6: Method Comments 7: Class Comments

12. General Algorithm Javadoc Type Method Name … Acronym Prefix Javadoc Type Method Name …

13. Multiple matches We assume one best candidate though multiple might be present at the same level of scope If multiple matches: 1. Examine frequencies 2. Stem long forms and reexamine frequencies 3. Broaden Scope and reexamine frequencies 4. Most frequent expansion

14. Most Frequent Expansion (MFE) If still no ideal candidate is found: – We mined long forms from 1.5 million LOC of Java 5 code base – Return most frequent long form as last resort

15. Evaluation of Scoped Approach 250 abbreviations from 5 subject programs Gold standard developed by human developer inspecting the code manually Implemented LFB according to description – Except combination words – due to missing database (Accuracy)

16. Analysis and Refinement - iScope Analyzed results and found 3 major sources of problems Developed iScope by addressing these 3 major problem areas

17. Order of Scoping Insight: Context is more sensitive than type Solution: Check each type at each context level, then go to next context level (switch order) Problem: Scoped approach ordering: examine every context for an abbreviation type then go to next type Investigating broader contexts for one type before even the narrowest context for another type is likely to yield incorrect matches

18. Single Letter Abbreviations Insight: Based on manual inspection, we found that meaningful single letter short forms were identifiers whose long forms were also their type name Solution: Limit contextual scope to type only Problem: Developers use single letter abbreviations differently than multiple letter abbreviations A large subset are actually semantically meaningless Single letter very easily matched especially because prefix matching is greedy Reader r = new BufferedReader()

19. Hyper-Common Abbreviation Problem: Some abbreviations used so often in code that long form rarely ever co-occurs leading to incorrect expansion based on coincidence Solution: Mine a small set of extremely common abbreviations and use as a preprocessing step

20. Mined list of hyper-common abbreviations

21. Evaluations Is our method accurate enough to be useful? – Reevaluation of previous experiment Does abbreviation expansion help maintenance tasks? – Simple Search – Concern Location Task

22. 1. Reevaluation of Previous Test Based on our previous experimental methodology and metrics, how much improvement was made from Scope to iScope? Modified goldset based on new assumptions – single letter abbreviations

23. 1. Reevaluation of Previous Test - Results Compare LFB with Scope and iScope using non combinational word (NCW) accuracy values Compare JavaMFE, ProgMFE, Scope, and iScope using the total accuracy values

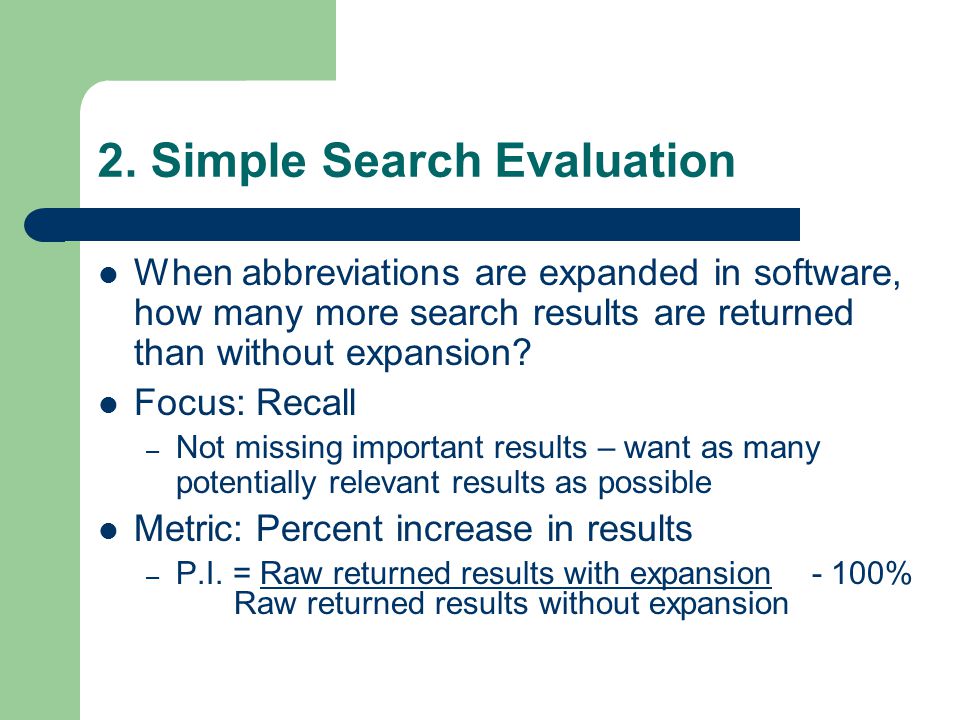

24. 2. Simple Search Evaluation When abbreviations are expanded in software, how many more search results are returned than without expansion? Focus: Recall – Not missing important results – want as many potentially relevant results as possible Metric: Percent increase in results – P.I. = Raw returned results with expansion - 100% Raw returned results without expansion

25. 2. Simple Search Evaluation (cont) Subjects: 215 concerns(Eaddy et al.) annotated by 3 people each for total of 645 queries – Developed independent of the idea of abbreviation expansion – many queries might not be affected by abbreviation expansion at all “Match”: if any word in the query matches any word in the method considered a match and returned as a result

26. 2. Simple Search Evaluation - Results ApproachTotal Returned Results Percent Increase No Expansion240,752--- Scope284,16018.03 iScope282,48917.34 Less increase with iScope – single letter abbreviation false positive decrease Ideally, this means quality is better experiment 3

27. 3. Evaluation with Concern Location Concern location task: identification of methods that are deemed to be relevant for the given search term How much increase in effectiveness can be gained from expanding abbreviations in source code when performing concern location tasks?

28. 3. Evaluation Methodology Tools: Latent Semantic Indexing(LSI) and Log Entropy-based concern location – Goals: Attempt to calculate similarity values based on location and frequency of potential query matches Subjects: same as previous experiment

29. 3. Methodology (cont) Metric: Mean Average Precision (MAP) – Precision: # True positives / Total # of positives – MAP: Collect precision values for every new true positive, going down the ranked returned results Then take average of all results – Attempts to reward highly ranked true positives

30. 3. Concern Location Tasks - Results

32. Conclusions Abbreviation expansion is proven to be helpful in maintenance tools and processes iScope approach improves upon Scope and greatly upon state-of-the-art

33. Future Work Further refinement of expansion process to achieve highest possible accuracy Full integration into maintenance tool Extension into other programming languages

34. Acknowledgments Emily Hill and Haley Boyd Dr. Vijay K. Shanker and Dr. Lori Pollock

35. Questions?

36. Inherent Inaccuracy Problem: Additional errors in code not generalizable into solvable problems Insight: There will always be inherent error when developing automatic systems for non-standard input
