1. DevCon ‘11 Center for Instructional Delivery

2. DevCon ‘11 Enrolling in Blackboard Learn for Campus Edition Alumni

3. DevCon ‘11 Highlights  Background  Technical Requirements  Linux  Oracle  Java JDK

4. Highlights  Installing Blackboard Learn 9.1  Installing and Using the Bbupdater  Demonstrate Applying New Building Blocks  Demonstrate Converting CE 8 Courses  Tips and Tricks DevCon ‘11

5. University of St. Francis Background DevCon‘11  Located in Joliet, IL ~ 35 miles from Chicago  Private Catholic Franciscan institution  Established in 1920 ~ Celebrating 90+ years!  3rd Largest Online Program in Illinois  Enrollment is 3,500+ Undergraduate and Graduate students

6. Technical Info on Production Environment DevCon‘11  Banner version 8  Blackboard CE 8 Service Pack 5  Red Hat Linux release 4  Oracle version 10.2.0.3

7. Technical Info on Blackboard Learn Test Environment DevCon‘11  Blackboard Learn 9.1 Service Pack 6  Red Hat Linux release 5  Oracle version 11g release 1

8. Blackboard Learn Technical Requirements DevCon‘11  Application Server  8GB to 16GB of memory recommended  Database Server  8GB to 16GB of memory recommended  Oracle Memory  Estimated SGA Size – 1GB to 4GB  Estimated PGA Memory – 2GB to 8GB

9. Installing Linux DevCon‘11  Red Hat Enterprise Linux Server release 5.5 installed using vmware.  Use the Blackboard Learn Hardware Sizing Guide for Release 9.1 to set the partitions.  Disable / Turn off the Linux Firewall by typing in the following two commands (as the root user): # /etc/init.d/iptables stop # /etc/init.d/iptables save

10. Installing Oracle DevCon‘11  Install Oracle 11g (build 11.1.0.6.0) database and companion.  Create the database.  IMPORTANT: No database template for Blackboard Learn 9.1.  Make sure the tnsnames.ora and listener.ora files include the new database information.  Startup the database as the oracle user.  Run the lsnrctl start command to start the listener.  Next, execute the lsnrctl status command to make sure the listener is working before performing the Blackboard Learn install.

11. Installing the Java JDK DevCon‘11  Blackboard Learn Release 9 Service Pack 1 requires JDK 1.6.x for installation and does not support JDK 1.5.  Set the JAVA_HOME  Edit the profile  # vi /etc/profile  Next, setup PATH / JAVA_PATH variables as follows:  export PATH=$PATH:/usr/java/jdk1.6.0_21/bin export PATH=$PATH:/usr/java/jdk1.6.0_21/bin

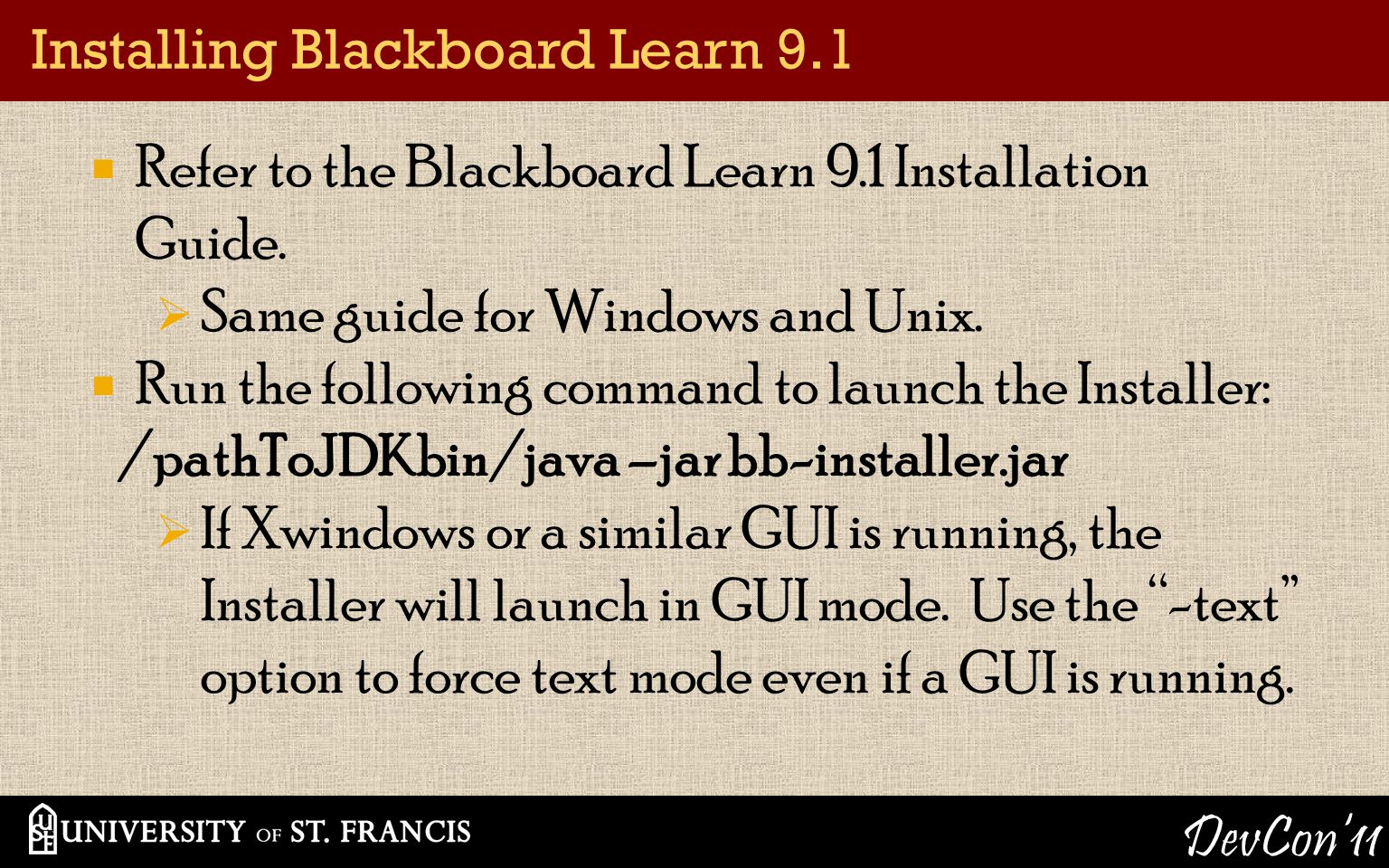

12. Installing Blackboard Learn 9.1 DevCon‘11  Refer to the Blackboard Learn 9.1 Installation Guide.  Same guide for Windows and Unix.  Run the following command to launch the Installer: /pathToJDKbin/java –jar bb-installer.jar  If Xwindows or a similar GUI is running, the Installer will launch in GUI mode. Use the “-text” option to force text mode even if a GUI is running.

13. Installing Blackboard Learn 9.1 DevCon‘11  Blackboard Learn must be installed as root. Service startup and shutdown must also be performed as root.  The Installer is run on a two-server system: the application server and the database server. When installing on one server, these machines are the same.  Once the install is complete, you must start the Blackboard Learn application.

14. Installing Blackboard Learn 9.1 DevCon‘11  As the root user navigate to: /local/blackboard/tools/admin  The following command will start up the application:./ServiceController.sh services.start  Log into Blackboard Learn 9.1 to ensure the application is up and accessible.

15. Installing Bbupdater DevCon‘11  Any file with the.bbp extension can be installed with the Blackboard Patch Utility.  This utility does not ship with Blackboard Learn, and must be downloaded from the following website: http://kb.blackboard.com/display/KB/BbPa tch+-+Blackboard+Patch+Utility.

16. Installing Bbupdater DevCon‘11  On Unix platforms the utility assumes /usr/local/blackboard for the installation location.  It prompts you to set a BLACKBOARD_HOME environment variable if that location cannot be found.  NOTE: Windows clients must set a BLACKBOARD_HOME environment variable to indicate the Blackboard application location.  The utility must be run as bbuser on Unix platforms, the shell script will attempt to switch to bbuser if it is running as root.  The utility runs using the JAVA_HOME specified in bb-config.properties.  Shell scripts are included for Windows and Unix platforms, bbpatch.bat and bbpatch.sh.  The utility takes an 'action' argument, followed by options specific to that patch action: bbpatch.bat/sh [action] [options]. Running the utility with arguments outputs the command-line help for each of the patch actions.

17. Using Bbupdater DevCon‘11  The syntax for the bb patch is as follows: bbpatch.bat/sh [action][options] For example, you would want to use the following if installing the patch on a Linux system: bbpatch.sh apply -p as-155317  IMPORTANT: Please note a pushconfigupdates is recommended after the patches have been installed.  List the patches using the following command: bbpatch.sh list-l  Rollback the patches using the following command: bbpatch rollback -i AS-123456

18. Using Bbupdater DevCon‘11  To install any patches, the patch utility and the bbp files must reside in the same directory, as the patch utility does not know how to remotely call the patch to be installed, be it in a directory one level up or on a server across campus.  Please note the utility must be run by bbuser.

19. Applying New Building Blocks DevCon‘11  STEP 1: Log into Blackboard Learn, click the System Admin tab, and select Building Blocks.

20. Applying New Building Blocks DevCon‘11  STEP 2: Click on the Installed Tools link.

21. Applying New Building Blocks DevCon‘11  STEP 3: Preview the Installed Tools.

22. Applying New Building Blocks DevCon‘11  STEP 4: Click the Upload Building Blocks button.

23. Applying New Building Blocks DevCon‘11  STEP 5: Click the Browse button to select the Building Block file.

24. Applying New Building Blocks DevCon‘11  STEP 6: Preview your file selection and click the Submit button to continue.

25. Applying New Building Blocks DevCon‘11  STEP 7: Blackboard Learn will indicate success or failure for the Building Block installed.

26. Applying New Building Blocks DevCon‘11  STEP 8: Preview the Building Block version and availability.

27. Converting CE 8 Courses DevCon‘11  Demonstrate a Blackboard CE 8 course being imported in Blackboard Learn 9.1.  Using a.bak file.  Performing a restore to upload the content from the.bak file.

28. Converting CE 8 Courses DevCon‘11  STEP 1: Log into Blackboard Learn, click the System Admin tab, and select Courses.

29. Converting CE 8 Courses DevCon‘11  STEP 2: Click the Create Course button and choose Restore.

30. Converting CE 8 Courses DevCon‘11  STEP 3: Enter the Destination Course ID, select the backup file to upload, and click the Submit button.

31. Converting CE 8 Courses DevCon‘11  STEP 4: Blackboard Learn will notify you of success or failure.

32. Converting CE 8 Courses DevCon‘11  STEP 5: Click the Enroll Users button.

33. Converting CE 8 Courses DevCon‘11  STEP 6: Enter the Course ID and click the GO button. Now, you can select Enrollments from the course action links.

34. Converting CE 8 Courses DevCon‘11  STEP 7: Enter the username, role, and click the Submit button.

35. Converting CE 8 Courses DevCon‘11  STEP 8: Blackboard Learn will notify you of success or failure.

36. Converting CE 8 Courses DevCon‘11  STEP 9: Navigate to the course and click the link.

37. Converting CE 8 Courses DevCon‘11  STEP 10: Preview your Blackboard CE 8 course in Blackboard Learn 9.1.

38. Tips and Tricks DevCon‘11  Join the 9.1 Cohort program.  IMPORTANT: Great opportunity to receive the FREE Student Orientation Course Cartridge!  The Blackboard Learn 9.1 Installation Guide is for both Windows and Unix so use the links in the documentation to guide you.  Download the bbupdater for patches and create bbuser to execute.bbp files.

39. Tips and Tricks DevCon‘11  Installing patches will automatically take the application server down and start service.  Remember there is no down time for building block implementations, which makes keeping current easy!  Blackboard CE 8 course backups in a.bak file format can easily be restored to a new course in Blackboard Learn 9.1.

40. DevCon ‘11 Questions & Answers

41. DevCon‘11 Contact Information Suzanne Bogovich, MS, MBA Instructional Database Specialist Center for Instructional Delivery University of St. Francis 500 Wilcox Street Joliet, IL 60435 (815) 740-5050 sbogovich@stfrancis.edu

42. DevCon‘11 Session Feedback Please provide feedback for this session by emailing: DevConFeedback@blackboard.com. The subject of the email should be title of this session: Enrolling in Blackboard Learn for Campus Edition Alumni

43. DevCon ‘11 Thank You
