Presentation on theme: "Green Energy Hydro Power (Hydroelectric Inflow Dam System) By IP Management Pte Ltd www.LamTengChoy.com."— Presentation transcript:
Green Energy Hydro Power (Hydroelectric Inflow Dam System) By IP Management Pte Ltd www.LamTengChoy.com

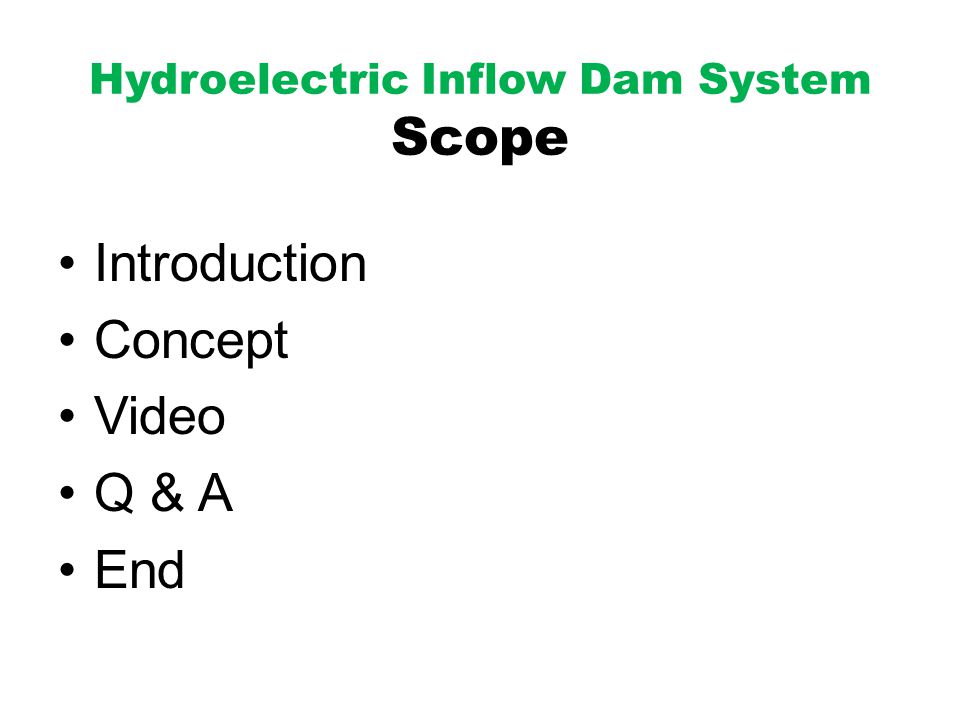

Hydroelectric Inflow Dam System Scope Introduction Concept Video Q & A End

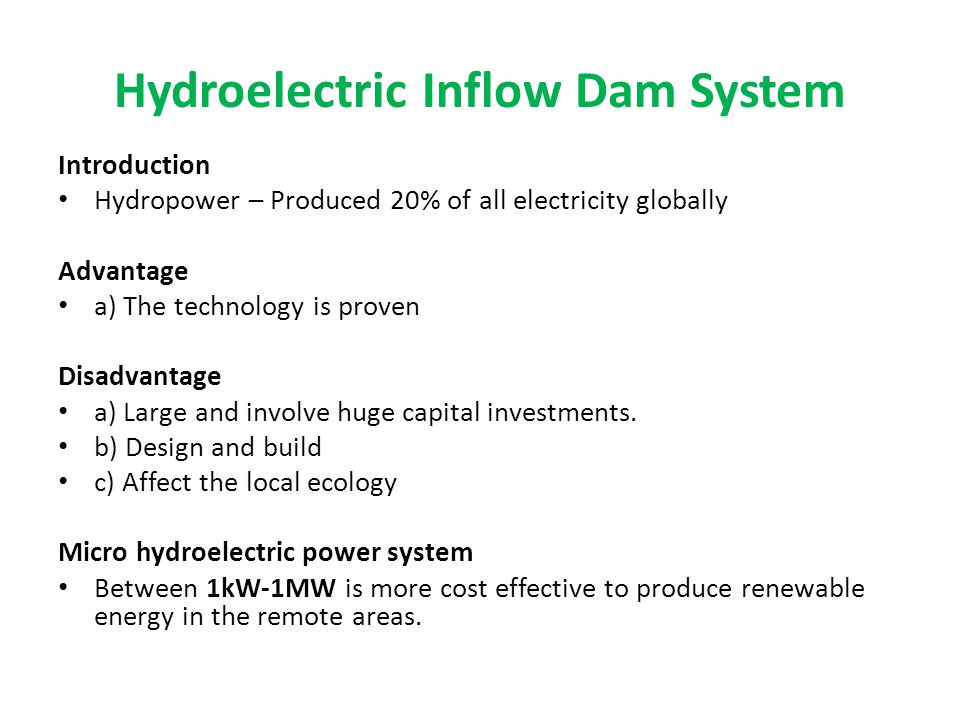

Hydroelectric Inflow Dam System Introduction Hydropower – Produced 20% of all electricity globally Advantage a) The technology is proven Disadvantage a) Large and involve huge capital investments. b) Design and build c) Affect the local ecology Micro hydroelectric power system Between 1kW-1MW is more cost effective to produce renewable energy in the remote areas.

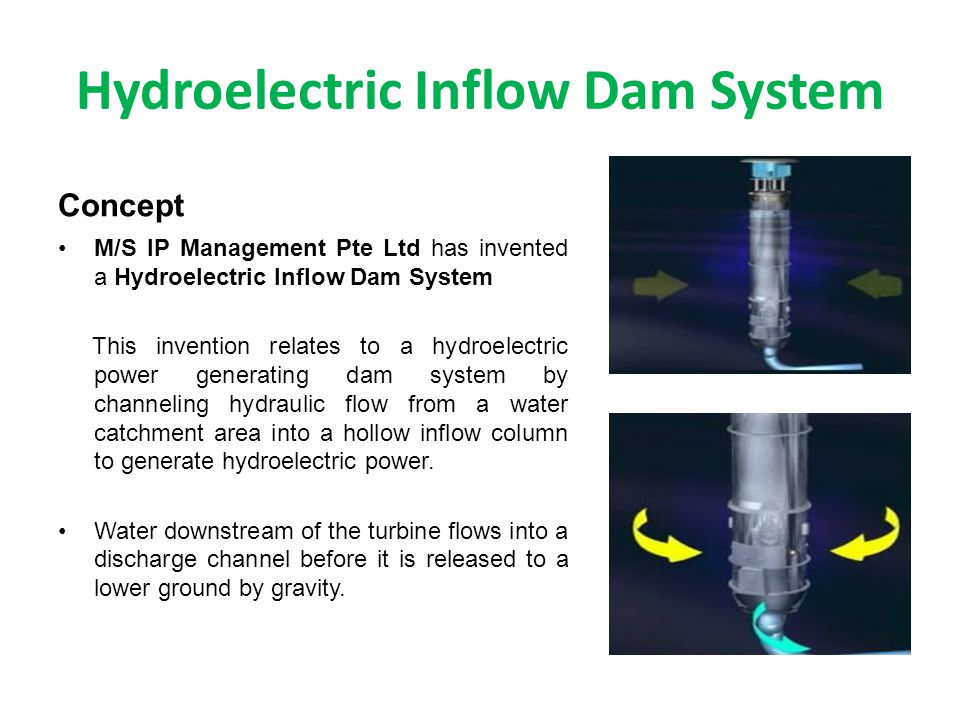

Hydroelectric Inflow Dam System Concept M/S IP Management Pte Ltd has invented a Hydroelectric Inflow Dam System This invention relates to a hydroelectric power generating dam system by channeling hydraulic flow from a water catchment area into a hollow inflow column to generate hydroelectric power. Water downstream of the turbine flows into a discharge channel before it is released to a lower ground by gravity.

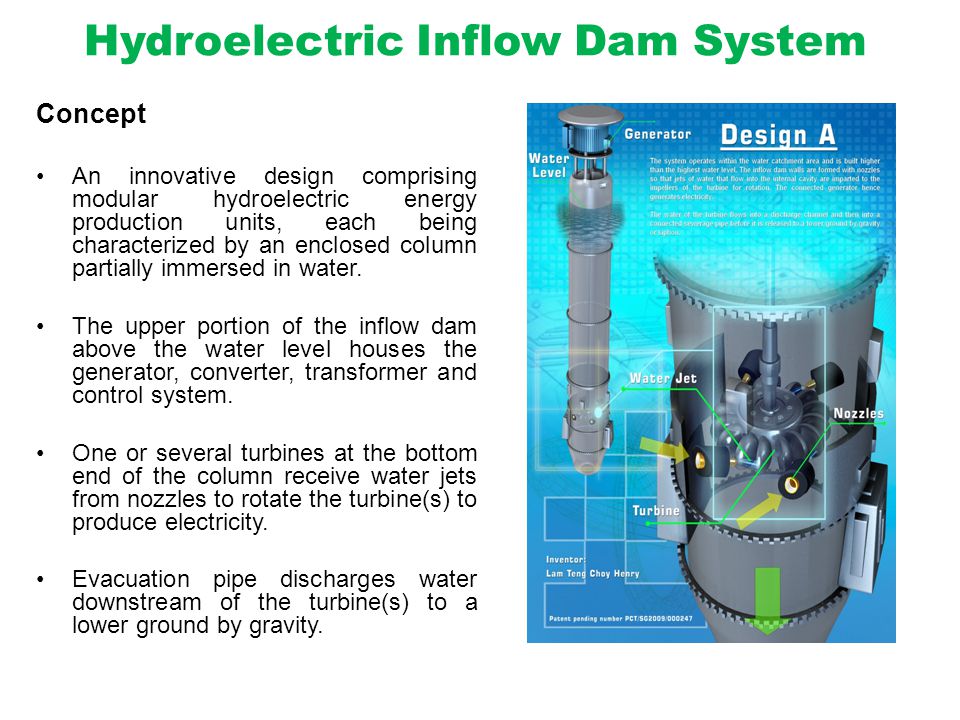

Hydroelectric Inflow Dam System Concept An innovative design comprising modular hydroelectric energy production units, each being characterized by an enclosed column partially immersed in water. The upper portion of the inflow dam above the water level houses the generator, converter, transformer and control system. One or several turbines at the bottom end of the column receive water jets from nozzles to rotate the turbine(s) to produce electricity. Evacuation pipe discharges water downstream of the turbine(s) to a lower ground by gravity.

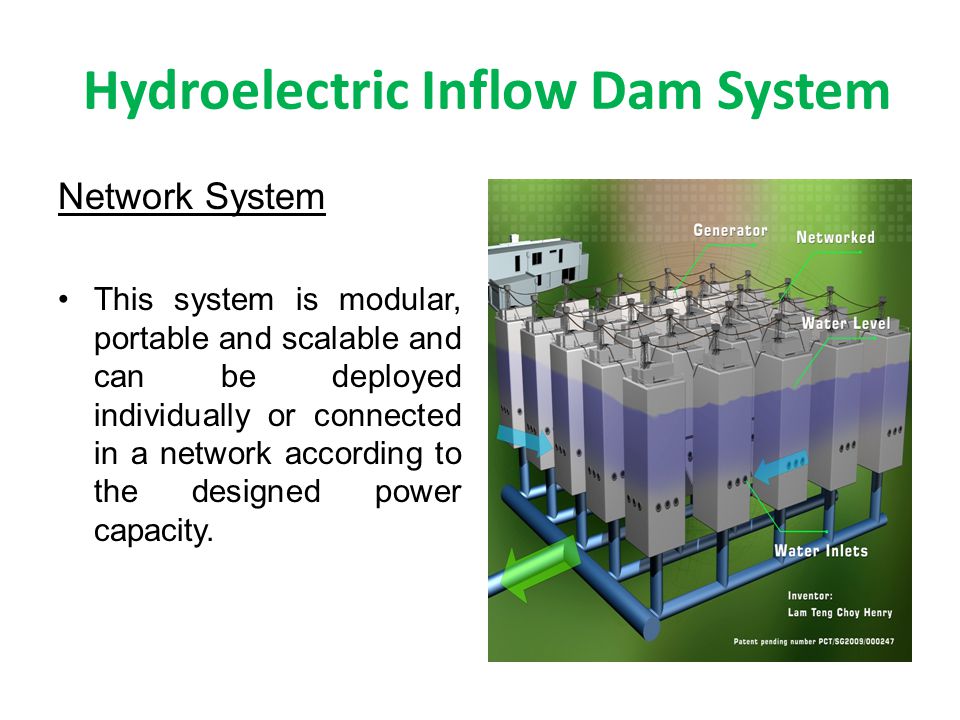

Hydroelectric Inflow Dam System Network System This system is modular, portable and scalable and can be deployed individually or connected in a network according to the designed power capacity.
Reference - Data source from Natural Resources Canada – Micro Hydropower system – A Buyer’s Guide http://www.oregon.gov/ENERGY/RENEW/Hydro/docs/MicroHydroGuide.pdf http://www.oregon.gov/ENERGY/RENEW/Hydro/docs/MicroHydroGuide.pdf Equation: Where power is measured in Watts, head in metres, flow in litres per second, and acceleration due to gravity in 9.81 metres per second. h - Gross head (height) in meter g - Gravitational constant (9.8m/s 2 ) q - Flow rate in m 3 /s p - Power output (in watts) e - Efficiency Power output (P) = h x q x g x e

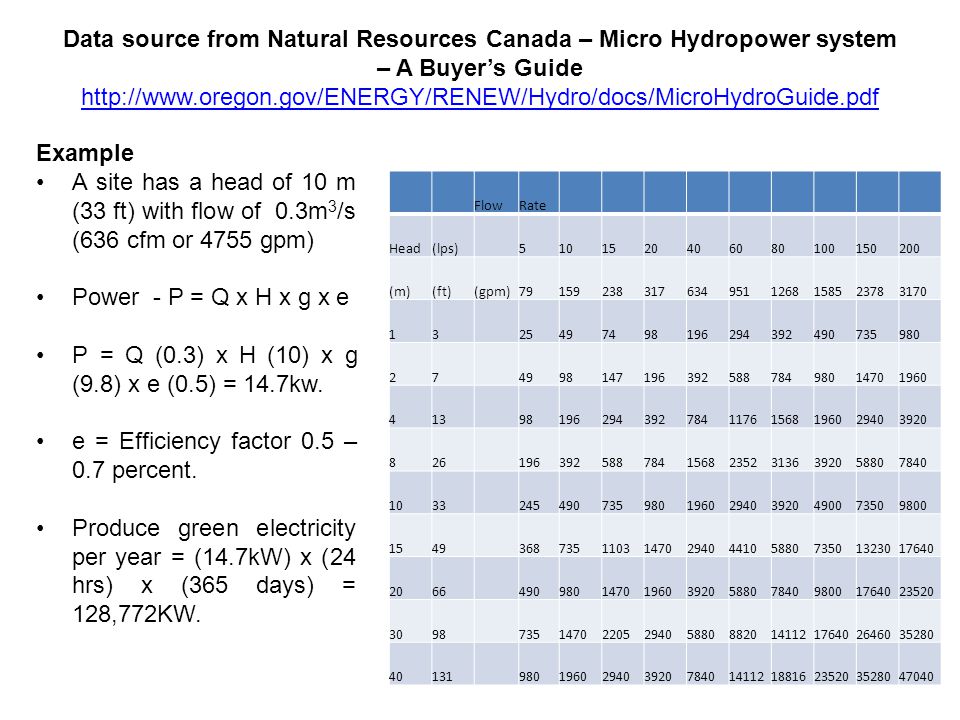

Data source from Natural Resources Canada – Micro Hydropower system – A Buyer’s Guide http://www.oregon.gov/ENERGY/RENEW/Hydro/docs/MicroHydroGuide.pdf http://www.oregon.gov/ENERGY/RENEW/Hydro/docs/MicroHydroGuide.pdf Example A site has a head of 10 m (33 ft) with flow of 0.3m 3 /s (636 cfm or 4755 gpm) Power - P = Q x H x g x e P = Q (0.3) x H (10) x g (9.8) x e (0.5) = 14.7kw. e = Efficiency factor 0.5 – 0.7 percent. Produce green electricity per year = (14.7kW) x (24 hrs) x (365 days) = 128,772KW. FlowRate Head(lps) 5101520406080100150200 (m)(ft)(gpm)791592383176349511268158523783170 13 25497498196294392490735980 27 499814719639258878498014701960 413 9819629439278411761568196029403920 826 196392588784156823523136392058807840 1033 245490735980196029403920490073509800 1549 3687351103147029404410588073501323017640 2066 4909801470196039205880784098001764023520 3098 7351470220529405880882014112176402646035280 40131 98019602940392078401411218816235203528047040

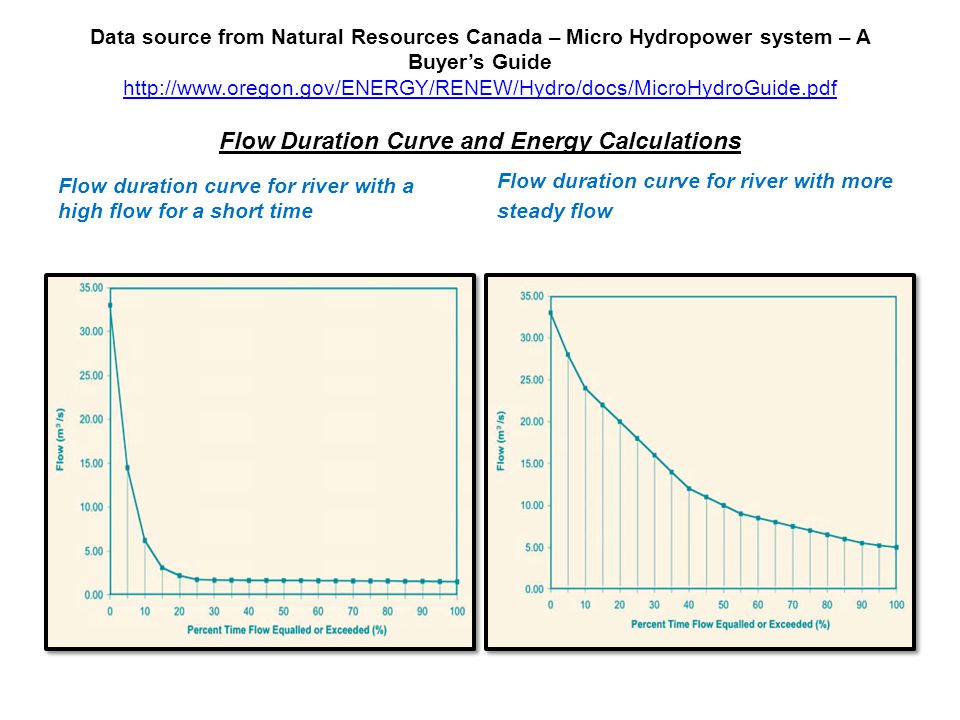

Data source from Natural Resources Canada – Micro Hydropower system – A Buyer’s Guide http://www.oregon.gov/ENERGY/RENEW/Hydro/docs/MicroHydroGuide.pdf Flow Duration Curve and Energy Calculations http://www.oregon.gov/ENERGY/RENEW/Hydro/docs/MicroHydroGuide.pdf Flow duration curve for river with a high flow for a short time Flow duration curve for river with more steady flow

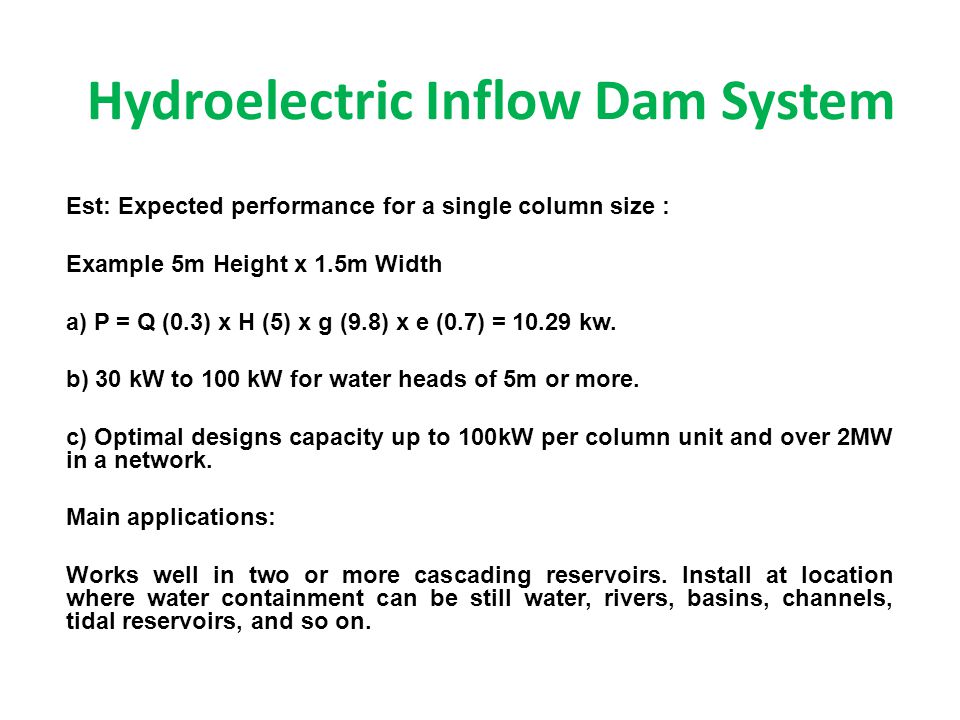

Hydroelectric Inflow Dam System Est: Expected performance for a single column size : Example 5m Height x 1.5m Width a) P = Q (0.3) x H (5) x g (9.8) x e (0.7) = 10.29 kw. b) 30 kW to 100 kW for water heads of 5m or more. c) Optimal designs capacity up to 100kW per column unit and over 2MW in a network. Main applications: Works well in two or more cascading reservoirs. Install at location where water containment can be still water, rivers, basins, channels, tidal reservoirs, and so on.

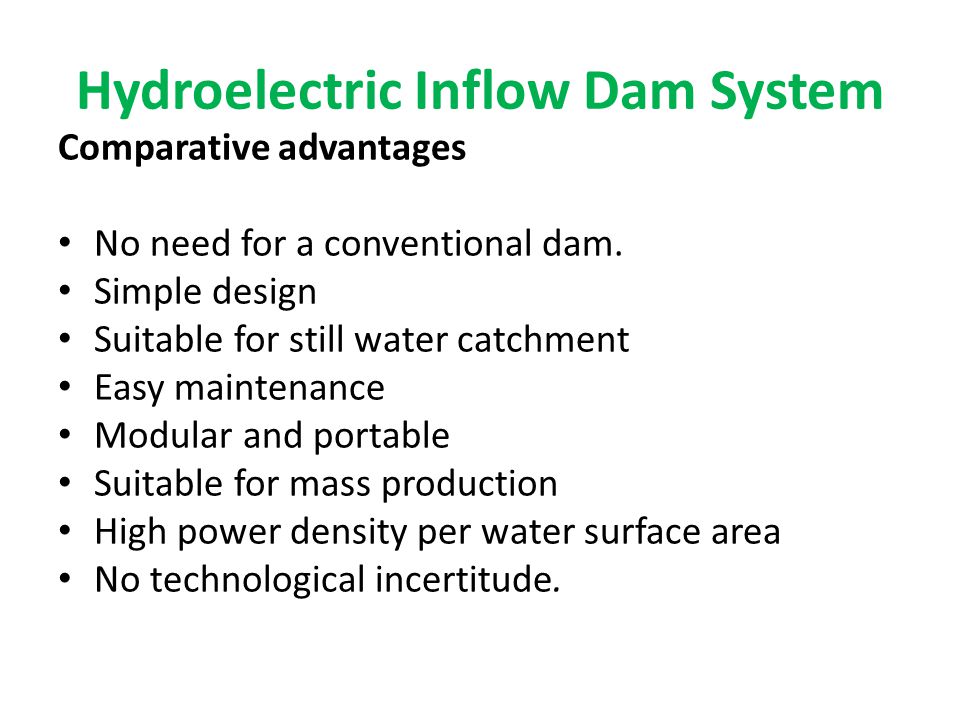

Hydroelectric Inflow Dam System Comparative advantages No need for a conventional dam. Simple design Suitable for still water catchment Easy maintenance Modular and portable Suitable for mass production High power density per water surface area No technological incertitude.
Hydroelectric Inflow Dam System http://www.lamtengchoy.com/main/?item-videolist/show/41/ Video
