1 ECE 5221 Personal Communication Systems Prepared by: Dr. Ivica Kostanic Lecture 24 – Basics of 3G – UMTS (4) Spring 2011

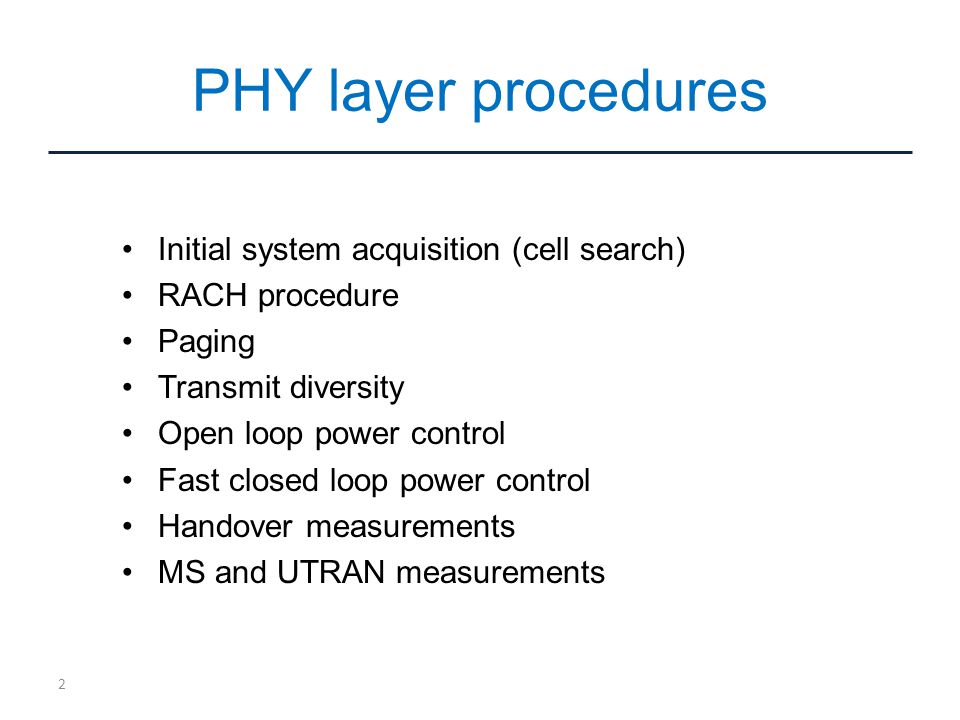

2 PHY layer procedures Initial system acquisition (cell search) RACH procedure Paging Transmit diversity Open loop power control Fast closed loop power control Handover measurements MS and UTRAN measurements 2

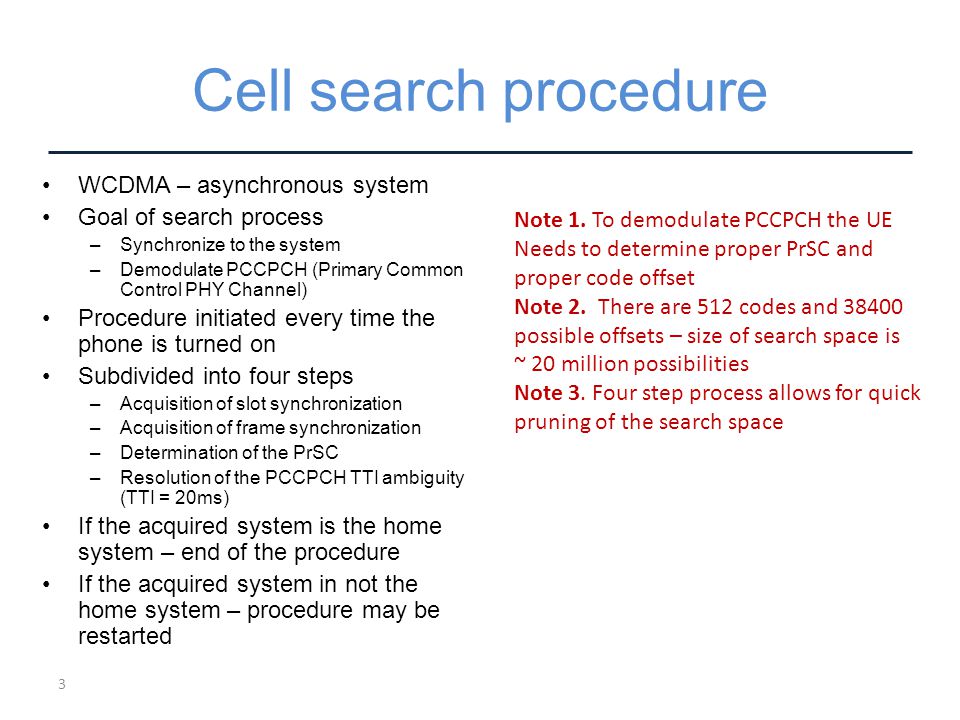

3 Cell search procedure WCDMA – asynchronous system Goal of search process –Synchronize to the system –Demodulate PCCPCH (Primary Common Control PHY Channel) Procedure initiated every time the phone is turned on Subdivided into four steps –Acquisition of slot synchronization –Acquisition of frame synchronization –Determination of the PrSC –Resolution of the PCCPCH TTI ambiguity (TTI = 20ms) If the acquired system is the home system – end of the procedure If the acquired system in not the home system – procedure may be restarted 3 Note 1. To demodulate PCCPCH the UE Needs to determine proper PrSC and proper code offset Note 2. There are 512 codes and 38400 possible offsets – size of search space is ~ 20 million possibilities Note 3. Four step process allows for quick pruning of the search space

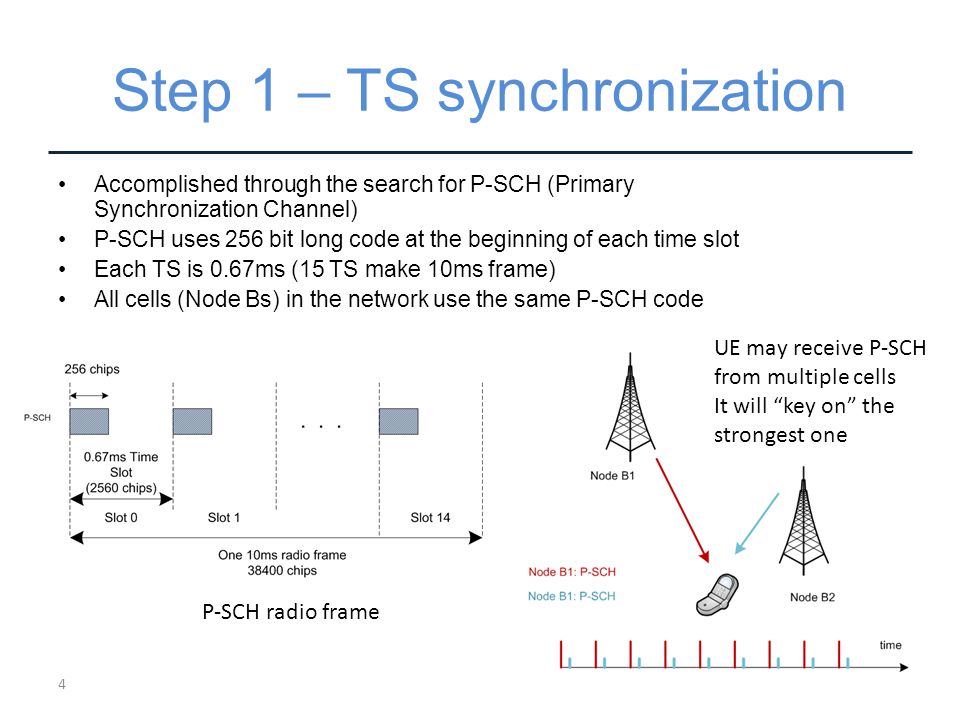

4 Step 1 – TS synchronization Accomplished through the search for P-SCH (Primary Synchronization Channel) P-SCH uses 256 bit long code at the beginning of each time slot Each TS is 0.67ms (15 TS make 10ms frame) All cells (Node Bs) in the network use the same P-SCH code 4 P-SCH radio frame UE may receive P-SCH from multiple cells It will “key on” the strongest one

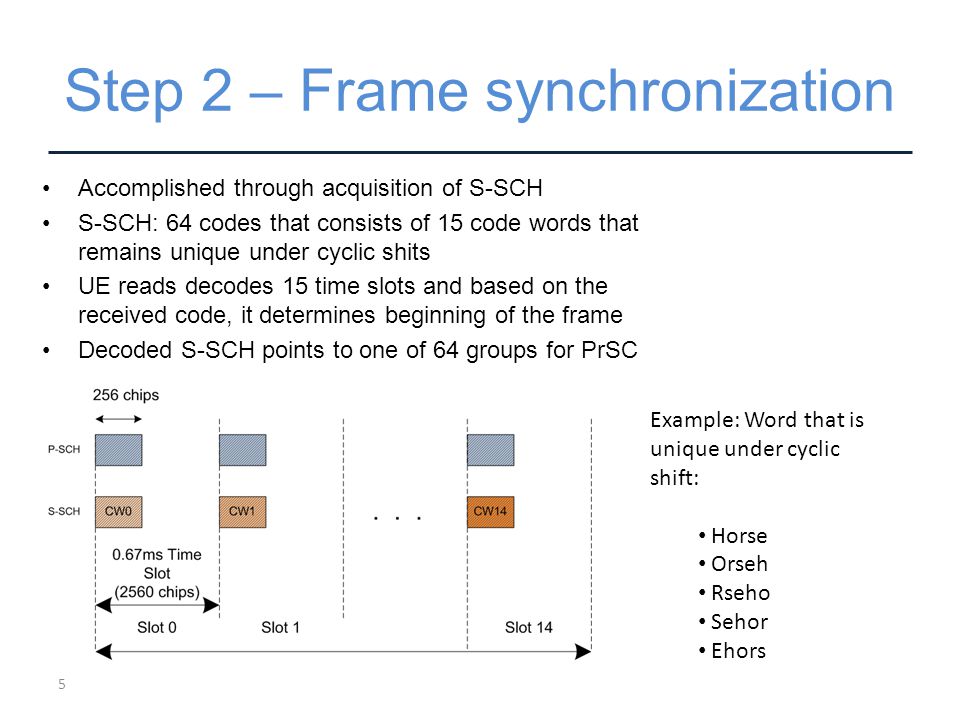

5 Step 2 – Frame synchronization Accomplished through acquisition of S-SCH S-SCH: 64 codes that consists of 15 code words that remains unique under cyclic shits UE reads decodes 15 time slots and based on the received code, it determines beginning of the frame Decoded S-SCH points to one of 64 groups for PrSC 5 Example: Word that is unique under cyclic shift: Horse Orseh Rseho Sehor Ehors

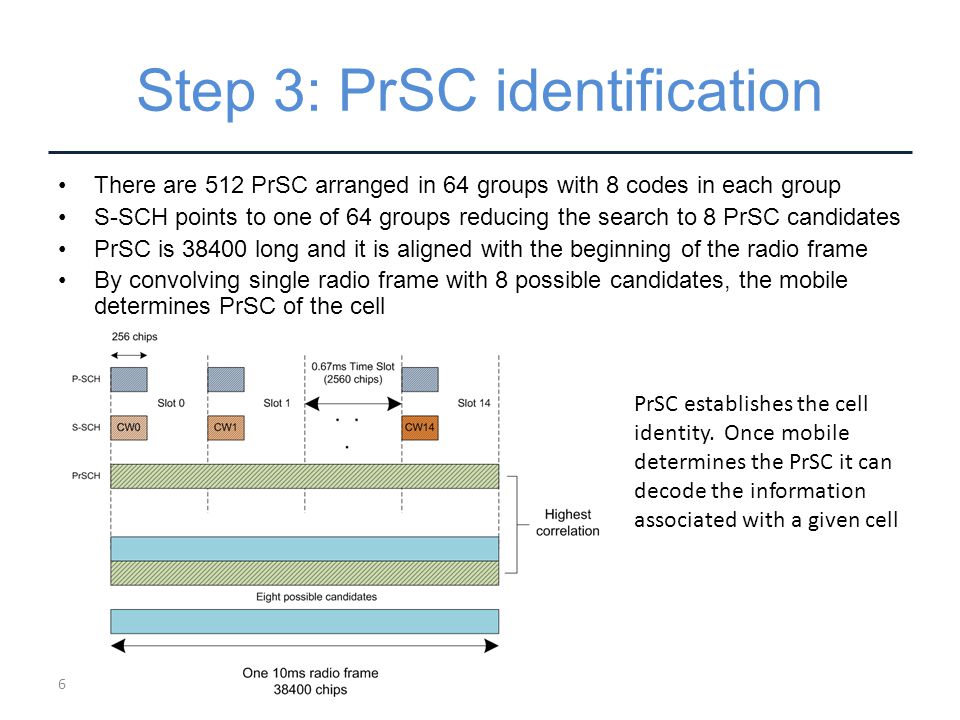

6 Step 3: PrSC identification There are 512 PrSC arranged in 64 groups with 8 codes in each group S-SCH points to one of 64 groups reducing the search to 8 PrSC candidates PrSC is 38400 long and it is aligned with the beginning of the radio frame By convolving single radio frame with 8 possible candidates, the mobile determines PrSC of the cell 6 PrSC establishes the cell identity. Once mobile determines the PrSC it can decode the information associated with a given cell

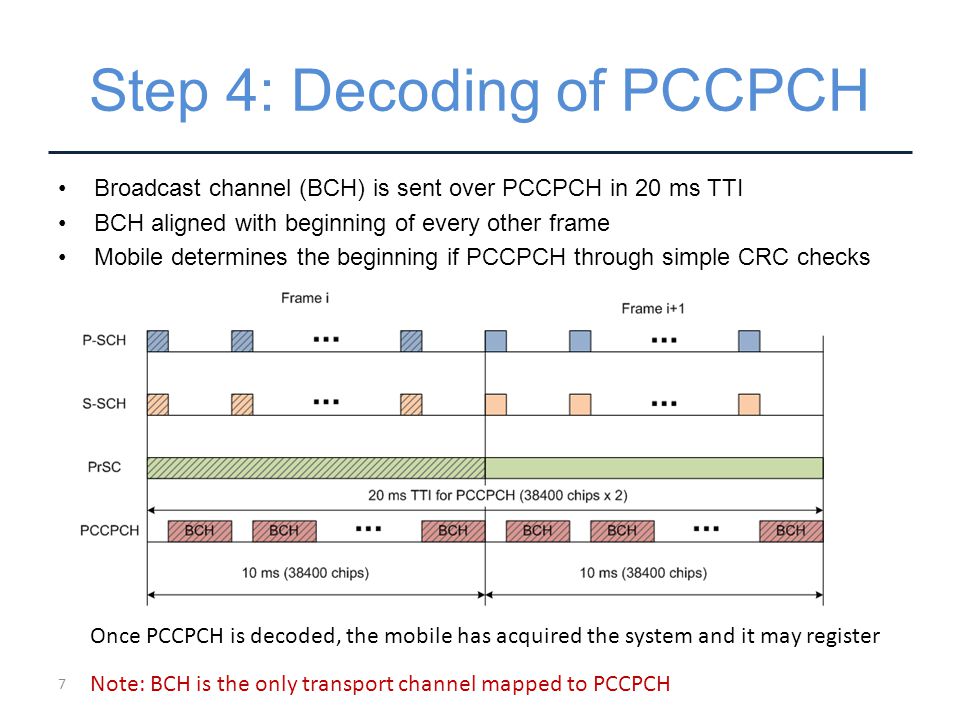

7 Step 4: Decoding of PCCPCH Broadcast channel (BCH) is sent over PCCPCH in 20 ms TTI BCH aligned with beginning of every other frame Mobile determines the beginning if PCCPCH through simple CRC checks 7 Once PCCPCH is decoded, the mobile has acquired the system and it may register Note: BCH is the only transport channel mapped to PCCPCH

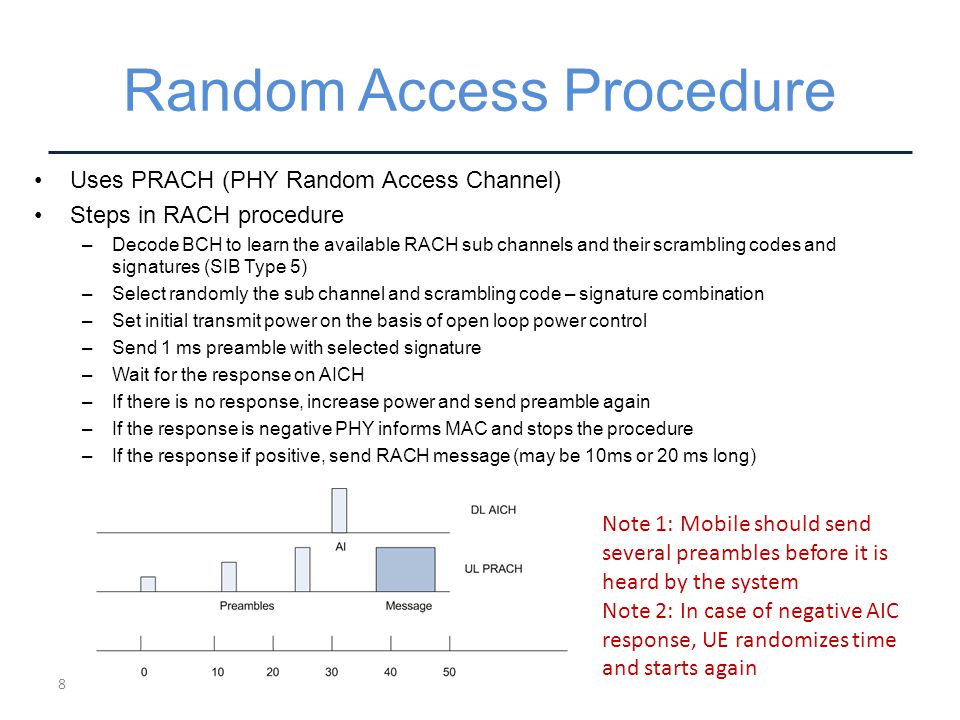

8 Random Access Procedure Uses PRACH (PHY Random Access Channel) Steps in RACH procedure –Decode BCH to learn the available RACH sub channels and their scrambling codes and signatures (SIB Type 5) –Select randomly the sub channel and scrambling code – signature combination –Set initial transmit power on the basis of open loop power control –Send 1 ms preamble with selected signature –Wait for the response on AICH –If there is no response, increase power and send preamble again –If the response is negative PHY informs MAC and stops the procedure –If the response if positive, send RACH message (may be 10ms or 20 ms long) 8 Note 1: Mobile should send several preambles before it is heard by the system Note 2: In case of negative AIC response, UE randomizes time and starts again

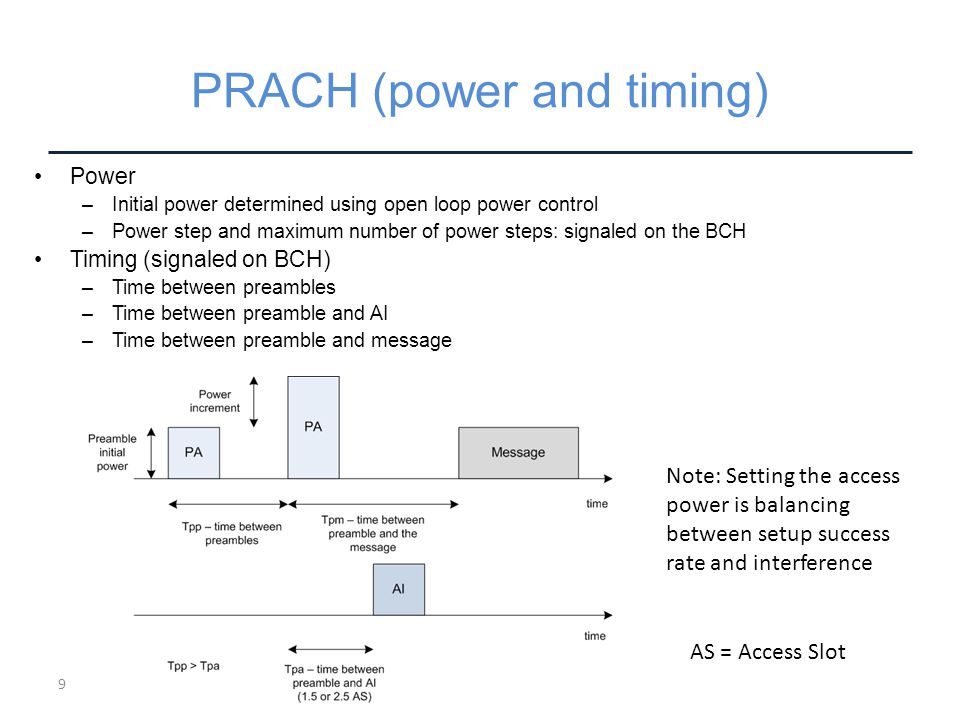

9 PRACH (power and timing) Power –Initial power determined using open loop power control –Power step and maximum number of power steps: signaled on the BCH Timing (signaled on BCH) –Time between preambles –Time between preamble and AI –Time between preamble and message 9 Note: Setting the access power is balancing between setup success rate and interference AS = Access Slot

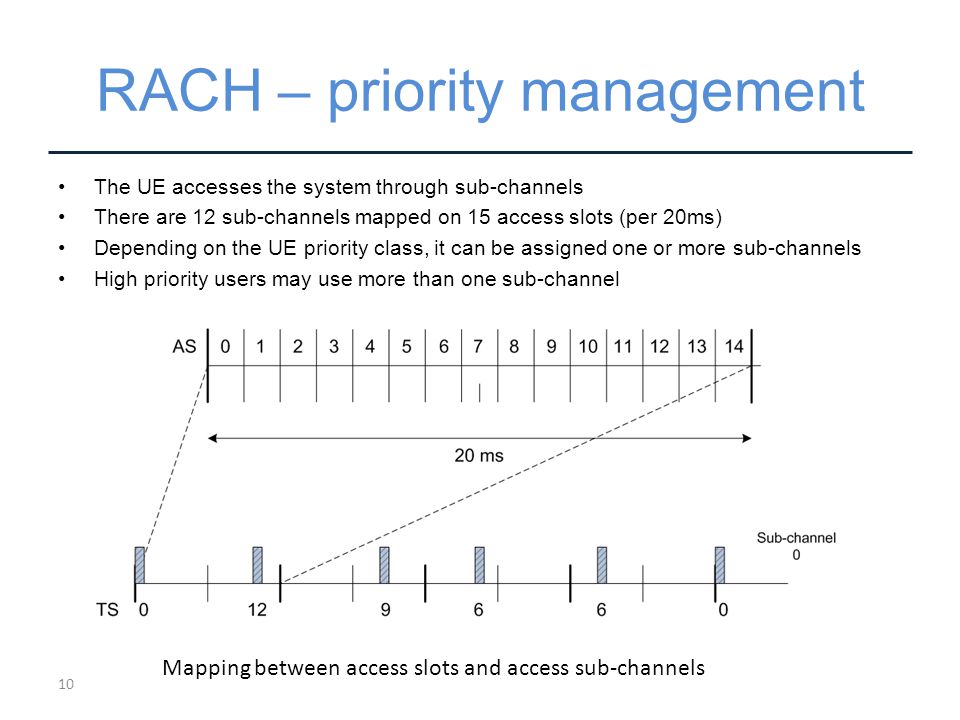

10 RACH – priority management The UE accesses the system through sub-channels There are 12 sub-channels mapped on 15 access slots (per 20ms) Depending on the UE priority class, it can be assigned one or more sub-channels High priority users may use more than one sub-channel 10 Mapping between access slots and access sub-channels

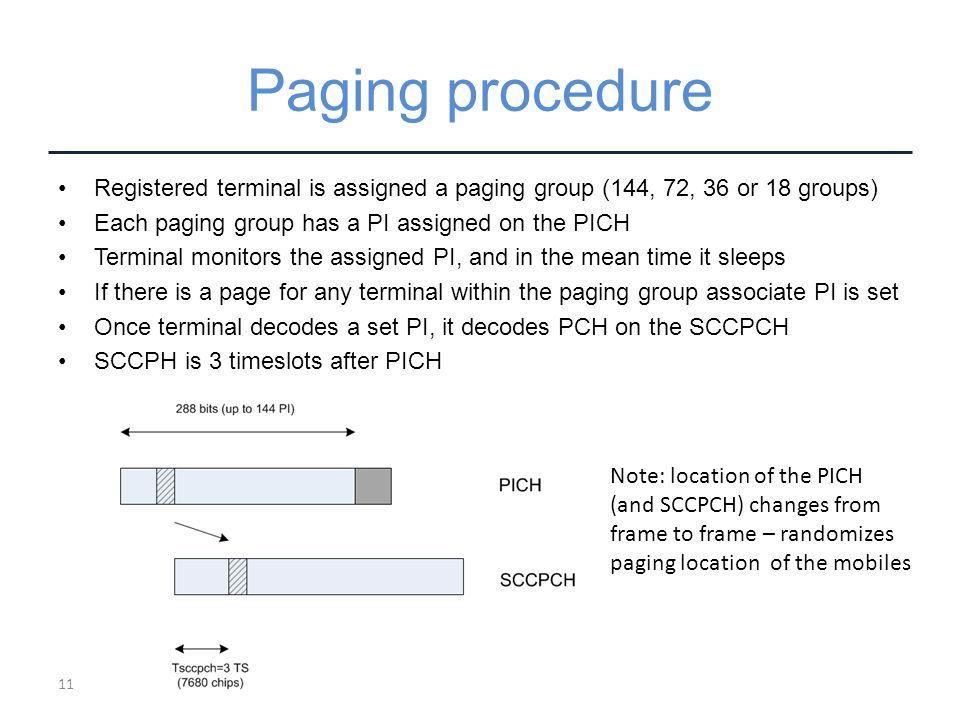

11 Paging procedure Registered terminal is assigned a paging group (144, 72, 36 or 18 groups) Each paging group has a PI assigned on the PICH Terminal monitors the assigned PI, and in the mean time it sleeps If there is a page for any terminal within the paging group associate PI is set Once terminal decodes a set PI, it decodes PCH on the SCCPCH SCCPH is 3 timeslots after PICH 11 Note: location of the PICH (and SCCPCH) changes from frame to frame – randomizes paging location of the mobiles

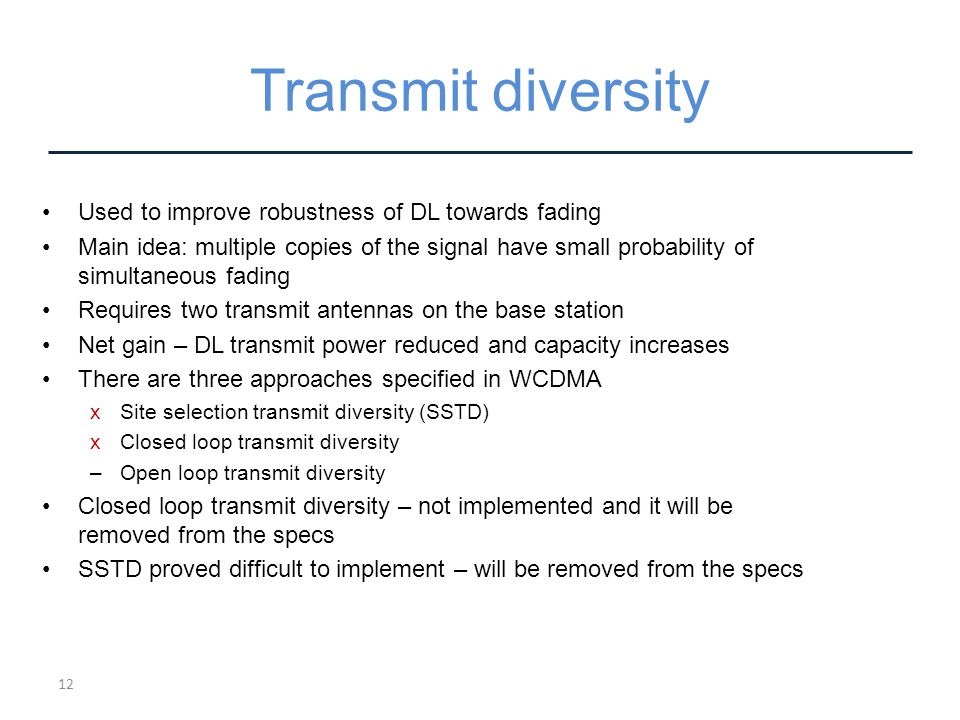

12 Transmit diversity Used to improve robustness of DL towards fading Main idea: multiple copies of the signal have small probability of simultaneous fading Requires two transmit antennas on the base station Net gain – DL transmit power reduced and capacity increases There are three approaches specified in WCDMA xSite selection transmit diversity (SSTD) xClosed loop transmit diversity –Open loop transmit diversity Closed loop transmit diversity – not implemented and it will be removed from the specs SSTD proved difficult to implement – will be removed from the specs 12

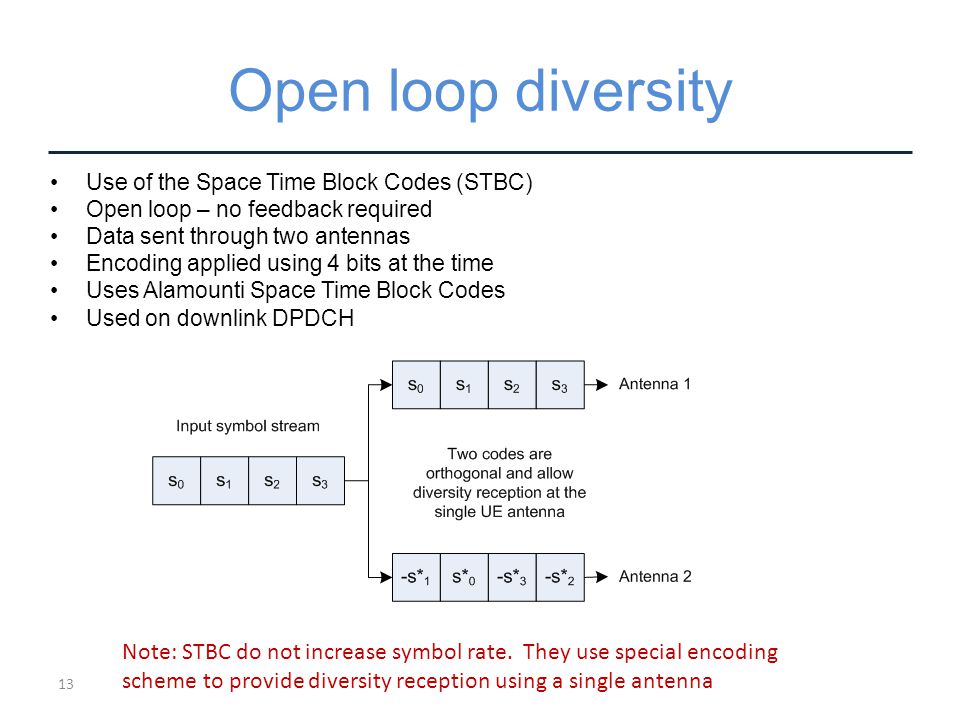

13 Open loop diversity Use of the Space Time Block Codes (STBC) Open loop – no feedback required Data sent through two antennas Encoding applied using 4 bits at the time Uses Alamounti Space Time Block Codes Used on downlink DPDCH 13 Note: STBC do not increase symbol rate. They use special encoding scheme to provide diversity reception using a single antenna

14 Power control Very important in CDMA Minimizes interference – increases capacity Power control classification –Open loop – no feedback –Closed loop – close to real time feedback Open loop power control –UL open loop –DL open loop Closed loop power control –UL inner loop –UL outer loop –DL inner loop –DL outer loop Power control – more critical for performance of UL 14 PHY channelOpen loop Closed loop – Inner Closed loop – outer No power control DPDCHYes X DPCCHYes X PCCPCHXXXYes SCCPCH (BCH and FACH) XXXYes AICHXXXYes PICHXXXYes PRACHYesXXX CPICHXXXYes PSCHXXXYes SSCHXXXyes Power control fir different PHY channels

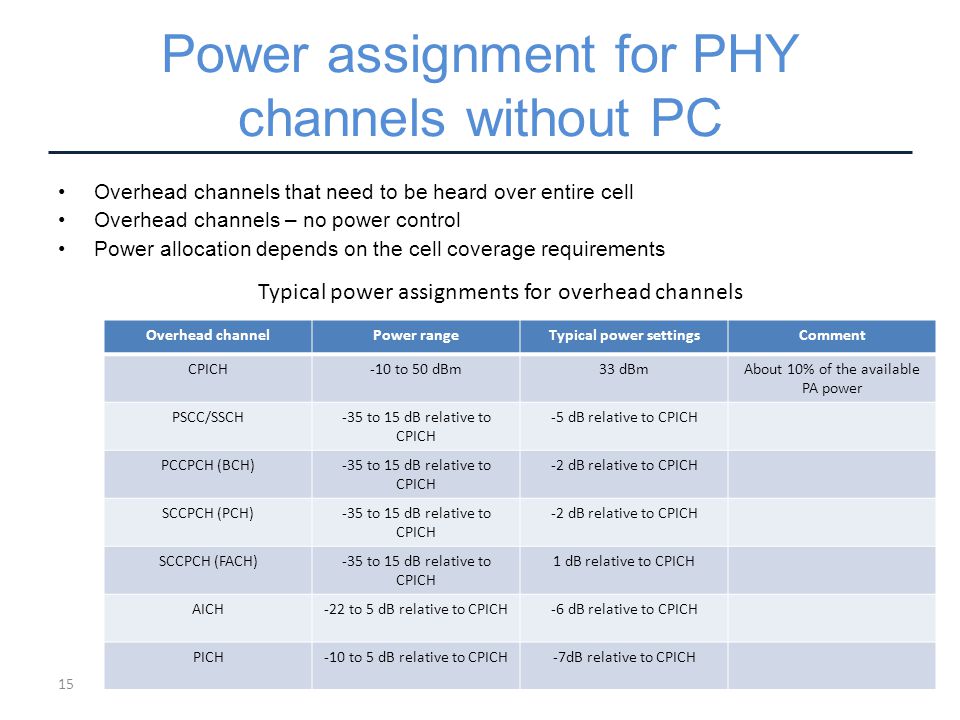

15 Power assignment for PHY channels without PC Overhead channels that need to be heard over entire cell Overhead channels – no power control Power allocation depends on the cell coverage requirements 15 Overhead channelPower rangeTypical power settingsComment CPICH-10 to 50 dBm33 dBmAbout 10% of the available PA power PSCC/SSCH-35 to 15 dB relative to CPICH -5 dB relative to CPICH PCCPCH (BCH)-35 to 15 dB relative to CPICH -2 dB relative to CPICH SCCPCH (PCH)-35 to 15 dB relative to CPICH -2 dB relative to CPICH SCCPCH (FACH)-35 to 15 dB relative to CPICH 1 dB relative to CPICH AICH-22 to 5 dB relative to CPICH-6 dB relative to CPICH PICH-10 to 5 dB relative to CPICH-7dB relative to CPICH Typical power assignments for overhead channels

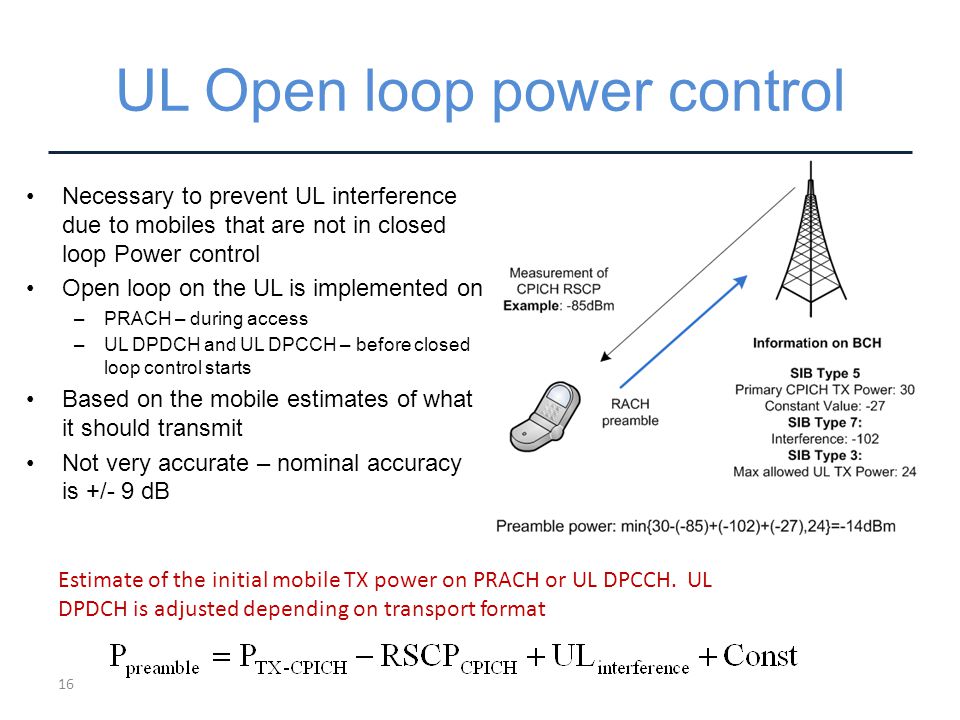

16 UL Open loop power control 16 Necessary to prevent UL interference due to mobiles that are not in closed loop Power control Open loop on the UL is implemented on –PRACH – during access –UL DPDCH and UL DPCCH – before closed loop control starts Based on the mobile estimates of what it should transmit Not very accurate – nominal accuracy is +/- 9 dB Estimate of the initial mobile TX power on PRACH or UL DPCCH. UL DPDCH is adjusted depending on transport format

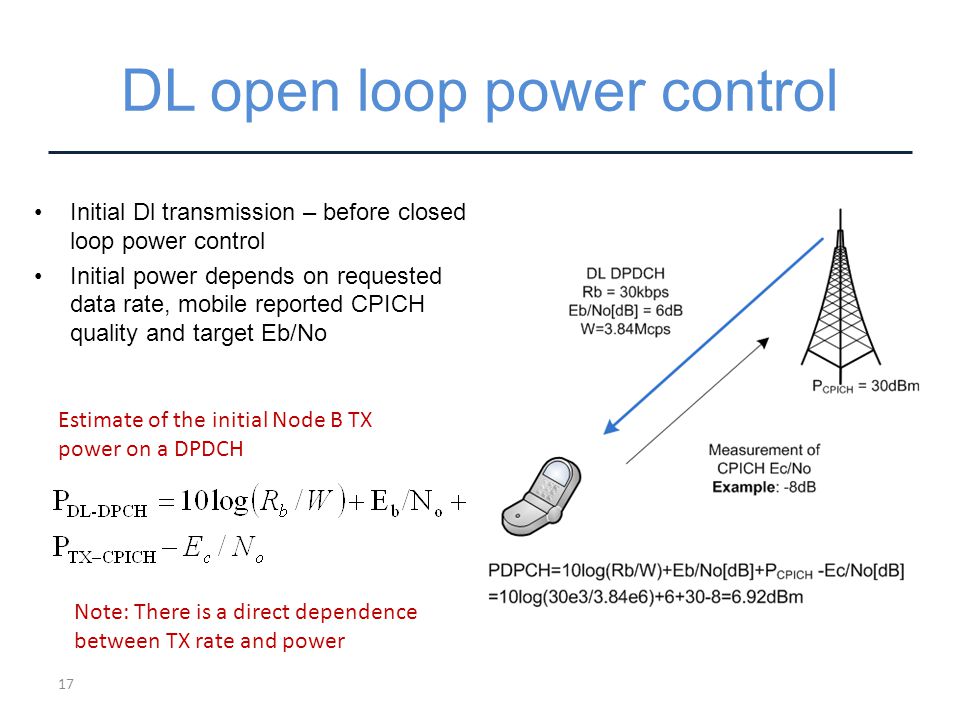

17 DL open loop power control Initial Dl transmission – before closed loop power control Initial power depends on requested data rate, mobile reported CPICH quality and target Eb/No 17 Estimate of the initial Node B TX power on a DPDCH Note: There is a direct dependence between TX rate and power

18 UL closed loop power control UL power control is implemented in two loops –Inner loop: Fast loop Instantaneous SIR of the mobile on the uplink Executed by Node B –Outer loop: Slower loop Manages the target SIR for the mobile on the uplink Executed by RNC Mobile receives one TPC (Transmit Power Control) command per every time slot 18 UL closed loop power control

19 UL closed loop power control in handover Two types of handover –Soft (two different Node Bs) –Softer (two cells of the same Node B) Each cell issues TPC to the mobile TPC bits from the same Node B are combined – one command per Node B TPC commands from different Node B’s – “or of the downs” –In the case of conflicting commands the mobile powers down 19 UL power control for mobile in handover

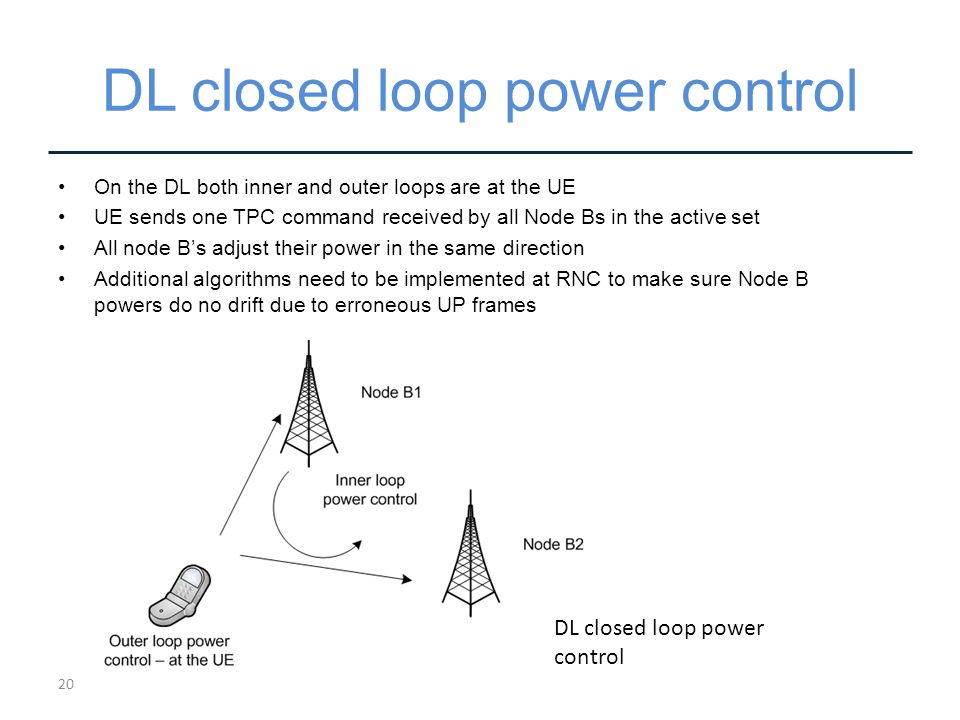

20 DL closed loop power control On the DL both inner and outer loops are at the UE UE sends one TPC command received by all Node Bs in the active set All node B’s adjust their power in the same direction Additional algorithms need to be implemented at RNC to make sure Node B powers do no drift due to erroneous UP frames 20 DL closed loop power control
