1. OpenFlow Switch Limitations

2. Background: Current Applications Traffic Engineering application (performance) – Fine grained rules and short time scales – Coarse grained rules and long time scales Middlebox provision (perf + security) – Fine grained rule and long time scales Network services – Load balancer: fine-grained/short-time – Firewall:fine-grained/long-time Cloud Services – Fine grained/long-time scales

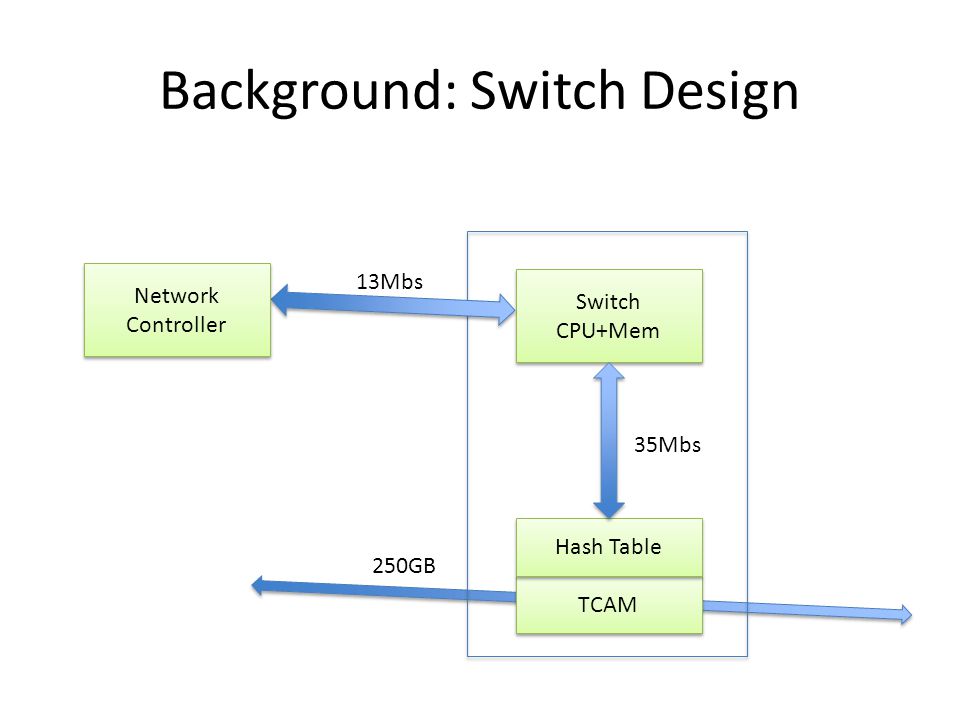

3. Background: Switch Design TCAM Switch CPU+Mem Hash Table Network Controller Network Controller 13Mbs 35Mbs 250GB

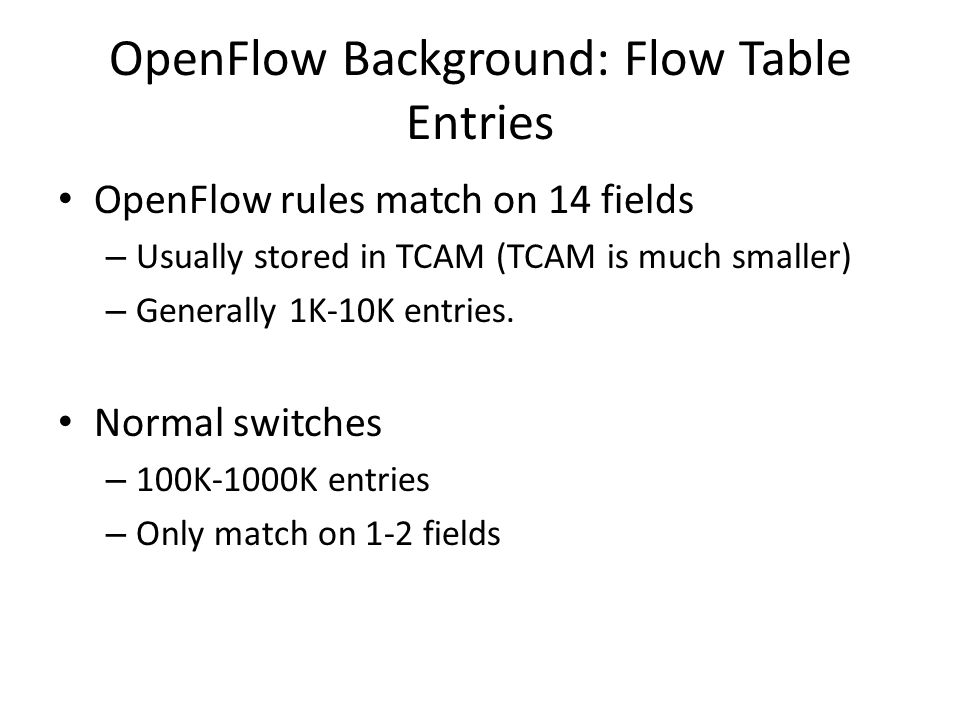

4. OpenFlow Background: Flow Table Entries OpenFlow rules match on 14 fields – Usually stored in TCAM (TCAM is much smaller) – Generally 1K-10K entries. Normal switches – 100K-1000K entries – Only match on 1-2 fields

5. Background: Switch Design TCAM Switch CPU+Mem Hash Table Network Controller Network Controller 13Mbs 35Mbs 250GB

6. OpenFlow Background: Network Events Packet_In (flow-table expect, pkt matches no rule) – Asynch from switch to controller Flow_mod (insert flow table entries) – Asynch from controller to switch Flow_timeout (flow was removed due to timeout) – Asynch from switch to controller Get Flow statistics (information about current flows( – Synchronous between switch & controller – Controller sends request, switch replies

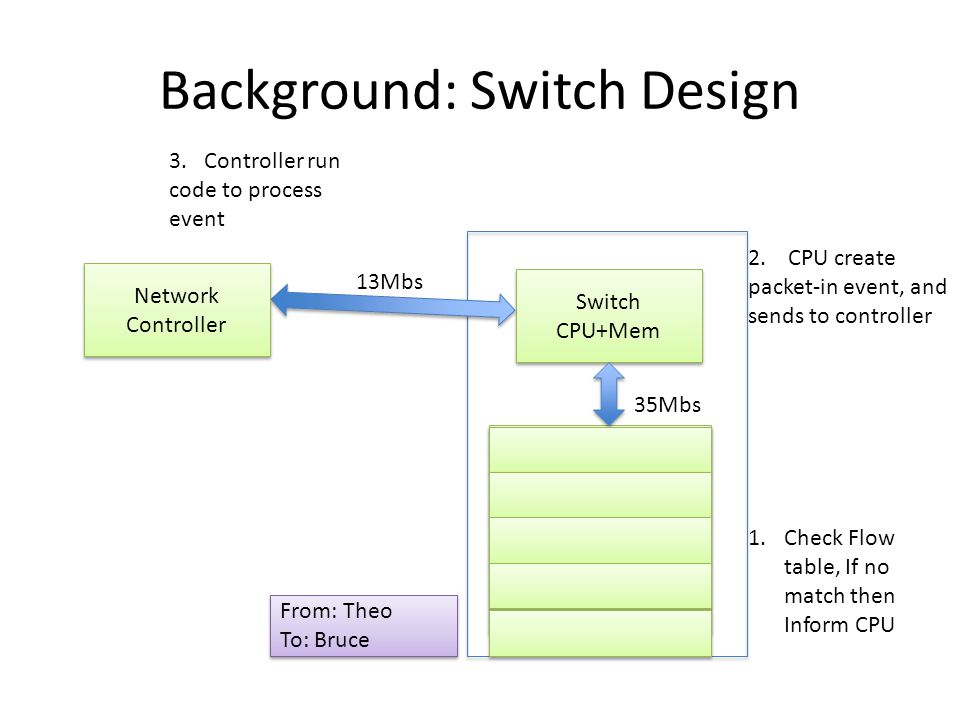

7. Background: Switch Design Switch CPU+Mem Network Controller Network Controller 13Mbs 35Mbs From: Theo To: Bruce From: Theo To: Bruce 1.Check Flow table, If no match then Inform CPU 2. CPU create packet-in event, and sends to controller 3. Controller run code to process event

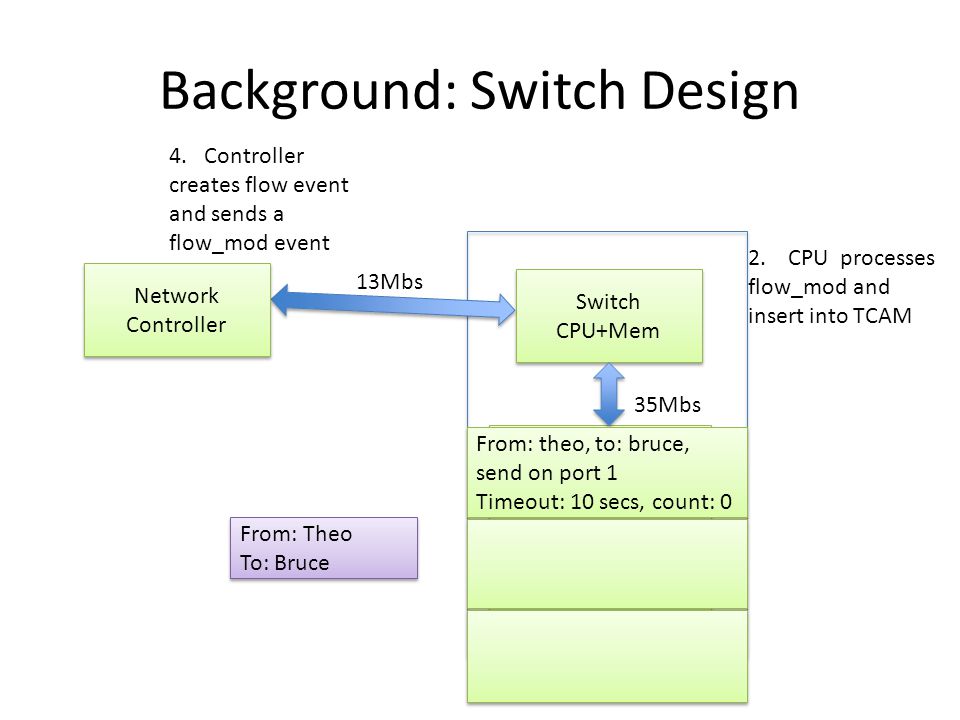

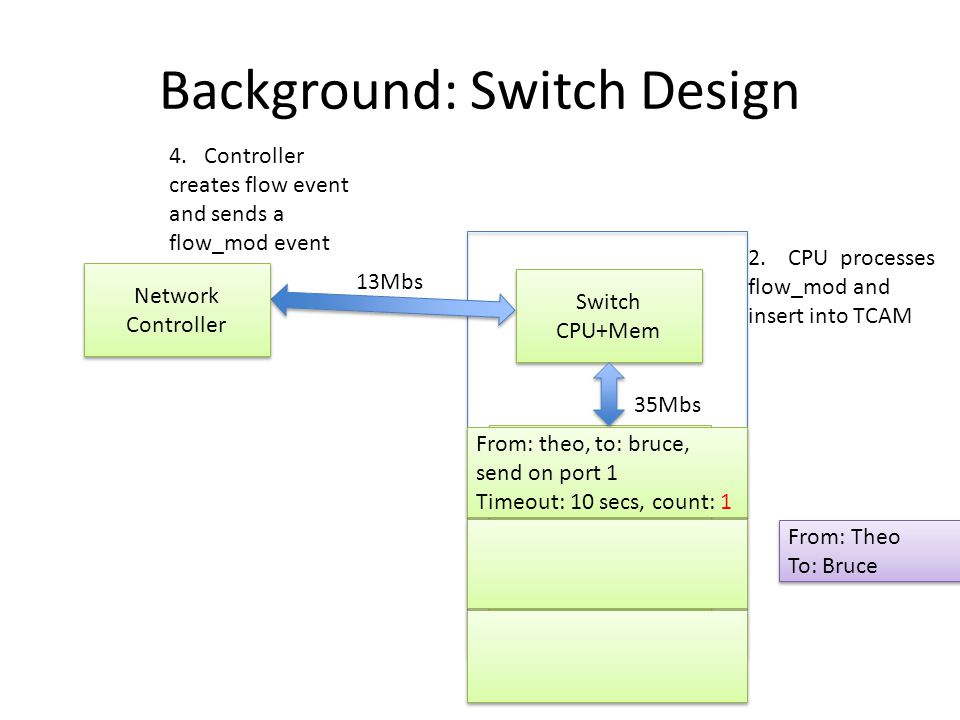

8. Background: Switch Design Switch CPU+Mem Network Controller Network Controller 13Mbs 35Mbs From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 0 From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 0 From: Theo To: Bruce From: Theo To: Bruce 2. CPU processes flow_mod and insert into TCAM 4. Controller creates flow event and sends a flow_mod event

9. Background: Switch Design Switch CPU+Mem Network Controller Network Controller 13Mbs 35Mbs From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 1 From: Theo To: Bruce From: Theo To: Bruce 2. CPU processes flow_mod and insert into TCAM 4. Controller creates flow event and sends a flow_mod event

10. Background: Switch Design Switch CPU+Mem Network Controller Network Controller 13Mbs 35Mbs From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 1 From: Theo To: Bruce From: Theo To: Bruce 1.Check Flow table 2.Found matching rule 3.Forward packet 4.Update the count

11. Background: Switch Design Switch CPU+Mem Network Controller Network Controller 13Mbs 35Mbs From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: bruce, send on port 1 Timeout: 10 secs, count: 1 From: Theo To: John From: Theo To: John 1.Check Flow table 2.No matching rule … now we must talk to the controller

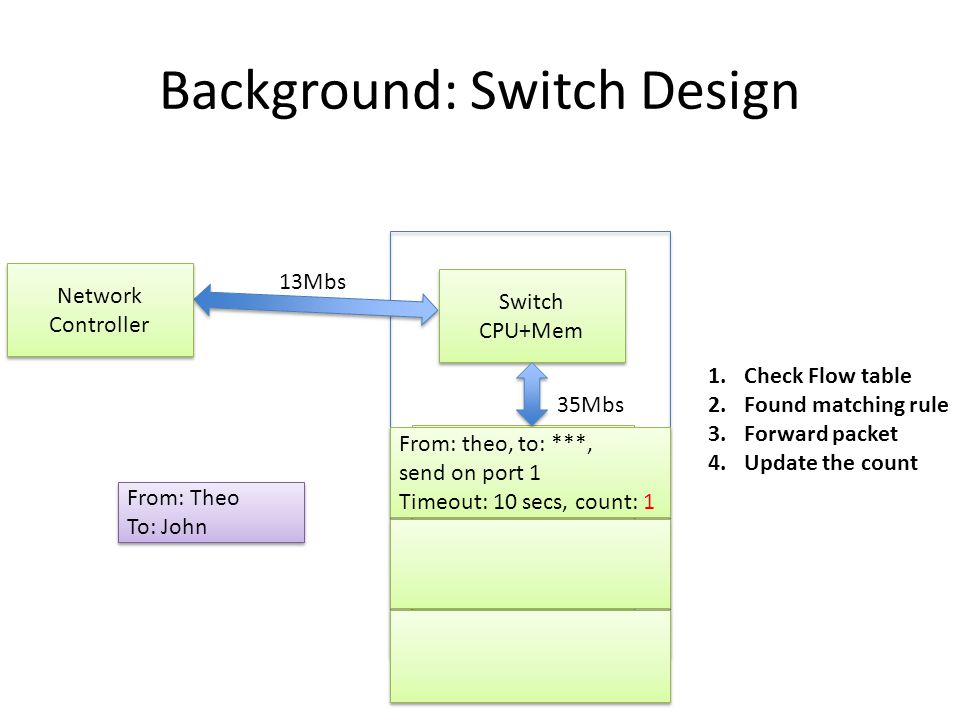

12. Background: Switch Design Switch CPU+Mem Network Controller Network Controller 13Mbs 35Mbs From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: Theo To: John From: Theo To: John 1.Check Flow table 2.Found matching rule 3.Forward packet 4.Update the count

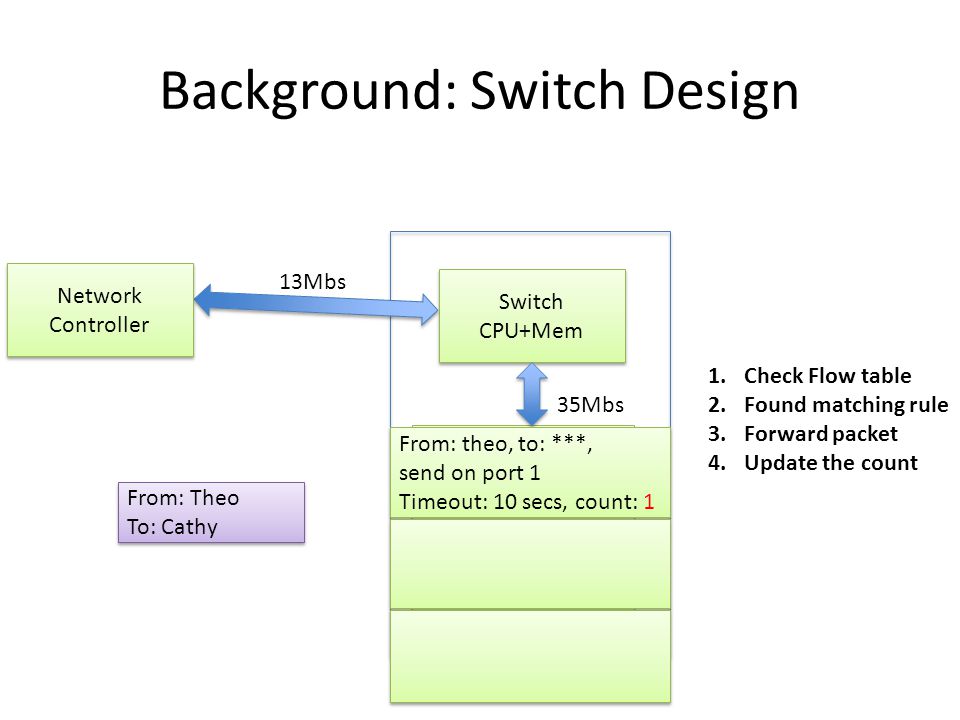

13. Background: Switch Design Switch CPU+Mem Network Controller Network Controller 13Mbs 35Mbs From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: Theo To: Cathy From: Theo To: Cathy 1.Check Flow table 2.Found matching rule 3.Forward packet 4.Update the count

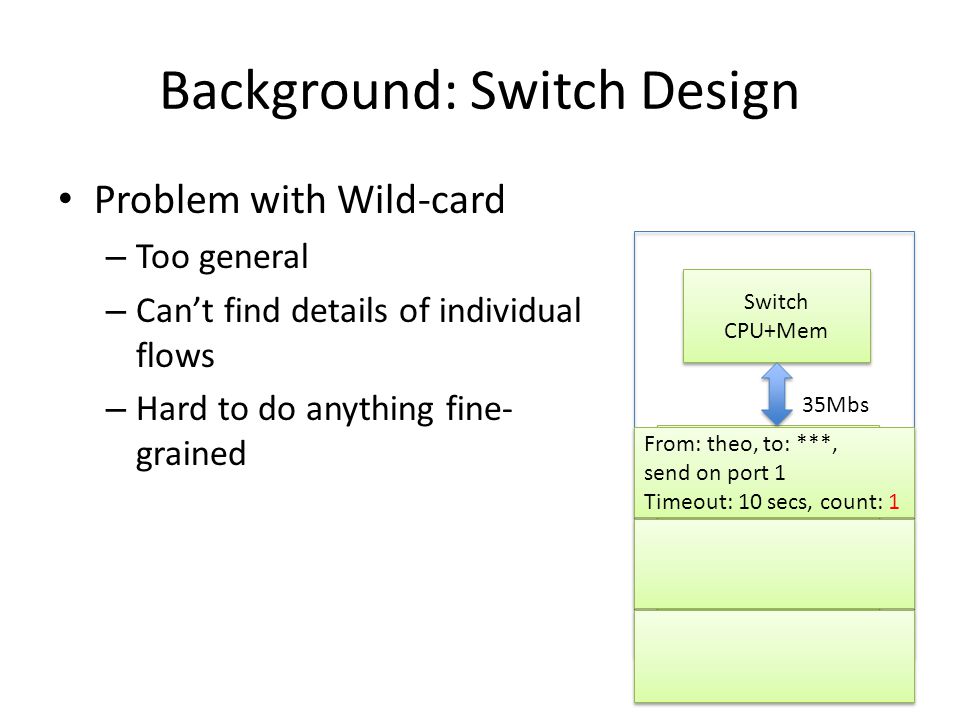

14. Background: Switch Design Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 Problem with Wild-card – Too general – Can’t find details of individual flows – Hard to do anything fine- grained

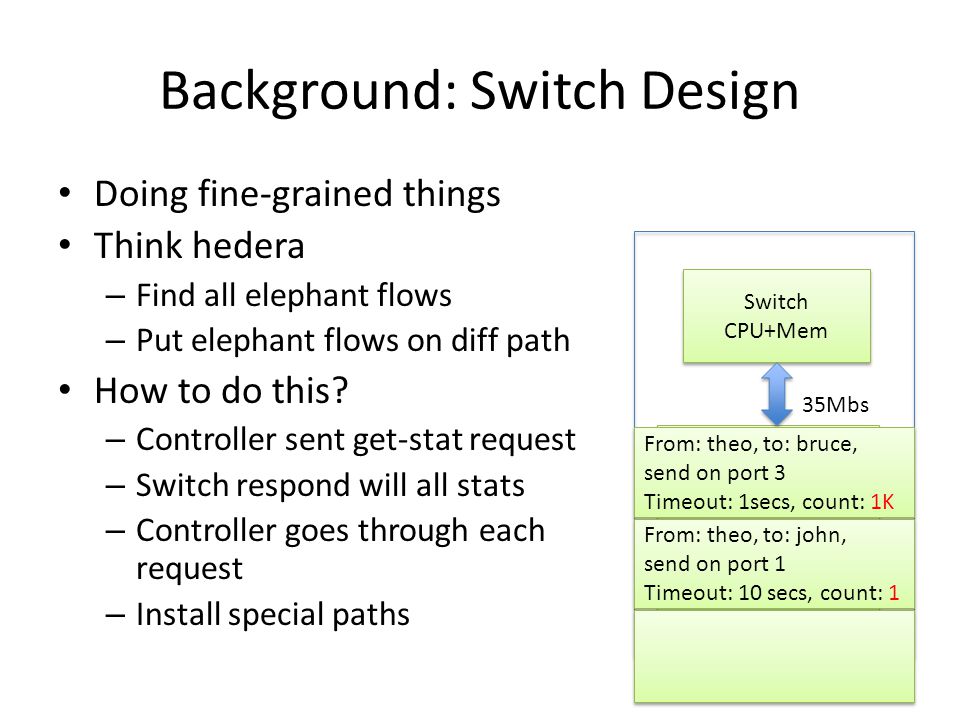

15. Background: Switch Design Switch CPU+Mem 35Mbs From: theo, to: bruce, send on port 1 Timeout: 1secs, count: 1K From: theo, to: bruce, send on port 1 Timeout: 1secs, count: 1K From: theo, to: john, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: john, send on port 1 Timeout: 10 secs, count: 1 Doing fine-grained things Think hedera – Find all elephant flows – Put elephant flows on diff path How to do this? – Controller sent get-stat request – Switch respond will all stats – Controller goes through each request – Install special paths

16. Background: Switch Design Switch CPU+Mem 35Mbs From: theo, to: bruce, send on port 3 Timeout: 1secs, count: 1K From: theo, to: bruce, send on port 3 Timeout: 1secs, count: 1K From: theo, to: john, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: john, send on port 1 Timeout: 10 secs, count: 1 Doing fine-grained things Think hedera – Find all elephant flows – Put elephant flows on diff path How to do this? – Controller sent get-stat request – Switch respond will all stats – Controller goes through each request – Install special paths

17. Problems with Switches TCAM is very small can only support a small number of rules – Only 1k per switch, endhost generate lots more flows Controller install entry for each flow increases latency – Takes about 10ms to install new rules So flow must wait!!!!!! – Can install at a rate of 13Mbs but traffic arrives at 250Gbp Controller getting stats for all flows takes a lot resources – For about 1K, you need about MB – If you request every 5 seconds then you total:

18. Background: Switch Design TCAM Switch CPU+Mem Hash Table Network Controller Network Controller 13Mbs 35Mbs 250GB

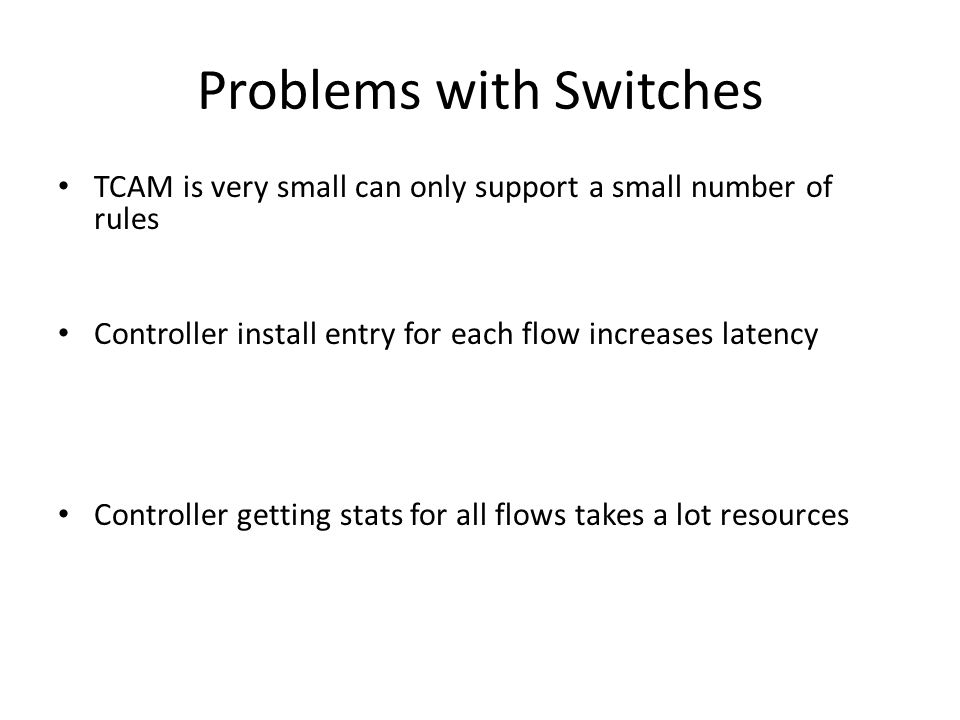

19. Problems with Switches TCAM is very small can only support a small number of rules – Only 1k per switch, endhost generate lots more flows Controller install entry for each flow increases latency – Takes about 10ms to install new rules So flow must wait!!!!!! – Can install at a rate of 13Mbs but traffic arrives at 250Gbp Controller getting stats for all flows takes a lot resources – For about 1K, you need about MB – If you request every 5 seconds then you total:

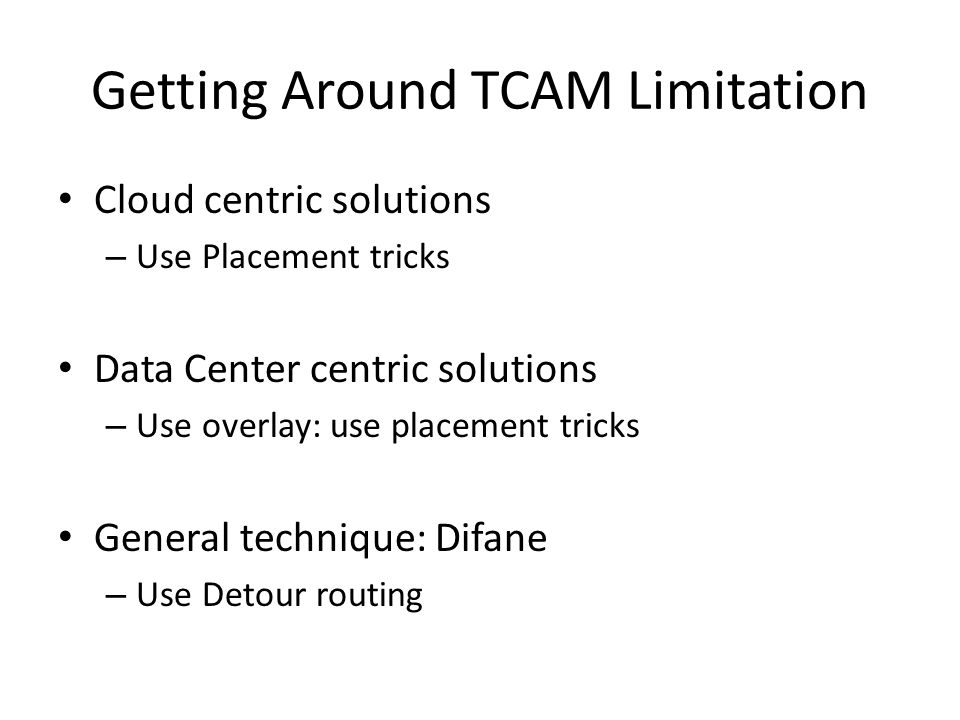

20. Getting Around TCAM Limitation Cloud centric solutions – Use Placement tricks Data Center centric solutions – Use overlay: use placement tricks General technique: Difane – Use Detour routing

21. DiFANE

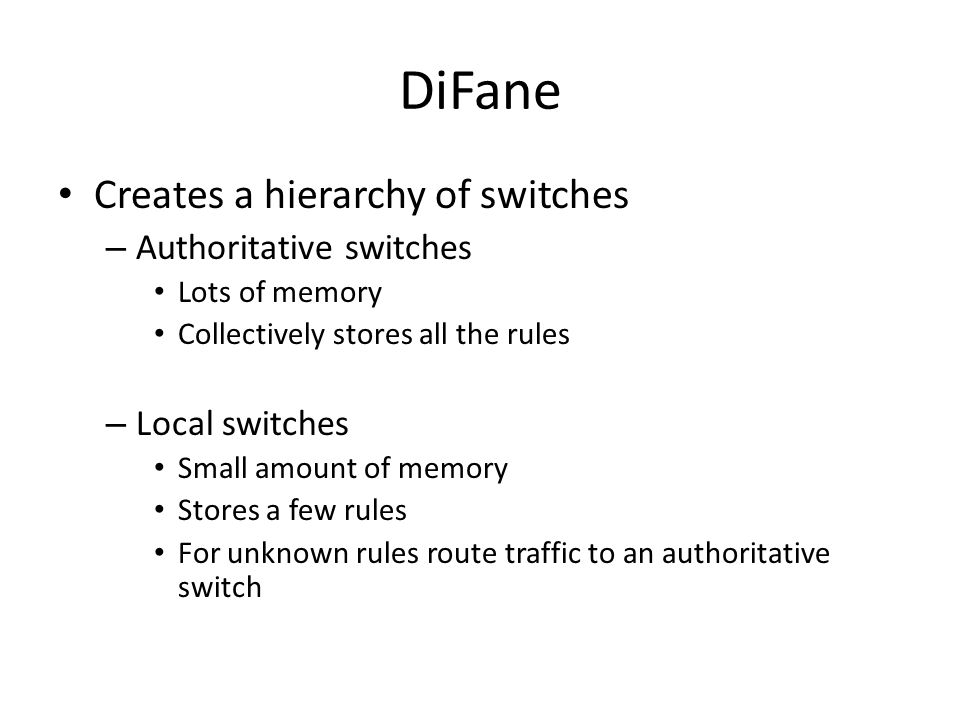

22. DiFane Creates a hierarchy of switches – Authoritative switches Lots of memory Collectively stores all the rules – Local switches Small amount of memory Stores a few rules For unknown rules route traffic to an authoritative switch

23. Following packets Packet Redirection and Rule Caching 23 Ingress Switch Authority Switch Egress Switch First packet Redirect Forward Feedback: Cache rules Hit cached rules and forward

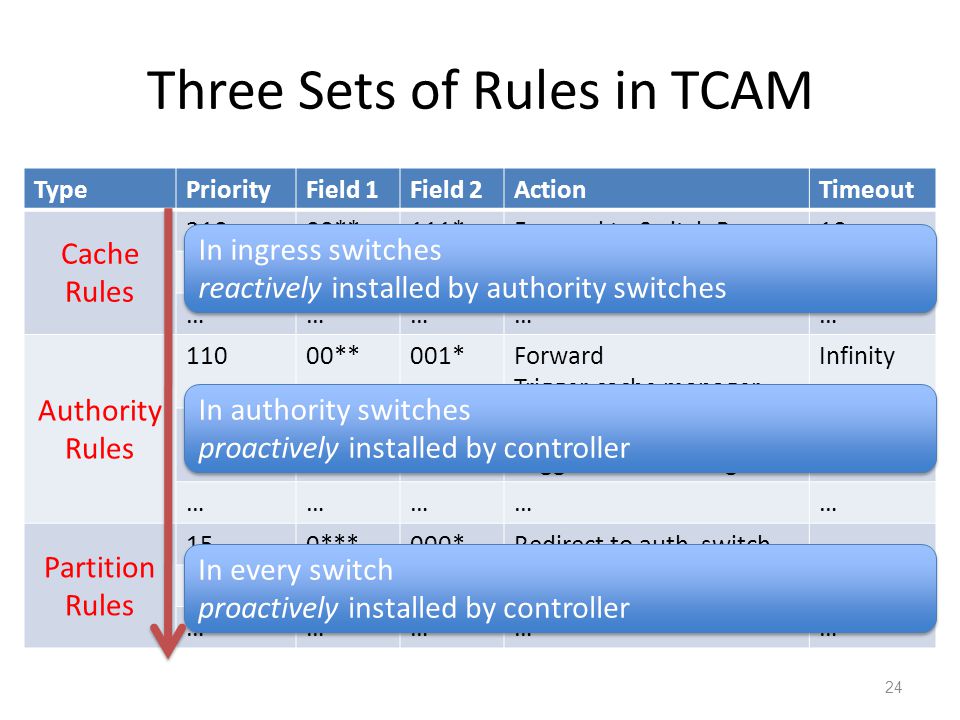

24. Three Sets of Rules in TCAM TypePriorityField 1Field 2ActionTimeout Cache Rules 21000**111*Forward to Switch B10 sec 209111011**Drop10 sec …………… Authority Rules 11000**001*Forward Trigger cache manager Infinity 10900010***Drop, Trigger cache manager …………… Partition Rules 150***000*Redirect to auth. switch 14… …………… 24 In ingress switches reactively installed by authority switches In ingress switches reactively installed by authority switches In authority switches proactively installed by controller In authority switches proactively installed by controller In every switch proactively installed by controller In every switch proactively installed by controller

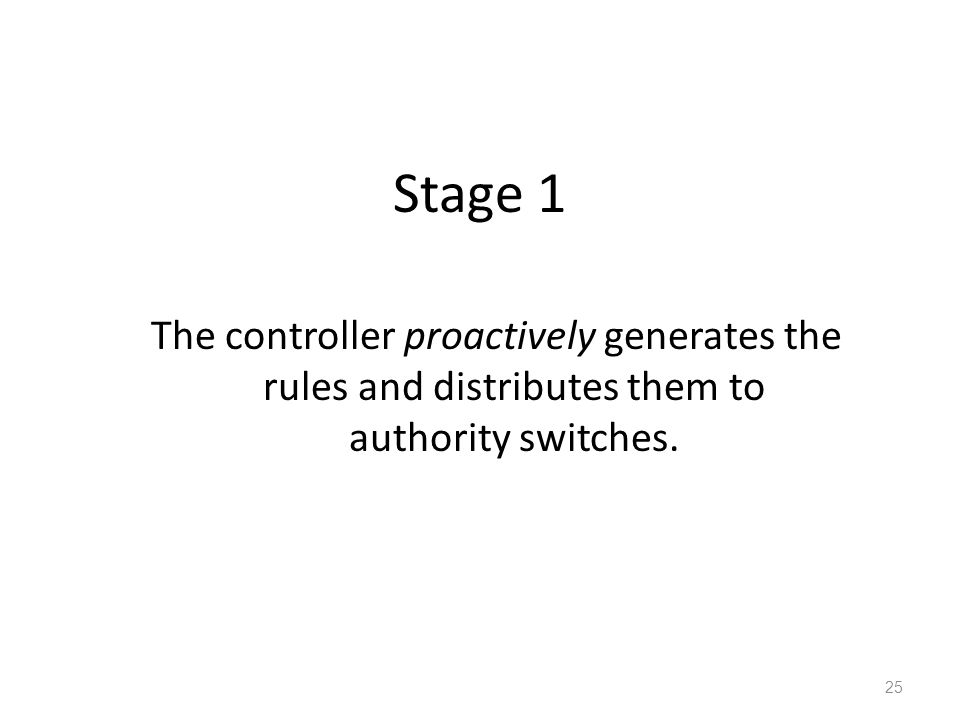

25. Stage 1 25 The controller proactively generates the rules and distributes them to authority switches.

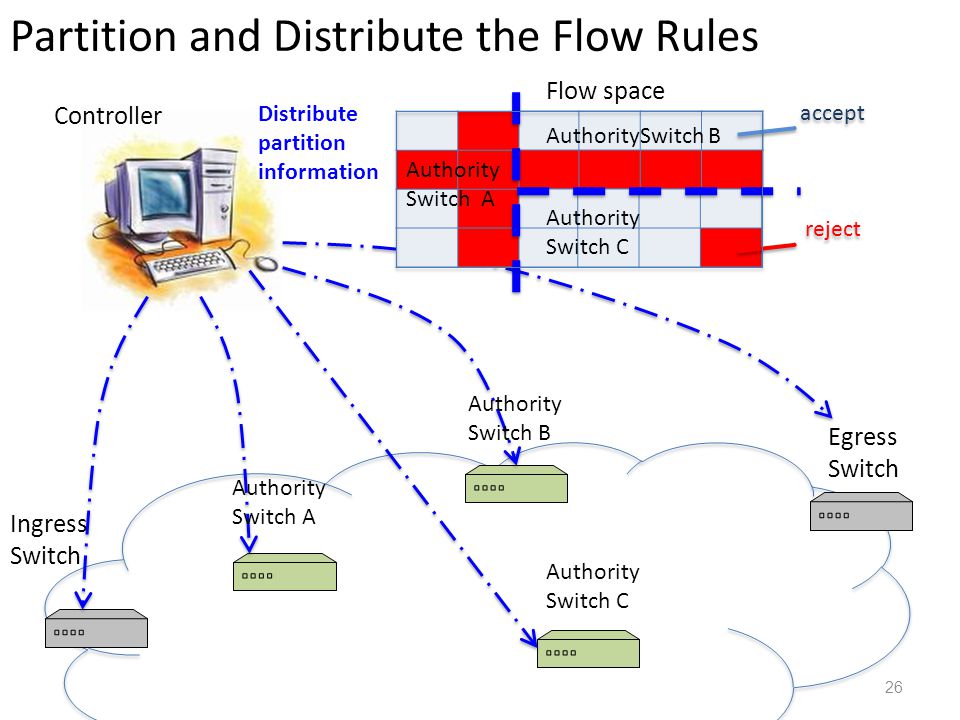

26. Partition and Distribute the Flow Rules 26 Ingress Switch Egress Switch Distribute partition information Authority Switch A AuthoritySwitch B Authority Switch C reject accept Flow space Controller Authority Switch A Authority Switch B Authority Switch C

27. Stage 2 27 The authority switches keep packets always in the data plane and reactively cache rules.

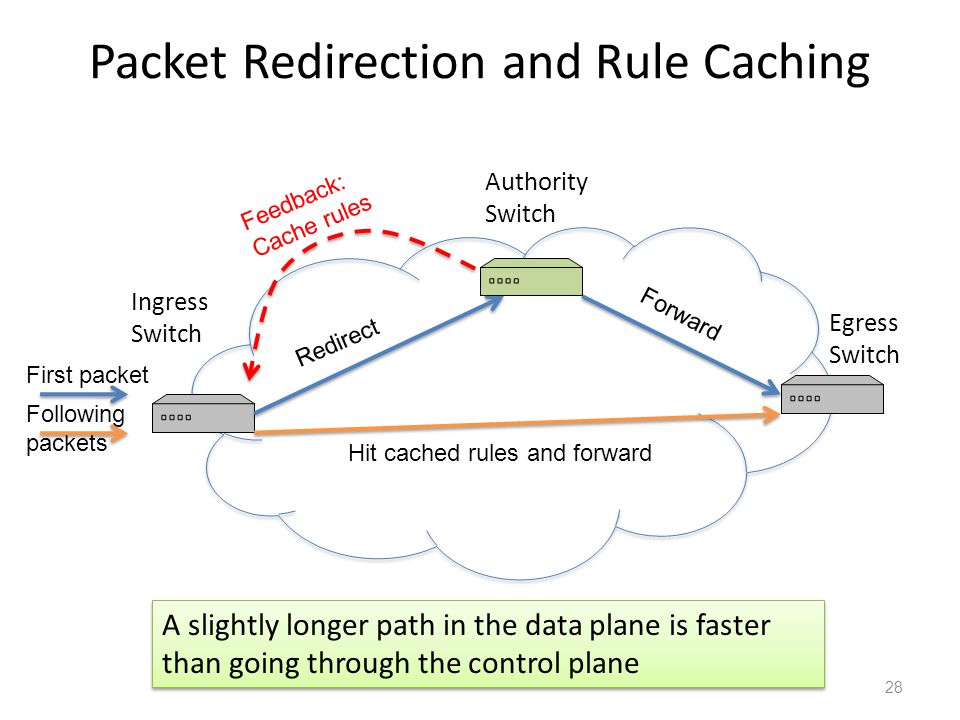

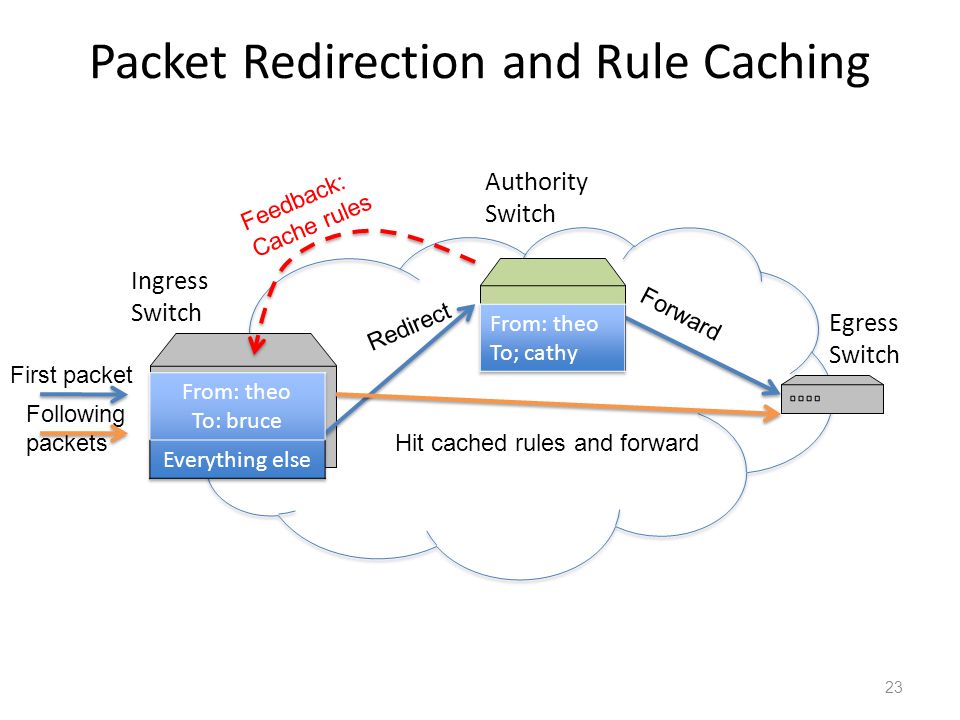

28. Following packets Packet Redirection and Rule Caching 28 Ingress Switch Authority Switch Egress Switch First packet Redirect Forward Feedback: Cache rules Hit cached rules and forward A slightly longer path in the data plane is faster than going through the control plane

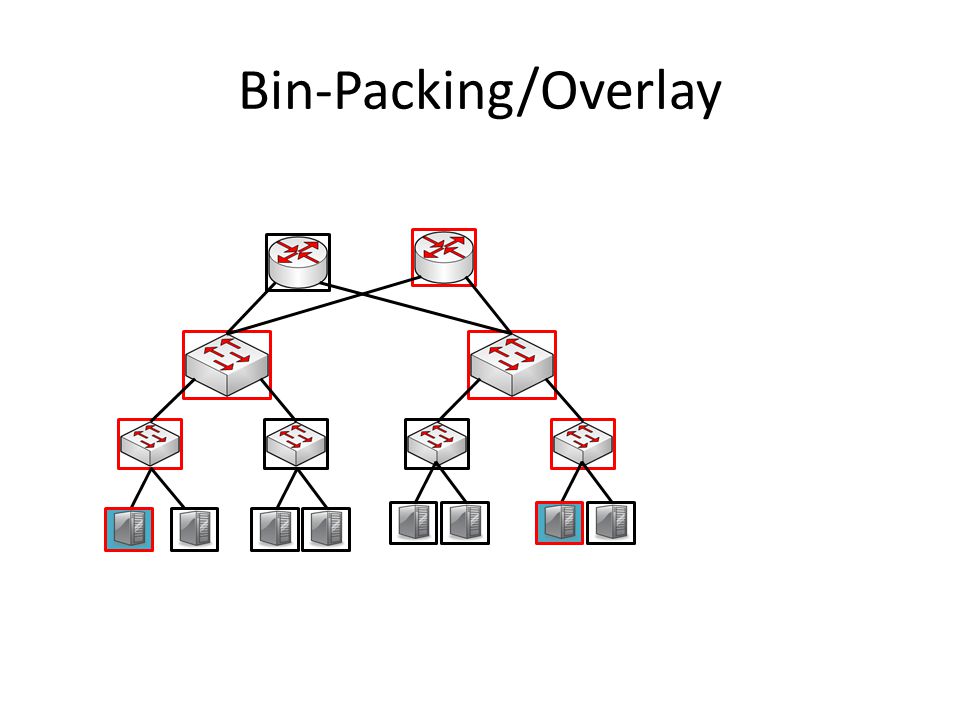

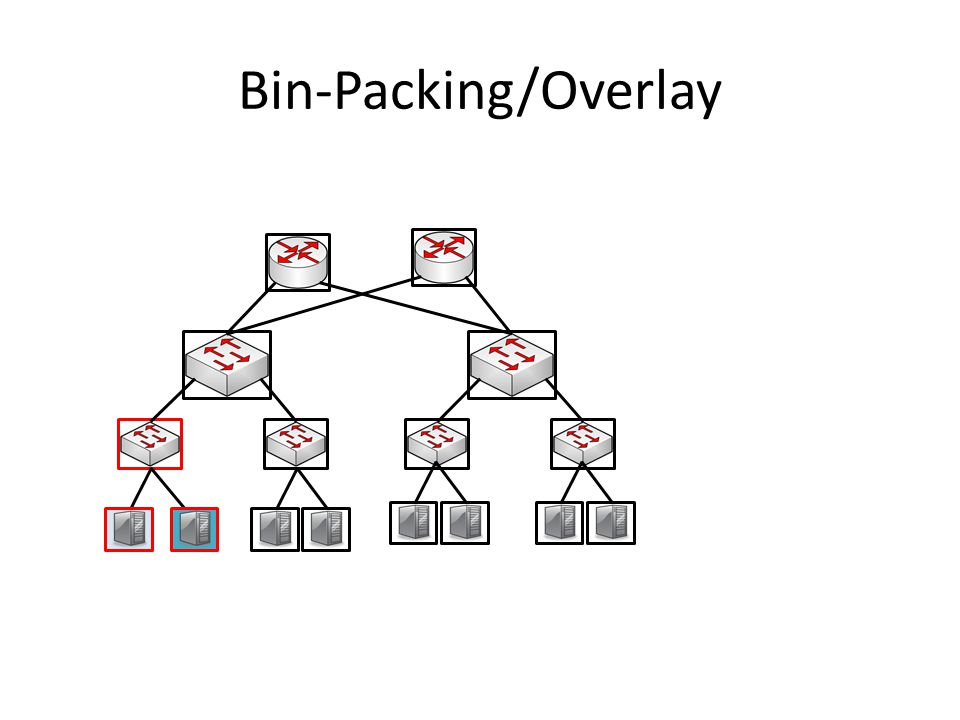

29. Bin-Packing/Overlay

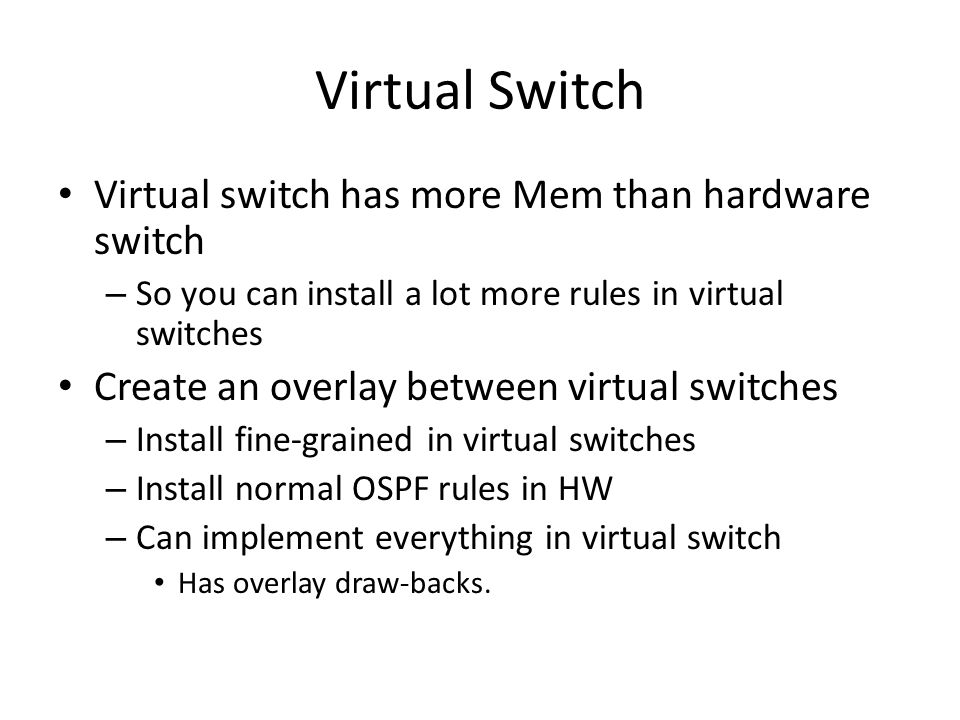

31. Virtual Switch Virtual switch has more Mem than hardware switch – So you can install a lot more rules in virtual switches Create an overlay between virtual switches – Install fine-grained in virtual switches – Install normal OSPF rules in HW – Can implement everything in virtual switch Has overlay draw-backs.

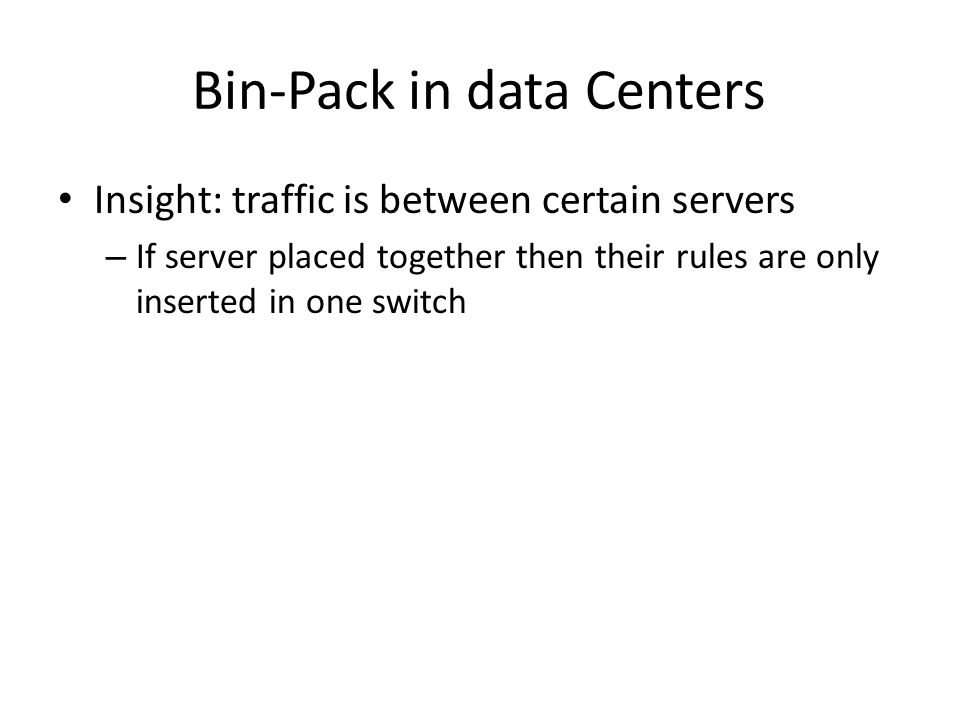

32. Bin-Pack in data Centers Insight: traffic is between certain servers – If server placed together then their rules are only inserted in one switch

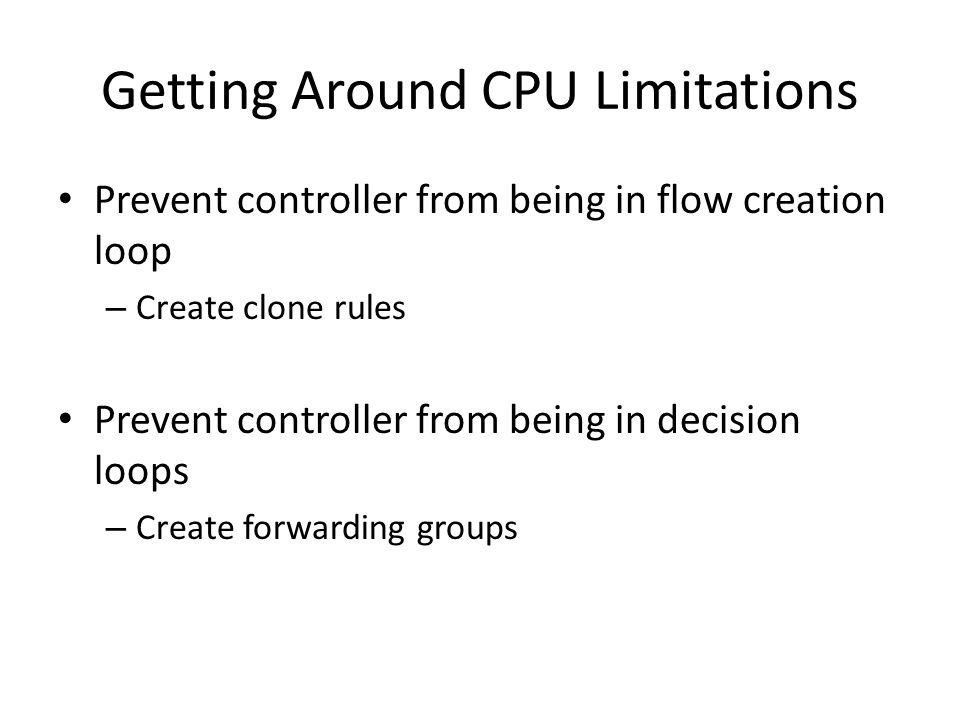

33. Getting Around CPU Limitations Prevent controller from being in flow creation loop – Create clone rules Prevent controller from being in decision loops – Create forwarding groups

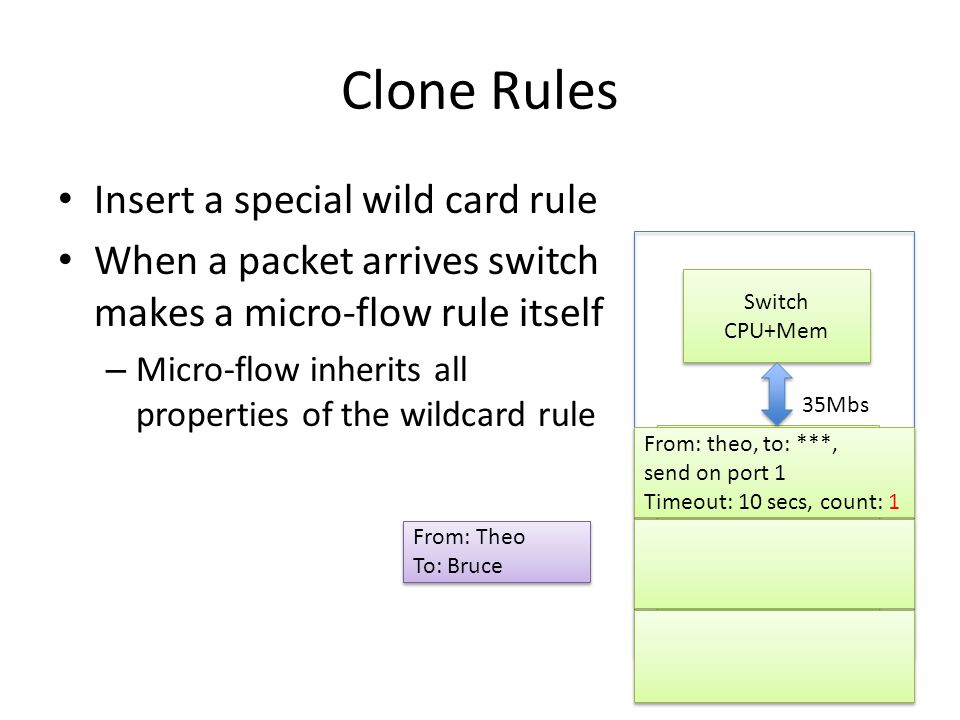

34. Clone Rules Insert a special wild card rule When a packet arrives switch makes a micro-flow rule itself – Micro-flow inherits all properties of the wildcard rule Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: Theo To: Bruce From: Theo To: Bruce

35. Clone Rules Insert a special wild card rule When a packet arrives switch makes a micro-flow rule itself – Micro-flow inherits all properties of the wildcard rule Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: Theo To: Bruce From: Theo To: Bruce From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1

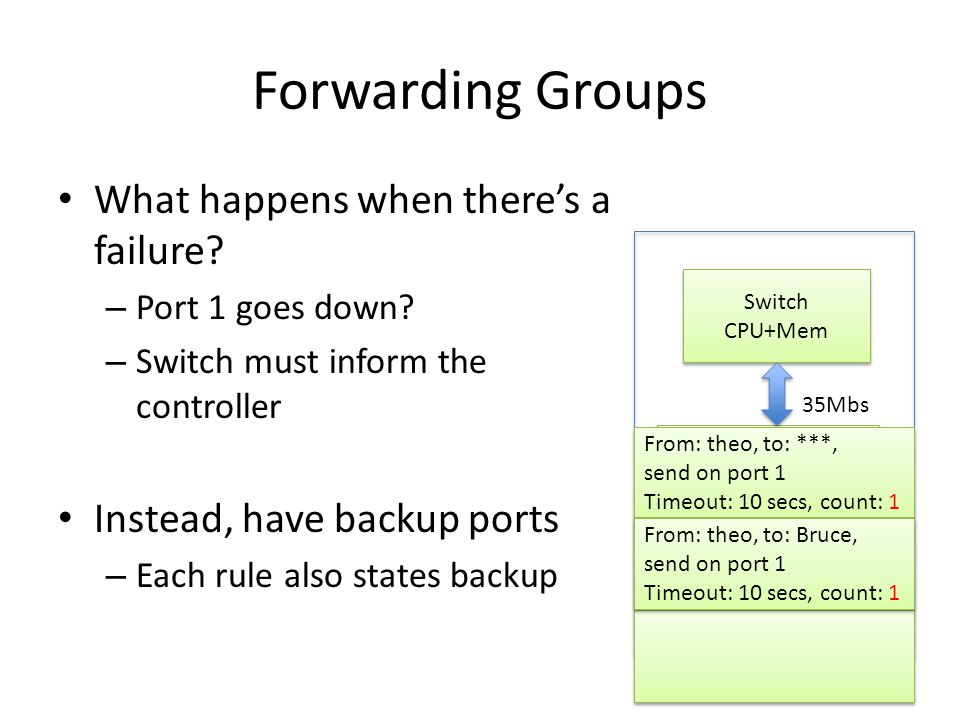

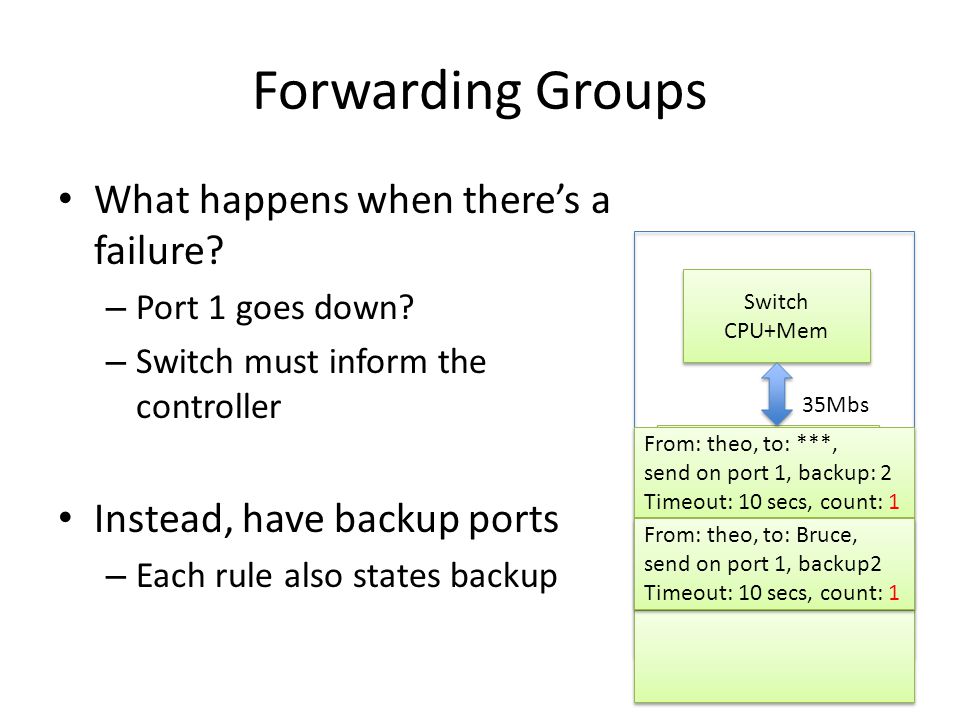

36. Forwarding Groups What happens when there’s a failure? – Port 1 goes down? – Switch must inform the controller Instead, have backup ports – Each rule also states backup Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1

37. Forwarding Groups What happens when there’s a failure? – Port 1 goes down? – Switch must inform the controller Instead, have backup ports – Each rule also states backup Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1, backup: 2 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1, backup: 2 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1, backup2 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1, backup2 Timeout: 10 secs, count: 1

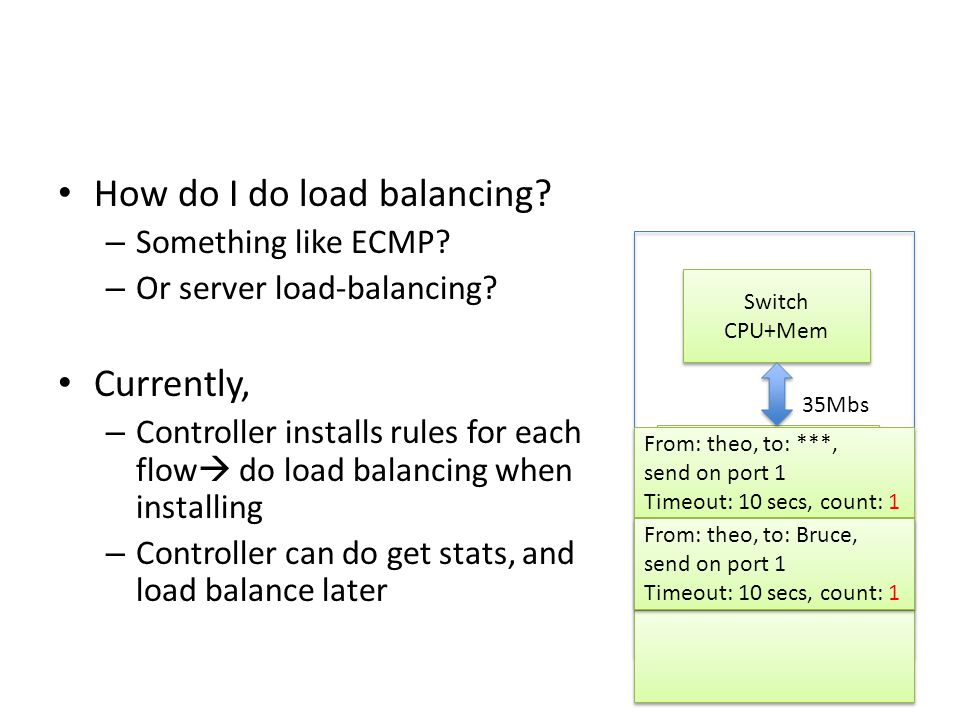

38. How do I do load balancing? – Something like ECMP? – Or server load-balancing? Currently, – Controller installs rules for each flow  do load balancing when installing – Controller can do get stats, and load balance later Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1

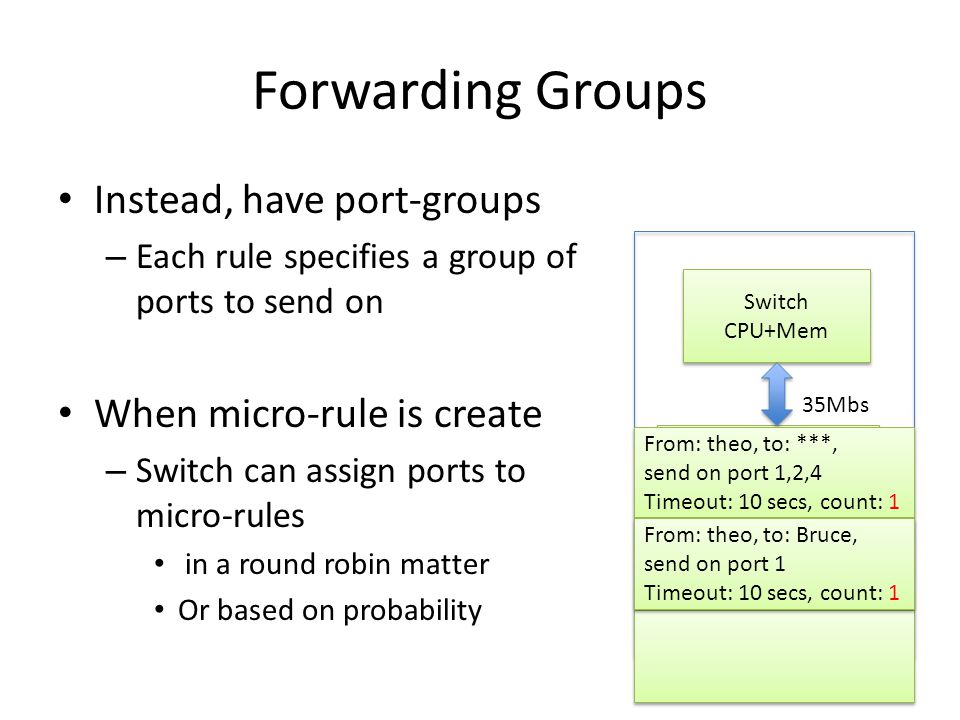

39. Forwarding Groups Instead, have port-groups – Each rule specifies a group of ports to send on When micro-rule is create – Switch can assign ports to micro-rules in a round robin matter Or based on probability Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1,2,4 Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1,2,4 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 1 Timeout: 10 secs, count: 1

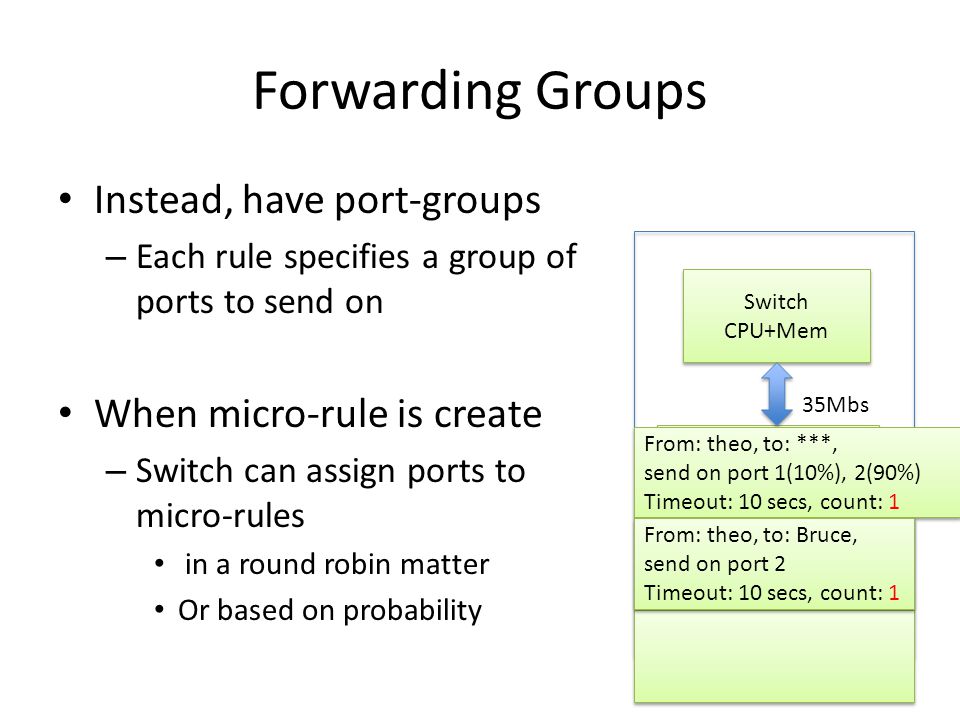

40. Forwarding Groups Instead, have port-groups – Each rule specifies a group of ports to send on When micro-rule is create – Switch can assign ports to micro-rules in a round robin matter Or based on probability Switch CPU+Mem 35Mbs From: theo, to: ***, send on port 1(10%), 2(90%) Timeout: 10 secs, count: 1 From: theo, to: ***, send on port 1(10%), 2(90%) Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 2 Timeout: 10 secs, count: 1 From: theo, to: Bruce, send on port 2 Timeout: 10 secs, count: 1

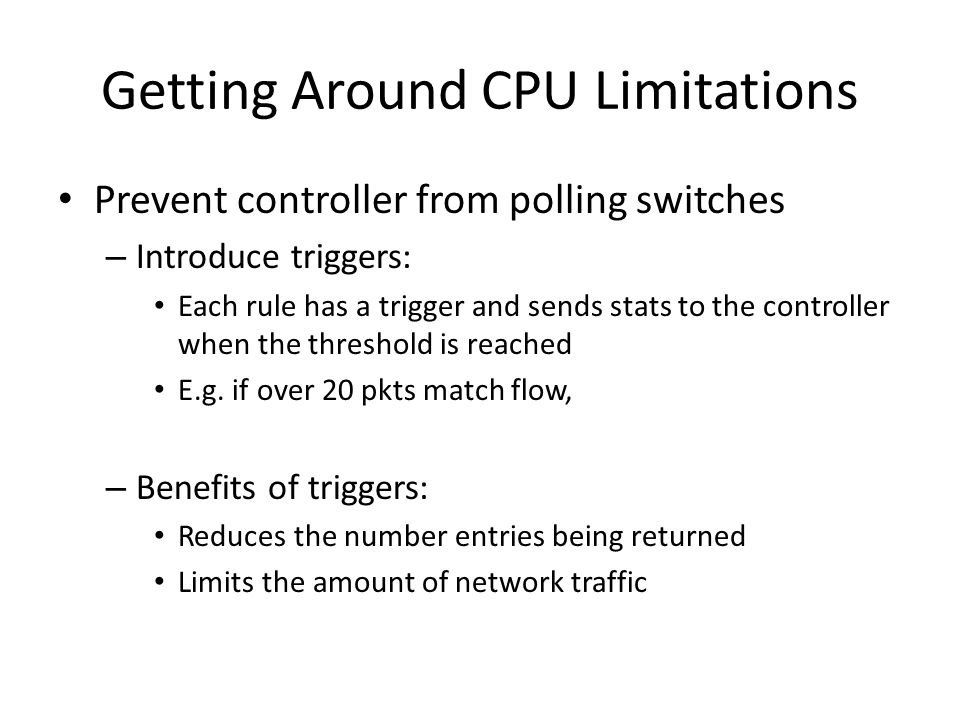

41. Getting Around CPU Limitations Prevent controller from polling switches – Introduce triggers: Each rule has a trigger and sends stats to the controller when the threshold is reached E.g. if over 20 pkts match flow, – Benefits of triggers: Reduces the number entries being returned Limits the amount of network traffic

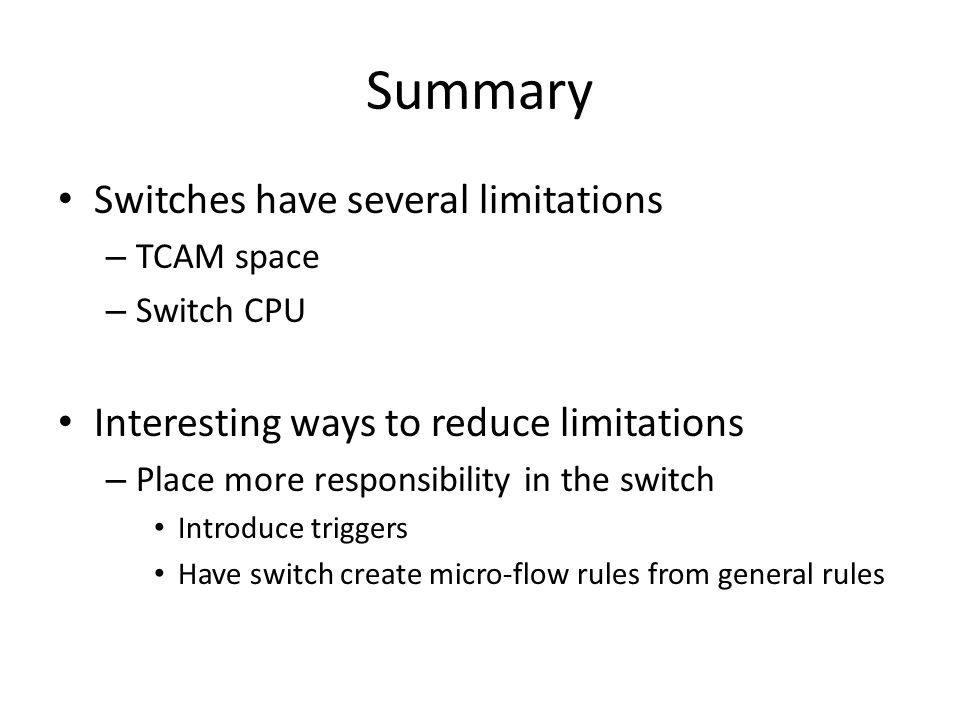

42. Summary Switches have several limitations – TCAM space – Switch CPU Interesting ways to reduce limitations – Place more responsibility in the switch Introduce triggers Have switch create micro-flow rules from general rules
