1. Moving-head Disk Mechanism Rotation Speeds: 60 to 200 rotations per second Head Crash: read-write head makes contact with the surface

2. Disk Structure Cylinder: the set of tracks that all the heads are currently located at. Track: A ring on a disk where data can be written Sector: The smallest transfer unit of data accessed in a block Cluster: A group of sectors the operating system treats as a unit Organization Choices –Sector mapping (One dimension array of logical blocks) 0 is first sector, track 0 of the outermost cylinder. Subsequent sectors map through tracks, through cylinders, in an outer to inner direction. –Sector counts and density fixed sectors per track: varying densities Varied sectors per track: outer tracks have more sectors; constant density –Bad block management Sector sparing: replace bad sectors with spares in the same cylinder Sector slipping: copy all sectors down to the next spare

3. Magnetic Tape Early secondary-storage medium of choice Persistent, inexpensive, and has large data capacity Very slow access due to sequential nature Used for backup and for storing infrequently-used data Kept on spools Transfer rates comparable to disk if read write head is positioned to the data 20-200GB are typical storage capacities

4. Storage Attached to a Host System Basic: Connections are accessed through I/O ports communicating through busses Small Computer System Interface (SCSI) protocol –Connects to sixteen devices –One SCI initiator and up to fifteen targets –Each target controls up to 8 logical units –Logical units can be RAID arrays or a CD jukebox Fibre Channel (FC) is high-speed architecture –Private high speed switched network to many attached hosts –Storage can be dynamically allocated to each hosts Other interface Standards: USB, EIDE, ATA

5. Network-Attached Storage (NAS) Storage made available over a network Protocols –NFS is a common protocols –iSCSI embeds SCSI protocol in IP. Implementation: remote procedure calls (RPCs)

6. Storage Area Network Popular for large storage environments Private high speed network Flexible for attaching many hosts to multiple storage arrays

7. Basic Storage System Concepts The OS presents a one of two virtual storage abstraction –Raw device: an array of data blocks (a partition). –File system: OS schedules interleaved application requests Goal: optimize disk access time and throughput Access time (seek time + rotational latency) –Seek time: moving the heads to the cylinder with the data –Rotational latency: rotate the disk head to the desired sector –Transfer rate: data flow speed between drive and computer –Operating systems attempts to minimize seek time; hardware optimizes rotational latency Definitions –Throughput: bytes transferred per unit time –Disk bandwidth: total bytes transferred / (time from first request to time of last transfer)

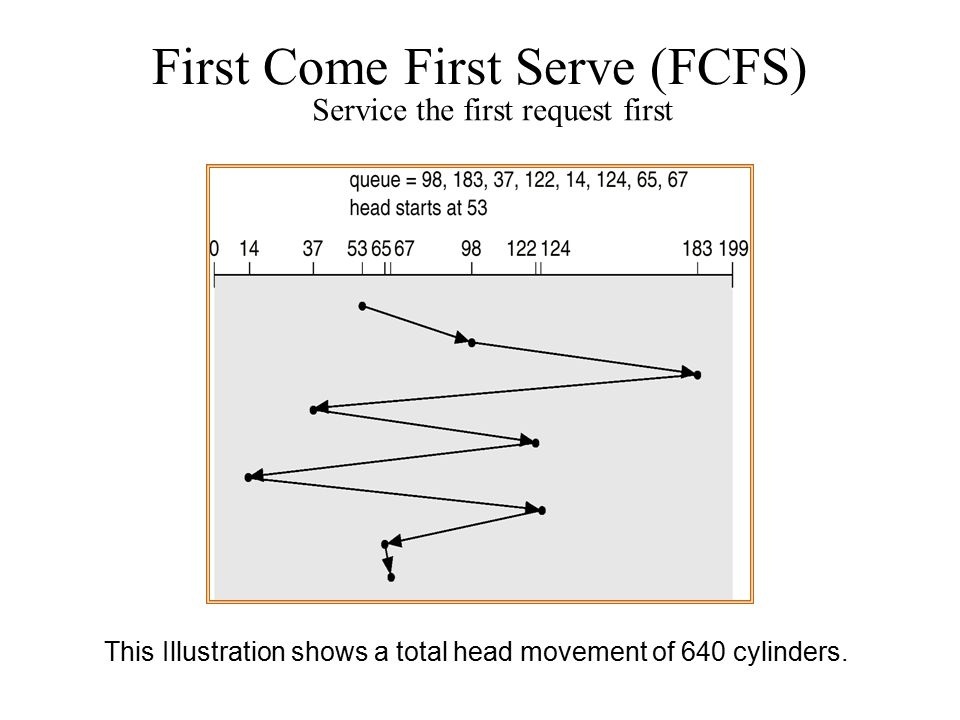

8. First Come First Serve (FCFS) This Illustration shows a total head movement of 640 cylinders. Service the first request first

9. Shortest Seek Time First (SSTF) SSTF scheduling is similar to SJF scheduling Starvation of some requests is possible This Illustration shows total head movement of 236 cylinders. Service the request closest to the current head position

10. SCAN (Elevator) and C-Scan C-Scan: Provides a more uniform wait time than SCAN. Repositioning to the beginning is faster than repositioning in small pieces because of acceleration and deceleration. SCAN: Service the first request encountered in the current head direction C-Scan: Services in one direction; SCAN: Services in both directions C-Scan: Return to the beginning after each pass (circular list) Movement = 236 cylinders Movement = 382 cylinders Head going left Head going right

11. Look and C-Look Similar to SCAN and C-SCAN except don’t go to end of disk on each pass Head going right Movement = 322 cylinders C-Look Algorithm

12. Which Disk Scheduling Algorithm? SSTF applies if starvation is not an issue (light loads) SCAN and C-SCAN perform better with heavy loads Requests for disk service can be influenced by the file-allocation method The disk-scheduling algorithm –Normally a separate background running module of the operating system –It can easily be replaced if desired

13. Disk Management Factory Low-level formatting –Divide disk into sectors for access by a disk controller OS Partitioning –Divide disks into separate groups of ‘raw’ cylinders –Sector sparing is a technique to recover from “bad” blocks User Logical formatting –Initialize the file system MS DOS Structure

14. Disk Booting in Windows 2000 The ROM bootstrap reads the boot sector, which then proceeds to load the OS

15. Swap-Space Management Swap-space: A disk extension of main memory Implementation can be: –a normal part of the file system (slower but flexible) –in a separate disk partition (faster but less flexible) Examples –4.3 BSD Allocates swap space when process starts holds text segment (the code) and data segment –Solaris 2: allocates swap space only when a page is forced to disk

16. Swap Space BSD Program (Text) Segments BSD Data Segments Virtual memory extension of main memory

17. Redundant Array of Inexpensive Disks (RAID) Goal: achieve reliability through redundancy or increase speed through parallelism Seven Raid Organizations 0: Non-redundant striping: Parts of data stored on different disks. Group of disks acts as a single storage device 1: Mirrored data: stores (shadows) duplicates of each disk 2: Error correction codes: Parity is spread over a group of dedicated disks 3: Bit interleaved parity: Parity is written to a dedicated disk 4: Block interleaved parity: Parity stored on a disk separate from the data 5: Block-interleaved distributed parity: stripes data and parity across the RAID 6: P + Q redundancy: Parity and data are written, both with redundancy Parity: Information to reconstruct data in case of failure

18. RAID Examples Top: striped and then mirrored Bottom: mirrored and then striped

19. Stable Storage Transactions and write-ahead logs require stable storage To implement stable storage: –Replicate information on more than one nonvolatile storage media with independent failure modes. –Update information in a controlled manner to ensure that we can recover the stable data after any failure that happens during data transfer or recovery. –After failure, copy incomplete copies from the media that has successfully completed its operation. Definition: Storage that carries a “guarantee” of reliability

20. Tertiary (Removable) Storage Characteristic: Low cost, high capacity Examples –Removable magnetic disks: nearly as fast as hard disks, but less reliable –A magneto-optic disk: records on rigid platter coated with magnetic material The read write heads are further from the head, resistant to head crash lasers used to amplify magnetic material for write and detect –Optical disks: Altered by laser light. Very durable and reliable. –Tape: Falling price gap between tapes and disks, makes these less popular Hierarchical Storage Management (HSM) –Extends primary and secondary storage to include tertiary storage –Found in supercomputing centers that have enormous volumes of data –Usually implemented as a jukebox of removable disks –Disk-resident files are archived to a tape or disk library for low cost storage. –Files are automatically staged back (slowly) to disk for active use Note: fixed drives tend to be more reliable than removable ones

21. Cost Price/MB DRAM From 1981 to 2000 Price/Megabyte Hard Disk From 1981 to 2000 Price/Mb Tape, From 1984-2000
