1. The application of alkaline metal(Ca, Sr, Ba) complex as catalyst in organic chemistry 2010.12.04 张文全 1

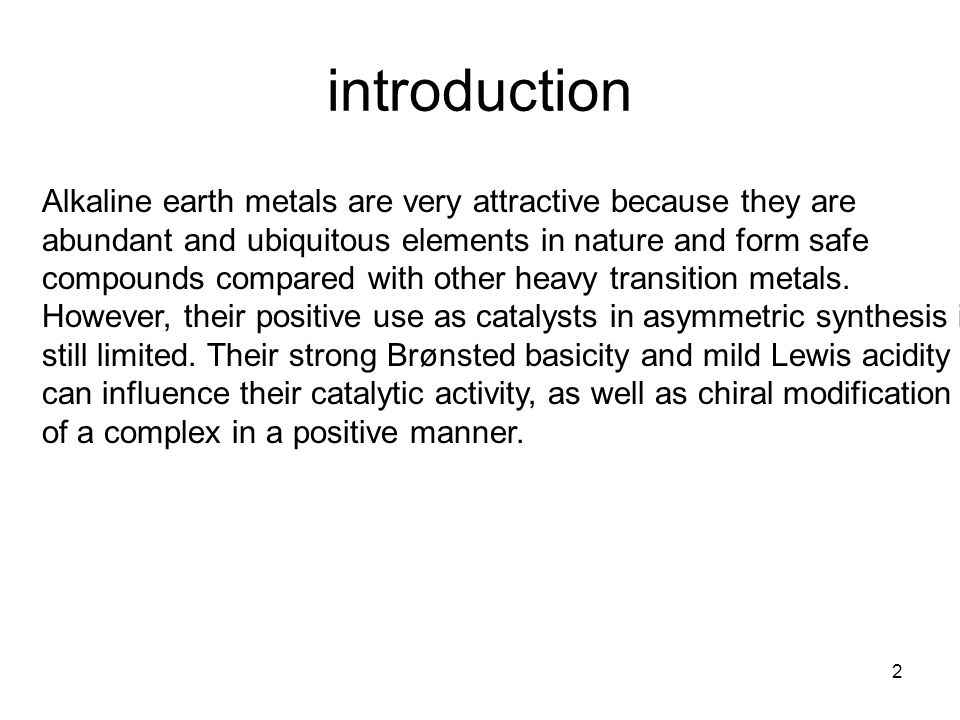

2. introduction Alkaline earth metals are very attractive because they are abundant and ubiquitous elements in nature and form safe compounds compared with other heavy transition metals. However, their positive use as catalysts in asymmetric synthesis is still limited. Their strong Brønsted basicity and mild Lewis acidity can influence their catalytic activity, as well as chiral modification of a complex in a positive manner. 2

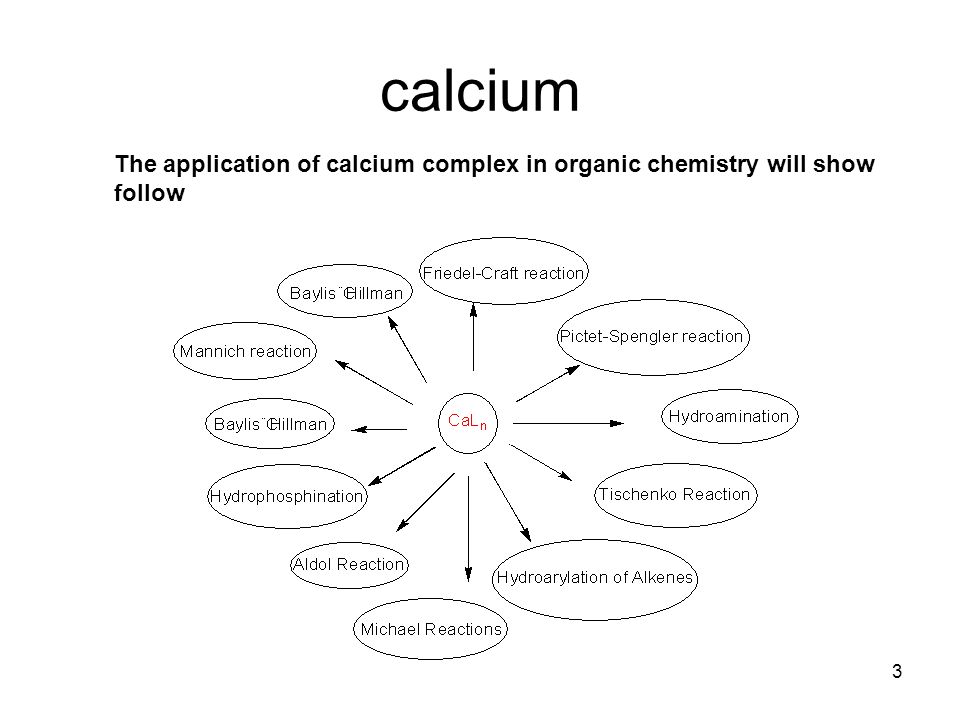

3. calcium The application of calcium complex in organic chemistry will show follow 3

4. First example of an optically active calcium catalyst Shiro Ikegami, Tetrahedron Letters 41 (2000) 2165 Baylis–Hillman Reaction 62 yield% 56 ee% 4

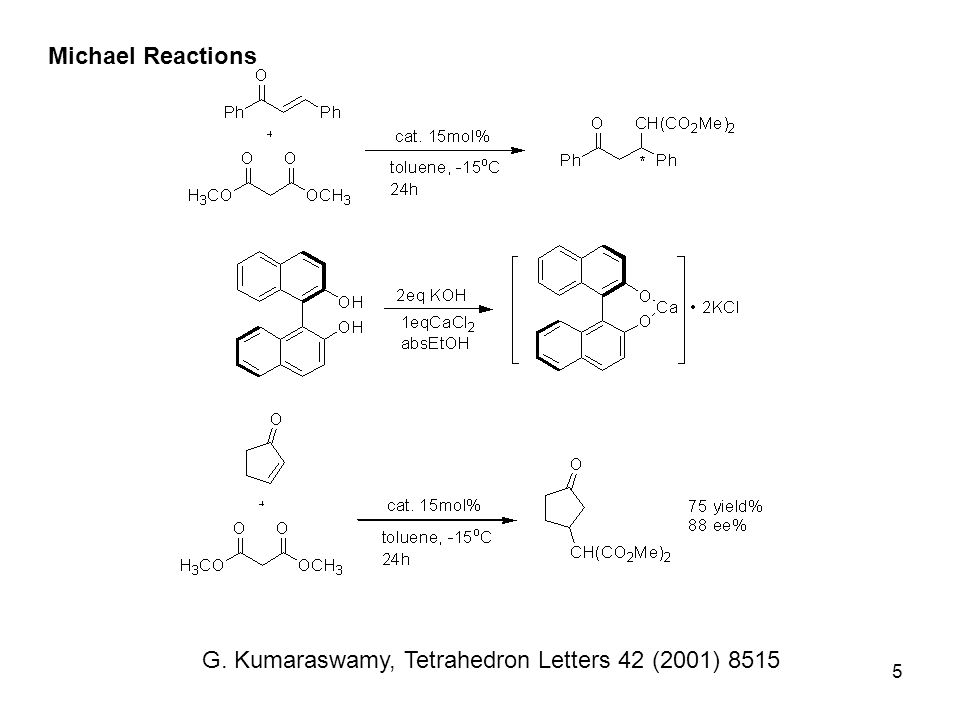

5. G. Kumaraswamy, Tetrahedron Letters 42 (2001) 8515 Michael Reactions 5

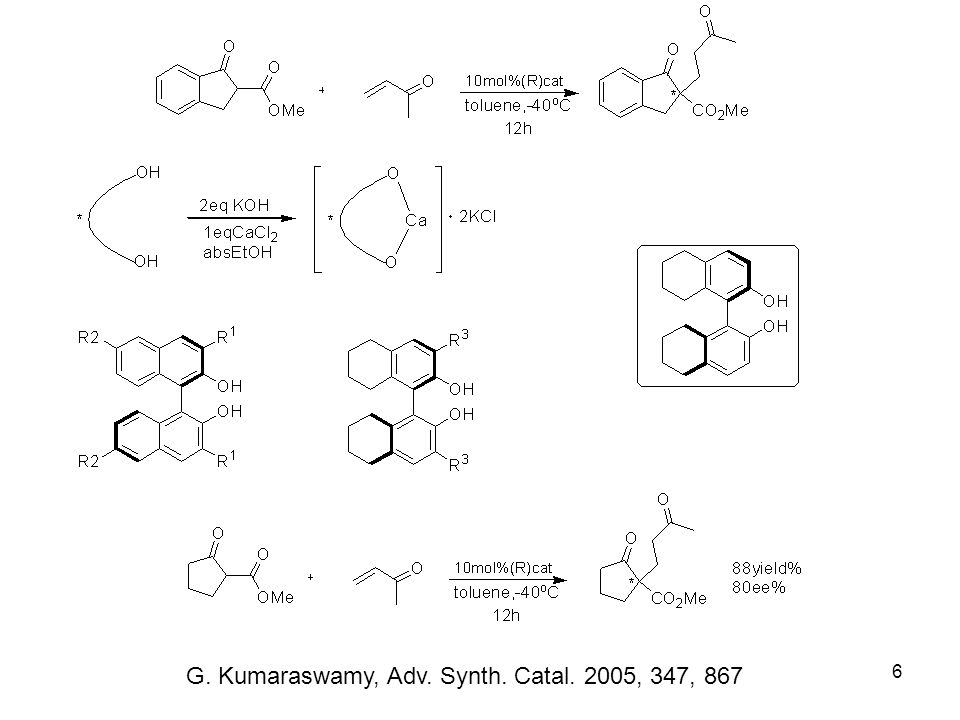

6. G. Kumaraswamy, Adv. Synth. Catal. 2005, 347, 867 6

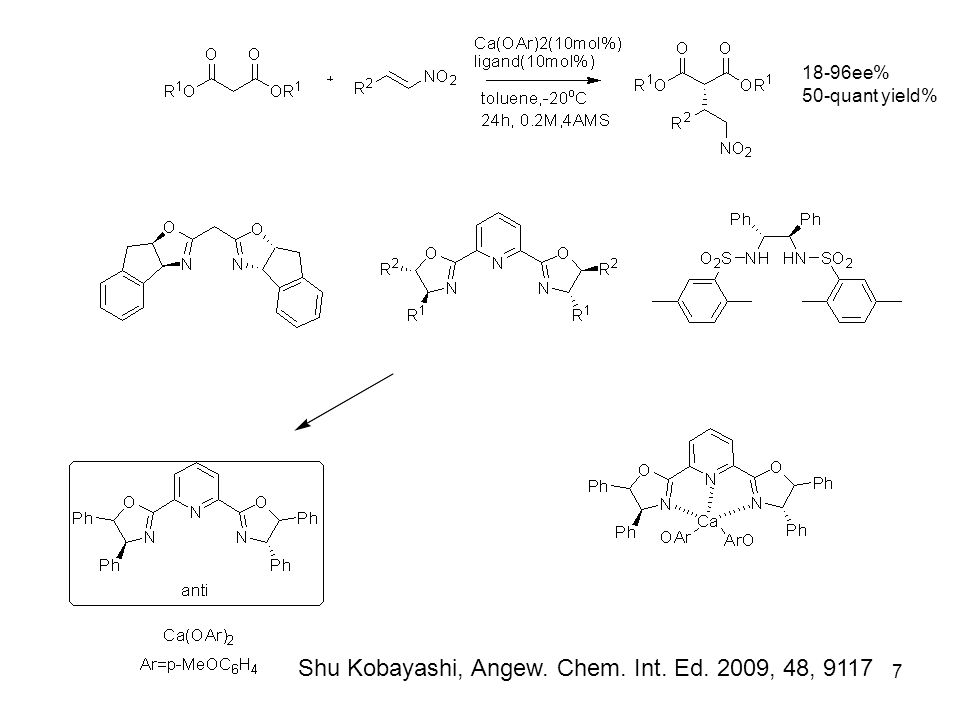

7. 18-96ee% 50-quant yield% Shu Kobayashi, Angew. Chem. Int. Ed. 2009, 48, 9117 7

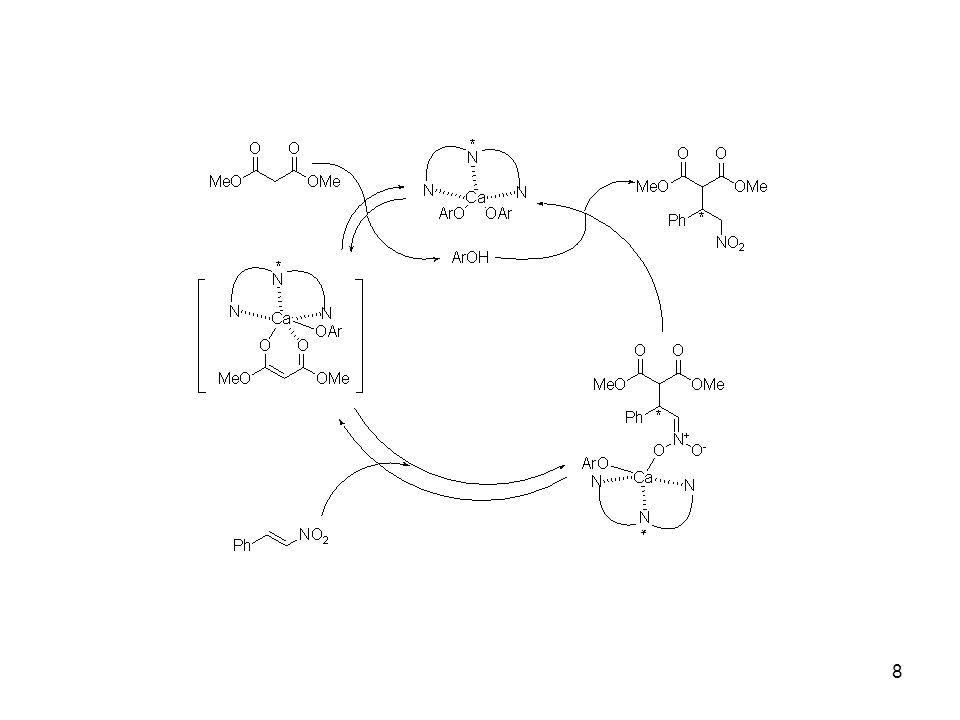

8. 8

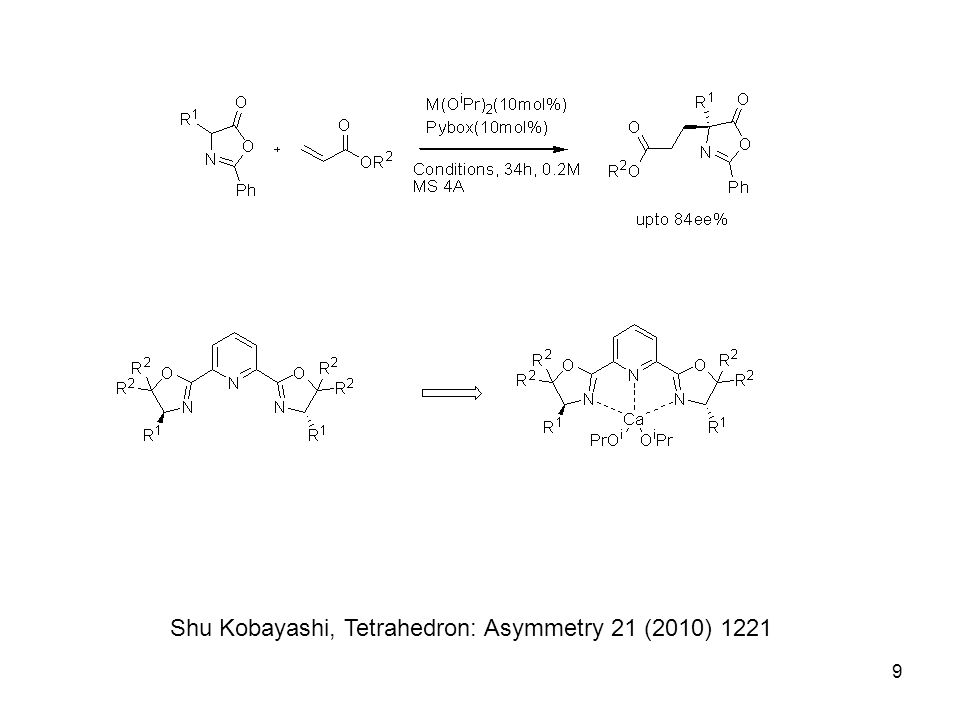

9. Shu Kobayashi, Tetrahedron: Asymmetry 21 (2010) 1221 9

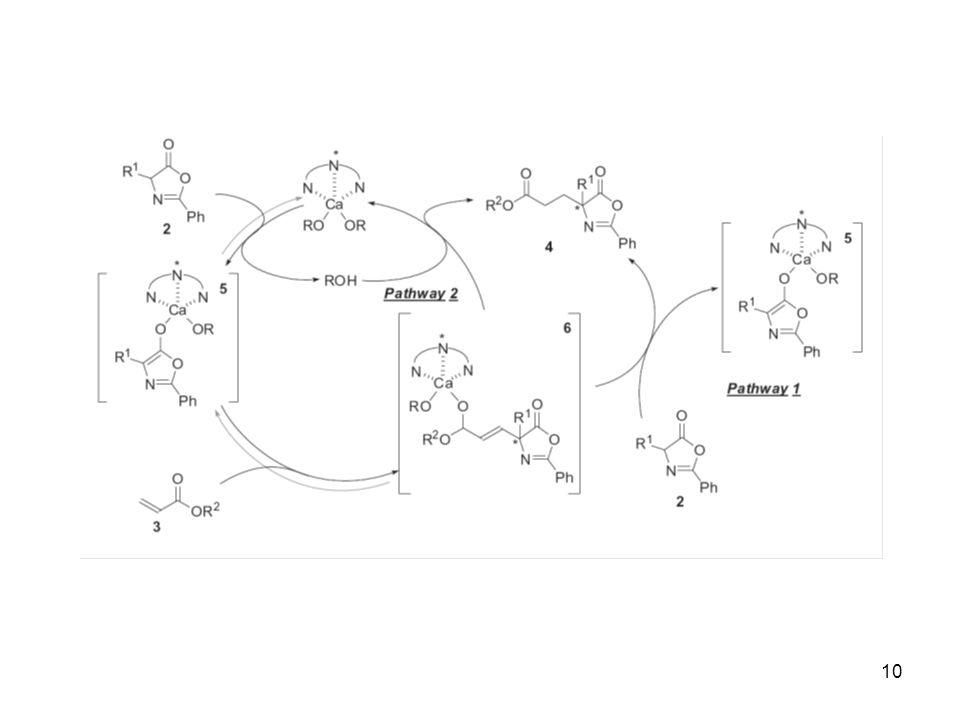

10. 10

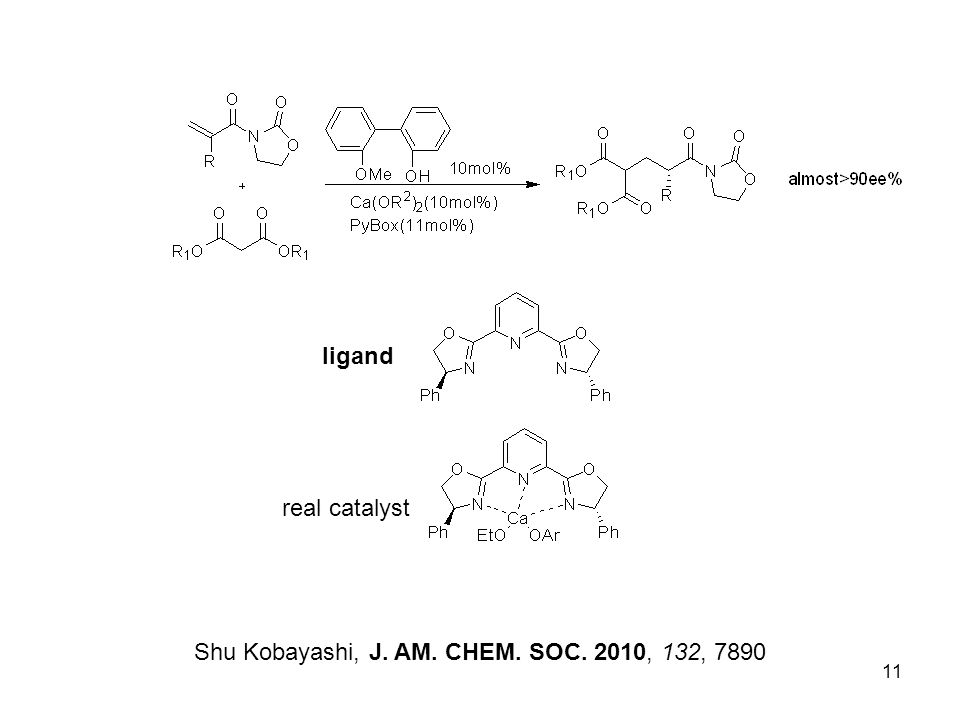

11. ligand real catalyst Shu Kobayashi, J. AM. CHEM. SOC. 2010, 132, 7890 11

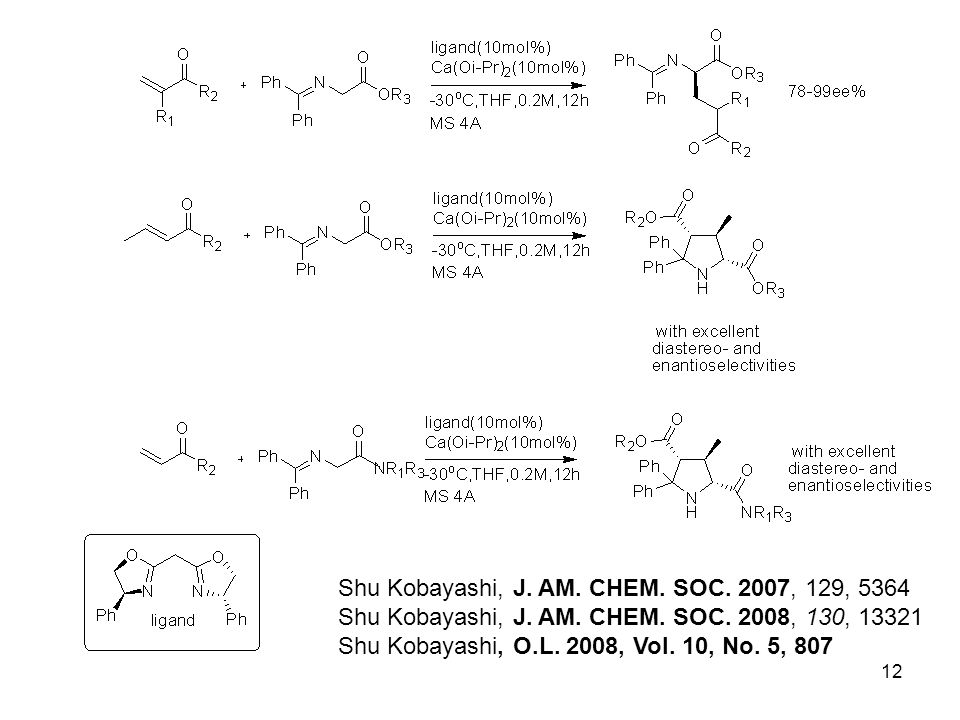

12. Shu Kobayashi, J. AM. CHEM. SOC. 2007, 129, 5364 Shu Kobayashi, J. AM. CHEM. SOC. 2008, 130, 13321 Shu Kobayashi, O.L. 2008, Vol. 10, No. 5, 807 12

13. Catalytic cycle of the 1,4-addition reaction 13

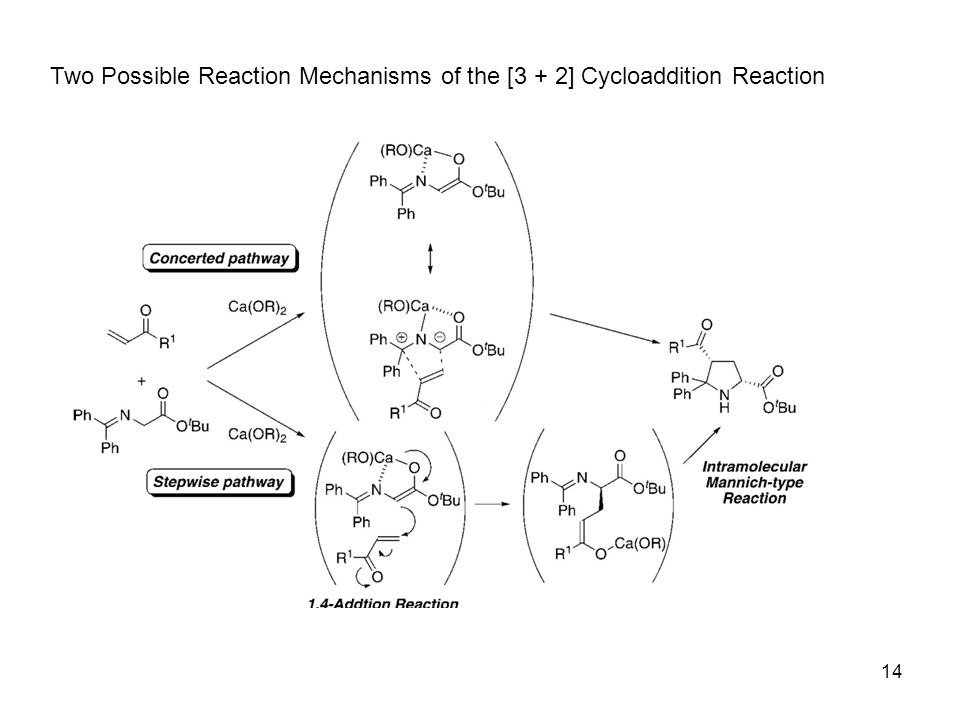

14. Two Possible Reaction Mechanisms of the [3 + 2] Cycloaddition Reaction 14

15. so stepwise is possible cis/trans=2/1 15

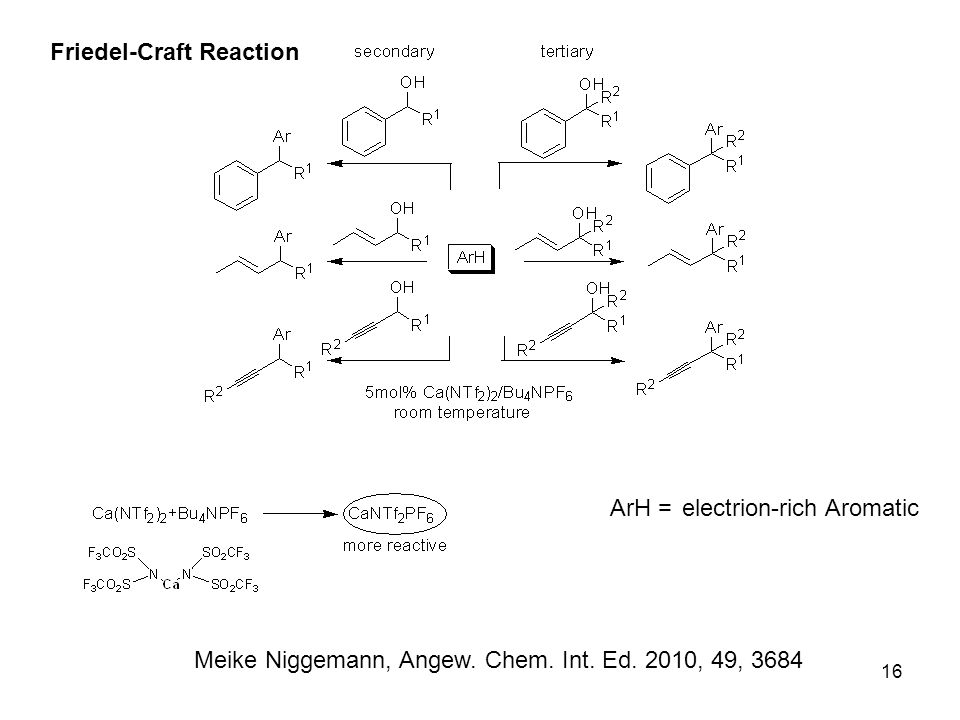

16. Meike Niggemann, Angew. Chem. Int. Ed. 2010, 49, 3684 Friedel-Craft Reaction electrion-rich AromaticArH = 16

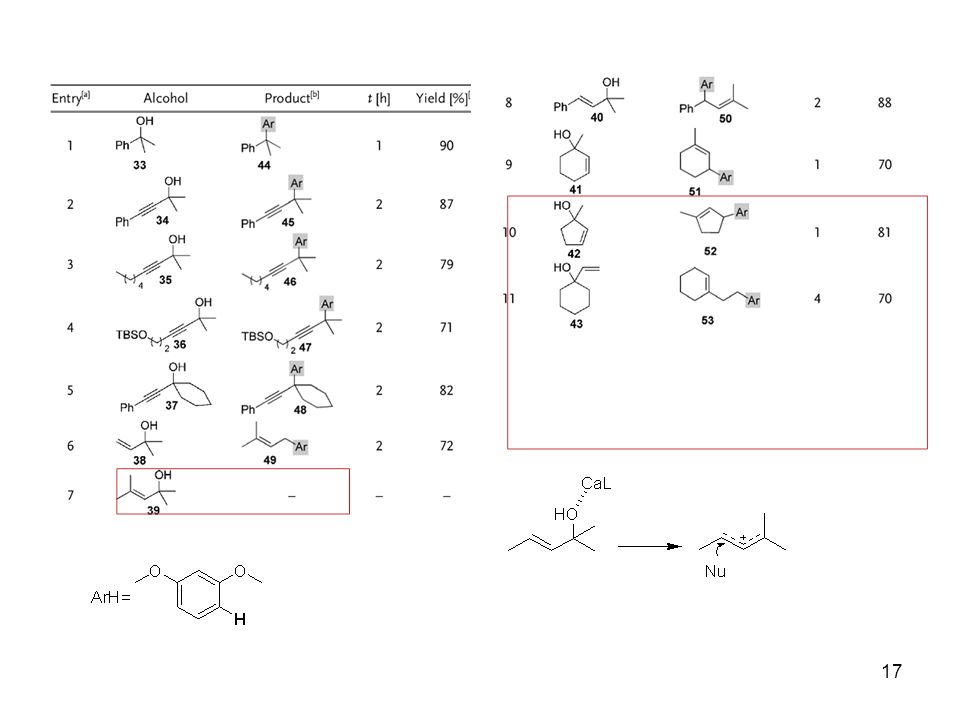

17. 17

18. cat: Kazuaki Ishihara, Angew. Chem. Int. Ed. 2010, 49, 3823 Mannich Reaction 18

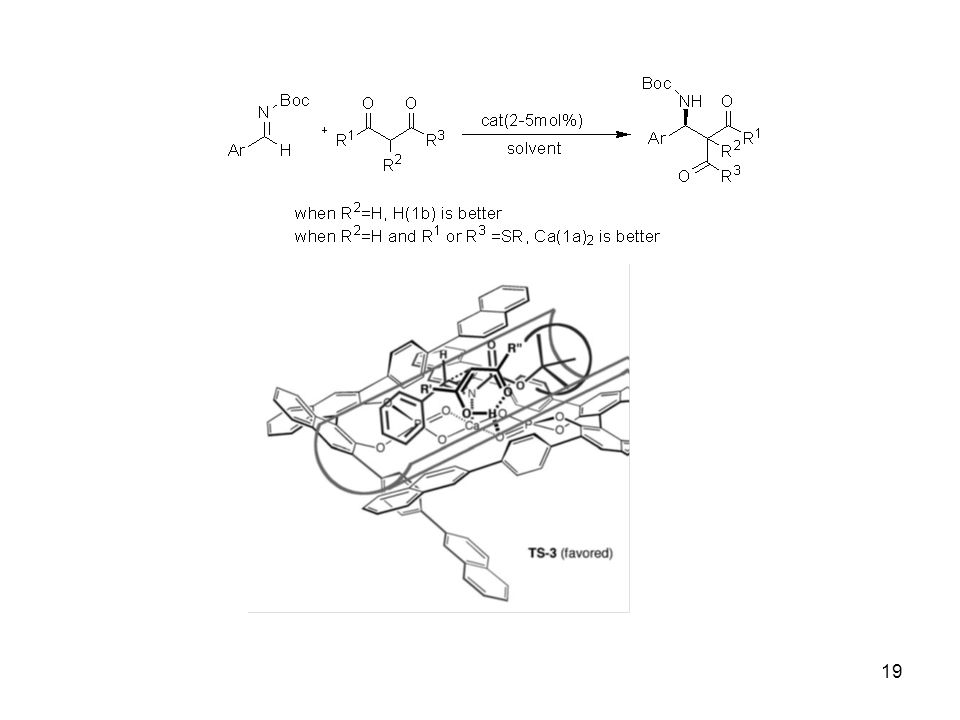

19. 19

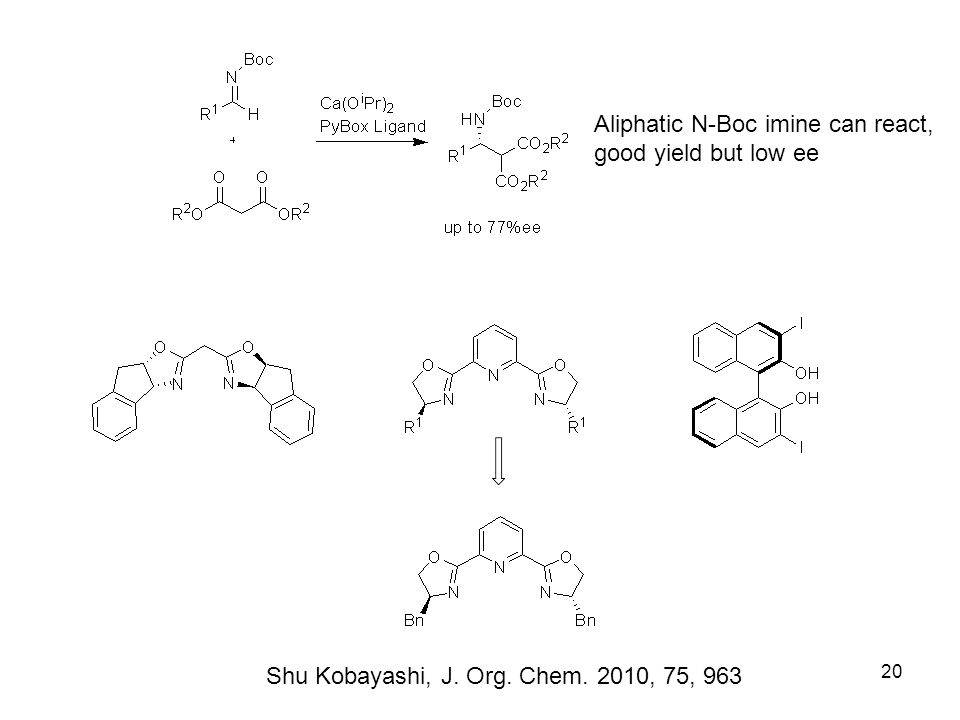

20. Aliphatic N-Boc imine can react, good yield but low ee Shu Kobayashi, J. Org. Chem. 2010, 75, 963 20

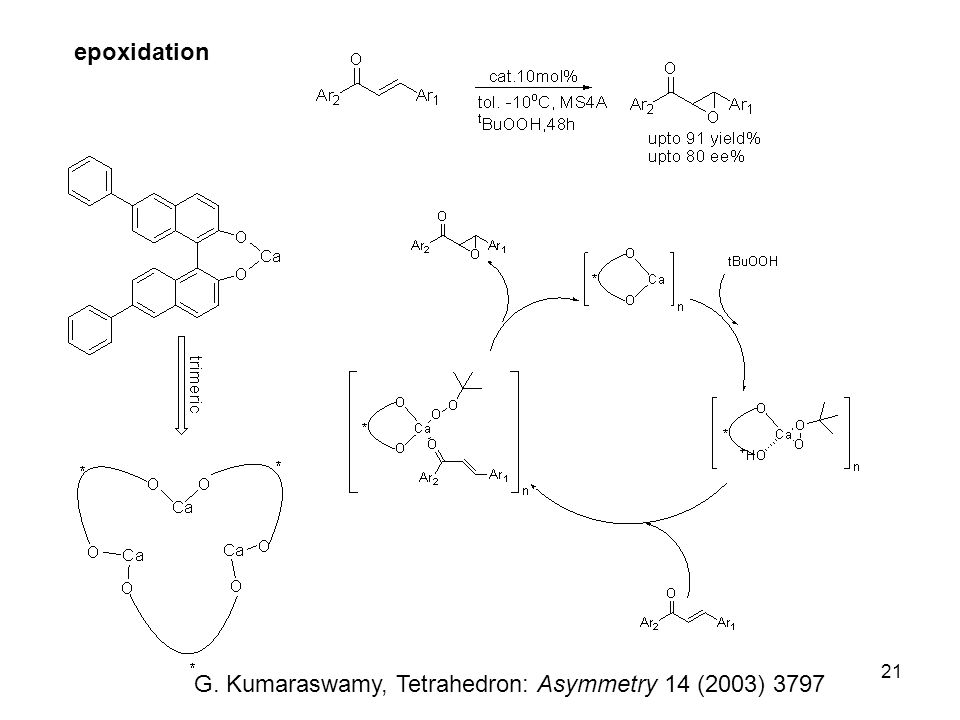

21. epoxidation G. Kumaraswamy, Tetrahedron: Asymmetry 14 (2003) 3797 21

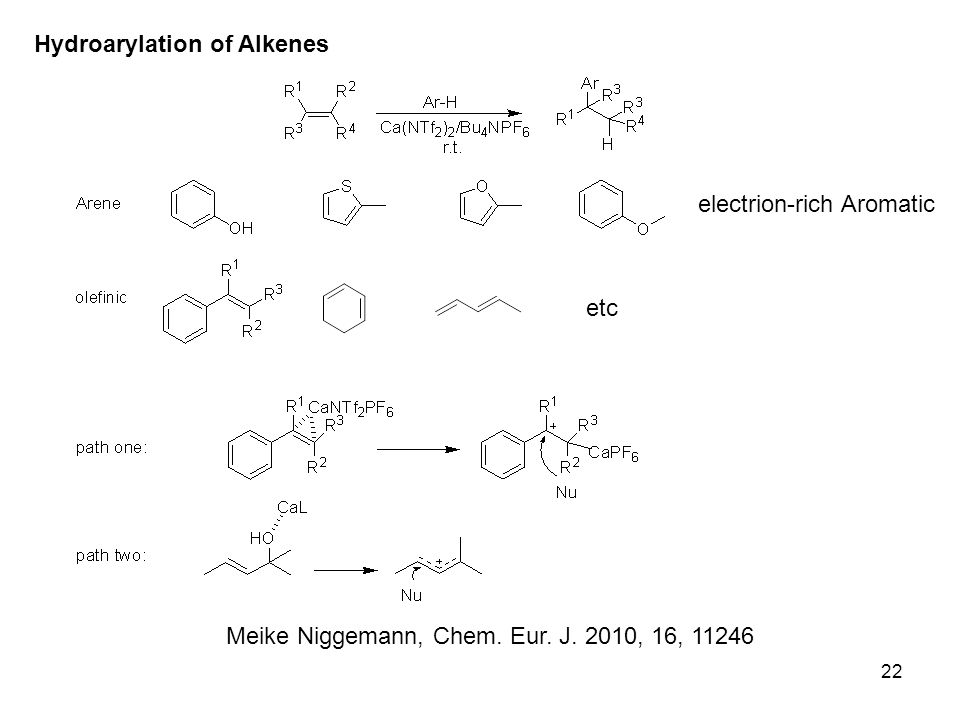

22. electrion-rich Aromatic etc Meike Niggemann, Chem. Eur. J. 2010, 16, 11246 Hydroarylation of Alkenes 22

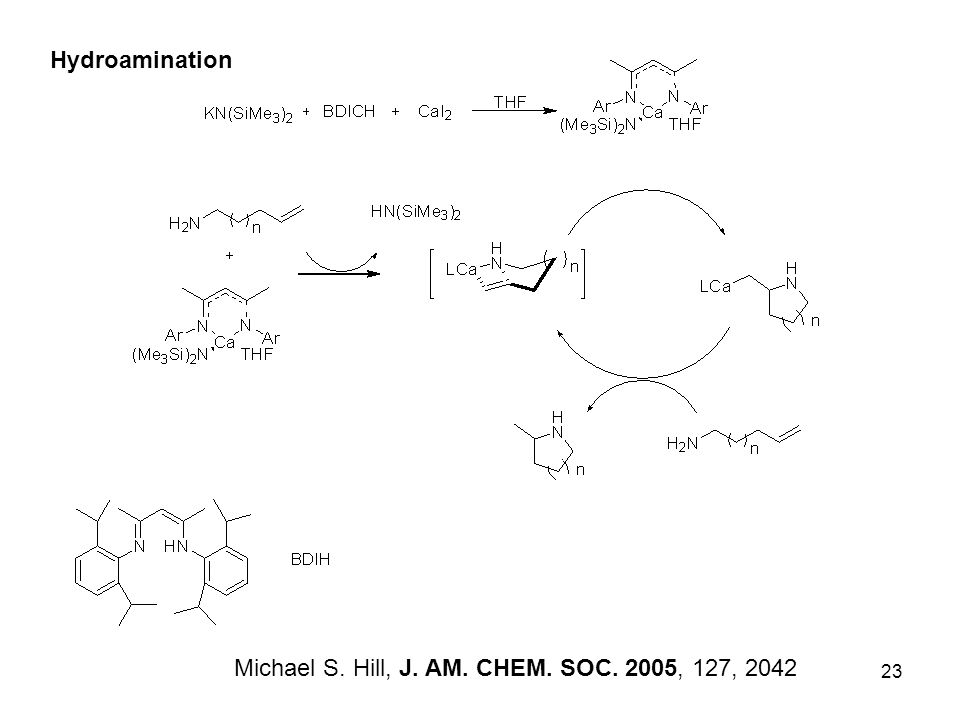

23. Michael S. Hill, J. AM. CHEM. SOC. 2005, 127, 2042 Hydroamination 23

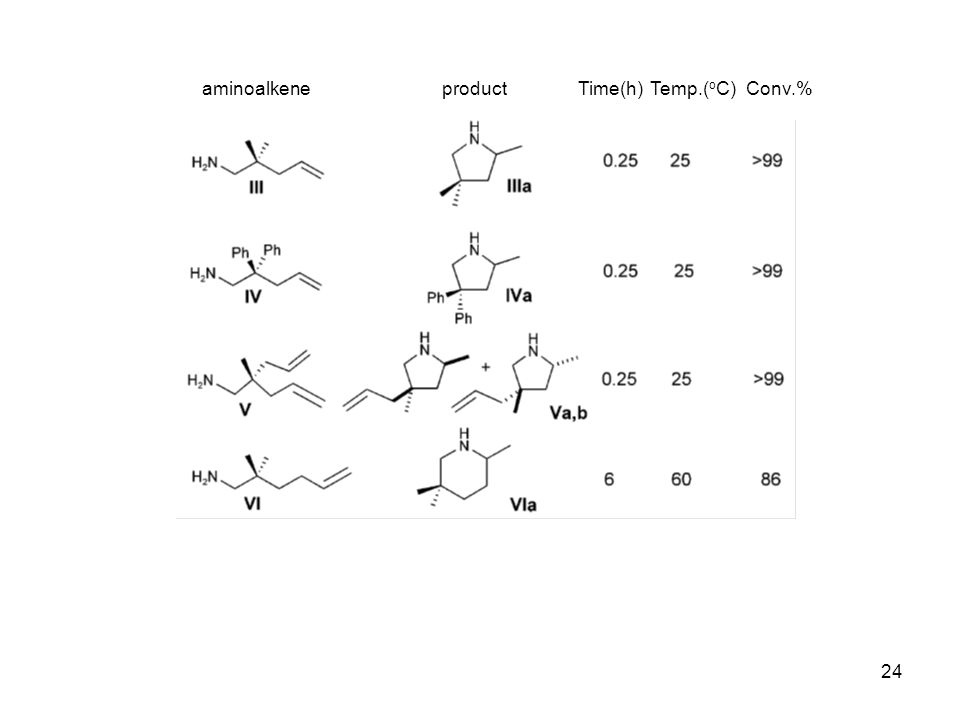

24. aminoalkeneproductTime(h)Temp.( o C)Conv.% 24

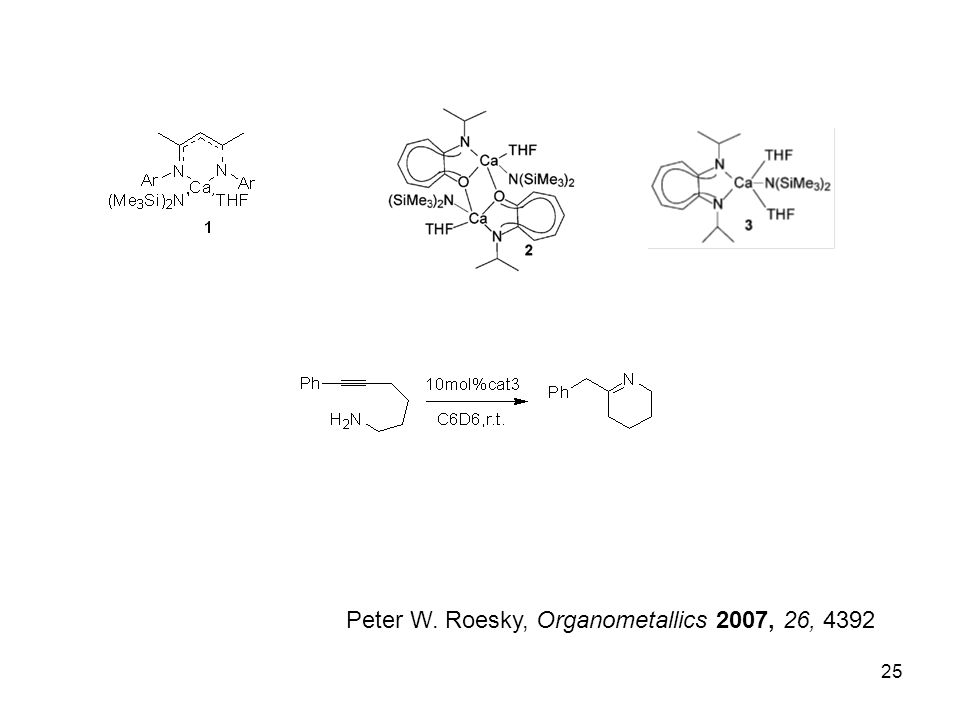

25. Peter W. Roesky, Organometallics 2007, 26, 4392 25

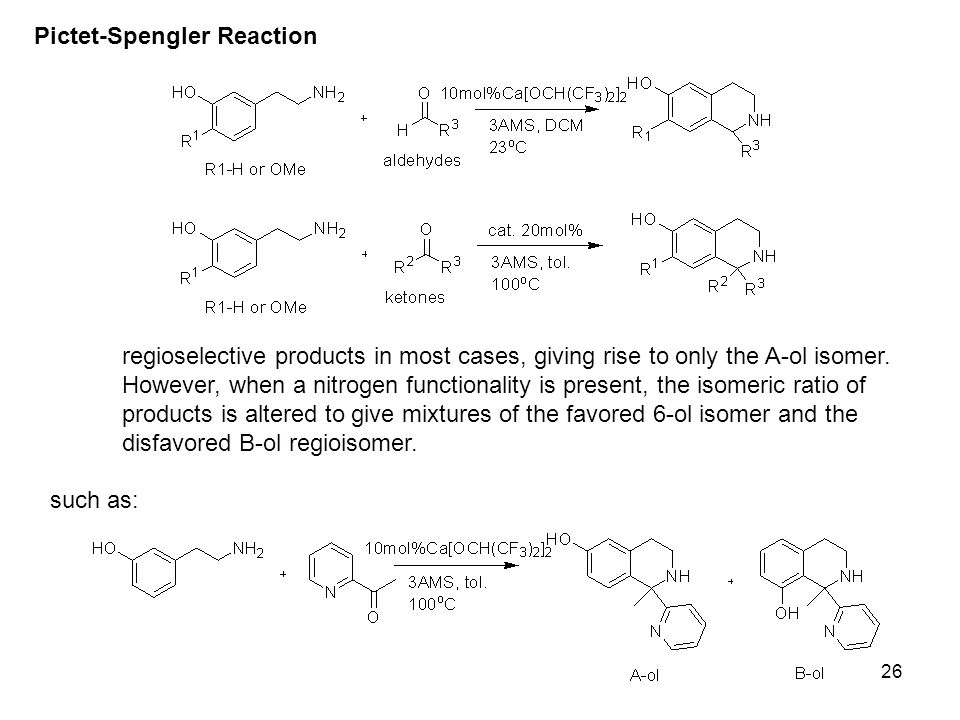

26. regioselective products in most cases, giving rise to only the A-ol isomer. However, when a nitrogen functionality is present, the isomeric ratio of products is altered to give mixtures of the favored 6-ol isomer and the disfavored B-ol regioisomer. such as: Pictet-Spengler Reaction 26

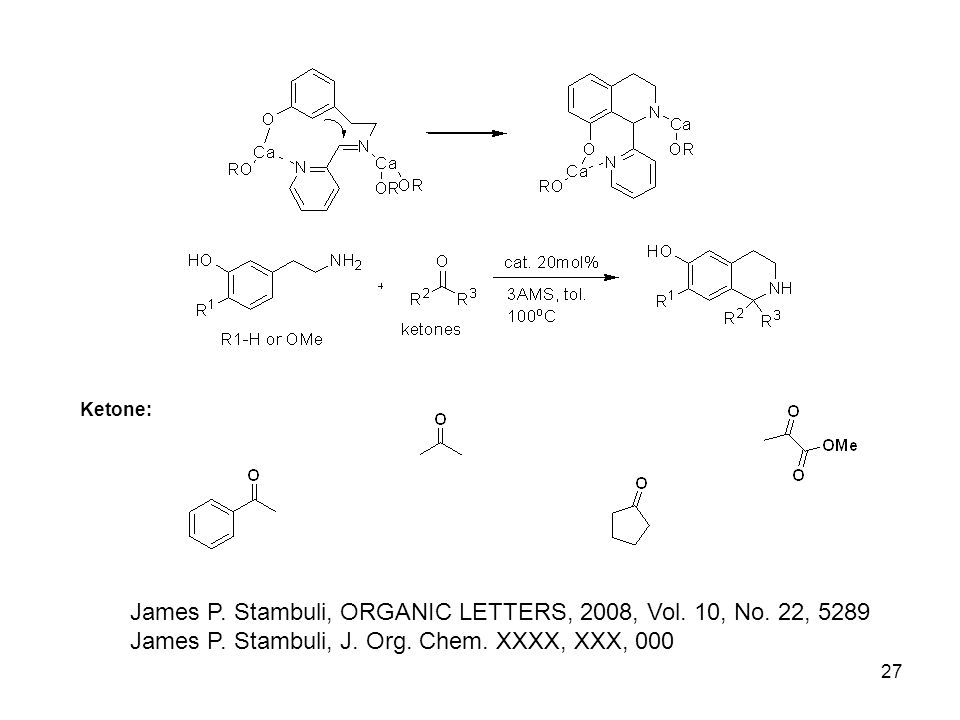

27. James P. Stambuli, ORGANIC LETTERS, 2008, Vol. 10, No. 22, 5289 James P. Stambuli, J. Org. Chem. XXXX, XXX, 000 Ketone: 27

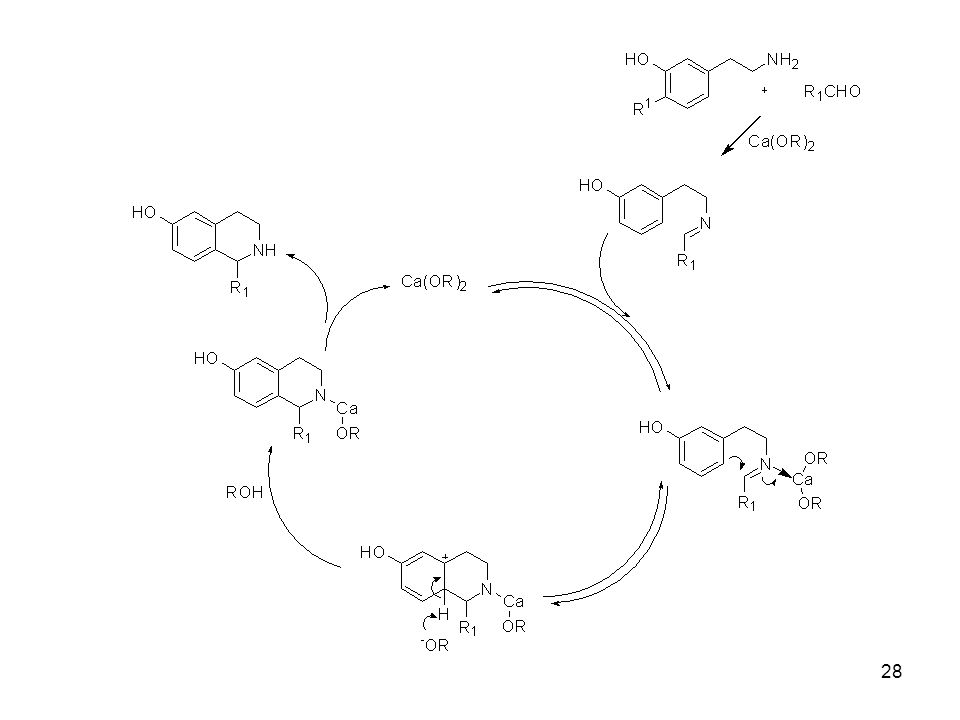

28. 28

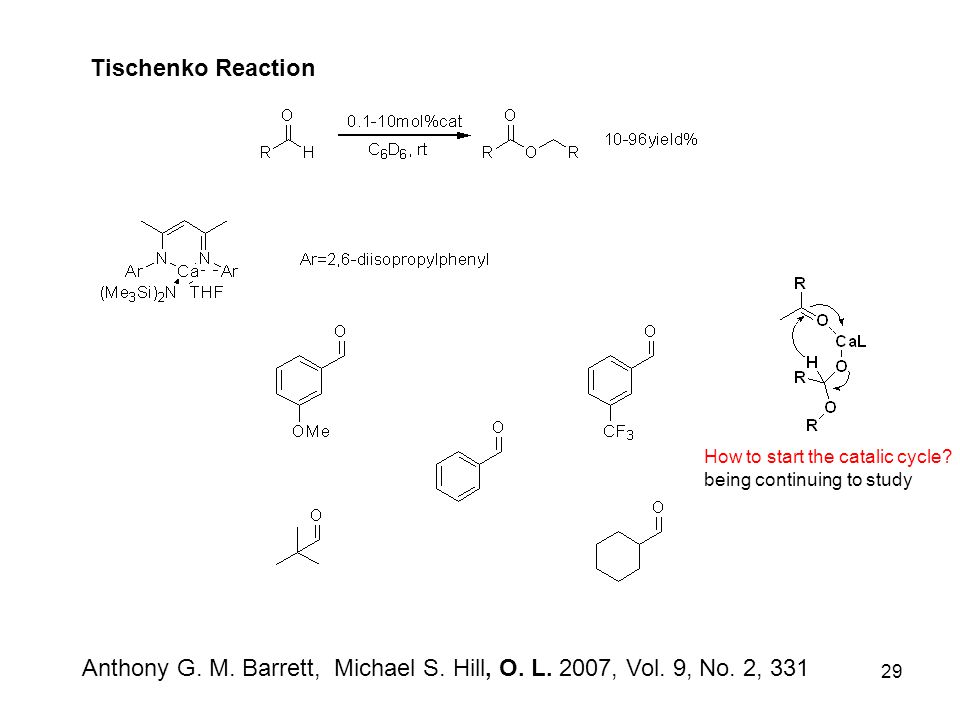

29. Anthony G. M. Barrett, Michael S. Hill, O. L. 2007, Vol. 9, No. 2, 331 Tischenko Reaction How to start the catalic cycle? being continuing to study 29

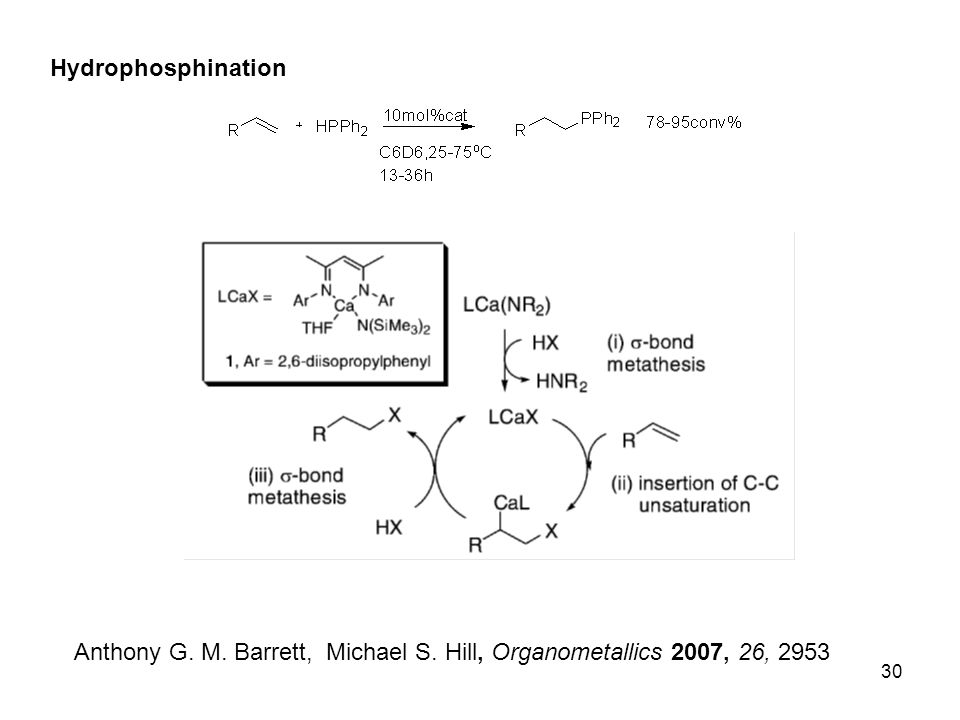

30. Anthony G. M. Barrett, Michael S. Hill, Organometallics 2007, 26, 2953 Hydrophosphination 30

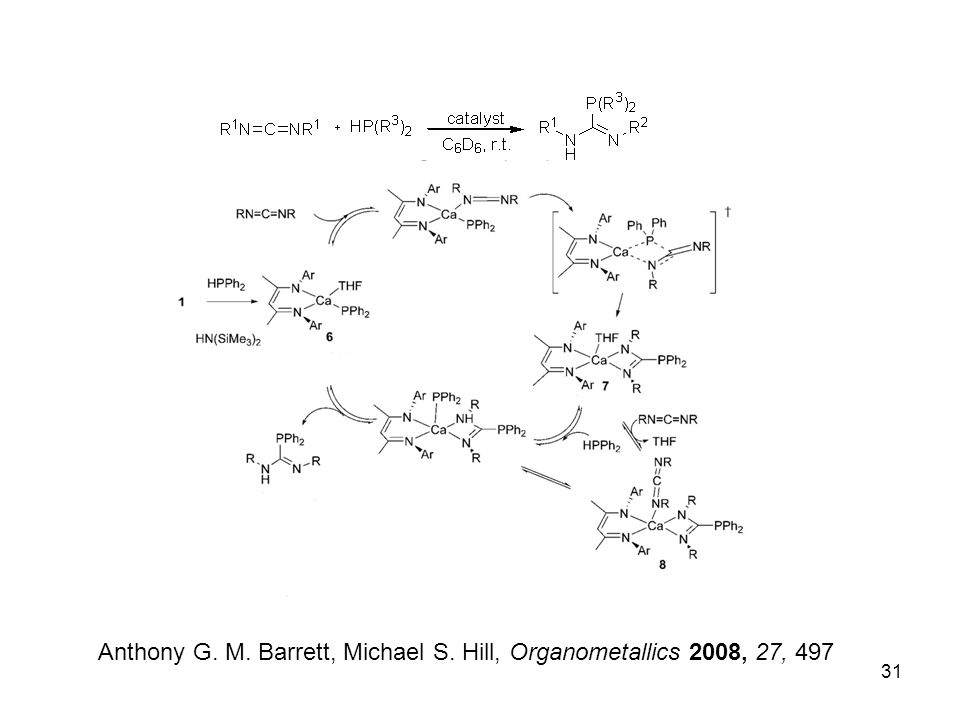

31. Anthony G. M. Barrett, Michael S. Hill, Organometallics 2008, 27, 497 31

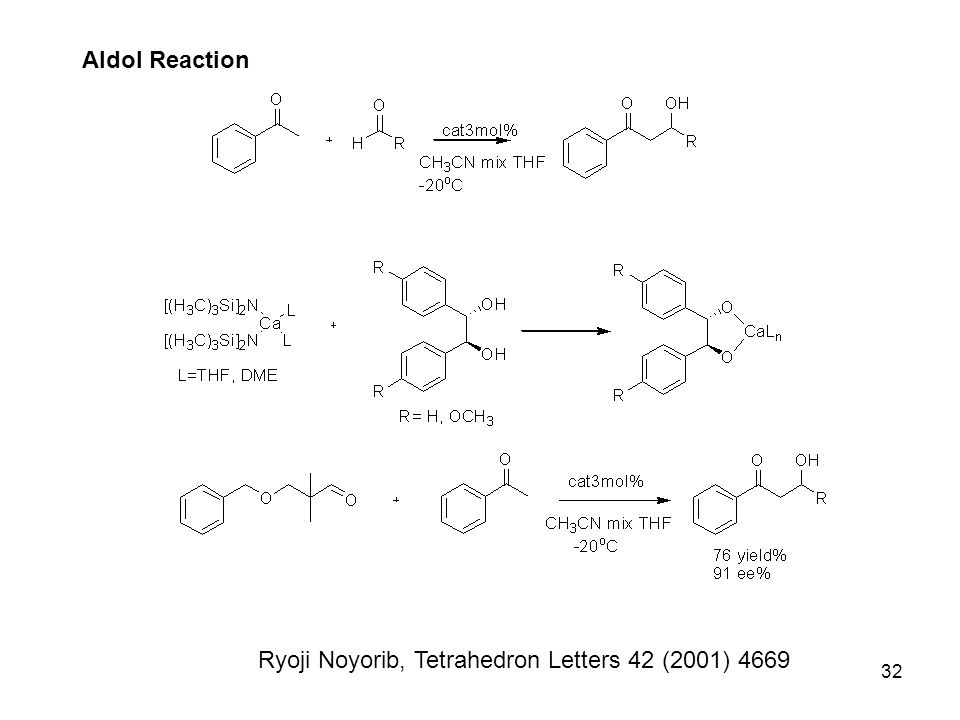

32. Ryoji Noyorib, Tetrahedron Letters 42 (2001) 4669 Aldol Reaction 32

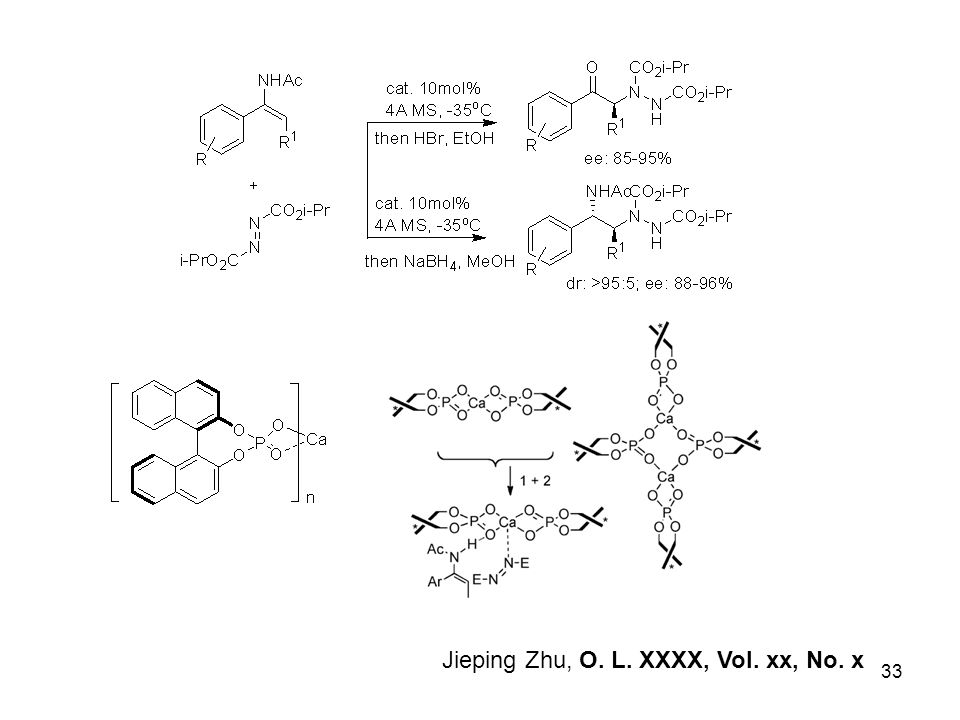

33. Jieping Zhu, O. L. XXXX, Vol. xx, No. x 33

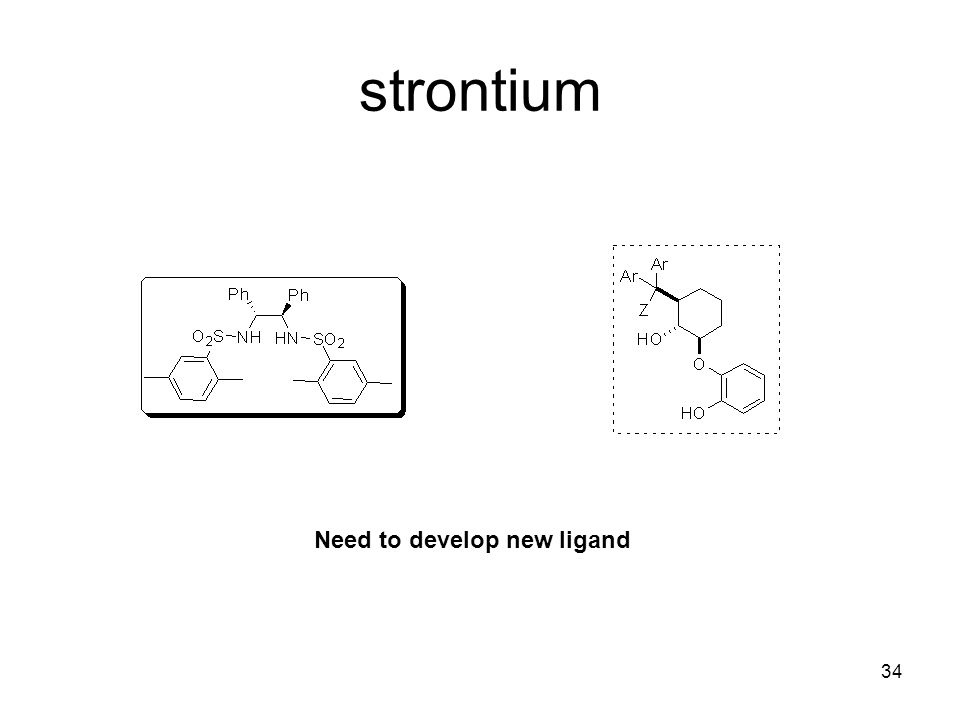

34. strontium Need to develop new ligand 34

35. S. Kobayashi, Angew. Chem. Int. Ed. 2009, 48, 5927 S. Kobayashi,Bull. Chem. Soc. Jpn. Vol. 82, No. 9, 1083 Mannich 35

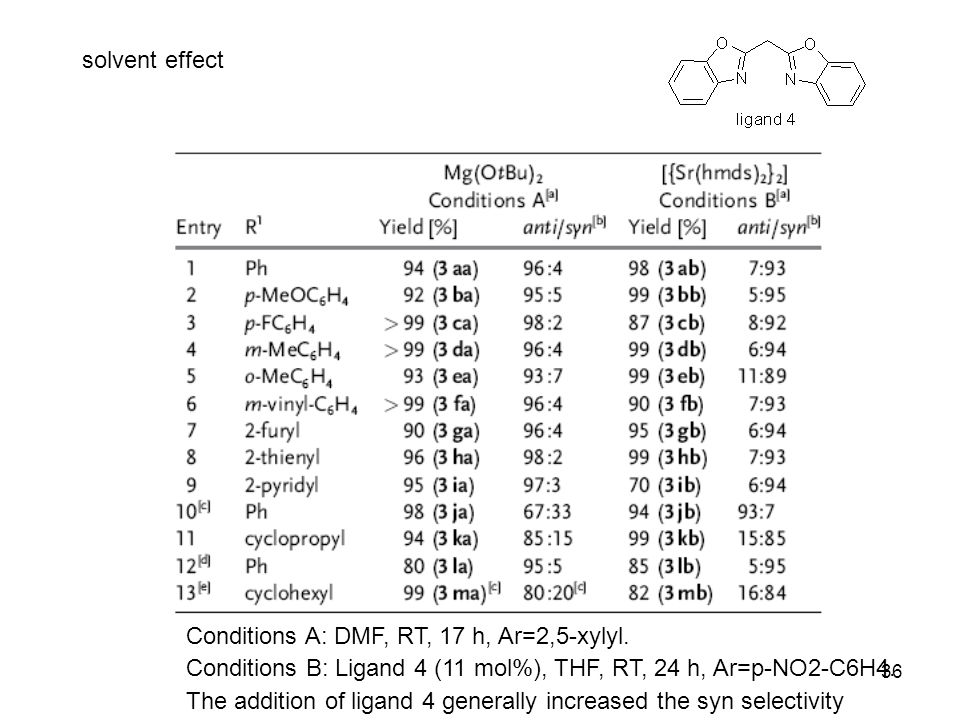

36. solvent effect Conditions A: DMF, RT, 17 h, Ar=2,5-xylyl. Conditions B: Ligand 4 (11 mol%), THF, RT, 24 h, Ar=p-NO2-C6H4. The addition of ligand 4 generally increased the syn selectivity 36

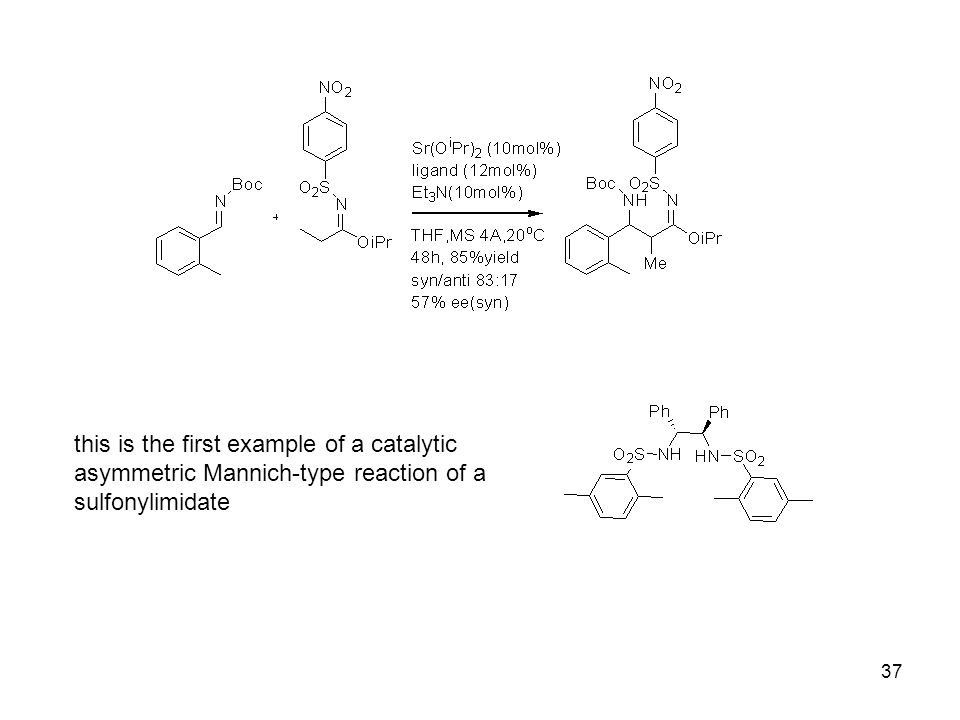

37. this is the first example of a catalytic asymmetric Mannich-type reaction of a sulfonylimidate 37

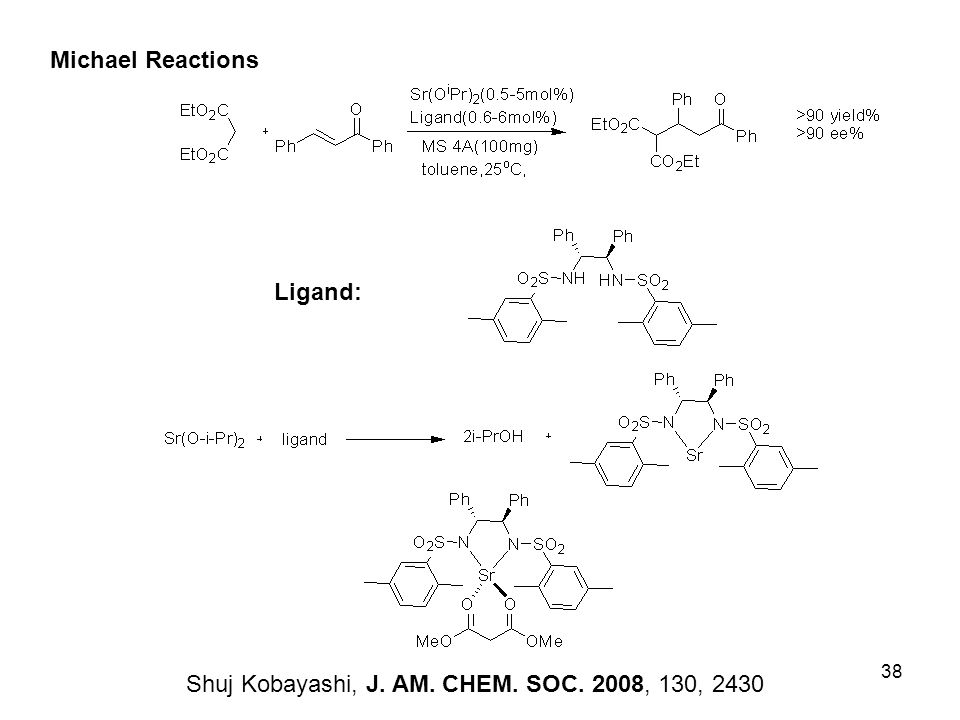

38. Ligand: Shuj Kobayashi, J. AM. CHEM. SOC. 2008, 130, 2430 Michael Reactions 38

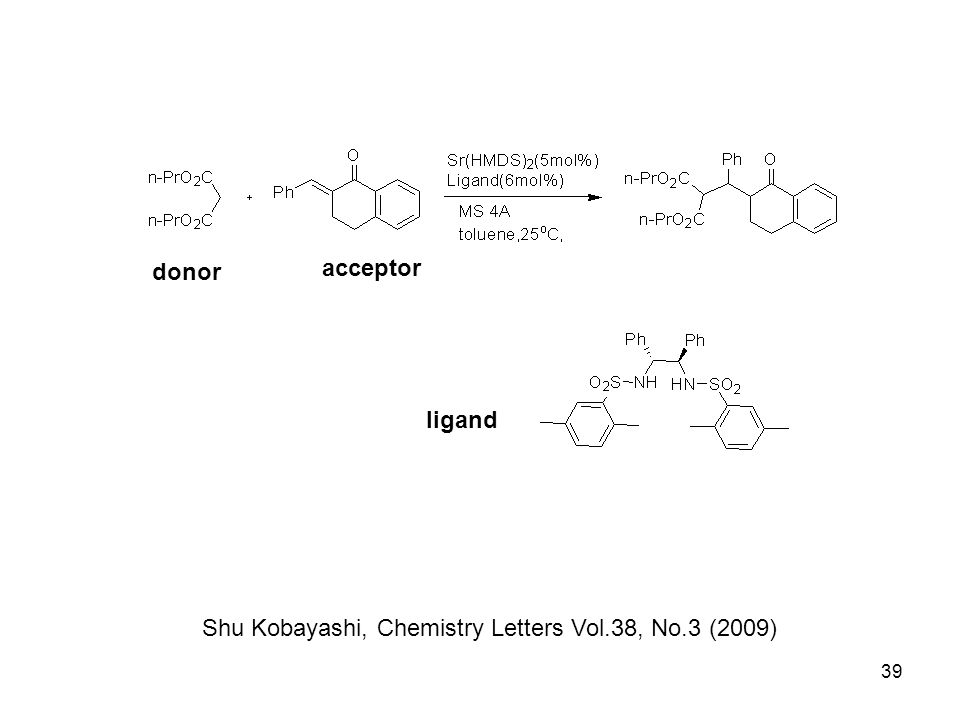

39. donor acceptor ligand Shu Kobayashi, Chemistry Letters Vol.38, No.3 (2009) 39

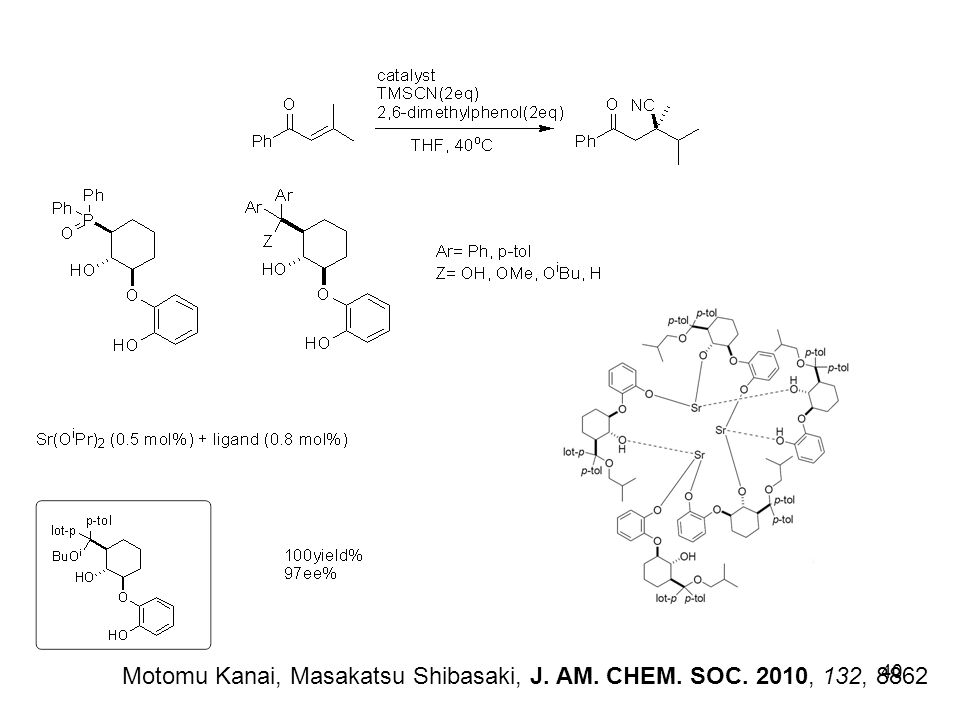

40. Motomu Kanai, Masakatsu Shibasaki, J. AM. CHEM. SOC. 2010, 132, 8862 40

41. 41

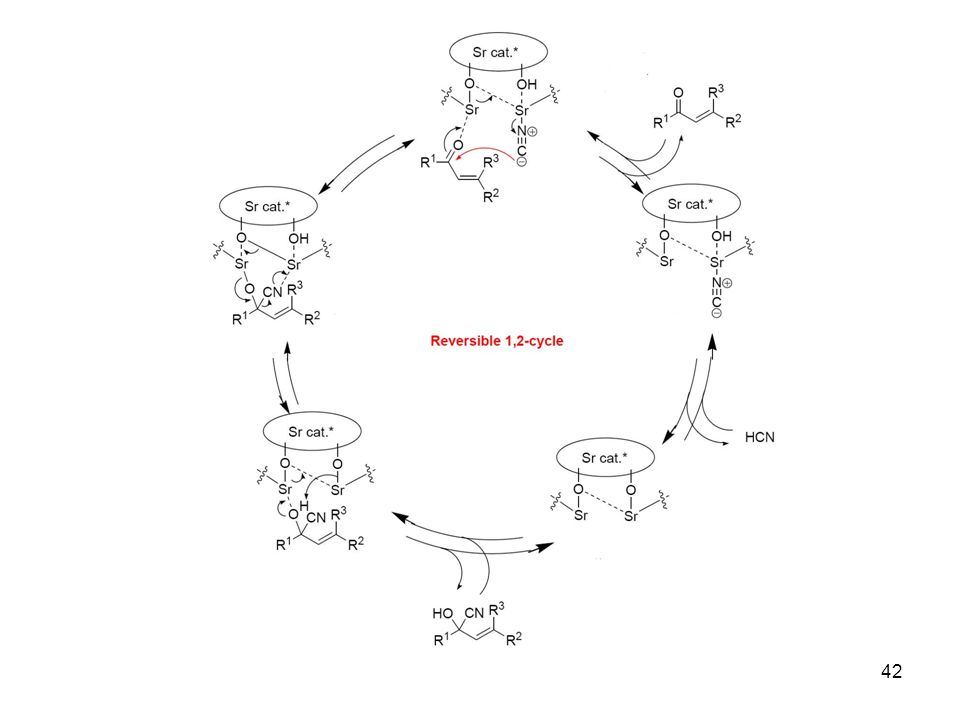

42. 42

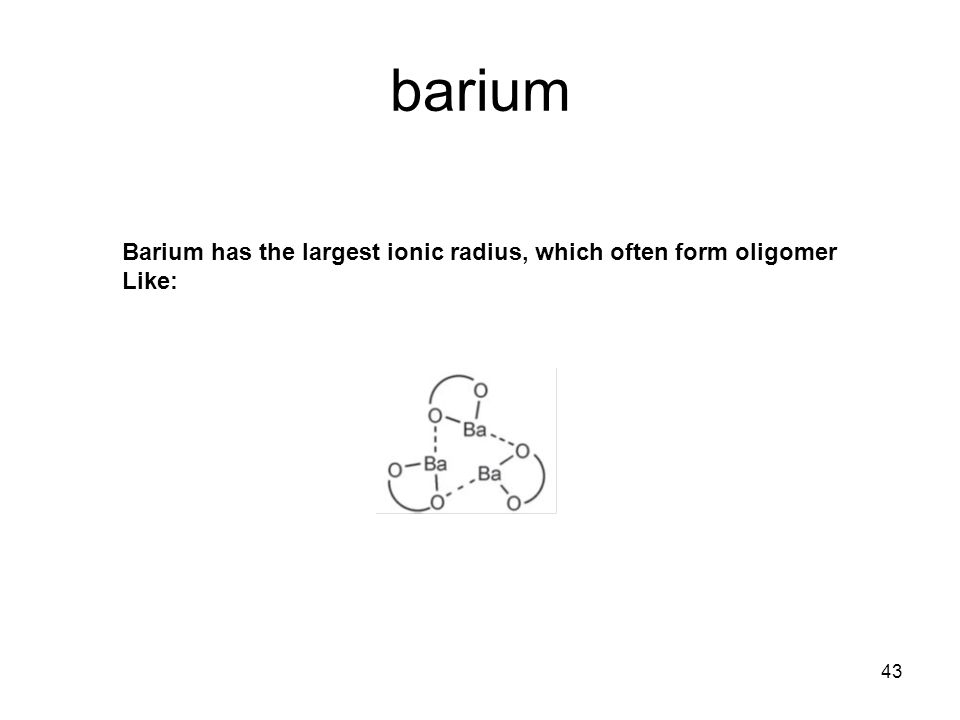

43. barium Barium has the largest ionic radius, which often form oligomer Like: 43

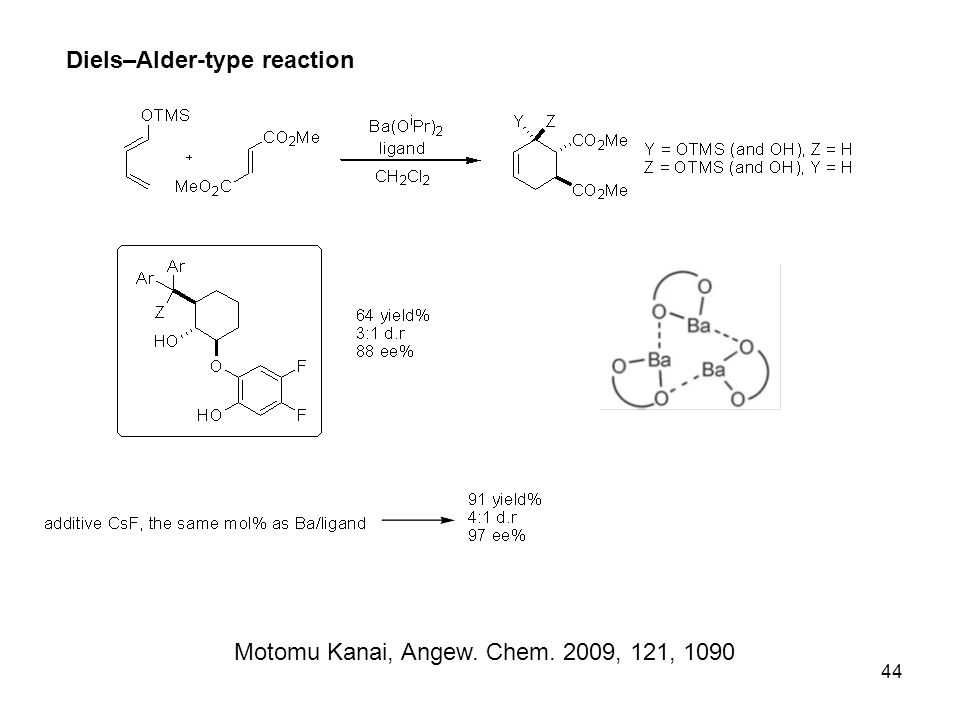

44. 44 Motomu Kanai, Angew. Chem. 2009, 121, 1090 Diels–Alder-type reaction

45. 45

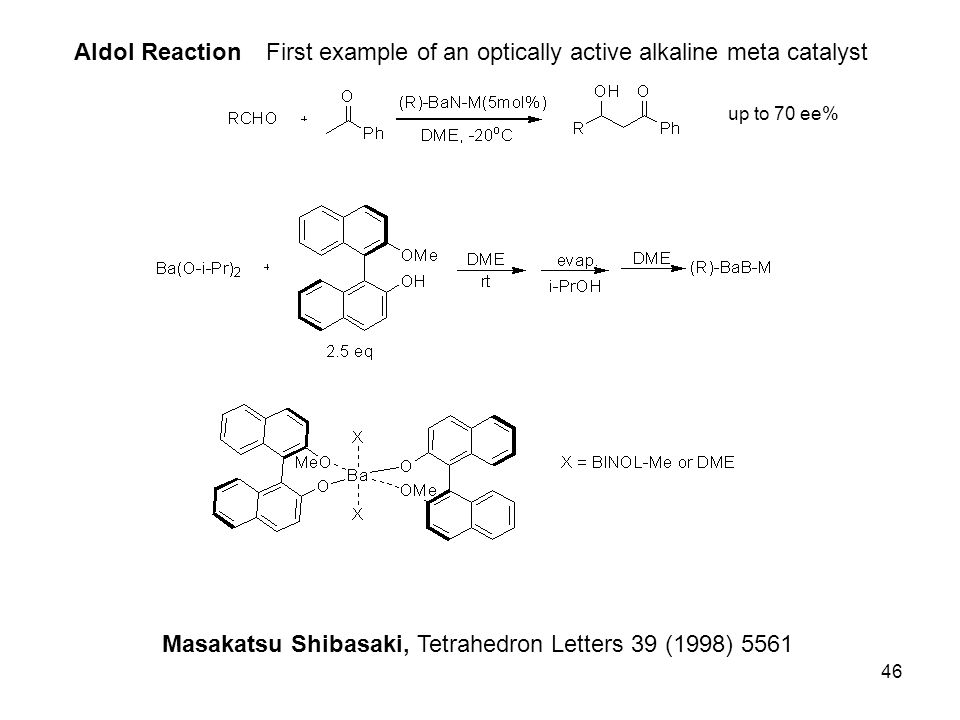

46. Masakatsu Shibasaki, Tetrahedron Letters 39 (1998) 5561 Aldol ReactionFirst example of an optically active alkaline meta catalyst up to 70 ee% 46

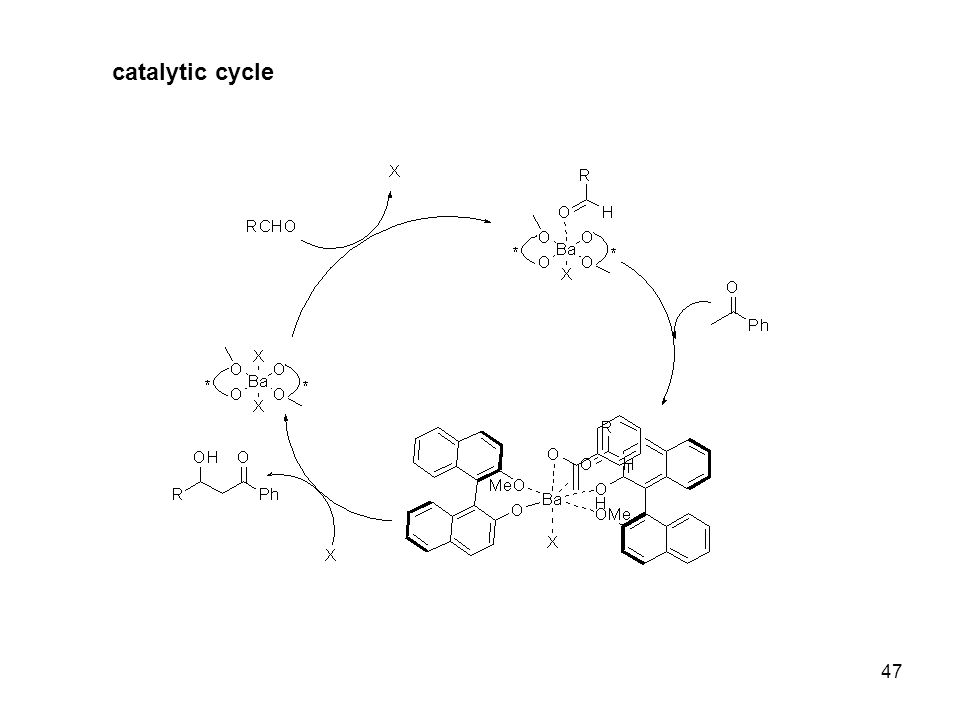

47. catalytic cycle 47

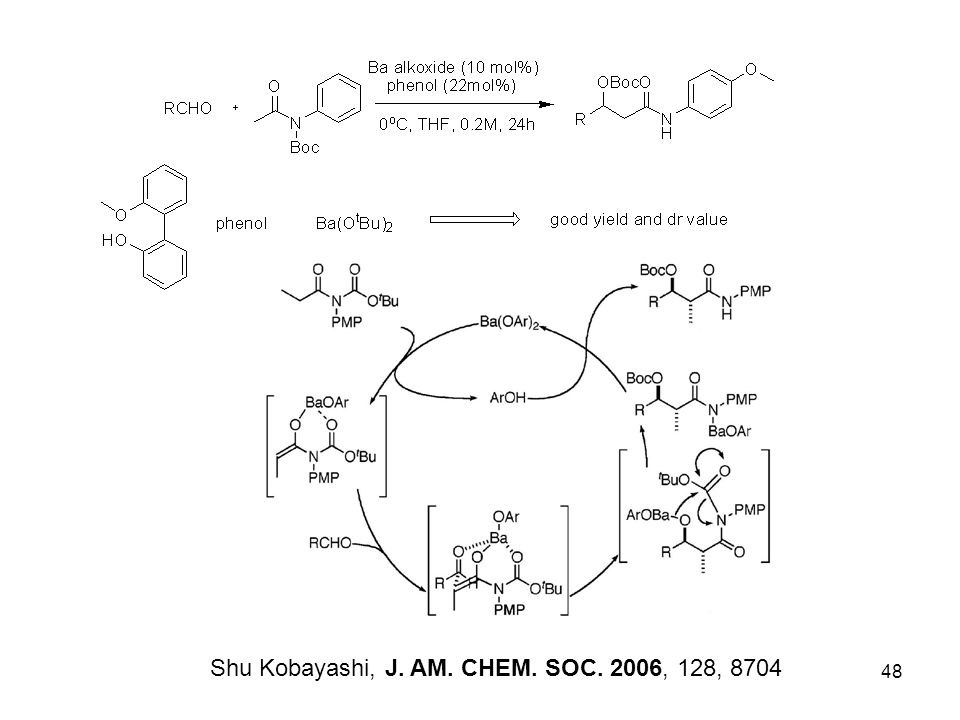

48. Shu Kobayashi, J. AM. CHEM. SOC. 2006, 128, 8704 48

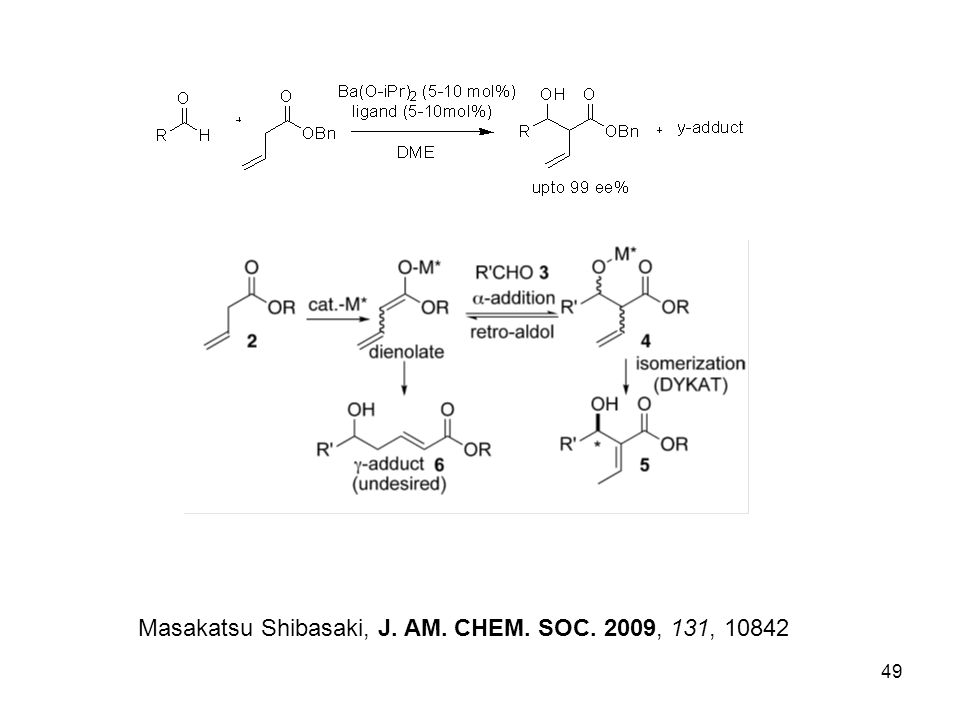

49. Masakatsu Shibasaki, J. AM. CHEM. SOC. 2009, 131, 10842 49

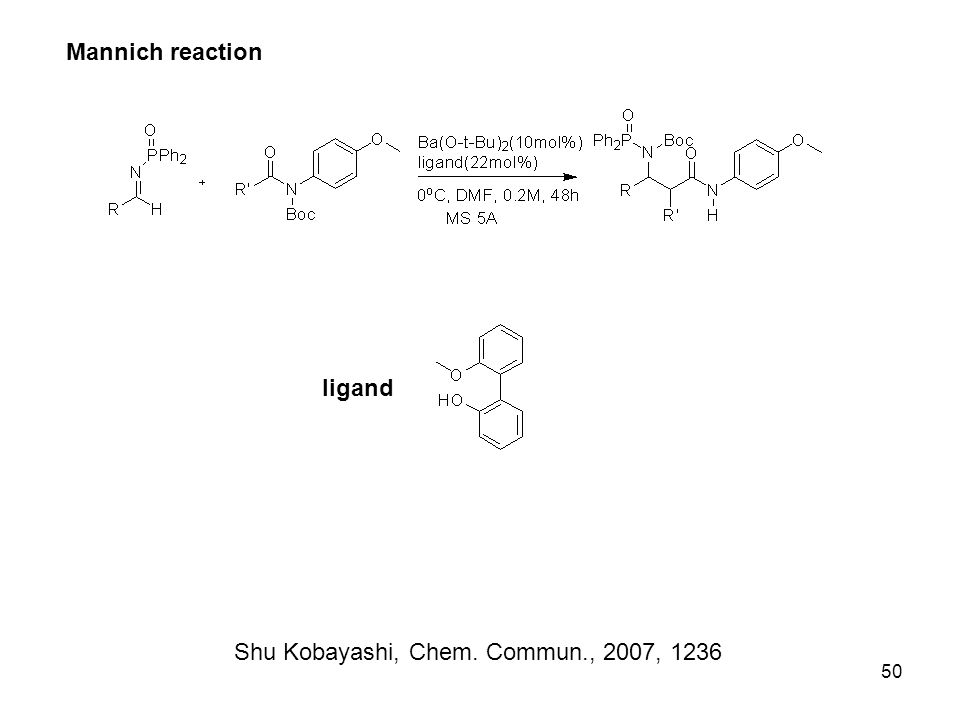

50. ligand Shu Kobayashi, Chem. Commun., 2007, 1236 Mannich reaction 50

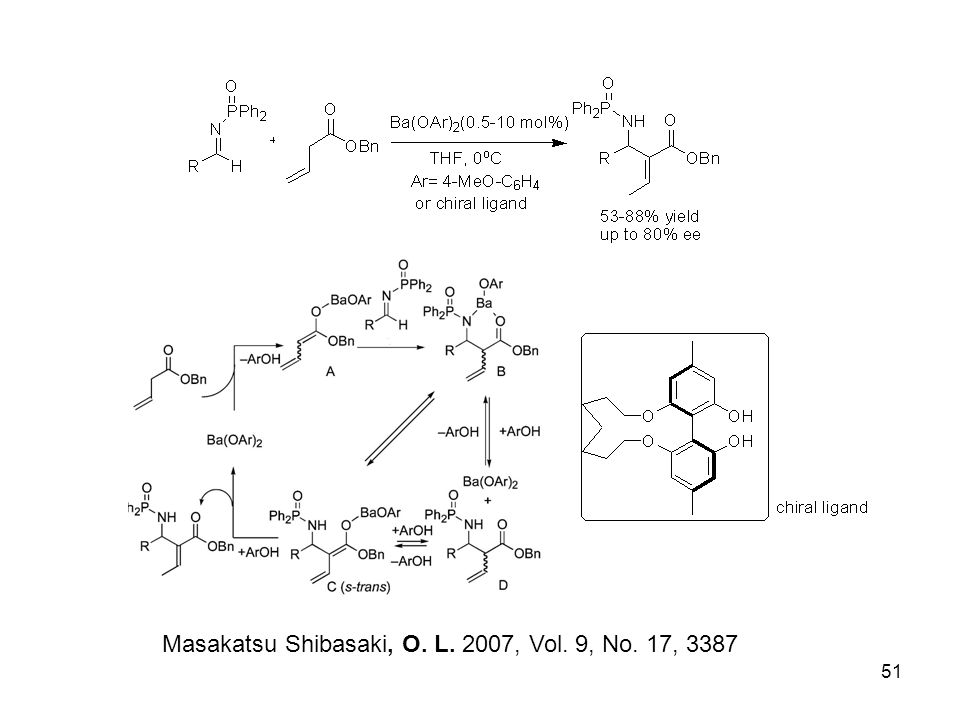

51. Masakatsu Shibasaki, O. L. 2007, Vol. 9, No. 17, 3387 51

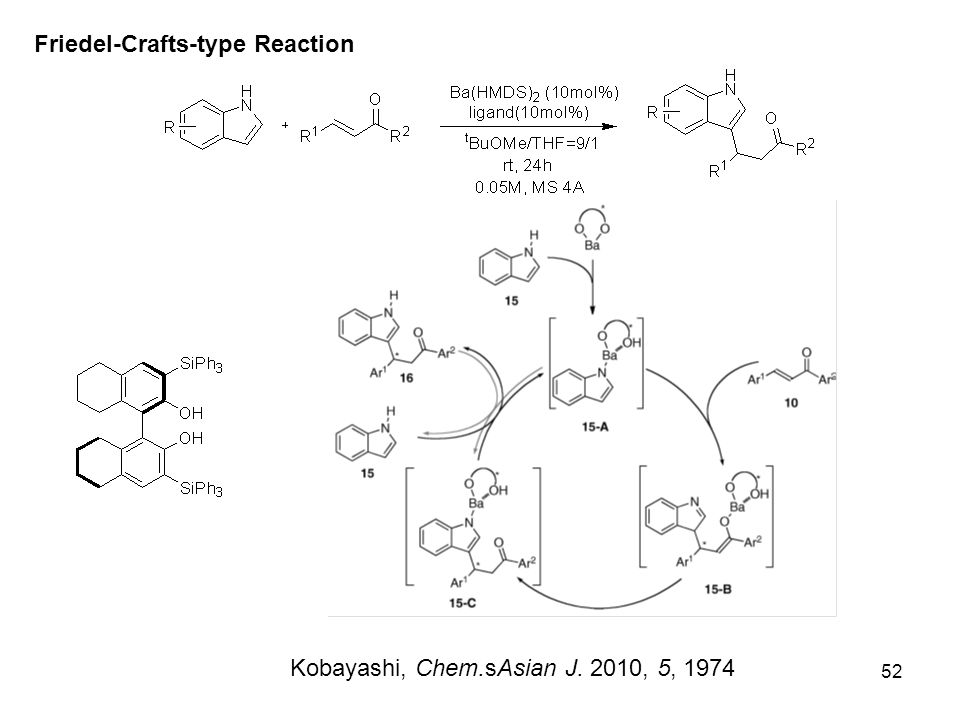

52. Kobayashi, Chem.sAsian J. 2010, 5, 1974 Friedel-Crafts-type Reaction 52

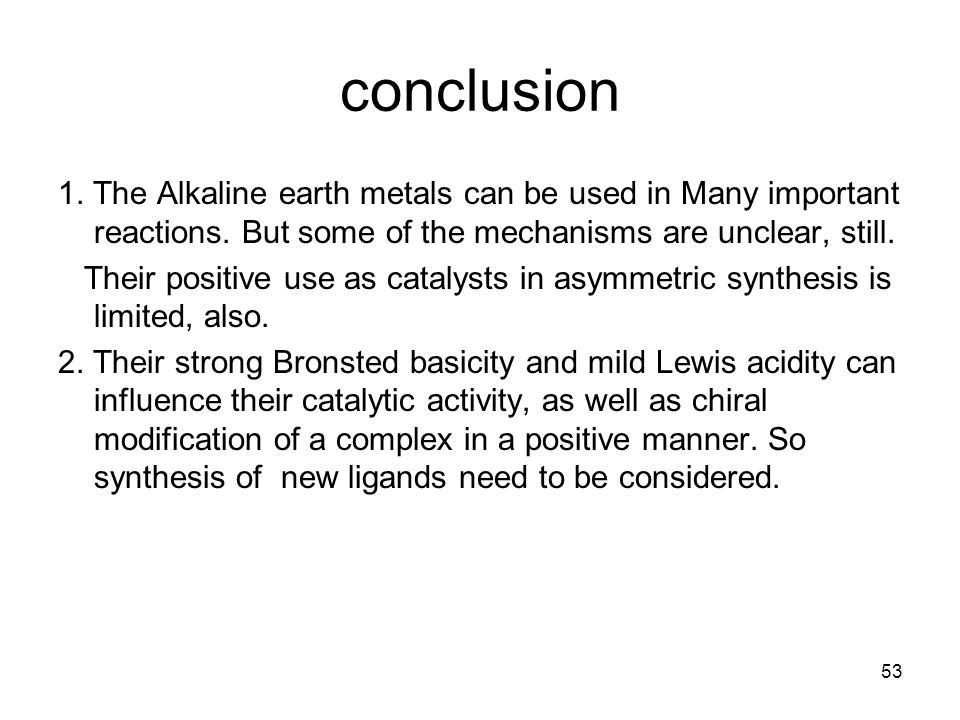

53. conclusion 1. The Alkaline earth metals can be used in Many important reactions. But some of the mechanisms are unclear, still. Their positive use as catalysts in asymmetric synthesis is limited, also. 2. Their strong Bronsted basicity and mild Lewis acidity can influence their catalytic activity, as well as chiral modification of a complex in a positive manner. So synthesis of new ligands need to be considered. 53

54. Thank you for your attention! 54
