1. App Streaming- Architecture & Troubleshooting Techniques Jesús González, Escalation Engineer Karen Sciberras, Escalation Engineer

2. Document management CategoryTracking Information Company:Citrix Systems, Inc. Author(s): Jesús González, Karen Sciberras Owner(s):Escalation Engineer Last modified:August 21 st 2010 Version:Version 1.0 Length:50 minutes

3. Streaming technology basics Streaming technology in depth Sandbox reuse introduced in Streaming client 5.2 Features introduced by Streaming client 6.0 Agenda

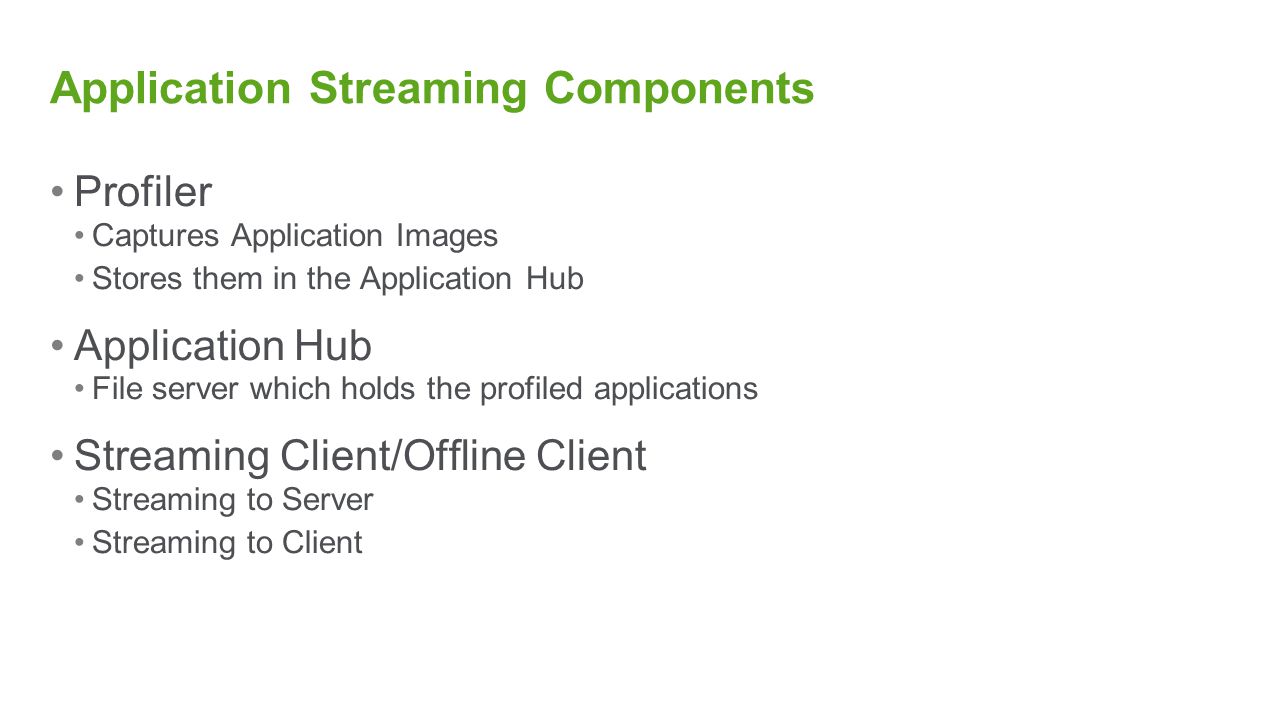

4. Profiler Captures Application Images Stores them in the Application Hub Application Hub File server which holds the profiled applications Streaming Client/Offline Client Streaming to Server Streaming to Client Application Streaming Components

5. Layers Of Glass Analogy Installation/Execution Image Physical Machine Installation/Execution Image Profiler Machine Nothing written to the “table” at profile time Client Machine/ Presentation Server Installation program “painted” on “pane” File redirection Per User Image Physical Machine Read/Write Read Only, None Read Only Read/Write Execution image common to all users – enables centralized app management Application believes installed on physical machine Install program, registry, named objects etc. stored in.CAB file

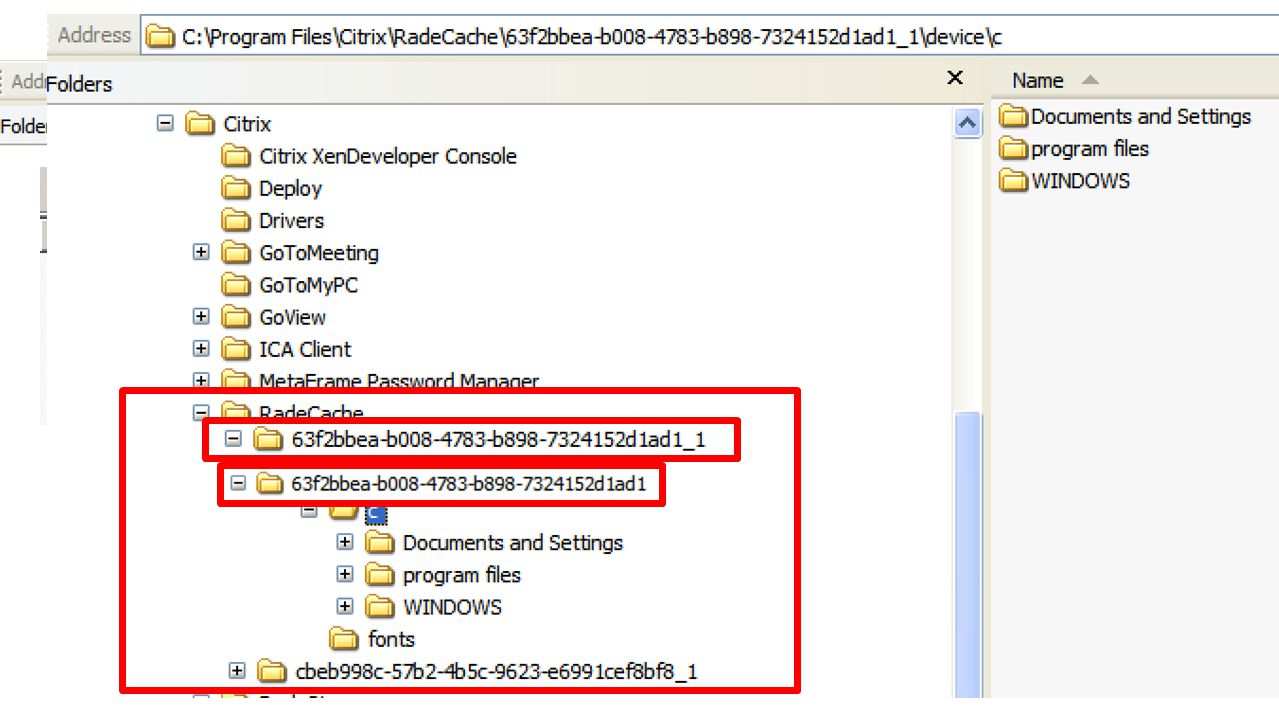

6. Isolation Layers Per user Image or User Root Each user gets there own copy of top layer Writable at application runtime %AppData%\Citrix\Radecache Execution image or Install Root Read only during launch Writeable during profiling %Program Files\Citrix\Radecache Application Mask the applications view of the Physical machine Views machine from top down Per user image starts clear [read/write] Initial app view = Execution image [read only]

7. Streaming technology in depth

8. Streaming technology basic concepts Named Objects Named Objects File System File System Registry Isolation Rules Isolation Rules Per User Image Installation/Execution Image Physical Machine

9. Open a File for Reading Creating a file Open a File for Writing Deleting a File Streaming technology in depth Example: File System redirection Per User Image Installation/Execution Image Physical Machine

10. Streaming technology in depth Example: Open a File for Reading C:\Program Files\MyApp\MyConfig.txt %AppData%\Citrix\RadeCache\GUID\Device\C\Program Files\MyApp %ProgramFiles%\Citrix\RadeCache\GUID\Device\C\Program Files\MyApp C:\Program Files\MyApp If not found, continue search in the regular physical root location Found here! Open file for reading Search in the UserRoot Search in the InstallRoot Per User Image Installation/Execution Image Physical Machine Per User Image Installation/Execution Image Physical Machine

11. Streaming technology in depth Example: Creating a file C:\Program Files\Myapp\Myconfig.txt During installation %Program Files%\Citrix\RadeCache\GUID\Device\C\Program Files\MyApp\MyConfig.txt During execution %AppData%\Citrix\RadeCache\GUID\Device\C\Program Files\MyApp\Myconfig.txt Per User Image Installation/Execution Image Physical Machine Per User Image Installation/Execution Image

12. Streaming technology in depth Example: Open a File for Writing C:\Program Files\MyApp\MyConfig.txt %AppData%\Citrix\RadeCache\GUID\Device\C\Program Files\MyApp %ProgramFiles%\Citrix\RadeCache\GUID\Device\C\Program Files\MyApp Found here! Copy file to user Image Layer (Copy On Open for Write) Open file for writing here Per User Image Installation/Execution Image Physical Machine Per User Image Installation/Execution Image

13. Streaming technology in depth Example: Deleting a File Isolation environments satisfy two requirements - Not deleting C:\DeleteMe.txt in reality - Isolated applications are told that C:\DeleteMe.txt does not exists anymore Per User Image Installation/Execution Image Physical Machine

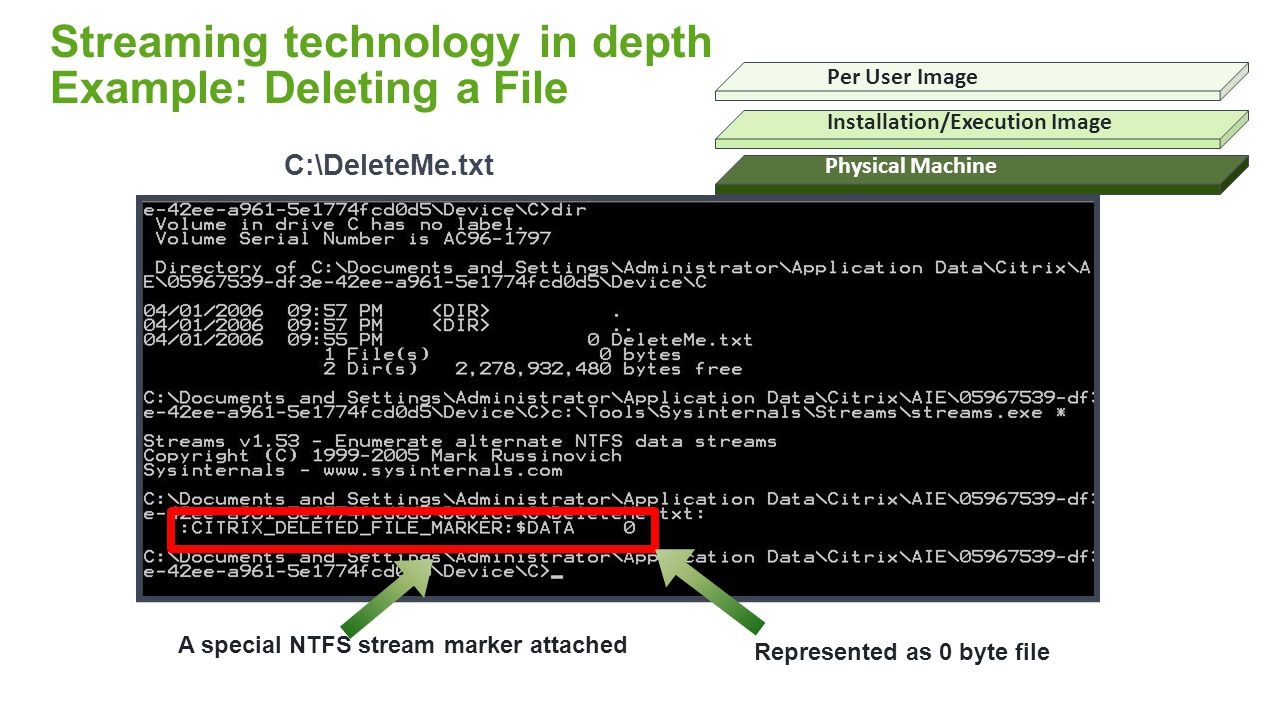

14. Streaming technology in depth Example: Deleting a File C:\DeleteMe.txt Represented as 0 byte file A special NTFS stream marker attached Per User Image Installation/Execution Image Physical Machine

15. Launch Process

16. RadeRun RadeRun is to streaming what wfcrun32 is for hosted applications RadeRun takes.RAD file as parameter, establishes link to streaming service where application is executed RadeSvc Obtains profiled application from Application Hub and places it RadeCache Creates new sandbox instance and executes application Streaming Services

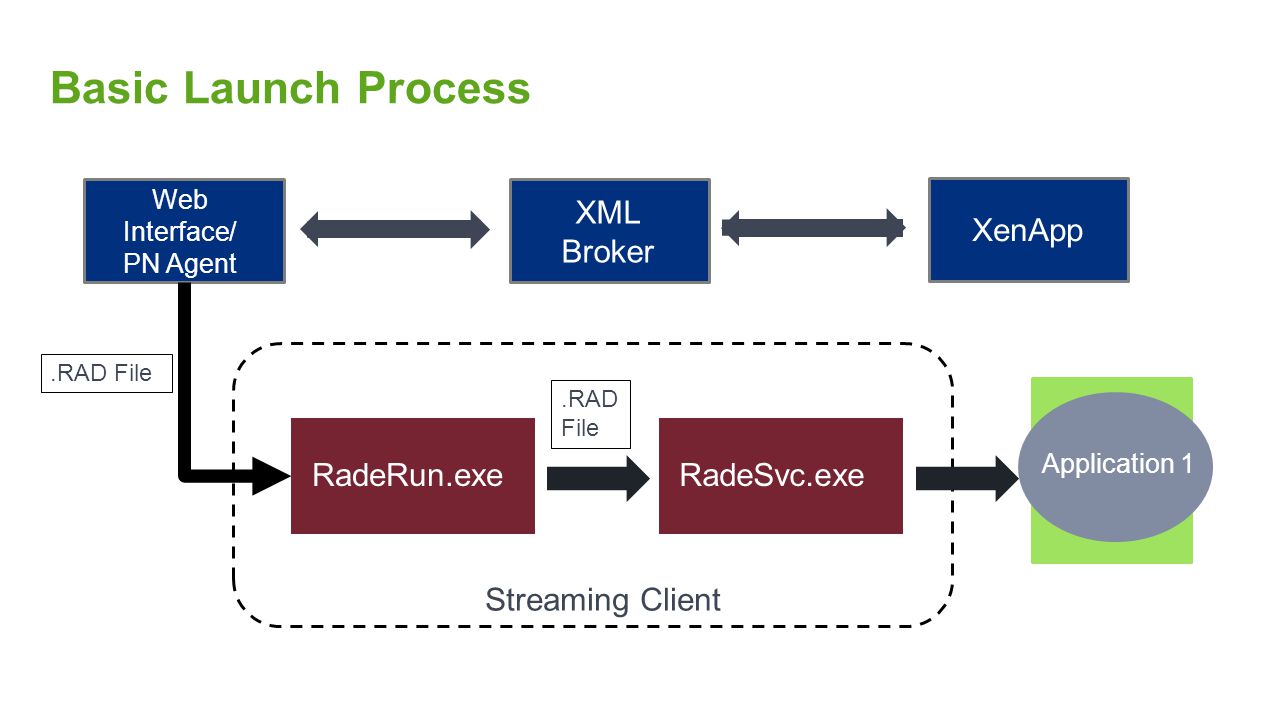

17. Streaming Client Basic Launch Process PN Agent.RAD File Application Hub.RAD File XenApp XML Broker Web Interface/ PN Agent RadeRun.exeRadeSvc.exe Application 1

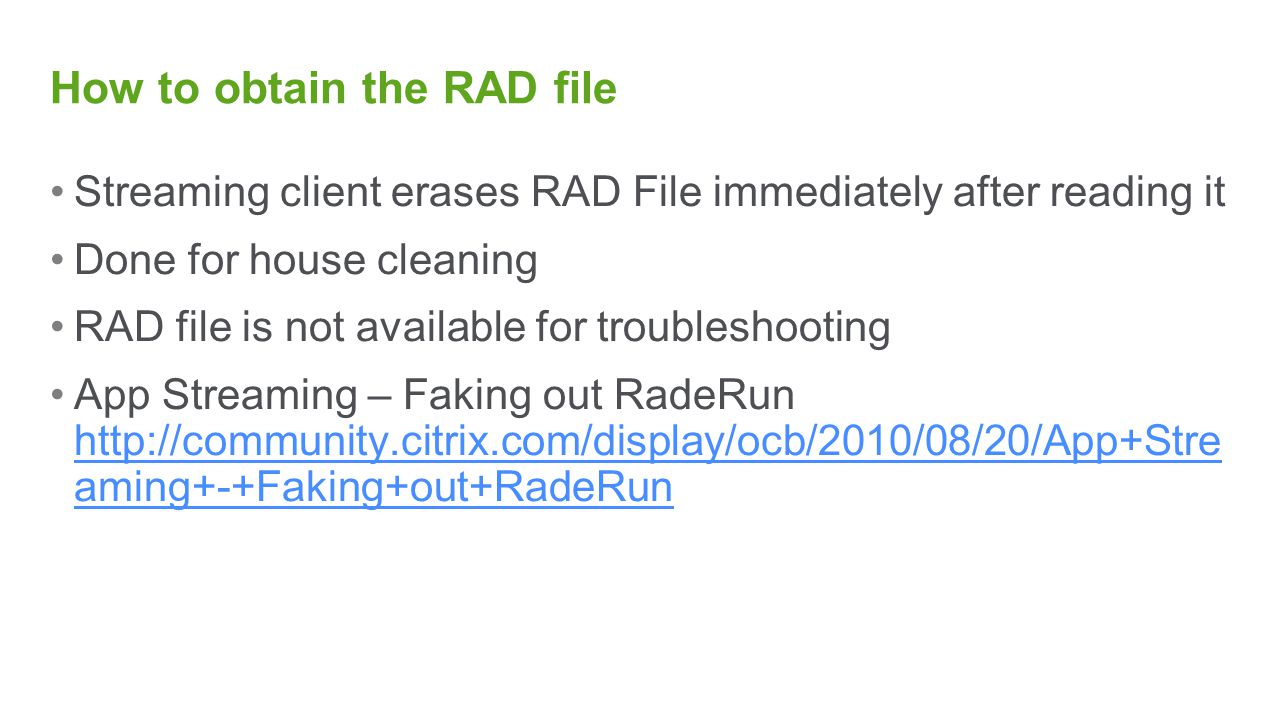

18. Streaming client erases RAD File immediately after reading it Done for house cleaning RAD file is not available for troubleshooting App Streaming – Faking out RadeRun http://community.citrix.com/display/ocb/2010/08/20/App+Stre aming+-+Faking+out+RadeRun http://community.citrix.com/display/ocb/2010/08/20/App+Stre aming+-+Faking+out+RadeRun How to obtain the RAD file

19. Independence from IMA or ICA

20. RadeRun.exe /app:“MyAp" /package:“\\AppHub\myApp\MyApp.profile" -x flag will allow you to see the world as the isolated application from a command prompt

21. RadeRun.exe - Example Windows 7 Profile Streaming client NO CITRIX FARM NO ICA NO IMA

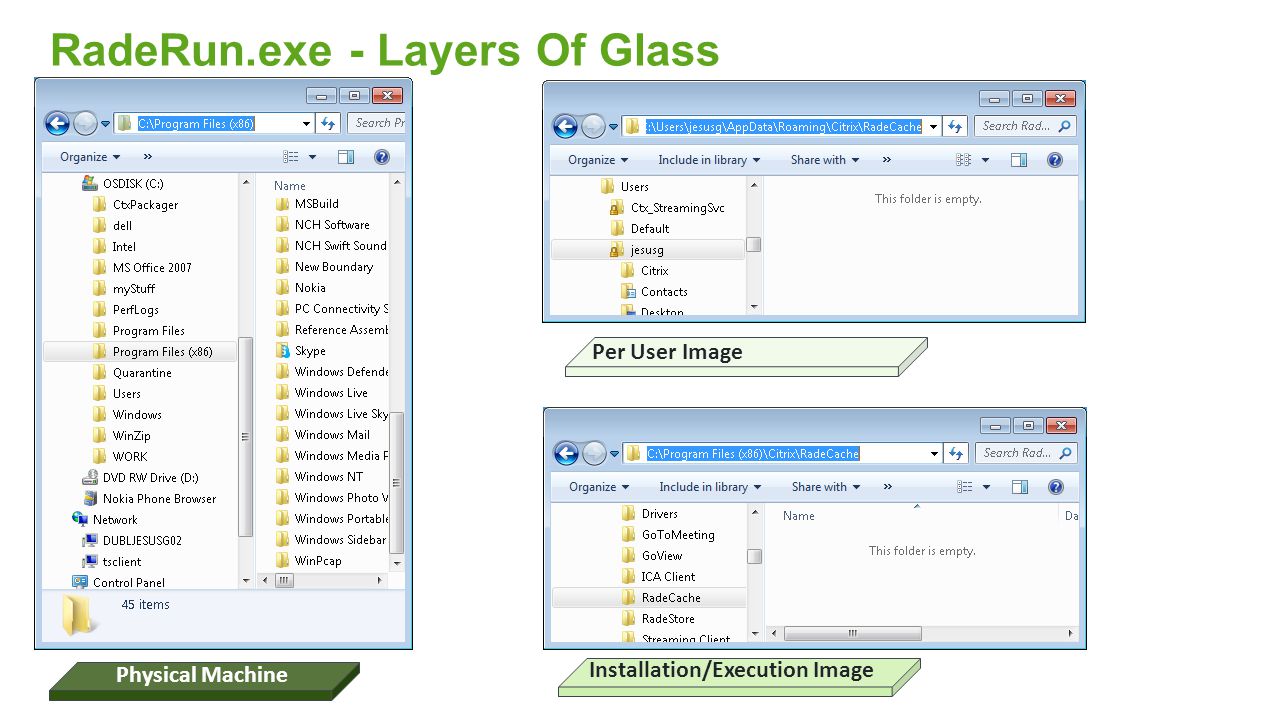

22. Per User Image Installation/Execution Image Physical Machine RadeRun.exe - Layers Of Glass

23. RadeRun.exe – “-x” CMD ISOLATED

24. RadeRun.exe – Layers Of Glass Per User Image Installation/Execution Image Physical Machine NO WIWZIP

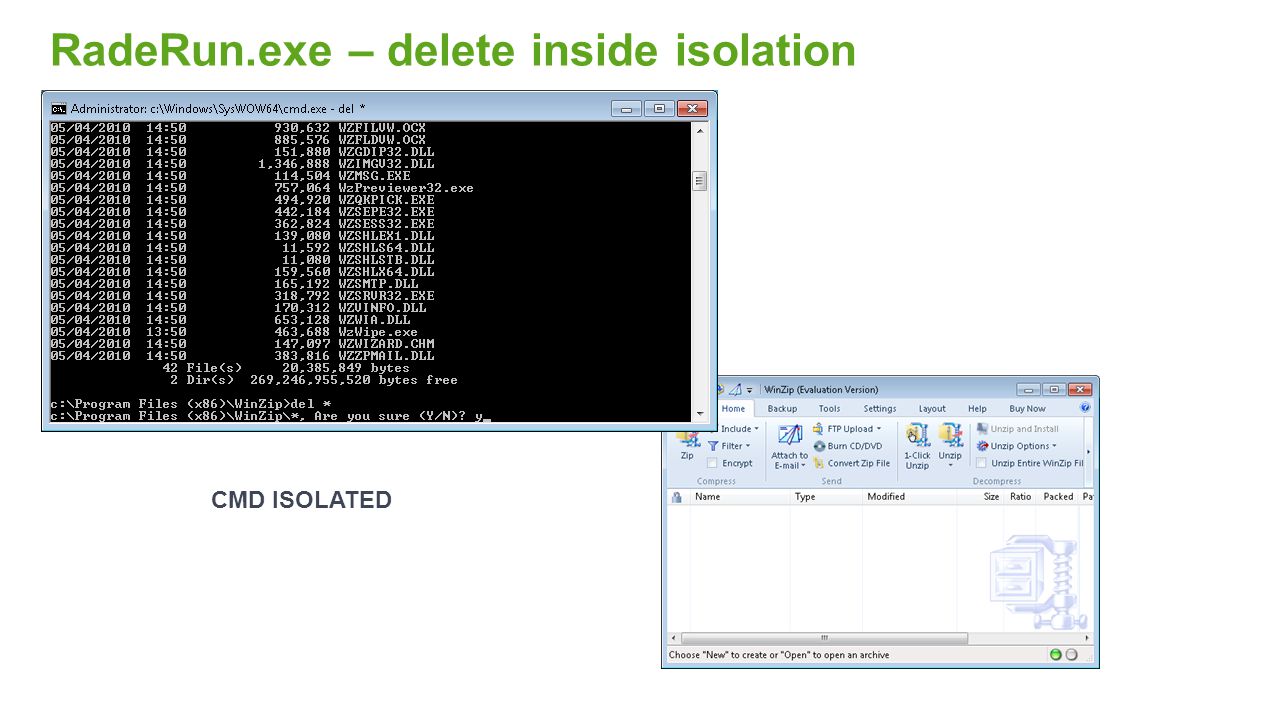

25. RadeRun.exe – delete inside isolation CMD ISOLATED

26. RadeRun.exe – Outside isolation Per User Image Installation/Execution Image Physical Machine NEW CMD. NOT ISOLATED

27. Sandbox Reuse

28. What is a sandbox/isolation/Bubble? Collection of processes and set of rules which control how application behaves Isolated process same as normal process but tagged differently to expected Redirection of Files and Registry Creation of Sandbox -> Expensive Operation Opening the CAB file XML parse for the sandbox isolation rules What is a Sandbox?

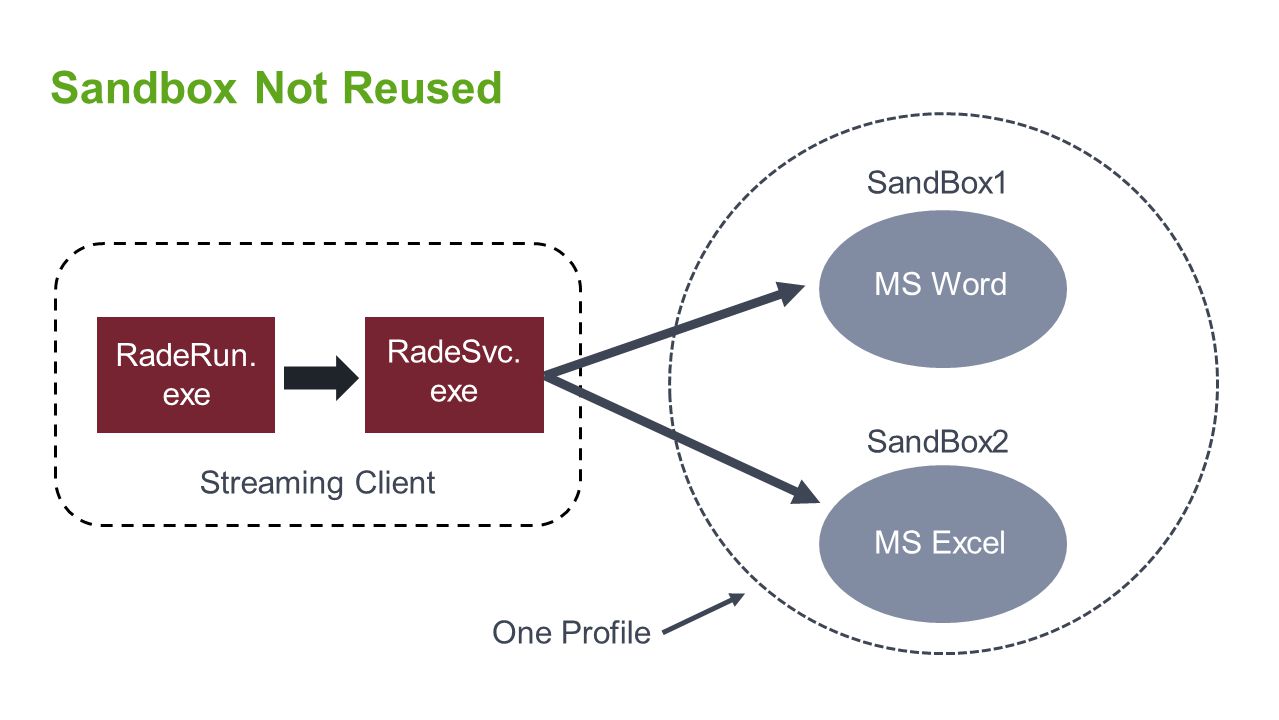

29. Sandbox Not Reused PN Agent Streaming Client RadeRun. exe RadeSvc. exe One Profile SandBox1 SandBox2 MS Word MS Excel

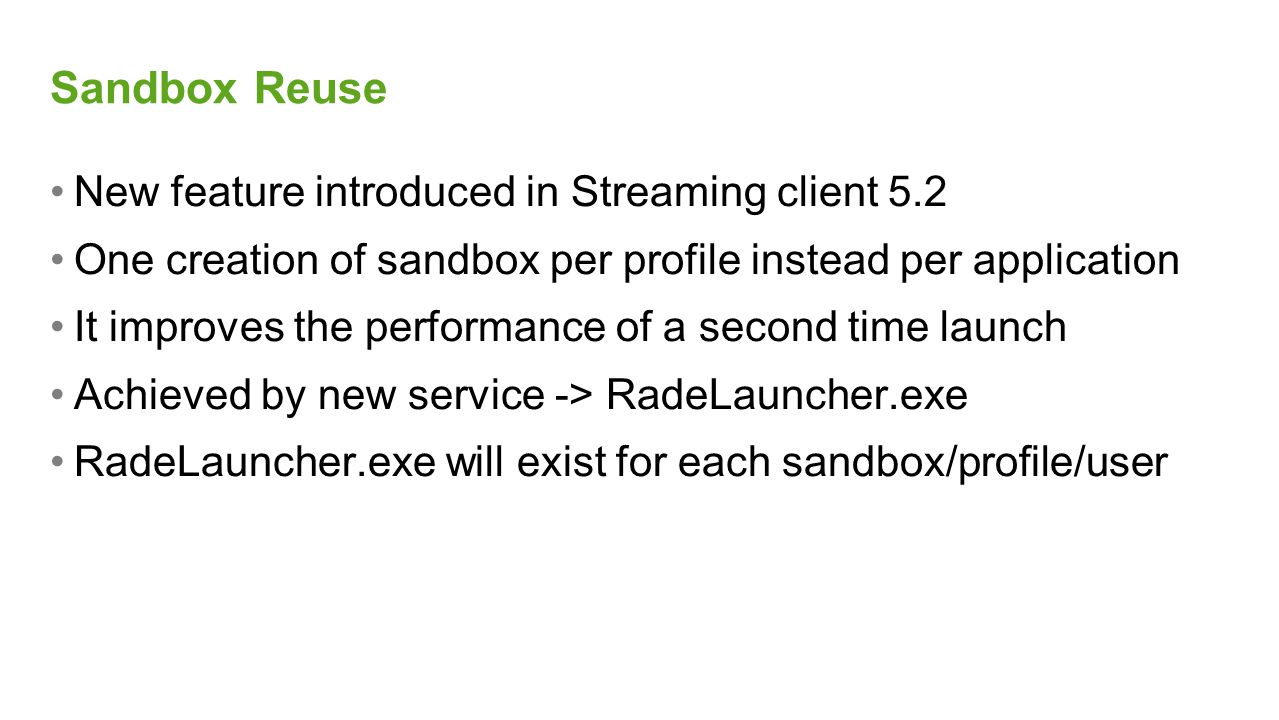

30. New feature introduced in Streaming client 5.2 One creation of sandbox per profile instead per application It improves the performance of a second time launch Achieved by new service -> RadeLauncher.exe RadeLauncher.exe will exist for each sandbox/profile/user Sandbox Reuse

31. Sandbox Reused PN Agent Streaming Client RadeRun. exe RadeSvc. exe One Sandbox = One Profile RadeLauncher.exe MS Word MS Excel

32. Sandbox Reused PN Agent Streaming Client RadeRun. exe RadeSvc. exe User1 Profile1 User1 Profile2 User2 Profile1

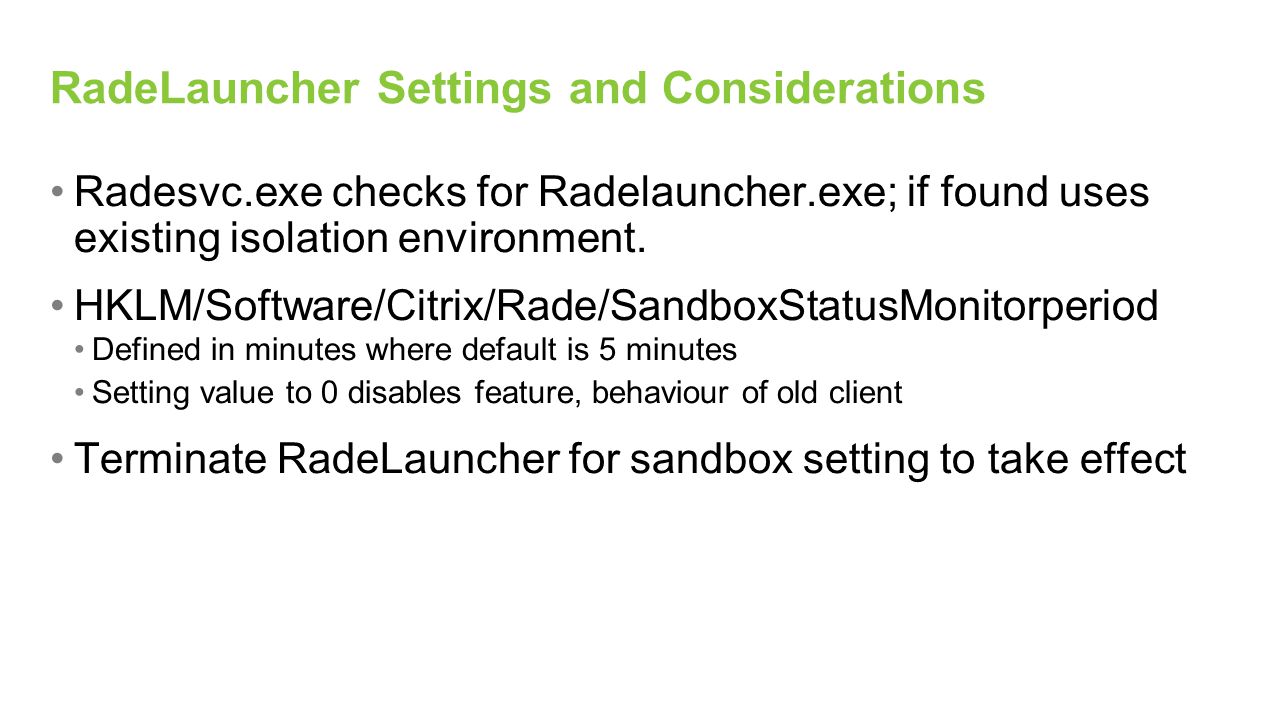

34. RadeLauncher Settings and Considerations Radesvc.exe checks for Radelauncher.exe; if found uses existing isolation environment. HKLM/Software/Citrix/Rade/SandboxStatusMonitorperiod Defined in minutes where default is 5 minutes Setting value to 0 disables feature, behaviour of old client Terminate RadeLauncher for sandbox setting to take effect

35. Isolation of Windows services

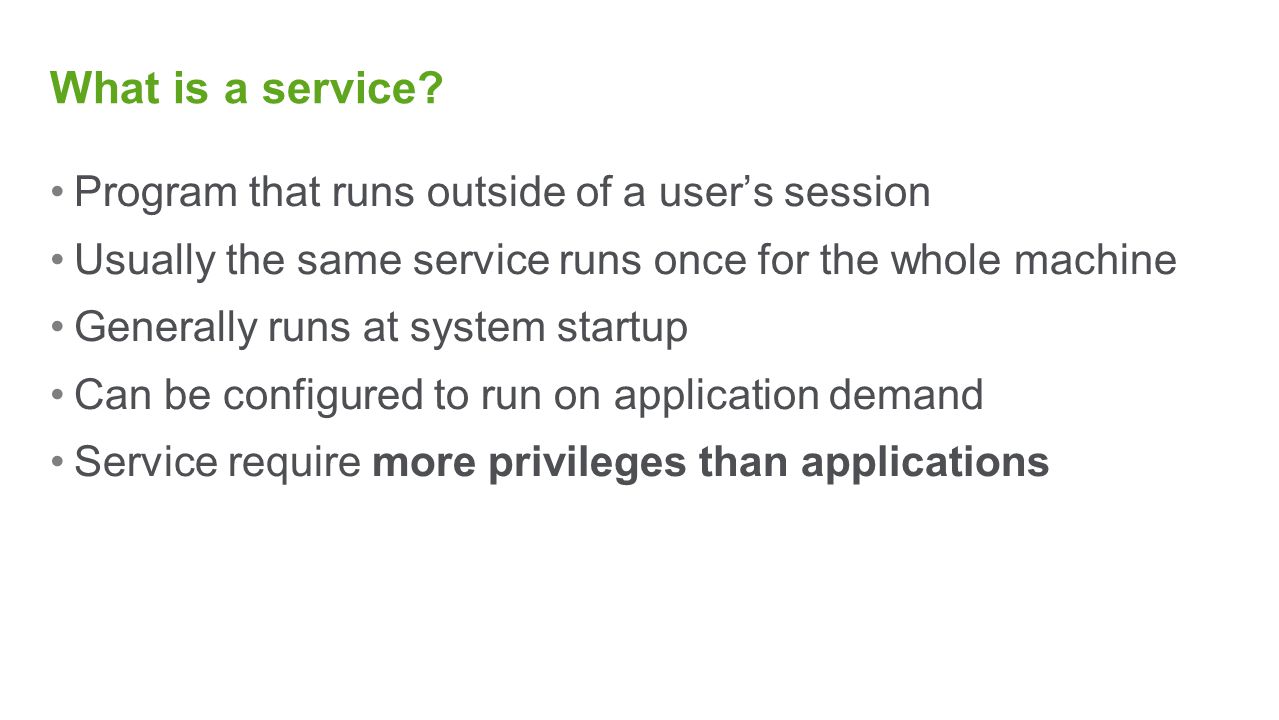

36. Program that runs outside of a user’s session Usually the same service runs once for the whole machine Generally runs at system startup Can be configured to run on application demand Service require more privileges than applications What is a service?

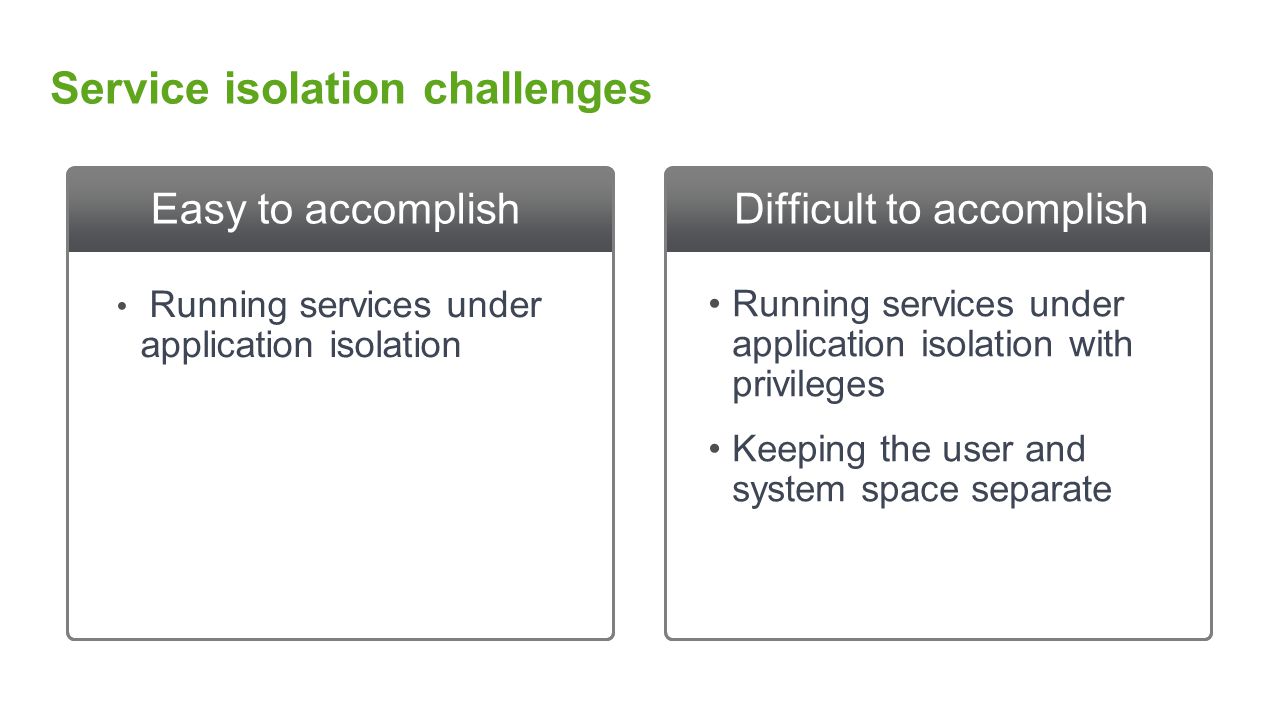

37. Service isolation challenges Easy to accomplishDifficult to accomplish Running services under application isolation Running services under application isolation with privileges Keeping the user and system space separate

38. Service isolation solution ConsiderationsSolution Customers feedback No problem to run services as long as they can be under control White list of servers HKLM\Software\Citrix\Rade AppHubWhiteList (REG_SZ)

39. Citrix Streaming Helper Service (RadeHlprSvc.exe) Runs under the Local system account Privilege to create, delete, start services New streaming service

40. Service isolation Application Sandbox Service Sandbox 5.2 (no service isolation) Application Sandbox 6.0 (service isolation) Application Sandbox User 2

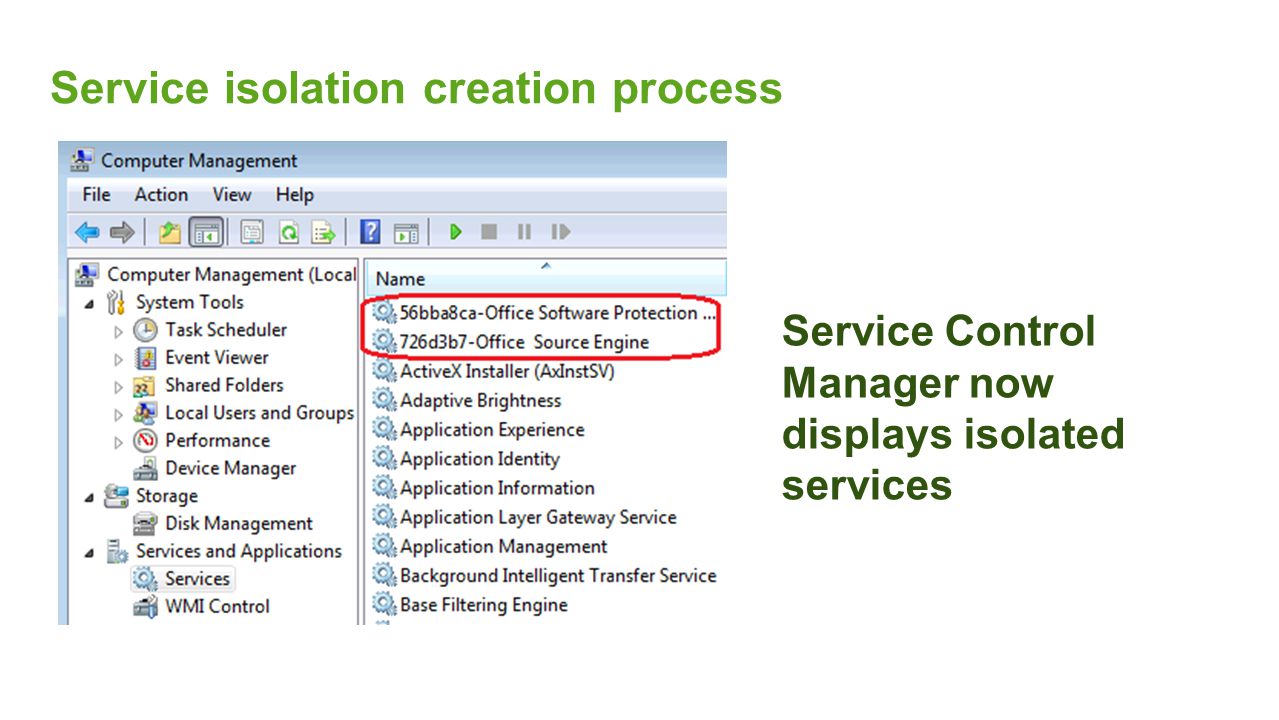

41. Service isolation creation process Service Control Manager now displays isolated services

42. .CAB to Directory folder

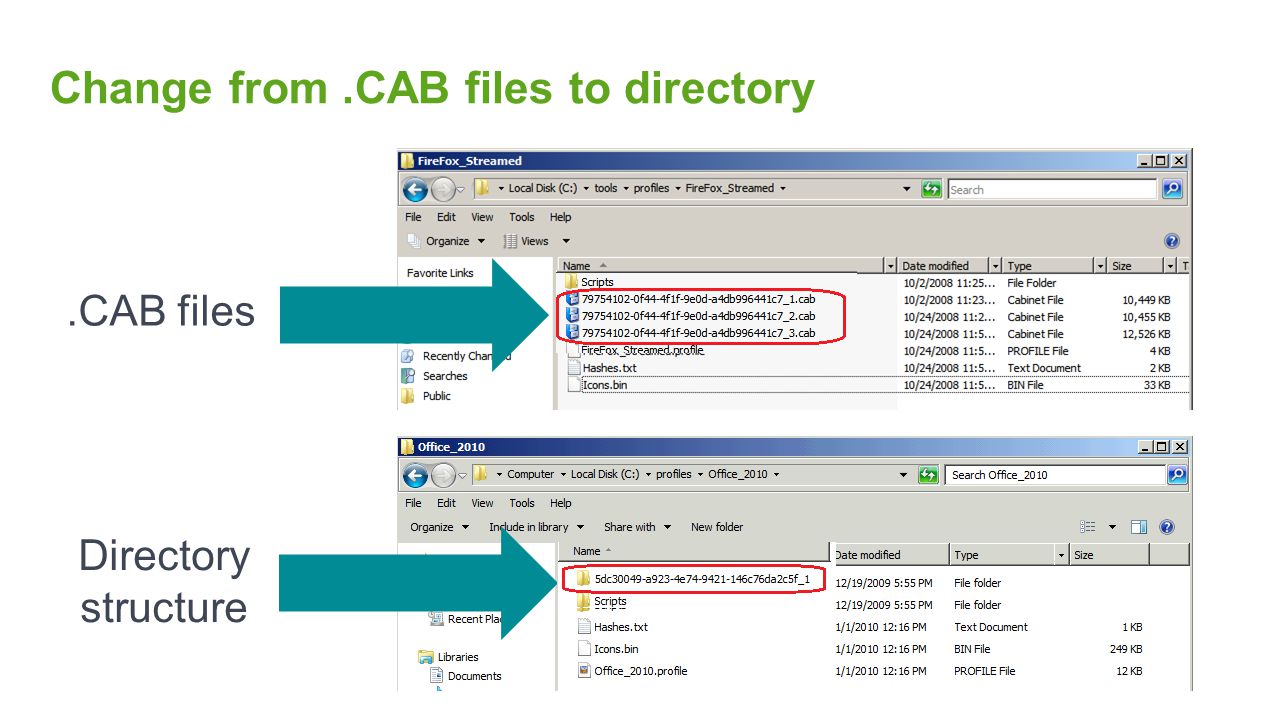

43. Change from.CAB files to directory.CAB files Directory structure

44. Using a single file to represent a target makes it easier to copy CAB file libraries are available on all versions of windows Ability to use Windows Explorer to open and see inside CAB File without additional code needed Why were.CAB files used?

45. Introduced to solve XenDesktop streaming delivery issues This is the first step toward solving the XD issue in a stream-to-client scenario First time launch slow, second time launch fast Replaces.CAB file with an unzipped representation Future release: Directly mount the App Hub content into the execution environment Accomplished by creating a symbolic link that points to the App Hub Directory structure change

46. Layers of glass Streaming technology in depth Launch process Raderun Sandbox Reuse Isolation of Services Moving from Cab to Directory structure Take Away’s

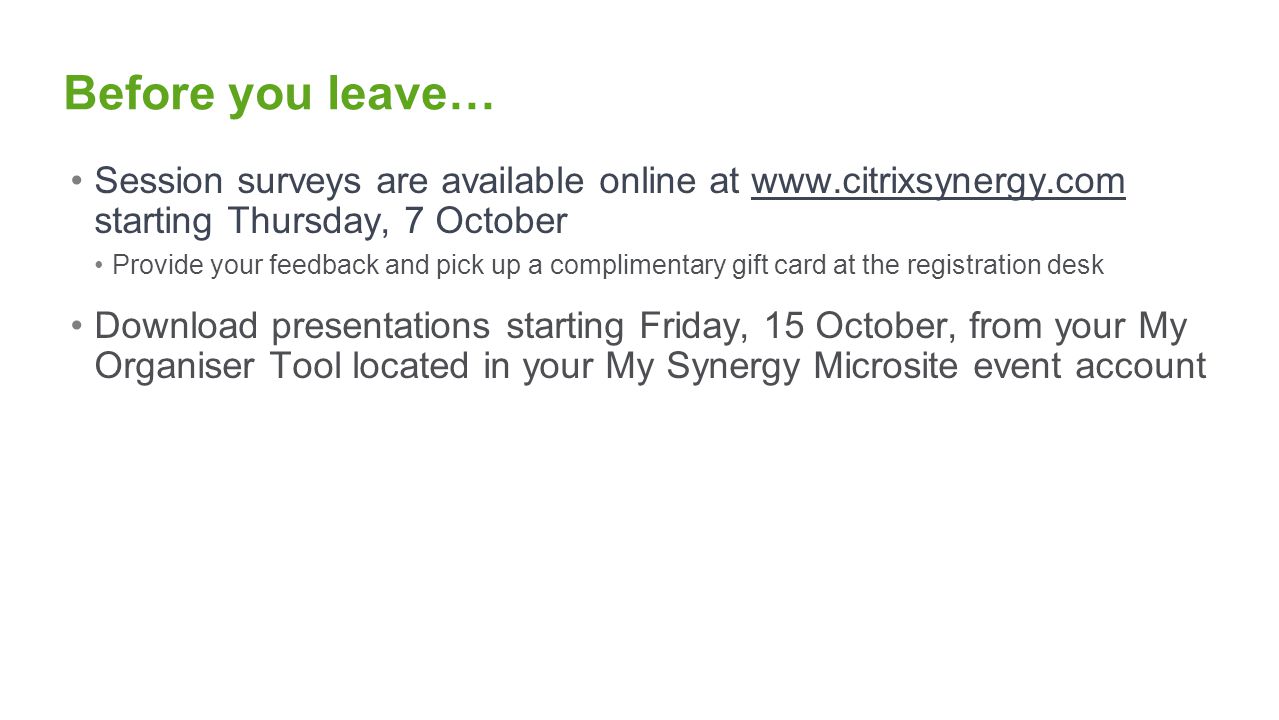

47. Before you leave… Session surveys are available online at www.citrixsynergy.com starting Thursday, 7 October Provide your feedback and pick up a complimentary gift card at the registration desk Download presentations starting Friday, 15 October, from your My Organiser Tool located in your My Synergy Microsite event account
