1. Introduction to the FONIX 7000 Hearing Aid Test System Software version 1.60

2. Outline Coupler Measurements Basic (ANSI, Coupler Multicurve) Testing Digital Aids Open Fit Coupler Measuring directionality Automation Advanced Coupler Real-Ear Measurements Entering an audiogram Insertion Gain Testing directionality Real-ear SPL Visible Speech Testing Open Fit hearing aids Default Settings

3. Basic Coupler Measurements ANSI 03 — F4Coupler Multicurve — F1

4. ANSI 03 Settings Choose ear Aid type Frequencies Telecoil

5. ANSI 03 Results OSPL90 Response curve Max OSPL90-HFA Distortion FOG Telecoil EIN Battery current Telecoil I/O curves Attack & Release

6. Coupler Multicurve Features Realistic frequency response measurements Variety of signal types: Composite, Digital Speech, Pure-tone sweeps Display 10 different curves simultaneously Switch back and forth between gain and output. All curves translated.

7. Coupler Screen Operation Choose Ear Select CurveSource Type Amplitude

8. Example 50 dB 60 dB 70 dB 80 dB

9. Testing Digital Aids Digital Speech Type of Composite signal Modulated to allow testing of noise reducing digital aids Used with ANSI or ICRA speech spectra

10. Example of digital aid test Digital Speech Composite

11. Testing Open Fit Hearing Aids The Open Fit Coupler was designed to Provide a realistic response for open fit hearing aids. Provide an easy mechanism for attaching an open fit hearing aid to a coupler The Open Fit Coupler is a non-standard sized coupler not designed to test to manufacturing specifications

12. Attaching the Open Fit Coupler

13. Testing Directionality Use chamber design to perform “forward” and “reverse” measurements to obtain directional advantage Chamber speaker mounted at 45 degree angle, pointing towards left side of chamber

14. Forward/Reverse Positioning Forward positioning with hearing aid pointed towards sound chamber speaker Reverse positioning with hearing aid pointed away from sound chamber speaker

15. Directional Advantage Forward measurement Reverse measurement 6 dB RMS Difference

16. Coupler Automation Set up own test sequence Select signal type for each curve Select signal amplitude for each curve Add any desired pauses in test sequence Save and auto load test sequence

17. Programming Auto Mode F6 — Program Mode Help window w/instructions F5 — Source Type Amplitude START STOP Advance to next curve without pause Advance to next curve with pause

18. Example of Auto Test Digital Speech @ 50, 65, 80 dB Pure-tone sweep @ 90 dB F6 — Fully Automatic mode

19. Saving and Loading Settings Automatically load saved curve group and put analyzer in Auto Mode

20. Advanced Coupler Battery Current [F1] Coupler I/O [F2] Attack & Release [F3] Enhanced DSP [F4] Function key operations available in the Advanced Coupler Navigation Screen

21. Battery Current Screen Measure Battery Current as a function of frequency Measure Battery Current as a function of amplitude Estimate battery life of hearing aid

22. Battery Current Test Battery current by freq Battery current by amp

23. Coupler I/O Composite or Pure-tone source types Any Freq from 200 to 8000 Hz in 100 Hz intervals Display results in Output (SPL) or Gain Graph and data results given

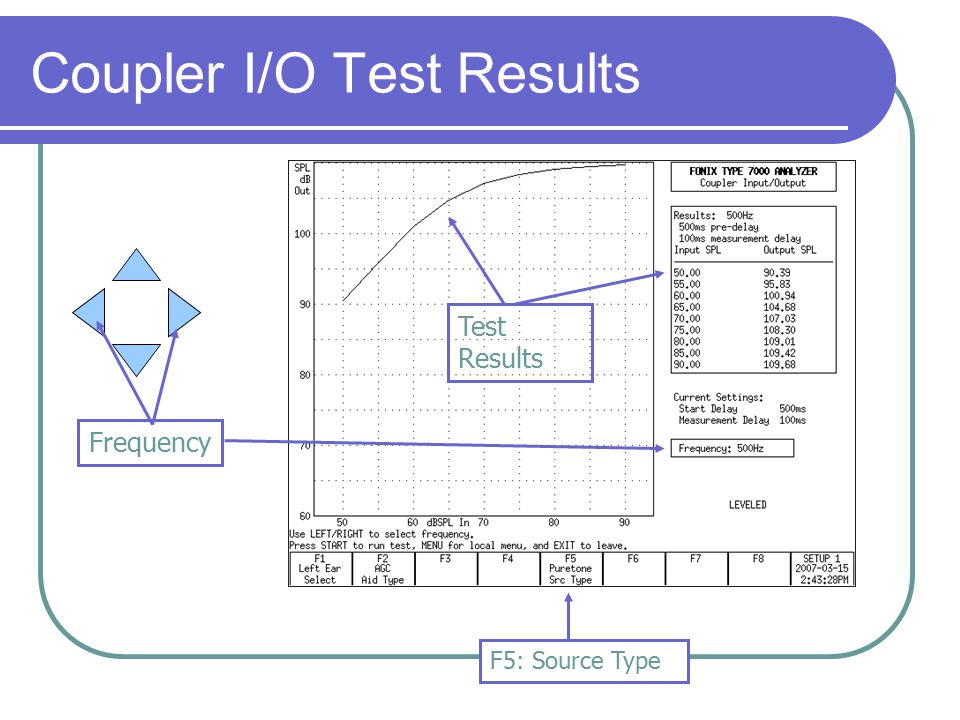

24. Coupler I/O Test Results Frequency Test Results F5: Source Type

25. Attack & Release Test Screen Visual time graph of Attack and Release tests Scale graphs independently to zoom in on results Use Composite or Pure-tone Choose any frequency from 200-8000 Hz in 100 Hz intervals Customize amplitudes used in tests

26. Attack & Release Results Frequency F5: Source type F6 & F7: Change graph scales

27. Enhanced DSP Designed to measure the "group delay" of a DSP aid. In other words, the actual digital processing time of a hearing aid. 0 ms for analog aids 1-12 ms for DSP Great way to check if aid is analog or DSP Also tests the "phase" of a hearing aid. This is useful for binaural fittings. Are the aids working together?

28. Technical Details: Group Delay An impulse signal is delivered to the hearing aid. The time of the maximum peak of the response is considered the group delay. The 7000 system delay is subtracted from this value to obtain the final measurement.

29. Technical Details: Phase One pulse of a 1000 Hz cosine signal is delivered to the aid. This signal is 1 msec long. The first 20 msec of the aid's response to the signal is displayed in graphical format.

30. Example Group Delay Phase

31. Basic Real-Ear measurements F1 — Audiogram Entry F2 — Target Edit F3 — Insertion Gain F4 — Real-ear SPL Use the function keys to enter a screen F5 — Visible Speech

32. Entering an audiogram F1 — Select ear F2 — Select HTL/UCL/Bone F3 — Predict UCLs Real-Ear SPL only Adjust amplitude Adjust frequency

33. Insertion Gain features Unaided measurement Up to 4 aided measurements Gives up to 4 insertion gain measurements Operation similar to coupler screen

34. Insertion Gain screen F1 — Select earF2 — Select curveF5 — Select source type Select amplitude Insertion Gain Target Unaided Aided

35. Step 1: Setup Speaker should be 12 inches from patient at 45 degree angle Reference Mic Probe Mic

36. Step 2: Level LEVEL

37. Step 3: Unaided Measurement Peak at 3 kHz Negative response at 6 kHz shows probe tube could probably be inserted more deeply F2 - REUR 1F5 - DigSpeech Amplitude START STOP

38. Step 4: Aided/IG measurements F2 — REAR 2 IG Target IG curve

39. Multiple Aided/IG measures

40. Testing Directionality Directional Advantage CRV 2 — Forward response CRV 1 — Reverse response

41. Real-Ear SPL screen Check low inputs are above thresholds Check average inputs meet target Check loud inputs are below UCLs Auto-adjusting REUR shows amplification benefit at all levels Gives overall look at hearing aid fitting Operation similar to coupler & IG screens

42. SPL operation T = Thresholds U = UCLs H, M, L = Targets

43. Auto-Adjusting REUR Option REUR 1 automatically adjusts when the 80 dB REAR 4 curve is selected REUR 1 adjusted to 80 dB REAR 4 @ 80 dB

44. Visible Speech Use live speech signal Real-time response (during test) Average response Minimum and maximum response per frequency for the length of the test HTLs UCLs All on one graph in dB SPL

45. Visible Speech: Before Test UCLs HTLs Targets

46. Visible Speech: Test Results Max boundary Avg Response Min boundary HTLs UCLs (off screen)

47. Open Fit Hearing Aids Some Open Fit hearing aids interfere with the reference microphone measurements outside the ear. Disable the Reference Microphone in the local menu to perform real-ear on these hearing aids. Real-ear targets may prescribe low frequency amplification unsuitable for open fit hearing aids.

48. Default Settings Press [MENU] from the Opening Screen to enter the Setup Menu Use [F1] in the Setup Menu to choose between: General Settings Coupler Settings Real-ear Settings
