Presentation on theme: "1.3 Executing Programs. How is Computer Code Transformed into an Executable? Interpreters Compilers Hybrid systems."— Presentation transcript:

1 1.3 Executing Programs

2 How is Computer Code Transformed into an Executable? Interpreters Compilers Hybrid systems

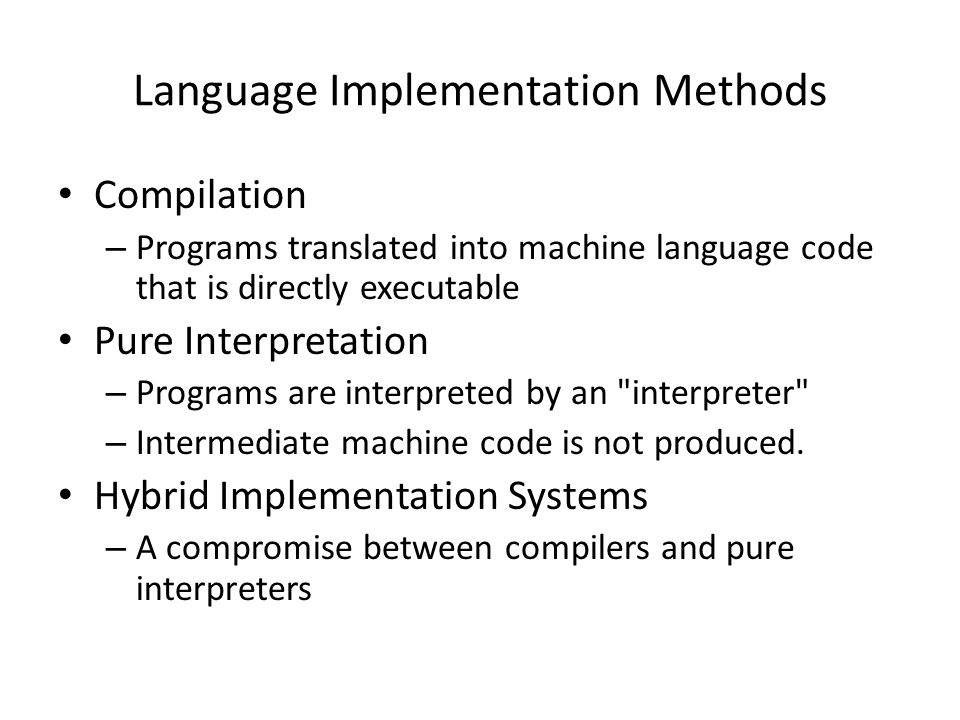

3 Language Implementation Methods Compilation – Programs translated into machine language code that is directly executable Pure Interpretation – Programs are interpreted by an "interpreter" – Intermediate machine code is not produced. Hybrid Implementation Systems – A compromise between compilers and pure interpreters

4 Layered View of a Computer System (hardware and software) The operating system and language implementation are layered over the Machine interface of a computer © Addison-Wesley

5 Compiler Implementation Compiler - program that – Reads a program written in one language (the source language) – Translates it into an equivalent program in another language (the target language) Checks for the presence of errors in the source program source program compiler target program error messages

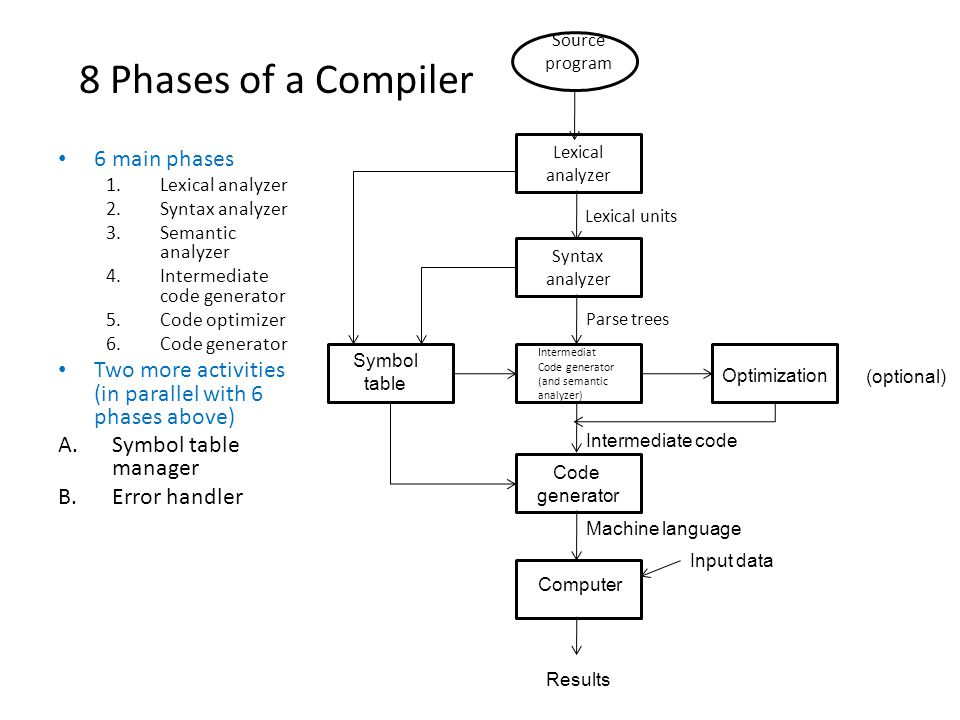

6 8 Phases of a Compiler 6 main phases 1.Lexical analyzer 2.Syntax analyzer 3.Semantic analyzer 4.Intermediate code generator 5.Code optimizer 6.Code generator Two more activities (in parallel with 6 phases above) A.Symbol table manager B.Error handler Source program Lexical analyzer Lexical units Syntax analyzer Parse trees Intermediat Code generator (and semantic analyzer) Optimization Symbol table Intermediate code Code generator Machine language Computer Results (optional) Input data

7 A. Symbol Table Manager Keeps track of the source program's identifiers and their attributes – Attributes: storage allocated, type, scope, arguments, return type, etc. – Uses a symbol table Data structure (array, linked list, hash table, etc.) with a record for each identifier where fields are the identifier's attributes

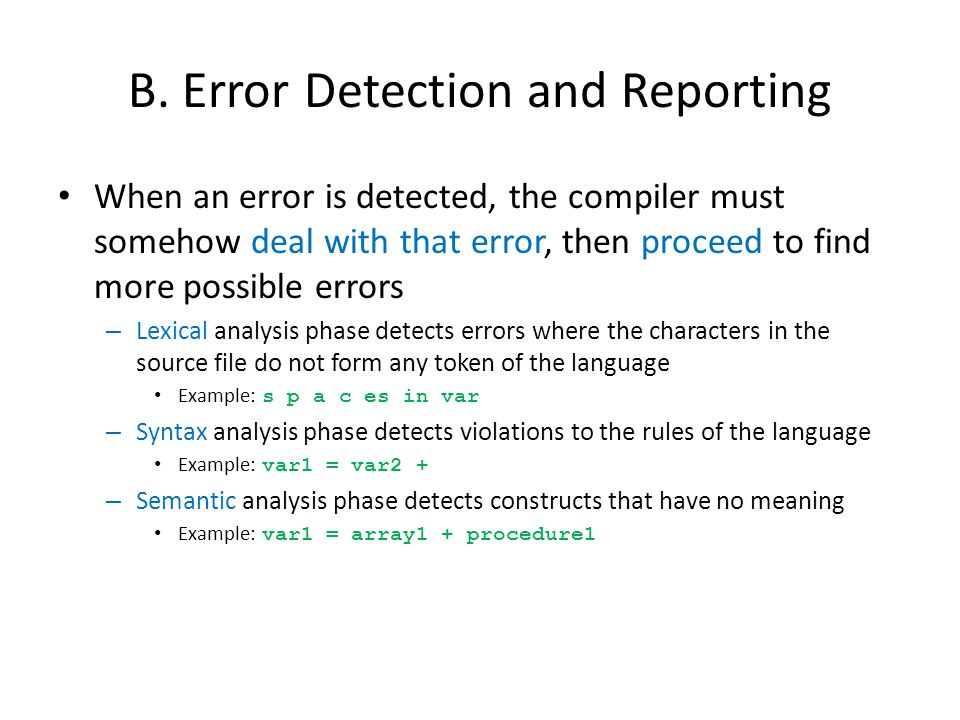

8 B. Error Detection and Reporting When an error is detected, the compiler must somehow deal with that error, then proceed to find more possible errors – Lexical analysis phase detects errors where the characters in the source file do not form any token of the language Example: s p a c es in var – Syntax analysis phase detects violations to the rules of the language Example: var1 = var2 + – Semantic analysis phase detects constructs that have no meaning Example: var1 = array1 + procedure1

9 1. Lexical (Linear) Analysis Lexical = of or relating to words or vocabulary of a language as distinguished from its grammar and construction Identifies tokens (keywords, identifier names, integers, etc.) of the programming language Token – sequences of characters that have a collective meaning

10 2. Syntax (Hierarchical) Analysis Syntax - the way linguistic elements (e.g. words) are put together to form constituents (e.g. sentence, phrase, clause) Also called "parsing" Groups tokens into grammatical phrases Usually the grammatical phrases are represented by a "parse tree"

11 3. Semantic Analysis Semantic - of or relating to meaning in language Checks for semantic errors – gathers type information for the subsequent code generation phase Uses hierarchical structure (determined by the parser) to identify the operators and operands of expressions and statements

12 4. Intermediate Code Generator Generates an intermediate representation of the source program Not all compilers perform this An intermediate representation can be thought of as a program for an abstract machine Should be – easy to produce – easy to translate into the target program

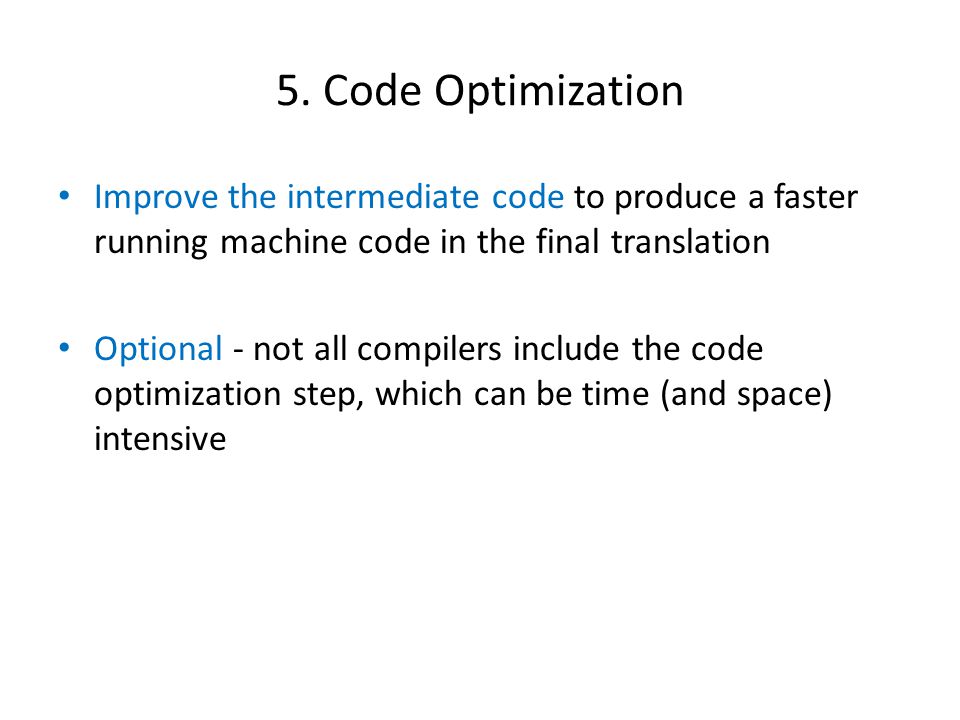

13 5. Code Optimization Improve the intermediate code to produce a faster running machine code in the final translation Optional - not all compilers include the code optimization step, which can be time (and space) intensive

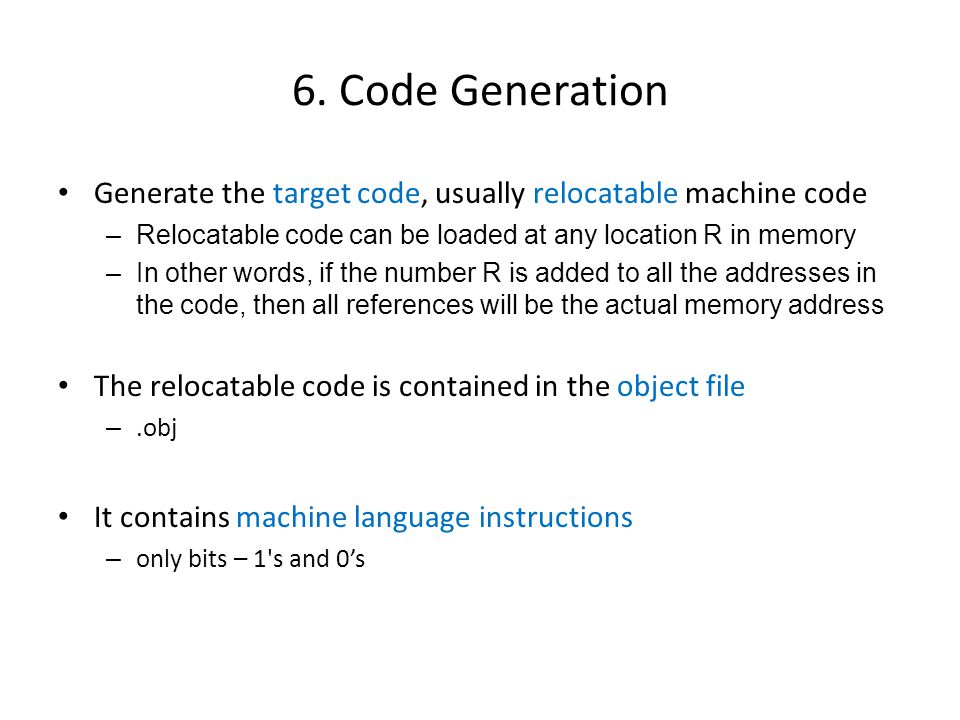

14 6. Code Generation Generate the target code, usually relocatable machine code –Relocatable code can be loaded at any location R in memory –In other words, if the number R is added to all the addresses in the code, then all references will be the actual memory address The relocatable code is contained in the object file –.obj It contains machine language instructions – only bits – 1's and 0’s

15 Post-Compilation - Linking Linker (link-editor) connects: – Object files (.obj) from the program modules – Additional library files – Creates the executable (.exe file) program Usually uses relocatable addresses within the program – Allows the program to run in different memory locations – Allows time-sharing and virtual memory

16 Post-Compilation - Loading Loading the executable (.exe file) program Also called load module or executable image The loader – Identifies a memory location to load the program – Alters the relocatable machine code addresses to run in the designated memory location A program must be in (loaded) memory each time it executes

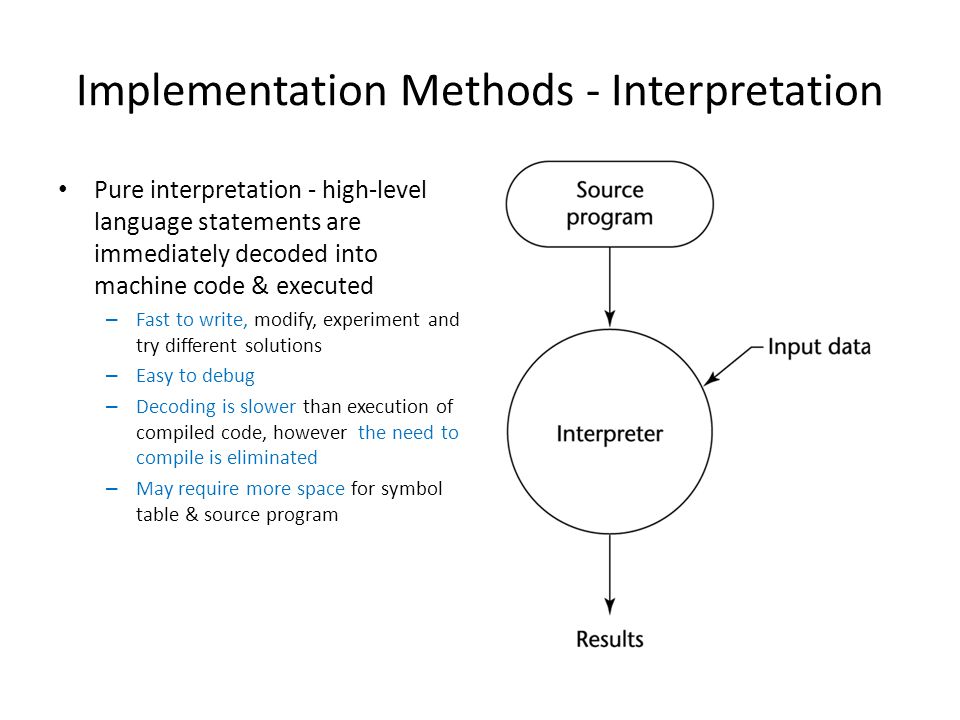

17 Implementation Methods - Interpretation Pure interpretation - high-level language statements are immediately decoded into machine code & executed – Fast to write, modify, experiment and try different solutions – Easy to debug – Decoding is slower than execution of compiled code, however the need to compile is eliminated – May require more space for symbol table & source program

18 Implementation Methods - Hybrid Hybrid – combination of compilers and interpreters – High-level language programs are translated to an intermediate language, which is easily interpreted E.g. Java – compiled and interpreted – Intermediate “byte code” is created by the compiler, – Then the byte code is interpreted Lisp – interpreted, or compiled, or both – Compilation not required - increases speed 10 X or more – Interpreted and compiled code can run together! – Saves compiling an entire project when only one or two files have been changed! – Can be compiled after debugging - make it work, then make it fast! Perl – seems interpreted – Partially compiled to detect errors, then interpreted

19 Hybrid Implementation System

20 Summary Programming language study is valuable – Adds problem-solving methods and paradigms – Increases capacity to use different features/tools in all languages – Ability to choose implementation languages intelligently to increase productivity – Makes learning new languages (thus new tools) easier Most important criteria for evaluating programming languages include: – Readability, writability, reliability, cost Major influences on language design have been machine architecture and software development methodologies The major methods of implementing programming languages are: compilation, pure interpretation, and hybrid implementation
