1. POLYGONS “MANY” “SIDES”

2. A polygon is a 2-dimensional shape.

3. This means that polygons have both length and width. WIDTH LENGTHLENGTH

4. Polygons are closed shapes, and they are made of at least 3 line segments (straight lines).

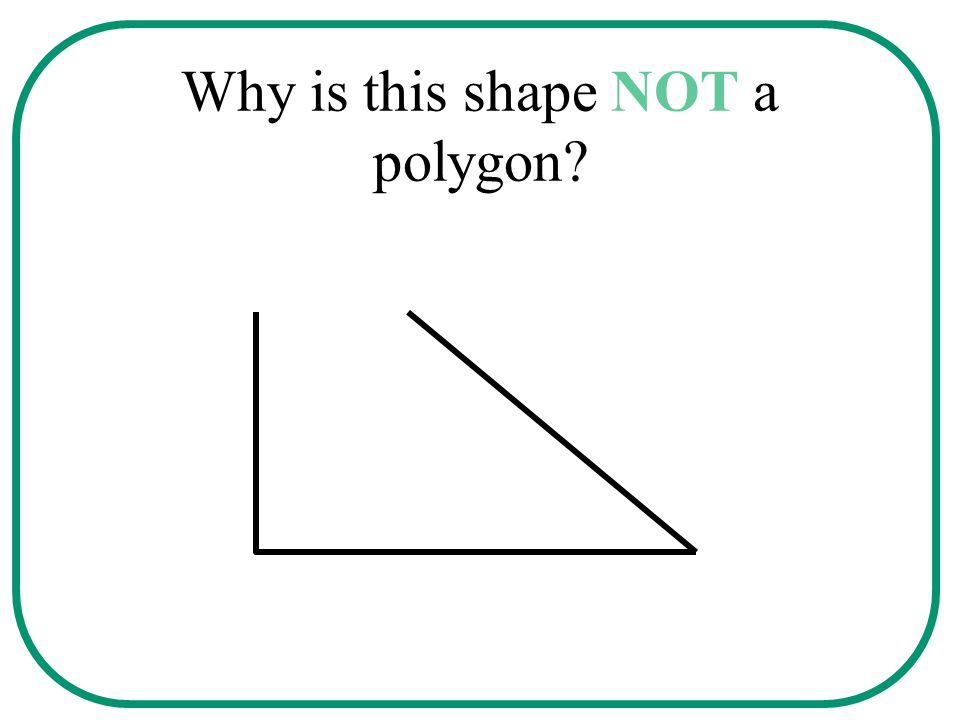

5. Why is this shape NOT a polygon?

6. This shape is NOT “closed.”

7. Why can’t a polygon have only 2 sides?

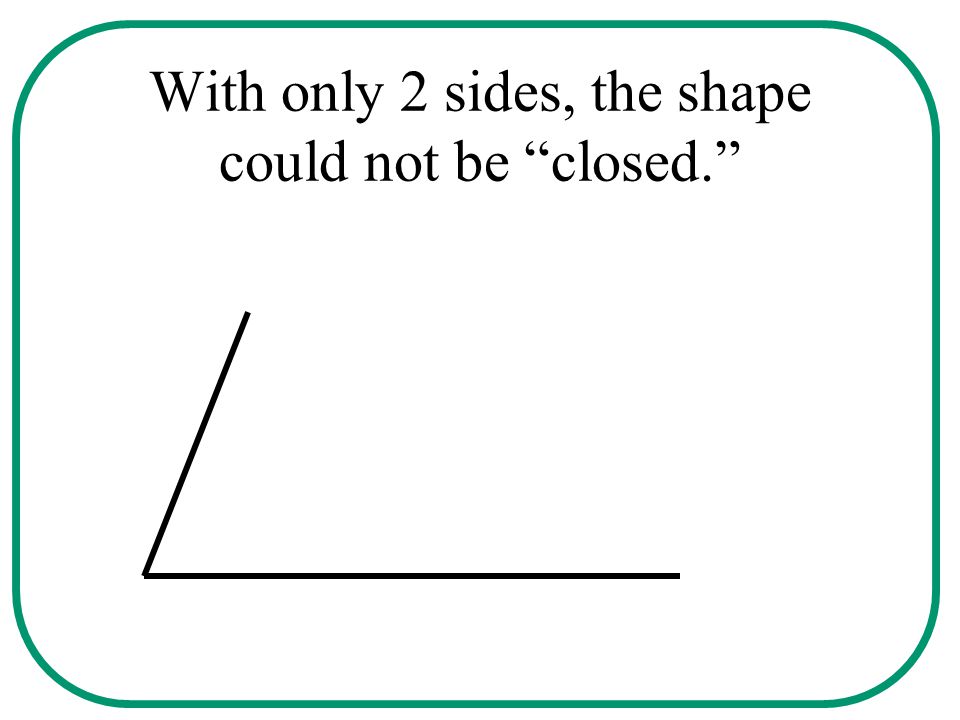

8. With only 2 sides, the shape could not be “closed.”

9. Is this shape a polygon?

10. As a matter of fact, this IS a polygon.

11. This shape is “closed,” and it has 12 sides.

12. However, this is a special type of polygon called “concave.”

13. It’s called “concave” because some of the sides are “caved in.” and you can draw a line segment outside of the figure when connecting two vertices.

14. For our purposes, we will be discussing only convex polygons and not concave polygons.

15. We will learn the names for the first eight polygons.

16. A one-sided polygon is called…?

17. That’s a trick question. There is no such thing as a one-sided polygon. Remember, polygons must have at least 3 sides.

18. A 3-sided polygon is called a triangle.

19. You can remember the prefix “tri” by thinking of a tricycle. A tricycle has 3 wheels.

20. A 4-sided polygon is called a quadrilateral.

21. You can remember the prefix “quad” by thinking “times four.” Quadruple means x 4

22. A 5-sided polygon is called a pentagon.

23. You can remember this name by thinking about the building in Washington, D.C.

24. A six-sided polygon is called a hexagon.

25. You can remember that a hexagon has six sides because the words hexagon and six both have the letter “x.”

26. The hexagon is the polygon of choice for bees.

27. A 7-sided polygon is called a heptagon.

28. An 8-sided polygon is called an octagon.

29. You can remember the prefix “oct” by thinking of an octopus.

30. A 9-sided polygon is called a nonagon.

31. You can remember that a nonagon has nine sides because the words nonagon and nine both have two “n s.”

32. A 10-sided polygon is called a decagon.

33. You can remember the prefix “dec” by thinking about a decade. 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 TEN YEARS

34. Let’s explore the diagonals of a polygon.

35. Diagonals from 1 vertex of a quadrilateral.

36. Diagonals from 1 vertex of a pentagon.

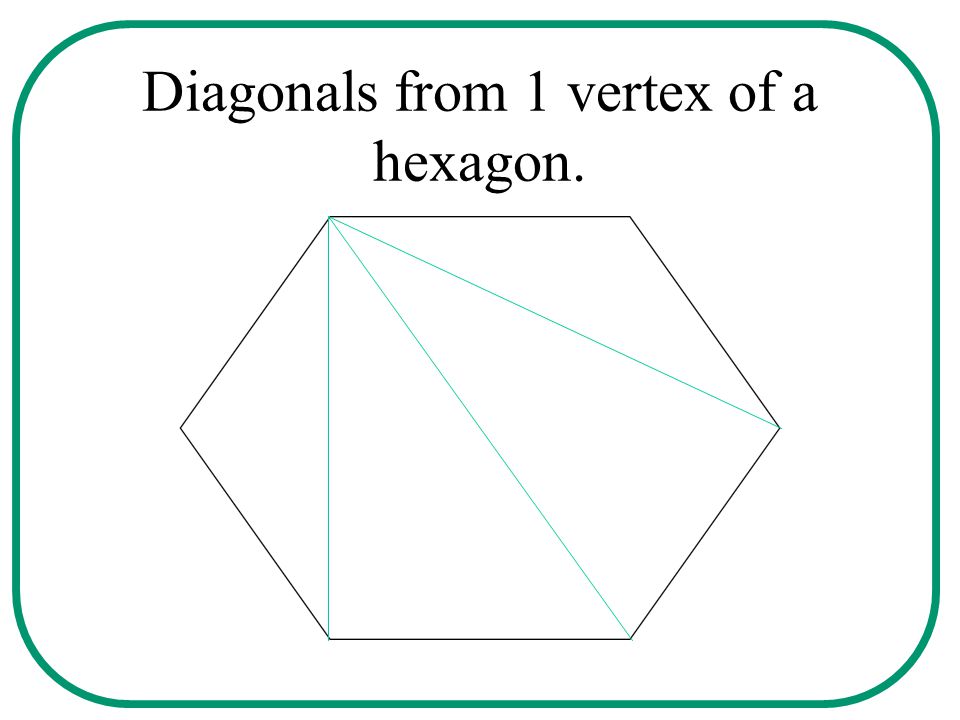

37. Diagonals from 1 vertex of a hexagon.

39. None, this is a trick question

42. Another interesting characteristic of TOTAL diagonals in polygons:

43. A diagonal in a polygon connects two vertices (corners).

44. A quadrilateral has 2 total diagonals.

45. A pentagon has 5 total diagonals.

46. A hexagon has 9 total diagonals.

47. Now let’s chart our findings and look for a pattern. PolygonTotal Number of Diagonals 3 ( Triangle) 0 4 (Quadrilateral) 2 5 ( Pentagon) 5 6 (Hexagon) 9

48. Now let’s chart our findings and look for a pattern. PolygonTotal Number of Diagonals 3 ( Triangle) 0 4 (Quadrilateral) 2 5 ( Pentagon) 5 6 (Hexagon) 9

49. Here’s the formula: Total diagonals = Number of vertices X Diagonals from a single vertex 2

50. Using the formula try finding the number of total diagonals in a regular decagon:

51. This concludes my show on polygons. The End.
