1 Water in California: Self-induced Scarcity Waterscape International Group

2 Perceptions Do you think California is a drought prone state? Why? What is the most pressing water quality or quantity dilemma? What scales of analysis are useful for understanding water in California? How can we measure the effect of water diversions on ecosystems? What groups should have the burden of meeting water needs? What technological fixes might help reduce scarcity?

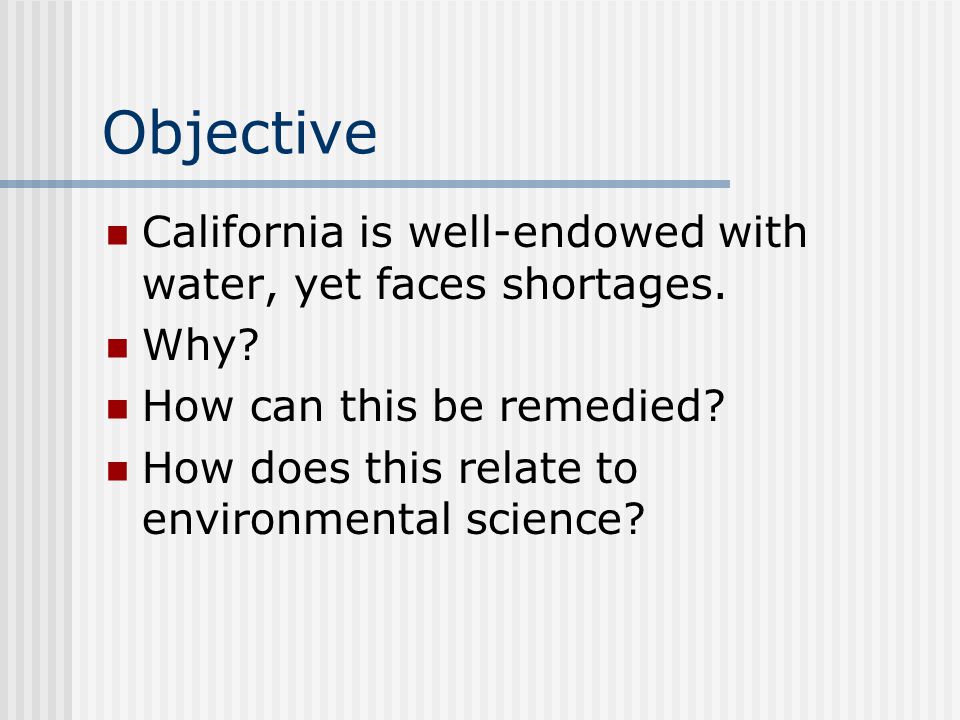

3 Objective California is well-endowed with water, yet faces shortages. Why? How can this be remedied? How does this relate to environmental science?

4 Overview Natural Setting of California Water Use in the State Water Distribution (Central Valley and State Water Projects) Roots of Scarcity Quality Intermingled Options for the Future

5 Part 1 The Natural Setting

6 Map- Shaded Relief of California

7 Map-Annual Precipitation

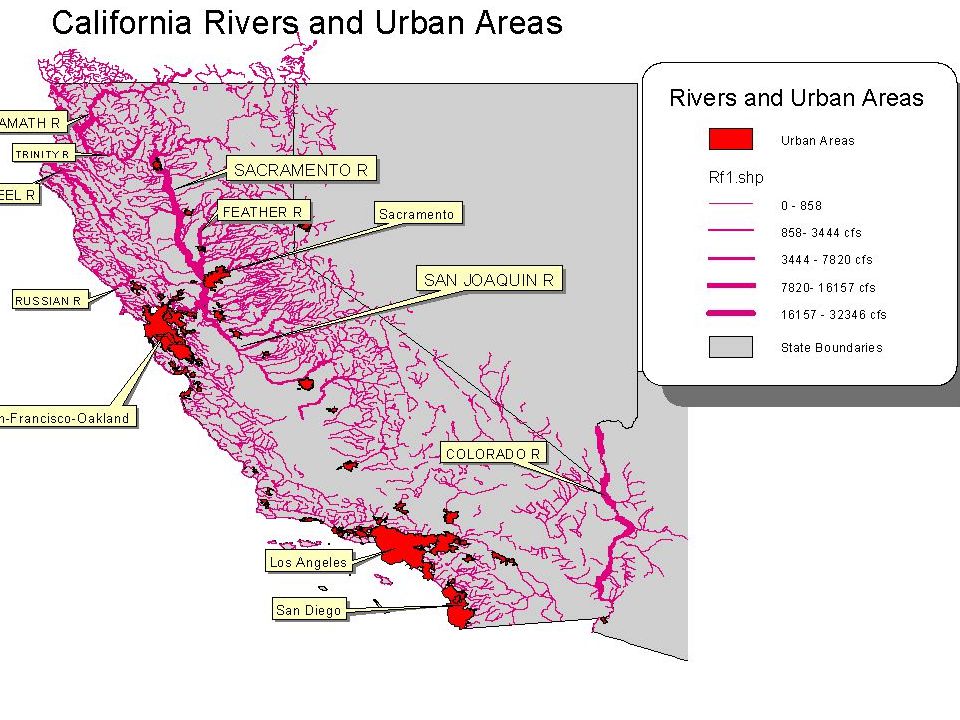

8 Map-Major River Systems

9 Map- Ground water Basins

10 Part 2 Water Use in California

11 Urban Surface Water Consumption

12 Urban Groundwater Consumption

13 Irrigation Surface Water Use

14 Irrigation Groundwater Use

15 Agricultural and Urban Water Use Statistics Domestic consumption of groundwater & surface water = 3 MAF and 3 MAF, respectively. Agricultural consumption of groundwater & surface water = 12.2 MAF and 19.5 MAF, respectively.

16 Map-Agricultural Land in California

17 Map- Central Valley Project

18 Central Valley Project Facts 400 miles, from the Cascade Mountains near Redding to the Tehachapi Mountains near Bakersfield 20 dams and reservoirs, 11 powerplants, and 500 miles of major canals 9 million acre-feet of water annually managed Annually delivers about 7 million acre-feet 5 million acre-feet for farms 600,000 acre-feet for municipal use 5.6 billion kilowatt hours of electricity (~2 million people) 800,000 acre-feet per year to fish and wildlife and their habitat and 410,00 acre-feet to State and Federal wildlife refuges and wetlands (CVPIA, 1992)

19 Map- State Water Project

20 State Water Project Facts 1973-Store water and distribute it to 29 urban and agricultural water suppliers in Northern California, the San Francisco Bay Area, the San Joaquin Valley, and Southern California. Water quality in the Delta, control Feather River flood waters, provide recreation, and enhance fish and wildlife. 32 storage facilities, reservoirs and lakes; 17 pumping plants; 3 pumping-generating plants; 5 hydroelectric power plants; and about 660 miles of open canals and pipelines. Supplemental water to approximately 20 million Californians and about 660,000 acres of irrigated farmland.

21 All Water Projects

22 Consequences What are some of the consequences for the environment of this distribution system?

23 Part 3 Factors complicating the allocation of water among agricultural, domestic, and environmental uses

24 The Problem: 7 Reasons to Worry Water allocation system is inflexible Population Growth Federal Endangered Species Act Federal Clean Water Act Colorado River 4.4 MAF Normal Climate Variability Long-term Climate Variability

25 Water Allocation California Doctrine (Appropriation and Riparian Rights) Permits to surface water Permits to groundwater

26 Population Growth

27 Federal Regulations Clean Water Act Section 303(d): Total Maximum Daily Loads for “impaired waters” Source Water Protection Endangered Species Act Critical habitat protections Salmon

28 Climate Variability Normal climate variability Anthropogenic climate forcing

29 The Result Need more water for regulatory purposes Difficult to adjust allocations Groundwater is not permitted or even accounted Et increased due to irrigation  flow decreased  reduced assimilative capacity

30 Part 4 Case Study: Selenium Toxicity at Kesterson Reservoir

31 Map-Kesterson

32 Diablo Range

33 Map-Fans

34 Drainage Patterns

35 Bio

36 Part 5 Options

37 Improve Allocation Demand side Water Transfers (land retirement) Efficiency Supply Surface water storage Groundwater storage (conjunctive use) Desalinization

38 Water quality Real-time monitoring  assimilative capacity Irrigation changes Drain

39 Closing Thoughts Other topics-Quality Water-rich landscape Integrated system Hydrology-ecology interface SW-GW interactions Quality and quality connections Increasing demands Longer-term planning

40 References Department of Water Resources (1998). California Water Plan: 160-98. Letey, J (1986). An Agricultural Dilemma: Drainage Disposal in the San Joaquin Valley.
