1. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah Douglas M. Blough School of ECE, Georgia Tech {arun, dblough}@ece.gatech.edu

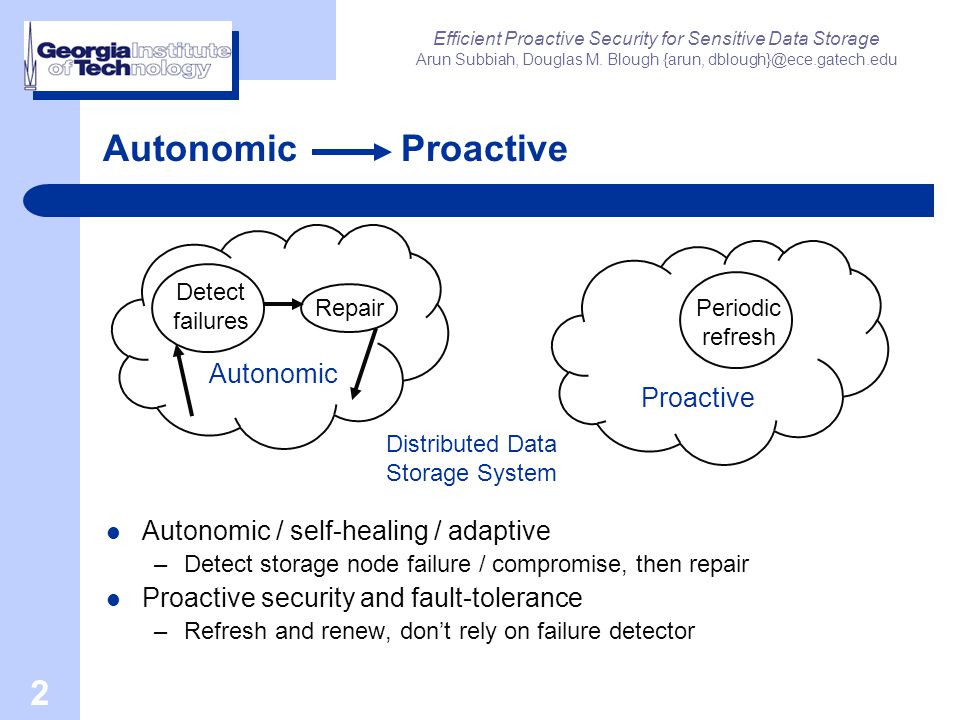

2. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 2 Autonomic Proactive Detect failures Repair Distributed Data Storage System Autonomic Periodic refresh Proactive Autonomic / self-healing / adaptive –Detect storage node failure / compromise, then repair Proactive security and fault-tolerance –Refresh and renew, don’t rely on failure detector

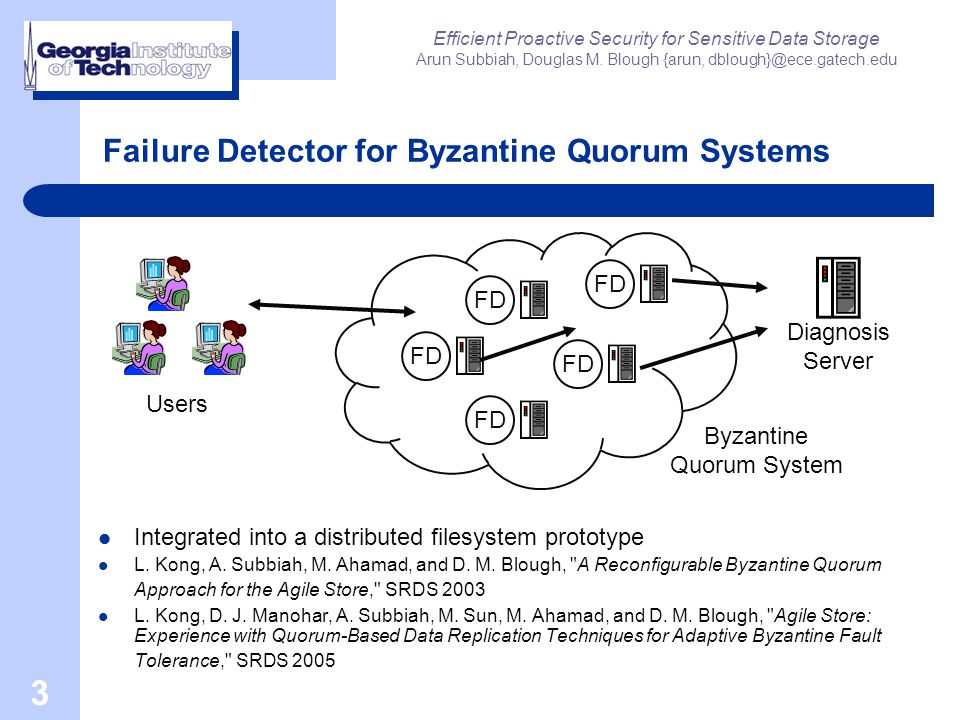

3. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 3 Failure Detector for Byzantine Quorum Systems Integrated into a distributed filesystem prototype L. Kong, A. Subbiah, M. Ahamad, and D. M. Blough, "A Reconfigurable Byzantine Quorum Approach for the Agile Store," SRDS 2003 L. Kong, D. J. Manohar, A. Subbiah, M. Sun, M. Ahamad, and D. M. Blough, "Agile Store: Experience with Quorum-Based Data Replication Techniques for Adaptive Byzantine Fault Tolerance," SRDS 2005 FD Diagnosis Server Byzantine Quorum System Users

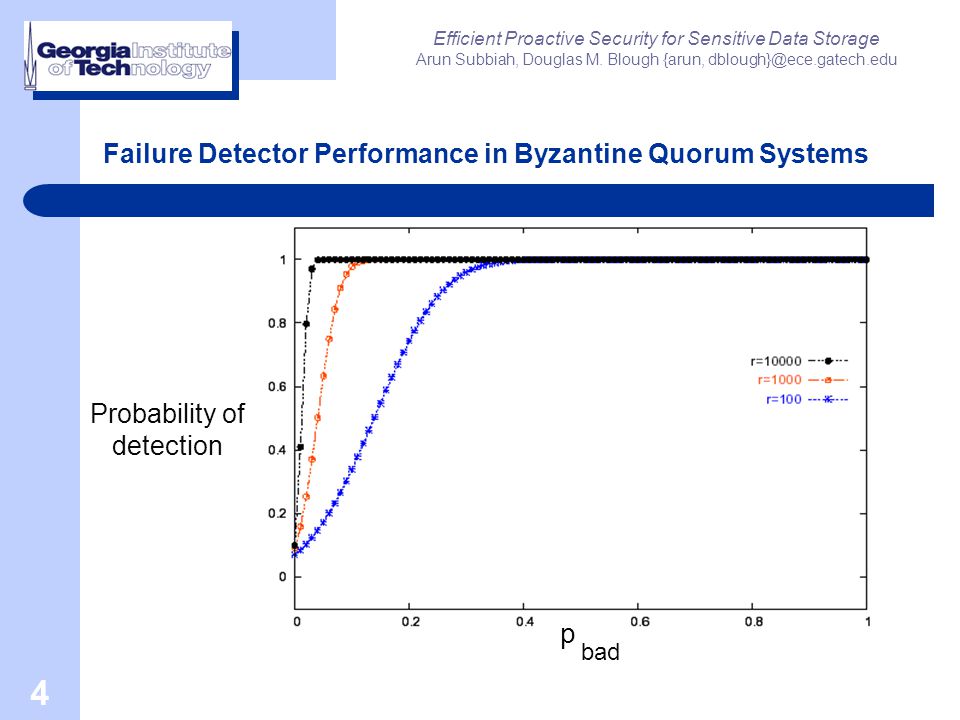

4. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 4 Failure Detector Performance in Byzantine Quorum Systems Probability of detection bad p

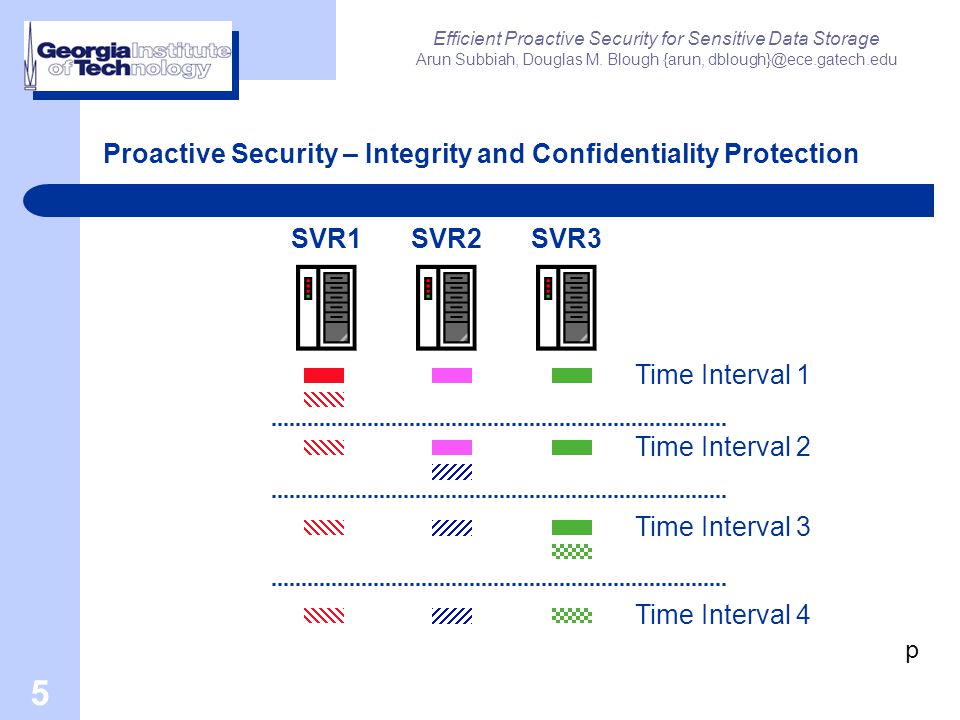

5. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 5 Proactive Security – Integrity and Confidentiality Protection p SVR1SVR2SVR3 Time Interval 1 Time Interval 2 Time Interval 3 Time Interval 4

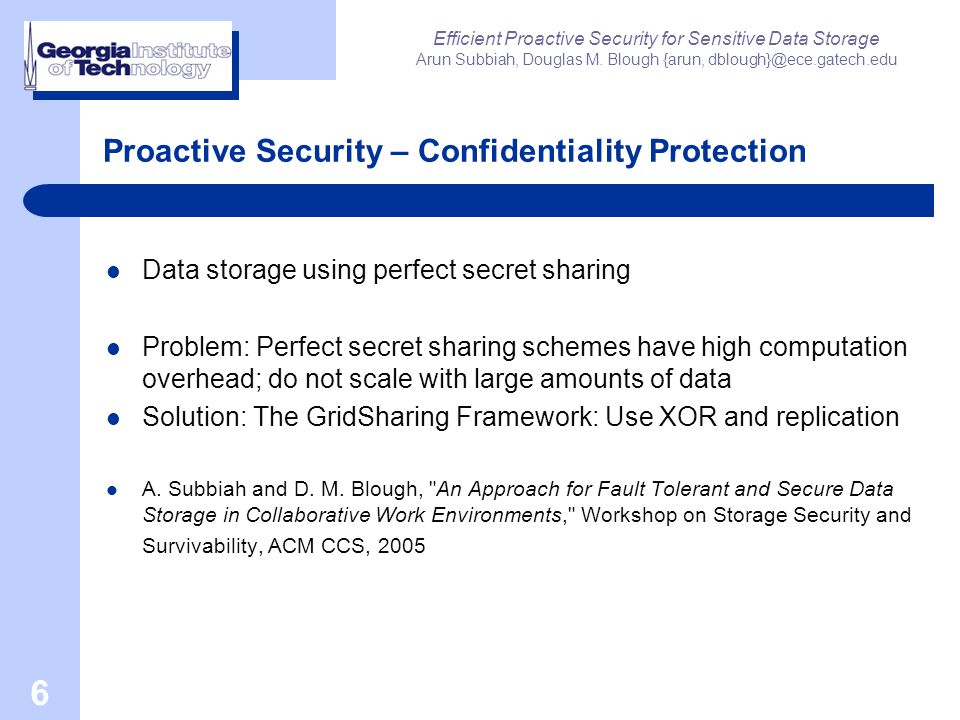

6. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 6 Proactive Security – Confidentiality Protection Data storage using perfect secret sharing Problem: Perfect secret sharing schemes have high computation overhead; do not scale with large amounts of data Solution: The GridSharing Framework: Use XOR and replication A. Subbiah and D. M. Blough, "An Approach for Fault Tolerant and Secure Data Storage in Collaborative Work Environments," Workshop on Storage Security and Survivability, ACM CCS, 2005

7. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 7 Computation Overheads for Perfect Secret Sharing Verifiable secret sharing: Feldman’s scheme with Shamir’s scheme –Computation times during encoding and decoding over 700 ms For any 3 out of 5 shares scheme Compare with AES (Rijndael) symmetric key encryption –Encryption and decryption times approx. 205 μs Perfect secret sharing is over 3000 times slower than symmetric-key encryption The GridSharing framework: < 1 ms Computation times for an 8 KB data block on a Pentium 4 3GHz computer.

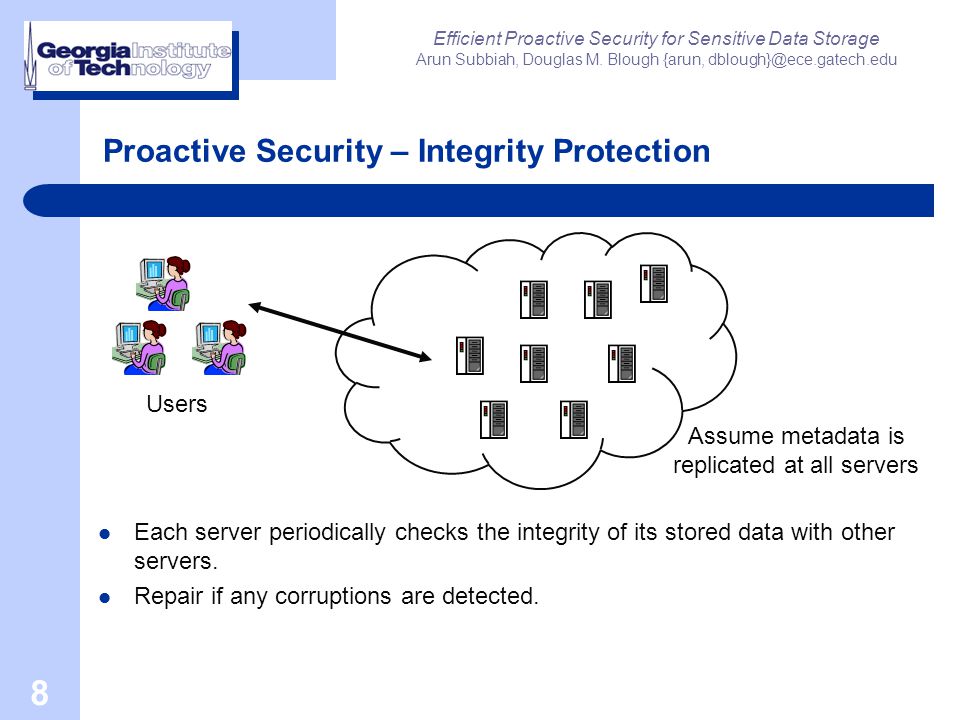

8. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 8 Proactive Security – Integrity Protection Each server periodically checks the integrity of its stored data with other servers. Repair if any corruptions are detected. Assume metadata is replicated at all servers Users

9. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 9 A Proactively-Secure Document Store Users upload / download encrypted documents. Documents stored at all the servers. Experiments run on the Emulab cluster (http://www.emulab.net). Users 100 Mbps LAN 1 Gbps LAN Time Interval Marker Diagnosis Server All machines: 3 GHz, 64-bit Xeon, 2 GB RAM, 146 GB hard disk

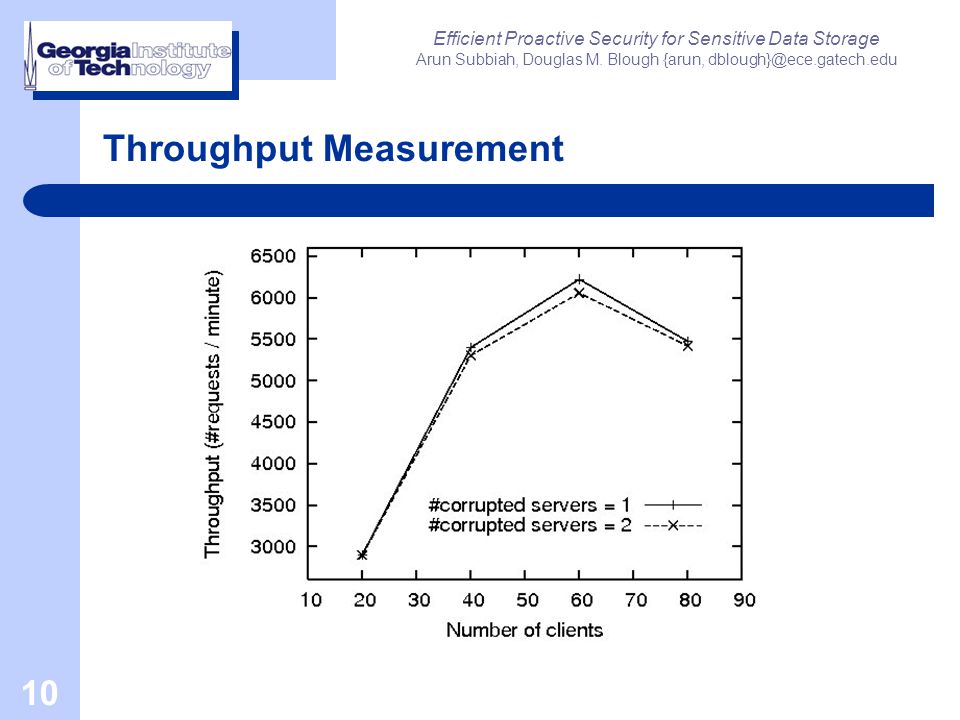

10. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 10 Throughput Measurement

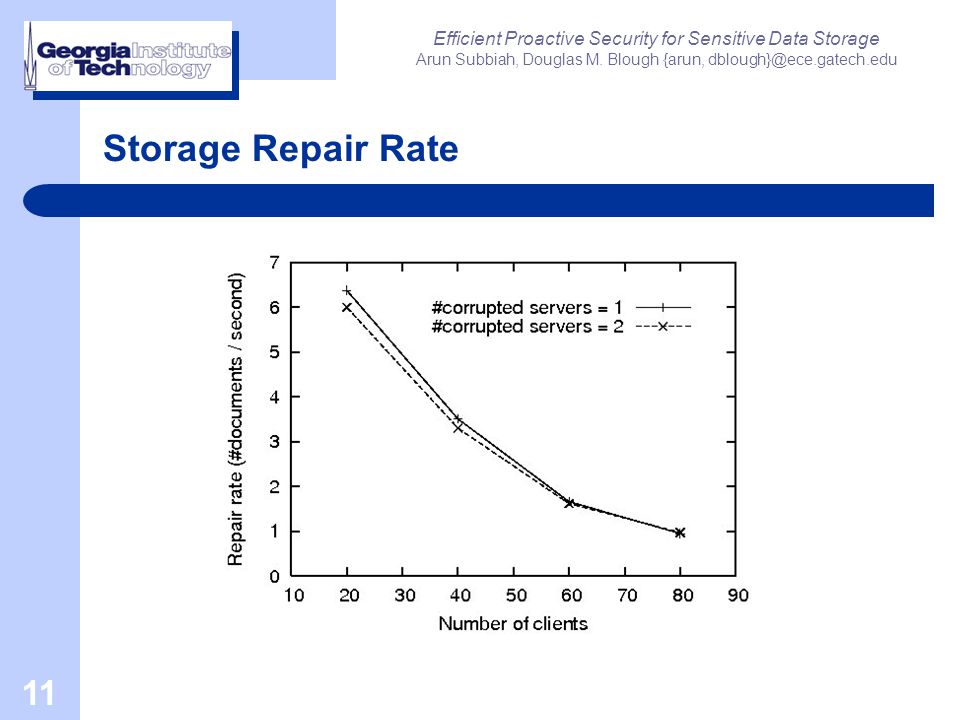

11. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 11 Storage Repair Rate

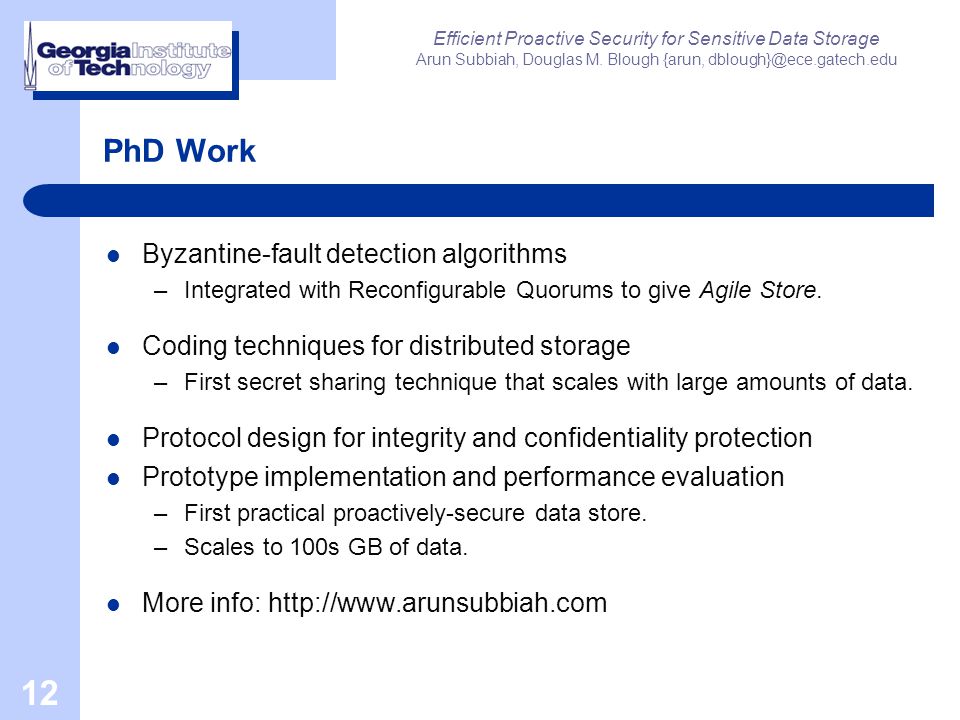

12. Efficient Proactive Security for Sensitive Data Storage Arun Subbiah, Douglas M. Blough {arun, dblough}@ece.gatech.edu 12 PhD Work Byzantine-fault detection algorithms –Integrated with Reconfigurable Quorums to give Agile Store. Coding techniques for distributed storage –First secret sharing technique that scales with large amounts of data. Protocol design for integrity and confidentiality protection Prototype implementation and performance evaluation –First practical proactively-secure data store. –Scales to 100s GB of data. More info: http://www.arunsubbiah.com
