1
Conservation of momentum also known as: Cauchy’s equation Relation between stress and strain rate 4 equations, 12 unknowns; need to relate flow field and stress tensor Navier-StokesEquation(s)

2
Boundary Conditions Determine the actual solution For example, for a simplified form of: z = 0 at the surface; positive upward

3

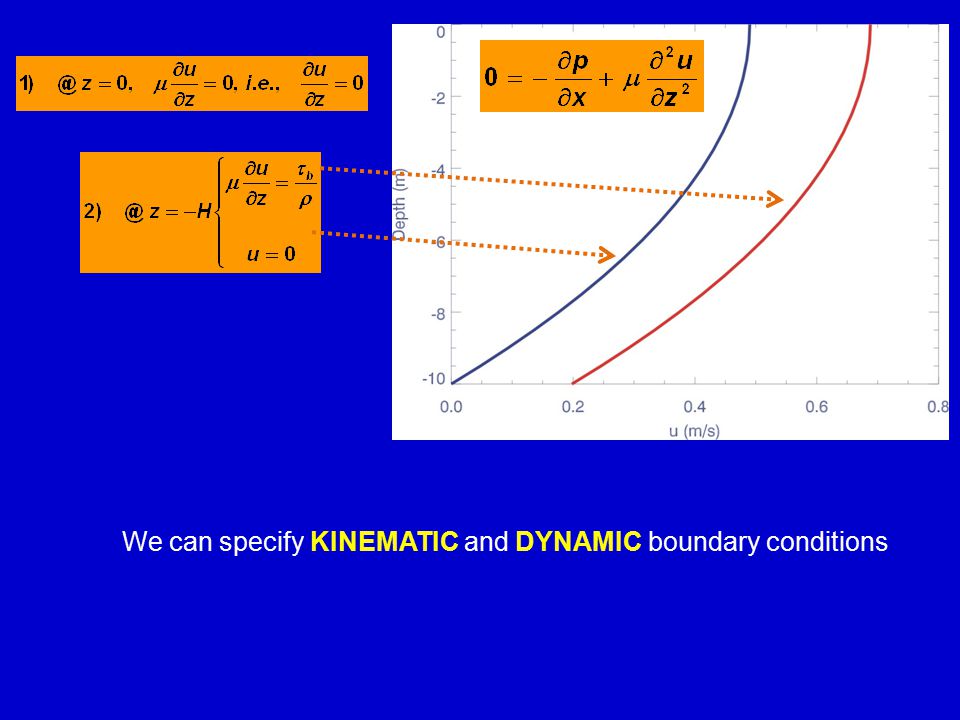

We can specify KINEMATIC and DYNAMIC boundary conditions

4
KINEMATIC boundary conditions The boundary must remain a material surface for the two media limited by the boundary if boundary is rigid – no flux across boundary velocity normal to the surface is the rate at which the boundary moves for the ocean’s surface

5

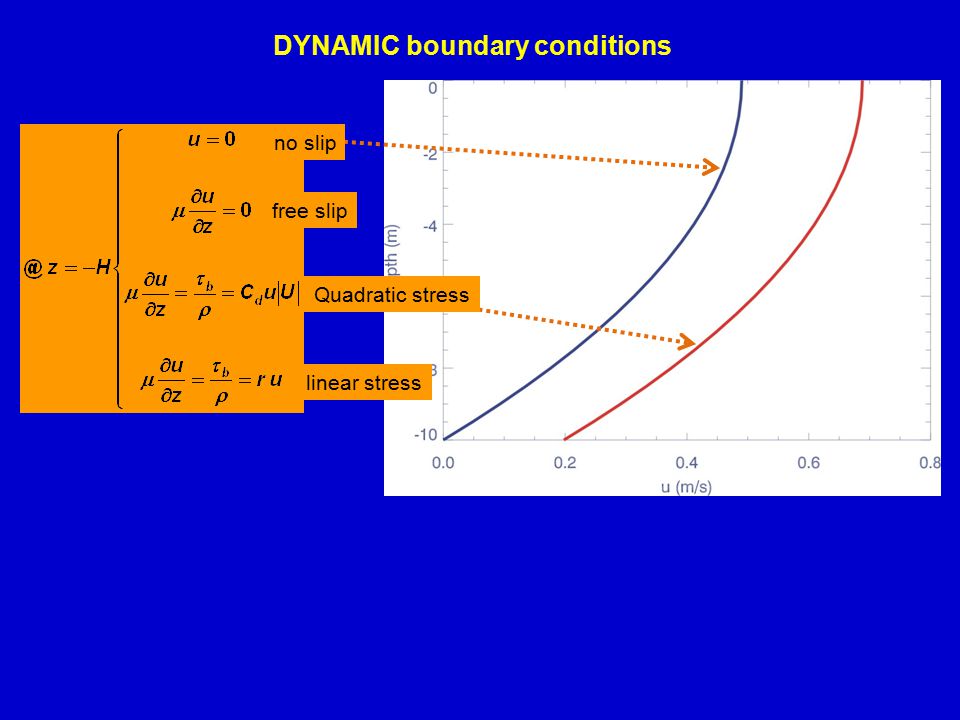

DYNAMIC boundary conditions no slip free slip Quadratic stress linear stress
