2. 1. Check cdsl10 or nsdl10 is already installed. 2. Check ORACLE must be 9.2 or higher than it. If Oracle version is lower than it than 9.2 than install ORACLE before shifting DPORA10 or CDSL10 to DPORA20 or CDSL10 Note: Do not install oracle on drive “C”. Installation process is divided into two parts:  Part 1: Oracle Installation.  Part2: Product Shifting (Shifting of DPORA10 and CDSL10 to DPORA20 and CDSL20)

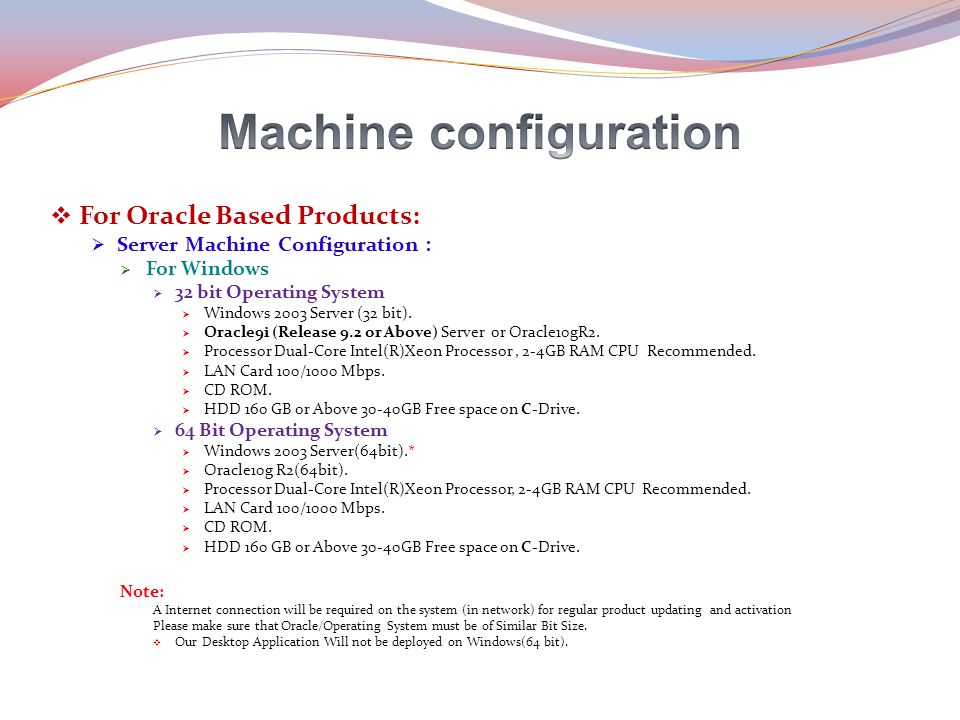

3.  For Oracle Based Products:  Server Machine Configuration :  For Windows  32 bit Operating System  Windows 2003 Server (32 bit).  Oracle9i (Release 9.2 or Above) Server or Oracle10gR2.  Processor Dual-Core Intel(R)Xeon Processor, 2-4GB RAM CPU Recommended.  LAN Card 100/1000 Mbps.  CD ROM.  HDD 160 GB or Above 30-40GB Free space on C-Drive.  64 Bit Operating System  Windows 2003 Server(64bit).*  Oracle10g R2(64bit).  Processor Dual-Core Intel(R)Xeon Processor, 2-4GB RAM CPU Recommended.  LAN Card 100/1000 Mbps.  CD ROM.  HDD 160 GB or Above 30-40GB Free space on C-Drive. Note: A Internet connection will be required on the system (in network) for regular product updating and activation Please make sure that Oracle/Operating System must be of Similar Bit Size.  Our Desktop Application Will not be deployed on Windows(64 bit).

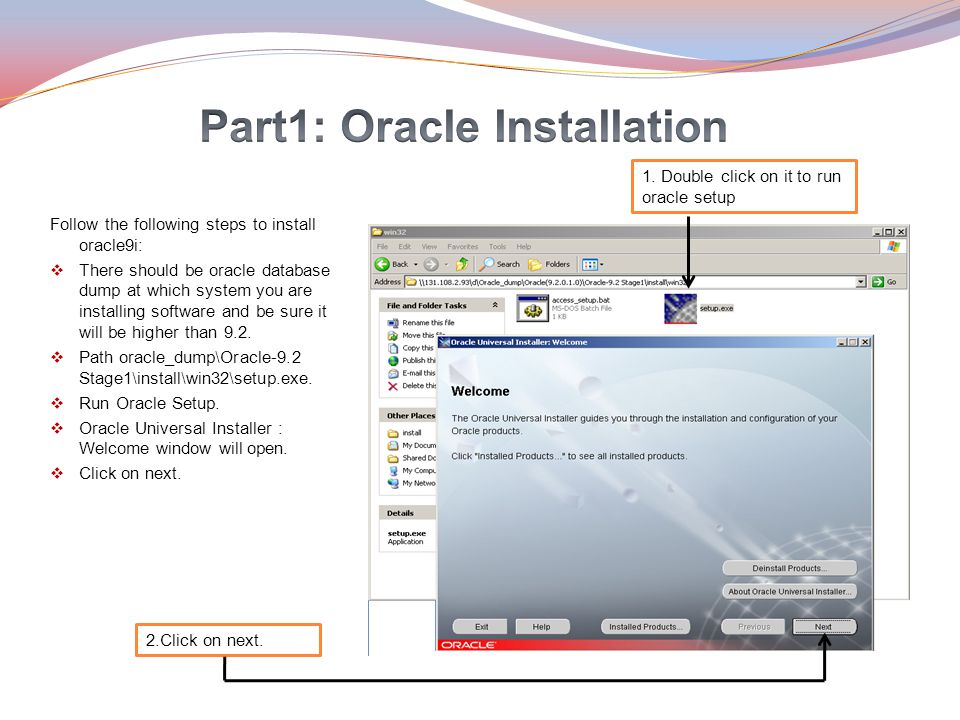

4. Follow the following steps to install oracle9i:  There should be oracle database dump at which system you are installing software and be sure it will be higher than 9.2.  Path oracle_dump\Oracle-9.2 Stage1\install\win32\setup.exe.  Run Oracle Setup.  Oracle Universal Installer : Welcome window will open.  Click on next. 1. Double click on it to run oracle setup 2.Click on next.

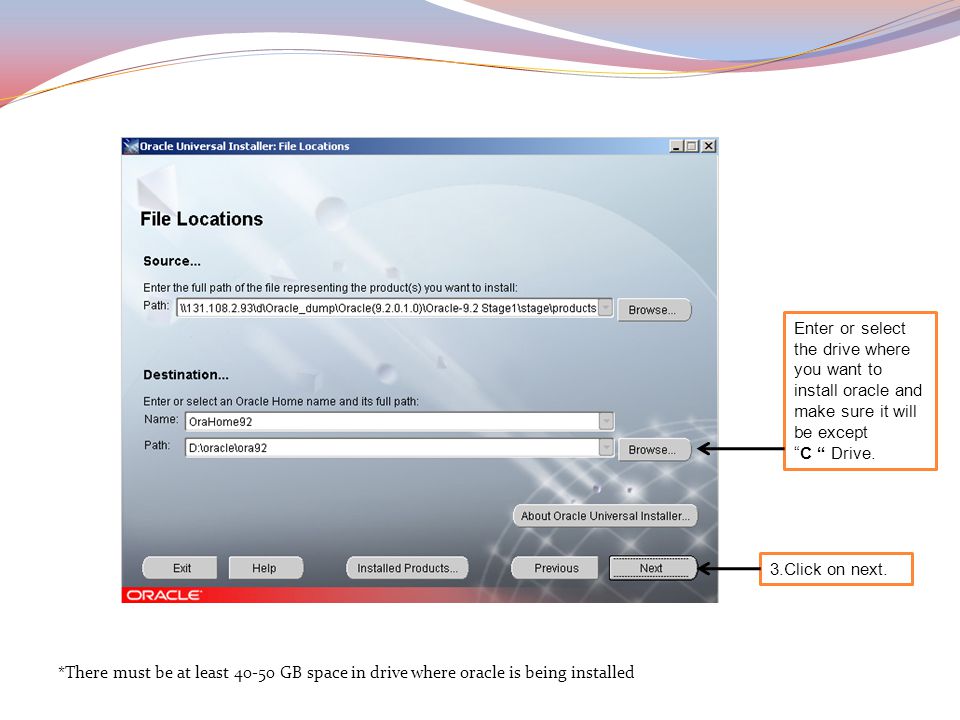

5. 3.Click on next. Enter or select the drive where you want to install oracle and make sure it will be except “C “ Drive. *There must be at least 40-50 GB space in drive where oracle is being installed

6. 4.Select Oracle9i Database 9.2.0.1.0 if you are installing oracle on database server. 5. Click on next.

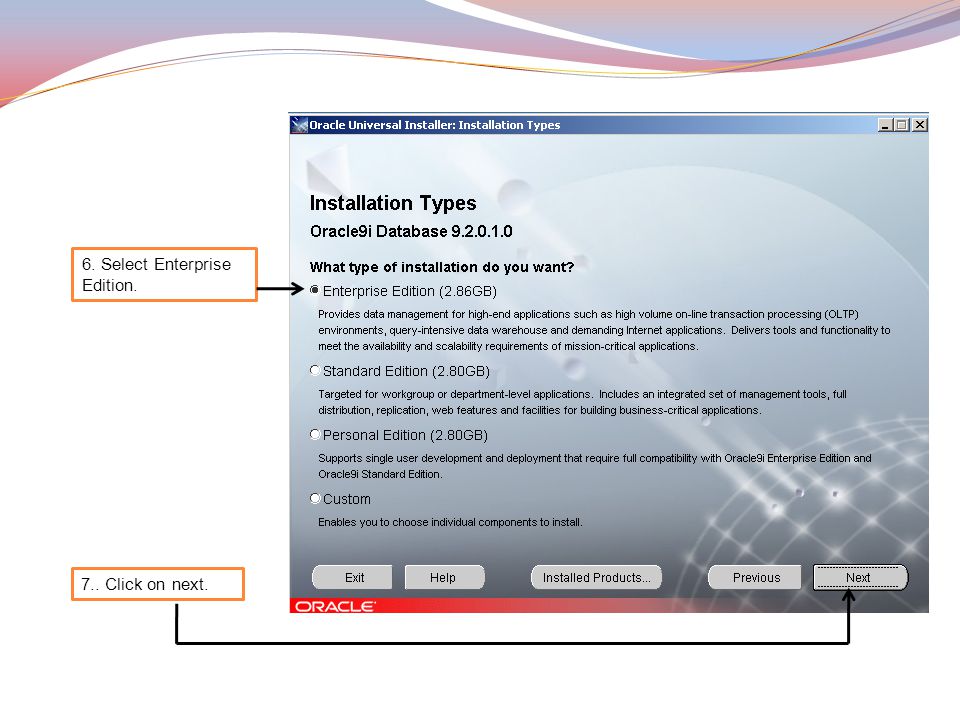

7. 6. Select Enterprise Edition. 7.. Click on next.

8. 9. Click on next. 8. Select General Propose.

9. 10. Click on next.

10. 12. Click on next. 11. Enter database name you want to create (for example : CDSL1011).

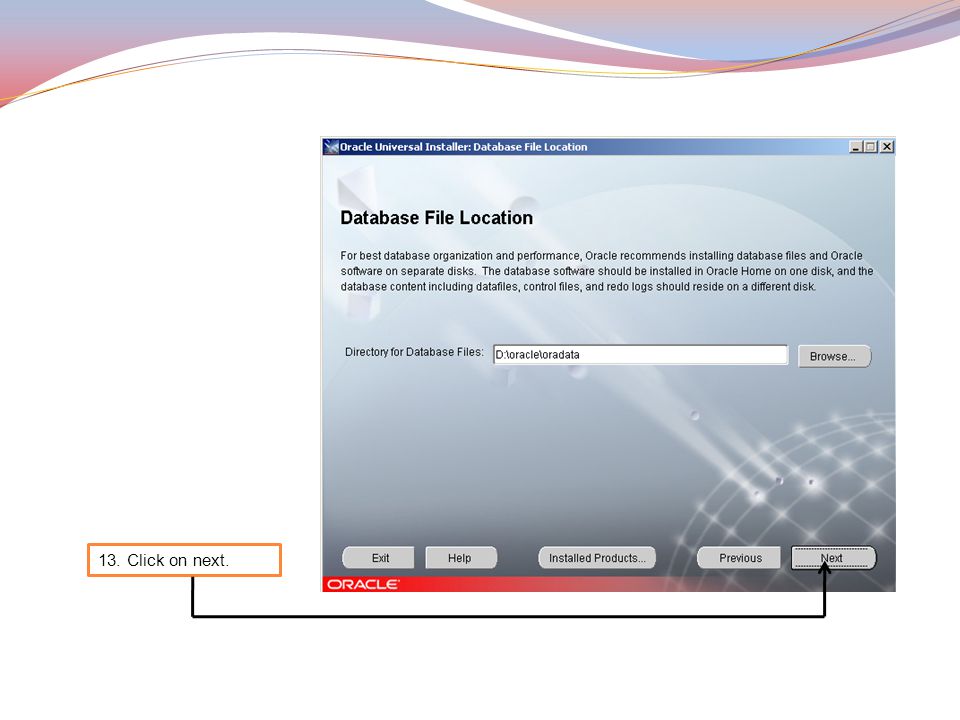

11. 13. Click on next.

12. 14. Click on next.

13. 15. Click on Install.

14.  There are three stage of oracle to be installed.  First stage is installing here.

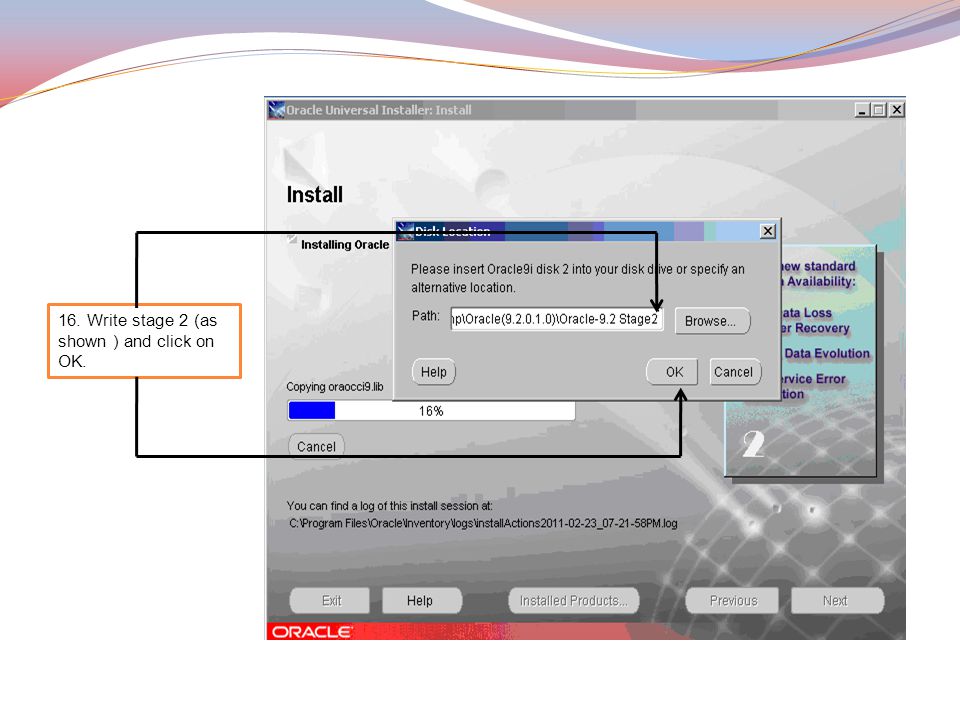

15. 16. Write stage 2 (as shown ) and click on OK.

16. 17. Write stage 3 (as shown ) and click on OK. 18. After completing third stage, Next option enabled. Click on Next.

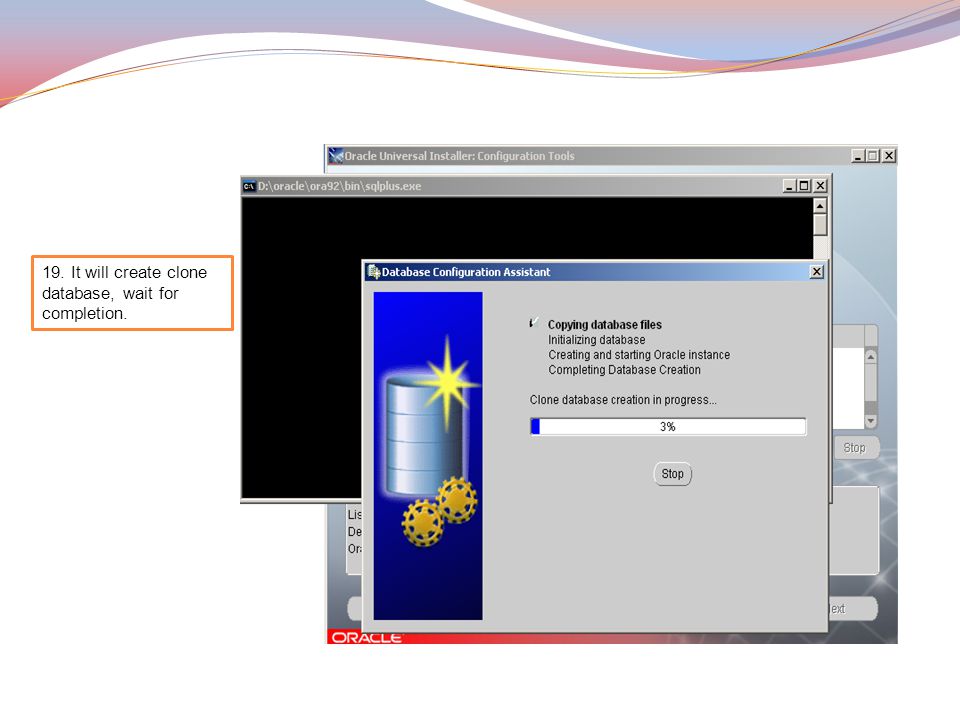

17. 19. It will create clone database, wait for completion.

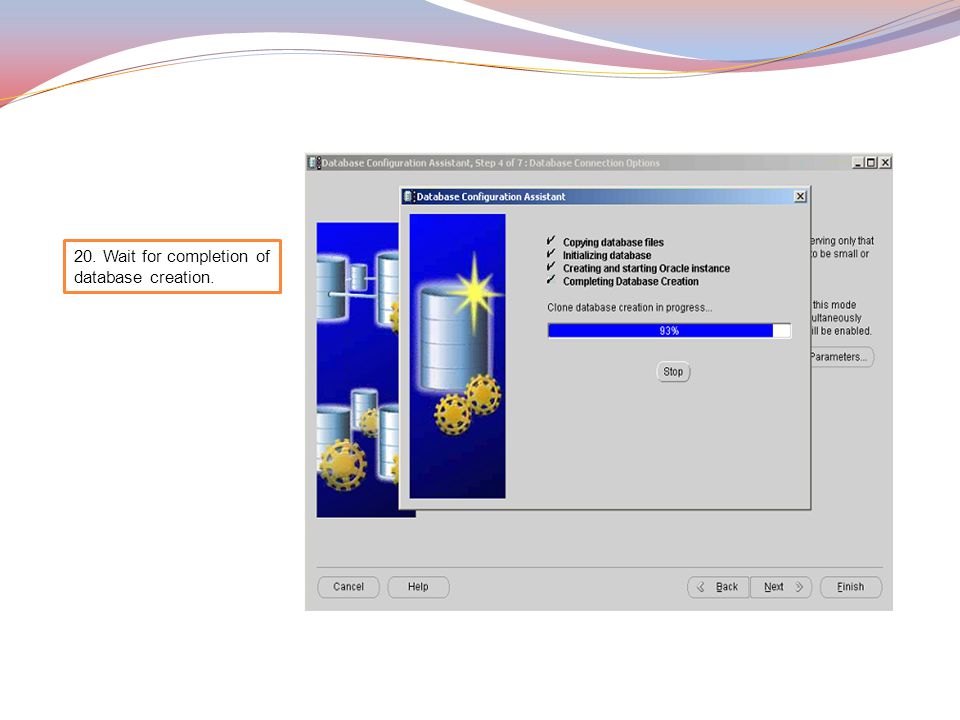

18. 20. Wait for completion of database creation.

19. 21. Enter same password in each field (e.g. s). It is mandatory. 22. Click on Exit. CDSl101

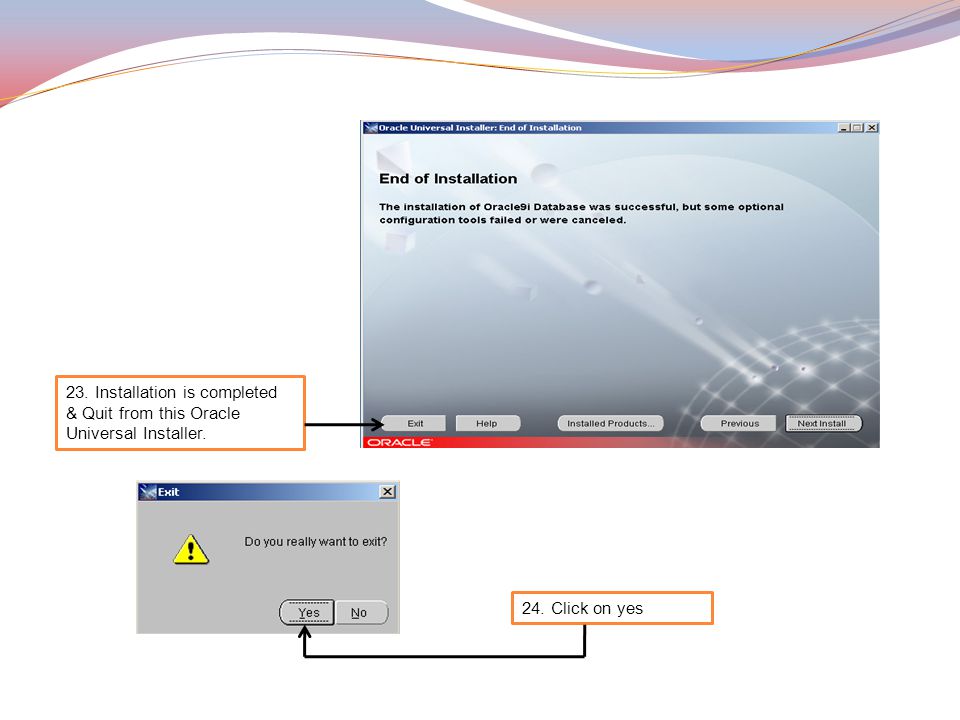

20. 24. Click on yes 23. Installation is completed & Quit from this Oracle Universal Installer.

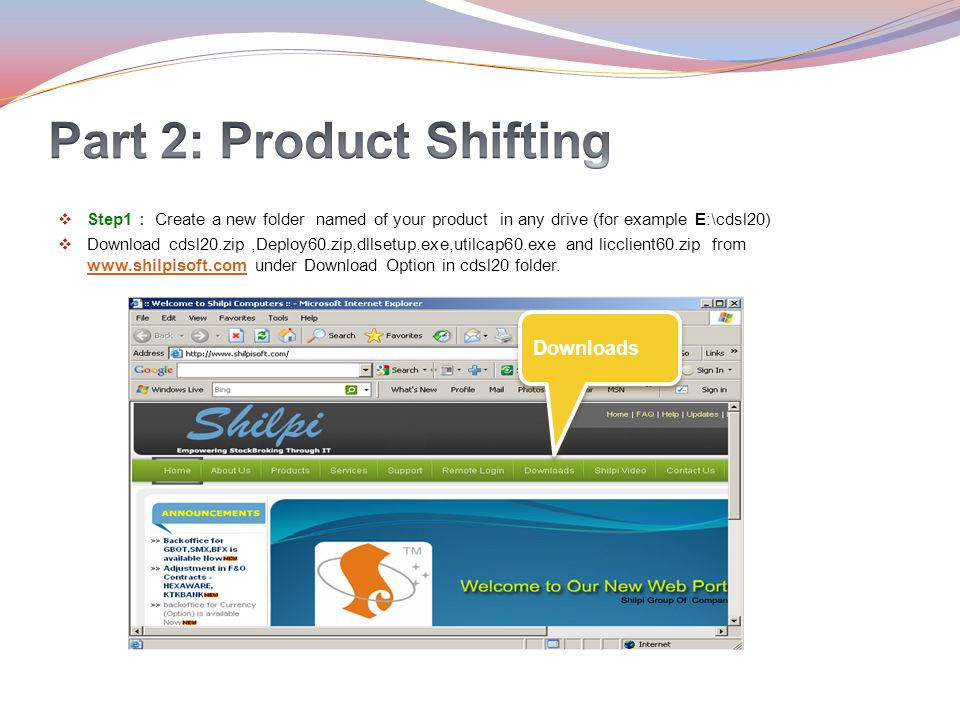

21.  Step1 : Create a new folder named of your product in any drive (for example E:\cdsl20)  Download cdsl20.zip,Deploy60.zip,dllsetup.exe,utilcap60.exe and licclient60.zip from www.shilpisoft.com under Download Option in cdsl20 folder. www.shilpisoft.com Downloads

22. Step2: Extract cdsl20.zip, deploy60.zip, utilcap60.zip and licclient60.zip in CDSL20 Step3: Run deploy60.exe, to run follow the following steps: Double click on deploy60.exe Following window will open:

23. Click on next

24. Tick on this

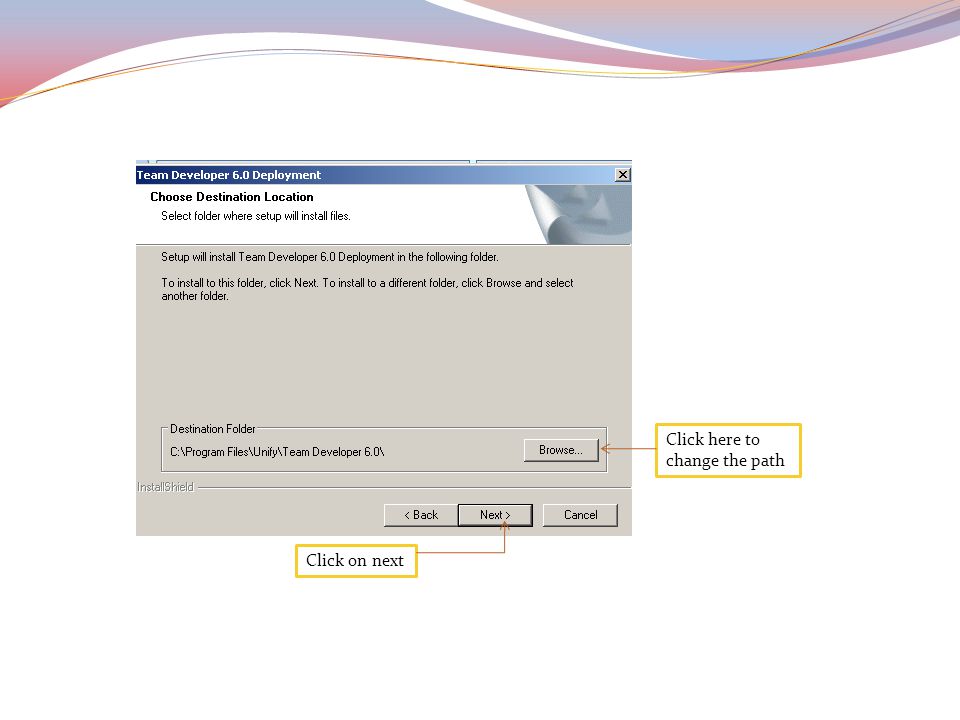

25. Click here to change the path Click on next

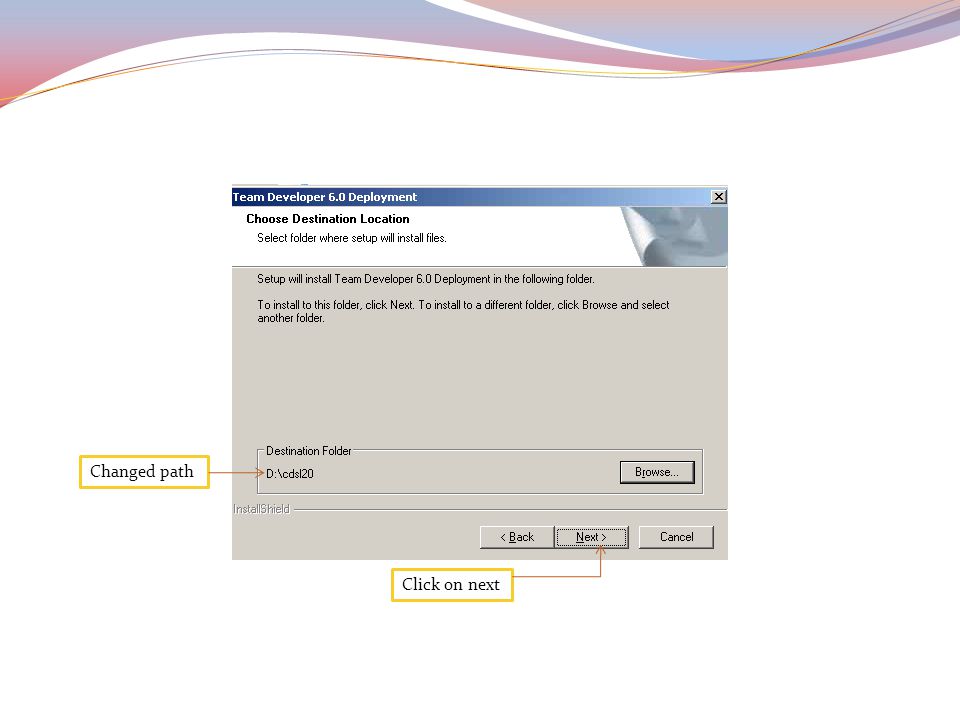

27. Changed path

28. Un-tick these options Click on Next

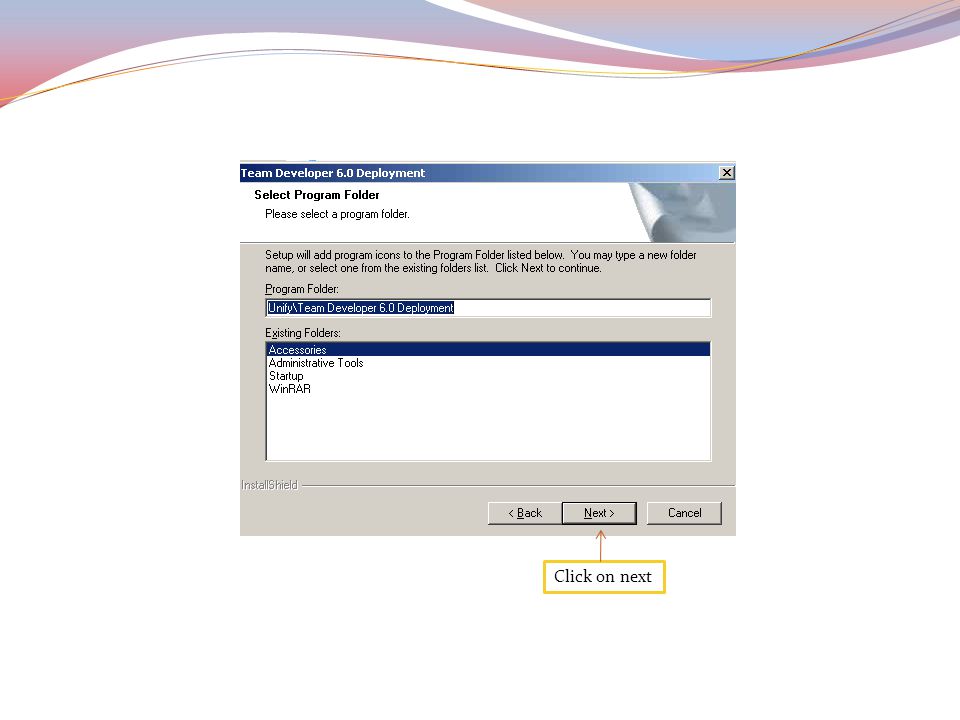

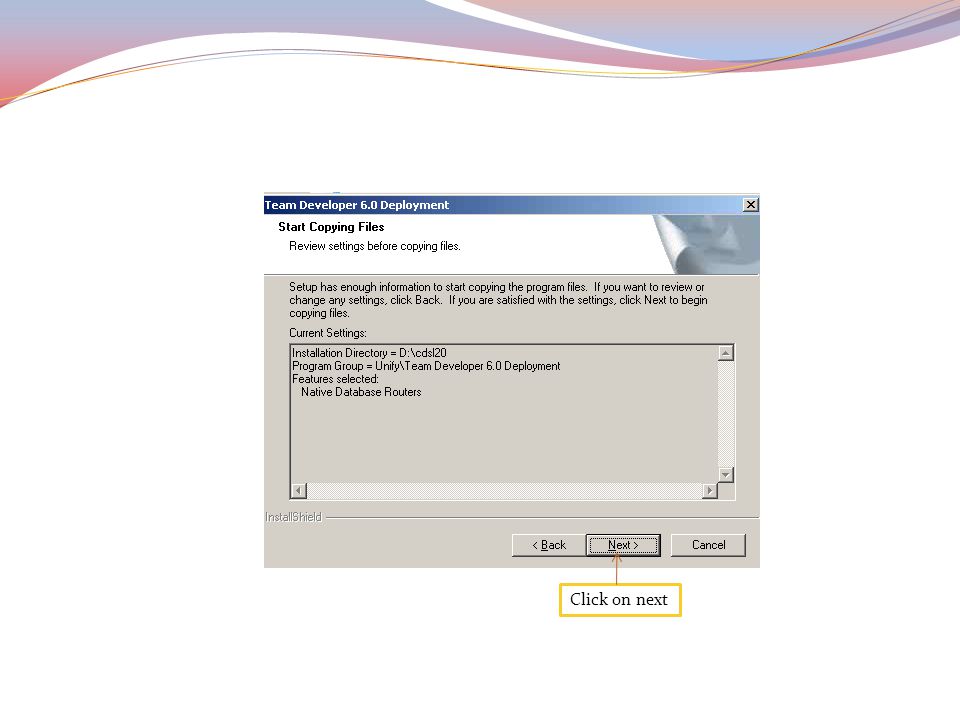

29. Click on next

31. Note: Do not cancel this processing

32. Click on Finish

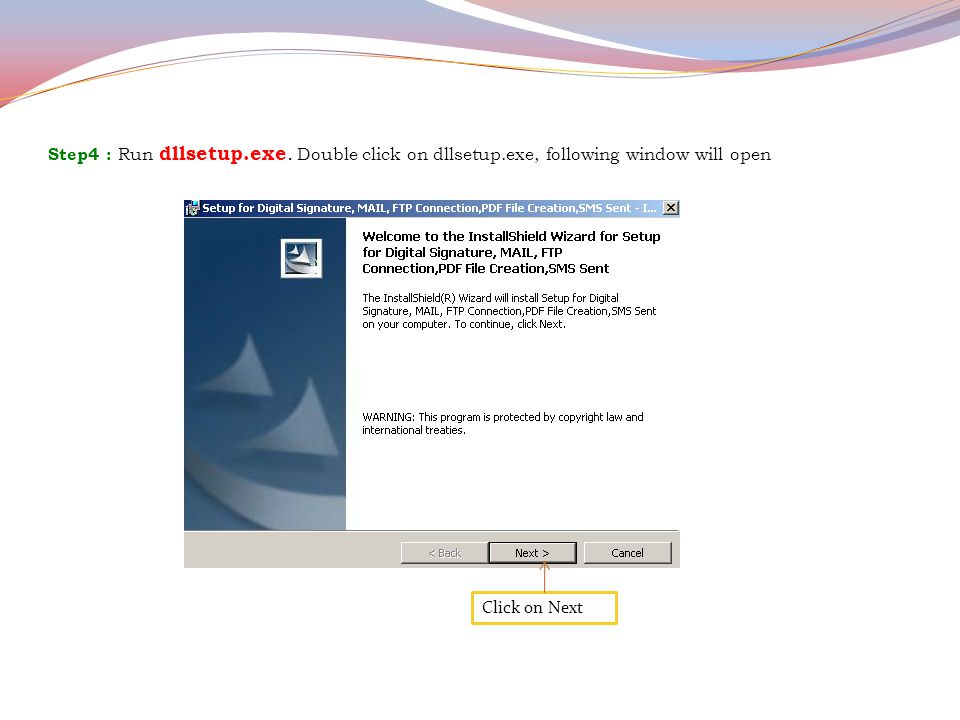

33. Step4 : Run dllsetup.exe. Double click on dllsetup.exe, following window will open Click on Next

34. Tick on Custom

35. Click on Next Click here to change the path

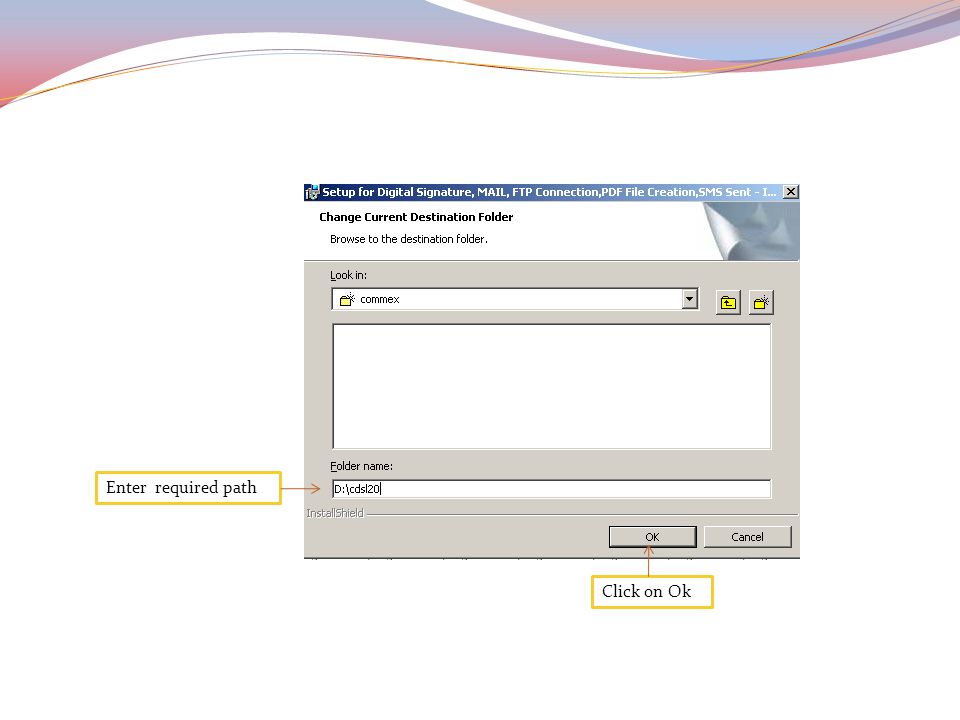

36. Enter required path Click on Ok

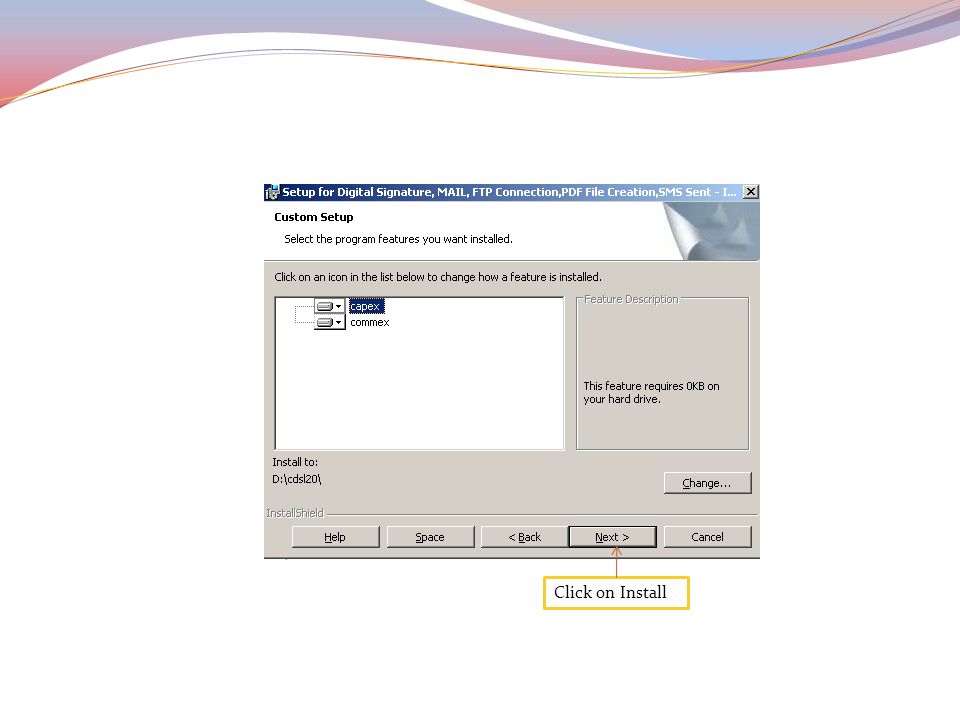

37. Click on Next

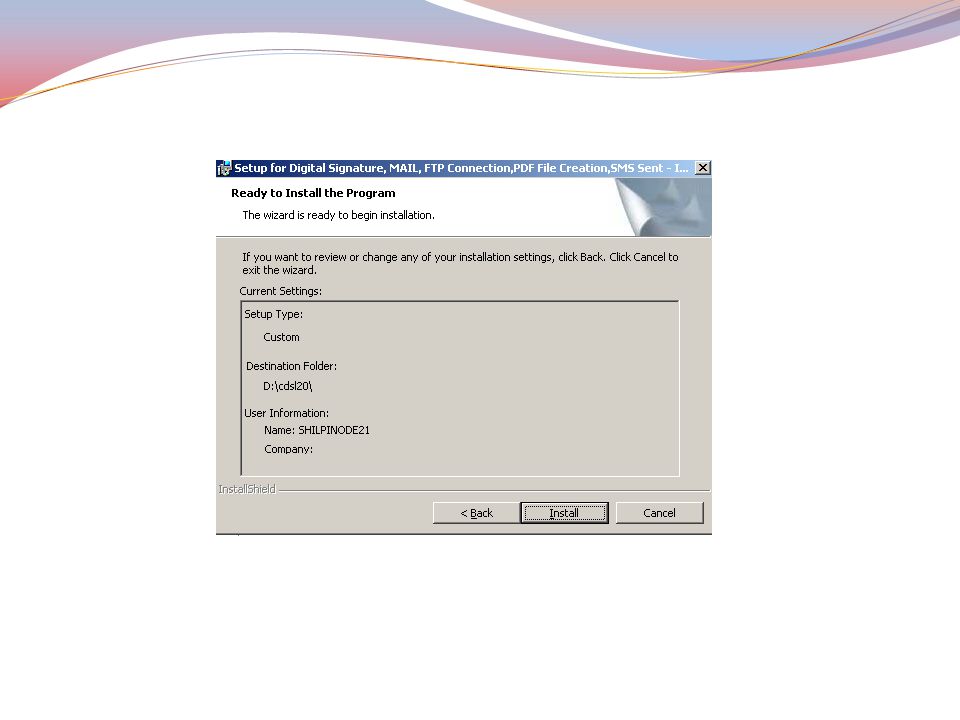

38. Click on Install

40. Note: Do not cancel this processing. Wait for the completion

41. Click on Finish

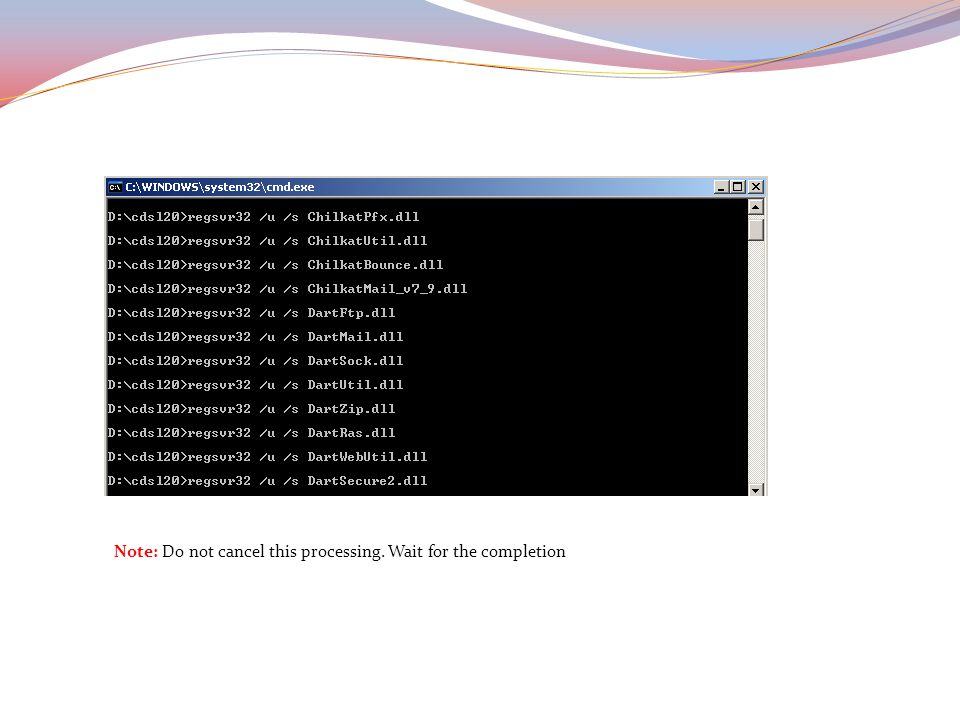

42. Note: Do not cancel this processing. Wait for the completion

43. Step5: Rename sql.ini in CDSL20 folder

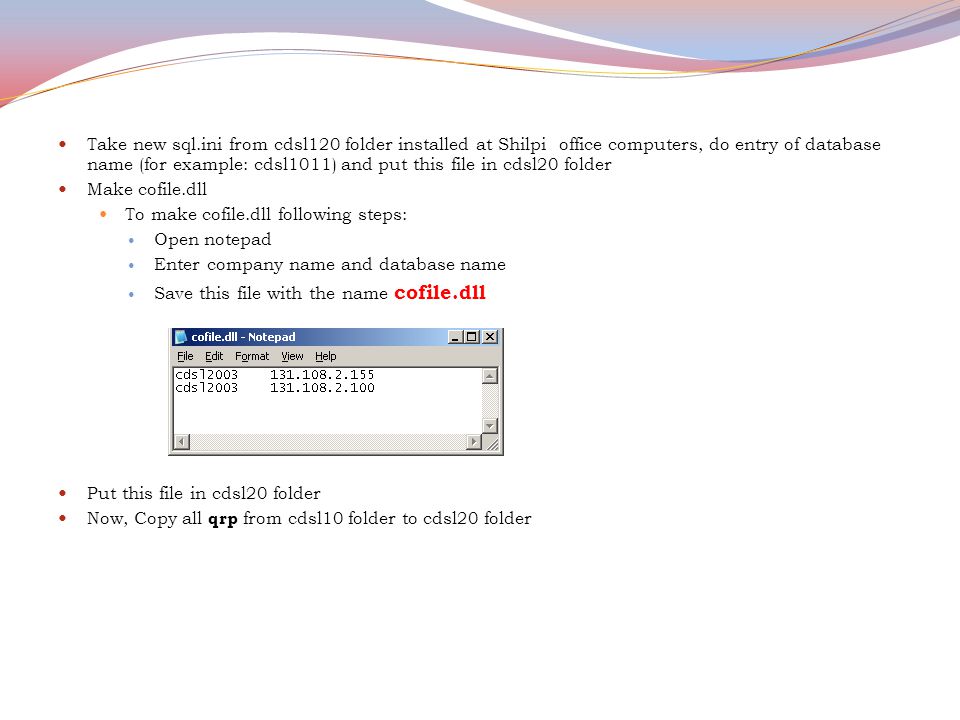

44. Take new sql.ini from cdsl120 folder installed at Shilpi office computers, do entry of database name (for example: cdsl1011) and put this file in cdsl20 folder Make cofile.dll To make cofile.dll following steps: Open notepad Enter company name and database name Save this file with the name cofile.dll Put this file in cdsl20 folder Now, Copy all qrp from cdsl10 folder to cdsl20 folder

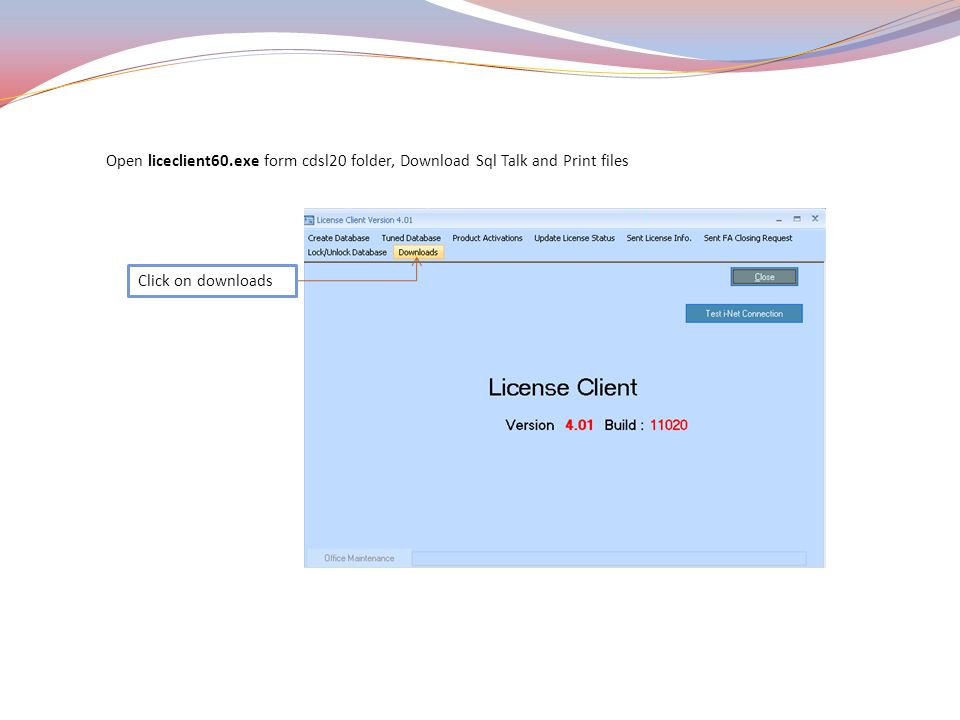

45. Open liceclient60.exe form cdsl20 folder, Download Sql Talk and Print files Click on downloads

46. Tick on Print Files Tick on Sql Talk Select Product ID cdsl20 Click on Download Now After downloading SqlTalk and Print Files,this message will display. Click on OK

47. Login software(cdsl20) Import signature first time

48. Check data with signature is showing or not in client master If get an error as shown in image

49. Connect database via utilcap60.exe from cdsl20 folder

50. Go to Maintenance>>Initialize Maintenance Level

51. Tick on capital Market Click on Proceed and wait for completion Click on OK

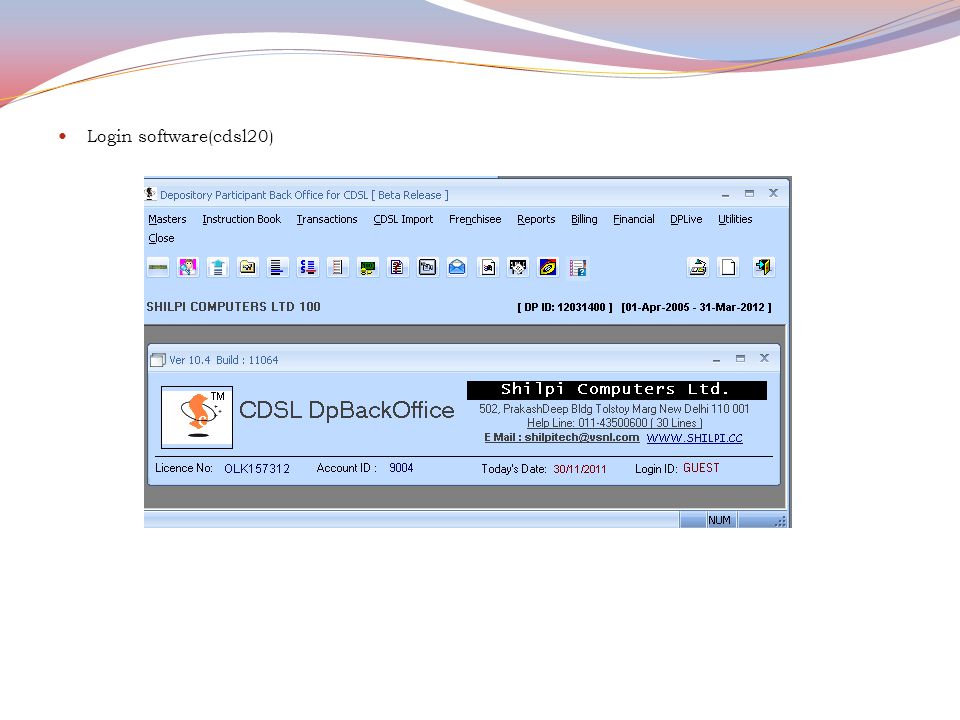

52. Login software(cdsl20)
