1 Regulation of Blood Pressure
Dr.Mohammed Sharique Ahmed Quadri Assistant professor Al Maarefa College

2 Blood Pressure Force exerted by blood against a vessel wall
Depends on Volume of blood contained within vessel Compliance of vessel walls Systolic pressure Peak pressure exerted by ejected blood against vessel walls during cardiac systole Averages 120 mm Hg Diastolic pressure Minimum pressure in arteries when blood is draining off into vessels downstream Averages 80 mm Hg

3 Pulse Pressure Pressure difference between systolic and diastolic pressure Example If blood pressure is 120/80, pulse pressure is 40 mm Hg (120mm Hg – 80mm Hg) Pulse that can be felt in artery lying close to surface of skin is due to pulse pressure

4 Mean Arterial Pressure
Average pressure driving blood forward into tissues throughout cardiac cycle Formula for approximating mean arterial pressure Mean arterial pressure = diastolic pressure + ⅓ pulse pressure At 120/80, mean arterial pressure = 80 mm Hg + ⅓ (40 mm Hg) = 93 mm Hg

5 Mean Arterial Pressure
Blood pressure that is monitored and regulated in the body Primary determinants Cardiac output Total peripheral resistance Mean arterial pressure = cardiac output x total peripheral resistance

6 Determinants of Mean Arterial Pressure

7 Major factors affecting arterial radius

8 What controls the blood pressure?
Regulatory mechanisms Cardiac out put Peripheral resistance

9 Mean Arterial Pressure
Constantly monitored by baroreceptors (pressure sensors) within circulatory system Short-term control adjustments Occur within seconds Adjustments made by alterations in cardiac output and total peripheral resistance Mediated by means of autonomic nervous system influences on heart, veins, and arterioles Long-term control adjustments Require minutes to days Involve adjusting total blood volume by restoring normal salt and water balance through mechanisms that regulate urine output and thirst

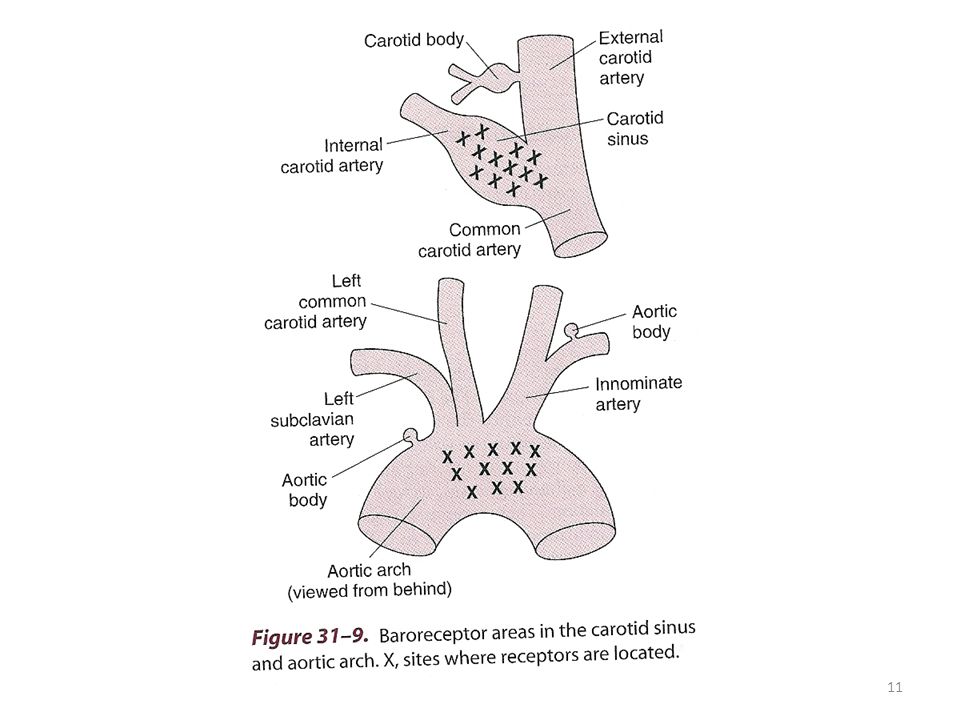

We will discuss Short Term Mechanisms: BARORECEPTORS Baroreceptors are stretch receptors present in the walls of blood vessels—CAROTID SINUS and AORTIC ARCH, for short term regulation of B.P.


BARORECEPTORS If blood pressure changes that is, increases or decreases Baroreceptors try to bring it back to normal value by adjusting cardiac output and peripheral resistance by working through ANS influences on heart, veins and arterioles. They work in seconds. Baroreceptors reflex is very important for regulation of Mean Arterial Pressure.

BARORECEPTOR REFLEX It has following components: Receptors Afferent Pathway Center Efferent Pathway Effector Organ RECEPTORS – located in Carotid Sinus and Aortic Arch, they are nerve endings and generate action potential in response to pressure present in the arteries.

14 BARORECEPTOR REFLEX Afferent Pathway – Afferent nerve which carry impulse from carotid sinus is IX [Glassophyrangeal] and from aortic arch is X [Vagus]. Center – Cardiac Center is located in medulla [brain stem]. Efferent Pathway – From Cardiac center, we get Efferent ANS, Sympathetic and Parasympathetic fibers to heart and blood vessels. Effector Organ – Sympathetic causes increase heart rate and force of contraction of heart, vasoconstriction, therefore, increase CO and BP. Parasympathetic causes decrease heart rate, decrease force of contraction of heart, therefore, decreased cardiac output and decreased BP.

15 baroreceptors

16 Baroreceptor Reflexes to Restore Blood Pressure to Normal

17 Functions of the Baroreceptors
Maintains relatively constant pressure despite changes in body posture. Decrease Central Blood Volume Supine Standing Sympathetic Nervous Activity Decrease Cardiac Output Vasomotor Center Sensed By Baroreceptors Decrease Arterial Pressure

18 Functions of the Baroreceptors
Opposes either increases or decreases in arterial pressure thereby reducing daily variations in arterial pressure. They are unimportant in long term control of arterial pressure because the baroreceptors adapt.

19 Other regulatory mechanisms
Peripheral chemoreceptors Central chemoreceptor Cardiopulmonary baroreceptors

Sense changes in blood volume or fullness of vascular system Located in atria ,veins & pulmonary artery IF THERE IS INCREASE IN BLOOD VOLUME THESE RECEPTORS BRING ABOUT FOLOWING CHANGES Increase secretion of ANP Decrease secretion of ADH Renal vasodilatation Increase heart rate

21 Carotid and Aortic Chemoreceptors
Chemoreceptors are chemosensitive cells sensitive to oxygen lack, CO2 excess, or H ion excess. Chemoreceptors are located in carotid bodies near the carotid bifurcation and on the arch of the aorta. Activation of chemosensitive receptors results in excitation of the vasomotor center. Chemoreceptors are not stimulated until pressure falls below 80mmHg. O2 CO2 pH Chemoreceptors VMC Sympathetic activity BP

22 CNS Ischemic Response CNS Ischemic response is activated in response to cerebral ischemia. Reduced cerebral blood flow causes CO2 buildup which stimulates vasomotor center thereby increasing arterial pressure. CNS Ischemic response is one of the most powerful activators of the sympathetic vasoconstrictor system. Figure 18-3; Guyton and Hall Vasomotor Center Sympathetic Activity Arterial Pressure CO2 Cerebral Ischemia

23 CNS Ischemic Response CNS Ischemic response is not activated until pressure falls below 60mmHg; Prolonged CNS ischemia has a depressant effect on the vasomotor center.

It works in minutes and fully active in 20mins. Renin is enzyme released by kidneys when arterial blood pressure becomes low. Renin is synthesized by Juxta glomerular [JG cells] of the kidneys. Renin enters the blood and acts on Angiotensinogin.



27 Blood Pressure Abnormalities
Hypertension Blood pressure above 140/90 mm Hg Hypotension Blood pressure below 100/60 mm Hg

28 Accurate Assessment of Blood Pressure
catagory Systolic B.P in mmHg Diastolic B.P in mmHg Normal <120 <80 Prehypertension 80-89 Stage 1 hypertension 90-99 Stage 2 hypertension 160 100 Criteria by 7th joint national commiti Data from JNC 7 report, JAMA 289: ,2003

29 Blood Pressure Abnormalities
Hypertension Blood pressure above 140/90 mm Hg 2 broad classes Primary hypertension Secondary hypertension Hypotension Blood pressure below 100/60 mm Hg

30 Hypertension Most common of blood pressure abnormalities
Primary hypertension ( 90% OF CASES) Catch all category for blood pressure elevated by variety of unknown causes rather than by a single disease entity Potential causes being investigated Defects in salt management by the kidneys Excessive salt intake Diets low in K+ and Ca2+ Plasma membrane abnormalities such as defective Na+-K+ pumps Variation in gene that encodes for angiotensinogen Endogenous digitalis-like substances Abnormalities in NO, endothelin, or other locally acting vasoactive chemicals Excess vasopressin

31 Hypertension Secondary hypertension
Accounts for about 10% of hypertension cases Occurs secondary to another known primary problem Examples of secondary hypertension Renal hypertension Endocrine hypertension Neurogenic hypertension

32 Hypertension Complication of hypertension Congestive heart failure
Stroke Heart attack Spontaneous hemorrhage Renal failure Retinal damage

33 References Human physiology by Lauralee Sherwood, seventh edition
Text book physiology by Guyton &Hall,11th edition Text book of physiology by Linda .s contanzo,third edition
