“New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. New Approaches for Teaching the Chemical.

Published by Modified over 8 years ago

Similar presentations

Presentation on theme: "“New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. New Approaches for Teaching the Chemical."— Presentation transcript:

1 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. New Approaches for Teaching the Chemical Principles of Engineering Phil Westmoreland University of Massachusetts Amherst westm@ecs.umass.edu

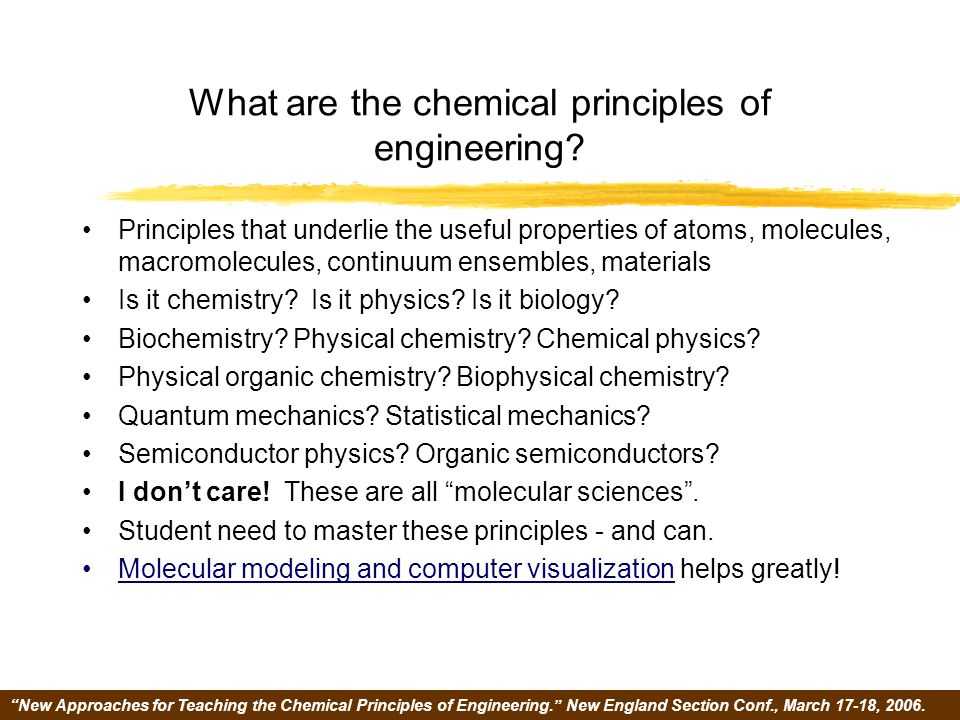

2 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. What are the chemical principles of engineering? Principles that underlie the useful properties of atoms, molecules, macromolecules, continuum ensembles, materials Is it chemistry? Is it physics? Is it biology? Biochemistry? Physical chemistry? Chemical physics? Physical organic chemistry? Biophysical chemistry? Quantum mechanics? Statistical mechanics? Semiconductor physics? Organic semiconductors? I don’t care! These are all “molecular sciences”. Student need to master these principles - and can. Molecular modeling and computer visualization helps greatly!

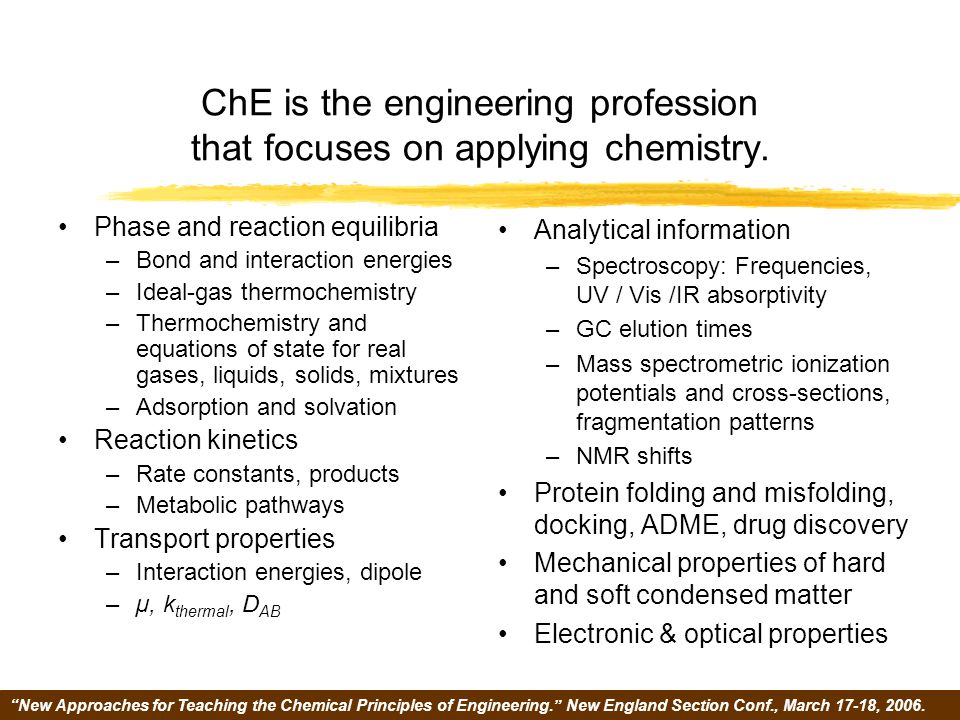

3 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. ChE is the engineering profession that focuses on applying chemistry. Phase and reaction equilibria –Bond and interaction energies –Ideal-gas thermochemistry –Thermochemistry and equations of state for real gases, liquids, solids, mixtures –Adsorption and solvation Reaction kinetics –Rate constants, products –Metabolic pathways Transport properties –Interaction energies, dipole –µ, k thermal, D AB Analytical information –Spectroscopy: Frequencies, UV / Vis /IR absorptivity –GC elution times –Mass spectrometric ionization potentials and cross-sections, fragmentation patterns –NMR shifts Protein folding and misfolding, docking, ADME, drug discovery Mechanical properties of hard and soft condensed matter Electronic & optical properties

4 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Yes, ChE is the engineering profession that focuses on applying chemistry. But mechanical engineers use many properties that are molecular in origin. –Basic thermochemistry: ∆ f Hº, C p º, Sº –P-V-T relations –Strength of materials So do civil and environmental engineers –Chemical and biological treatment –Air, water, soil properties –Effects of environment on materials And likewise electrical and computer engineers –Band gap as collective HOMO-LUMO differences.

5 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. We all need to understand the chemical principles of engineering because we all need properties. Maybe accurate, precisely known numbers. –Necessary for accurate design, costing, safety analysis. –Cost and time for calculation may be secondary. Maybe “just” accurate trends and estimates. –Often more valuable. –Correlate with data to get high-accuracy predictions. –Use to identify relationships between structure and properties. –Enormous value for product and process development, operations, and troubleshooting. Great data are best, but we must understand enough theory to predicting unmeasured properties.

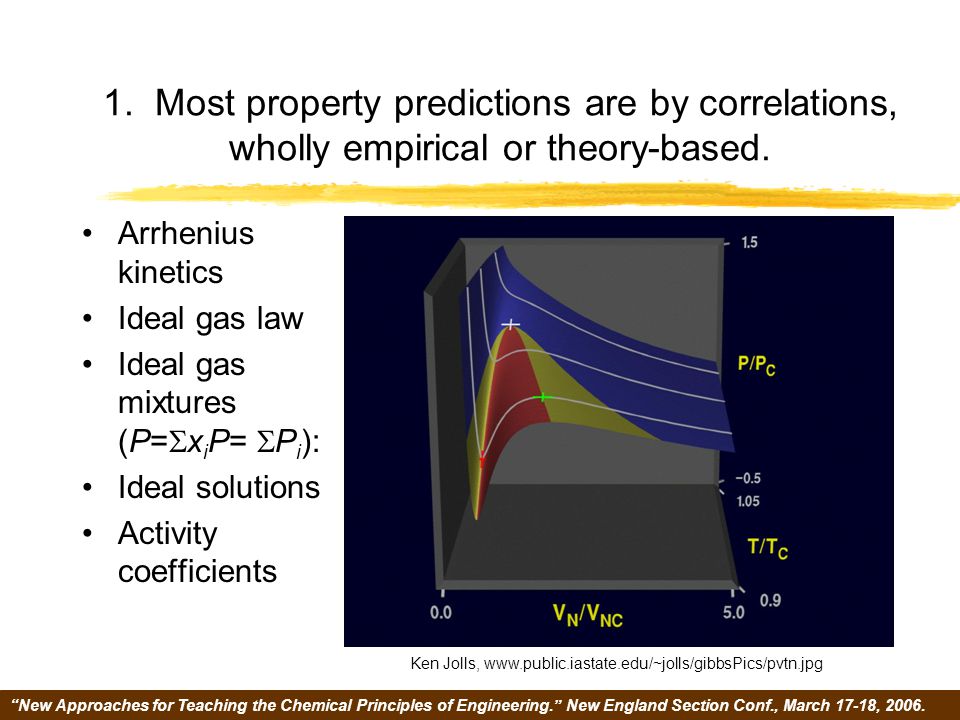

6 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. 1. Most property predictions are by correlations, wholly empirical or theory-based. Arrhenius kinetics Ideal gas law Ideal gas mixtures (P=  x i P=  P i ): Ideal solutions Activity coefficients Ken Jolls, www.public.iastate.edu/~jolls/gibbsPics/pvtn.jpg

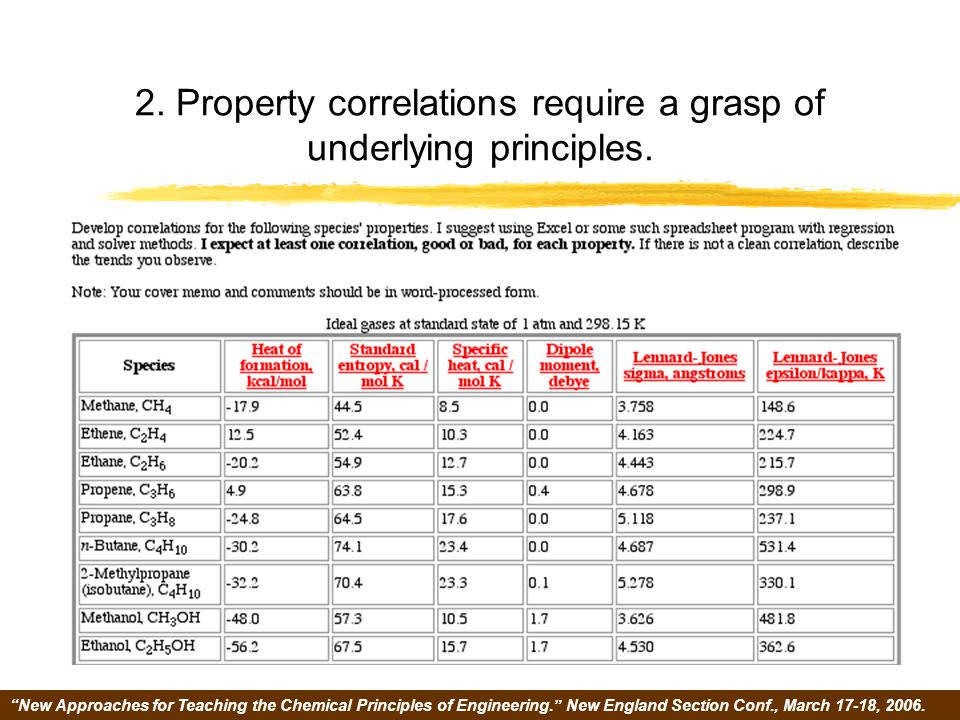

7 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. 2. Property correlations require a grasp of underlying principles.

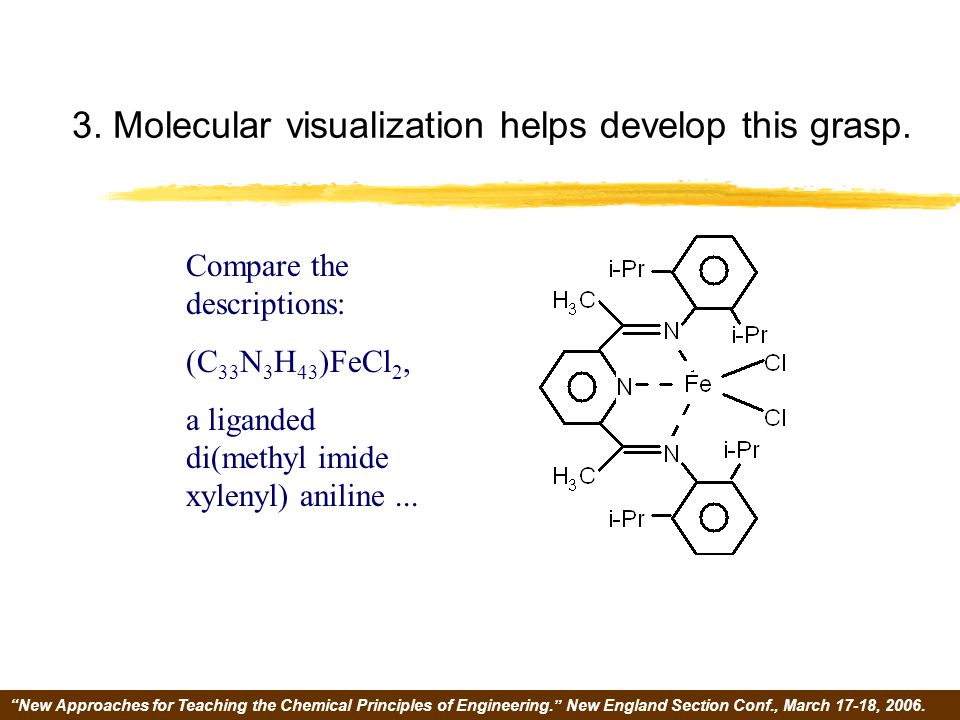

8 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. 3. Molecular visualization helps develop this grasp. Compare the descriptions: (C 33 N 3 H 43 )FeCl 2, a liganded di(methyl imide xylenyl) aniline...

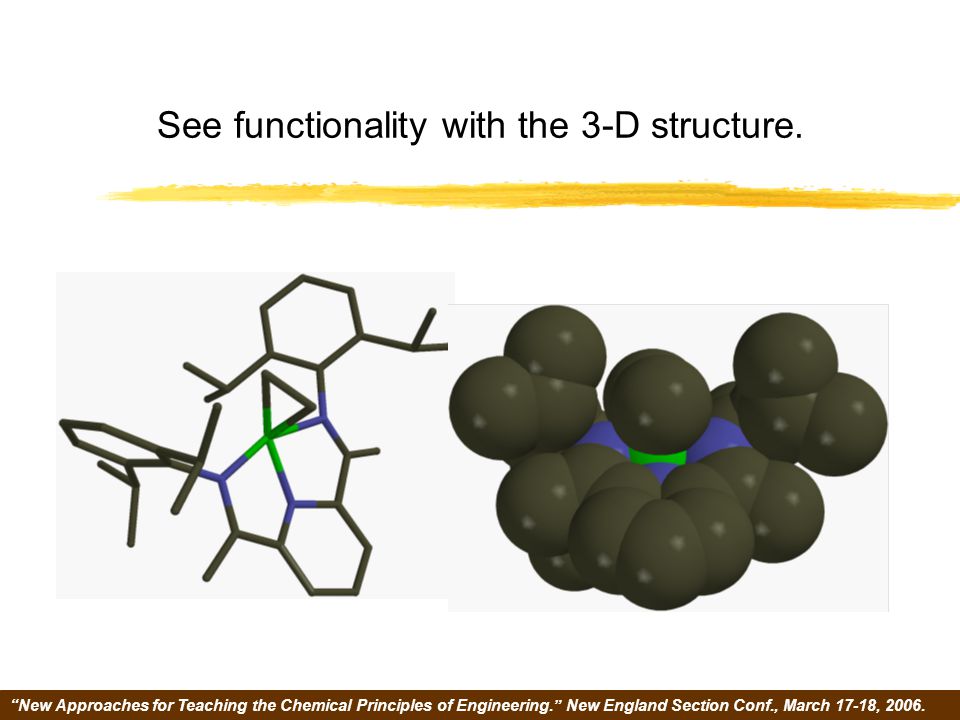

9 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. See functionality with the 3-D structure.

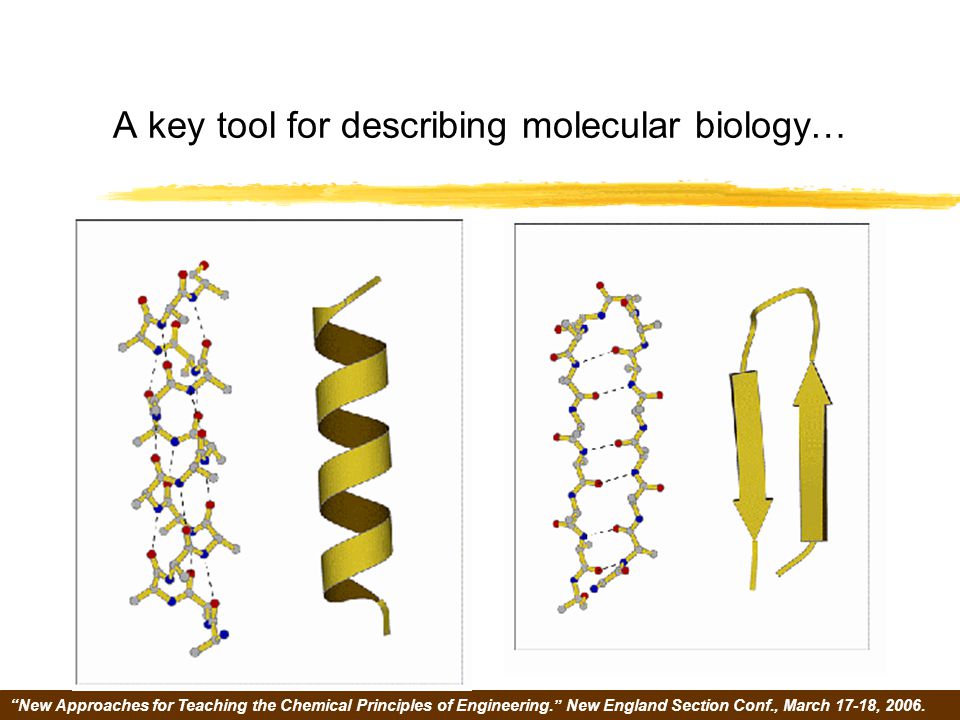

10 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. A key tool for describing molecular biology…

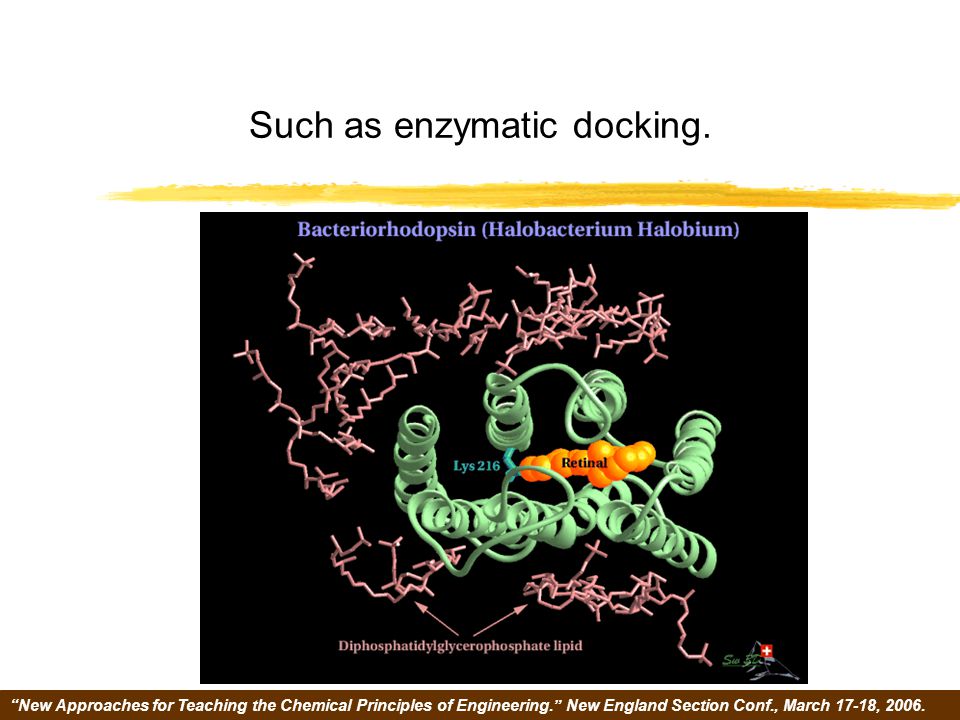

11 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Such as enzymatic docking.

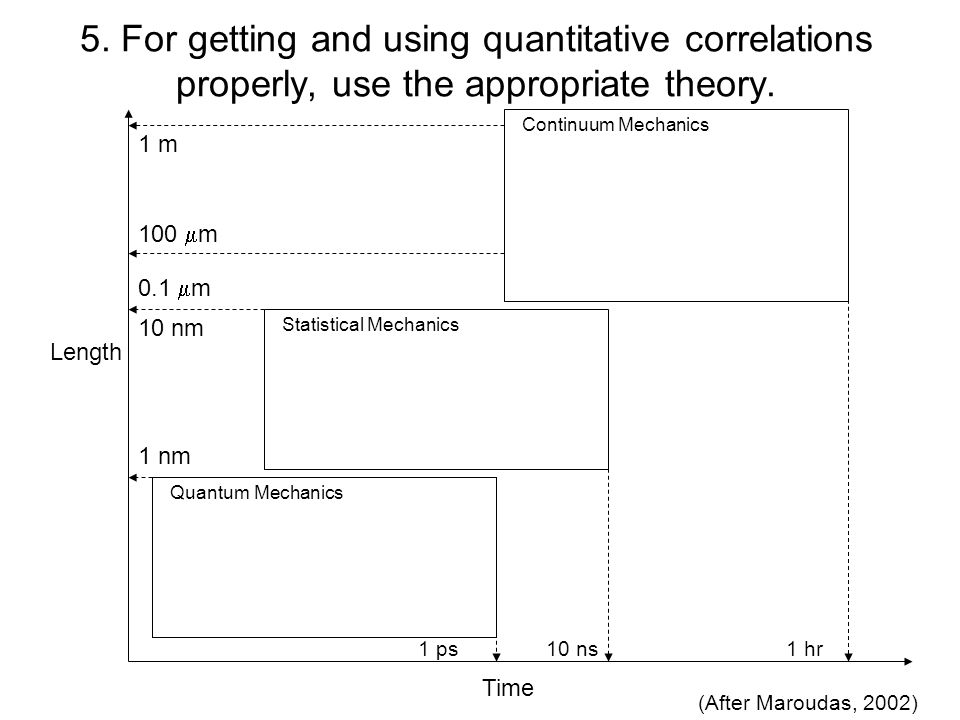

12 5. For getting and using quantitative correlations properly, use the appropriate theory. Length Time 1 m 100  m 0.1  m 10 nm 1 nm 1 ps 10 ns1 hr Continuum Mechanics Statistical Mechanics Quantum Mechanics (After Maroudas, 2002)

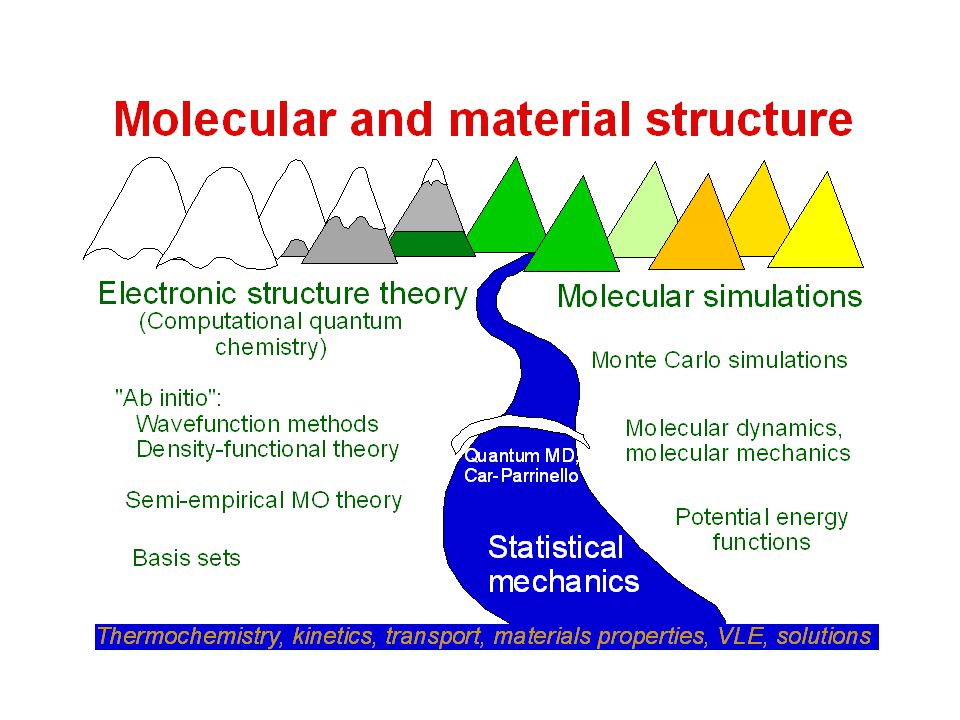

13

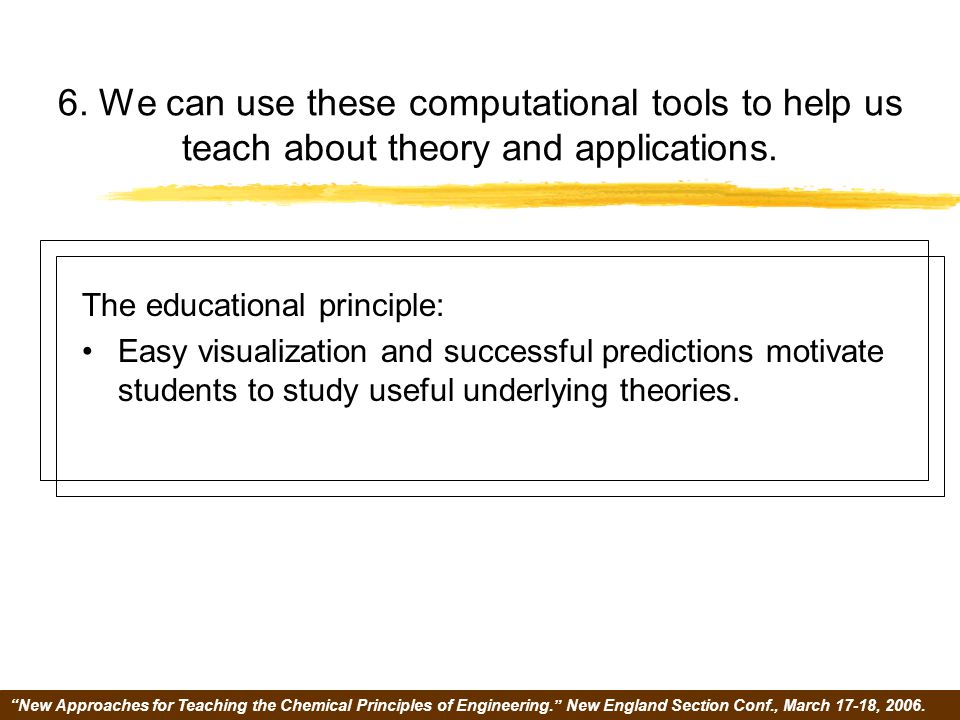

14 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. 6. We can use these computational tools to help us teach about theory and applications. The educational principle: Easy visualization and successful predictions motivate students to study useful underlying theories.

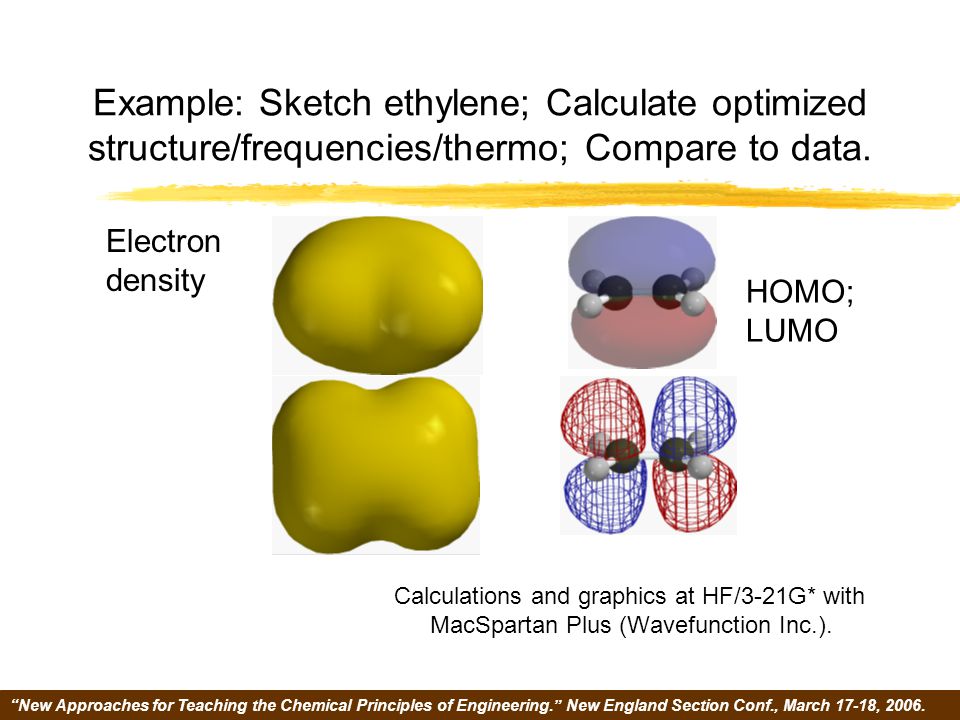

15 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Example: Sketch ethylene; Calculate optimized structure/frequencies/thermo; Compare to data. Calculations and graphics at HF/3-21G* with MacSpartan Plus (Wavefunction Inc.). Electron density HOMO; LUMO

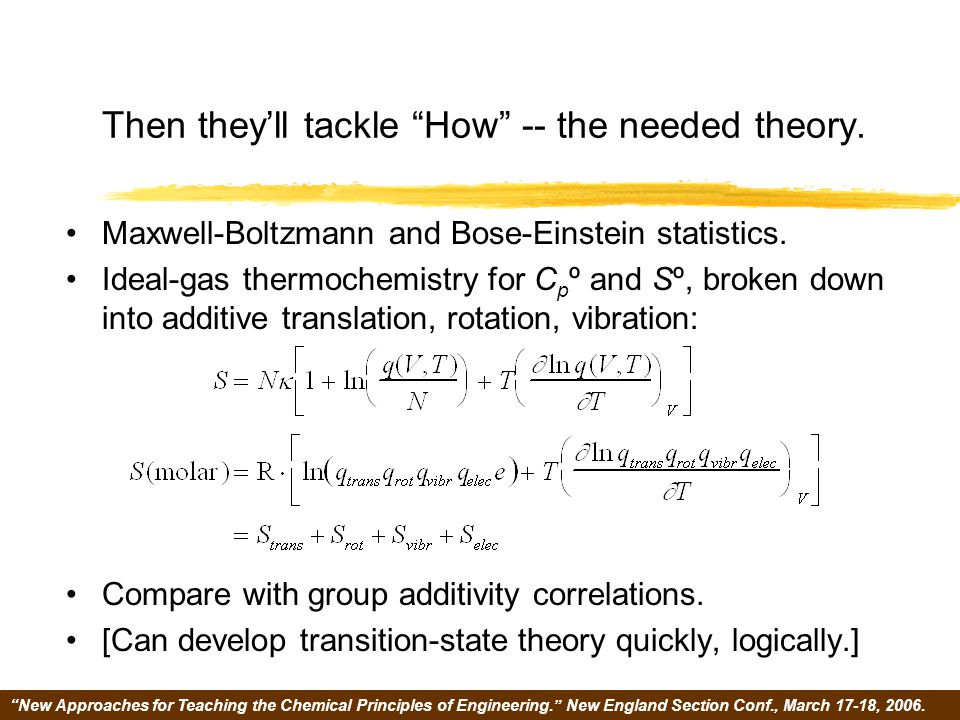

16 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Then they’ll tackle “How” -- the needed theory. Maxwell-Boltzmann and Bose-Einstein statistics. Ideal-gas thermochemistry for C p º and Sº, broken down into additive translation, rotation, vibration: Compare with group additivity correlations. [Can develop transition-state theory quickly, logically.]

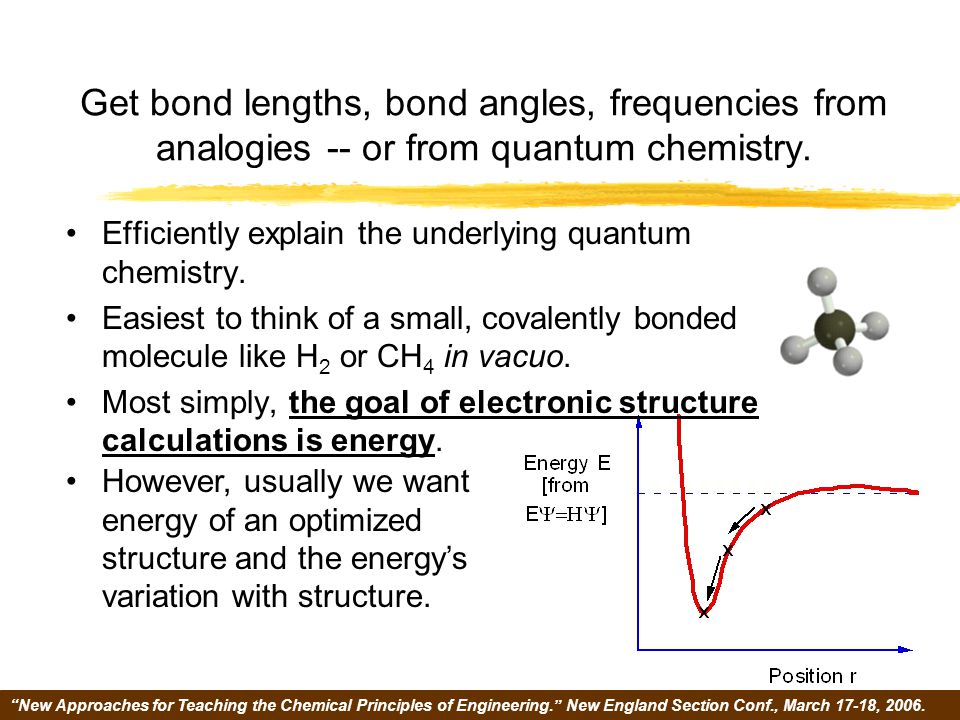

17 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Get bond lengths, bond angles, frequencies from analogies -- or from quantum chemistry. Efficiently explain the underlying quantum chemistry. Easiest to think of a small, covalently bonded molecule like H 2 or CH 4 in vacuo. Most simply, the goal of electronic structure calculations is energy. However, usually we want energy of an optimized structure and the energy’s variation with structure.

18 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. For quantum mechanics, a Hamiltonian operator is used for translational + kinetic energy. Obtain a Hamiltonian function for a wave using the Hamiltonian operator: to obtain: where  is the “wavefunction,” an eigenfunction of the equation Born recognized that  2 is the probability density function

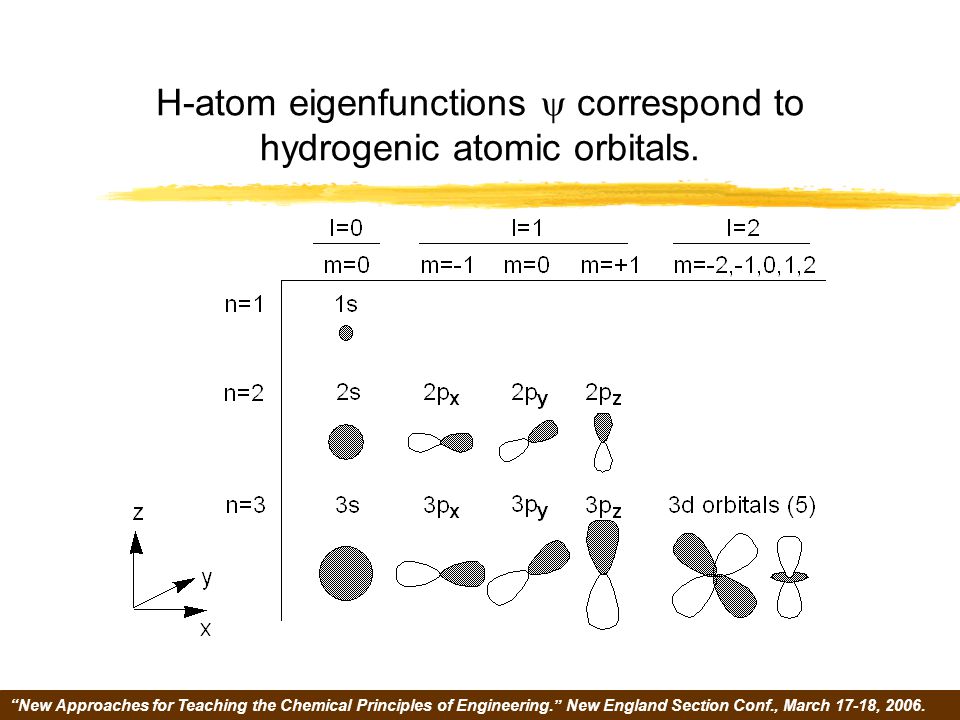

19 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. H-atom eigenfunctions  correspond to hydrogenic atomic orbitals.

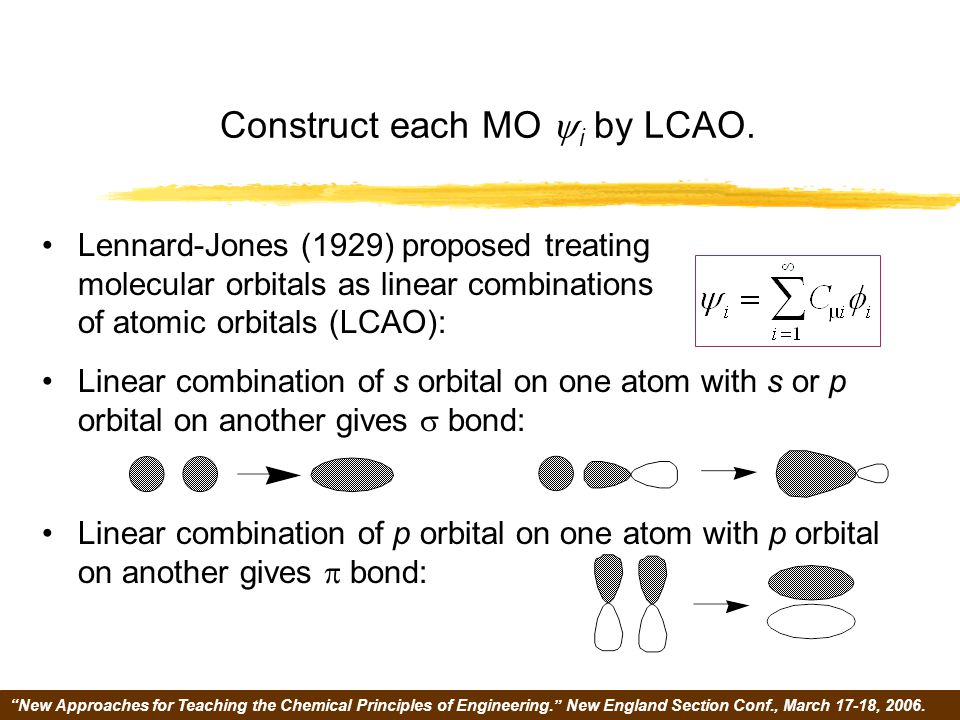

20 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Construct each MO  i by LCAO. Lennard-Jones (1929) proposed treating molecular orbitals as linear combinations of atomic orbitals (LCAO): Linear combination of p orbital on one atom with p orbital on another gives  bond: Linear combination of s orbital on one atom with s or p orbital on another gives  bond:

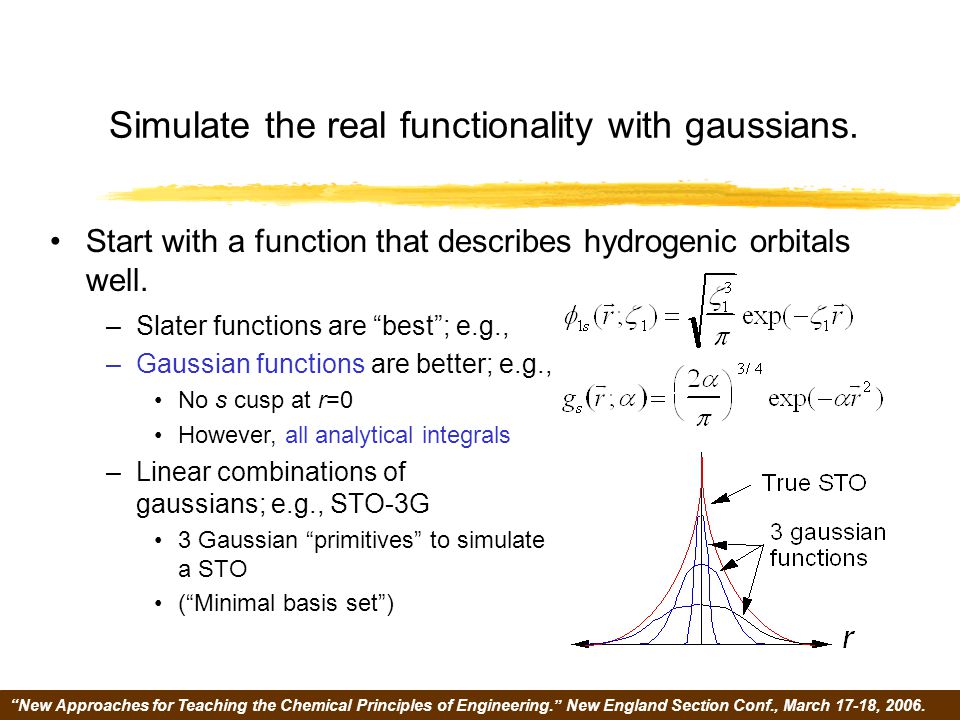

21 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Simulate the real functionality with gaussians. Start with a function that describes hydrogenic orbitals well. –Slater functions are “best”; e.g., –Gaussian functions are better; e.g., No s cusp at r=0 However, all analytical integrals –Linear combinations of gaussians; e.g., STO-3G 3 Gaussian “primitives” to simulate a STO (“Minimal basis set”)

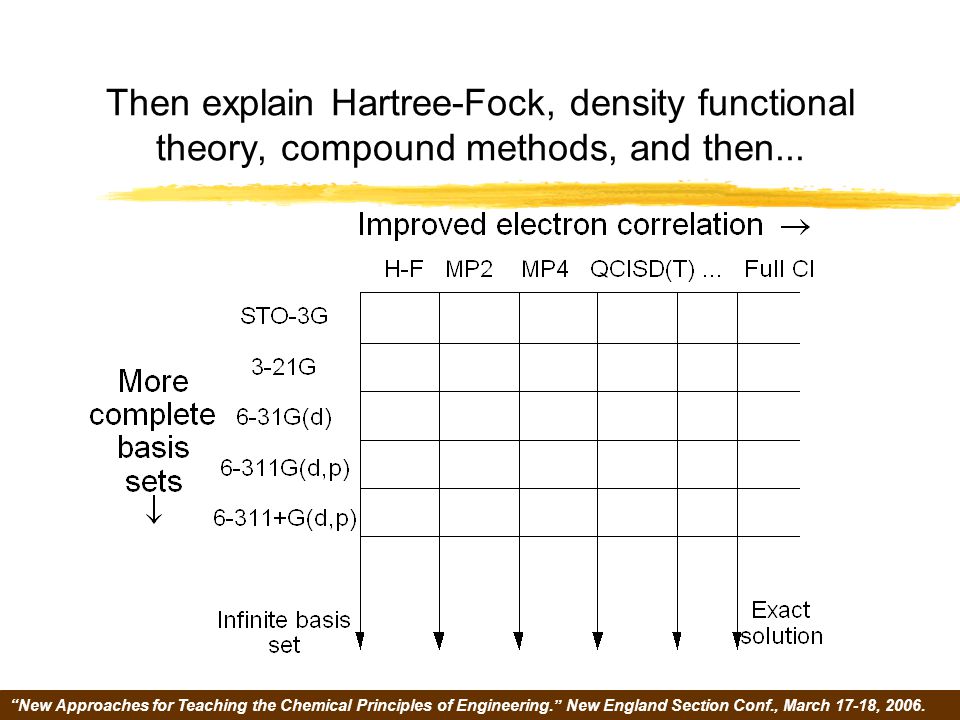

22 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Then explain Hartree-Fock, density functional theory, compound methods, and then...

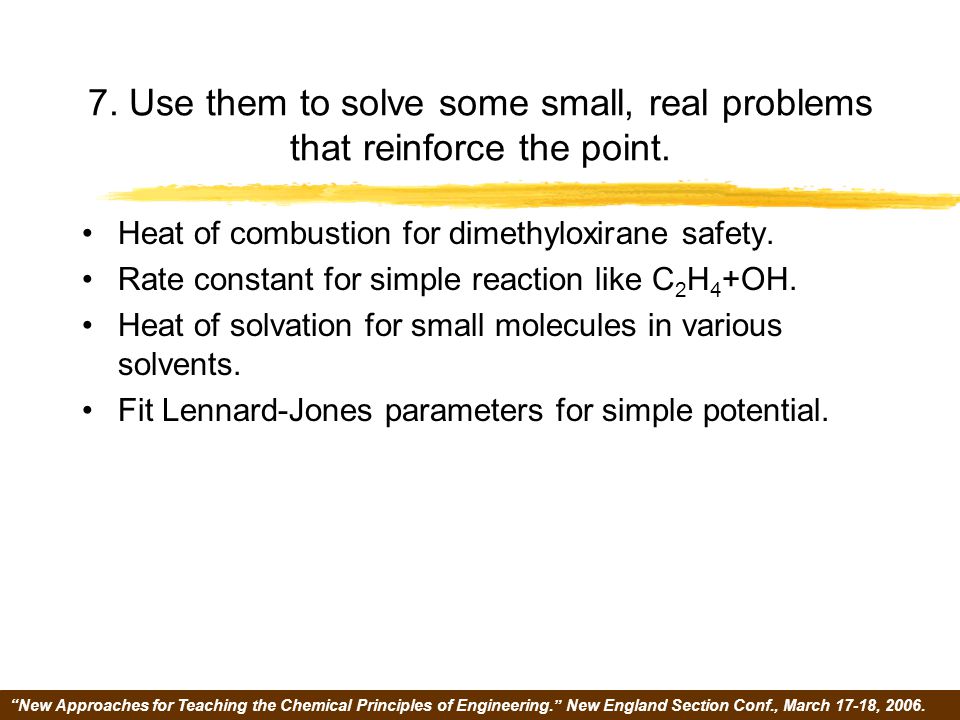

23 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. 7. Use them to solve some small, real problems that reinforce the point. Heat of combustion for dimethyloxirane safety. Rate constant for simple reaction like C 2 H 4 +OH. Heat of solvation for small molecules in various solvents. Fit Lennard-Jones parameters for simple potential.

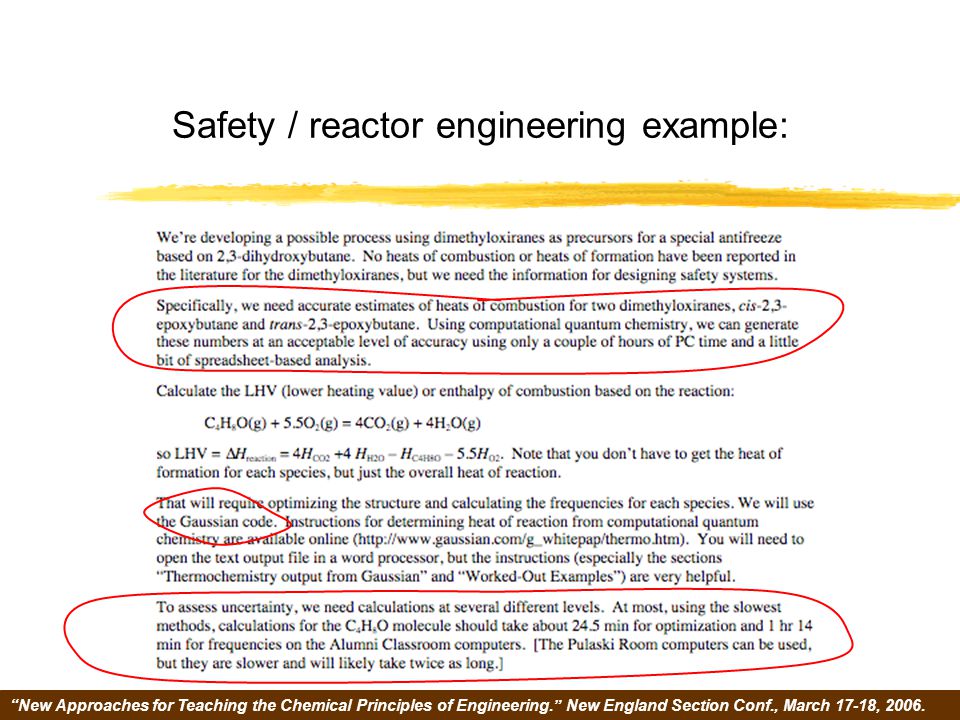

24 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Safety / reactor engineering example:

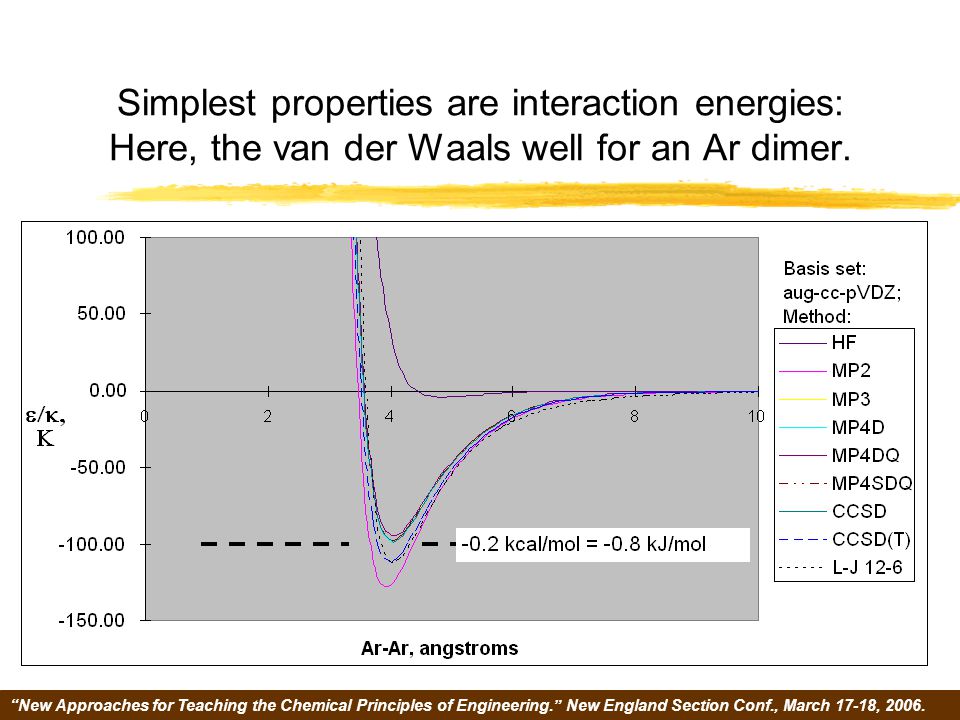

25 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. Simplest properties are interaction energies: Here, the van der Waals well for an Ar dimer.

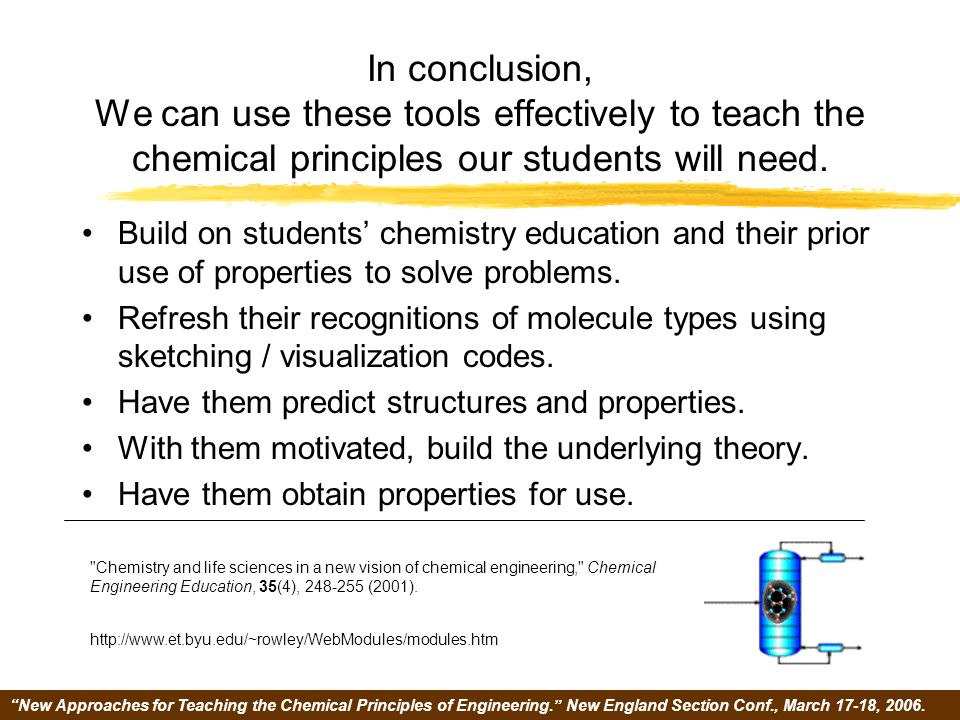

26 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006. In conclusion, We can use these tools effectively to teach the chemical principles our students will need. Build on students’ chemistry education and their prior use of properties to solve problems. Refresh their recognitions of molecule types using sketching / visualization codes. Have them predict structures and properties. With them motivated, build the underlying theory. Have them obtain properties for use. "Chemistry and life sciences in a new vision of chemical engineering," Chemical Engineering Education, 35(4), 248-255 (2001). http://www.et.byu.edu/~rowley/WebModules/modules.htm

27 “New Approaches for Teaching the Chemical Principles of Engineering.” New England Section Conf., March 17-18, 2006.
