1. Chapter 3: Recursive Algorithms
3.5 Recursion

2. What is recursion?
Sometimes, the best way to solve a problem is by solving a smaller version of the exact same problem first
Recursion is a technique that solves a problem by solving a smaller problem of the same type

3. What does this program does?
When you turn this into a program, you end up with functions that call themselves (recursive functions)
int f(int x) {
int y;
if(x==0)
return 1;
else {
y = 2 * f(x-1);
return y; }
What does this program does?

4. Problems defined recursively
There are many problems whose solution can be defined recursively
Example: n factorial
1 if n = 0
n!= (closed form solution)
1*2*3*…*(n-1)*n if n > 0
1 if n = 0
n!= (recursive solution)
(n-1)!*n if n > 0

5. Coding the factorial function
Iterative implementation
int Factorial(int n) {
int fact = 1;
for(int count = 2; count <= n; count++)
fact = fact * count;
return fact; }

6. Coding the factorial function
Recursive implementation
int Factorial(int n) {
if (n==0) // base case
return 1;
else
return n * Factorial(n-1); }

7. Recursion Recursive methods Methods that call themselves
Directly
Indirectly
Call others methods which call it
Continually breaks problem down to simpler forms
Divides the problem into two pieces:
a piece the method knows how to perform (base case)
a piece the method does no know how to perform

8. recursiveFactorial(4) return 3 * 2 =6 call4!
Final answer
call
recursiveFactorial(4)
return 3 * 2 =6
call
recursiveFactorial(3)
return 2 * 1 =2
call
recursiveFactorial(2)
return 1 * 1 =1
call
recursiveFactorial(1)
return 1
call
recursiveFactorial(0)

9. Conditions for Valid Recursion
For recursive functions to work, the following two conditions must be met:
There must be a basis step ( base case) where the input value or size is
the smallest possible, and
in which case the processing is non-recursive.
The input (parameters) of every recursive call must be smaller in value or size than the input of the original function

10. Illustration of the Conditions
long factorial(int n){
if (n==0) return 1; // basis step. Input value n is minimum (0).
long m=factorial(n-1); // recursion. Input value of recursive call is n-1<n
m *=n;
return m; }

11. Recursion vs. iteration
Iteration can be used in place of recursion and vice versa
An iterative algorithm uses a looping construct
A recursive algorithm uses a branching structure
Recursion can simplify the solution of a problem, often resulting in shorter, more easily understood source code
Recursive solutions are often less efficient, in terms of both time and space, than iterative solutions

12. How is recursion implemented?
What happens when a function gets called?
int a(int w) {
return w+w; }
int b(int x)
int z,y;
 ……………… // other statements
z = a(x) + y;
return z;

13. What happens when a function is called? (cont.)
An activation record is stored into a stack (run-time stack)
The computer has to stop executing function b and starts executing function a
Since it needs to come back to function b later, it needs to store everything about function b that is going to need (x, y, z, and the place to start executing upon return)
Then, w of a is bounded to x from b
Control is transferred to function a

14. What happens when a function is called? (cont.)
After function a is executed, the activation record is popped out of the run-time stack
All the old values of the parameters and variables in function b are restored and the return value of function a replaces a(x) in the assignment statement

15. What happens when a recursive function is called?
Except the fact that the calling and called functions have the same name, there is really no difference between recursive and nonrecursive calls
int f(int x) {
int y;
if(x==0)
return 1;
else {
y = 2 * f(x-1);
return y+1; }

16. int f(int x) { int y; if(x==0) return 1; else { y = 2 * f(x-1);
if(x==0)
return 1;
else {
y = 2 * f(x-1);
return y+1; }
2*f(1)
2*f(0)
=f(0)
=f(1)
=f(2)
=f(3)

17. Recursion can (sometimes) be very inefficient: Deciding whether to use a recursive solution
When the depth of recursive calls is relatively "shallow"
The recursive version is shorter and simpler than the nonrecursive solution
The recursive version does about the same amount of work as the nonrecursive version

18. How do I write a recursive function?
Determine the size factor
Determine the base case(s)
(the one for which you know the answer)
Determine the general case(s)
(the one where the problem is expressed as a smaller version of itself)
Verify the algorithm
(use the "Three-Question-Method")

19. Three-Question Verification Method
The Base-Case Question:
Is there a nonrecursive way out of the function, and does the routine works correctly for this "base" case?
The Smaller-Caller Question:
Does each recursive call to the function involve a smaller case of the original problem, leading inescapably to the base case?
The General-Case Question:
Assuming that the recursive call(s) work correctly, does the whole function work correctly?

20. Example of Recursion
Example 3.1: Modern operating systems define file-system directories (which are also sometimes called "folders") in a recursive way.
Namely, a file system consists of a top-level directory, and the contents of this directory consists of files and other directories, which in turn can contain files and other directories, and so on.
The base directories in the file system contain only files, but by using this recursive definition, the operating system allows for directories to be nested arbitrarily deep.
Example 3.2: An argument list in Java using the following notation:
argument-list:
            argument
            argument-list, argument
In other words, an argument list consists of either
(i) an argument or
(ii) an argument list followed by a comma and an argument.

21. Linear Recursion
The simplest form of recursion is linear recursion, where a method is defined so that it makes at most one recursive call each time it is invoked.
This type of recursion is useful when we view an algorithmic problem in terms of a first or last element plus a remaining set that has the same structure as the original set.

22. Summing the Elements of an Array Recursively
We can solve this summation problem using linear recursion by observing that the sum of all n integers in A is
Equal to A[0], if n = 1, or
The sum of the first n − 1 integers in A plus the last element in A

23. Analyzing Recursive Algorithms using Recursion Traces
Figure 3.24: Recursion trace for an execution of LinearSum(A,n) with input parameters A = {4,3,6,2,5} and n = 5.

24. Reversing an Array by Recursion
The problem of reversing the n elements of an array, A, so that the first element becomes the last, the second element becomes second to the last, and so on.
We can solve this problem using linear recursion, by observing that the reversal of an array can be achieved by swapping the first and last elements and then recursively reversing the remaining elements in the array.

25. Reversing an Array by Recursion
Code Fragment 3.32: Reversing the elements of an array using linear recursion.

26. Tail Recursion
Using recursion can often be a useful tool for designing algorithms that have elegant, short definitions.
When we use a recursive algorithm to solve a problem, we have to use some of the memory locations in our computer to keep track of the state of each active recursive call.
We can use the stack data structure, to convert a recursive algorithm into a nonrecursive algorithm, but there are some instances when we can do this conversion more easily and efficiently. Specifically, we can easily convert algorithms that use tail recursion.
An algorithm uses tail recursion if it uses linear recursion and the algorithm makes a recursive call as its very last operation.
For example, the algorithm of Code Fragment 3.31 does not use tail recursion, even though its last statement includes a recursive call. This recursive call is not actually the last thing the method does. After it receives the value returned from the recursive call, it adds this value to A [n − 1] and returns this sum. That is, the last thing this algorithm does is an add, not a recursive call.
When an algorithm uses tail recursion, we can convert the recursive algorithm into a nonrecursive one, by iterating through the recursive calls rather than calling them explicitly.

27. Tail Recursion
Code Fragment 3.33: Reversing the elements of an array using iteration.

28. Binary Recursion
When an algorithm makes two recursive calls, we say that it uses binary recursion.
These calls can, for example, be used to solve two similar halves of some problem
As another application of binary recursion, let us revisit the problem of summing the n elements of an integer array A.
In this case, we can sum the elements in A by:
(i) recursively summing the elements in the first half of A;
(ii) recursively summing the elements in the second half of A;
(iii) adding these two values together.

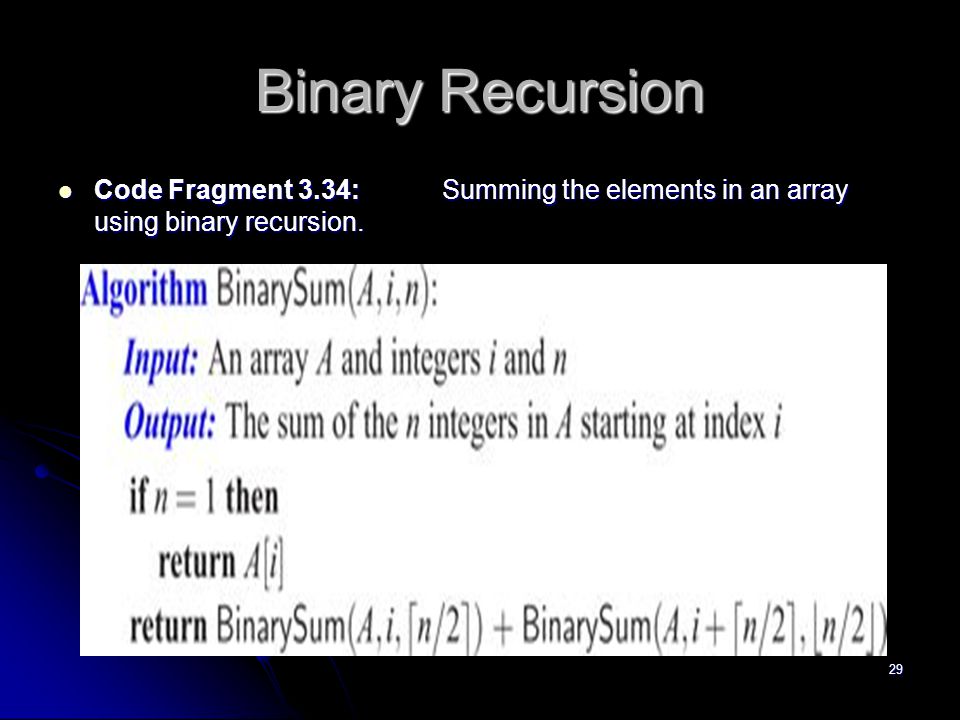

29. Binary Recursion
Code Fragment 3.34: Summing the elements in an array using binary recursion.

30. Binary Recursion
To analyze Algorithm BinarySum, we consider, for simplicity, the case where n is a power of two.
Figure 3.25 shows the recursion trace of an execution of method BinarySum(0,8).
We label each box with the values of parameters i and n, which represent the starting index and length of the sequence of elements to be reversed.
Notice that the arrows in the trace go from a box labeled (i,n) to another box labeled (i,n/2) or (i + n/2,n/2). That is, the value of parameter n is halved at each recursive.

31. Binary Recursion
The depth of the recursion, that is, the maximum number of method instances that are active at the same time, is 1 + log2n.
Thus, Algorithm BinarySum uses an amount of additional space roughly proportional to this value. This is a big improvement over the space needed by the LinearSum method of Code Fragment 3.31.
The running time of Algorithm BinarySum is still roughly proportional to n, however, since each box is visited in constant time when stepping through our algorithm and there are 2n − 1 boxes.

32. Merge-Sort
Merge-sort, can be described in a simple and compact way using recursion.
Divide-and-Conquer
Merge-sort is based on an algorithmic design pattern called divide-and-conquer.
The divide-and-conquer pattern consists of the following three steps:
1. Divide: If the input size is smaller than a certain threshold (say, one or two elements), solve the problem directly using a straightforward method and return the solution so obtained. Otherwise, divide the input data into two or more disjoint subsets.
2. Recur: Recursively solve the subproblems associated with the subsets.
3. Conquer: Take the solutions to the subproblems and "merge" them into a solution to the original problem.

33. Merge Sort: Idea A A is sorted! Divide into two halves
FirstPart
SecondPart
Recursively sort
SecondPart
FirstPart
Merge
A is sorted!

34. Merge-Sort: Merge A: merge A: Sorted Sorted FirstPart
Sorted SecondPart A:
A[left]
A[middle]
A[right]

35. Merge-Sort: Merge Example2 3 7 8 5 15 28 30 6 10 14 1 4 5 6 6 10 14 22 3 5 15 28 L: R:
Temporary Arrays

36. Merge-Sort: Merge Example3 1 5 15 28 30 6 10 14
k=0 L: R: 3 2 15 3 7 28 8 30 1 6 4 10 5 14 6 22
i=0
j=0

37. Merge-Sort: Merge Example1 2 5 15 28 30 6 10 14
k=1 L: R: 2 3 5 3 7 15 28 8 1 6 10 4 5 14 6 22
i=0
j=1

38. Merge-Sort: Merge Example1 2 3 15 28 30 6 10 14
k=2 L: R: 2 3 7 8 1 6 4 10 5 14 22 6
i=1
j=1

39. Merge-Sort: Merge Example1 2 3 4 6 10 14
k=3 L: R: 2 3 7 8 6 1 10 4 14 5 6 22
i=2
j=1

40. Merge-Sort: Merge Example1 2 3 4 5 6 10 14
k=4 L: R: 2 3 7 8 6 1 4 10 14 5 6 22
i=2
j=2

41. Merge-Sort: Merge Example1 2 3 4 5 6 6 10 14
k=5 L: R: 2 3 7 8 6 1 10 4 5 14 22 6
i=2
j=3

42. Merge-Sort: Merge Example1 2 3 4 5 6 7 14
k=6 L: R: 2 3 7 8 6 1 4 10 5 14 22 6
i=2
j=4

43. Merge-Sort: Merge Example1 2 3 4 5 6 7 8 14
k=7 L: R: 2 3 3 5 7 15 8 28 1 6 10 4 14 5 6 22
i=3
j=4

44. Merge-Sort: Merge Example1 2 3 4 5 6 7 8
k=8 L: R: 2 3 3 5 7 15 8 28 1 6 10 4 5 14 22 6
j=4
i=4

45. Divide and Conquer Examples
Binary search
Quicksort
Merge Sort
Tree traversals

46. Merge-Sort Using Divide-and-Conquer for Sorting
Recall that in a sorting problem we are given a sequence of n objects, stored in a linked list or an array, together with some comparator defining a total order on these objects, and we are asked to produce an ordered representation of these objects.
To allow for sorting of either representation, we will describe our sorting algorithm at a high level for sequences and explain the details needed to implement it for linked lists and arrays.
To sort a sequence S with n elements using the three divide-and-conquer steps, the merge-sort algorithm proceeds as follows:

47. Merge-Sort Divide: 2. Recur: Recursively sort sequences S1 and S2.
If S has zero or one element, return S immediately; it is already sorted.
Otherwise (S has at least two elements), remove all the elements from S and put them into two sequences, S1 and S2, each containing about half of the elements of S;
that is, S1 contains the first ⌈n/2⌉ elements of S,
and S2 contains the remaining ⌊n/2⌋ elements.
2. Recur: Recursively sort sequences S1 and S2.
3. Conquer: Put back the elements into S by merging the sorted sequences S1 and S2 into a sorted sequence.

48. Merge-Sort
Merge-sort on an input sequence S with n elements consists of three steps:
Divide: partition S into two sequences S1 and S2 of about n/2 elements each
Recur: recursively sort S1 and S2
Conquer: merge S1 and S2 into a unique sorted sequence
Algorithm mergeSort(S, C)
Input sequence S with n elements, comparator C
Output sequence S sorted
according to C
if S.size() > 1
(S1, S2)  partition(S, n/2)
mergeSort(S1, C)
mergeSort(S2, C)
S  merge(S1, S2)

49. Merge-Sort Tree
An execution of merge-sort is depicted by a binary tree
each node represents a recursive call of merge-sort and stores
unsorted sequence before the execution and its partition
sorted sequence at the end of the execution
the root is the initial call
the leaves are calls on subsequences of size 0 or 1
7 2  
7  2  2 7
9  4  4 9
7  7
2  2
9  9
4  4

50. Execution Example Partition 7 2 9 4  3 8 6 1  1 2 3 4 6 7 8 9
   
7 2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

51. Execution Example (cont.)
Recursive call, partition
 
7 2  9 4  
7 2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

52. Execution Example (cont.)
Recursive call, partition
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

53. Execution Example (cont.)
Recursive call, base case
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

54. Execution Example (cont.)
Recursive call, base case
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

55. Execution Example (cont.)
Merge
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

56. Execution Example (cont.)
Recursive call, …, base case, merge
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

57. Execution Example (cont.)
Merge
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

58. Execution Example (cont.)
Recursive call, …, merge, merge
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

59. Execution Example (cont.)
Merge
 
7 2  9 4  
7  2  2 7
9 4  4 9
3 8  3 8
6 1  1 6
7  7
2  2
9  9
4  4
3  3
8  8
6  6
1  1

60. Analysis of Merge-Sort
The height h of the merge-sort tree is O(log n)
at each recursive call we divide in half the sequence,
The overall amount or work done at the nodes of depth i is O(n)
we partition and merge 2i sequences of size n/2i
we make 2i+1 recursive calls
Thus, the total running time of merge-sort is O(n log n)
depth
#seqs
size 1 n 2
n/2 i 2i
n/2i …

61. Summary of Sorting Algorithms
Time
Notes
selection-sort
O(n2)
slow
in-place
for small data sets (< 1K)
insertion-sort
heap-sort
O(n log n)
fast
for large data sets (1K — 1M)
merge-sort
sequential data access
for huge data sets (> 1M)
