1. Refactoring Functional Programs Huiqing Li Claus Reinke Simon Thompson Computing Lab, University of Kent

2. SBLP 20032 Refactoring Refactoring means changing the design of program … … without changing its behaviour. Refactoring comes in many forms micro refactoring as a part of program development major refactoring as a preliminary to revision as a part of debugging, … As programmers, we do all the time.

3. SBLP 20033 Refactoring functional programs What is possible? What is different about functional programs? Building a usable tool vs. … … building a tool that will be used. Reflection on language design. Experience, demonstration, next steps.

4. SBLP 20034 Refactoring Paper or presentation moving sections about; amalgamate sections; move inline code to a figure; animation; … Proof introduce lemma; remove, amalgamate hypotheses, … Program the topic of the lecture

5. SBLP 20035 Overview Example refactorings Refactoring functional programs Generalities Tooling: demo, rationale, design. Catalogue of refactorings Larger-scale examples … and a case study Conclusions

6. SBLP 20036 Rename f x y = …  Name may be too specific, if the function is a candidate for reuse. findMaxVolume x y = …  Make the specific purpose of the function clearer. Needs scope information: just change this f and not all f s (e.g. local definitions or variables).

7. SBLP 20037 Lift / demote f x y = … h … where h = …  Hide a function which is clearly subsidiary to f ; clear up the namespace. f x y = … (h y) … h y = …  Makes h accessible to the other functions in the module (and beyond?). Needs free variable information: which of the parameters of f is used in the definition of h ? Need h not to be defined at the top level, …, DMR.

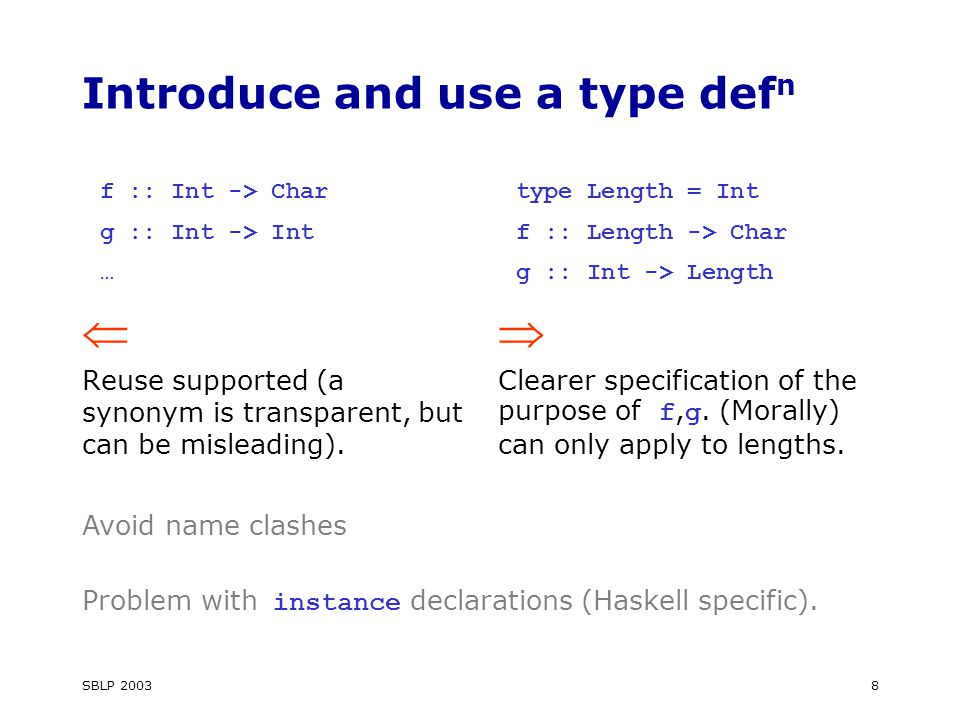

8. SBLP 20038 Introduce and use a type def n f :: Int -> Char g :: Int -> Int …  Reuse supported (a synonym is transparent, but can be misleading). type Length = Int f :: Length -> Char g :: Int -> Length  Clearer specification of the purpose of f, g. (Morally) can only apply to lengths. Avoid name clashes Problem with instance declarations (Haskell specific).

9. SBLP 20039 Introduce and use branded type f :: Int -> Char g :: Int -> Int …  Reuse supported, but lose the clarity of specification. data Length = Length {length::Int} f :: Length -> Char g :: Int -> Length  Can only apply to lengths. Needs function call information: where are (these definitions of) f and g called? Change the calls of f … and the call sites of g. Choice of data and newtype (Haskell specific).

10. SBLP 200310 Lessons from the first examples Changes are not limited to a single point or even a single module: diffuse and bureaucratic … … unlike traditional program transformation. Many refactorings bidirectional … … there is no single correct design.

11. SBLP 200311 Refactoring functional programs Semantics: can articulate preconditions and … … verify transformations. Absence of side effects makes big changes predictable and verifiable … … unlike OO. XP is second nature to a functional programmer. Language support: expressive type system, abstraction mechanisms, HOFs, …

12. SBLP 200312 Composing refactorings Interesting refactorings can be built from simple components … … each of which looks trivial in its own right. A set of examples … … which we have implemented.

13. SBLP 200313 Example program showAll :: Show a => [a] -> String showAll = table. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

14. SBLP 200314 Examples Lift definitions from local to global Demote a definition before lifting its container Lift a definition with dependencies

15. SBLP 200315 Example 1 showAll :: Show a => [a] -> String showAll = table. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

16. SBLP 200316 Example 1 lift showAll :: Show a => [a] -> String showAll = table. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

17. SBLP 200317 Example 1 showAll :: Show a => [a] -> String showAll = table. map show where table :: [String] -> String table = concat. format format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

18. SBLP 200318 Example 1 lift showAll :: Show a => [a] -> String showAll = table. map show where table :: [String] -> String table = concat. format format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

19. SBLP 200319 Example 1 showAll :: Show a => [a] -> String showAll = table. map show table :: [String] -> String table = concat. format format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

20. SBLP 200320 Example 2 showAll :: Show a => [a] -> String showAll = table. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

21. SBLP 200321 Example 2 demote showAll :: Show a => [a] -> String showAll = table. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

22. SBLP 200322 Example 2 showAll :: Show a => [a] -> String showAll = table. map show where table :: [String] -> String table = concat. format where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

23. SBLP 200323 Example 2 lift showAll :: Show a => [a] -> String showAll = table. map show where table :: [String] -> String table = concat. format where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

24. SBLP 200324 Example 2 showAll :: Show a => [a] -> String showAll = table. map show table :: [String] -> String table = concat. format where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

25. SBLP 200325 Example 2 lift showAll :: Show a => [a] -> String showAll = table. map show table :: [String] -> String table = concat. format where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

26. SBLP 200326 Example 2 showAll :: Show a => [a] -> String showAll = table. map show table :: [String] -> String table = concat. format format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

27. SBLP 200327 Example 3 showAll :: Show a => [a] -> String showAll = table. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

28. SBLP 200328 Example 3 lift with dependencies showAll :: Show a => [a] -> String showAll = table. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

29. SBLP 200329 Example 3 showAll :: Show a => [a] -> String showAll = table format. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table format = concat. format

30. SBLP 200330 Example 3 rename showAll :: Show a => [a] -> String showAll = table format. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table format = concat. format

31. SBLP 200331 Example 3 showAll :: Show a => [a] -> String showAll = table format. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table fmt = concat. fmt

32. SBLP 200332 Example 3 lift showAll :: Show a => [a] -> String showAll = table format. map show where format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table fmt = concat. fmt

33. SBLP 200333 Example 3 showAll :: Show a => [a] -> String showAll = table format. map show format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table fmt = concat. fmt

34. SBLP 200334 Example 3 unfold/inline showAll :: Show a => [a] -> String showAll = table format. map show format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table fmt = concat. fmt

35. SBLP 200335 Example 3 showAll :: Show a => [a] -> String showAll = (concat. format). map show format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table fmt = concat. fmt

36. SBLP 200336 Example 3 delete showAll :: Show a => [a] -> String showAll = (concat. format). map show format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: ([String] -> [String]) -> [String] -> String table fmt = concat. fmt

37. SBLP 200337 Example 3 showAll :: Show a => [a] -> String showAll = (concat. format). map show format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs

38. SBLP 200338 Example 3 new definition showAll :: Show a => [a] -> String showAll = (concat. format). map show format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table Name?

39. SBLP 200339 Example 3 showAll :: Show a => [a] -> String showAll = table. map show format :: [String] -> [String] format [] = [] format [x] = [x] format (x:xs) = (x ++ "\n") : format xs table :: [String] -> String table = concat. format

40. SBLP 200340 Beyond the text editor All the refactorings can – in principle – be implemented using a text editor, but this is tedious, error-prone, difficult to reverse, … With machine support refactoring becomes low-cost: easy to do and to undo, reliable, a full part of the programmer's repertoire.

41. SBLP 200341 Information needed Syntax: replace the function called sq, not the variable sq …… parse tree. Static semantics: replace this function sq, not all the sq functions …… scope information. Module information: what is the traffic between this module and its clients …… call graph. Type information: replace this identifier when it is used at this type …… type annotations.

42. SBLP 200342 Machine support invaluable Current practice: editor + type checker (+ tests). Our project: automated support for a repertoire of refactorings … … integrated into the existing development process: tools such as vim and emacs. Demonstration of the tool, hosted in vim.

43. SBLP 200343 Proof of concept … To show proof of concept it is enough to: build a stand-alone tool, work with a subset of the language, ‘pretty print’ the refactored source code in a standard format.

44. SBLP 200344 … or a useful tool? To make a tool that will be used we must: integrate with existing program development tools: the program editors emacs and vim. work with the complete Haskell 98 language, preserve the formatting and comments in the refactored source code.

45. SBLP 200345 Consequences To achieve this we chose to: build a tool that can interoperate with emacs, vim, … yet act separately. leverage existing libraries for processing Haskell 98, for tree transformation, yet … … modify them as little as possible. be as portable as possible, in the Haskell space.

46. SBLP 200346 The Haskell background Libraries parser:many type checker:few tree transformations:few Difficulties Haskell98 vs. Haskell extensions. Libraries: proof of concept vs. distributable. Source code regeneration. Real project

47. SBLP 200347 First steps … lifting and friends Use the Haddock parser … full Haskell given in 500 lines of data type definitions. Work by hand over the Haskell syntax: 27 cases for expressions … Code for finding free variables, for instance …

48. SBLP 200348 Finding free variables … 100 lines instance FreeVbls HsExp where freeVbls (HsVar v) = [v] freeVbls (HsApp f e) = freeVbls f ++ freeVbls e freeVbls (HsLambda ps e) = freeVbls e \\ concatMap paramNames ps freeVbls (HsCase exp cases) = freeVbls exp ++ concatMap freeVbls cases freeVbls (HsTuple _ es) = concatMap freeVbls es … etc.

49. SBLP 200349 This approach Boiler plate code … … 1000 lines for 100 lines of significant code. Error prone: significant code lost in the noise. Want to generate the boiler plate and the tree traversals … … DriFT: Winstanley, Wallace … Strafunski: Lämmel and Visser

50. SBLP 200350 Strafunski Strafunski allows a user to write general (read generic) tree traversing programs … … with ad hoc behaviour at particular points. Traverse through the tree accumulating free variables from component parts, except in the case of lambda abstraction, local scopes, … Strafunski allows us to work within Haskell … other options are under development.

51. SBLP 200351 Production tool (version 0) Programatica parser and type checker Refactor using a Strafunski engine Pretty print from the augmented Programatica syntax tree

52. SBLP 200352 Production tool (version 1) Programatica parser and type checker Refactor using a Strafunski engine Pretty print from the augmented Programatica syntax tree Pass lexical information to update the syntax tree and so avoid reparsing

53. SBLP 200353 Experience so far We can do it … but … efficiency formalising static semantics change management (CVS etc.) user interface interface to other tools problems of getting code to work different systems working together clash of instance : global problem Haskell in the large (e.g. 20 minute link time)

54. SBLP 200354 Catalogue of refactorings name (a phrase) label (a word) description left-hand code right-hand code comments l to r r to l general primitive / composed cross-references internal external (Fowler) category (just one) or … … classifiers (keywords) language specific (Haskell, ML etc.) feature (lazy etc.) conditions left / right analysis required (e.g. names, types, semantic info.) which equivalence? version info date added revision number

55. SBLP 200355 Preconditions

56. SBLP 200356 Preconditions: renaming The existing binding structure must not be affected. No binding for the new name may exist in the same binding group. No binding for the new name may intervene between the binding of the old name and any of its uses … … as the renamed identifier would be captured by the renaming. Conversely, the binding to be renamed must not intervene between bindings and uses of the new name.

57. SBLP 200357 Preconditions: lifting Widening the scope of the binding must not capture independent uses of the name in the outer scope. There should be no existing definition of the name in the outer binding group (irrespective of whether or not it is used). The binding to be promoted must not make use of bindings in the inner scope. Instead lambda lift over these; extra conds apply: The binding must be a simple binding of a function or constant, not a pattern. Any argument must not be used polymorphically.

58. SBLP 200358 Larger-scale examples More complex examples in the functional domain; often link with data types. Dawning realisation that can some refactorings are pretty powerful. Bidirectional … no right answer.

59. SBLP 200359 Algebraic or abstract type? data Tr a = Leaf a | Node a (Tr a) (Tr a) Tr Leaf Node flatten :: Tr a -> [a] flatten (Leaf x) = [x] flatten (Node s t) = flatten s ++ flatten t

60. SBLP 200360 Algebraic or abstract type? data Tr a = Leaf a | Node a (Tr a) (Tr a) isLeaf = … isNode = … … Tr isLeaf isNode leaf left right mkLeaf mkNode flatten :: Tr a -> [a] flatten t | isleaf t = [leaf t] | isNode t = flatten (left t) ++ flatten (right t)

61. SBLP 200361 Algebraic or abstract type?  Pattern matching syntax is more direct … … but can achieve a considerable amount with field names. Other reasons? Simplicity (due to other refactoring steps?).  Allows changes in the implementation type without affecting the client: e.g. might memoise Problematic with a primitive type as carrier. Allows an invariant to be preserved.

62. SBLP 200362 Outside or inside? data Tr a = Leaf a | Node a (Tr a) (Tr a) isLeaf = … … Tr isLeaf isNode leaf left right mkLeaf mkNode flatten :: Tr a -> [a] flatten t | isleaf t = [leaf t] | isNode t = flatten (left t) ++ flatten (right t)

63. SBLP 200363 Outside or inside? data Tr a = Leaf a | Node a (Tr a) (Tr a) isLeaf = … … flatten = … Tr isLeaf isNode leaf left right mkLeaf mkNode flatten

64. SBLP 200364 Outside or inside?  If inside and the type is reimplemented, need to reimplement everything in the signature, including flatten. The more outside the better, therefore.  If inside can modify the implementation to memoise values of flatten, or to give a better implementation using the concrete type. Layered types possible: put the utilities in a privileged zone.

65. SBLP 200365 Replace function by constructor data Expr = Star Expr | Then Expr Expr | … plus e = Then e (Star e)  plus is just syntactic sugar; reduce the number of cases in definitions. [Character range is a better example.] data Expr = Star Expr | Plus Expr | Then Expr Expr | …  Can treat Plus differently, e.g. literals (Plus e) = literals e but require each function over Expr to have a Plus clause.

66. SBLP 200366 Other examples... Modify the return type of a function from T to Maybe T, Either T T' or [T]. Would be nice to have field names in Prelude types. Add an argument; (un)group arguments; reorder arguments. Move to monadic presentation: important case study. Flat or layered datatypes ( Expr : add BinOp type). Various possibilities for error handling/exceptions. … Tableau case study.

67. SBLP 200367 Change of user interface Refactor the existing text-based application … … so that it can have textual or graphical user interface.

68. SBLP 200368 Changing functionality? The aim is not to change functionality … … or at least not required functionality. What level of behaviour is visible? May change incidental properties … … cf legacy systems: preserve their essential properties but not their accidental ones.

69. SBLP 200369 Other uses of refactoring Understand someone else’s code … … make it your own. Learning a language: learn how you could modify the programs that you have written … … appreciate the design space.

70. SBLP 200370 Conclusions Refactoring + functional programming: good fit. Stresses the type system: generic traversal … Practical tool … not ‘yet another type tweak’. Leverage from available libraries … with work. We are eager to use the tool in building itself!

71. SBLP 200371 Understanding: semantic tableaux Take a working semantic tableau system written by an anonymous 2nd year student … … refactor to understand its behaviour. Nine stages of unequal size. Reflections afterwards.

72. SBLP 200372 An example tableau  ( (A  C)  ((A  B)  C) )  ((A  B)  C) (A  C)  C AA  (A  B)  C   AB Make B True Make A and C False

73. SBLP 200373 v1: Name types Built-in types [Prop] [[Prop]] used for branches and tableaux respectively. Modify by adding type Branch = [Prop] type Tableau = [Branch] Change required throughout the program. Simple edit: but be aware of the order of substitutions: avoid type Branch = Branch

74. SBLP 200374 v2: Rename functions Existing names tableaux removeBranch remove become tableauMain removeDuplicateBranches removeBranchDuplicates and add comments clarifying the (intended) behaviour. Add test datum. Discovered some edits undone in stage 1. Use of the type checker to catch errors. test will be useful later?

75. SBLP 200375 v3: Literate  normal script Change from literate form: Comment … > tableauMain tab > =... to -- Comment … tableauMain tab =... Editing easier: implicit assumption was that it was a normal script. Could make the switch completely automatic?

76. SBLP 200376 v4: Modify function definitions From explicit recursion: displayBranch :: [Prop] -> String displayBranch [] = [] displayBranch (x:xs) = (show x) ++ "\n" ++ displayBranch xs to displayBranch :: Branch -> String displayBranch = concat. map (++"\n"). map show More abstract … move somewhat away from the list representation to operations such as map and concat which could appear in the interface to any collection type. First time round added incorrect (but type correct) redefinition … only spotted at next stage. Version control: undo, redo, merge, … ?

77. SBLP 200377 v5: Algorithms and types (1) removeBranchDup :: Branch -> Branch removeBranchDup [] = [] removeBranchDup (x:xs) | x == findProp x xs = [] ++ removeBranchDup xs | otherwise = [x] ++ removeBranchDup xs findProp :: Prop -> Branch -> Prop findProp z [] = FALSE findProp z (x:xs) | z == x = x | otherwise = findProp z xs

78. SBLP 200378 v5: Algorithms and types (2) removeBranchDup :: Branch -> Branch removeBranchDup [] = [] removeBranchDup (x:xs) | findProp x xs = [] ++ removeBranchDup xs | otherwise = [x] ++ removeBranchDup xs findProp :: Prop -> Branch -> Bool findProp z [] = False findProp z (x:xs) | z == x = True | otherwise = findProp z xs

79. SBLP 200379 v5: Algorithms and types (3) removeBranchDup :: Branch -> Branch removeBranchDup = nub findProp :: Prop -> Branch -> Bool findProp = elem

80. SBLP 200380 v5: Algorithms and types (4) removeBranchDup :: Branch -> Branch removeBranchDup = nub Fails the test ! Two duplicate branches output, with different ordering of elements. The algorithm used is the 'other' nub algorithm, nubVar : nub [1,2,0,2,1] = [1,2,0] nubVar [1,2,0,2,1] = [0,2,1] The code is dependent on using lists in a particular order to represent sets.

81. SBLP 200381 v6: Library function to module Add the definition: nubVar = … to the module ListAux.hs and replace the definition by import ListAux Editing easier: implicit assumption was that it was a normal script. Could make the switch completely automatic?

82. SBLP 200382 v7: Housekeeping Remanings: including foo and bar and contra (becomes notContra ). An instance of filter, looseEmptyLists is defined using filter, and subsequently inlined. Put auxiliary function into a where clause. Generally cleans up the script for the next onslaught.

83. SBLP 200383 v8: Algorithm (1) splitNotNot :: Branch -> Tableau splitNotNot ps = combine (removeNotNot ps) (solveNotNot ps) removeNotNot :: Branch -> Branch removeNotNot [] = [] removeNotNot ((NOT (NOT _)):ps) = ps removeNotNot (p:ps) = p : removeNotNot ps solveNotNot :: Branch -> Tableau solveNotNot [] = [[]] solveNotNot ((NOT (NOT p)):_) = [[p]] solveNotNot (_:ps) = solveNotNot ps

84. SBLP 200384 v8: Algorithm (2) splitXXX removeXXX solveXXX are present for each of nine rules. The algorithm applies rules in a prescribed order, using an integer value to pass information between functions. Aim: generic versions of split remove solve Have to change order of rule application … … which has a further effect on duplicates. Add map sort to top level pipeline prior to duplicate removal.

85. SBLP 200385 v9: Replace lists by sets. Wholesale replacement of lists by a Set library. mapmapSet foldrfoldSet (careful!) filterfilterSet The library exposes the representation: pick, flatten. Use with discretion … further refactoring possible. Library needed to be augmented with primRecSet :: (a -> Set a -> b -> b) -> b -> Set a -> b

86. SBLP 200386 v9: Replace lists by sets (2) Drastic simplification: no need for explicit worries about … ordering and its effect on equality, … (removal of) duplicates. Difficult to test whilst in intermediate stages: the change in a type is all or nothing … … work with dummy definitions and the type checker. Further opportunities: … why choose one rule from a set when could apply to all elements at once? Gets away from picking on one value (and breaking the set interface).

87. SBLP 200387 Conclusions of the case study Heterogeneous process: some small, some large. Are all these stages strictly refactorings: some semantic changes always necessary too? Importance of type checking for hand refactoring … … and testing when any semantic changes. Undo, redo, reordering the refactorings … CVS. In this case, directional … not always the case.
