1 A Customizable k-Anonymity Model for Protecting Location Privacy Written by: B. Gedik, L.Liu Presented by: Tal Shoseyov

2 Agenda Introduction: Data Privacy & Anonymity k-Anonymity & location k-Anonymity Previous models The CliqueCloak Theorem The CliqueCloak Algorithm Different CliqueCloak variations

3 Our Key Players Client – a user with network access and a customer Database – An application that manages data by records (for example, an LBS (Location Based Service) contains information on services in specific locations. Server – A computer that receives requests from a client and passes them on to the requested service. Record – A data unit on the database that contains information by attributes (name, age, color, …) Subject – A person / organization that is associated to a record in a database (a hospital patient, a company’s employee, a customer, …)

4 Client – Database Workflow Message 1 from 10.0.0.1 to 10.0.0.99: Retrieve record from T where “color”=“red” Client (10.0.0.1) Server (10.0.0.99) Database (T) Message 1 from 10.0.0.99 to 10.0.0.1: Reply: Query: Select “record” from T where “color” = “red” Reply:

5 The Database Privacy Problem “How can a client efficiently retrieve a record from an untrusted database without having the database know information about the record in question?” Client Server Database Query: Retrieve record from T where “color”=“red” Play 1: ! Play 2: Query: Retrieve record from T where “color”=“any” ? Reply:

6 The Subject Anonymity Problem “How can a database prevent untrusted clients from identifying the subject of a record, while the contents of the record remain useful to the user?” Client Server Database = Query: Retrieve record from T where “sex”= and “salary” = Reply: Play 1: Play 2: Reply: ?

7 The Location Based Service Workflow Client Server LBS Database (Location Based Service) Request: Retrieve all available services in client’s location Forward to local service: Retrieve all available services in location Reply:

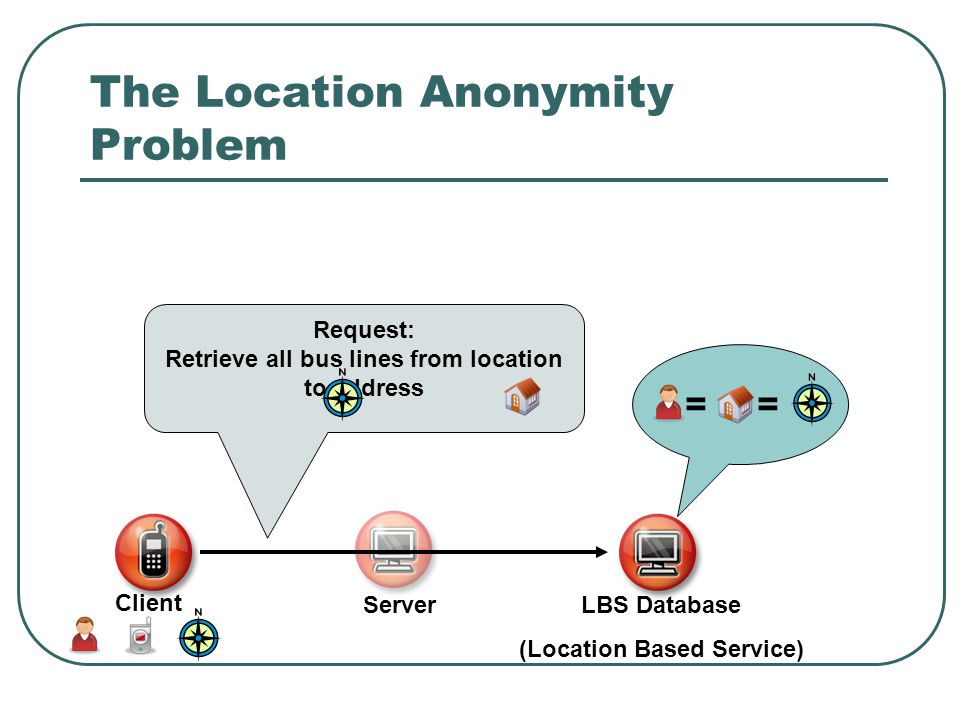

8 The Location Anonymity Problem Client Server LBS Database (Location Based Service) Request: Retrieve all bus lines from location to address ==

9 Anonymity “A message from a database to a client is called anonymous if the subject of the message cannot be distinguished from other subjects.” Client Database

10 Location Anonymity “A message from a client to a database is called location anonymous if the client’s identity cannot be distinguished from other users based on the client’s location information.” Database

11 k-Anonymity “A message from a database to a client is called subject k-anonymous if the subject of the message cannot be distinguished from other k-1 subjects.” “A message from a client to a database is called location k-anonymous if the client cannot be identified by the database based on the client’s location from other k-1 clients.”

12 Implementation of Location Anonymity Client sends plain request to the server Server sends “anonymized” message Database executes request according to the received anonymous data Database replies to server with compiled data Server forwards data to client Server transforms the message by “anonymizing” the location data in the message

13 Implementation of Location k- Anonymity Spatial Cloaking – Setting a range of space to be a single box, where all clients located within the range are said to be in the “same location”. x y Temporal Cloaking – Setting a time interval, where all the clients in a specific location sending a message in that time interval are said to have sent the message in the “same time”. t

14 Implementation of Location k- Anonymity x y t Spatial-Temporal Cloaking – Setting a range of space and a time interval, where all the messages sent by client inside the range in that time interval. This spatial and temporal area is called a “cloaking box”.

15 Previous solutions M. Gruteser, D Grunwald (2003) – For a fixed k value, the server finds the smallest area around the client’s location that potentially contains k-1 different other clients, and monitoring that area over time until such k-1 clients are found. Drawback: Fixed anonymity value for all clients (service dependent)

16 The CliqueCloak Approach Motivation: Separate Anonymity values for each separate message – Each client can decide for himself the level of anonymity (k) for his message. Preventing useless information from being sent to the client – Limiting the spatial area and providing a time limit, after which the message becomes expired.

17 The CliqueCloak Approach Definitions:Constraint Area: For a message m, a constraint area is a spatial-temporal area that contains the sending client’s location. A client sends his message along with a constraint area to prevent the database from sending the client useless information on locations outside the constraint area. x y m k=3

18 The CliqueCloak Approach Definitions: m 2 k=3 m 1 k=2 m 4 k=3 x y Cloaking Box: A spatial and temporal area assigned to a transformed message. A valid cloaking box must comply to the following conditions: 1. The client that sent the message m is located in the cloaking box 2. The number of different clients inside the cloaking box must be at least m.k (the anonymity level of the message). 3. The cloaking box must be included inside the message’s constraint area.

19 The CliqueCloak Approach Constraint Graph: Each mobile node is a vertice in the graph, and 2 nodes are connected iff each of them is inside the other node’s constraint area. x y m 2 k=3 m 1 k=2 m 3 k=2 m 4 k=3 Definitions: An l-clique in that graph such that l ≥ m i.k for each i is mapped by the algorithm to a spatial cloaking box, where all messages in the clique will be transformed using the cloaking box, making each of the messages’ senders indistinguishable from one another. Approach:

20 The CliqueCloak Theorem Definitions: A plain message (from client to server) m consists of: m.u id = Unique identifier of the sender m.r no = Message’s reference number P(m) = Message’s spatial point (e.g. the client’s current location). B(m) = Message’s spatial constraint area m.t = Message’s temporal constraint (expiration time) m.C = Message’s content m.k = Message’s anonymity level

21 The CliqueCloak Theorem Definitions: A transformed message (from server to database) m T consists of: m.u id, m.r no B cl ( m ) = Message’s spatial cloaking box m.C

22 The CliqueCloak Theorem S = the set of original messages T = the set of anonymized messages Definitions:

23 The CliqueCloak Theorem M forms an |M|-clique in G(S,E) M a subset of S (a set of messages from different clients) B cl (M) a spatial cloaking box For each m in M: m.k ≤ |M| For each m in M: m T = Then: For each m in M, m can be transformed into m T Let:

24 The CliqueCloak Theorem Proof: For each m and m’ in M: B cl (M) is in m T and m’ T. → m and m’ are in the same cloaking box B cl (M). → P(m) is in the constraint area of m’ and vice versa (by definition of the constraint area). → There is an edge (m,m’) in G(S,E). → For every pair (m, m’), where m, m’ are in M, the edge (m,m’) is in G(S,E). → M forms a clique in the size of M (|M|).

25 The CliqueCloak Theorem We build B cl (M) as the box with minimal size that contains the locations all |M| clients whose messages are in M. We show that B cl (M) is a valid cloaking box for all messages in M: Condition 1: B cl (M) includes the locations from all messages in M: → True, by definition of B cl (M). Condition 2: For each P(m) in B cl (M) m.k ≤ |M|: → True, by definition of M. Proof:

26 Condition 3: B cl (M) in included inside B(m) for each m in M: For each m and for each n in M, there is an edge (m,n) in G(S,E) → For a given m, P(m) is in B(n) for each n in M. → P(m) is in ∩ n in M B(n) (for every m) → By definition and minimality of B cl (M), B cl (M) is in ∩ n in M B(n). → Bcl(M) is in B(n) for each n in M. → For each m in M, B cl (M) is within the constraint area of m □ Proof:

27 The CliqueCloak Algorithm The Idea: x y t For each plain message, along with its constraints and anonymity level k, we try to find a k-clique in the constraint graph and convert the clique into a spatial cloaking box. Each of the messages inside the cloaking box will be converted into transformed messages, replacing their location values with the cloaking box. We try finding a cloaking box for a message until it is expired (exceeds its temporal constraints).

28 The CliqueCloak Algorithm Input: S = set of plain messages Output: T = a set of transformed messages

29 The CliqueCloak Algorithm while TRUE do pick a message m from S. N ← all messages in range B(m) for each n in N do: if P(m) is in B(n) then: add the edge (m,n) into G M ← local_k_search(m.k, m, G) if M ≠ Ø then B cl (M) ← The minimal area that contains M for each n in M do remove n from S remove n from G n T ← output transformed message n T remove expired messages from S Building constraint graph G Building transformed messages from all messages in M Finding a subset M of S s.t. m is in M, m.k = |M|, for each n in M n.k ≤ |M|, and M forms a clique in G.

30 The CliqueCloak Algorithm local_k_search(k, m, G) U ← { n | (m,n) is an edge in G and n.k ≤ k } if |U| < k-1 then return Ø l ← 0 while l ≠ |U| do l ← |U| for each u in U do if |{G neighbors of u in U}| < k-2 then U ← U \ {u} find any subset M in U s.t. |M| = k-1 and M U {m} forms a clique return M U {m} Find a group U of neighbors to m in G s.t. their anonymity value doesn’t exceed k. Remove members of U with less than k-2 neighbors, that cannot provide us with a (k-1)- clique Look for a k-clique inside U.

31 Alternative CliqueCloak Algorithms NBR-k search Deferred CliqueCloak

32 NBR-k-Search Nbr-k_search(m, G) if there are < m.k-1 neighbors to m in G then return Ø L ← {n.k | n = m or n is a neighbor of m} for all distinct k in L in decreasing order do if k < m.k then return Ø M ← local-k_search(k,m,G) if M ≠ Ø then return M return Ø For a given plain message m, we search for the maximal k value that belongs to m’s neighbor, where local-k_search gives us a valid subset M. No solution for groups with less than m.k members Getting all k values of m’s neighbors Looking for a valid k- clique that includes m Valid set M found with maximal k value No valid set M was found for k ≥ m. k

33 Deffered ClickCloak In order to minimize clique searches for a plain message m, the search is delayed by the server until there are at least α *m.k (with α ≥ 1) neighbors to m in the constraint graph, thus increasing the possibility that a matching cloaking box will be found. ClientServer LBS Client sends message m to server Server waits until there are α*m.k neighbors to m in the constraint graph before looking for a valid cloaking box After finding a valid cloaking box for transforming m, Server sends the transformed message to LBS.

34 Q&AQ&A
