1. Rutgers CS440, Fall 2003 Heuristic search Reading: AIMA 2 nd ed., Ch. 4.1-4.3

2. Rutgers CS440, Fall 2003 (Blind) Tree search so far Strategies: –BFS:fringe = FIFO –DFS:fringe = LIFO Strategies defined by the order of node expansion function TreeSearch (problem, fringe) n = InitialState (problem); fringe = Insert (n); while (1) If Empty (fringe) return failure; n = RemoveFront (fringe); If Goal (problem,n) return n; fringe = Insert ( Expand (problem,n) ); end

3. Rutgers CS440, Fall 2003 Example of BFS and DFS in a maze s0s0 G s0s0 G

4. Rutgers CS440, Fall 2003 Informed searches: best-first search Idea: Add domain-specific information to select the best path to continue searching along. How to do it? –Use evaluation function, f(n), which selects the most “desirable” (best-first) node to expand. –Fringe is a queue sorted in decreasing order of desirability. Ideal case: f(n) = true cost to goal state = t(n) Of course, t(n) is expensive to compute (BFS!) Use an estimate (heuristic) instead

5. Rutgers CS440, Fall 2003 maze example f(n) = straight-line distance to goal 4 s0s0 4 3 3 3 4 2 2 2 3 4 1 1 2 3 G 1 2

6. Rutgers CS440, Fall 2003 Romania example

7. Rutgers CS440, Fall 2003 Greedy search Evaluation function f(n) = h(n) --- heuristic = estimate of cost from n to closest goal Greedy search expands nodes that appear to be closest to goal

8. Rutgers CS440, Fall 2003 Example of greedy search Arad h = 366 Sibiu h = 253 Timisoara h = 329 Zerind h = 374 Arad h = 366 Fagaras h = 176 Oradea h = 380 Rimnicu V. h = 193 Sibiu h = 253 Bucharest h = 0 Arad h = 366 Sibiu h = 253 Fagaras h = 176 Bucharest h = 0 Is this the optimal solution?

9. Rutgers CS440, Fall 2003 Properties of greedy search Completeness: –Not complete, can get stuck in loops, e.g., Iasi -> Neamt -> Iasi -> Neamt -> … –Can be made complete in finite spaces with repeated-state checking Time complexity: –O(b m ), but good heuristic can give excellent improvement Space complexity: –O(b m ), keeps all nodes in memory Optimality: –No, can wander off to suboptimal goal states

10. Rutgers CS440, Fall 2003 A-search Improve greedy search by discouraging wandering-off f(n) = g(n) + h(n) g(n) = cost of path to reach node n h(n) = estimated cost from node n to goal node f(n) = estimated total cost through node n Search along most promising path, not node Is A-search optimal?

11. Rutgers CS440, Fall 2003 Optimality of A-search Theorem: Let h(n) be at most  higher than t(n), for all n. Than, the A- search will be at most  “steps” longer than the optimal search. Proof: If n is a node on the path found by A-search, then f(n) = g(n) + h(n)  g(n) + t(n) +  = optimal + 

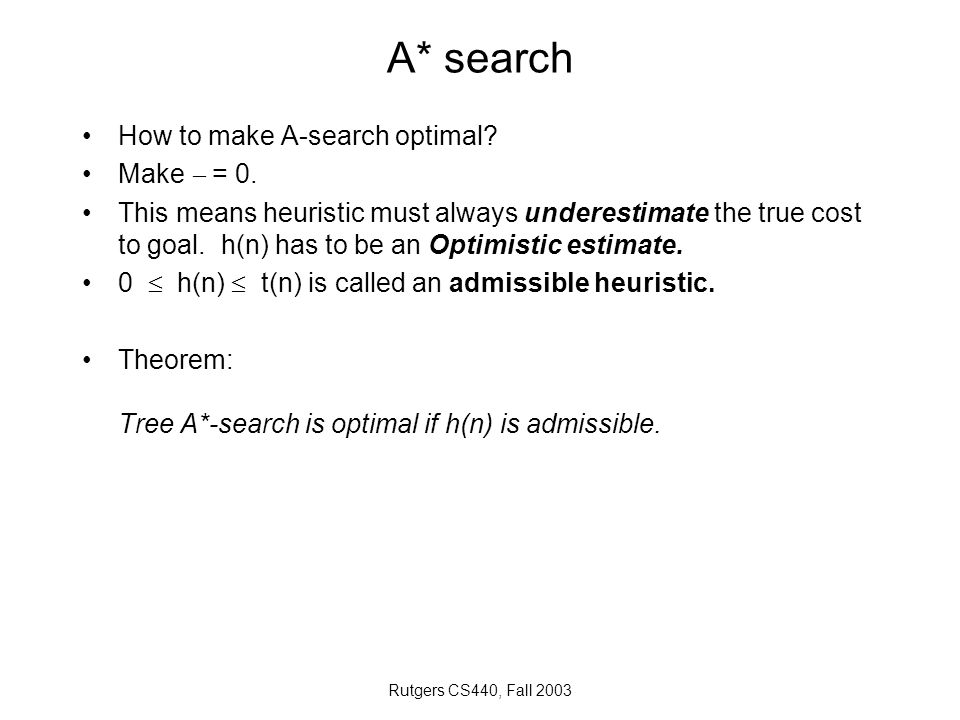

12. Rutgers CS440, Fall 2003 A* search How to make A-search optimal? Make  = 0. This means heuristic must always underestimate the true cost to goal. h(n) has to be an Optimistic estimate. 0  h(n)  t(n) is called an admissible heuristic. Theorem: Tree A*-search is optimal if h(n) is admissible.

13. Rutgers CS440, Fall 2003 Example of A* search Sibiu 393 = 140+253 Timisoara 477 = 118+329 Zerind 449 = 75+374 Arad 646 = 280+366 Fagaras 415 = 239+176 Oradea 671 = 291+380 Rimnicu V. 413 = 220+193 Craiova 526 = 366+160 Sibiu 553 = 300+253 Pitesti 417 = 317+100 Bucharest 450 = 450+0 Sibiu 591 = 338+253 Rimnicu V. 607 = 414+193 Craiova 615 = 455+160 Bucharest f = 418+0 Arad h = 366 Arad Sibiu Pitesti Fagaras Bucharest f = 418+0 Rimnicu V.

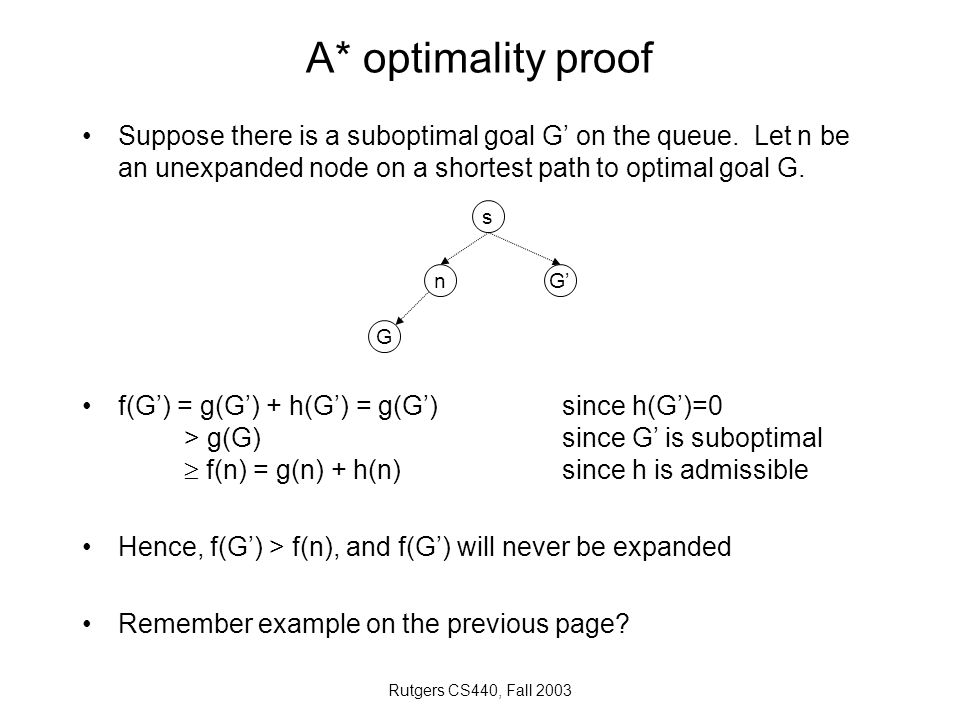

14. Rutgers CS440, Fall 2003 A* optimality proof Suppose there is a suboptimal goal G’ on the queue. Let n be an unexpanded node on a shortest path to optimal goal G. s G’n G f(G’) = g(G’) + h(G’) = g(G’)since h(G’)=0 > g(G)since G’ is suboptimal  f(n) = g(n) + h(n)since h is admissible Hence, f(G’) > f(n), and f(G’) will never be expanded Remember example on the previous page?

15. Rutgers CS440, Fall 2003 Consistency of A* Consistency condition: h(n) - c(n,n’)  h(n’)where n’ is any successor of n Guarantees optimality of graph search (remember, the proof was for tree search!) Also called monotonicity: f(n’) = g(n’) + h(n’) = g(n) + c(n,n’) + h(n’)  g(n) + h(n) = f(n) f(n’)  f(n) f(n) is monotonically non-decreasing

16. Rutgers CS440, Fall 2003 Example of consistency/monotonicity A* expands nodes in order of increasing f-value Adds “f-contours” of nodes BFS adds layers

17. Rutgers CS440, Fall 2003 Properties of A* Completeness: –Yes (for finite graphs) Time complexity: –Exponential in | h(n) - t(n) | x length of solution Memory requirements: –Keeps all nodes in memory Optimal: –Yes

18. Rutgers CS440, Fall 2003 Admissible heuristics h(n) Straight-line distance for the maze and Romanian examples 8-puzzle: –h 1 (n) = number of misplaced tiles –h 2 (n) = number of squares from desired location of each tile (Manhattan distance) h1(S) = 7 h2(S) = 4+0+3+3+1+0+2+1 = 14

19. Rutgers CS440, Fall 2003 Dominance If h 1 (n) and h 2 (n) are both admissible and h 1 (n)  h 2 (n), then h 2 (n) dominates over h 1 (n) Which one is better for search? –h 2 (n), because it is “closer” to t(n) Typical search costs d = 14,IDS = 3,473,941 nodes A*(h 1 ) = 539 A*(h 2 ) = 113 d = 24,IDS ~ 54 billion nodes A*(h 1 ) = 39135 A*(h 2 ) = 1641

20. Rutgers CS440, Fall 2003 Relaxed problems How to derive admissible heuristics? Can be derived from exact solutions to problems that are “simpler” (relaxed) versions of the problem one is trying to solve Examples: –8-puzzle: Tile can move anywhere from initial position (h 1 ) Tiles can occupy same square but have to move one square at a time (h 2 ) –maze: Can move any distance and over any obstacles Important: The cost of optimal solution to relaxed problems is no greater than the optimal solution to the real problem.

21. Rutgers CS440, Fall 2003 Local search In many problems one does not care about the path, rather one wants to find the goal state (based on a goal condition). Use local search / iterative improvement algorithms: –Keep a single “current” state, try to improve it.

22. Rutgers CS440, Fall 2003 Example N-queens problem: from initial configuration move to other configurations such that the number of conflicts is reduced

23. Rutgers CS440, Fall 2003 Hill-climbing Gradient ascent / descent Goal: n* = arg max Value( n ) function HillClimbing (problem) n = InitialState (problem); while (1) neighbors = Expand (problem,n); n* = arg max Value (neighbors); If Value (n*) < Value (n), return n; n = n*; end

24. Rutgers CS440, Fall 2003 Hill climbing (cont’d) Problem: Depending on initial state, can get stuck in local maxima (minima), ridges, plateaus

25. Rutgers CS440, Fall 2003 Beam search Problem of local minima (maxima) in hill-climbing can be alleviated by starting HC from multiple random starting points Or make it stochastic (Stochastic HC) by choosing successors at random, based on how “good” they are Local beam search: somewhat similar to random-restart HC: –Start from N initial states. –Expand all N states and keep N best successors. Stochastic beam search: stochastic version of LBS, similar to SHC.

26. Rutgers CS440, Fall 2003 Simulated annealing Idea: –Allow bad moves, initially more, later fewer –Analogy with annealing in metallurgy function SimulatedAnnealing (problem,schedule) n = InitialState (problem); t = 1; while (1) T = schedule(t); neighbors = Expand (problem,n); n’ = Random (neighbors);  V = Value (n’) - Value (n); If  V > 0, n* = n; Else n* = n’ with probability exp (  V/T); t = t + 1; end

27. Rutgers CS440, Fall 2003 Properties of simulated annealing At fixed temperature T, state occupation probability reaches Boltzman distribution, exp( V(n)/T ) Devised by Metropolis et al. in 1953

28. Rutgers CS440, Fall 2003 Genetic algorithms
