1. 1 Chapter 5 Concurrency

2. 2 Concurrency

3. 3

4. 4 Mutual Exclusion: Hardware Support Test and Set Instruction boolean testset (int *i) { if (*i == 0) { *i = 1; return true; } else { return false; }

5. 5 Mutual Exclusion: Hardware Support Exchange Instruction void exchange(int *register, int *memory) { int temp; temp = *memory; *memory = *register; *register = temp; }

6. 6 Mutual Exclusion

7. 7 Semaphore Primitives

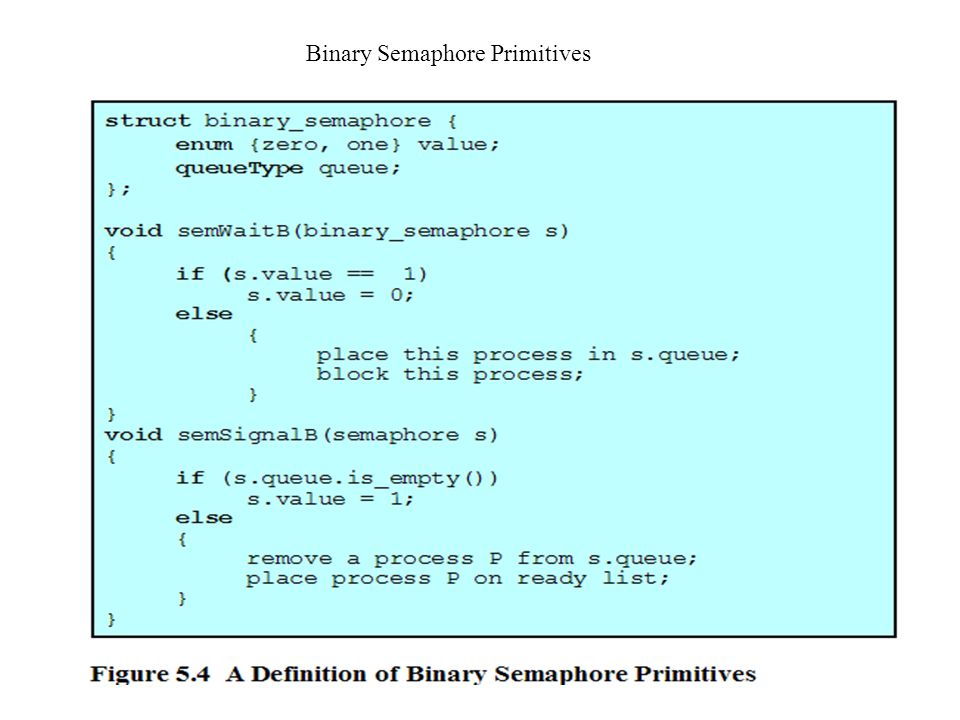

8. 8 Binary Semaphore Primitives

9. 9 Mutual Exclusion Using Semaphores

10. 10

11. 11

12. 12 Producer/Consumer Problem

13. 13 Producer producer: while (true) { /* produce item v */ b[in] = v; in++; }

14. 14 Consumer consumer: while (true) { while (in <= out) /*do nothing */; w = b[out]; out++; /* consume item w */ }

15. 15

16. 16

17. 17 Producer with Circular Buffer producer: while (true) { /* produce item v */ while ((in + 1) % n == out) /* do nothing */; b[in] = v; in = (in + 1) % n }

18. 18

19. 19 Readers/Writers Problem Any number of readers may simultaneously read the file Only one writer at a time may write to the file If a writer is writing to the file, no reader may read it

20. 20

21. 21
