Tag line, tag line N series Integrated Data Protection George Mobargha Technical Partner Manager IBM Global Alliance
© 2010 N series. All rights reserved. 22 What Is Data Protection? Often viewed as: Complex set of processes In need of change, especially with the emergence of virtualization Cost center What it really is: Services that keep the business running Recover lost or corrupted data Fulfill compliance regulations Data protection?
© 2010 N series. All rights reserved. 3 Traditional Data Protection Costly Multiple, specialized devices to buy and scale Expensive software licensing Complex Time consuming to deploy Multiple management silos Multiple vendors & support contracts Challenging Backup and recovery times are too long DR failover is hard / expensive to test Most products not well suited to secure multi-tenancy needs of IT as a Service / cloud Multiple Agents DR Servers & Storage Backup Storage Backup Servers Compliance Storage Archive Servers Dedupe Appliances

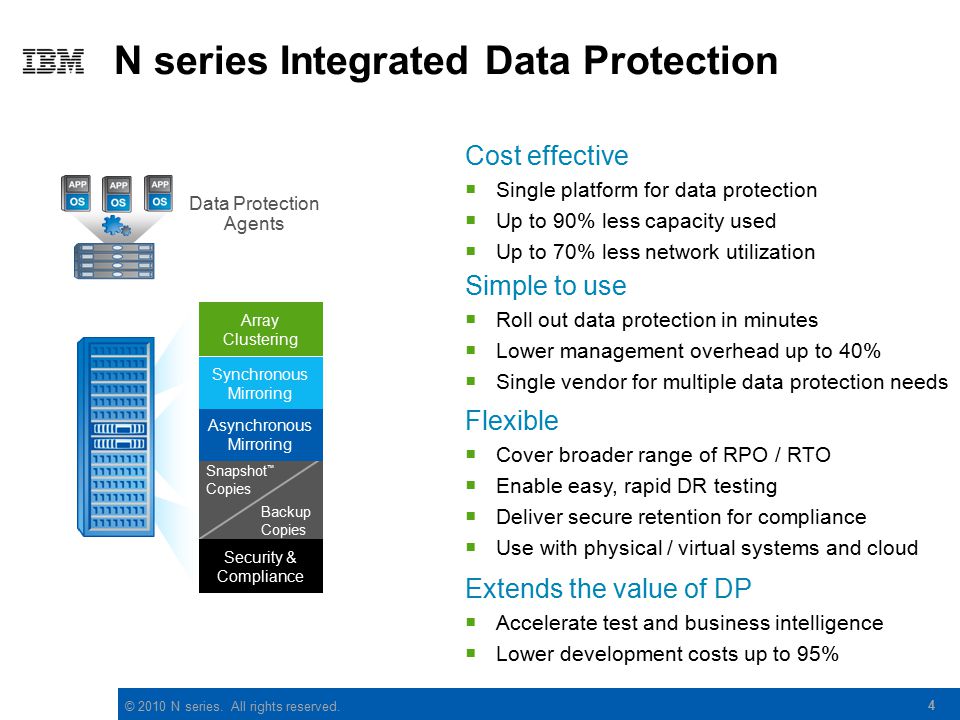

© 2010 N series. All rights reserved. 4 N series Integrated Data Protection Cost effective Single platform for data protection Up to 90% less capacity used Up to 70% less network utilization Simple to use Roll out data protection in minutes Lower management overhead up to 40% Single vendor for multiple data protection needs Flexible Cover broader range of RPO / RTO Enable easy, rapid DR testing Deliver secure retention for compliance Use with physical / virtual systems and cloud Extends the value of DP Accelerate test and business intelligence Lower development costs up to 95% Data Protection Agents Backup Copies Snapshot ™ Copies Asynchronous Mirroring Synchronous Mirroring Array Clustering Security & Compliance
© 2010 N series. All rights reserved. 5 Foundation – Storage Efficiency The Effect of N series ® Storage Efficiency Efficient hardware architecture Increased storage density Better system performance Advanced software capabilities Storage virtualization Data reduction Minimizes capacity, data footprint Native and extensible Standard with every N series system Built into OnTap operating system Benefits extend to HA, DR and backup as well as archive and compliance SATA Drives FlashCache RAID-DP ® Thin Provisioning Snapshot ™ Technology Deduplication Thin Replication FlexClone
© 2010 N series. All rights reserved. Foundation – Snapshot Copies Data blocks Snapshot Copy 1 Snapshot Copy 2 ABCC’D Snapshot Copy 3 LUN / Active File System Primary Storage 6 Point-in-time copies Allow rapid recovery to older copy of data Only consume space of incremental data Store 100s per data set High performance, low impact Snapshot copies are pointers to data – do not require movement of data Create and restore in seconds Minimal to no performance impact even as number of snapshot copies increases
© 2010 N series. All rights reserved. Foundation – Snapshot Copies Data blocks Snapshot Copy 1 Snapshot Copy 2 ABCC’D Snapshot Copy 3 LUN / Active File System Primary Storage 7 Point-in-time copies Allow rapid recovery to older copy of data Only consume space of incremental data Store 100s per data set High performance, low impact Snapshot copies are pointers to data – do not require movement of data Create and restore in seconds Minimal to no performance impact even as number of snapshot copies increases Quick and simple recovery Single command to revert back to any available snapshot
© 2010 N series. All rights reserved. Foundation - Application Consistency 8 SnapManagers Create application consistent Snapshot copies Vmware/Hyper-V Exchange MS SQL Oracle SharePoint SAP Enable local or remote verification of data Allow faster, simplified restore Provide application specific features Reside on client and interface with application App / Virtualization Integration App. Consistent Snapshot copies
© 2010 N series. All rights reserved. Foundation – Data Immutability Satisfy compliance requirements Write Once Read Many (WORM) capable SEC 17a-4 compliant Tamperproof time reference Un-trusted (Compliance) and Trusted Administrator (Enterprise) Editions Provide increased configuration control File and volume level retention policies Single unit can have compliance and general storage volume Supports V-Series for 3 rd party storage 9 Content Store w/ Individual locked files Compliance Content Volume
© 2010 N series. All rights reserved. Replication Operations 10 Flexible Varying RPO and RTO FAS, V-Series and N-Series models Different disk types and protocols Bi-directional, cascade and many to many Efficient Snapshot based, replicates only block-level changes Maintains deduplication for efficiency* Integrated native compression* Easy to use Deploy and run in minutes Simple restore and failover processes End-user directed file recovery Application Integration V-Series
© 2010 N series. All rights reserved. C’ D Snapshot Copy 1 ABC Replication Operations Data blocks Data Protection Storage Snapshot Copy1 ABC Snapshot Copy 2 Snapshot Copy 3 LUN / Active File System Primary Storage 1 Transfer only incremental changes 2 Store only incremental changes 3 Recreate full copy of data Baseline transfer 11 Replication Snapshot Copy 2 D Snapshot Copy 3
© 2010 N series. All rights reserved. N series Data Protection Portfolio Availability Cost SnapMirror ® Async SnapMirror ® Async MetroCluster SnapMirror ® Sync SnapMirror ® Sync SnapVault ® 12 Disaster Recovery Continuous Availability Local Backup Snapshot™ Copies Snapshot™ Copies SnapLock Remote Backup Compliance Data Protection Functionality
© 2010 N series. All rights reserved. MetroCluster for Continuous Availability Near zero RTO and zero RPO Storage level clustering Aggregate level mirroring of I/O Single command automated site failover Optional Automatic site failover Enables clustering beyond data center 500m and 100km configurations Storage failover without scripting or reliance on host clustering Extends benefit of storage efficiency Supports deduplication on both nodes Use with V-Series for 3 rd party storage MetroCluster Implement in a single data center or across metropolitan area 13
© 2010 N series. All rights reserved. SnapMirror for Disaster Recovery 14 DR Primary Data Center Snapshot ™ Copies Satisfy broad set of RPOs Sync: Zero RPO, up to 200km Semi-Sync: Near-zero RPO; 500km Async RPO mins – hours, long distance Replicates Snapshot copies for multiple RPOs Flexible configuration support Different models and disk types Many to many 3 node DR (sync and async together) Extends benefits of storage efficiency Up to 90% less capacity required DR data stays deduplicated Uses network compression transferring up to 70% less data to reduce costs / accelerate RPO DR Site Compressed data transfer
© 2010 N series. All rights reserved. SnapVault for Backup and Recovery 15 Satisfy tighter backup SLAs Transfers only changed blocks Allows for different retentions on primary system and secondary system Increases success by reducing use of tape Flexible configuration support Remote office backup to eliminate tape at edge and centralize management SnapMirror to another system for offsite DR Supports 3 rd party storage with OSSV and 3 rd party applications Extends benefit of storage efficiency Incrementals forever Deduplication integrated with SnapVault target Years of backups Days – weeks of backups SnapVault ® Open Systems SnapVault
© 2010 N series. All rights reserved. 16 Extended Value with FlexClone volumes Create virtual copies of data –Create in minutes on primary or secondary –Require near zero capacity to create –No impact to production performance or data protection processes Use for other business purposes –DR strategy & failover process testing –Application upgrade or patch testing –Parallel product development –Perform Business Intelligence and mine sales data to refine go-to-market strategy Test and Development Data Mining DR Testing
© 2010 N series. All rights reserved. Archive and ECM 17 Improve capacity utilization Leverages entire storage efficiency suite Up to 50% storage reduction for FileNet P8 Up to 80% storage reduction for Enterprise Vault ™ 8.0 Increase performance Two times or more faster than competing solutions Improves recovery time with consistency points Integrate data protection Enables ‘hot backup’ for ECM Simplifies and speeds up backup and DR Leverages SnapLock for compliance Secondary (SATA) Primary (FC) Index DB Content Store Compliance Content Store Archive/ECM Application Remote backup and DR Local hot-backups
© 2010 N series. All rights reserved. 18 Big Picture – One Platform, Many Uses DR Site Primary Data Center Snapshot ™ Copies Continuous Availability Application Agents Remote Office Manage and Monitor Clone for Dev/Test SnapMirror SnapVault Archive Application SnapLock OSSV
© 2010 N series. All rights reserved. 19 N series Integrated Data Protection Cost effective Single platform for data protection Up to 90% less capacity used Up to 70% less network utilization Simple to use Roll out data protection in minutes Lower management overhead up to 40% Single vendor for multiple data protection needs Flexible Cover broader range of RPO / RTO Enable easy, rapid DR testing Deliver secure retention for compliance Use with physical / virtual systems and cloud Extends the value of DP Accelerate test and business intelligence Lower development costs up to 95%
© 2010 N series. All rights reserved. 20 Thank You 20 © Copyright 2010 N series, Inc. All rights reserved. No portions of this document may be reproduced without prior written consent of N series, Inc. Specifications are subject to change without notice. N series, the N series logo, Go further, faster, SnapMirror, Snapshot, and SnapVault are trademarks or registered trademarks of N series, Inc. in the United States and/or other countries. Active Directory, Windows, SQL Server, Microsoft, and SharePoint are registered trademarks of Microsoft Corporation. Linux is a registered trademark of Linus Torvalds. UNIX is a registered trademark of The Open Group. Enterprise Vault is a trademark of Symantec Corporation. Oracle is a registered trademark of Oracle Corporation. VMware is a registered trademark of VMware, Inc. All other brands or products are trademarks or registered trademarks of their respective holders and should be treated as such.
