1 ECE C03 Lecture 91 Lecture 9 Registers, Counters and Shifters Hai Zhou ECE 303 Advanced Digital Design Spring 2002

2 ECE C03 Lecture 92 Outline Registers Register Files Counters Designs of Counters with various FFs Shifters READING: Katz 7.1, 7.2, 7.4, 7.5, 4.7 Dewey 10.2, 10.3, 10.4, Hennessy-Patterson B26

3 ECE C03 Lecture 93 Building Complex Memory Elements Flipflops: most primitive "packaged" sequential circuits More complex sequential building blocks: Storage registers, Shift registers, Counters Available as components in the TTL Catalog How to represent and design simple sequential circuits: counters Problems and pitfalls when working with counters: Start-up States Asynchronous vs. Synchronous logic

4 ECE C03 Lecture 94 Registers Storage unit. Can hold an n-bit value Composed of a group of n flip-flops –Each flip-flop stores 1 bit of information Normally use D flip-flops D Q Dff clk D Q Dff clk D Q Dff clk D Q Dff clk

5 ECE C03 Lecture 95 Controlled Register D Q Dff clk D Q Dff clk D Q Dff clk D Q Dff clk

6 ECE C03 Lecture 96 Registers Group of storage elements read/written as a unit 4-bit register constructed from 4 D FFs Shared clock and clear lines TTL 74171 Quad D-type FF with Clear (Small numbers represent pin #s on package) Schematic Shape

7 ECE C03 Lecture 97 Shift Registers Storage + ability to circulate data among storage elements Shift from left storage element to right neighbor on every lo-to-hi transition on shift signal Wrap around from rightmost element to leftmost element Master Slave FFs: sample inputs while clock is high; change outputs on falling edge Shift Direction \Reset Shift JKJK JKJK JKJK JKJK QQQQ QQQQ QQQQ QQQQ Q1 Q2 Q3 Q4

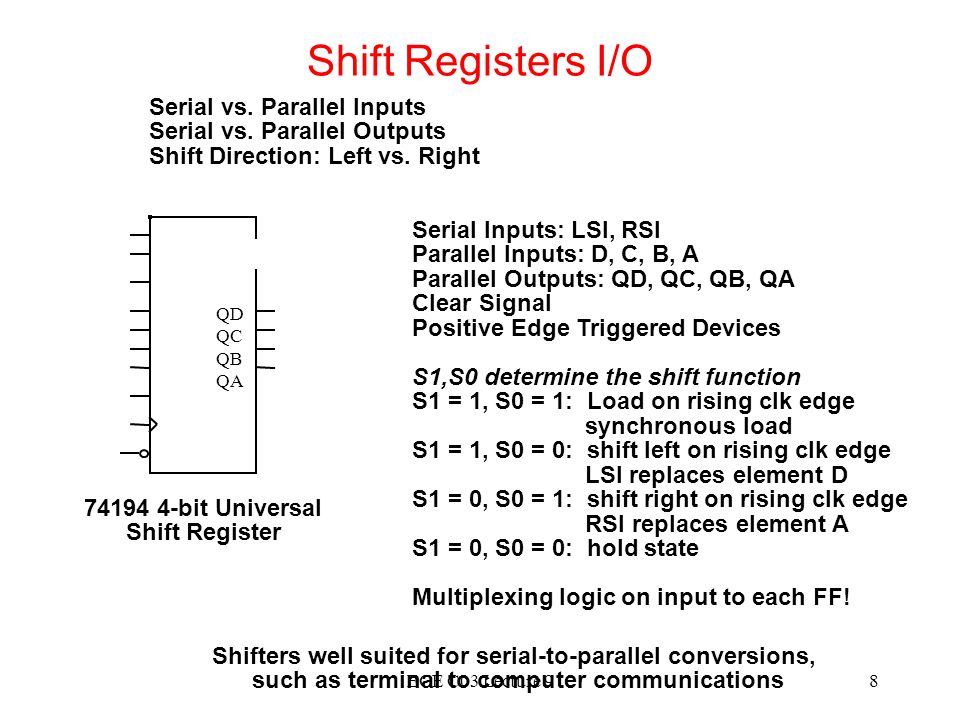

8 ECE C03 Lecture 98 Shift Registers I/O Serial vs. Parallel Inputs Serial vs. Parallel Outputs Shift Direction: Left vs. Right 74194 4-bit Universal Shift Register Serial Inputs: LSI, RSI Parallel Inputs: D, C, B, A Parallel Outputs: QD, QC, QB, QA Clear Signal Positive Edge Triggered Devices S1,S0 determine the shift function S1 = 1, S0 = 1: Load on rising clk edge synchronous load S1 = 1, S0 = 0: shift left on rising clk edge LSI replaces element D S1 = 0, S0 = 1: shift right on rising clk edge RSI replaces element A S1 = 0, S0 = 0: hold state Multiplexing logic on input to each FF! Shifters well suited for serial-to-parallel conversions, such as terminal to computer communications QD QC QB QA

9 ECE C03 Lecture 99 Application of Shift Registers Parallel to Serial Conversion QA QB QC QD S1 S0 LSI D C B A RSI CLK CLR QA QB QC QD S1 S0 LSI D C B A RSI CLK CLR D7 D6 D5 D4 Sender D3 D2 D1 D0 QA QB QC QD S1 S0 LSI D C B A RSI CLK CLR QA QB QC QD S1 S0 LSI D C B A RSI CLK CLR Receiver D7 D6 D5 D4 D3 D2 D1 D0 Clock 194 Parallel Inputs Serial transmission Parallel Outputs

10 ECE C03 Lecture 910 Counters Proceed through a well-defined sequence of states in response to count signal 3 Bit Up-counter: 000, 001, 010, 011, 100, 101, 110, 111, 000,... 3 Bit Down-counter: 111, 110, 101, 100, 011, 010, 001, 000, 111,... Binary vs. BCD vs. Gray Code Counters A counter is a "degenerate" finite state machine/sequential circuit where the state is the only output A counter is a "degenerate" finite state machine/sequential circuit where the state is the only output

11 ECE C03 Lecture 911 Counter Design Procedure This procedure can be generalized to implement ANY finite state machine Counters are a very simple way to start: no decisions on what state to advance to next current state is the output Example:3-bit Binary Upcounter 00 0 001001 State Transition Table Flipflop Input Table Decide to implement with Toggle Flipflops What inputs must be presented to the T FFs to get them to change to the desired state bit? This is called "Remapping the Next State Function" Present State Next State Flipflop Inputs C B A C+ B+ A+ TC TB TA 0 0 0 0 0 1 0 0 1 0 0 1 0 1 0 0 1 1 0 1 0 0 1 1 0 0 1 0 1 1 1 0 0 1 1 1 1 0 0 1 0 1 0 0 1 1 0 1 1 1 0 0 1 1 1 1 0 1 1 1 0 0 1 1 1 1 0 0 0 1 1 1

12 ECE C03 Lecture 912 Example Design of Counter K-maps for Toggle Inputs: Resulting Logic Circuit: CB 0001 11 10A 0 1 TA = CB 0001 11 10A 0 1 TB = CB 0001 11 10A 0 1 TC =

13 ECE C03 Lecture 913 Resultant Circuit for Counter K-maps for Toggle Inputs: Resulting Logic Circuit: Timing Diagram: T CLK \Reset Q Q S R QA T CLK Q Q S R QB T CLK Q Q S R QC Count +

14 ECE C03 Lecture 914 More Complex Counter Design Step 1: Derive the State Transition Diagram Count sequence: 000, 010, 011, 101, 110 Step 2: State Transition Table Present State Next State 0 0 0 0 1 0 0 1 0 0 1 1 0 1 1 1 0 1 1 0 1 1 1 0 1 1 0 0 0 0

15 ECE C03 Lecture 915 Complex Counter Design (Contd) Step 1: Derive the State Transition Diagram Count sequence: 000, 010, 011, 101, 110 Step 2: State Transition Table Note the Don't Care conditions Present State Next State 0 0 0 0 1 0 0 0 1 X X X 0 1 0 0 1 1 0 1 1 1 0 1 1 0 0 X X X 1 0 1 1 1 0 1 1 0 0 0 0 1 1 1 X X X

16 ECE C03 Lecture 916 Counter Design (Contd) Step 3: K-Maps for Next State Functions CB 0001 11 10A 0 1 C+ = CB 0001 11 10A 0 1 A+ = CB 0001 11 10A 0 1 B+ =

17 ECE C03 Lecture 917 Counter Design (contd) Step 4: Choose Flipflop Type for Implementation Use Excitation Table to Remap Next State Functions Toggle Excitation Table Remapped Next State Functions Present State Toggle Inputs Q Q+ T 0 0 0 0 1 1 1 0 1 1 1 0 0 0 0 0 1 0 0 0 1 X X X 0 1 0 0 0 1 0 1 1 1 1 0 1 0 0 X X X 1 0 1 0 1 1 1 1 0 1 1 1 X X X C B A TC TB TA

18 ECE C03 Lecture 918 Resultant Counter Design Remapped K-Maps CB 0001 11 10A 0 1 TC CB 0001 11 10A 0 1 TA CB 0001 11 10A 0 1 TB TC = A C + A C = A xor C TB = A + B + C TA = A B C + B C

19 ECE C03 Lecture 919 Resultant Circuit for Complex Counter Resulting Logic: Timing Waveform: 5 Gates 13 Input Literals + Flipflop connections TC T CLK Q Q S R Count T CLK Q Q S R TB C \C BA \B \A TA T CLK Q Q S R \Reset TC TB TA ACAC A \B C \A B C \B C

20 ECE C03 Lecture 920 Implementing Counters with Different FFs Different counters can be implemented best with different FFs Steps in building a counter –Build state diagram –Build state transition table –Build next state K-map Implementing the next state function with different FFs Toggle flip flops best for binary counters Existing CAD software for finite state machines favor D FFs

21 ECE C03 Lecture 921 Implementing 5-state counter with RS FFs Continuing with the 000, 010, 011, 101, 110, 000,... counter example RS Exitation Table Remapped Next State Functions Q+ = S + R Q Present State Next State 0 0 0 0 1 0 X 0 0 1 X 0 0 0 1 X X X X X X X X X 0 1 0 0 1 1 X 0 0 X 0 1 0 1 1 1 0 1 0 1 1 0 0 X 1 0 0 X X X X X X X X X 1 0 1 1 1 0 0 X 0 1 1 0 1 1 0 0 0 0 1 0 1 0 X 0 1 1 1 X X X X X X X X X Q Q+ R S 0 0 X 0 0 1 1 0 1 1 0 X Rmepped next state RC SC RB SB RA SA

22 ECE C03 Lecture 922 Implementation with RS FFs RS FFs Continued RC = A SC = A RB = A B + B C SB = B RA = C SA = B C CB 0001 11 10A 0 1 RC CB 0001 11 10A 0 1 RA CB 0001 11 10A 0 1 RB CB 0001 11 10A 0 1 SC CB 0001 11 10A 0 1 SA CB 0001 11 10A 0 1 SB X X 1 X X 0 0 0 0 X X 1 X X 0 0 1 X X 1 X 0 1 X 0 X X 0 X 1 X 0 X X X 0 X 1 0 1 0 X X X X 0

23 ECE C03 Lecture 923 Implementation With RS FFs Resulting Logic Level Implementation: 3 Gates, 11 Input Literals + Flipflop connections CLK \A R SA C \C Q Q RB \B R S Q Q \B B C SA R S A \A B A C B \C RBSA Q Q Count

24 ECE C03 Lecture 924 Implementing with JK FFs Continuing with the 000, 010, 011, 101, 110, 000,... counter example RS Exitation Table Remapped Next State Functions Q+ = S + R Q Present State Next State Q Q+ J K 0 0 0 X 0 1 1 X 1 0 X 1 1 1 X 0 Rmepped next state JC KC JB KB JA KA 0 0 0 0 1 0 0 X 1 X 0 X 0 0 1 X X X X X X X X X 0 1 0 0 1 1 0 X X 0 1 X 0 1 1 1 0 1 1 X X 1 X 0 1 0 0 X X X X X X X X X 1 0 1 1 1 0 X 0 1 X X 1 1 1 0 0 0 0 X 1 X 1 0 X 1 1 1 X X X X X X X X X

25 ECE C03 Lecture 925 Implementation with JK FFs CB 0001 11 10A 0 1 JC CB 0001 11 10A 0 1 JA CB 0001 11 10A 0 1 JB CB 0001 11 10A 0 1 KC CB 0001 11 10A 0 1 KA CB 0001 11 10A 0 1 KB JC = A KC = A/ JB = 1 KB = A + C JA = B C/ KA = C

26 ECE C03 Lecture 926 Implementation with JK FFs Resulting Logic Level Implementation: 2 Gates, 10 Input Literals + Flipflop Connections CLK J K Q Q A \A C \C KB J K Q Q B \B + J K Q Q JA C A \A B \C Count A C KB JA

27 ECE C03 Lecture 927 Implementation with D FFs Simplest Design Procedure: No remapping needed! DC = A DB = A C + B DA = B C Resulting Logic Level Implementation: 3 Gates, 8 Input Literals + Flipflop connections

28 ECE C03 Lecture 928 Comparison with Different FF Types T FFs well suited for straightforward binary counters But yielded worst gate and literal count for this example! No reason to choose R-S over J-K FFs: it is a proper subset of J-K R-S FFs don't really exist anyway J-K FFs yielded lowest gate count Tend to yield best choice for packaged logic where gate count is key D FFs yield simplest design procedure Best literal count D storage devices very transistor efficient in VLSI Best choice where area/literal count is the key

29 ECE C03 Lecture 929 Summary Registers Register Files Counters Designs of Counters with various FFs NEXT LECTURE: Memory Design READING: Katz 7.6
